Aerogen Solo AG-AS3200 User manual

www.aerogen.com
Please perform a functional test of the Aerogen Solo system
prior to first use or at any time to verify proper operation.
PM157
High Performance Nebulizer
Set-up Guide
02 Adult Nasal High Flow
03 Pediatric Nasal High Flow
04 At the Wye
05
06
Continuous Nebulization
01 Dry Side of the Humidifier
Aerogen Ultra

We are committed to providing every respiratory
clinician, therapist and nurse with the most
up-to-date information on the use & set-up of the
Aerogen Solo.
This handy set-up guide shows the most likely
set-up scenarios you will encounter in the hospital.
If you require any further assistance, please call
us at:
From the USA: [phone]
Worldwide: + 353 91 540400
Thank you,
John Power
CEO Aerogen
[email protected]
Welcome to Aerogen
www.aerogen.com

01 Dry Side of the Humidifier
www.aerogen.com
Press the on/o button on the
Aerogen Controller for 1 second
to select 30 minute mode.
4
Place the Aerogen Solo
firmly into the T-piece.
Insert the Aerogen Solo and
the T-piece on the dry side
of the humidifier.
1
2
Insert medication
into the Aerogen Solo.
3
Aerogen®Solo
AG-AS3200
T-Piece
AG-AS3010
Note: Humidifier parts not supplied by Aerogen.
Consult manufacturer for usage guidelines.
For 6 hour mode with the Aerogen USB Controller
press and hold the on/o button for 3 seconds
from the o position.
For continuous mode with the
Aerogen Pro-X Controller, press
and hold the on/o button for
3 seconds from the o position.

02 Adult Nasal High Flow
www.aerogen.com
22F With
Oxygen Nipple*
Aerogen®Solo
AG-AS3200
T-Piece
AG-AS3010
*Humidifier parts not supplied by Aerogen. Consult manufacturer for usage guidelines.
NOTE: If using large bore tubing please refer to Dry Side of the Humidifier set up.
Place the Aerogen Solo firmly
into the T-piece.
Insert the Aerogen Solo and
the T-piece on the dry side
of the humidifier.
Insert medication into the
Aerogen Solo.
1
2
3
Press the on/o button on the
Aerogen Controller for 1 second
to select 30 minute mode.
For continuous mode with the
Aerogen Pro-X Controller, press
and hold the on/o button for
3 seconds from the o position.
For 6 hour mode with the
Aerogen USB Controller press
and hold the on/o button for
3 seconds from the o position.
4

03 Pediatric Nasal High Flow
www.aerogen.com
Aerogen®Solo
AG-AS3200 Pressure
Relief Valve*
Connector
22M-22F*
T-Piece
AG-AS3010
Place the Aerogen Solo firmly
into the T-piece.
Insert the Aerogen Solo and
the T-piece on the dry side
of the humidifier.
Insert medication into the
Aerogen Solo.
*Humidifier parts not supplied by Aerogen. Consult manufacturer for usage guidelines.
NOTE: If using large bore tubing please refer to Dry Side of the Humidifier set up.
1
2
3
Press the on/o button on the
Aerogen Controller for 1 second
to select 30 minute mode.
For continuous mode with the
Aerogen Pro-X Controller, press
and hold the on/o button for 3
seconds from the o position.
4
For 6 hour mode with the Aerogen USB
Controller press and hold the on/o button
for 3 seconds from the o position.

04 At the Wye
www.aerogen.com
Aerogen®Solo
AG-AS3200
T-Piece
AG-AS3010
Wye*
*Parts not supplied by Aerogen. Consult manufacturer for usage guidelines.
Place the Aerogen Solo firmly
into the T-piece.
Insert the Aerogen Solo and
the T-piece into the inspiratory
limb of the breathing circuit.
Insert medication into the
Aerogen Solo.
1
2
3
Press the on/o button on the
Aerogen Controller for 1 second
to select 30 minute mode.
For continuous mode with the
Aerogen Pro-X Controller, press
and hold the on/o button for 3
seconds from the o position.
4
For 6 hour mode with the Aerogen USB Controller
press and hold the on/o button for 3 seconds from
the o position.

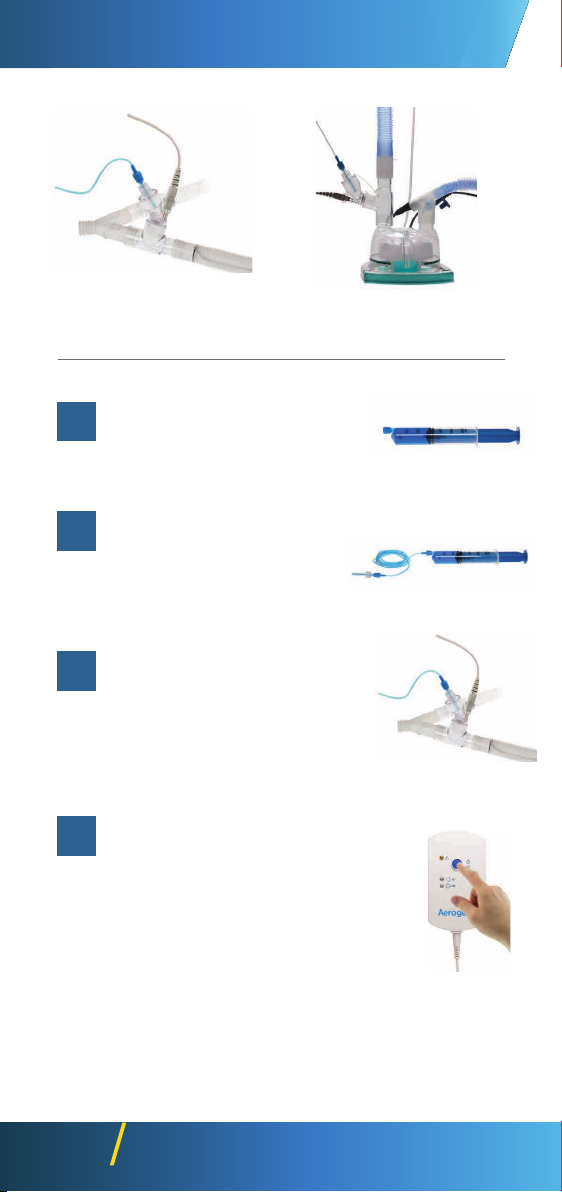

At The Wye* Dry Side of
the Humidifier
Remove the syringe cap from
the medication filled syringe and
attach the syringe end of the
tubing onto the syringe.
Prime the tubing until the
medication reaches the end
of the tubing.
Note: the tubing priming volume
maximum is 3.65mL
Unplug the tethered cap from
the Aerogen Solo, do not
remove it from the nebulizer.
Screw the nebulizer end
of the tubing onto the top
of the nebulizer.
Insert the syringe filled with
medication into the syringe pump.
Refer to pump manual or manufacturer
for guidance on pump usage.
Turn on continuous mode on the
controller. Press & hold the on/o
button for 3 seconds from the o
position to select continuous mode.
Note: Medication is nebulized on a drop
by drop basis. Observe continuous mode
in action.
*Parts not supplied by Aerogen. Consult manufacturer for usage guidelines.
1
2
3
4
05 Continuous Nebulization
www.aerogen.com

06 Aerogen Ultra
www.aerogen.com
Place the Aerogen Solo
firmly into the Aerogen Ultra.
Insert medication into the
Aerogen Solo.
Connect the Aerogen controller
cable to the Aerogen Solo,
if supplemental oxygen is
required attach O2 tubing.
1
2
3
Aerogen®Solo
AG-AS3200
Mouthpiece
O2 tubing
Press the on/o button on the
Aerogen Controller for 1 second
to select 30 minute mode.
4
For continuous mode with the
Aerogen Pro-X Controller, press and
hold the on/o button for 3 seconds
from the o position.
For 6 hour mode with the Aerogen USB Controller
press and hold the on/o button for 3 seconds.

Aerogen Solo Orientation
For optimum use of the Aerogen Solo please ensure
it is in the optimum orientation at all times, in both
continuous and intermittent settings.
www.aerogen.com
