AeroPure ABF110DHG5 Series User manual

BATH FAN
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION INSTRUCTIONS
..............................................................................................................
.......................................................................................
..........................................................................................................
........................................................................
............................................................................................................
...................................................................................................
..................................................................................................................
...........................................
.............................................................
.................................................................................
...................................................................................
...................................................................
......................................................................................................
...............................................................................................................
TABLE OF CONTENTS
UNPACKING
SUPPLIED ACCESSORIES
DESCRIPTION
GENERAL SAFETY INFORMATION
DIMENSIONS

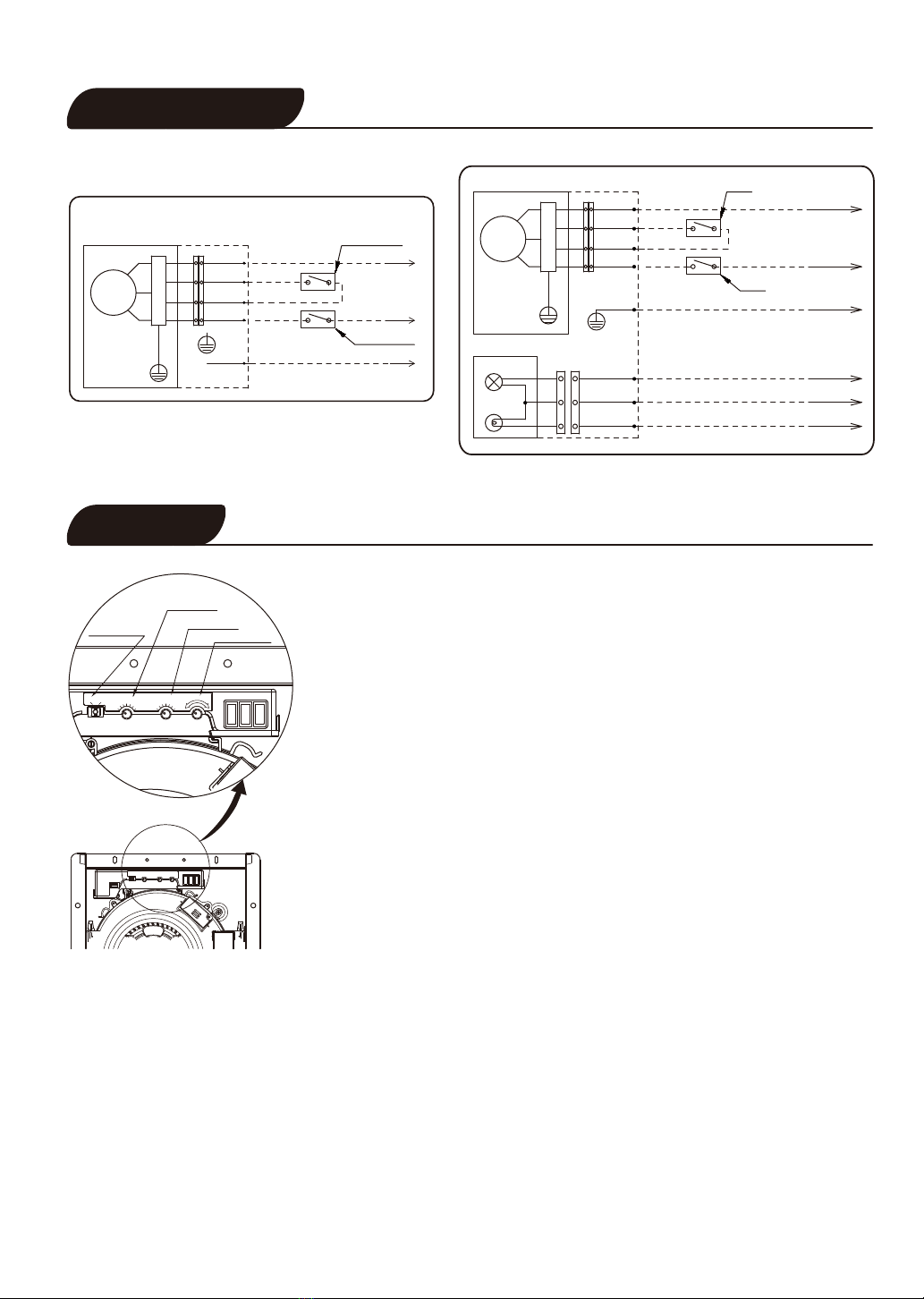

WIRING DIAGRAM
FEATURES
INDICATION (PLUG-IN DEVICES)
INSTALLATION I(NEW CONSTRUCTION）
INSTALLATION II (RETROFIT)
MAINTENANCE (CLEANING)
PRACTICAL GUIDE TO INSTALLATION
SPECIFICATIONS
WARRANTY
02
02
02
03
04
05
05
06
07
11
13
14
14
15
Thank you very much for purchasing our bath fan.
Please read the instructions carefully before attempting to install,
operate or service our ventilating fan. Failure to comply
with instructions could result in personal injury or property
damage. Please retain this booklet for future reference.
Model No.
ABF110DHL5 Series
ABF110DHG5 Series ABF110DCMH-SG5
ABF110DHL6 Series
ABF110DHG6 Series ABF110DCMH-SG6

UNPACKING
Unpack and carefully remove the unit from carton.
Refer to the supplied accessories list to verify that all parts are present.
SUPPLIED ACCESSORIES
DESCRIPTION
1
Grille
2
1
1
5
Wire
Protector
Nut
Suspension
bracket
assembly
Long screw
(ST4X30)
Installation
instructions 1
These bath fan models are listed by ETL under ETL file No.5011292.
These bath fan models use a Sirocco fan driven by a brushless DC motor.
The motor is designed to have an extended service life with reduced energy consumption.
The grille covering the fan body is a spring-loaded, quick attach type. A damper for preventing air
counterflow is provided.
The suspension bracket assembly can be used for both new and retrofit situation.
The light uses a bright SMD LED.
or oror
ABF110DHG5 ABF110DHG6 ABF110DHL5 ABF110DHL6 ABF110DCMH-SG5 ABF110DCMH-SG6
or
or

3
Use this unit only in the manner intended by the manufacturer. If you have any questions, contact
the manufacturer.
Before servicing or cleaning unit, switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device, such as a
tag, to the service panel.
Installation work and electrical wiring must be done by qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacture′s
guideline and safety standards such as those published by the National Fire Protection Associa-
tion (NFPA), and the American Society of Heating, Refrigeration, and air conditioning Engineers
(ASHRAE) and the local code authorities.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
Ducted fans must always be vented to the outdoors.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the
application and be connected to a GFCI (Ground Fault Circuit Interrupter)-protected branch circuit.
These models are ETL listed for tub and shower enclosures.
Not to be installed in a ceiling thermally insulated to a value greater than R40. (This is required for
installation in Canada only).
Do not install this ventilating fan where interior room temperature may exceed
104°F (40°C).
To reduce the risk of fire, electric shock, or injury to persons, observe the following:
WARNING:
1.For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2.Not for use in cooking area. (Fig.B)
3.This product must be properly grounded.
CAUTION:
GENERAL SAFETY INFORMATION
Make sure that the electric service supply voltage is AC 120V, 60Hz.
Follow all local electrical and safety codes, as well as the National Electrical
Code (NEC), and the Occupation Safety and Health Act (OSHA).
Always disconnect the power source before working on or near the fan, motor,
light fixture, or junction box.
Protect the power cord from sharp edges, oil, grease, hot surfaces, chemicals
or other objects.
Do not kink the power cord.
Do not install the unit where ducts are configured as shown in Fig.A.
Provide make up air for proper ventilation.
1.
2.
3.
4.
5.
6
7.
8.
1.
2.
3.
4.
5.
6.
7.
8.
9.

DIMENSIONS
Unit: inches (mm)
Base PCB box
Humidity sensor module
CO sensor module
LED light
Blade
Grille
Adaptor
Damper
Frame assy
Knockout plate
Junction box
1
2
3
4
5
6
7
8
9
10
11
2
4
Model: ABF110DHG6 Series, ABF110DHL6 Series, ABF110DCMH-SG6
Model: ABF110DHG5 Series, ABF110DHL5 Series, ABF110DCMH-SG5
3 7/8 (98)
4 7/8 (123)
5 4/5 (147)
⑤
3 4/5 (97)10 2/5 (265)
10 1/4 (260)
12 1/8 (308)
7 1/3 (186)
3/5 (14.5)
④⑥
13 (330)
⑨
①
②
③
⑧
⑦
⑩
①
②
③
⑧
⑦
⑨
⑩
10 1/4 (260)
12 1/8 (308)
3 7/8 (98)
4 7/8 (123)
5 4/5 (147)
3 4/5 (97)
10 2/5 (265)
④⑥
13 (330)
7 1/3 (186)
⑤
3/5 (14.5)
⑪
⑪

WIRING DIAGRAM
FEATURES
Model: ABF110DHG5 / ABF110DHG6
ABF11DCMH-SG5 / ABF110DCMH-SG6
Model: ABF110DHL5 / ABF110DHL6
Motor
Ground
Live
Neutral
Green
Black
White
P
C
B
Yellow-
green
Red
Red
Signal
Signal
Power switch
Control switch
Fan body Junction box Motor
Ground
Live
Neutral
Green
Black
White
P
C
B
Light Body
Blue
Brown
White
Live (Light)
Live(N. Light)
Neutral
Yellow-
green
Red
Red
Signal
Signal
Power switch
Control switch
Fan body Junction box
●CFM-Selection. Choose 50-80-110CFM; default is high speed.
●Multi-Speed- Switch allows fan to run at continuous lower speed to
meet Indoor Air Quality. For example, when Flow-Selection setting is
80CFM, Multi-Speed can be chosen 0, 50, 60, or 70CFM as a
low speed.
●Delay- Switch for time delay setting. Setting range is 0, 5, 10, 20,
30, 45, or 60 minutes.
●Air Trimming- Switch allows fine-tuning of air volume when the
actual airflow is lower than set.
0
50
60
70
80
90
100
0
5
10
20
30
45
60
Time(min)
50 80 110
LH
Air Trimming
Air Volume(CFM)
Time delay
Air trimming
Flow-Selection
Multi-Speed
5
INSTRUCTIONS:
Turn the power on.
①When the control switch is turned on, the fan will run continuously at high speed only. The power
must be on before turning the control switch on. The sensors will not work and Time Delay Switch
does not apply to this mode.
②When the control switch is turned off, the fan will run at chosen low speed on Multi-Speed switch
continuously, and boost to the high speed when the sensor detects an increase in Relative
Humidity. The fan will run at high speed for amount of time selected from the Time Delay Switch
before returning to lower speed when the Relative Humidity falls below the set point.

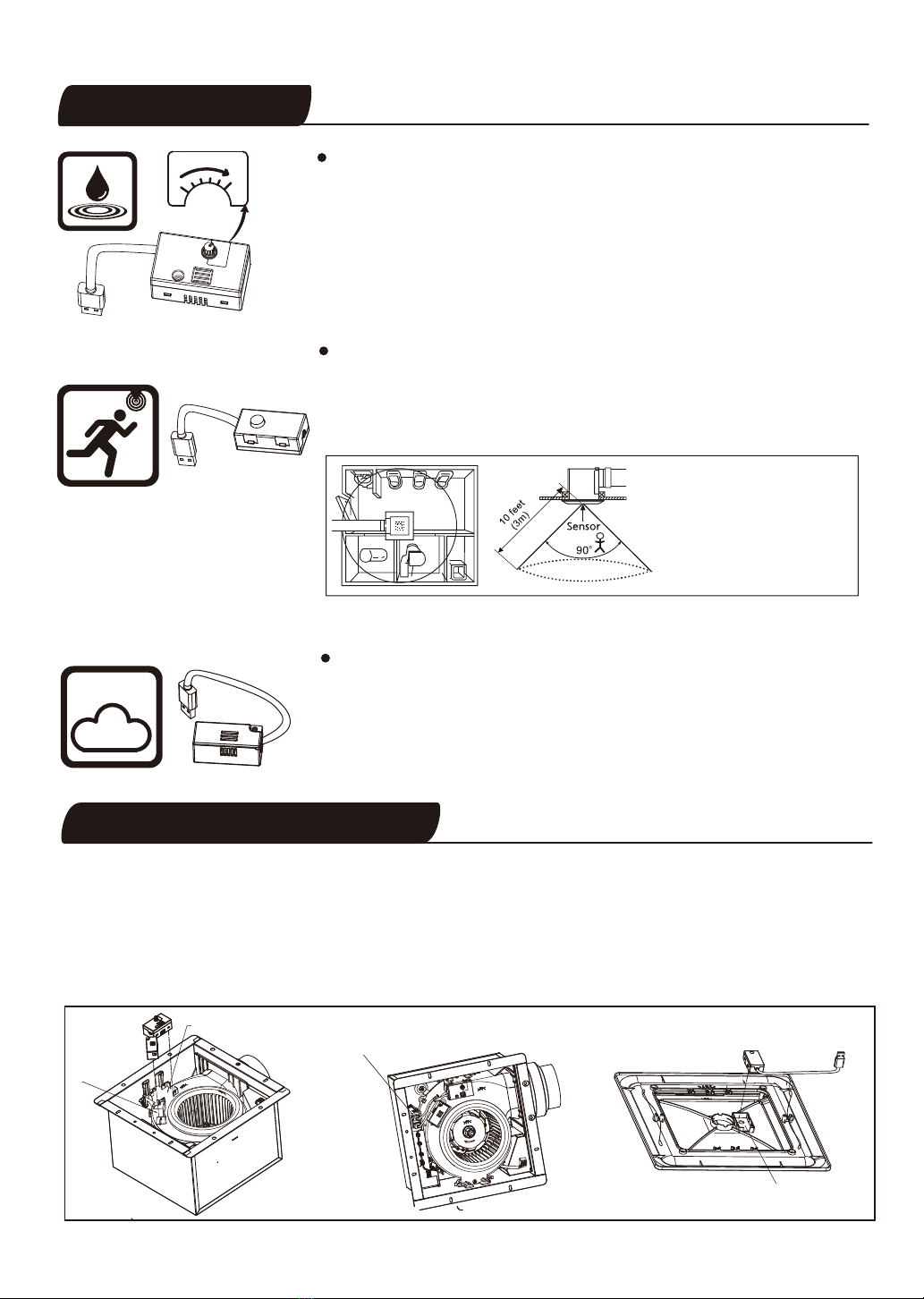

PLUG-IN DEVICES
Humidity Sensor Module- Included in this Aero Pure fan. Insert module
into USB interface. The fan automatically turns on or boosts to a higher
speed when the Relative Humidity (RH) exceeds the user-adjustable
set-point. The fan automatically runs in a lower speed after a period of
time delay or stops running when the Relative Humidity falls below the
set-point.
Humidity detection value setting range: 30% - 80%
CO2 Sensor Module- Insert module into USB interface. The module
begins to detect environmental CO2 concentration when fan is on for
2 minutes, then the fan starts to run or boosts to high speed when
concentration level is over 1000PPM. The fan runs in low speed after
a period of time delay or stops working when concentration level
is less than 800PPM.
30
80
Humidity(RH%)
CO2
INSTALLATION PLUG-IN DEVICES
Humidity Sensor Module or Motion Sensor Module is included with this fan.
Contact Aero Pure to purchase CO2 Sensor Module.
Position A is for CO2Sensor module, position B is for Humidity Sensor module,
and position C is for Motion Sensor module.
1. Fix to the specified devices to the slot, till hear the sound installed in place.
2. Access USB interface, insert the connector of module into USB receptacle.
A
B
USB receptacle
Notes:
Suitable for use with solid-state speed controls.
Solid-state speed controls may cause harmonic
distortion which can cause motor humming noise.
6
Motion Sensor Module- Insert model into USB interface. The fan runs
or boosts to high speed when motion sensor begins to detect.
The fan runs in low speed after a period of time delay or stops working
when you are out of detection range.
Motion Sensor detection range as below,
The distance that motion can be
detected is limited to 10 feet (3m).
The field of view of the sensor is
90°. (Room temperature is 25℃).
C

7

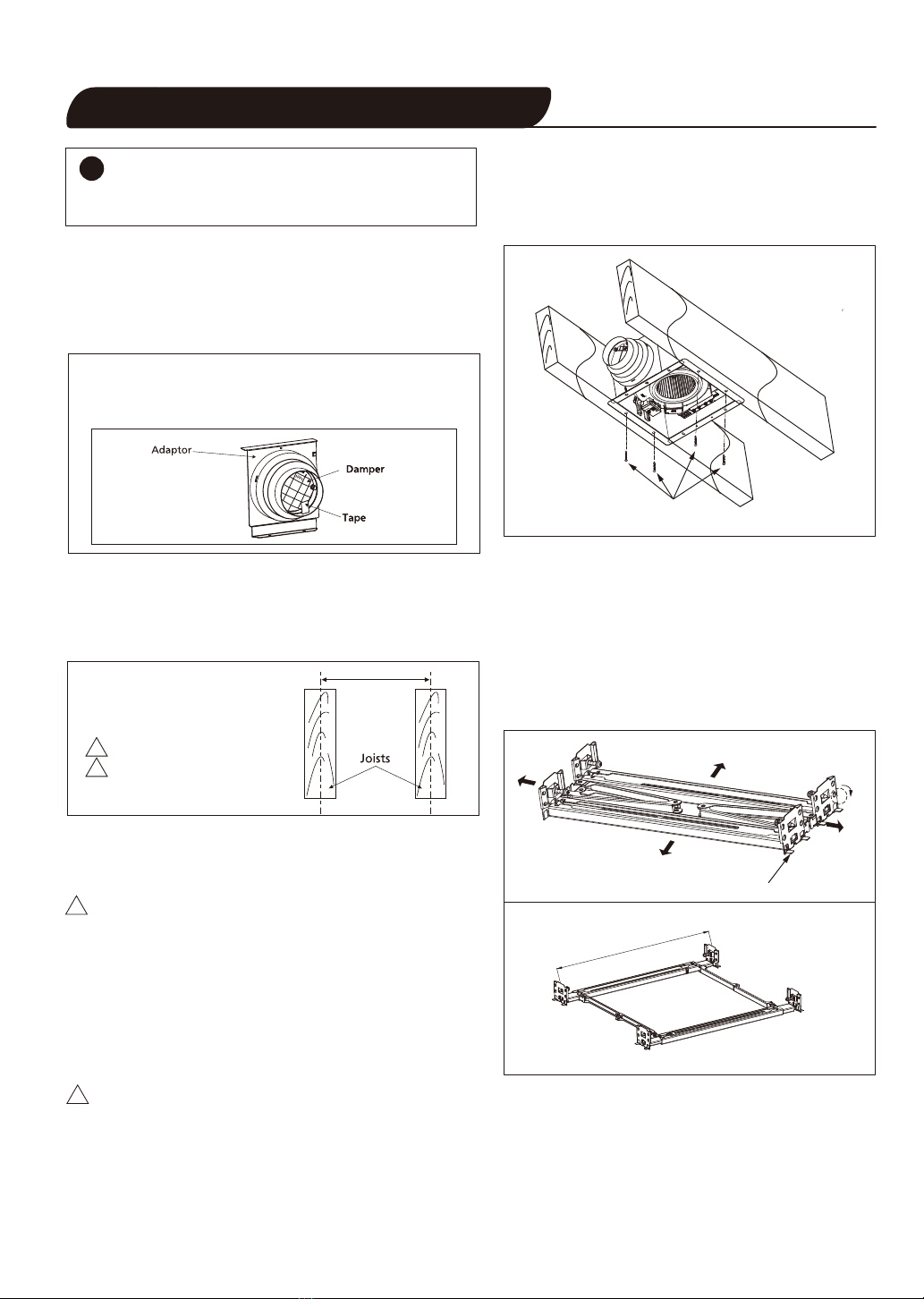

INSTALLATION I(NEW CONSTRUCTION)
Fig.2.a
Fig.2.b
IMPORTANT:
Remove the tape from damper and adaptor
before installation. As shown below:
Fig.1
Two cases of spacing L :
L
Joist situation:
12 inches (305 mm)
16~24 inches (406~610 mm)
A
B
If the spacing L is 16~24 inches (406~610 mm),
use the suspension bracket assembly.
If the spacing L is 12 inches (305 mm) on joists,
please follow the installation step as (Fig.1).
Secure 4 screws (ST4X30) at flange of frame to the
joists. Then follow steps 6 to 9 of Installation I
(page 6-8) to complete the installation.
Please wear gloves during the installation work.
CAUTION:
11 4/5~22 1/2 (300~579)
！
4 Screws
(ST4x30)
A
B
Tap

8

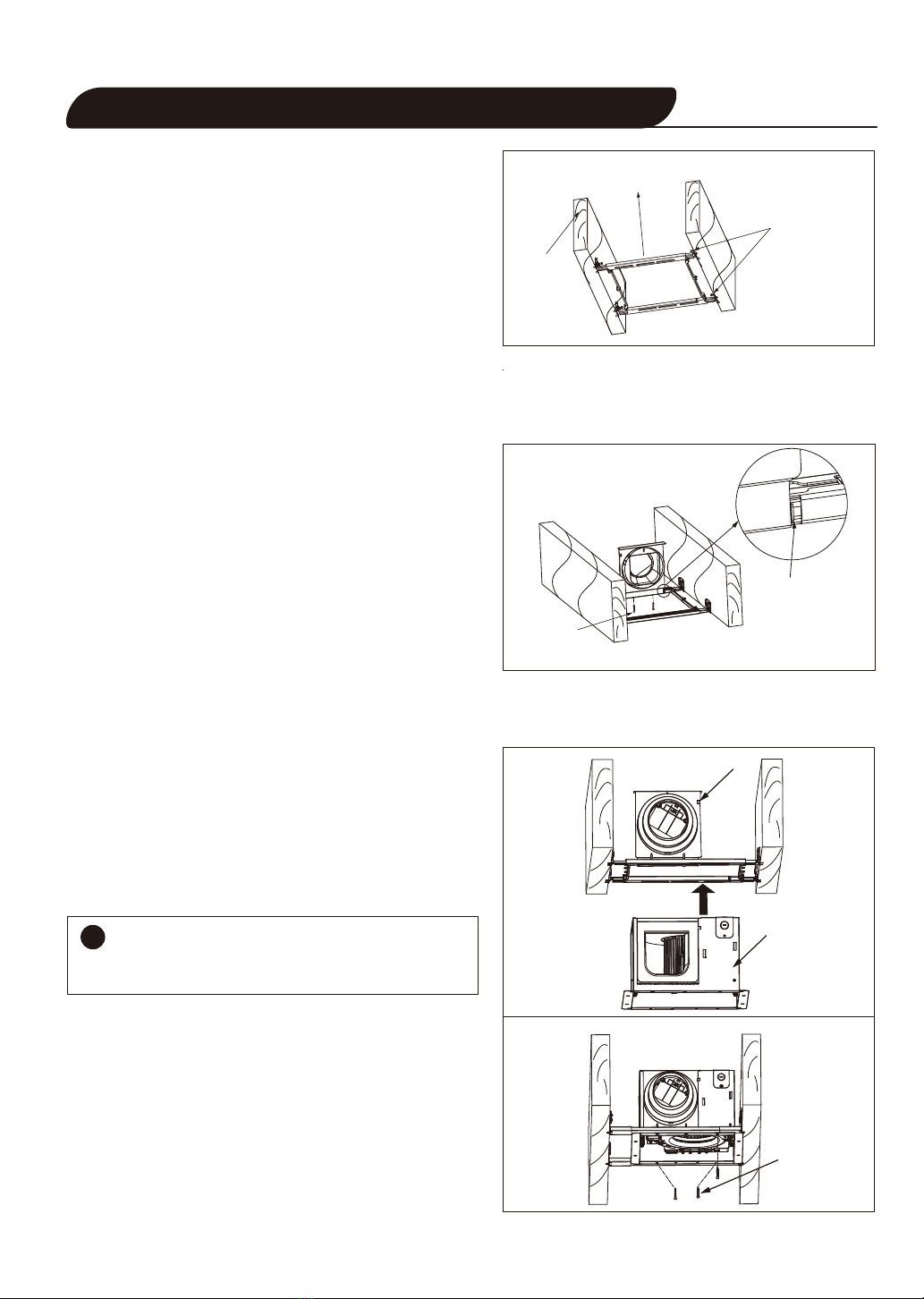

INSTALLATION I (NEW CONSTRUCTION) CONTINUED
Fix one side of the bracket assembly to the joists by
drilling 2 tapping screws (ST4x20) which have been
fixed on it. (Fig.3）
Adjust the length of bracket assembly as the
spacing between joists, and install to joist by drilling
the other 2 tapping screws which have been fixed
on the other side. Adjust the active part of bracket
assembly to the proper position. (Fig.3）
Fig.3
Joist
Screws
(ST4X20)
Place the adaptor on the bracket assembly as
indicated position, and install it by using 2
self-drilling screws (ST4X30). (Fig.4)
Unit: inches (mm)
Bend down 8 tabs for positioning as (Fig.2.a) and
unfold the bracket assembly as (Fig.2.b).
1.
2.
3.
4.
Active part
Fig.4
2 Screws
(ST4X30)
Position
of adaptor
Fig.5
Push the fan body upwards until the fan body is
stopped by the buckle on the adapter and secure
the fan body by using the remaining 3 self-drilling
screws (ST4X30). (Fig.5)
Hold the fan body to prevent falling before fixing
the screws.
CAUTION:
！
Buckle
Fan body
3 Screws
(ST4x30)
5.

9
Install a circular duct and secure it with clamps
or ties and seal it with mastic or approved duct tape.
A 4”, 5”, or 6” circular duct is needed to connect
to relevant part of adaptor. (Fig.6)
Fig.6
Circular duct
Duct tape
INSTALLATION I (NEW CONSTRUCTION) CONTINUED
6.
Remove the knock-out plate and secure conduit
or wire protector nut to knock-out hole. (Fig.7. I)
7.
Refer to wiring diagram on page 5.
Using UL approved wire nuts, connect house power
wires to the ventilating fan wires (Fig.7. II), then
attach it to fan body.
Follow all the local electrical safety codes as well
as the National Electrical Code (NEC).
IMPORTANT:
Fig.7
Fig.8
Attach cable clamp to Knockout
Plate. Knockout Plate mounts to
outside of Housing and may be
oriented as desired.
Connect
wires
III
Screw from
Parts Bag
Black
Red
Green
Wire nuts
White
Nuts

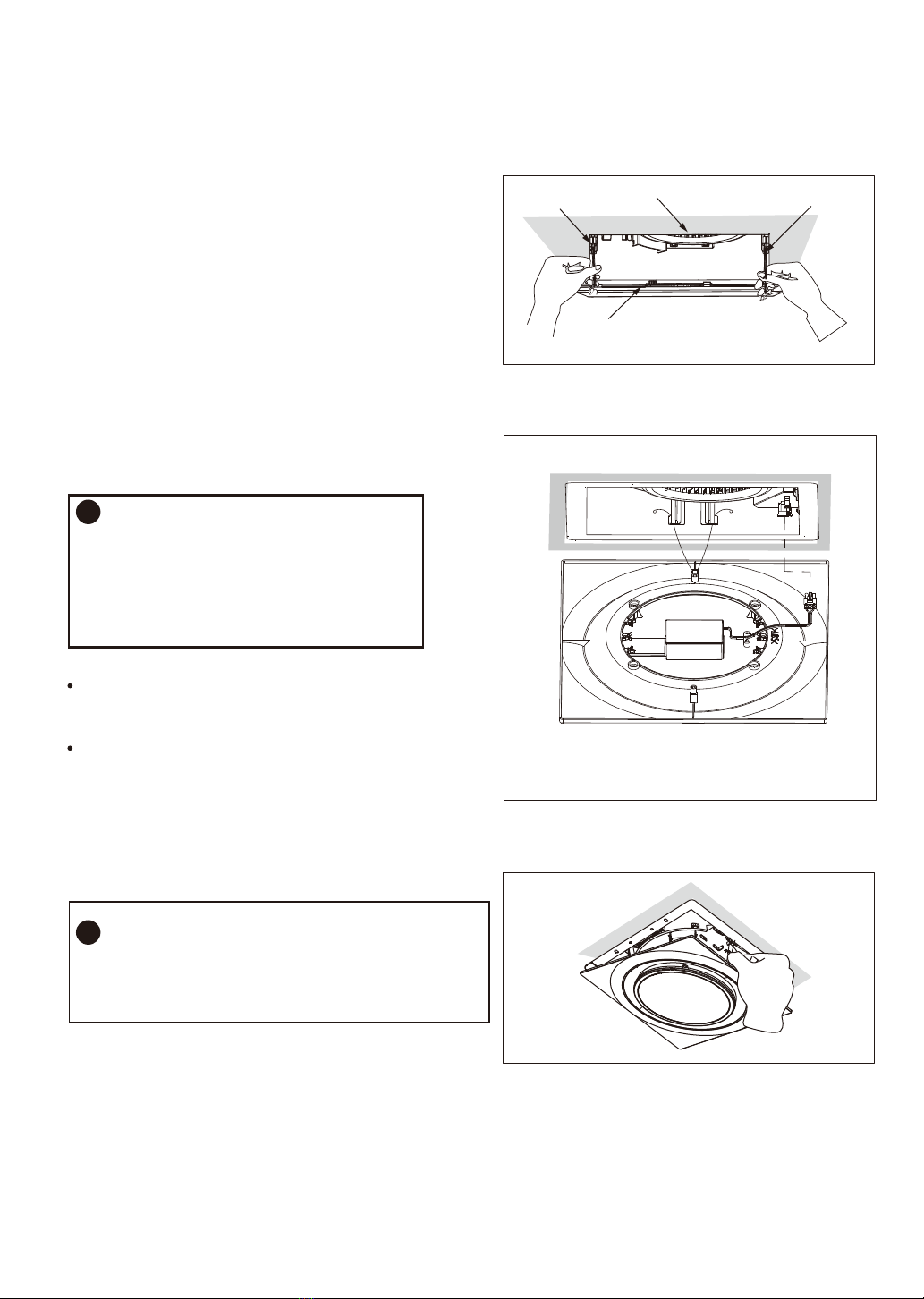

8.Finish ceiling work. Align ceiling hole with the inside
edges of the flange. (Fig.8)
Unit:inches(mm)
After finishing the ceiling work, fill gap between
flange and ceiling with caulk or other sealant to
prevent air leakage.
Caulk
IMPORTANT:
Ceiling
10 2/5 (265)
10 2/5 (265)
I
II IV

10
Mount grille carefully so that lead wire of light
unit is not pinched.
Fig.11
INSTALLATION I(NEW CONSTRUCTION) CONTINUED
9.Insert mounting springs into slots and mount grille
to fan body（Fig.9）
Insert the grille mounting spring on the wiring side
into the slot. (Fig.10)
Insert the plug connector into the housing of the
lighting unit and insert the other mounting spring
into the slot as shown and mount grille to fan body.
(Fig.10, Fig.11)
10.For grille with a light, refer to the following
installation method.
Fig.10
Before turning on the light, make sure the
connector is at the correct position. If not,
the lighting will not work.
The claw of connector must be secured to
the rib completely. (Fig.10)
CAUTION:
！
1.
2.
CAUTION:
！
Grille
Ceiling
Slot Mounting spring
Fig.9

11

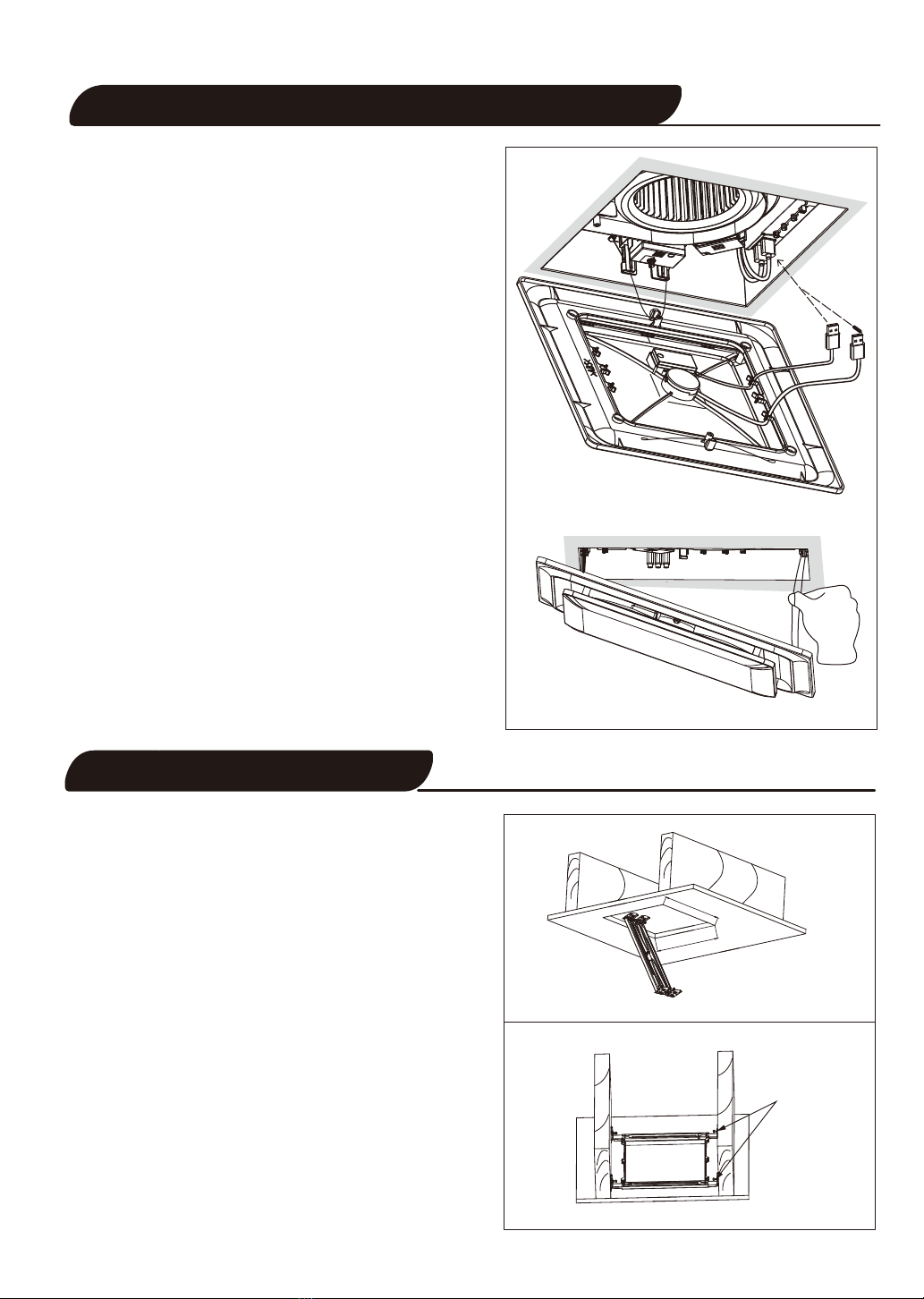

INSTALLATION I (NEW CONSTRUCTION) CONTINUED
Insert the grille mounting spring on the wiring side
into the slot.
Insert the USB connector into the USB receptacle
and insert other mounting spring into the slot as
shown and mount grille to fan body.
(Fig.12)
11.For grille with a module, refer to the following
installation method.
Fig.12
1.Put the folded bracket assembly into ceiling hole,
then follow step 3-4 of Installation I(NEW
CONSTRUCTION page 8) to complete the bracket
installation. (Fig.13)
Unit: inches (mm)
Fig.13
A
B
Screws
(ST4x20)
10 3/5(270)
10 3/5(270)
INSTALLATION II (RETROFIT)

12
Attach cable clamp to Knockout
Plate. Knockout Plate mounts to
outside of Housing and may be
oriented as desired.
Connect
wires
II
III
I
Black
Red
Green
Wire nuts
White
INSTALLATION II (RETROFIT) CONTINUED
IV
Fig.15
3.
Screw from
Parts Bag
2.
Screws
(ST4x30)
Unit:inches (mm)
Fig.14
Follow step 4 of Installation I(NEW
CONSTRUCTION page 8) to complete the
adaptor installation. (Fig.14)
Install a circular duct and secure with clamps
or ties and seal with mastic or approved foil tape.
A 4”, 5”, or 6”
circular duct is needed to connect
to relevant part of adaptor. (Fig.14)
Remove the knock-out plate and secure conduit
or wire protector nut to knock-out hole. (Fig.15)
Refer to wiring diagram on page 5.
Using UL approved wire nuts, connect house power
wires to the ventilating fan wires (Fig.15), then fix
it to fan body
Follow all the local electrical safety codes as well
as the National Electrical Code (NEC).
IMPORTANT:
Fig.16
4.
5. Follow step 9 of Installation I(NEW
CONSTRUCTION page 10) to complete the
installation.
Push the fan body upwards until the fan body is
secure with the joint, and secure them by using the
remaining 3 self-drilling screws (ST4X30) (Fig.16)
3 Screws
(ST4x30)
Nuts

13

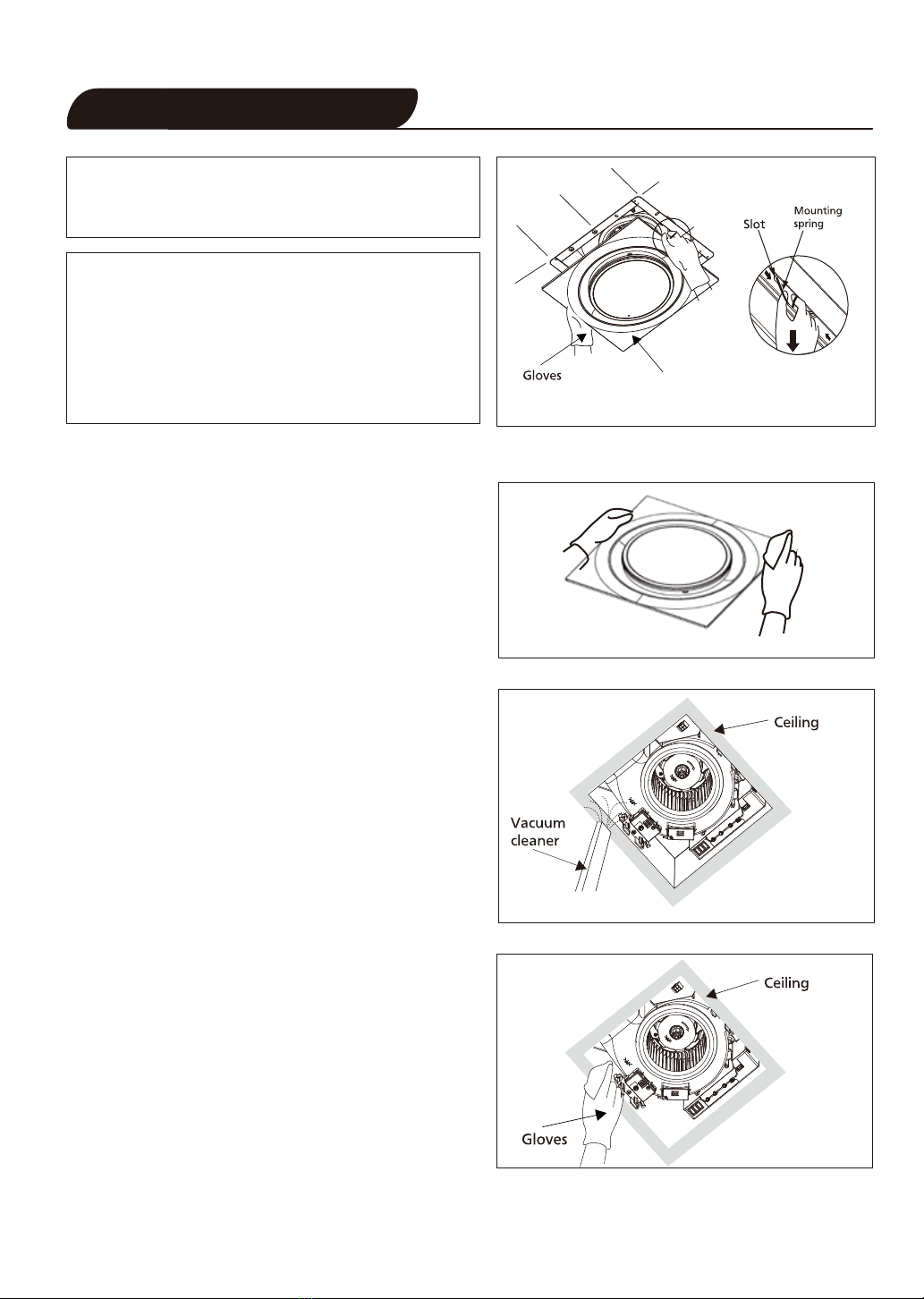

MAINTENANCE (CLEANING)
1.
Disconnect power source before working on unit.
Routine maintenance must be done every year.
WARNING:
Fig.17
3.
2.
Fig.18
Clean grille. (Don’t put into hot water. Use
non-abrasive kitchen detergent, wipe dry with
clean cloth). (Fig.18)
The grille should be dry after cleaning before
reattaching to fan motor.
1.
2.
3.
CAUTION:
Never use gasoline, benzene, thinner or any
other such chemicals for cleaning the ventilating
fan.
Do not immerse motor in water when cleaning.
Do not soak resin parts in water over 140°F
(60°C).
Remove grille. (Squeeze mounting spring and
pull down carefully). (Fig.17)
Grille
4.
5.
6. Reinstall grille.
Fig.20
Remove dust and dirt from fan body using a
vacuum cleaner. (Fig.19)
Using a cloth dampened with kitchen detergent,
remove any dirt from fan body. Wipe dry with
clean cloth. (Fig.20)
Fig.19

14
lnsulation
Fig.21
Properly insulate the area around the
fan to minimize building heat loss and
gain. (Fig.21)
Loose fill or batt insulation can be
placed directly over the fan housing in
the attic.
The fans and fan/light combination units
do not create excessive heat that is a
common problem with recessed light
fixtures or some competitors′ fan/light
combinations. Our efficient, cool-running
motors,
and LED lighting unit do not
create enough ambient heat to be subjected to these limitations.
PRACTICAL GUIDE TO INSTALLATION
Foil tape tightly covers all metal
duct joints (glue PVC joints)
4 inches or 6 inches roof jack, wall cap,
or soffit vent with backdraft damper
Mechanically connect duct to termination
and seal with mastic or approved foil
faced tape
2-3 ft straight run before elbow
ln attic installation,
caulk box to drywall
Short piece of flexible duct helps
alignment and absorbs sound.
Clamps plus mastic or approved
foil faced tape at all flex joints
The ducting from this fan to the outside of the building has a strong effect on the air flow, noise, and energy
use of the fan. Using the shortest, straightest duct routing possible for best performance, and avoid
installing the fan with smaller ducts than recommended. Insulation around the ducts may reduce energy
loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated air flow.
SPECIFICATIONS
Fan light N.light
＜0.3 6 901 50
＜0.3 6.8 936 60
0.3 7.8 954 70
0.4 8.8 987 80
0.6 11 1037 90
0.8 12.8 1079 100
1.0 16 1159 110
＜0.3 5.8 10 0.7 871 50
＜0.3 6.7 10 0.7 888 60
＜0.3 7.7 10 0.7 922 70
0.3 8.8 10 0.7 945 80
0.5 10.8 10 0.7 1000 90
0.7 12.6 10 0.7 1044 100
0.9 15.2 10 0.7 1095 110
Power consumption
(W) Speed
(rpm)
Air volume
at 0.1'' WG
(CFM)
Model No. Air direction Voltage
(V)
Frequency
(Hz)
Duct
diameter
(inches)
Noise
(Sones)
Exhaust 120 60 4”, 5”, 6”
ABF110DHL5W
ABF110DHL6W Exhaust 120 60 4”, 5”, 6”
ABF110DHG5W
ABF110DHG6W
ABF110DCMH-SG5
ABF110DCMH-SG6

15
This warranty covers all defects in workmanship or materials for:
The mechanical and electrical parts contained in this product for a period of 72 months from the date of
purchase. You must keep and be able to provide your original sales receipt as proof of date of purchase.
This warranty is covered to the original retail purchaser of this product only. The manufacturer will replace
any mechanical or electrical part that proves defective in normal household use for a period of 72 months.
THIS WARRANTY DOES NOT COVER:
• Damages from improper installation.
• Damages from shipping.
• Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance.
• Damages from service by persons other than a licensed electrician.
• Does not cover any labor or transportation charges related to the repair of this product.
THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies. This warranty
does not cover incidental or consequential damages. Some states do not allow the exclusion of incidental
or consequential damages, so this limitation may not apply to you.
Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply
to you. This warranty gives you specific legal rights; you may also have other rights, which vary from state
to state.
Aero Pure LLC
1006 Bankton Circle Building B
Hanahan, SC 29410
Tel: [phone]
Fax: [phone]
WARRANTY
WEBSITE: WWW.AEROPUREFANS.COM
