AES Proteam iX7 User manual

Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]
Proteam iX Inverter

Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-1 -
TABLE OF CONTENT
1. PREFACE …………...…………………………………………………………………………..…………....2
2. CARTON CONTENTS …………...……………………………………………………………….......5
3. OVERVIEW OF THE UNIT ……………………………………………………………..……………….……6
4. EXPLODED VIEW …………………………..……………………………………………..……………….……8
5. INSTALLATION AND CONNECTION …………………………..………..………..…………………10
5.1 Installation Illustration …………………………..………..…………………..…………….……10
5.2 Swimming Pool Heat Pumps Location ….…………..…………………..…………………10
5.3 How Close to Your Pool? ….…………..……………………………………....…………….……11
5.4 Swimming Pool Heat Pumps Plumbing ….…………………………....….…………….…11
5.5 Swimming Pool Heat Pumps Electrical Wiring ….………………....….………….……12
5.6 Initial Startup of the Unit….………………....….………………………………...……….……12
6. OPERATING THE UNIT ………………………………………………………………………….…….……13
6.1 LCD CONTROLLER INTERFACE….………………....….……………………………….......……14
6.2 BUTTON OPERATION INSTRUCTION….………………....….…………………….......……16
6.3 TIMER SETTING….………………..........…………...………..…….…………………….......……19
6.4 FORCED DEFROST MODE ….……………….........……..…….….………………….......……23
7. ERROR CODES ……………………………………………………………..……………………….…….……23
8. MAINTENANCE AND INSPECTION………………………………………..……………….…….……25
9. WIRING DIAGRAMS……………………………………………………………..……………….…….……31
10. CABLE SPECIFICATION…………………………………………….…………………..……….…….……34
11. WIFI / APP APPLICATION ………………………………..……….……….……..………….…….……35
READ THIS MANUAL CAREFULLY BEFORE OPERATING THE UNIT. DO NOT THROW IT AWAY.
RETAIN FOR FUTURE REFERENCE.
BEFORE OPERATING THE UNIT, ENSURE THE INSTALLATION HAS BEEN CARRIED OUT IN
ACCORDANCE WITH THESE INSTRUCTIONS. IF IN DOUBT PLEASE CONSULT YOUR LOCAL
DEALER.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-2 -
1. PREFACE
In order to provide our customers with quality, reliability and versatility, this product has
been made to strict production standards.
This manual includes all the necessary information about installation, debugging,
discharging and maintenance. Please read this manual carefully before you open or
maintain the unit.
The manufacture of this product will not be held responsible if someone is injured or the
unit is damaged, as a result of improper installation, debugging, or unnecessary
maintenance. It is vital that the instructions within this manual are adhered to at all times.
The unit must be installed by qualified personnel.
The unit can only be repaired by qualified installer centre , personnel or an authorized
dealer.
Maintenance and operation must be carried out according to the recomended time and
frequency, as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit, The indoor unit can be Discretely hidden or semi-hidden to suit
a luxury house. Our heat pump has following characteristics:
a．Durable
The heat exchanger is made of PVC & Titanium tube which can withstand prolonged
exposure to swimming pool water.
b．Installation flexibility
The unit can be installed outdoors.
c．Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor,
which guarantees its quiet operation.
d．Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be
set. Operation status can be displayed on the LCD wire controller. Remote controller can be
chosen as future option.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-3 -
WARNING
Do not use means to accelerate the defrosting process to clean,
other than those recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources
(for example: open flames, an operating gas appliance or an operating electric heater.)
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
NOTE: The manufacturer may provide other suitable examples or may provide additional
information about the refrigerant odour.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Before obtaining access to terminals, all supply circuits must be disconnected.
Spaces where refrigerant pipes shall be compliance with national gas regulations.
Servicing shall be performed only as recommended by the manufacturer.
The appliance shall be stored in a well-ventilated area.
All working procedure that affets safety means shall only be carried by competent persons.
Transport of equipment containing flammable refrigerants
Compliance with the transport regulations
Marking of equipment using signs
Compliance with local regulations
Disposal of equipment using flammable refrigerants
Compliance with national regulations
Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-4 -
Caution & Warning
1. Please make sure that the unit and power connection have good earthing, otherwise may
cause electrical shock.
2. Directive 2002/96/EC (WEEE):
The symbol depicting a crossed-out waste bin that is underneath the appliance indicates
that this product, at the end of its useful life, must be handled separately from domestic
waste, must be taken to a recycling centre for electric and electronic devices or handed
back to the dealer when purchasing an equivalent appliance.
3. Directive 2002/95/EC (RoHs): This product is compliant with directive 2002/95/EC (RoHs)
concerning restrictions for the use of harmful substances in electric and electronic devices.
4. The unit CANNOT be installed near the flammable gas. Once there is any leakage of the
gas, fire can occur.
5. Make sure that there is circuit breaker for the unit, lack of circuit breaker can lead to
electrical shock or fire.
6. The heat pump is equipped with an over-load protection system. It does not allow for the unit
to start for at least 3 minutes from a previous stoppage.
7. Installation must be performed in accordance with local regulations by authorized person only.
8. USE SUPPLY WIRES SUITABLE FOR 75℃.
9. Caution: Single wall heat exchanger, not suitable for potable water connection.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-5 -
2. CARTON CONTENTS
Before starting the installation, please make sure that all following items are found inside
the box.
Carton Box
Item
Quantity
Swimming pool heat
pump
1
Operation and
Installation Manual
1
Accessories
1 (Set)
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-6 -

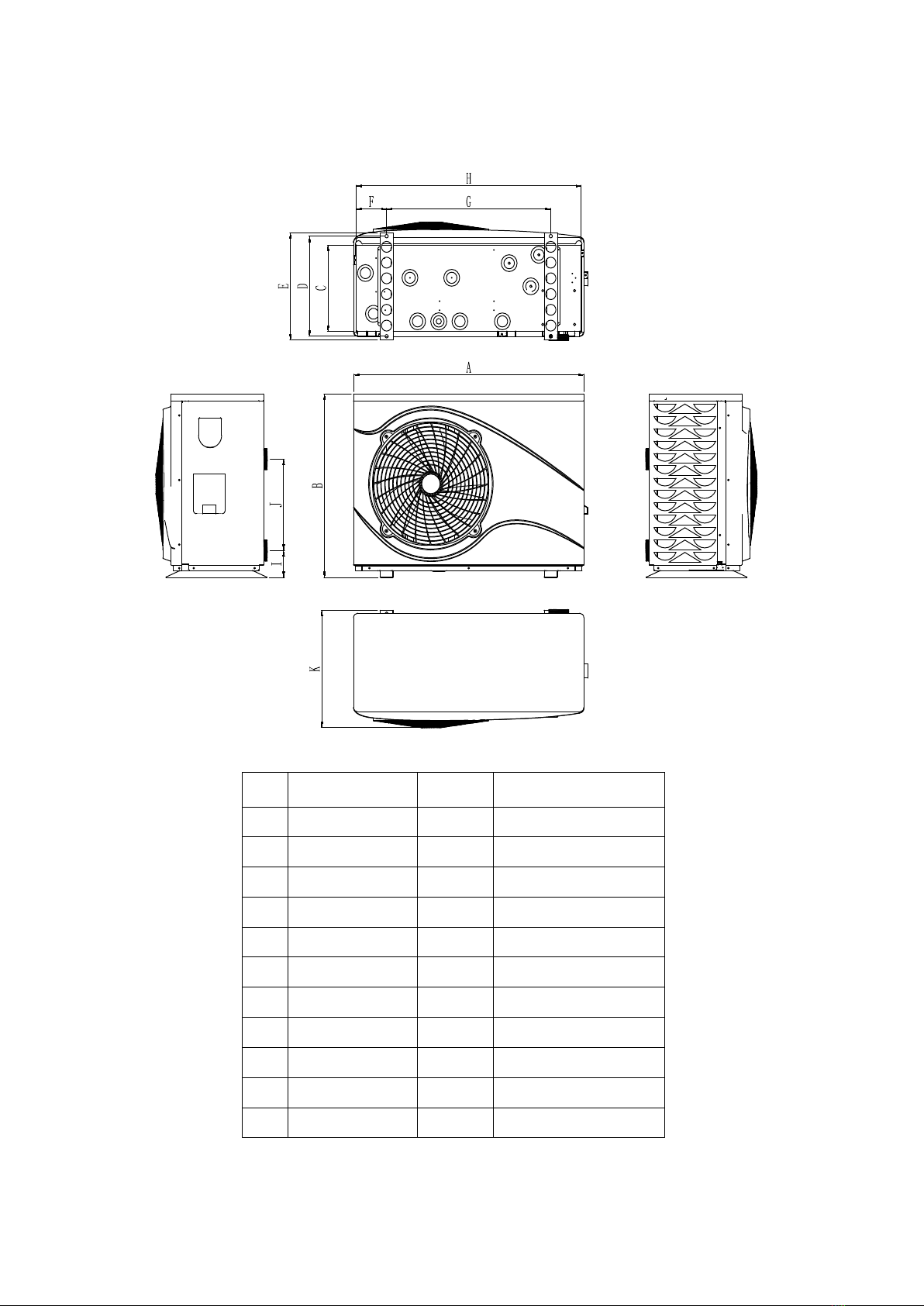

3. OVERVIEW OF THE UNIT
NO
iX7/ iX11
iX14
iX19/ iX21/ iX25
A
760
870
1020
B
544
653
708
C
283
307
318
D
332
356
391
E
356
380
415
F
110
115
137.5
G
520
620
725
H
740
850
1000
I
93.5
96.2
87.2
J
260
325
395
K
377
418
443
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-7 -
NO
iX33/ iX40/ iX33T/ iX40T
A
1170
B
1389
C
192.5
D
427
E
469
F
96.5
G
560
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-8 -
4. EXPLODED VIEW
MODELS: iX7/ iX11/ iX14/ iX19/ iX21/ iX25
1
Top cover
11
4-way valve assembly
2
Top metal frame
12
Right panel
3
Left panel
13
LCD controller pad
4
Fan bracket
14
Terminals block cover
5
Fan motor
15
Titanium heat exchanger
6
Fan blade
16
Compressor
7
Fan grill
17
Chassis
8
Back net
18
Reactor
9
Evaporator
19
Middle separation panel
10
Electrical control box assembly
20
Plastic front panel
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-9 -

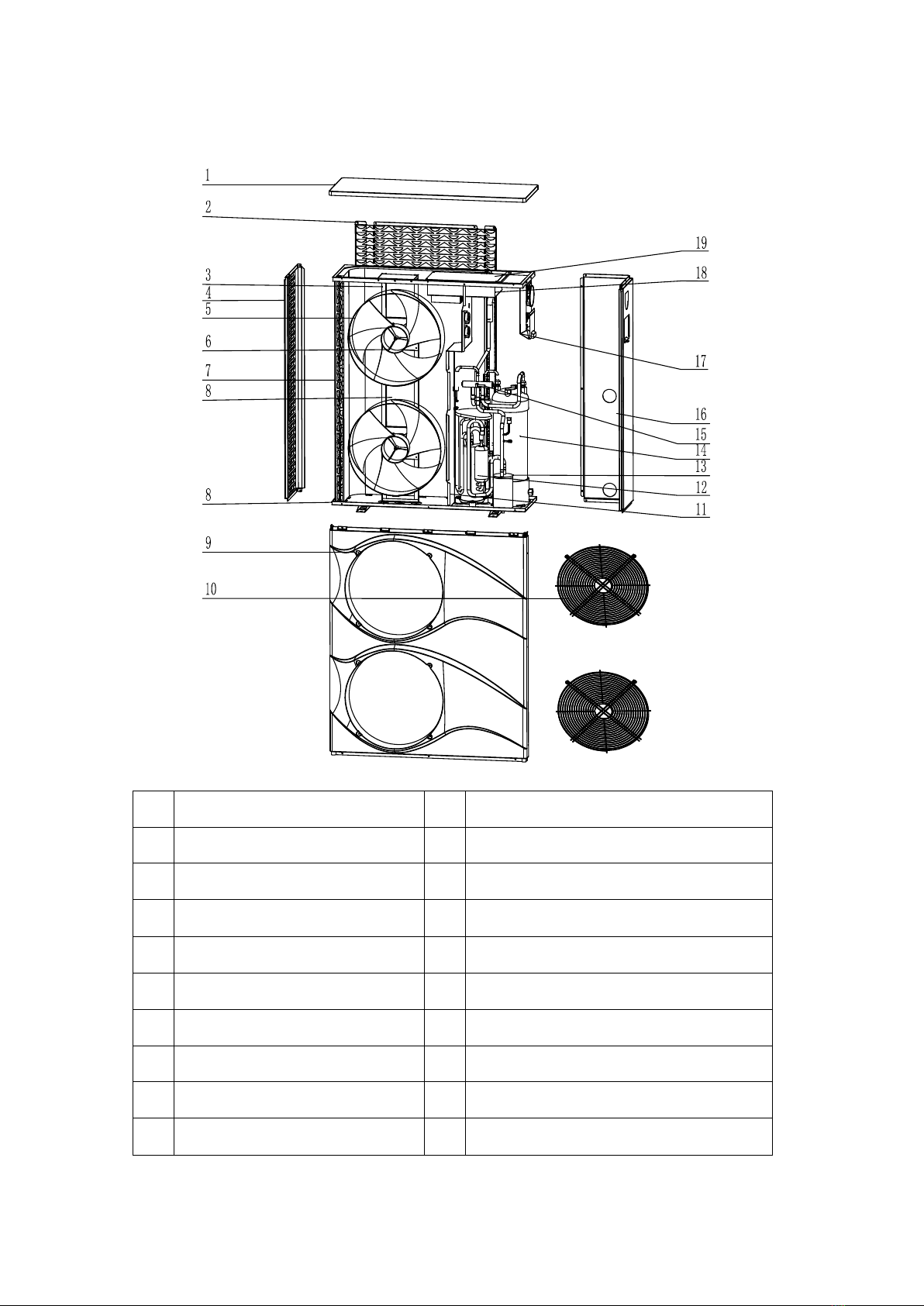

MODELS: iX33/ iX40/ iX33T/ iX40T
1 Top cover 11 Middle separation panel
2 Back grille 12 Compressor
3 Fan bracket 13 Gas-liquid separator
4 Left panel 14 Titanium heat exchanger
5 Fan blade 15 4-way valve assembly
6 Fan motor 16 Right panel
7 Evaporator 17 Terminals block cover
8 Chassis 18 Electrical control box assembly
9 Front panel 19 Electrical control box cover
10 Fan grill --
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-10 -
5. INSTALLATION AND CONNECTION
5.1 Installation Illustration
Installation items:
The factory only provides the main unit, the other items in the illustration
are necessary spare parts for the water system, that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1. Open valve and charge water.
2. Make sure that the pump and the water-in pipe have been filled with water.
3. Close the valve and start the unit.
NOTES: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the
heat pump while plumbing installation.
The controller could be mounted on the wall.
5.2 Swimming Pool Heat Pumps Location
The unit will perform well in any outdoor location provided that the following three factors are
presented:
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the
supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units
discharge air will be re-circulated.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-11 -
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a
continuous source of fresh air which reduces it efficiency and may prevent adequate heat
delivery.
5.3 How Close To Your Pool?
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the
distance from the pool, the greater the heat loss from the piping.
5.4 Swimming Pool Heat Pumps Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no
special plumbing arrangements except bypass. Since there is no residual heat or flame
Temperatures, The unit does not need copper heat sink piping. PVC pipe can be run straight into
the unit.
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter
and pool pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have fittings which accept 32mm or 50 mm PVC pipe for connection to the pool
or spa filtration piping.
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow
easy draining of unit for winterizing and to provide easier access that should servicing be
required.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-12 -
Condensation: Since the Heat pump cools down the air about 4 -5 , water may condense on
the fins of the horseshoe shaped evaporator. If the relative humidity is very high, this could
be as much as several litres an hour. The water will run down the fins into the basepan and
drain out through the barbed plastic condensation drain fitting on the side of the basepan.
This fitting is designed to accept 20mm clear vinyl tubing which can be pushed on by hand
and run to a suitable drain. It is easy to mistake the condensation for a water leak inside the
unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the
pool pump running. If the water stops running out of the basepan, it is condensation. AN
EVEN QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine
present, then it's condensation.
5.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it
simply prevents the flow of electricity to or from the pool water. Grounding the unit is still
required to protect you against short circuits inside the unit.
5.6 Initial startup of the Unit
NOTE: In order for the unit to heat the pool or spa, the filter pump must be running to
circulate water through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wired
controller, It should start in several seconds.
3. After running a few minutes make sure the air leaving the top (side) of the unit is
cooler (Between 5 ~ 10℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to
protect control circuit components and to eliminate restart cycling and contactor chatter.
This time delay will automatically restart the unit approximately 3 minutes after each control
circuit interruption.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-13 -
6. OPERATING THE UNIT
This is achieved via the Digital Controller.
NEVER LET THE DIGITAL CONTROLLER GET WET. THIS MAY CAUSE AN ELECTRIC SHOCK
OR FIRE.
NEVER PRESS THE BUTTONS OF THE DIGITAL CONTROLLER WITH A HARD, POINTED
OBJECT. THIS MAY DAMAGE THE DIGITAL CONTROLLER.
NEVER INSPECT OR SERVICE THE DIGITAL CONTROLLER YOURSELF. REFER TO A
QUALIFIED SERVICE ENGINEER.
Features and functions
Basic controller functions
The basic controller functions are:
Turning the heat pump ‘ON’/’OFF’.
24 hour time clock.
Timer ‘ON’ and timer ‘OFF’.
Parameter adjustment.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-14 -
6.1 LCD CONTROLLER INTERFACE
Icon
Function
Icon
Function
Auto Mode
Anti-freeze
Heat Mode
Compressor
Cool Mode
Defrost
WiFi
Fan
PUMP
Water Pump
Lock
Error Indicator
Water Flow Status
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-15 -
6.1.1 Keypad Lock and Unlock
The keypad will automatically lock after 60 seconds of inactivity. An icon will
show on the screen indicating the keypad is locked.
a. Press " " for 3s to unlock the keypad.
b. Repeat operation above to lock the keypad.
* PLEASE UNLOCK THE KEYPAD BEFORE DOING THE FOLLOWING OPERATIONS.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-16 -
6.2 BUTTON OPERATION INSTRUCTION
6.2.1 Turn ON/OFF the Unit
When the unit is OFF, you can press " " for 3s to turn on the unit.
When the unit is ON, you can press " " for 3s to turn off the unit.
For example: Flashing
OFF status ON status
6.2.2 Mode Switch
When the unit is ON, you can switch AUTO / HEAT / COOL modes by short
pressing " ". (NOTES: THERE IS NO AUTO MODE FOR iX33/ iX40/ iX33T/ iX40T.)
For example:
Cool Mode Heat Mode
Press " "
for 3s
Press " "
Light up
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-17 -
6.2.3 Running Mode Switch
In the main interface, press " " or " " or " "to switch different
running modes: Boost mode, Silent mode, Smart mode.
When the Boost mode starts, icon " " will light up.
When the Smart mode starts, icon " " will light up.
When the Silent mode starts, icon " " will light up.
6.2.4 Setting the Temperature
In the main interface, press " " or " ", you will see the Setting
temperature. Then press " " or " " to set the Target Temperature.
Press " " to save and go back to the main interface.
For example:
Press " "
Press " " to save and exit.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]

-18 -
6.2.5 Clock Settings
In the main interface, you can press " " for 3s to set the Clock. Press " "
again then you will see the numbers of the Hour digit are flashing. Press " "
and " " to increase or decrease values. After completing settings of the
Hour digit, you can press " " to set the Minute digit. After those settings
completed, you can press " " to save and go back to the main interface.
For example:
Flashing
Flashing
Press " "
for 3s
Press " " again
Press " "or
" "to set
the Hour digit.
Press " " to set the
Minute digit.
Automated Environmental Systems, Unit B, Anglian Lane, Bury St Edmunds, IP32 6SR
01284 6587710 | [email protected]
