THANK YOU
Dear Customer,
Thank you for choosing our products and greatly we appreciate your confidence in
us!
These are the ECO Full Inverter Swimming Pool Heat Pumps for heating or cooling
your pool and extending your swimming season.
This is a special Pool heat pumps which has been designed to be as Eco friendly as
possible, using market leading technology and experience.
The EFI is a smart heat pump which controls how to heat your pool most efficiently
and maintain pool temperature, thanks to the full inverter technology.
Our goalis to provideyou with an exceptional high performancequality product.
We have produced this manual to assist you in getting the get maximum benefit
and use from your heatpump.

1
Please read carefully

1
TABLE OF CONTENT
INTRODUCTION........................................................................................................................................ 2
This manual ...................................................................................................................................... 2
The unit............................................................................................................................................ 2
SAFETY INSTRUCTIONS.............................................................................................................................. 3
ITEMS INSIDE PRODUCT BOX ..................................................................................................................... 6
OVERVIEW OF THEUNIT............................................................................................................................ 7
Unit Dimension ................................................................................................................................. 7
Explode View .................................................................................................................................... 8
INSTALLATION.........................................................................................................................................10
Installation information ....................................................................................................................10
Condition of installation....................................................................................................................10
Installation place ..............................................................................................................................10
To perfect your installation ...............................................................................................................10
Water connection.............................................................................................................................10
Electrical connection ........................................................................................................................13
Trial running.....................................................................................................................................15
OPERATING THE UNIT...............................................................................................................................15
Controller Instruction .......................................................................................................................16
Display Instruction............................................................................................................................16
Instruction for Function....................................................................................................................18
Function Diagnosis ...........................................................................................................................19
PARAMETER CHECKING AND ADUSTMENT.................................................................................................20
Parameter list...................................................................................................................................20
Malfunctioning of the unit and maintenance......................................................................................20
MAINTENANCE THEUNIT.........................................................................................................................24
Cleaning the pipe system in the heat exchanger.................................................................................24
Cleaning the air system.....................................................................................................................24
Winter Shutdown/Lay-up..................................................................................................................25

2
TROUBLESHOOTING.................................................................................................................................26
ENVIRONMENTAL INFORMATION..............................................................................................................27
DISPOSALREQUIREMENTS .......................................................................................................................27
WIRING DIAGRAM...................................................................................................................................28
Specification............................................................................................................................................29
ENVIRONMENTAL INFORMATION.......................................................................................................30
DISPOSALREQUIREMENTS................................................................................................................30
User Manual for APP................................................................................................................................34
READ THIS MANUAL CAREFULLY BEFORESTARTINGUP THE UNIT. DO NOT THROWIT AWAY. KEEP
IT IN YOUR FILES FOR FUTURE REFERENCE.
BEFORE OPERATINGTHE UNIT,MAKESURETHEINSTALLATION HAS BEEN CARRIED OUT
CORRECTLYBYA PROFESSIONALDEALER. IF YOU FEEL UNSUREABOUT OPERATION, CONTACT
YOUR DEALER FOR ADVICEAND INFORMATION.

2
INTRODUCTION
This manual
This manual includes the necessary information about the unit. Please read this manualcarefully before
you use and maintain the unit.
The unit
The swimming pool heat pump is one of the most economical systems to heat the swimming pool
efficiently. Using the freerenewable energy from the air and the earthit delivers up to five times more
energy in heating than a traditional heating system such as gas heateror electric element heater.Soyou
willsave 4/5cost of the traditional heating. The swimming pool heat pump lengthens yourswimming
seasonand gives you comfort at a high level. You could enjoy swimming not only in summer, but also in the
spring, autumn and even through the winter season.
Ecological and economical heating
By making use of the renewable energyin the outside air, it consumes much less energy withlow
carbon emission. Use environment friendly advanced refrigerant R32 which has little to no effect on
Ozone.
Titanium heat exchanger
Advanced titanium heat exchanger ensures a long life span of heat pump free from corrosion and rust.
By using of titanium heat exchanger the heat pump could be applied with all types of water treatment
such as chlorine, mineral, bromine and salt water pools andspas.
Multiple functions
-Cooling and heating ,Auto functions available;
-Auto operation, Auto-restart, Auto defrost
-Timer on/off: no human attendance is required
- Wide ambient working condition: -15°C to 46°C
Reliable operation
To guarantee the stable running and increase the sustainability of the unit multiple protection devices
have been built into pool heat pump which includes insufficient water flow protection, high/low
pressure protection, overload protection & compressor protection.

3
Safe use
The swimming pool heat pump works without oil, gas (petroleum) or other hazardous substance
which avoid potential risk that goes together. Moreover no gas (petroleum) connection or a fuel
tank is needed. No risk of intoxication, smellorpollution from leakage of such chemicals.
Self-diagnosis
When there is malfunction, the swimming pool heat pump will make self-diagnosis bydisplaying error
code from the control panel. The problem could be found out at a glance be referring to the
troubleshooting section of this manual.
SAFETY INSTRUCTIONS
To preventinjury to the user,other people, orproperty damage, the followinginstructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
Install the unit only when it complies with local regulations, by-laws and standards. Check the main
voltage and frequency. This unit is only suitable for earthed sockets, connection voltage 220 –240 V ~ /
50Hz.
The following safety precautions should alwaysbe takeninto account:
-Be sure to read the following WARNING before installing the unit.
-Be sure to observe the cautions specified here as they include importantitems related to safety.
-After readingthese instructions, be sure to keep it in a handy place for future reference.
Do not install the unit yourself.
Incorrect installation could cause injury due to fire, electricshock, the unit falling or leakage of water.
Consult the dealer from whom you purchased the unit or a specialized installer.
Install the unit securely in a place.
When insufficiently installed, the unit could fall causing injury. When installing the unit in a small room,

4
please take measures (like sufficient ventilation) to prevent the asphyxiacaused by the leakage of
refrigerant.
Use the specified electrical wires and attach the wires firmly to the terminal board (connection insuch a
way that the stress of the wires is not applied to the sections).
Unit must be installed according to AS/NZS 3000:2018 wiring rules and the electrical connectionmust be
complete by a licensed electrician. Incorrect connection and fixing could cause a fire.
Perform electrical work according to the installation manual and be sure to use a suitable circuit. If
the capacity of the power circuit is insufficient orthere is an incomplete electrical circuit, it could result
in a fire or an electric shock and damage to the unit.
The unit must always have an earthed connection.
Neveruse an extension cable to connect the unit to the electric power supply.
Perform the installation securely and please refer to the installation instructions.
Incorrect installation could cause an injury due to possible fire, electric shocks, the unit falling, leakage of
wateretc.
Do not move/repairthe unit yourself.
Before proceeding with any maintenance,service orrepair work, the product must be isolated from the
mains electrical supply. Only qualified personnelshould carry outthese tasks. Improper movement or
repair on the unit could lead to water leakage, electricalshock, injury or fire.
Do not install the unit in a place where there is a chance of flammable gas leaks.
If there is a gas leak and gas accumulates in the area surrounding the unit, it could cause an explosion.
Perform the drainage/piping work according to the installation instruction.
If there is a defect in the drainage/piping work, water could leak from the unit and household goods could

5
get wet and be damaged.
Do not clean the unit when the power is ‘ON’.
Always shut ‘OFF’ the power when cleaning orservicing the unit. If not, it could cause an injury due to the
high speed running fan or an electricalshock.
Do not continue to run the unit when there is something wrong or there isa strange smell.
The power supply needs to be shut ‘OFF’ to stop the unit; otherwise this may cause an electrical shock or
fire.
Do not put your fingers or other items into the fan orevaporator.
The ventilator runs at high speed, it could cause serious injury.

6

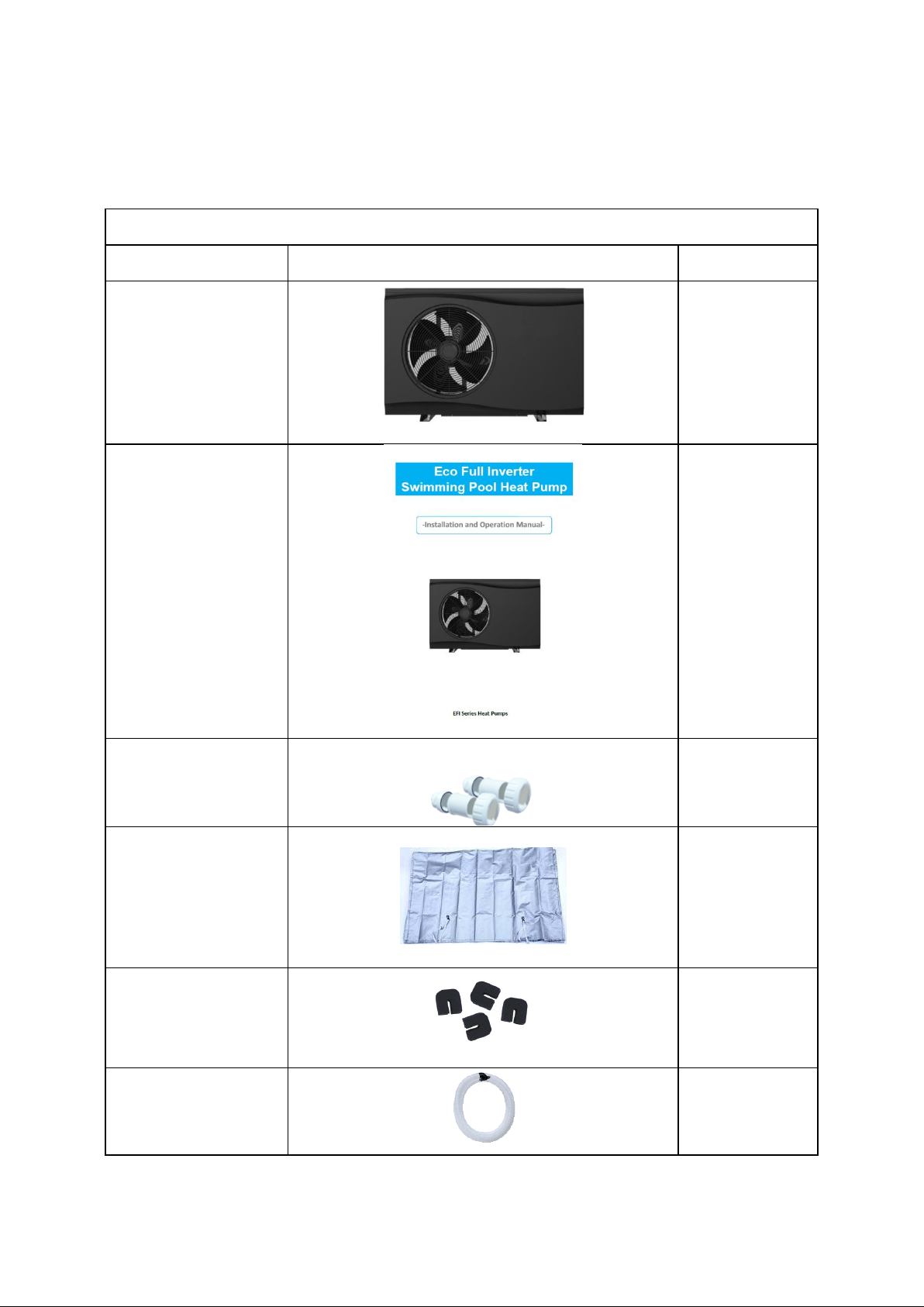

ITEMS INSIDE PRODUCT BOX
Before starting the installation, please make sure that all parts are found inside the box.
The Unit Box
Item
Quantity
Eco FullInverter
Swimmingpool heat
pump
1
Installation and
Operation Manual
1
BarrelUnions
(40mm)
2
Winter Cover
1
Rubberfoots for
anti-vibration
4
Water Drainage Pipe
1

7
OVERVIEW OF THE UNIT

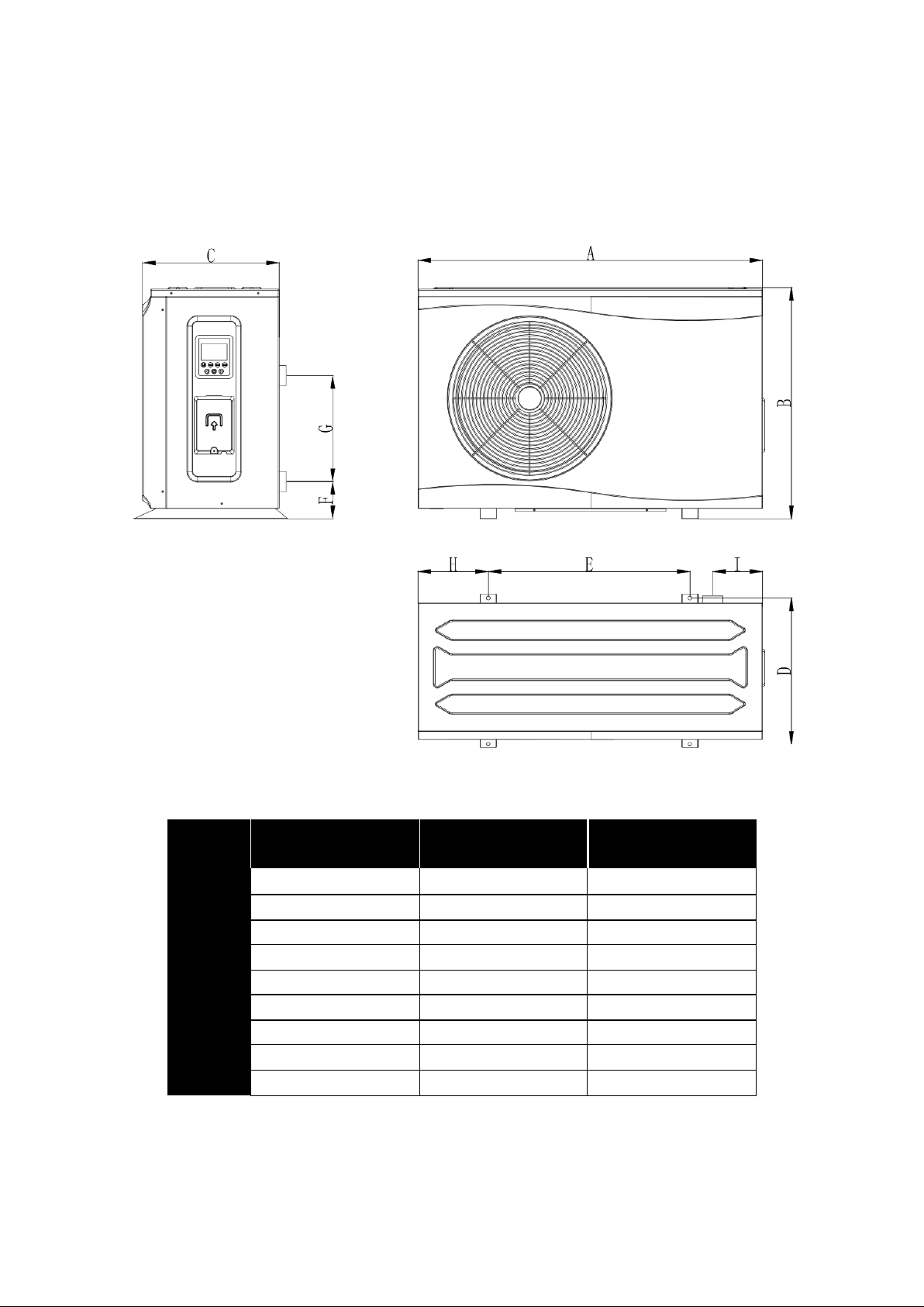

Unit Dimension
MODEL
EFI 14
EFI 17
EFI 21
A
986
986
986
B
668
668
668
C
356
356
356
D
405
405
405
E
608
608
608
F
106
106
106
G
380
380
380
H
189
189
189
I
123
123
123

8
Explode View
No.
Name
No.
Name
1
TopCover
14
BottomPanelcomponent
2
Electric box cover
15
Inverter compressor
3
Support frame
16
Middle-pressure switch
4
Electronic control components
17
Low-pressure switch
5
Finheatexchanger
18
Power waterproof cover
6
Fan blade
19
Controller
7
Middle panel
20
Rightpanel
8
AC fanmotor
21
Needle valve
9
Fan
22
Four-wayvalve
10
FrontPanel
23
High-pressurevalve
11
Discharge grill
24
Electronic expansion valve
12
Reactance waterproof box
25
Titaniumtubeheatexchanger

9
13
Reactance
26
Balance tank

10
INSTALLATION
Installationinformation
The following information given here is not an instruction, but simply meant to give the user a better
understanding of the installation.
Condition of installation
The following information given here is not an instruction, but simply meant to give the user a better
understanding of the installation.
Installationplace
Install the swimming pool heat pump on a flat, horizontal, and stable surface. Maintain 1 M of open space in
front of the discharge grids and 3 M on the outlet side of the ventilator. And reserve enough space to allow
access to temperature controller.
Make sure that the discharged air will not be breathed in.
To perfect your installation
--Avoid directing the flow of ventilated air towards a sensitive noise zone, such as room window.
--Avoid positioning pool heat pump on a surface that can transmit vibrations to dwelling.
--Try to avoid placing appliance under a tree or exposed to water or mud, which would be likely to complicate
maintenance.

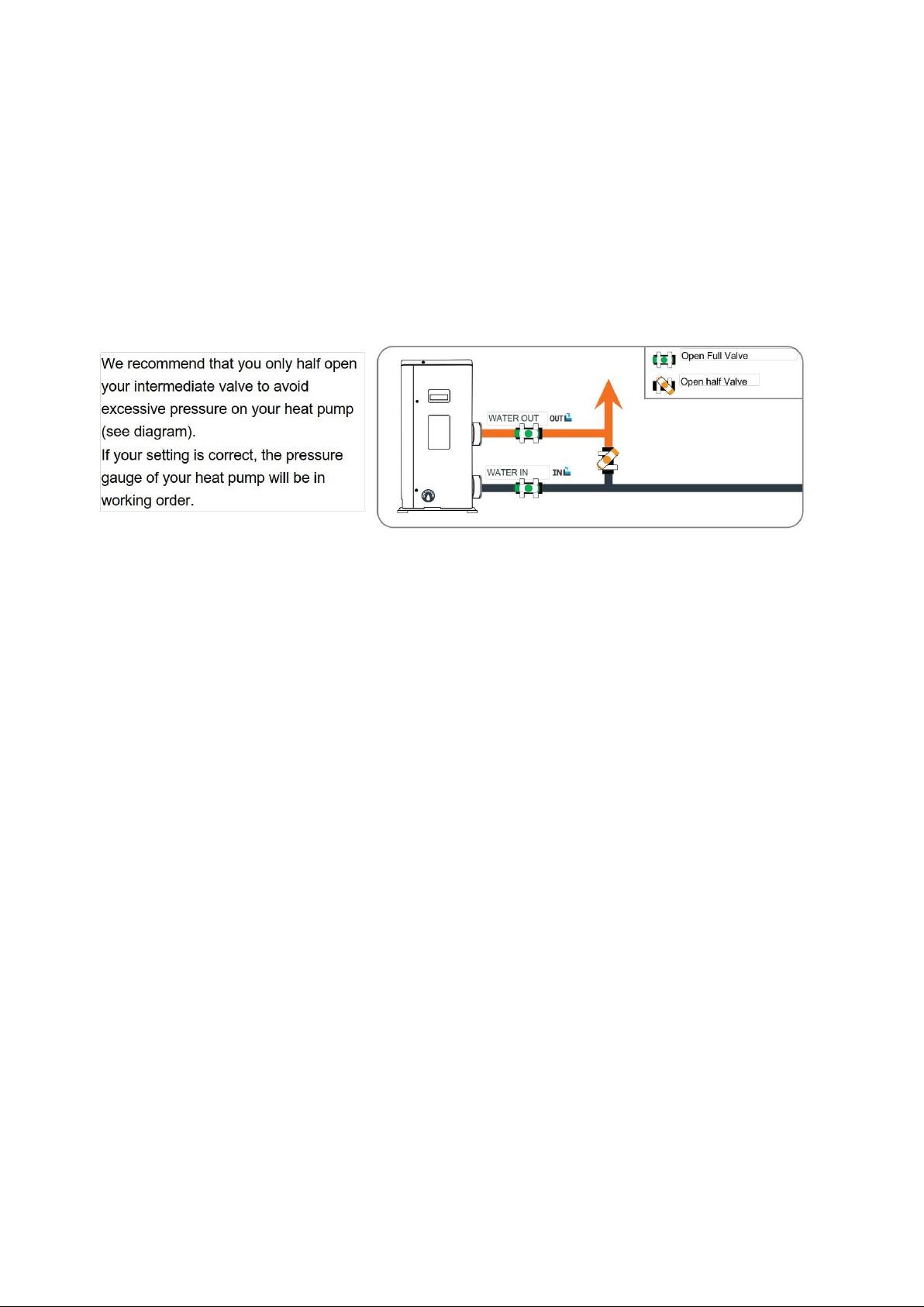

Water connection
The heat pump is connected to a filtration circuit with a by-pass.
It is imperative that the by-pass is placed after the pump and the filter. The
by-pass generally consists of 3 valves.
This makes it possible to regulate the water flow which passes through the heat pump and to isolate the heat
pump completely for any maintenance work, without cutting the flow of filtered water.

11

12
To channel condensation flows, we recommend that you install our condensate drain kit.
For this purpose the heat pump must be raised by at least 10 cm.
How to install the condensate drain kit?
1. Install your heat pump by raising it by at least 10 cm using solid, moisture-resistant studs.
2. Connect the exhaust hose to the drain hole located underneath the heat pump.
Hydraulic Connection

13

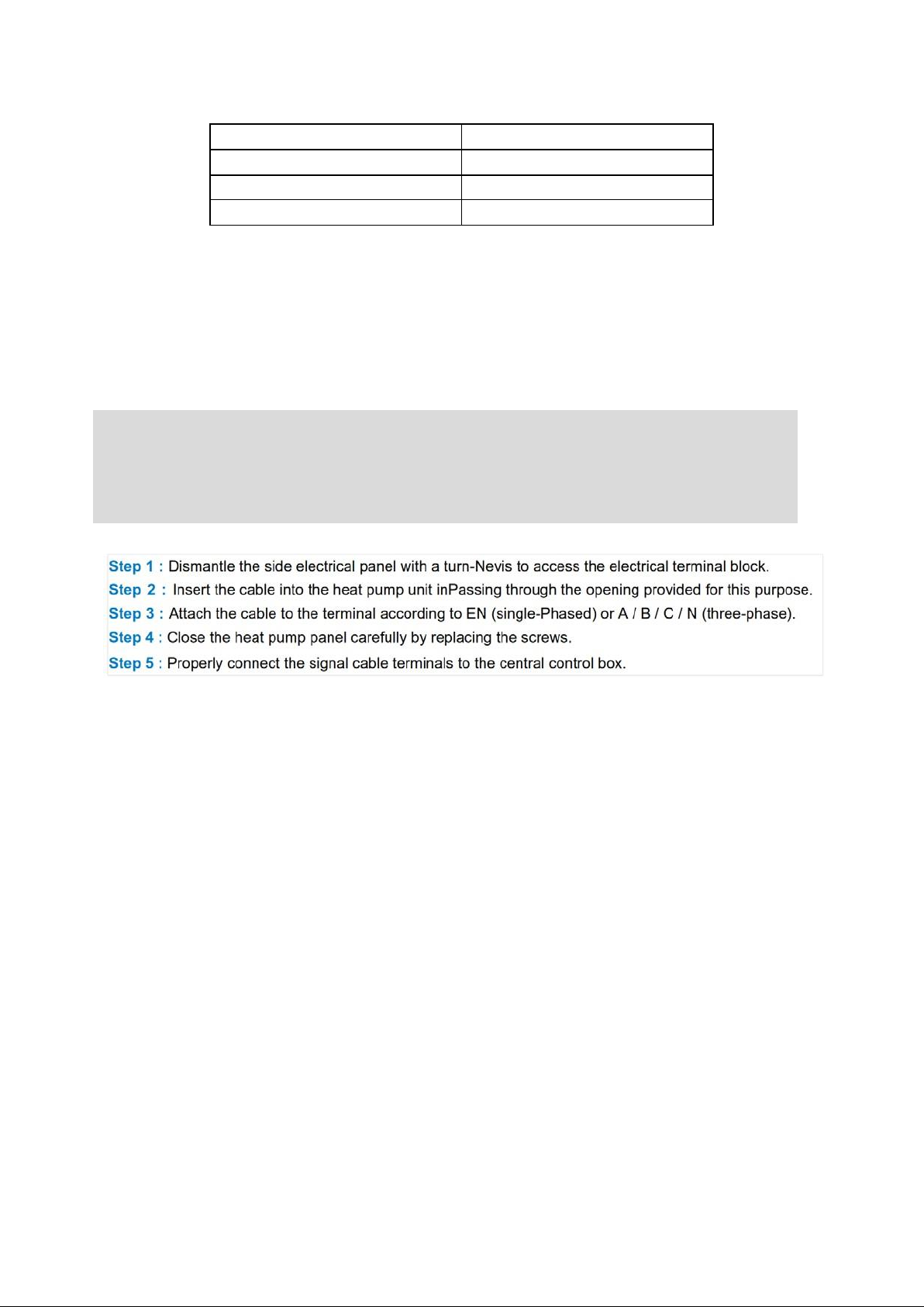

Electrical connection
Electrical supply must correspond to that indicated on theappliance.
Unit must be earthed
Wiring must be completed by a licensed electrician
Set leakage protector according to local code
Connection cables have to be sized according to appliance power and installation requirements. Please
The filter must be cleaned regularly to ensure that the water in the system is clean and to avoid any
problems relatedto dirt or clogging of the filter.

14
refer to below table:
Heat pump
Cable size
EFI 14
3x 2. 5mm
2/
AWG 14
EFI 17
3x 2. 5mm
2/
AWG 14
EFI 21
3x 4. 0mm
2/
AWG 12
The above wiring information is to be used as a guide only. Electrical connection must be made in accordance
with AS/NZS 3000:2018 wiring rules.
Use the cable glands and grommets provided inside the heat pump to route cables.
If the length of your cable is more than 10 meters, we advise you toseek advice from a professional.
A voltage variation of ± 10% during operation is acceptable.
The power supply lines must be securely fastened.
The cable must be suitable for outdoor use.
