OWNER’S MANUAL | POOL HEAT PUMP
MDPL-00001A-A/EN LISH

Pool He t Pump _1
CAUTION
Shipping Damage MUST be reported to the Carrier IMMEDIATELY!!! Examine the exterior. Remove cover and examine
compressor and piping for signs of damage.
Warning:
Prior to starting the heat pump, you must ensure that:
Electricity is supplied to the heat pump.
The filter pump is operating with a minimum water circulation of 22.5 gallons per minute ( PM).
If these two conditions are not met, the heat pump with not start. In such case, the digital display thermometer
will be unusable.
* Pressure gauges are for maintnance only.
* Pressure can vary depending on the weather.

Pool He t Pump _2
TABLE OF CONTENTS
_Introduction 3
_DPL Pool Heat Pump Features 4
_Safety Precautions 5
_ perating the Pool Heat Pump 6
_General Information n Heat Pump peration 7
> Beginning of season 7
> End of season (winterizing) 7
_Pool Heat Pump Installation 8
> Determining optimum location 8
> Clearance 8
> Level placement 8
> Securing the unit 9
> Condensation and drainage 9
> Water flow 10
> Electrical connections 10
_Electrical Specifications 11
_Connecting Electrical Conductors 12
_Wiring Diagram 13
_Plumbing Specifications 14
> Installation 14
> Check valve & chemical trap loop 15
> Flow rate 15
> External bypass 15
_Maintenance 16
_Replacement Parts Guide 17
_Pool Heat Pump Disassembly Diagram 18_19
_Troubleshooting 20_21
_Temperature Controller Programming 22
_Product Warranty 23
_Notes 24

Pool He t Pump _3
INTRODUCTION
Model number:
Serial number:
Date of purchase:
Date of installation:
Dealer’s Name and Address:
You will be asked this information if your unit requires servicing and/or for general inquiries.
Dear Valued Customer,
Thank you for purchasing this DPL product.
We hope that you will derive as much pleasure from using this product as we did in manufacturing it. In order to bring you
the best possible products, we want to know your comments about the product. You can e-mail us at [e-mail]
or contact customer service at +1.450.818.4758.
For easy reference, we suggest that you attach a copy of your sales slip/receipt to this page, along with the following
information which can be found on the manufacturer’s nameplate located on the side of the unit.

Pool He t Pump _4
DPL POOL HEAT PUMP FEATURES
> Quietest model on the market: 50% quieter than competing products.
> Digital display thermostat.
> ROTARY or SCROLL energy-efficient compressor.
> Aluminium/copper evaporator with one or two vertically-positioned ventilator(s). This configuration
greatly reduces noise output while improving heat exchange efficiency.
> Titanium double coil, according to model. Titanium heat exchangers are very resistant
to all chemical imbalances.
> The cabinets of all our products are made with ABS plastic, and with Aluminium.
> Stainless steel screws with nylon washers and ABS plastic grill.
> Access holes for service gauges.
> Superior quality thermostatic expansion valve, distributor and filter.
> Safety approval by CSA International.
> Each Pool Heat Pump is factory run tested.

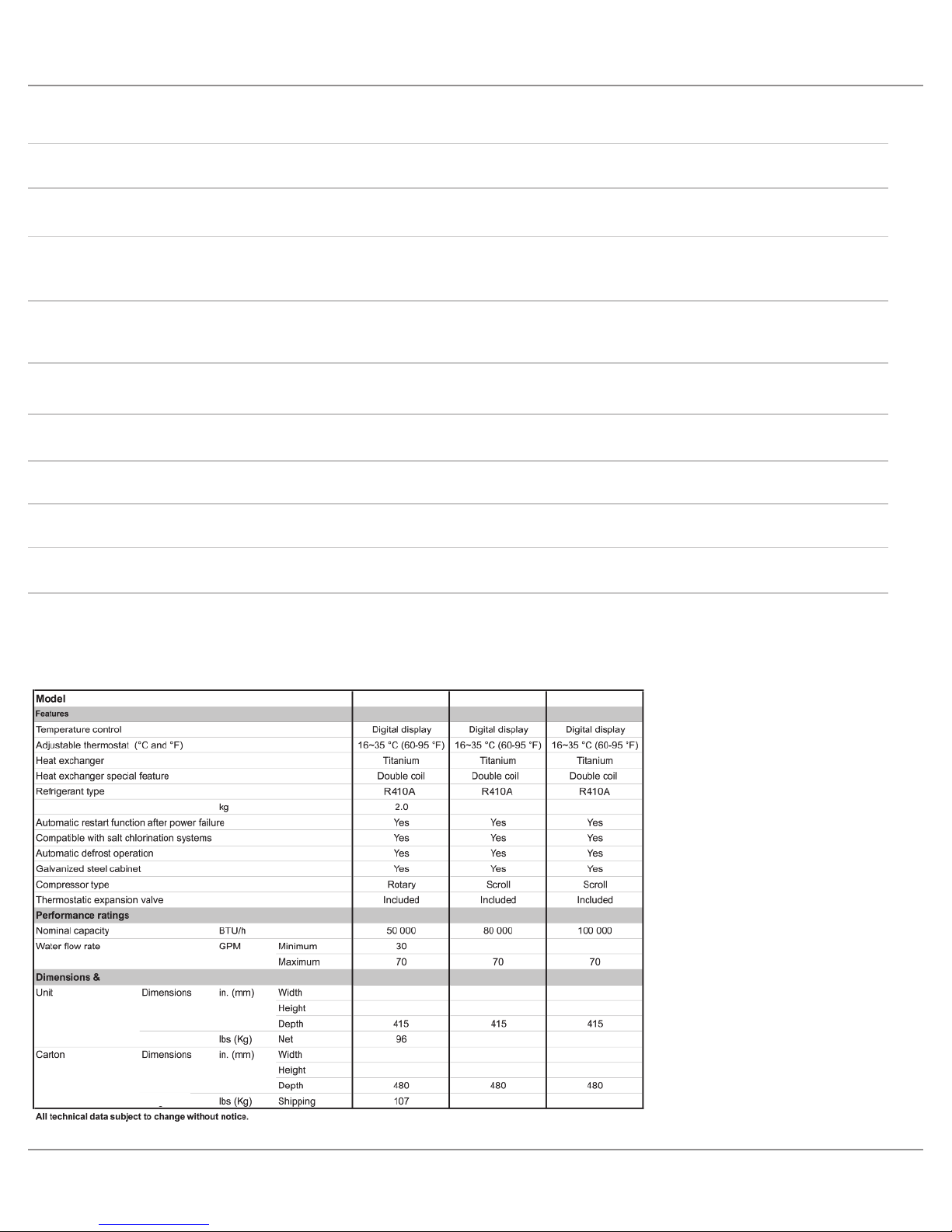

50HPRA-410 80HPRA-410 100HPRA-410
2.1
1255
Refrigerant charge
Weight
Weight
1275 1275 1275
960 1360 1360
138 138
128 128
930 1135
22.5 22.5
2.25
1255 1255
1135
Weight
Specifications

This manual is a guide to the proper installation of the DPL Pool Heat Pump. Improper installation may result
in unsafe and dangerous conditions that will void the factory warranty. Prior to installation, read these instructions and
any instructions that are packaged with separate pieces of equipment that make up the system. Please read these in-
structions thoroughly and carefully before attempting installation or operation. Failure to follow these instructions may
result in improper installation, operation, service, or maintenance, possibly resulting in fire, electrical shock, property
damage, personal injury, or death.
General Precautions:
> Ensure proper supervision of unit in the presence of children or persons unfamiliar with
pump operation.
> Do not hang or lay clothes or other objects on the unit.
> Keep the evaporator coil clean. Any restrictions to the air flow of the evaporator coil can seriously affect
system performance.
> This device must be installed in compliance with national electrical standards.
> Do not insert foreign objects between the air flow swivelling blades as this may damage the
ventilator or cause injury.
> The unit must never be placed on its side or upside down, as the compressor oil will run into
the cooling circuit and seriously damage the unit.
> Please be advised that attempting to repair this unit by yourself is done at your own risk. It is
recommended to contact the manufacturer, an authorized service centre or the store of purchase.
Caution:
The manufacturer disclaims all liability for any accident, during the installation or use of this product, as a result of the
unsafe installation of the heat pump. If you encounter difficulties during installation, please contact the manufacturer, an
authorized service centre or the store of purchase.
Pool He t Pump _5
SAFETY PRECAUTIONS

Pool He t Pump _6
OPERATING THE POOL HEAT PUMP
The DPL Swimming Pool Heat Pump is designed for easy operation. The side panel contains a digital
temperature control readout. The Heat Pump is set to reach and then maintain the selected pool water temperature, as
long as the pool pump is running.
To start the unit:
> Press the button . In normal operating mode, the display indicates the water temperature in centigrade degrees.
To stop the heat pump, press the button.
To adjust the temperature to the desired value:
> Press the button until the red pilot light turns on.
> To adjust the water temperature, press the or buttons until the targeted temperature is displayed.
The available temperature range is between 18 °C and 35 °C.
> To return to normal operating mode, press the SET button again, for at least 5 seconds.
The pilot light turns on whenever the heat pump is in operation, which means that the ventilator(s) and the compressor
are functioning in order to heat the pool.
All models use a 5-minute time delay to prevent repeated tripping of the compressor's overload protection mechanism, which is
caused by attempting startup before system pressures are equalized. Any interruption will result in a 5-minute time delay.
The pilot light will blink during this 5-minute time delay.
To display the temperature in farenheit (°F) or celcius (°C), press the and buttons simultaneously
for 3 seconds to select the desired temperature scale.
Warning:
Prior to starting the heat pump, you must ensure that:
> There is electricity supplied to the heat pump.
> The filter pump is operating with a minimum water circulation of 22,5 gallon/min.
If these two conditions are not met, it will be the heat pump will not start. In such a case, the digital display thermometer
will be unusable.
TIP:
Setting the thermostat to its highest setting will not heat the water faster than setting it at the desired temperature.
A: pilot light
B: pilot light
C: Digital display
D: Button to set temperature at desired value
E: Start/stop button
F: Temperature adjustment buttons
A
B
D
C
E
F

Beginning of season:
> Make sure that the electrical breaker for the pool heat pump is in the FF position.
> Be Ensure the water lines and the heat pump are reconnected and/or drain valves are closed.
> Clean the pool filter and make sure the water is flowing adequately through the pool return line (22.5 – 70 PM).
> Complete your normal preparation and/or cleaning of the pool for the start of the season.
> Switch N the breaker for the electrical supply to the heat pump.
> Then you need only start the unit and adjust the temperature to the desired value.
End of season (Winterizing)
> Switch FF the breaker for the electrical supply to the heat pump.
> You must empty the unit of all water. You simply disconnect the WATER INLET and WATER UTLET lines by unscrewing
the two union fittings on the front of the unit. To completely remove the water from the heat exchanger, you must remove
the drain cap (WINTERIZING DRAIN) that is located on the side of the unit. You must then let the water flow out until the unit
is completely emptied. (See the illustration below.)
It is recommended to cover the heat pump with a protective cover that is available from your dealer.
Pool He t Pump _7

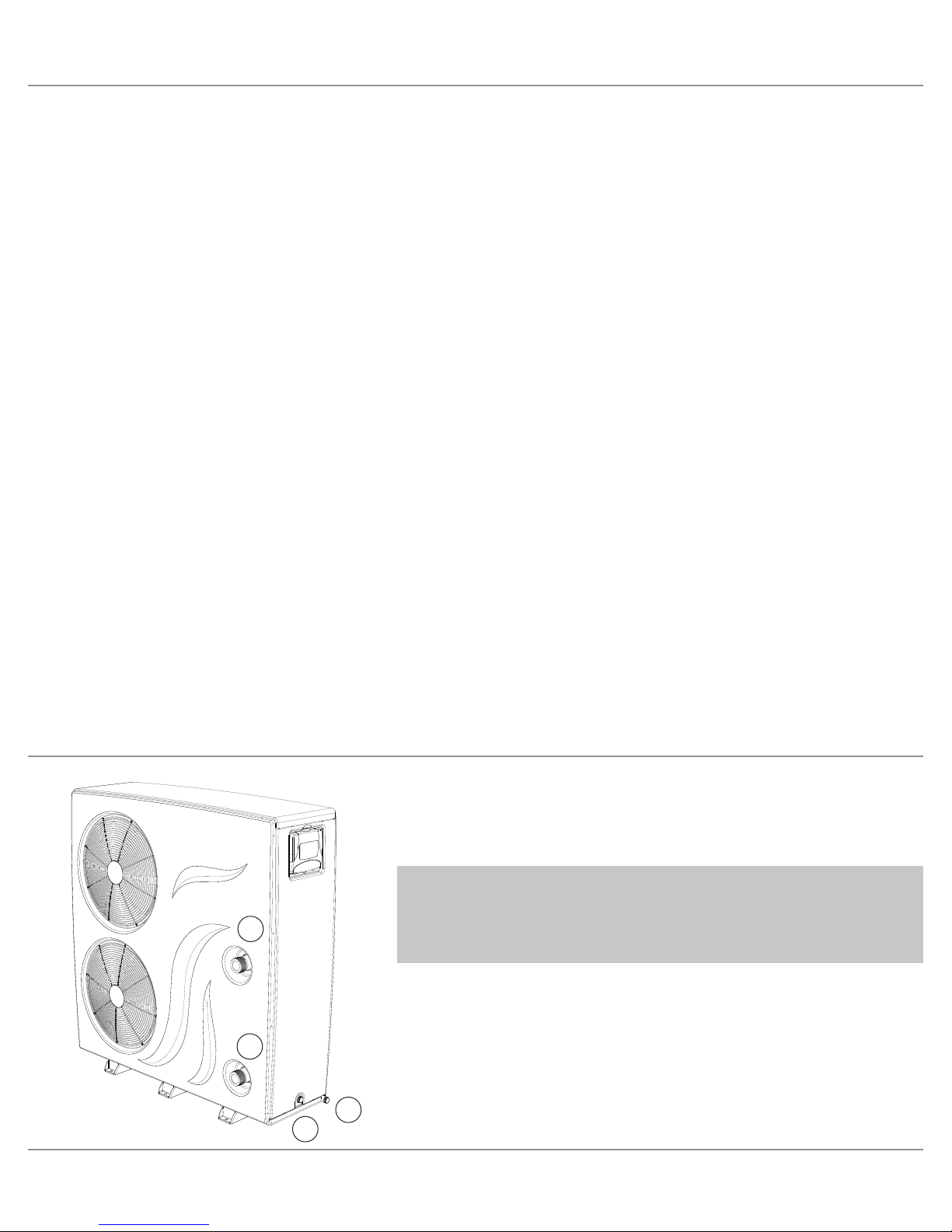

GENERAL INFORMATION ON HEAT PUMP OPERATION
A: WATER INLET
B: WATER OUTLET
C: CONDENSATION WATER DRAIN PIPE
D: WINTERIZIN DRAIN (with plastic caps)
A
B
D
C

Pool He t Pump _8
POOL HEAT PUMP INSTALLATION
Determining ptimum Location
Choose a location where the noise of the heat pump, when running, and the discharged air will not disturb the neighbours.
Install the Pool Heat Pump Heater unit on a flat, stable surface that can support its weight and does not generate any un-
necessary noise and vibration.
Clearance
Choosing the location of your heat pump is very important. You should install it as close as possible to the filter system.
You should obey the clearance distances around the heat pump that are given in the drawing below.
Level Placement
We recommend that you install your heat pump on a solid base, for example two concrete tiles. Four (4) rubber pads (ab-
sorbent pads) are provided to lessen the transfer of vibrations. (See drawing below.)
60 cm (24 in) or more
(Front)
30 cm (12 in) or more
60 cm (24 in) or more
30 cm (12 in) or more
40 cm (16 in) or more
A: Concrete tile
A
A
(Front)
(Top)
(Side)
(Side)

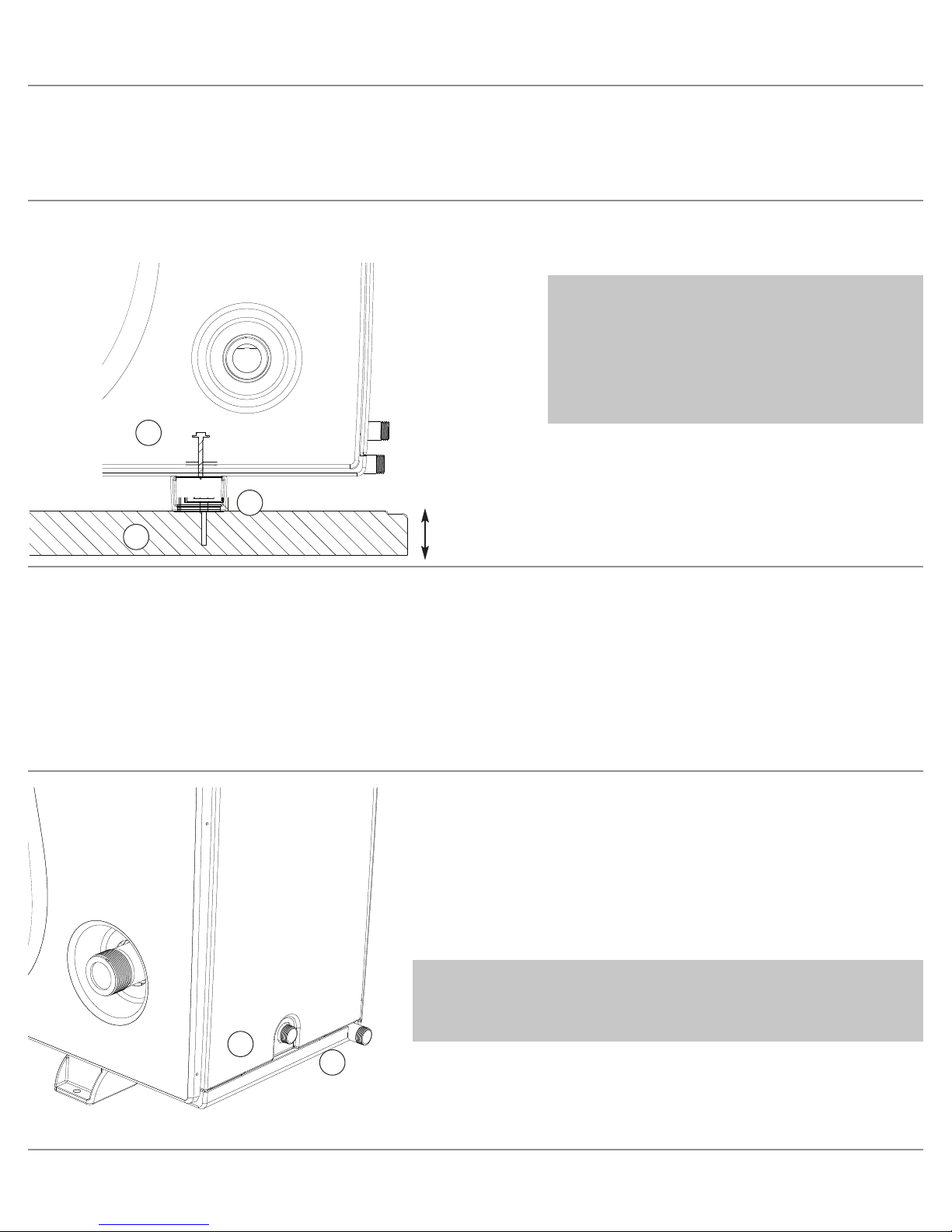

Securing the unit
We recommend that you secure the unit to the concrete pad by using four (4) TAPCON screws and washers.
(See drawing below.)
Pool He t Pump _9
POOL HEAT PUMP INSTALLATION
Condensation and Drainage
The evaporator coil will produce condensation while the unit is running and drain at a steady rate, usually three to five
gallons per hour, depending on the ambient air temperature and humidity.
It is normal for condensation to drip out the C NDENSATI N WATER DRAIN PIPE that is located on the side of the unit.
(See drawing below.)
A: CONDENSATION WATER DRAIN PIPE
B: WINTERIZIN DRAIN (with plastic caps)
A: Concrete Pad
B: 1/4” x 1-1/2” Stainless Steel Concrete Screw
and Washer (Provided by installer)
C: 3/16” Drilled Hole
3” minimum
A
B
C
A
B

Pool He t Pump _10
POOL HEAT PUMP INSTALLATION
Water flow
To minimize heating time, make sure all water valves are open completely, that the water level of the pool is at the
correct height. The DPL Pool Heat Pump is designed to operate at full flow through the heat exchanger (condenser).
A flow rate of 22.5-70 gallons per minute ( PM) should be maintained.
Caution:
Either no flow or a low flow rate will cause the unit to shut down. The Pool Heat Pump will not operate without a flow of water.
Electrical connections
This includes the heat pump, swimming pool metal panels, light, heat pump, filter, chlorine generator, as well as any other
metal component or electrical equipment.
Some older swimming pools might not have an electrical connector cable. In such cases, you must drive a 3 to 4 ft (0.91 to
1.2 meters) copper rod into the ground next to the equipment.

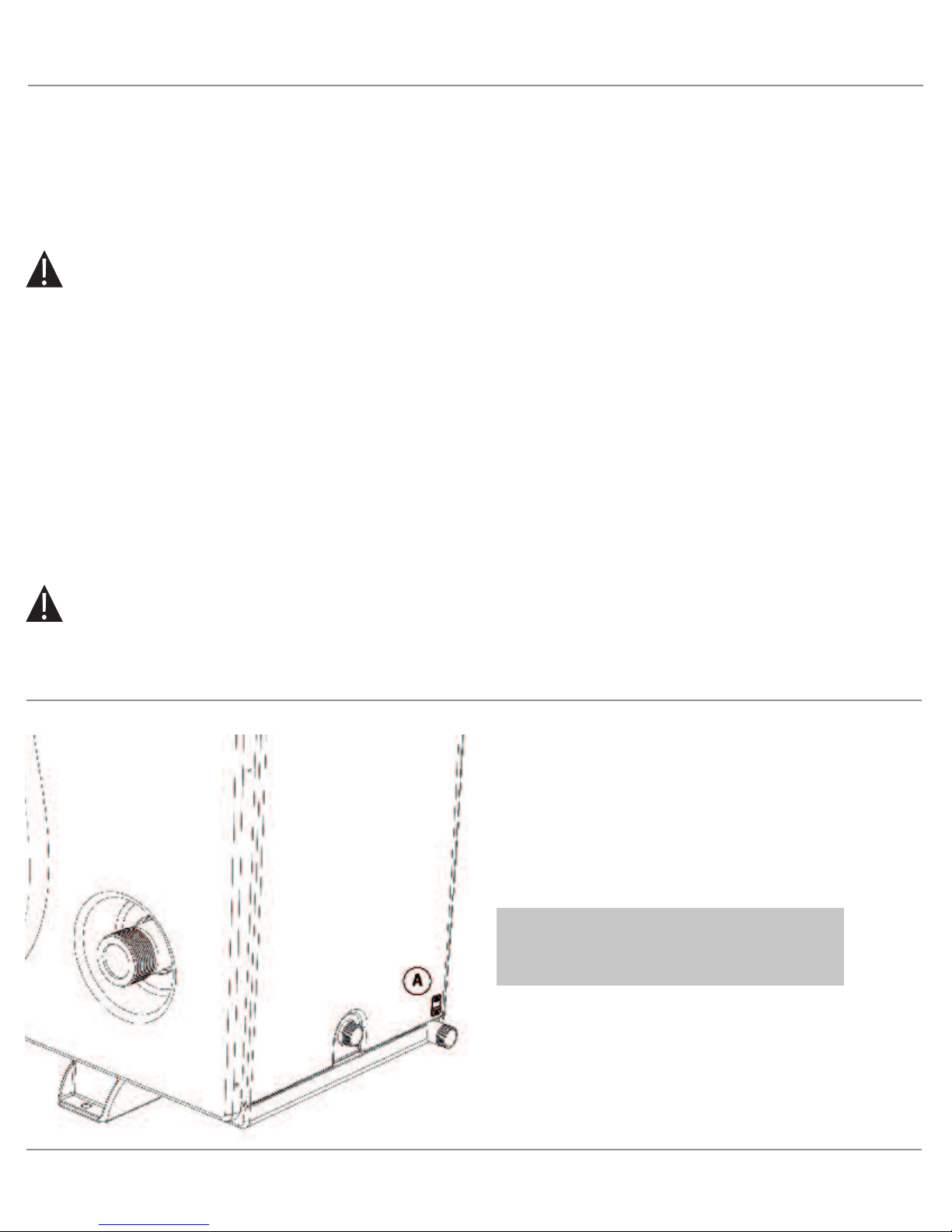

The ground connector of the DPL heat pump is located on the side of the unit.
(See drawing below.)
Warning:
Your warranty may be voided if the equipment is improperly connected.
A: round connector

> A qualified person must install the unit in accordance with all federal, provincial and local codes and guidelines.
> An electrical circuit exclusive to the heat pump must be used as the power supply.
> The supply voltage, size of over-current protective device, and size of supply conductors for the heat pump
are shown below.
> The Pool Heat Pump condensing unit must be connected to a properly grounded electrical supply.
You must ensure this unit is properly grounded.
> Check local electrical codes and regulations before obtaining wire.
> Use copper supply wires only.
> Please use conductors suitable for at least 75 ℃for 100HPRA-410 model.
Pool He t Pump _11

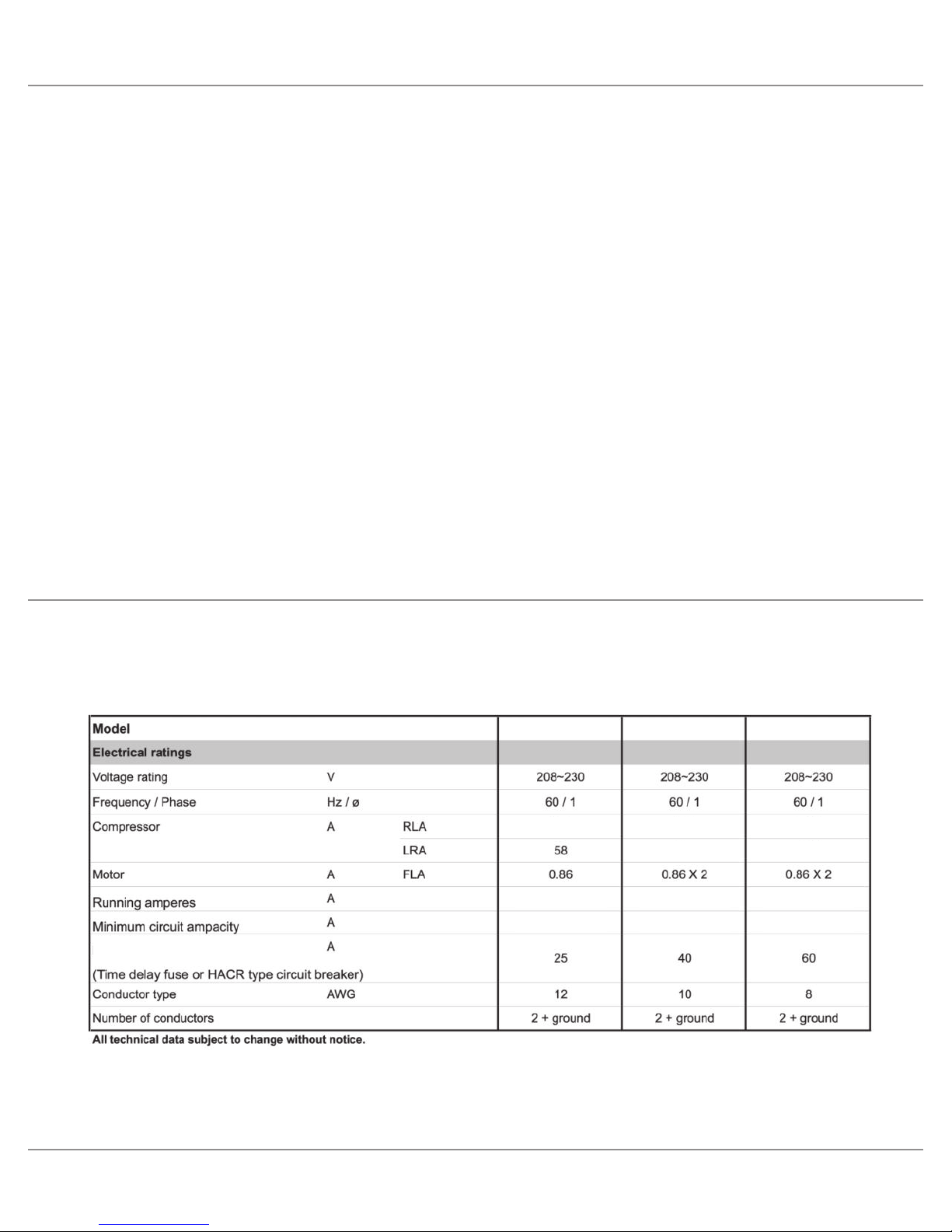

ELECTRICAL SPECIFICATIONS
50HPRA-410 80HPRA-410 100HPRA-410
13.1
14.5 28.3 37.5
17.5 35.6 38.3
26.9
145 145
29
Maximum over-current protection
Electrical Specifications

Pool He t Pump _12

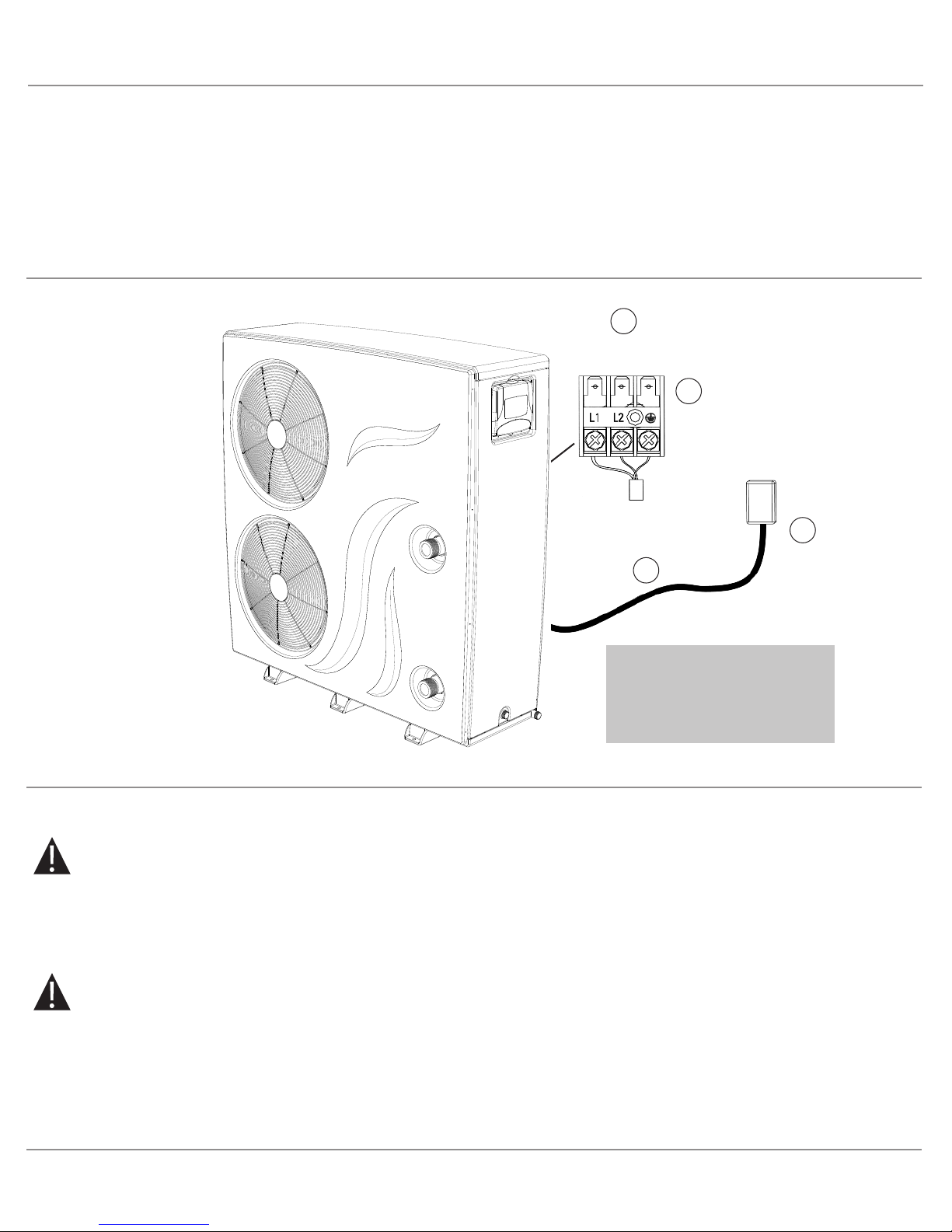

CONNECTING ELECTRICAL CONDUCTORS
You must remove the electrical connection box cover to access the electrical compartment. Wiring connections must be
made exactly as shown in the wiring diagram found under the top cover inside inside the Pool Heat Pump.
A disconnect switch must be installed near the outdoor unit for easy disconnection of power to the Pool Heat Pump.
CAUTI N
Operating the unit with improper line voltages constitutes abuse and will affect unit reliability and operation. Do not install
a system where voltage or phase imbalances may occur above or below permissible limits.
WARNING
Disengage main power disconnect before attempting installation
A: Disconnect switch
B: Electrical conductor
C: Electrical connection box cover
D: Terminal block
A
B
D
C

Pool He t Pump _13

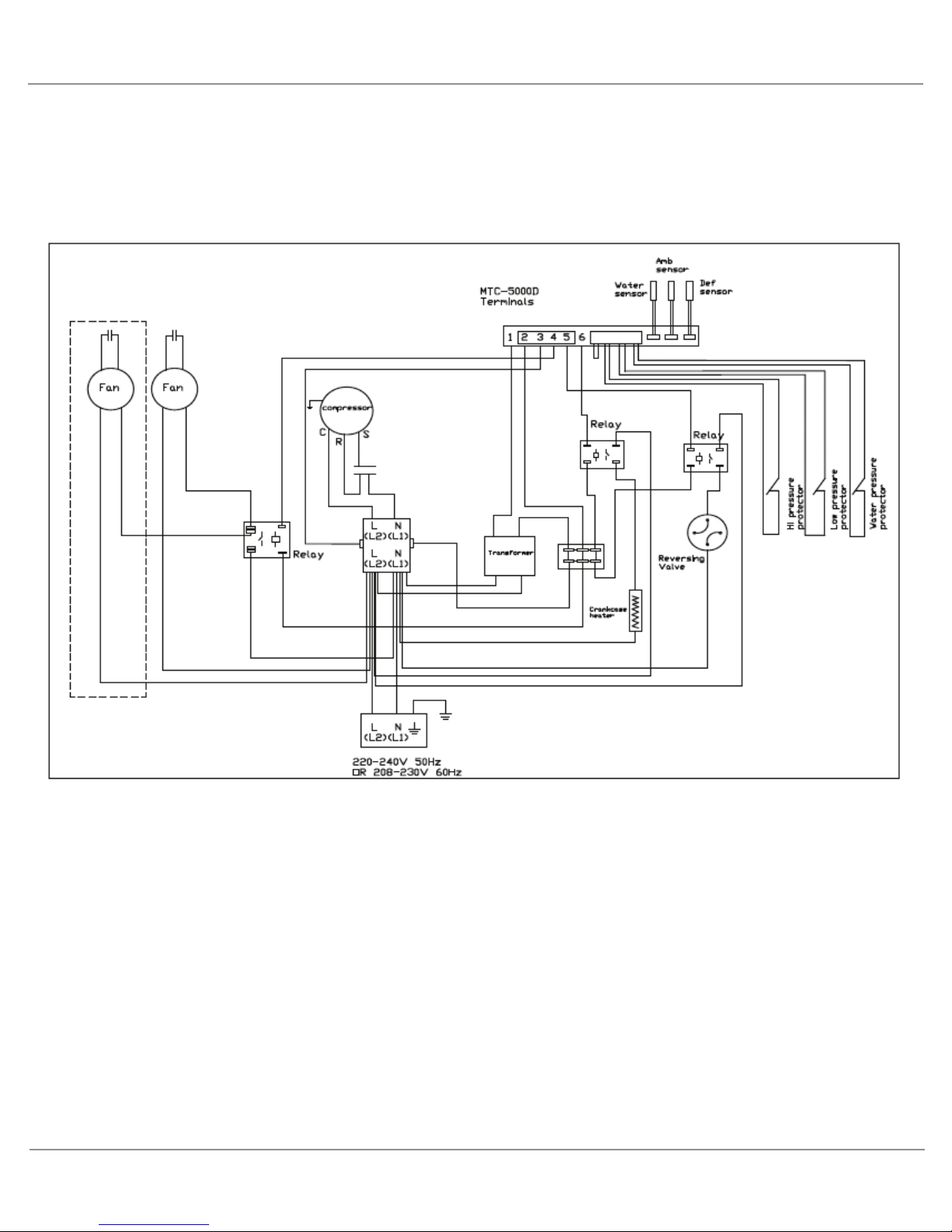

WIRING DIAGRAM
50HPRA-410
80HPRA-410
100HPRA-410

Pool He t Pump _14

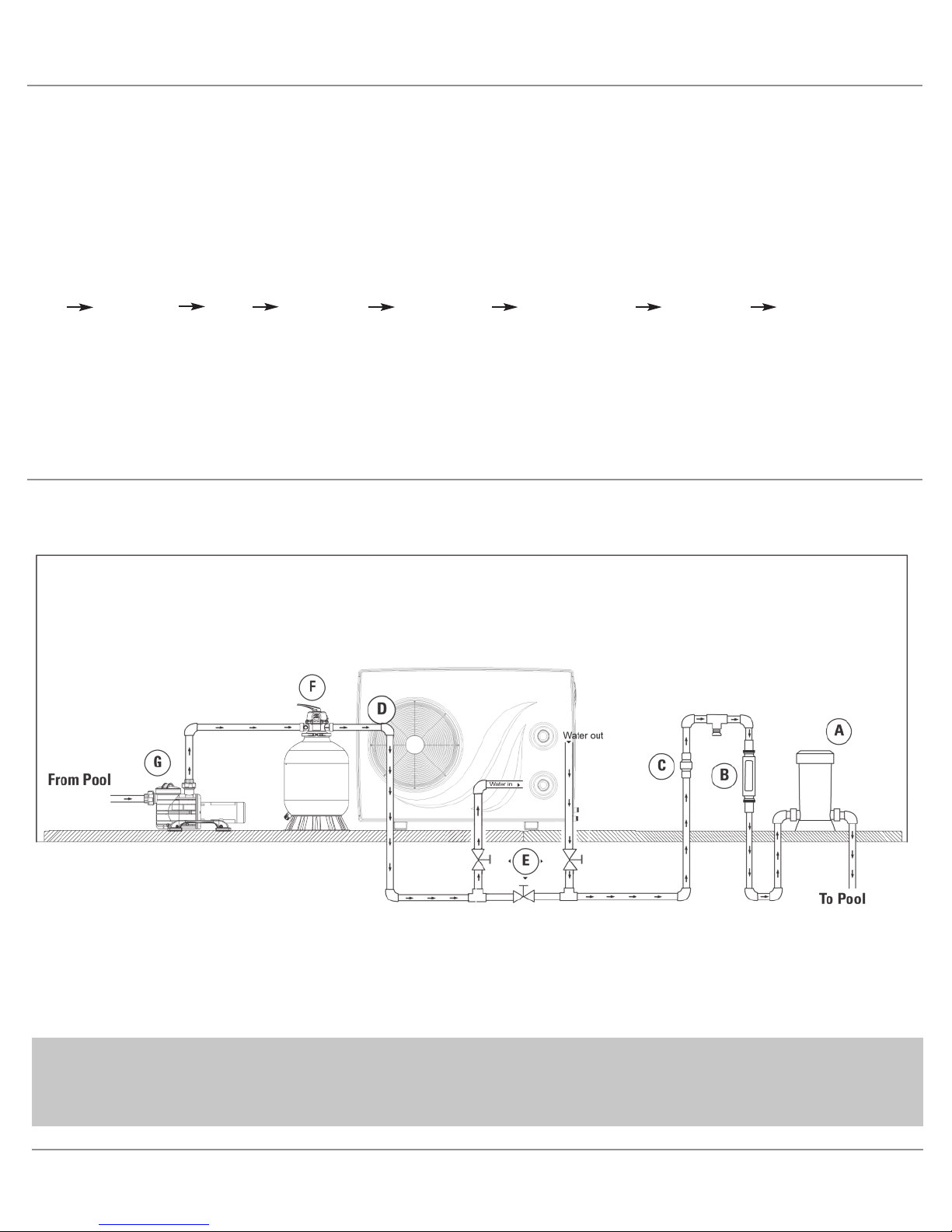

PLUMBING SPECIFICATION
The typical plumbing diagram illustrates the standard plumbing layout with a single heat pump unit. Following the diagram
from left to right, the plumbing sequence is as follows:
Pool Pool Pump Filter Heat Pump Check Valve Chemical Loop Chlorinator Pool
A detachable connection (union) must be utilized immediately adjacent to heater to facilitate servicing and winterizing of
the unit.
Installation
A: Chlorinator
B: Chemical Loop or Optional Chlorine eneration System
C: Check Valve
D: Pool Heater
E: E: 3 Manual Bypass Valve
(Recommended installation)
F: Filter
G: Pool Pump

Pool He t Pump _15
PLUMBING SPECIFICATIONS
Factory connections are for a 1 1/2" union nut.
Join the Pool Heat Pump inlet and outlet with rigid PVC (schedule 40). All joints must be glued with PVC glue. If rigid pipe
is not available, you can use soft or flexible piping with stainless steel clamps.
When the piping installation is completed, start the pool pump and check the system for leaks.
Check valve & Chemical trap loop
Ensure that the check valve and chemical trap loop are installed as shown above. The loop should be at least 8 inches
above the top of the chlorinator/feeder to prevent chlorine backup into the heater when the water pump is off. Install a
check-valve on the heater side of the loop to to prevent chlorine damage.
Flow rate
The DPL Pool Heat Pump is designed to handle the full flow from the pool pump. No bypass is required if the flow is in the
30 to 70 gallon per minute range.
Warning:
Flow rates exceeding 70 PM may damage the unit and compromise its efficiency.
External Bypass
ood practice also suggests considering the use of an external bypass on the inlet and outlet to enable the pool owner
to bypass the pool heater if service or maintenance is required.
A: WATER INLET
B: WATER OUTLET
C: DETACHABLE CONNECTION (union) included
C
C
A
B

Pool He t Pump _16
MAINTENANCE
To ensure optimum performance of the heat pump, follow these recommendations:
> Backwash the pool filter on a regular basis in order to ensure proper flow rate through the pool heater.
> Keep the surfaces of the coil (evaporator) clean and free of any obstruction such as papers, leaves or other debris. The
aluminium fins can be easily and safely cleaned using a low pressure water spray.
> Carefully clean the unit using a soft, non-abrasive and bleach-free cleaner, and rinse using a garden hose without the nozzle.
Warning:
Before performing any maintenance on the heat pump you must turn off the electricity at the breaker of the
electrical supply line.

Pool He t Pump _17
REPLACEMENT PARTS GUIDE
Part No.
Description
Qty
50HPRA-R410
80HPRA-R410
100HPRA-R410
1
Bottom panel
1
P20001
P20001
P20001
2
Left panel
1
P20003
P20016
P20016
3
Top panel
1
P20004
P20004
P20004
4
Right panel
1
P20002
P20017
P20017
5
Front panel
1
P20006
P20018
P20018
6
Back panel
1
P20005
P20019
P20019
7
Grid
1 or 2
P20007
P20007
P20007
8
Foot
4or 6
P20008
P20008
P20008
9
Power cover
1
P20020
P20020
P20020
10
Evaporator
1
P30045
P30046
P30046
11
1
12
1
13
Electrical compartment
1
P30020
P30020
P30020
14
Aluminum frame
1
15
Liquid tight connector
2
P30081
P30081
P30081
16
Flexible cable duct
1
P30082
P30083
P30083
17
Digital thermostat with defrost option
1
P30142
P30142
P30142
18
Side panel (digital thermostat)
1
P10118
P10118
P10118
19
Door (Digital thermostat)
1
P10117
P10117
P10117
20
Screws (Digital thermostat)
2
P30047
P30047
P30047
21
Compressor
1
P30031
P30032
P30033
22
Thermostatic expansion valve
1
P30036
P30037
23
Filter - dry bi-flow
1
P30149
P30149
P30149
24
Electric conection box
1
P30076
P30076
P30076
25
Electric connector
1
P30050
P30050
P30050
26
Insulation
1
P30034
P30035
P30035
27
Coil temperature sensor
1
P30103
P30103
P30103
28
Water temperature sensor
1
P30099
P30026
P30026
29
Copper pipe (Sensor)
1
P30025
P30025
P30025
30
Titanium well
1
P30024
P30024
P30024
31
Heat exchanger
1
32
Heat pump heat exchanger drain
1
33
Motor(s) bracket
1
P30009
P30010
P30010
34
Motor (s)
1 or 2
P30028
P30028
P30028
35
Fan(s)
1 or 2
P30027
P30027
P30027
36
Capacitor (Fan motor)
P30065
P30065
P30065
37
Contactor
1
P30049
P30049
P30049
38
P30061
39
40
Capacitor clip
1
P30065
P30065
P30065
41
Transformer 208-230V / 24V
1
P30054
P30054
P30054
42
1
P30065
P30065
P30065
43
1
P30058
44
1
P30052
P30052
P30052
45
Water pressure switch
1
P30051
P30051
P30051
46
Distributor
1
P30039
P30040
P30041
47
Low pressure switch
1
P30043
P30043
P30043
48
High pressure switch
1
P30044
P30044
P30044
49
50
Terminal block (Main)
1
P30075
P30075
P30075
51
Reversing valve
1
P30148
P30148
52
Rotalock connector (part #1 copper)
1
P30131
P30131
P30131
53
Rotalock connector (part #2 teflon ring)
1
P30132
P30132
P30132
54
Rotalock connector (part #3 titanium)
1
P30133
P30133
P30133
55
Condensing drain bracket
1
P30073
P30073
P30073
56
Heat exchanger drain bracket
1
P30073
P30073
P30073
57
Refrigerant acces valve bracket
1
P30078
P30078
P30078
58
Drain pipe cap
1
P30023
P30023
P30023
59
60
Low pressure gauge
High pressure gauge
Four way valve and Cran casing heating relay
Running capacitor
Fan motor relay
Electric box
Terminal block
P30019 P30019
P30018 P30018
P30019
P30018
P30021 P30022 P30022
P30008
P30012
P30008
P30012
P30008
P30012
P30061
P30056
P30061
P30057 P30057
P30058 P30058
P30149
1 or 2
2
1
P30037

Pool He t Pump _18
POOL HEAT PUMP DISASSEMBLY DIAGRAM
48
4746
50 51 52
53 54 57
9
6
10
2
11 12 14
33
22
21
23
24
58
25
26
32
30
29
28
15
16
27
8
1
34
35
5
7
31
20
19
18
17
4
13
3
50HPRA-410

Pool He t Pump _19
POOL HEAT PUMP DISASSEMBLY DIAGRAM
9
6
10
2
11 12
14
33
22
21
23
24
48
4746
58
25
26
32
30
29
28
15
16
27
8
1
34 35
5
7
31
20
19
18
17
4
13
3
50 51 52
53 54 57
80HPRA-410 - 100HPRA-410
