MMB Fountain Pump Aquapower 2000 User manual

MMB
Meppener
Maschinen Bau
Aquapower 2000
D
Betriebsanleitung
Springbrunnenpumpe
G
Operating Instructions
Fountain pump
P0005 Seite 1 Freitag, 20. Februar 1998 11:55 Uhr

D
Deutschland
Die beiliegende Garantiekarte senden Sie bitte an uns
zurück.
Den Kaufbeleg bitte aufbewahren! Ein Anspruch auf
Garantieleistungen besteht nur gegen Vorlage des Kauf-
belegs.
Die Adresse Ihrer nächstgelegenen Werksvertretung finden
Sie auf der hinteren Umschlagseite.
1.
G
Great Britain
Please return the enclosed warranty card to us.
Retain proof of purchase! You are only entitled to claim war-
ranty against proof of purchase.
Please see back cover for manufacturer representative´s
address nearest you.
2.
P0005 Seite 2 Freitag, 20. Februar 1998 11:55 Uhr

Aquapower 2000
2.1
Fountain pump Aquapower 2000
This appliance serves as pump for garden ponds
and fountains. It may be used for pumping water in
non-freezing weather conditions.
The diversion of water flow for creation of a waterfall
or stream is supported, if a hose is connected to the
diverter valve of the riser pipe.
Read these instructions thoroughly before commis-
sioning this appliance. By doing so you can help
prevent personal injury and damage to the appli-
ance.
Safety first!
Please note the following to prevent injury:
- Check power cable for damage prior to installation and before every use. If the
power cable is damaged, the appliance is faulty and can no longer be used. It
can not be repaired.
- Never reach into the water before not all submerged electrical equipment is
switched OFF and their power cables unplugged.
- Operate this pump only on a power source matching the specifications stated in
the „technical specifications“ section, and equipped with a residual current oper-
ated device (RCD) of 30 mA tripping current.
- Do not operate pump when there are persons in the water.
To prevent damage to the appliance, please note:
- Use the pump only in liquids with a temperature between 0 ° C and 35 ° C.
- Never let the pump run dry.
P0005 Seite 1 Freitag, 20. Februar 1998 11:55 Uhr

Aquapower 2000
2.2

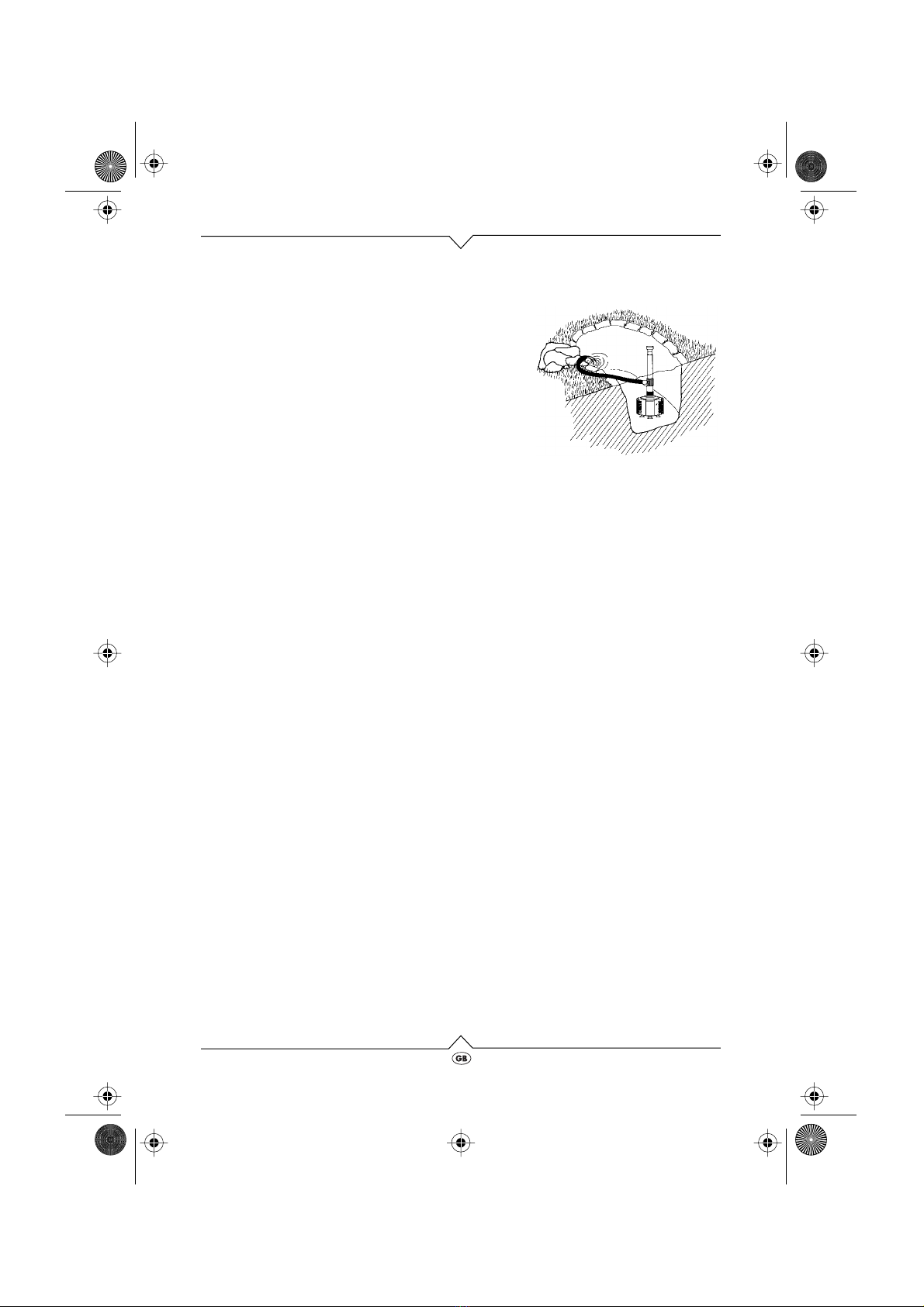

Into the water!
· Check if filter element cover is properly seated.
- fit riser pipe 1 to pump 2 and push
firmly down.
- attach fountain head.
- attach diverter line.
· Place pump into water.
Place pump on firm foundation (e. g.
bricks), to prevent priming of dirt parti-
cles.
Select location so that the fountain
head is above the water level.
B
Danger! Electric potential.
Make sure the power cable plug does not get wet.
To prevent water running down the power cable from entering the outlet,
always lay out the power cable so that is raises to the power outlet.
· Lay out power cable.
Water flow!
B
Danger! Electric potential.
Unplug power cable before regulating the
water flow.
· Turn flow regulator 3 on pump to adjust the
water bell height and intensity of diverter
stream.
· Turn flow regulator 4 on riser pipeto adjust
diverter stream intensity.
· Plug in power cable.
1
2
34
P0005 Seite 2 Freitag, 20. Februar 1998 11:55 Uhr

Aquapower 2000 2.3
Appliance cleaning!
BDanger!
Always unplug power cable before cleaning.
ACaution! Do not use aggressive detergents containing solvents.
·Clean filter element cover regularly.
·Clean filter element, rotor and fountain head if flow is disturbed.

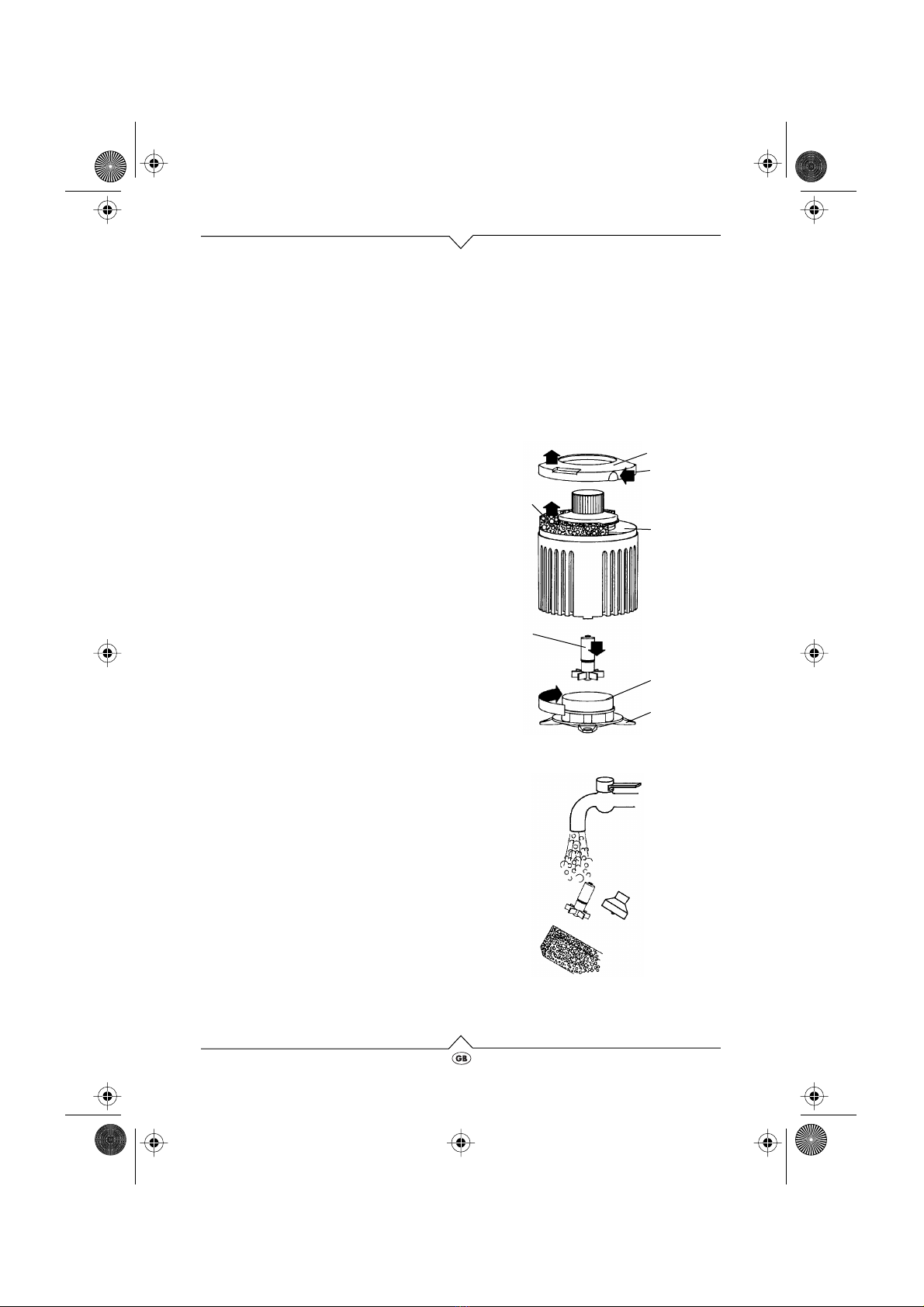

Cleaning the filter elements
·Loosen cover 1by pressing on the
spring clips 2 and pull off.
·Pull off flow regulator 3.
·Pull out filter element 7and rinse
with water.
3When replacing the flow regulator
make sure it locks in place (turn if
necessary).
Cleaning the rotor
·Turn pump upside down.
·Turn base 4at its feet 5(“open”)
until loosened and pull out from
pump casing.
·Remove rotor 6and rinse with
water.
Cleaning the fountain head
·Rinse fountain head with water;
remove obstinate soiling with a soft
brush.
2
3
6
7
4
5
1
P0005 Seite 3 Freitag, 20. Februar 1998 11:55 Uhr

Aquapower 2000
2.4
Technical specifications
A replacement for every part!
Supply voltage (50 Hz) 230 V
Power input 38 W
Rated current 0,36 A
Max. pump capacity 1600-2000
Max. delivery head 2,6 m
Ambient temperature 0…35 ˚C
Protection class IP 68
Max. immersion depth 2,0 m
1 Cover 1349635409
2 Flow regulator 1349635395
3 Rotor 0903052236
4 Base 1349635417
5 Filter 1349635425
2
1354
P0005 Seite 4 Freitag, 20. Februar 1998 11:55 Uhr

MMB
Meppener
Maschinen Bau
Dieselstraße 1
D-49703 Meppen
EG-Konformitätserklärung - EC conformity declaration - Déclaration de conformité CEE
EG-verklaring van overeenstemming - EF-overensstemmelsesattest - EG-konformitetsdeklaration
EF-konformitetserklæring - Selvitys ey-standardinmukaisuudesta - Dichiarazione di conformità CE
Declaración de conformidad-UE - Declaração de conformidade CE
Wir erklären, daß die Bauart der Maschine/des Gerätes - We declare that the design of the machine/appliance
Nous certifions que le type de la machine/de l’appareil - Wij verklaren dat de constructie van de machine/het apparaat
Vi erklærer, at konstruktionen af maskinen/apparatet - Härmed försäkrar vi att maskin/apparat - Vi erklærer at konstruksjonsmåten til maskin/apparat
Täten selvitämme, että alla mainittu kone/laite - Dichiariamo che il modello della macchina/dell’apparecchio
Declaramos, que el modelo de la máquina/aparato - Declaramos que o tipo de construção da máquina/do aparelho
SPRINGBRUNNENPUMPEN-SET
AQUATEC-POWERSTAR
Art.-Nr. - Stock-no. - N ° d’ article - art.-nr. - art.-nr. - Art.-nr. - Art.-Nr. - tuotenumero - N ° Art. - Art.N ° - artigo n ° :
025 9000 009
folgenden einschlägigen Bestimmungen entspricht - corresponds with the following relevant regulations
est conforme aux règlements applicables suivants - aan de volgende terzake geldende voorschriften voldoet - opfylder følgende gældende bestemmelser
enligt sitt byggsätt motsvarar följande gällande föreskrifter - oppfyller de følgende gjeldende bestemmelser
vastaa seuraavia asiaa koskevia määräyksiä - corrisponde alle seguenti norme in materia
se ajusta a las siguientes directrices correspondientes - se enquadra com as seguintes disposições pertinentes:
EG-Richtlinie Elektromagnetische Verträglichkeit - EC-directive electro-magnetic compatibility - directive CEE sur la conformité électromagnétique
EG-richtlijn elektromagnetische compatibiliteit - EF-direktiv vedr. elektromagmetisk fordragelighed - EG-direktiv för elektromagnetisk tolerans
EF-direktiv om elektromagnetisk kompatibilitet - Sähkömagneettista toleranssitasoa koskeva EY-direktiivi - Direttiva CE compatibilità elettromagnetica
Directriz-UE Compatibilidad electromagnética - Directiva CE sobre compatibilidade electromagnética
89/336/EWG
93/68/EWG
EG-Niederspannungs-Richtlinie - EC-Low voltage directive - Directive CEE de basse tension
EG-laagspanningsrichtlijn - EF-lavspændingsdirektiv - EG-direktiv för lågspänning
EF-direktiv om lavspenning - Pienjännitettä koskeva EY-direktiivi - Direttiva CE per bassa tensione
Directriz para baja tensión-UE - Directiva CE sobre baixa tensão
73/23/EWG
93/68/EWG
Geschäftsführer - Managing Director - Gérant - Directeur - Forretningsfører - Verställande direktør
Administrerende direktør - Isännöitsija - Gerente - Gerente - Diretor
D/G/B/F/NL/DK/S/N/SF/I/E/P 1000839/ 98
