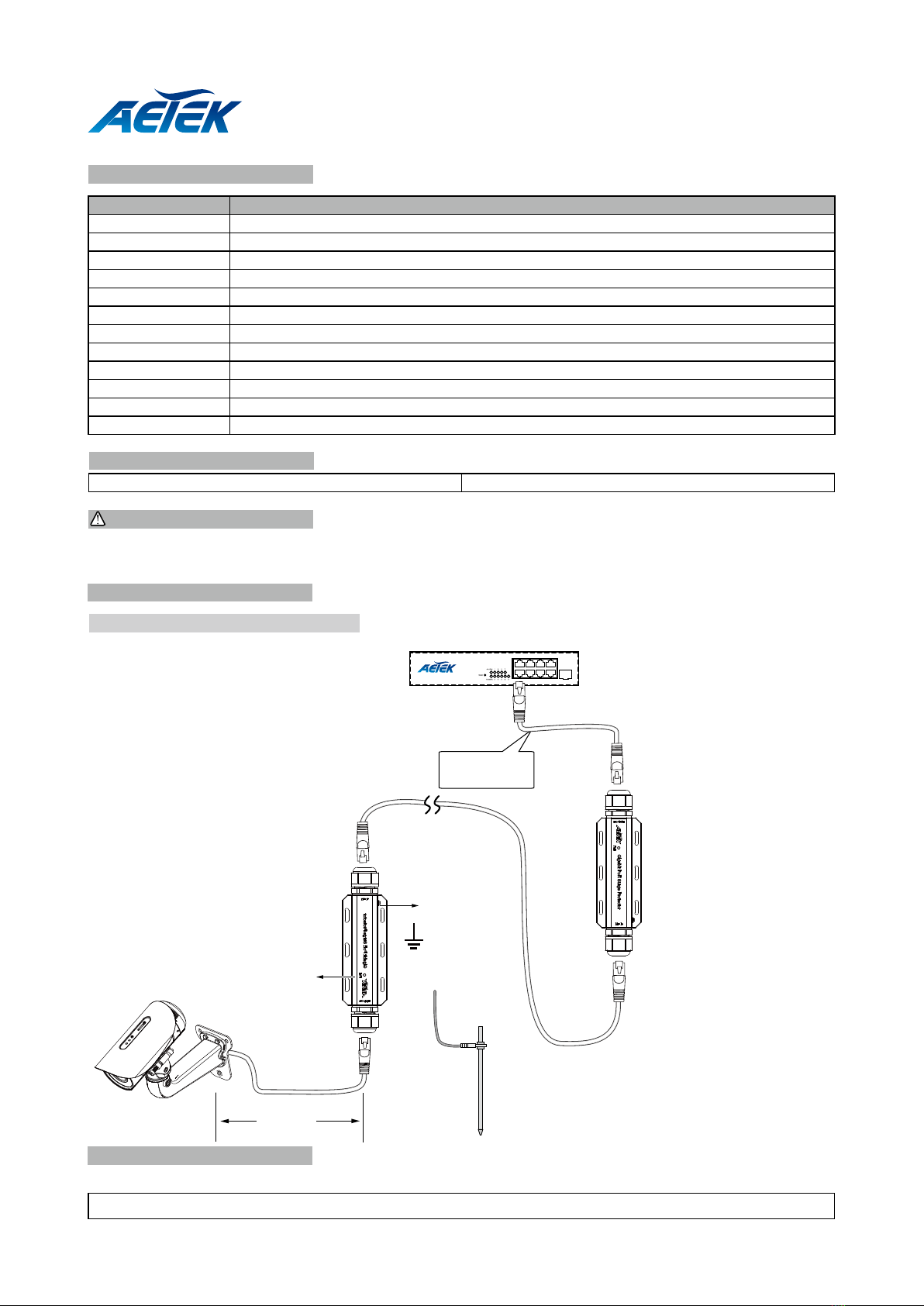

AETEK SD-101 User manual

Ground screw
PoE Out
PoE Switch
* Make sure the grouning
resistance is lower than
0.5Ω.
< 1 meter
Equip Out
Line In
#1
#2
< 1 meter
LED
Equip Out
Line In
1. Use CAT5e or CAT6 UTP/STP cables.
2. The cabling distance between the surge protector and the protected device should be less than 1 meter.
PoE Surge Protector
Model Description
SD-101 Indoor 10M/100M/1G/2.5G bps surge protector against lightning or transcient voltage
SD-102 Indoor 10M/100M/1G/2.5G/10G bps surge protector against lightning or transcient voltage
SD-201 Outdoor 10M/100M/1G/2.5G bps surge protector against lightning or transcient voltage
SD-202 Outdoor 10M/100M/1G/2.5G/10G bps surge protector against lightning or transcient voltage
SD-404 4-ch Modular 1G/2.5G PoE surge protector
SD-424 24-ch Modular 1G/2.5G PoE surge protector
SD-401-M 1-ch PoE surge Modular for replacement
SD-424-C 19",1U 24-ch chassis
SD-504 4-ch Modular 1G/2.5G Smart IP PoE surge protector
SD-524 24-ch Modular 1G/2.5G Smart IP PoE surge protector
SD-501-M 1-ch Smart IP PoE surge Modular for replacement
SD-524-C Smart IP 19",1U 24-ch chassis
IMPORTANT:
INTRODUCTION
CONNECTION
* 1x surge protector * 1x Quick Installation Guide
PACKAGE CONTENTS
P/N: A625010301G
Quick Installation Guide
LEDs
 LEDdenitions:
OFF when operating normally, ON when out of service life.
SD-101 / SD-102 / SD-201 / SD-202

AETEK INC.
3F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T:[phone]|W:www.aetektec.com|E:[email protected]
Allspecicationsaresubjecttochangewithoutnoice.
Copyright © 2021 AETEK INC. All rights reserved.
LEDs
 LEDdenitions:
Fail Red OFF when operating normally, ON when out of service life.
SD-404 / SD-424
SD-504 / SD-524
PoE Out
< 1 meter
PoE Switch
1M
SD-524
SD-101
PoE Surge Protector
PoE VoIP Phone
VoIP IP PBX
SD-201
PoE Surge Protector
PoE Camera
PoE (Data + Power)
SD-504
#12awg.
Ground wire must be
as short as possible
#12awg.
Ground wire must be
as short as possible
SD-404
#12awg.
Ground wire must be
as short as possible
PoE Switch
1M
SD-424
SD-201
PoE Surge Protector
PoE Camera
IN=Input Patch Cables From The Field
Fail LED
OUT=Output Patch Cables To Equipment
Protected Equipment / PoE Switch
PoE Out
< 1 meter
SD-201
PoE Surge Protector
PoE Camera
PoE (Data + Power)
DEFAULTS
IP Address DHCP client
Thersttimeloginneedkeyinnewusernameandpassword,
please enter the new username and password, and then click the
<Apply> button.
LEDs
IP Module
LAN Greenash Data is being transmitted or received.
OFF No connection.
SYS Yellow ON: System is ready, Power is supplied.
Surge Module Fail Red ON: Out of service life.
Reset Button Reset to default 15 seconds
IN=Input Patch Cables From The Field
Fail LED
OUT=Output Patch Cables To Equipment
Protected Equipment / PoE Switch
#12awg.
Ground wire must be
as short as possible
