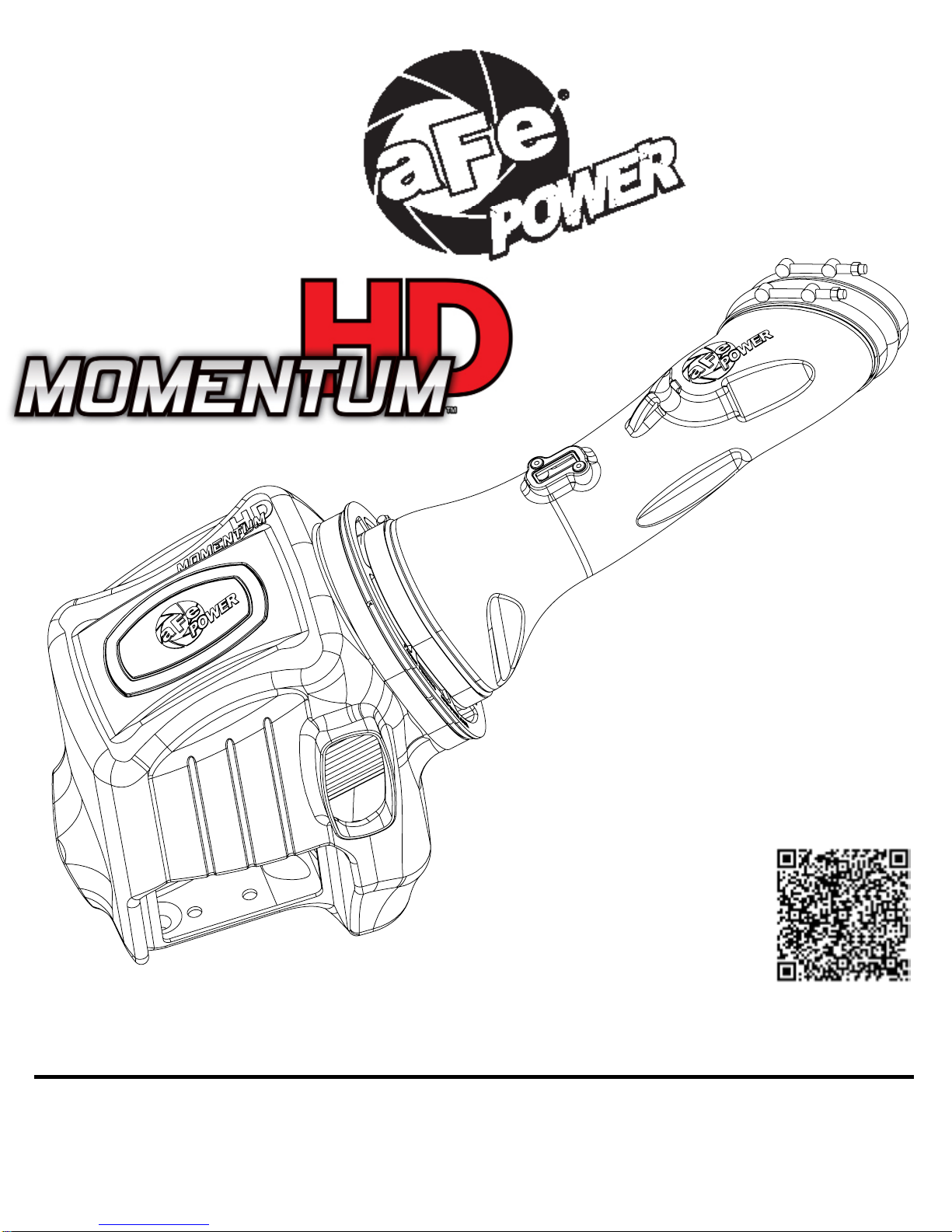

aFe Power Momentum hd User manual

advanced FLOW engineering Momentum Air Intake
Instruction Manual P/N: 50-73005-1 / 51-73005-1
Make: FORD Model: F-250/350/450/550 Year: 2011-2016 Engine: V8-6.7L (td) POWER STROKE
The Next
Generation
of Intakes

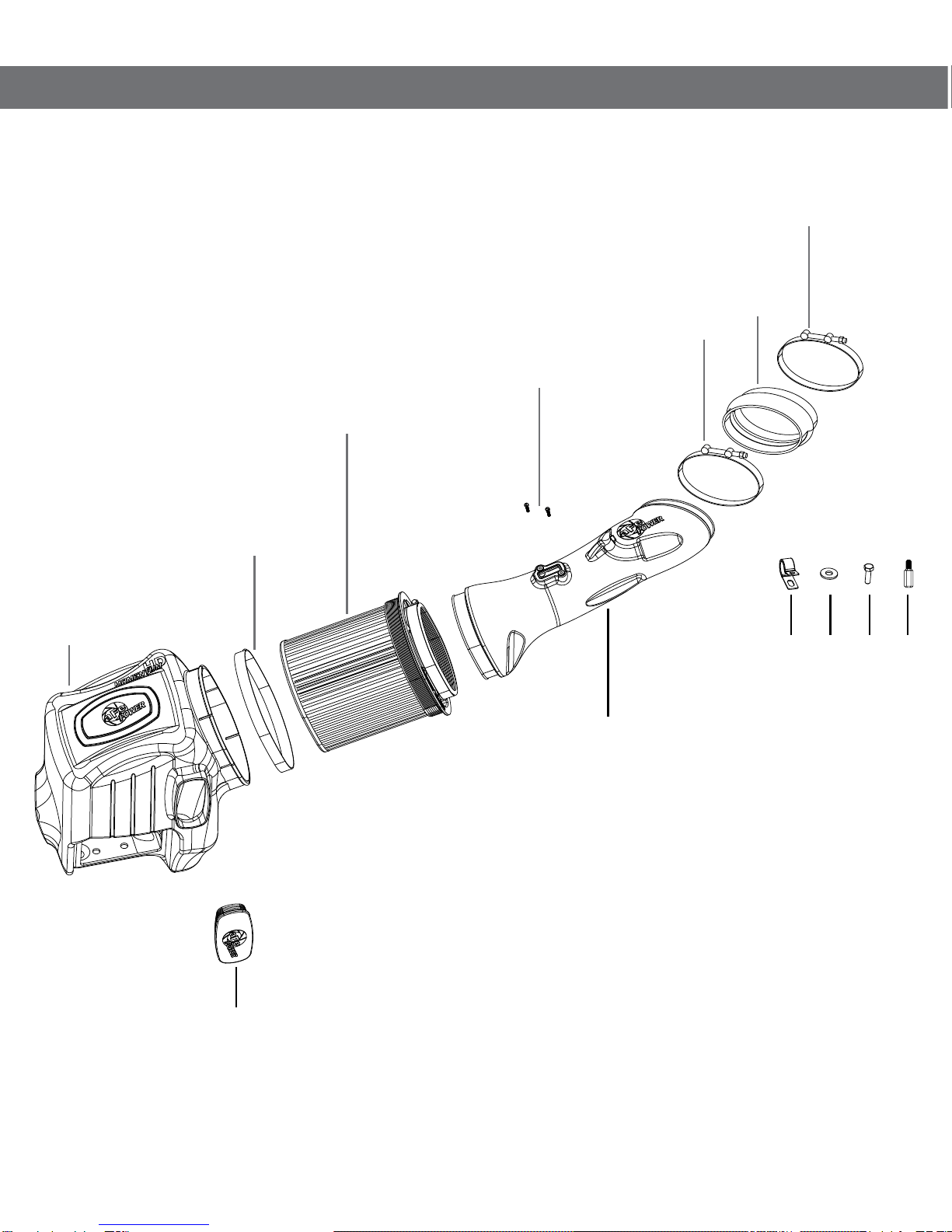

Label Qty. Description Part Number
A1 1 Air Filter (Pro DRY S) 21-91061 (51-73005-1)
A2 1 Air Filter (Pro 10R) 20-91061 (50-73005-1)
B 1 Tube 05-73005B1
C 1 Housing 05-73005B2
D 1 Plug, Urethane 05-01202
E 1 Clamp, T-Bolt (8-5/16”) 03-50267
F 2 Clamp, T-Bolt (5”) 03-50261
G 2 Screw, M4 03-50034
H 1 Coupling, Silicone Hump 05-01204
I 1 Fixing Clamp 03-50234
J 1 Flat Washer 03-50070
K 1 Hex Screw 03-50057
L 1 T20 Torx Bit 03-50066
Installation will require the following tools:
8mm Nut driver, 10mm Nut driver and 1/4" driver.
• Please read the entire instruction manual before proceeding.
• Ensure all components listed are present.
• If you are missing any of the components, call technical support at 951-493-7100
or e-mail [e-mail].
• Ensure you have all necessary tools before proceeding.
• Do not attempt to work on your vehicle when the engine is hot.
• Disconnect both the negative battery terminal before proceeding.
• Retain factory parts for future use.
Page 2

aFepower.com
C
G
E
A1/A2
F
F
H
Page 3
B
D
I J K L

Refer to Figure A for step 1

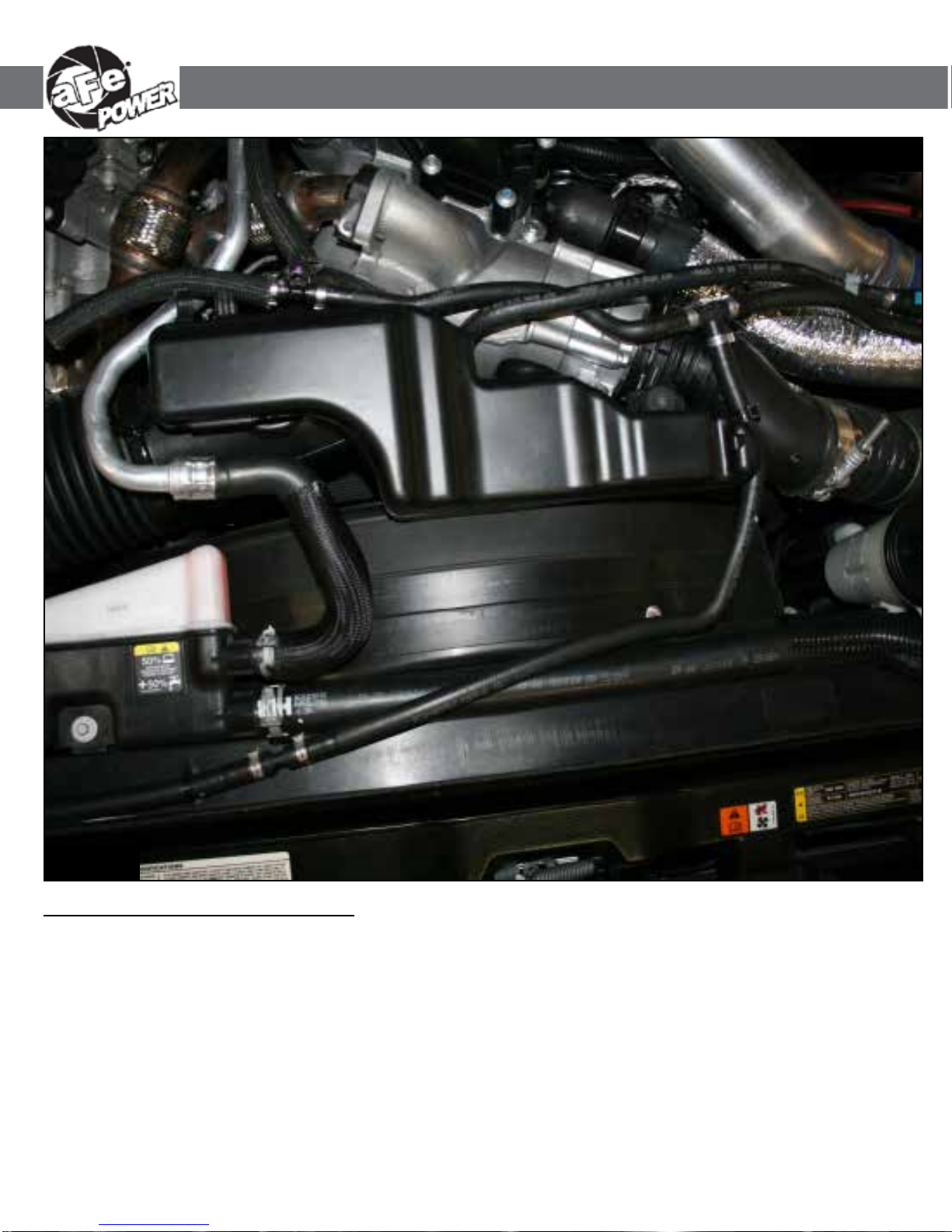

Step 1: Take off the (2) 8mm screws securing the OE intake tube and filter box and loosen the band
clamps.
REMOVAL
Page 4
Figure A

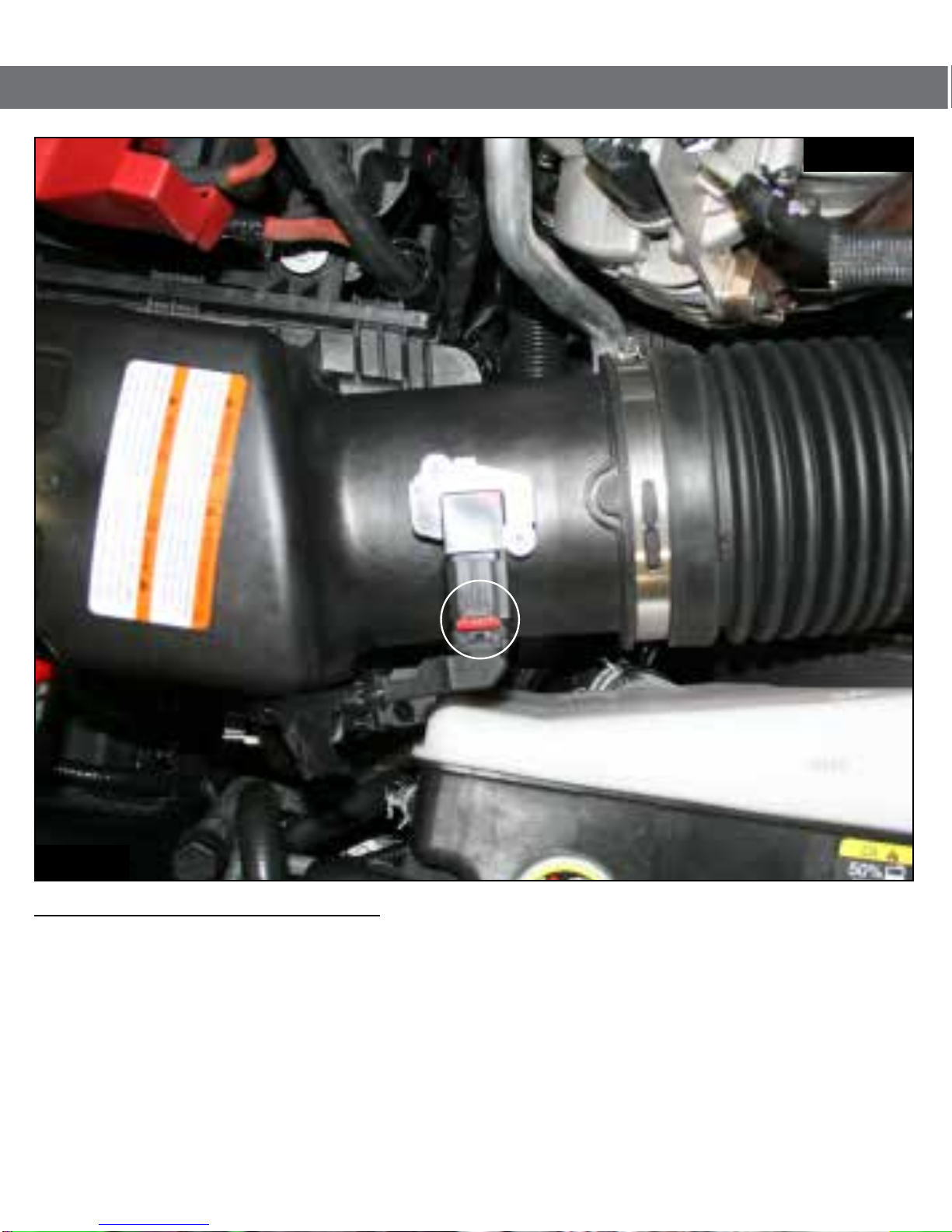

Refer to Figure B for steps 2-3
Step 2: Disconnect the wire harness clip from the filter housing and pull the red tab out on the flow
sensor connector, then press the tab and pull off the sensor plug. Remove the MAF sensor from
the tube with the provided T-20 Torx bit.
Step 3: Pull out the air box in an upward motion.
REMOVAL
aFepower.com
Page 5
Figure B

Refer to Figure C for step 4
Step 4: Slip all the hoses out of the way on the OE intake tube, loosen the clamps and remove
the tube.
Figure C
Page 6
REMOVAL

Refer to Figure D for steps 5-6

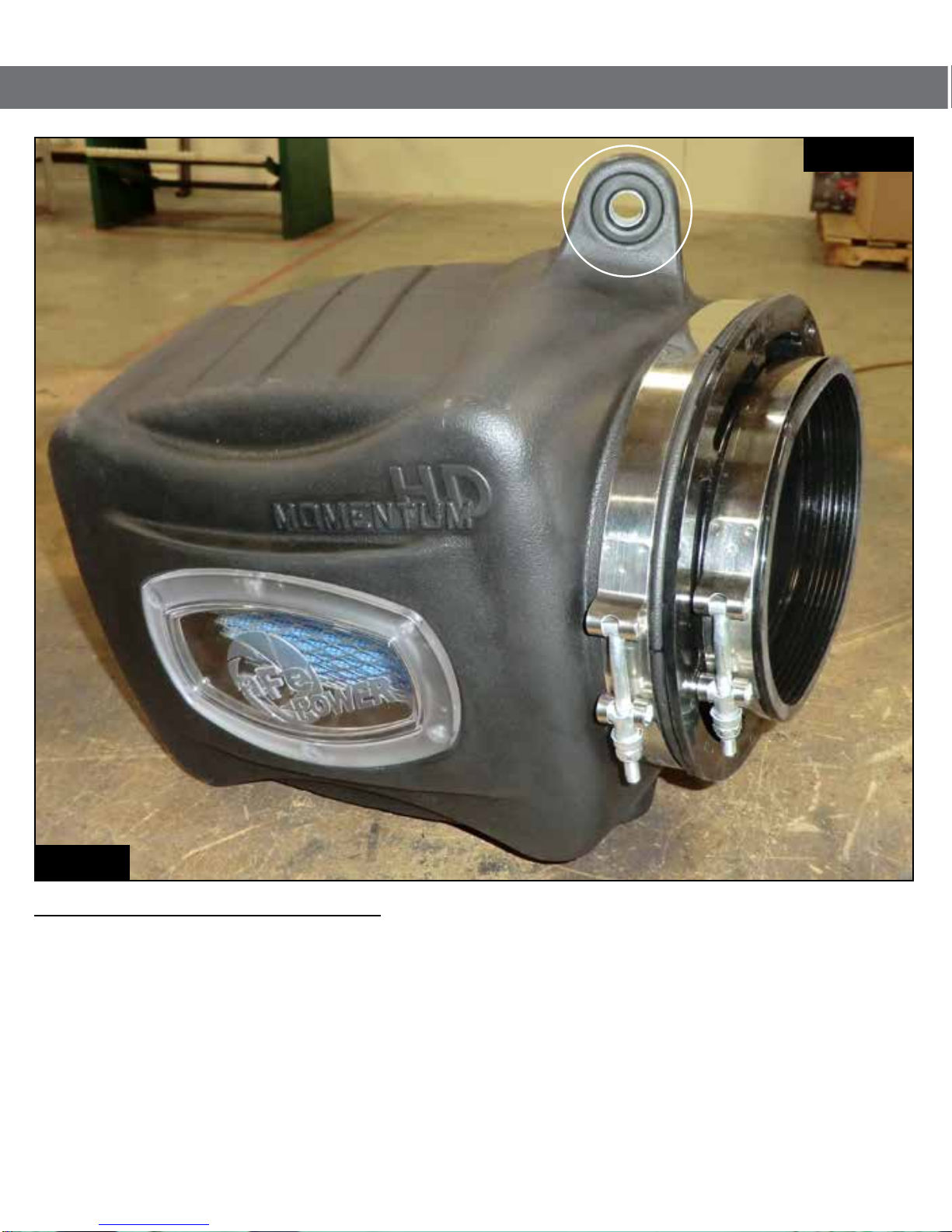

Step 5: Take off the factory mounting grommet from the factory airbox and install it on the
Momentum HD airbox.
Step 6: Slide filter into housing and install furnished T-bolt clamps. Tighten only the larger T-bolt clamp.
Figure D
INSTALL
aFepower.com
Page 7

Page 8

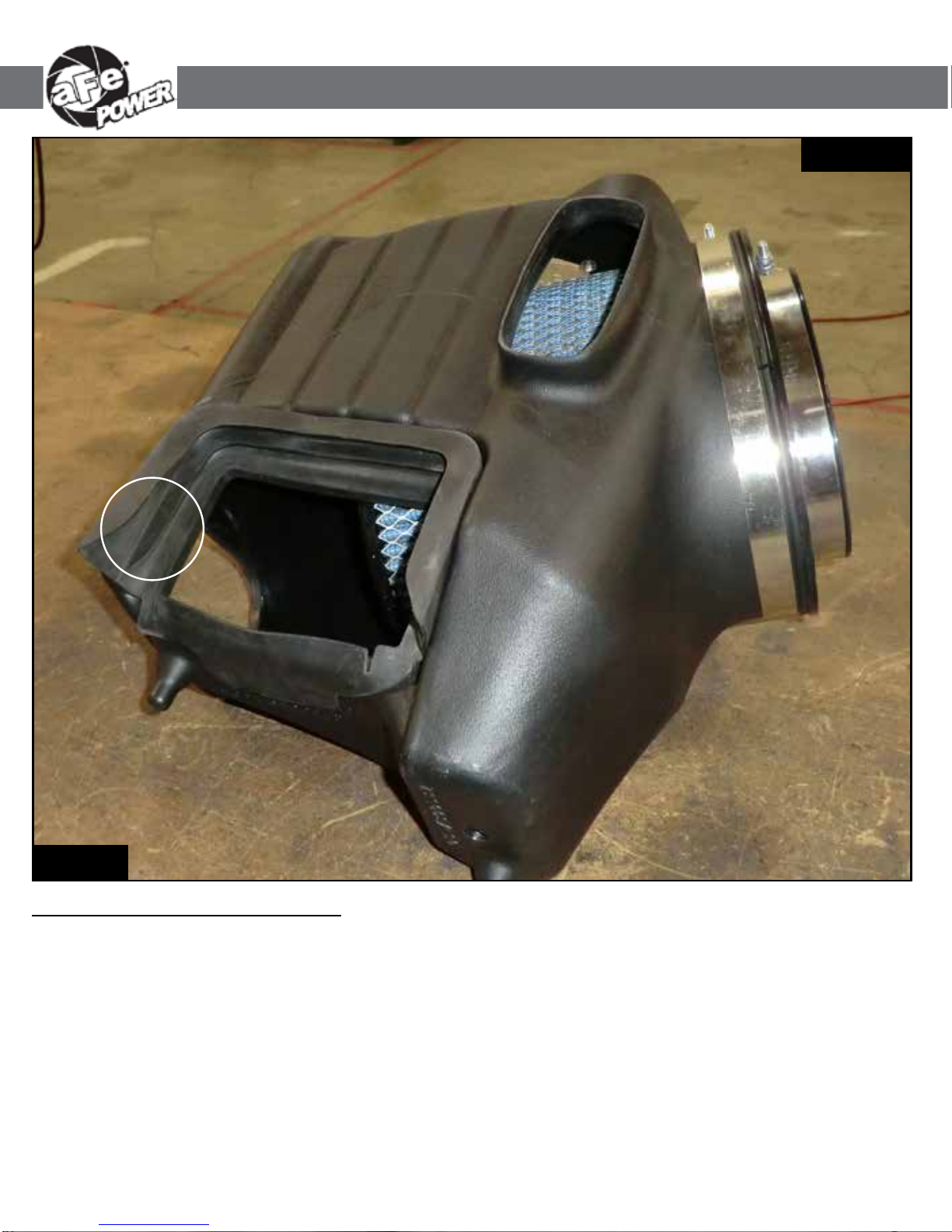

Refer to Figure E for step 7
Step 7: Remove rubber inlet gasket from the factory airbox and install it on the Momentum HD airbox.
Figure E
INSTALL

Refer to Figure F for step 8
Step 8: Install the Momentum HD housing assembly into the truck by pushing it into the
factory grommet.
aFepower.com
Page 9
Figure F
INSTALL

Refer to Figure G for steps 9-11
Step 9: Remove the filter minder and grommet 1 from the factory airbox and install them on the
Momentum HD tube.
Step 10: Install the Mass Air Flow sensor 2 removed at step 2 on the Momentum HD tube using
furnished small hex screws.
Step 11: Slide the silicone coupling H and T-bolt clamps G onto the small end of the tube.
Do not tighten clamps at this time.
Page 10
Figure G
INSTALL
1
2
G
H
G

aFepower.com
Page 11
Refer to Figure H for steps 12-14
Step 12: Install Momentum HD tube by first sliding the coupling over the turbo inlet. Connect the
other end to the air filter.
Step 13: Tighten all clamps.
Step 14: Snap the AC line into tube and secure factory hose with the fixing clamp I ,
M6 screw K and washer J .
Figure H
INSTALL
K
I
J

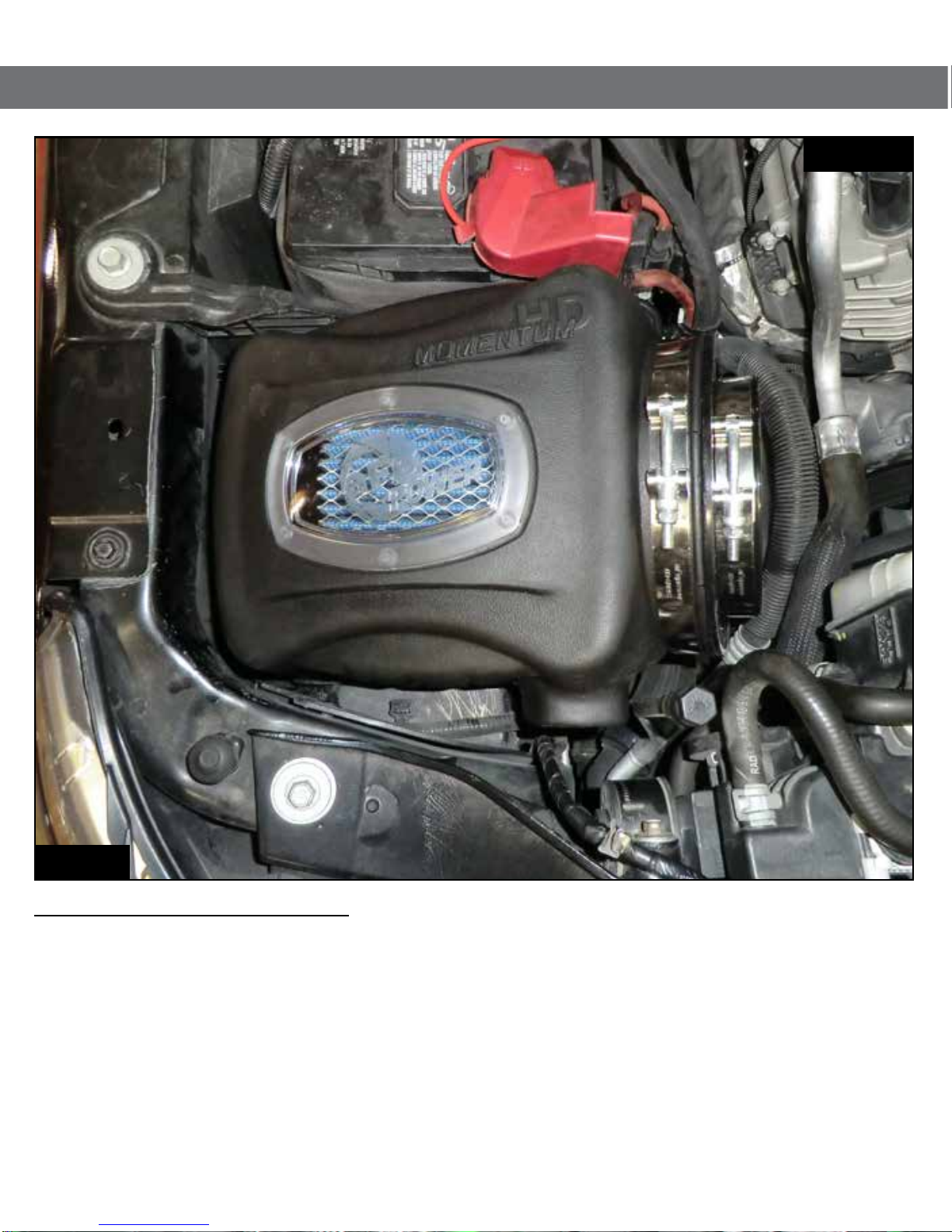

Refer to Figure I for steps 15-17
Step 15: Re-install factory screw removed in step 1 next to battery 3 to secure Momentum HD airbox.
Step 16: Re-connect the MAF sensor 4 . Route the wire harness as shown and secure it to the vehicle
5 .
Step 17: Tighten all clamps and re-attach both negative battery terminals. Your installation is now
completed.
Use the furnished plug B to close off the front auxiliary air inlet to completely seal the airbox.
NOTE: Retighten all connections after approximately 100-200 miles. Place enclosed CARB EO sticker
on or near the device on a smooth/clean surface. EO identification label is required to pass the smog
test inspection.
Page 12
Figure I
INSTALL
3
4
5

aFepower.com
Page 13
