AFF 202HD User manual

AFF 202HD-INST-3.24.23-FA
MODEL NO.: 202HD
WARNING:
IMPORTANT: READ THESE INSTRUCTIONS AND ALL
WARNINGS PRIOR TO USING THIS EQUIPMENT. UNDERSTAND
ALL OPERATING PROCEDURES, SAFETY WARNINGS AND
MAINTENANCE REQUIREMENTS. FAILURE TO DO SO COULD
CAUSE AN ACCIDENT RESULTING IN SERIOUS OR FATAL
INJURY AND/OR PERSONAL PROPERTY DAMAGE.
!
!
2-Ton Floor Jack —
Heavy Duty
Owner’s Manual

affjaxx.com
2
GENERAL DESCRIPTION
SAFETY INFORMATION
PRODUCT DESCRIPTION
The hydraulic trolley jack is designed to lift, but not support, one end of a vehicle.
Immediately after lifting, loads must be supported by a pair of appropriately rated jack stands.
Capacity 2 TON
Minimum Height 3"
Maximum Height 19.75"
Length 29.5"
Weight 69.5 lbs
2.1 Locate the jack in a suitable working area.
2.2 Inspect the jack before each use. Do not use jack if damaged, altered, modified, in poor condition, leaking hydraulic fluid,
or unstable due to loose or missing hardware or parts. Make corrections before using.
2.3 Use jack on level and solid ground, preferably concrete. Avoid tar macadam as jack may sink in. Chock wheels of vehicle.
2.4 Ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or “PARK” if automatic).
2.5 Ensure minimum distance of 0.5 m between vehicle and static objects such as doors, walls, etc, to allow for vehicle tilting.
2.6 Ensure all non-essential persons keep a safe distance while the jack is in use.
2.7 Do not exceed the rated capacity of the jack.
2.8 Place jack under only those lifting points recommended by vehicle manufacturer (see vehicle handbook)
2.9 Check that the lifting point is stable and centered on the jack saddle.
2.10 Ensure the jack wheels are free to move and that there are no obstructions.
DANGER: Use the jack for lifting only
2.11 Ensure there are no persons or obstructions beneath the vehicle before lowering.
2.12 Use suitable axle stands under the vehicle before proceeding with any task.
2.13 Use a qualified person to lubricate and maintain the jack.
2.14 Wear ANSI-approved safety goggles and heavy-duty working gloves during use.
2.15 Ensure that only hydraulic jack oil is used in the jack.
DO NOT operate the jack if damaged.
DO NOT allow untrained persons to operate the jack.
DO NOT exceed the rated capacity of the jack.
DO NOT allow the vehicle to move during lifting or lowering or use the jack to move the vehicle.
DO NOT jack the vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
DO NOT work under the vehicle until appropriately supported.
DO NOT fill hydraulic system with brake fluid, alcohol, or transmission oil. Use hydraulic jack oil only.
DO NOT adjust the safety overload valve.
DO NOT use for aircraft purposes.
2.16 When not in use, store the jack, fully lowered, in a safe, dry, childproof location.
The warnings, precautions, and instructions discussed in this manual cannot cover all possible conditions and
situations that may occur. The operator must understand that common sense and caution are factors which cannot be
built into this product, but must be supplied by the operator.
Important: Read these instructions carefully. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS JACK CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. Failure to do
so may cause damage or personal injury and will invalidate the warranty. Retain these INSTRUCTIONS for future use.
To avoid personal injury or property damage during operation, read and follow all CAUTIONS, WARNINGS, and INSTRUCTIONS
included with, or attached to, each product.

affjaxx.com 3
A S S E M BLY
3.1 IMPORTANT RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. If any shipping damage is found, notify the carrier at once. Shipping
damage is NOT covered by warranty. The carrier is responsible for all repair or replacement costs resulting from damage
in shipment.

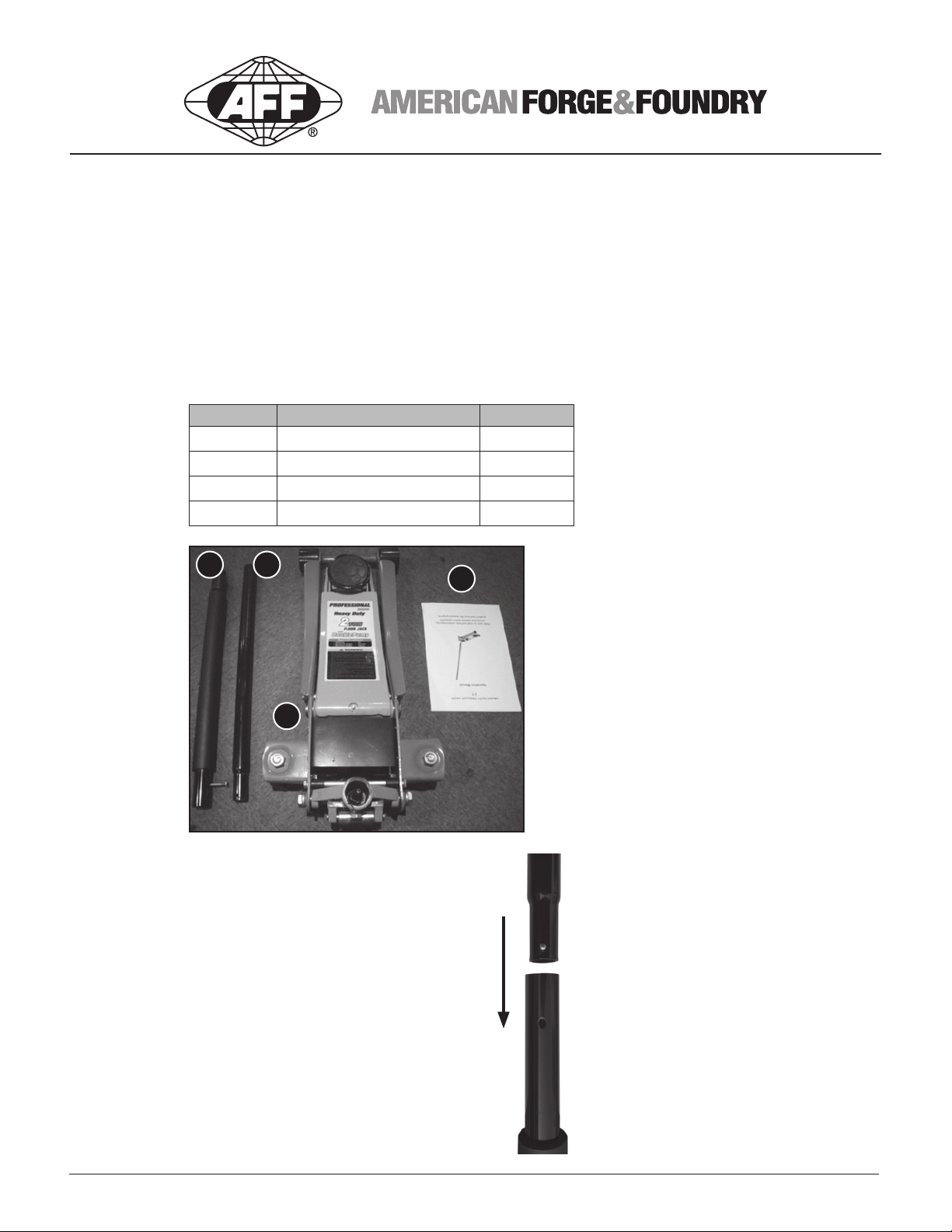

3.1.1 CHECK THE PARTS IN THE CARTON
Visually inspect all components for any missing parts or damage. Refer to the packing list below.
PACKING LIST
No. Description Qty
1 Handle tube 1 1
2 Handle tube 2 1
3Jack body 1
4Instruction Manual 1
3.2 ASSEMBLY
3.2.1 The jack comprises the following parts,
jack body, two-part pumping handle.
3.2.2 Take out the two-part pumping handle;
insert the upper handle into the lower handle.
1 2
3
4

affjaxx.com
4
B
B
3.2.3 The handle socket is pressed down and supported by nylon supporting block in the package during transportation.
Before assembling, please take out the nylon supporting block.
3.2.4 Undo the screw (B) in the handle socket, until it no longer protrudes into the handle socket
3.2.5 Insert the pump handle into the handle socket hole completely.
3.2.6 Ensure that the handle is correctly inserted into the socket, then tighten the handle socket screw (B).
Please make sure that the handle can be turn smoothly.

IMPORTANT
affjaxx.com 5
HYDRAULIC SYSTEM PURGING
4.1 Open the release valve by turning it two full turns counterclockwise.
4.2 Pump the handle a minimum four full strokes quickly.
4.3 Close the release valve by turning it clockwise.
4.4 Pump the handle with full strokes to check if it can reach the maximum height by seven pumps.
If it can’t reach the maximum height by seven pumps, please refer to the following special purging process:
4.5 Open the release valve by turning counterclockwise and lower the lifting arm to the minimum height.
4.6 Put the jack on a flat working table, carefully lift and support the front part of the jack to make sure the front part is at least
500mm higher than the end part of the jack.
4.7 Pump the handle a minimum of four strokes quickly.
4.8 Put the jack on a flat surface and close the release valve by turning it clockwise
4.9 Pumping the handle with full strokes to check if it can reach the maximum height by seven pumps; if not, please repeat
the special purging process again
OPERATING INSTRUCTIONS
5.1 RAISING A VEHICLE
5.1.1 Ensure that the jack and the vehicle are on a hard, level surface.
5.1.2 Always ensure that the vehicle handbrake is engaged and that the vehicle wheels are chocked.
5.1.3 Consult the vehicle manual to determine the location of jacking points. Position the jack under a suitable lifting point.
5.1.4 Turn the handle clockwise, to close release valve. DO NOT over-tighten.
5.1.5 Raise the vehicle to the desired height by pumping the handle up and down.
5.1.6 Immediately support the vehicle with appropriate means such as vehicle support stands
5.1.7 Turn the release valve slowly counterclockwise to lower the vehicle on to the axle stands.
5.2 LOWERING A VEHICLE
5.2.1 Ensure that the area under and around the vehicle is clear of people and obstructions
5.2.2 Turn the release valve clockwise to close it.
5.2.3 Pump the handle to raise the vehicle off the axle stands.
5.2.4 Remove the vehicle support stands from beneath the vehicle.
5.2.5 Turn the release valve slowly counterclockwise to lower the vehicle to the ground.
NOTE: When the jack is not in use, ALWAYS leave the saddle and ram fully retracted.
CAUTION: Keep hands and feet away from the hinge mechanism of the jack.
IMPORTANT: Only fully qualified personnel should attempt maintenance or repair.
Before use, ensure you have read and understood Section 1, Safety Instructions.
Before use, the operator is to visually inspect the jack for cracked welds, damaged or missing parts, or hydraulic leaks.

affjaxx.com
6
MAINTENANCE
6.1 MONTHLY MAINTENANCE
Periodic lubrication is critical to jacks since they support heavy loads. Any restriction due to dirt or rust can cause either
slow jack movement or extremely rapid jerks, causing damage to the internal components. To keep the jack well lubricated,
carry out the following steps.
6.1.1 Lubricate the linkages, the saddle, and the pump mechanism with light oil.
6.1.3 Keep all jack surfaces and warning labels clean.
6.1.4 Check and maintain the ram oil level (Section 6.3).
6.2 THREE-MONTH MAINTENANCE
6.2.1 At three-month intervals, check the pump for any signs of rust or corrosion. Clean the pump as required and
wipe with an oilcloth.
6.3 CHECKING THE OIL LEVEL
6.3.1 Fully retract the ram by turning the release valve counterclockwise.
6.3.2 Loosen the four top plate retaining screws (no need to screw out) and remove the top plate vertically
as per the following picture.
Linkage (1)
Roller Pin (right)
Linkage (2)
Roller Pin (left)
Linkage (3)
Lifting Arm
6.1.2 Grease the wheel bearing and axles.

affjaxx.com 7
6.3.3 With the jack in the level position, remove the oil filler plug.
6.3.4 The proper oil volume should be no more than 13 mm from the top of the oil tank to the oil surface. If it is too low,
please add high-quality hydraulic oil according to Section 6.4.
6.3.5 Replace the oil filler plug.
6.3.6 After adding oil, please check if the jack can reach the maximum height with seven pumps; if not, please purge air from
the hydraulic unit as required. Refer to Section 4.
6.3.7 Cover the top plate, making sure the four grooves in the top plate line up with the four retaining screws as per the
following picture. Then tighten the four screws.
TROUBLESHOOTING
PROBLEM CAUSE REMEDY
Jack will not lift to full height 1. Oil level low
2. Release valve not closing
1. Check / add oil
2. Close the release valve
Jack will not hold the load 1. Release valve not closing
2. Hydraulic oil is contaminated
3. Pump leaking
1. Close the release valve
2. Contact authorized
service agent
Lift arm will not lower 1. Pump cylinder binding
2. Parts worn
3. Internal component damage
4. Return spring broken or unhooked
5. Lift arm linkage either bent or binding
6. Air in the hydraulic system
1. Contact authorized
service agent
After hydraulic purging, the jack still
can’t reach the maximum by seven pumps
1. Still have air in the hydraulic system 1. Purge air according to
manual Part 4.5
Poor lift performance 1. Fluid level low
2. Hydraulic unit malfunction
1. Ensure proper fluid level
2. Discontinue use, contact
authorized service agent

affjaxx.com
8

affjaxx.com 9

affjaxx.com
10
PART
NUMBER
KIT DESCRIPTION REF. # KIT INCLUDES
202HD-1 Upper Handle 1Handle
Lower Handle 3
Handle Protection 4
202HD-2 Location Pin 2Location Pin
202HD-4 Handle Protection 4Handle Protection
202HD-35 Saddle Complete 35 Saddle Complete
Bolt 36 Bolt
Saddle Pad 37 Saddle Pad
202HD-5 Cover 5Cover
Screws Qty 4 44 Screws Qty 4
202HD-17 Caster 17 Caster
Washer 16 Washer
Lock Washer 15 Lock Washer
Nut 14 Nut
PART
NUMBER
KIT DESCRIPTION REF. # KIT INCLUDES
202HD-26 Wheel 26 Wheel
Washer 25 Washer
Retaining Ring 24 Retaining Ring
202HD-27 Hydraulic Unit 27 Hydraulic Unit
202HD-28 Springs 28 Springs
202HD-30 Push Rod 30 Push Rod
Retainer Ring 31 Retainer Ring
202HD-7 Handle Screw 7Handle Screw
202HD-P36 Release Valve P36 Release Valve
202HD-RK Repair Kit Repair Kit

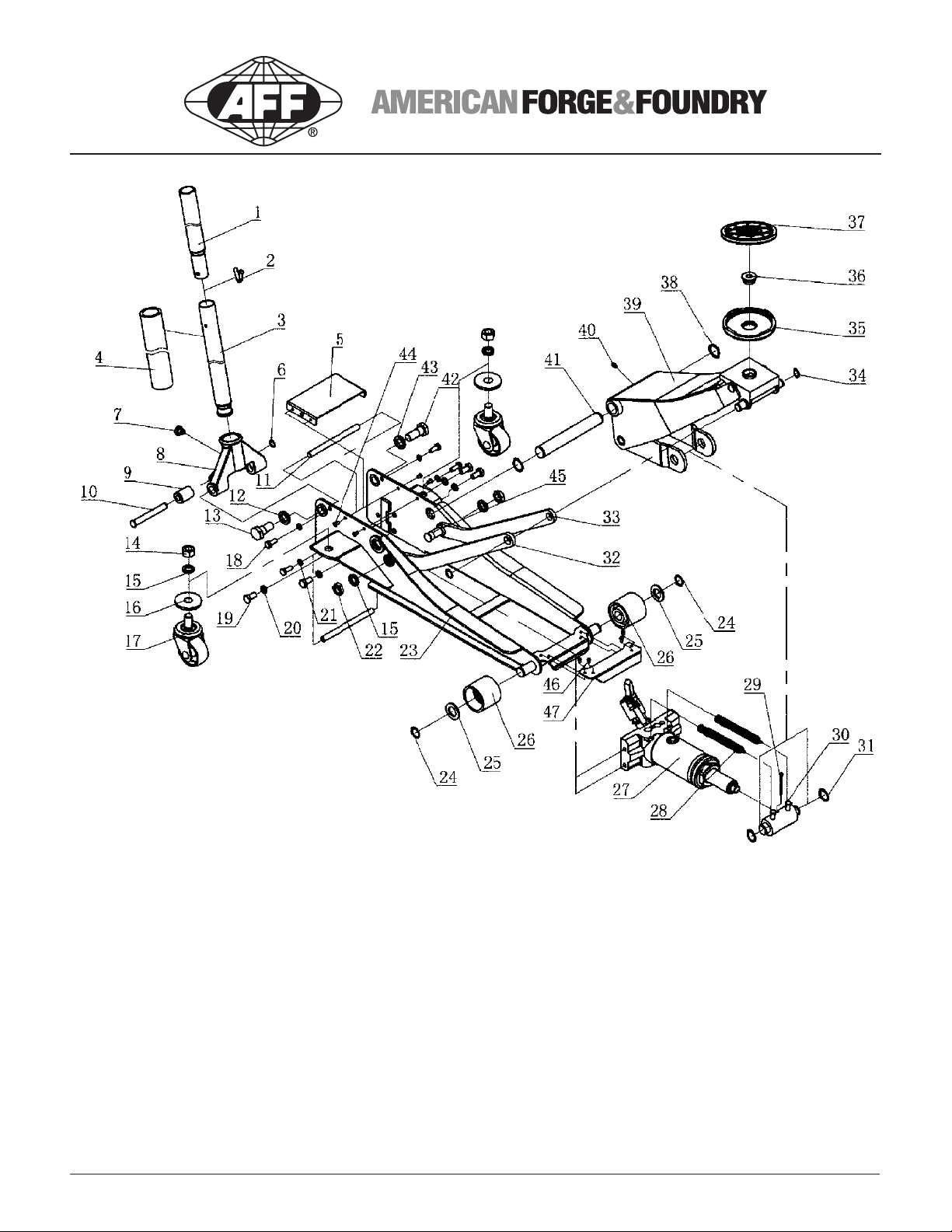

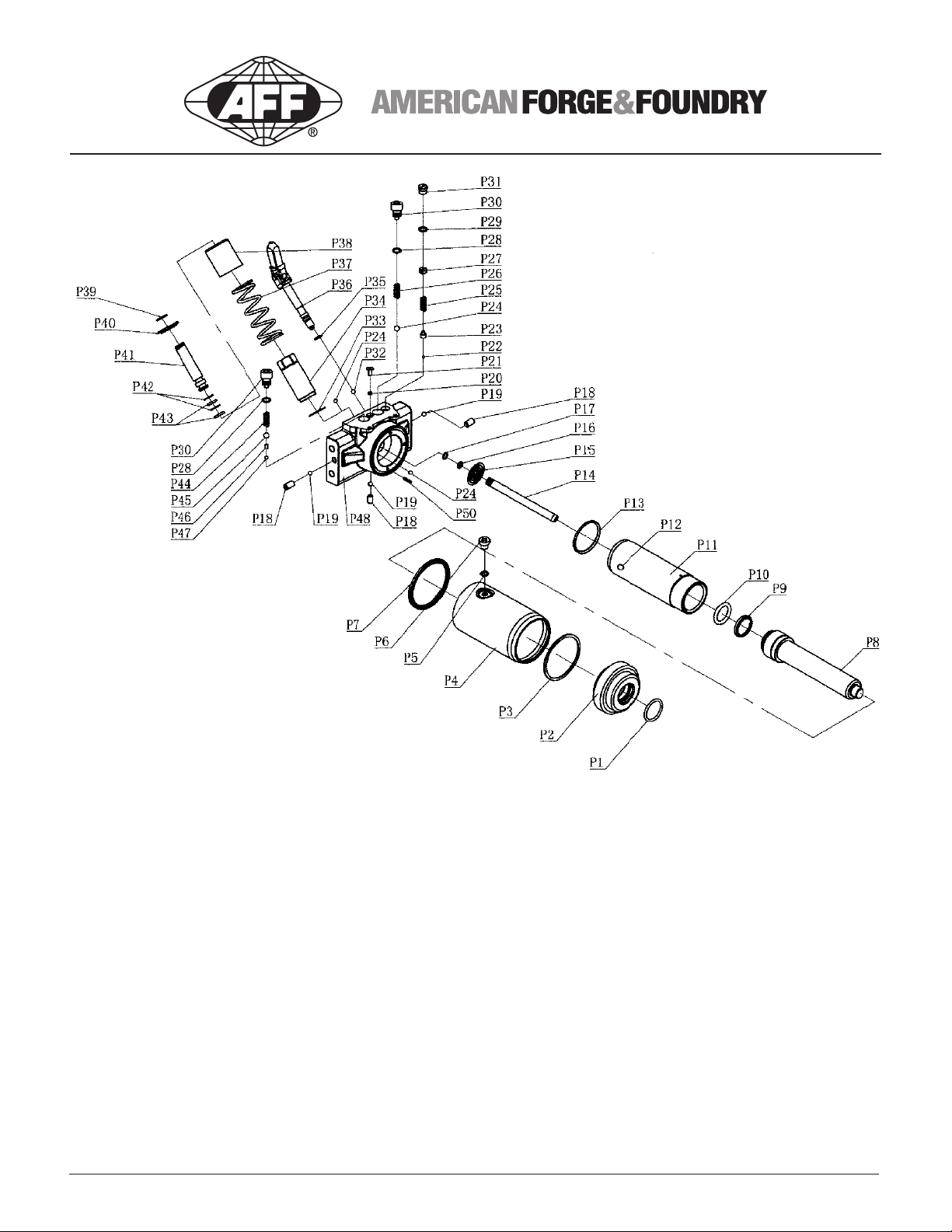

PARTS LIST: 2-TON FLOOR JACK — HEAVY DUTY — PARTS BREAKDOWN —
Prod. No. 202HD

affjaxx.com
12
LIMITED WARRANTY
SureWerx USA WARRANTS TO ITS CUSTOMERS THAT THE COMPANY’S SureWerx USA “AFF” BRANDED
PRODUCTS ARE FREE FROM DEFECTS IN WORKMANSHIP AND MATERIALS.
SureWerx USA will repair or replace its SureWerx USA “AFF” branded products which fail to give satisfactory
service due to defective workmanship or materials, based upon the terms and conditions of the following described
warranty plans attributed to that specific product. This product carries a ONE-YEAR warranty. During this warranty
period, SureWerx USA will repair or replace at our option any part or unit which proves to be defective in material
or workmanship.
Other important warranty information:
This warranty does not cover damage to equipment or tools arising from alteration, abuse, misuse, damage and
does not cover any repairs or replacement made by anyone other than SureWerx USA. The foregoing obligation is
SureWerx USA’s sole liability under this or any implied warranty and under no circumstances shall we be liable for
any incidental or consequential damages.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. If you have any questions about warranty service, please contact
SureWerx USA. This warranty gives you specific legal rights and you may also have other rights which vary from
state to state.
SureWerx, USA Inc.,
325 Corporate Drive, Elgin, IL USA 60123
surewerx.com/usa
affjaxx.com
800-323-7402
202HD-INST-0323
