1.About This Manual
1.1 Scope of Validity
1.2 Target Group
1.3 System Diagram
This manual describes the installation, commissioning, operation and
maintenance of the following on-grid PV inverters produced by Afore New
Energy:
This manual is for qualified personnel. The tasks described in this manual must
only be performed by qualified personnel.
Single-Phase(One MPPT Tracker)
HNS7000TL HNS8000TL
Please keep this manual all the time available in case of emergency.
About This Manual
01

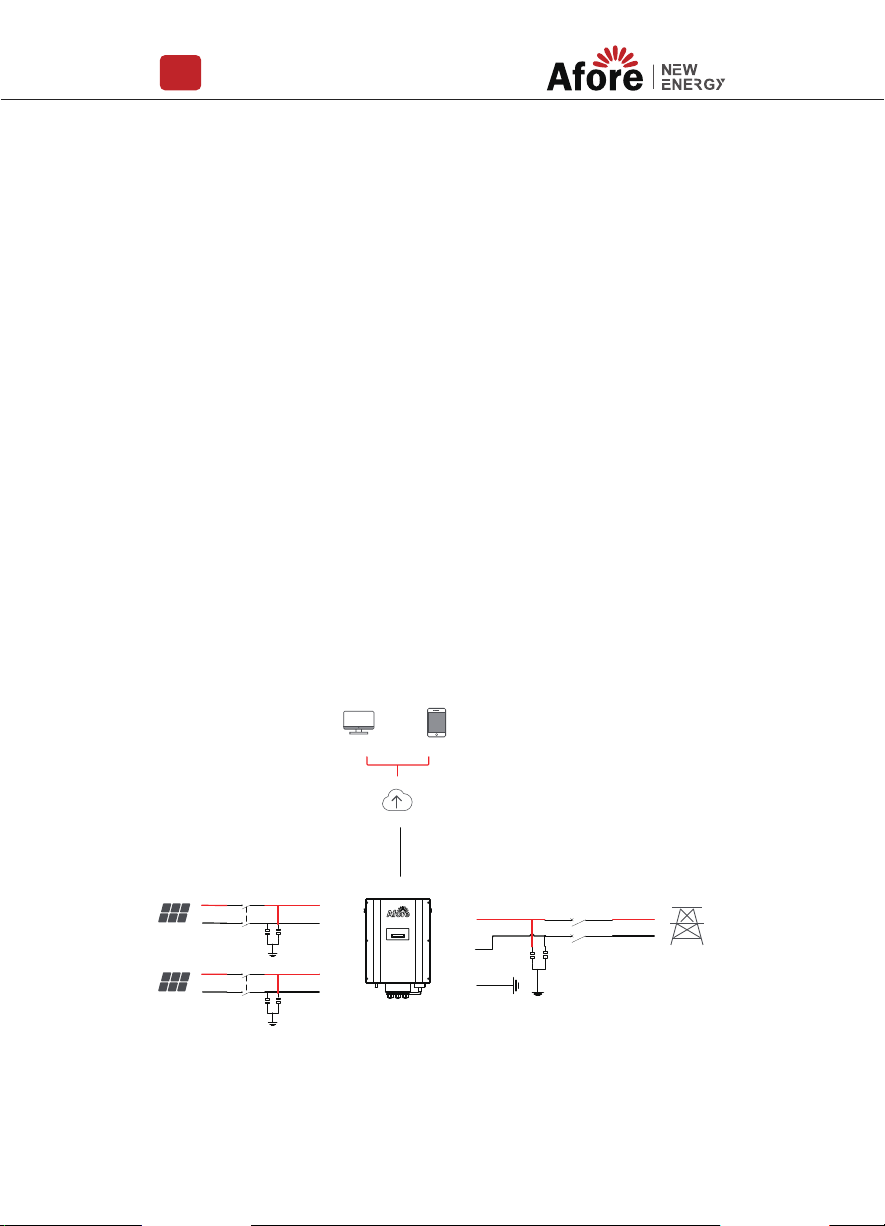

The typical connection diagram for the entire PV system is on-grid.
PE
WIFI / RS485
Cloud server
Portal web Porta Smart-phone
PV Inverter
Circuit Breaker
N
L
3
AC Grid
Surge Protective
Device
Circuit Breaker 1Surge Protective
Device
DCA1+
DCA1-
PVA1
PV Array
Circuit Breaker 1Surge Protective
Device
DCA1+
DCA1-
PVA1
PV Array

2.Safety & Symbols
2.1 Safety Precautions
1. All work on the inverter must be carried out by qualified electricians.
2. The device may only be operated with PV panels.
3. The PV panels and inverter must be connected to the ground.
4. Do not touch the inverter cover until 5 minutes after disconnecting both DC and
AC power supply.
Safety & Symbols 02
Type
Single-Phase(Two MPPT Trackers)
HNS7000TL
HNS8000TL
32
35.5
50
50
Max AC Current [A] Rated current of AC breaker[A]
Circuit Breaker and Surge Protector Recommendation:
Note:
The Inverter can be only connected to low-voltage grid.
(220/230Vac, 50/60Hz).
SPD: Lightning protection system, refer to the following options:
AC side, nominal discharge current 20KA, second grade lightning protection,
protection voltage 2.5KV
DC side, nominal discharge current 20KA, second grade lightning protection,
protection voltage 3.2KV
The wiring distance between the inverter and the distribution box should be at
least 5 meters.

5. Do not touch the inverter enclosure when operating, keep away from materials
that may be affected by high temperatures.
6. Please ensure that the used device and any relevant accessories are disposed
of in accordance with applicable regulations.
7. Afore inverter should be placed upwards and handled with care in delivery. Pay
attention to waterproof. Do not expose the inverter to water, rain, snow or spray.
8. Alternative uses, modifications to the inverter not recommended. The warranty
can become void if the inverter was tampered with or if the installation is not in
accordance with the relevant installation instructions.
Afore inverter strictly comply with relevant safety standards. Please read and
follow all the instructions and cautions during installation, operation and
maintenance.
Safety & Symbols
03
2.2 Explanations of Symbols
Do not dispose of this device with the normal domestic waste.
Without transformer
This inverter does not use transformer for the isolation function.
CE mark
The inverter complies with the requirements of the applicable
CE guidelines.
Refer to manual before service.
Danger of electric shock
The inverter contains fatal DC and AC power. All work on the inverter
must be carried out by qualified personnel only.
Beware of hot surface
The inverter’s housing may reach uncomfortably hot 60°C (140°F) under high
power operation. Do not touch the inverter enclosure when operation.
Residual power discharge
Do not open the inverter cover until 5 minutes after disconnection both
DC and AC power supply.
Important notes
Read all instructions carefully. Failure to follow these instructions,
warnings and precautions may lead to device malfunction or damage.

3.Installation
3.1 Package
Unpacking
On receiving the inverter, please check to make sure the packing and all of the
components are not missing or damaged. Please contact your dealer directly for
supports if there is any damage or missing components.
Package List
Open the package, please check the packing list shown as below.
Installation 04
No.
1
2
3
4
5
6
7
1
1
1
1
1
1
4
Solar Inverter
Certificate Of Inspection
Quick Installation Instructions
Warranty Card
Wall Mounting Bracket
Waterproof Cover
Wiring Cover Screw
8
9
10
11
12
3
3
1
1
1
Plastic Expansion Tube
Mounting Bracket Screw
Security Screw
Screwdriver For Security Screw
Grounding Terminal
Qty Items No. Qty Items
6
2 3 4
5
1
89
10 11 12 13
Certificate
of
inspection
Quick
Installation
Instructions
Warranty
card
7

Overview of the Connection Area
The following figures show the assignment of the individual connection areas
on the bottom of the inverter.
Installation
05
3.2 Product Overview
No.
1
2
3
4
DC Switch
DC Side For PV String
AC Side
Monitor Module
Items
345mm
460mm
170mm
DCA+ DCA- DCB+ DCB- N L
1 2 3 4

The inverters are designed for indoor and outdoor installation (IP65), to increase
the safety, performance and lifespan of the inverter, please select
the mounting location carefully based on the following rules:
The inverter should be installed on a solid surface, far from flammable or
corrosion materials, where is suitable for inverter’s weight and dimensions.
The ambient temperature should be within -25℃~ 60℃(between -13 °F and
140°F).
The installation of inverter should be protected under shelter. Do not expose the
inverter to direct sunlight, water, rain, snow, spray lightning, etc.
Installation 06
3.3 Mounting Location
The inverter should be installed vertically on the wall, or lean back on plane
with a limited tilted angle. Please refer to below picture.
<30°
>0°
Max

Installation
07

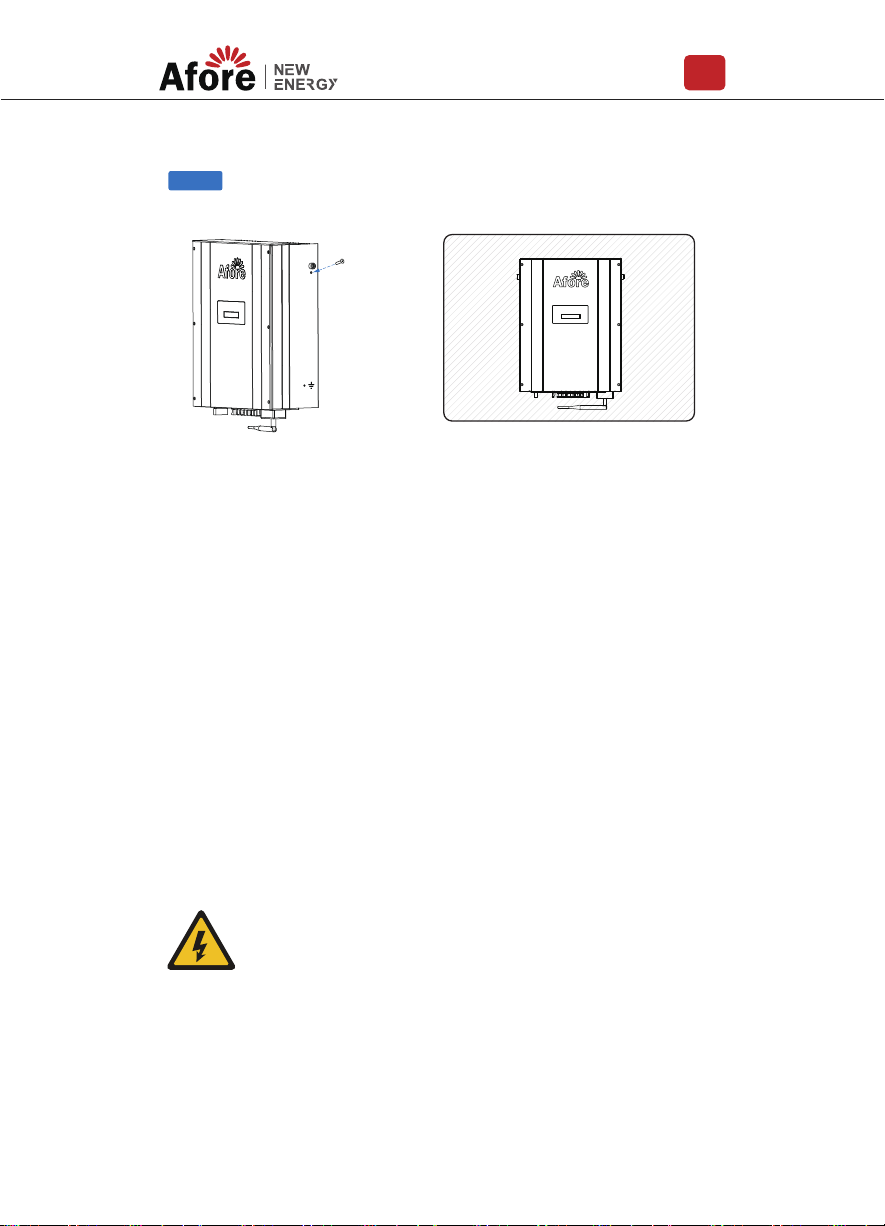

3.4 Installation On-grid PV Inverter

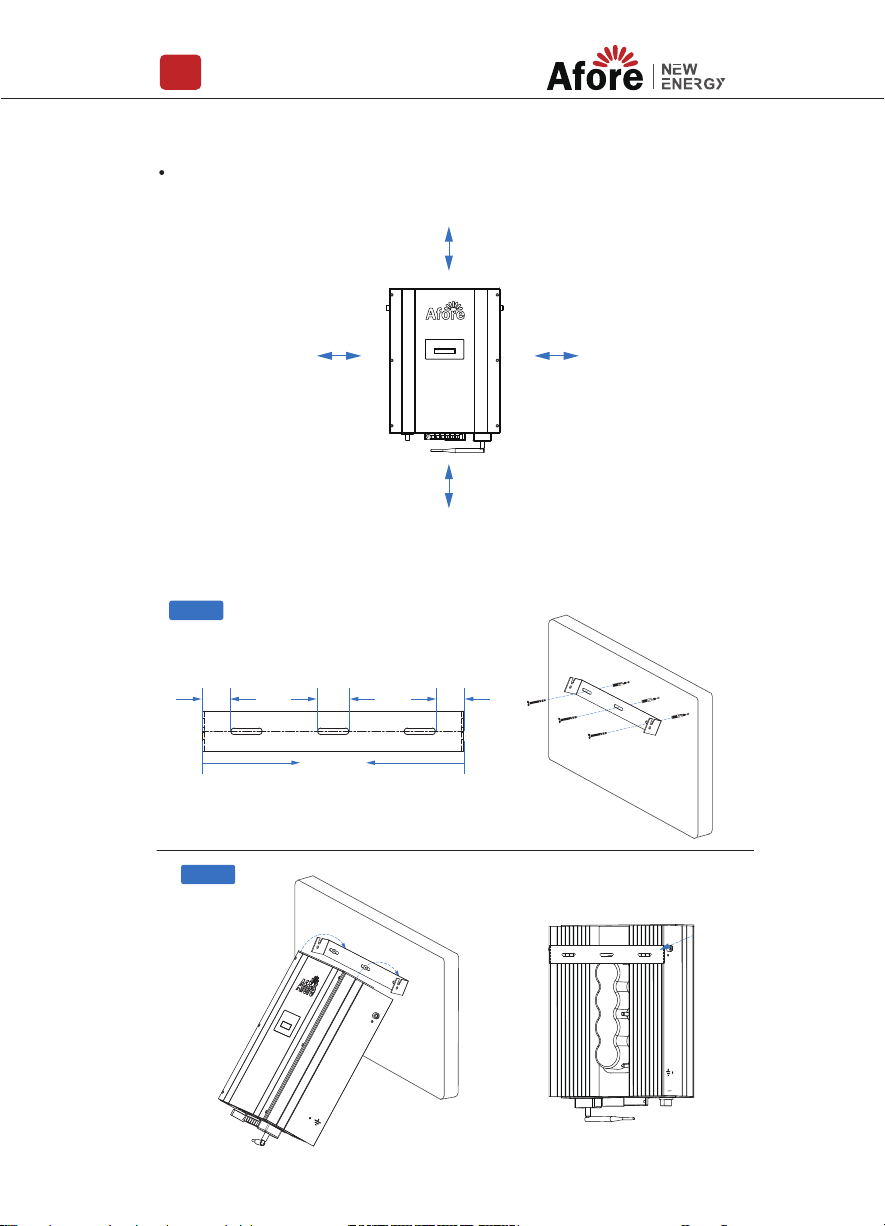

Leave the enough space around inverter, easy for accessing to the inverter,
connection points and maintenance.
300mm
100mm 100mm
500mm
Step 1
Step 2
328.5mm
26mm 26mm35mm

Installation 08
3.5 Electrical Connection
· The open-circuit voltage and short-circuit current of PV string must not exceed
inverter’s range
· The isolation resistance between PV string and ground must exceed 10 kΩ
· The polarity from PV string are correct
· Use the DC plugs in the accessory
· The lightning protector should be equipped between PV string and inverter
· Disconnect all of the PV (DC) switch during wiring
3.5.1 PV & Grid Connection
Warning:
The fatal high voltage may on the DC side, please comply with
electric safety when connecting.
Please make sure the correct polarity of the cable connected with
inverter, otherwise inverter could be damaged.
Step 3
Security screw

13±0.5mm
The on-grid PV inverters work with grid (220/230/240 Vac, 50/60 Hz).
The external AC switch should be installed between inverter and grid to isolate
from grid. Please make sure below requirements are followed before connecting
AC cable to the inverter.
· The AC (grid) voltage must not exceed inverter’s range
· The phase-line from AC distribution box are correctly connected
· Use the AC plugs in the accessory
· The surge protector should be equipped between grid and inverter
· Disconnect the AC (grid) switch during wiring
Installation
9
Warning:
The fatal high voltage may on the AC side, please comply with
electric safety when connecting.
Please make sure the right line of AC grid connected with inverter,
otherwise inverter could be damaged.
Step 1
Note:
Cable suggestion
2
AC cross-section
6 mm
2
DC cross-section
4 mm
Pass the cable through the waterproof junction box and tighten the waterproof cap

Installation 10
Step 2
Step 3
DCA+ DCA- DCB+ DCB- N L
DCA+ DCA- DCB+ DCB- N L
Unscrew the row of screws, insert the wire harness into the DCA+, DCA-, DCB+, DCB-, N, L
caps one by one, and tighten the screws
N=Neutral line
L=Live line
DCA+ DCA- DCB+ DCB- N L
fix cover with screws
4x

Installation
11
3.5.2 Earth Connection
The user must connect a protective earth (PE) terminal to
prevent electric shock. And make sure this PE terminal is
properly grounded.
Step 1
Step 2
3~5 mm
Grounding terminal
Note: copper cable or aluminum cable more than 6mm²
Grounding terminal is connected to the inverter at left or right side

Operation 12
The monitoring module could transmit the data to the cloud server, and display
the data on the PC, tablet and smart-phone.
Wi-Fi / GPRS / RS485 communication is applicable to the inverter . Please refer
to "Communication Configuration Instruction" for detailed instruction.
Install the Wi-Fi / GPRS / RS485 Communication
3.5.3 Communication Connection
4.Operation

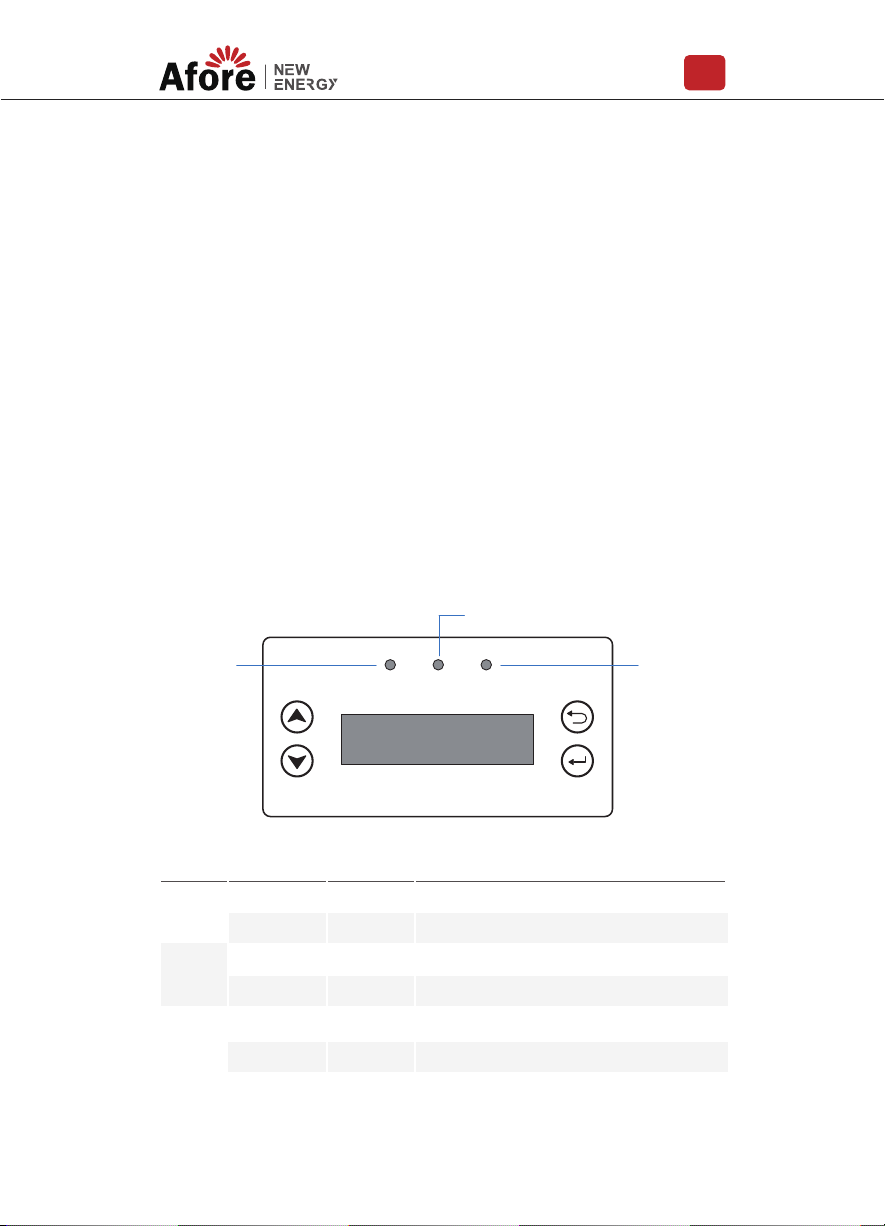

4.1 Control Panel
1
35
24
UP
DOWN
ESC
ENT
6
POWER FAULTCOM
IItteemmssNNoo.. IItteemmssNNoo..
1
2
3
4
LCD Display
ESC Touch Button
UP Touch Button
DOWN Touch Button
5
6
FAULT LED Indicator
COM LED Indicator
ENT Touch Button
POWER LED Indicator

Operation
13
4.2 Menu Structure
Inverter Info
HNS8000TL-2
Uersion：M xxxx
Version：S xxxx
Version：S xxxx
S/N（Machine）Sxxxxxxxxx
First Level Menu
Second Level Menu
Wifi Info
IP (Wifi) 192.168.xx.xx
S/N（Wifi）xxxxxxxxxx
Error Record
No Error
Date Time
Time: H:M:S
Date: Year-month-day
Set
PassWord xxxx
Upstream
PassWord xxxx

Operation 14
4.3.1 Startup Setting
4.3 Setting
Explanation of LCD Display Content
UP/DOWN
Switch countries
UP/DOWN
Adjust the time
Afore New Energy Please Choose
Your Country
1s Delay
Enter
Enter
Enter
Enter
Please Set
Day & Time
Date Dd-Mm-2015
Time Hh-Mm-Ss
Waiting Xx
Power: XXW
CY China
Set Eng1G83
Nouns Explanation
Inverter Info Display the serial number and firmware version of inverter
Check the error list of inverter including date and time
Display the WIFI serial number and assigned IP address
Set date and time of the inverter
Countercurrent
Set the protection parameters of inverter
Error Record
WiFi Info
Date & Time
Upstream
SET

Operation
15
4.3.2 Parameter Setting
UP/DOWN
UP/DOWN
Main Menu SET
Enter
Enter
Enter
Enter
Enter
Enter
Input Password
Para Adj:
Para: XXX
Power Off and
Restart Inverter
Finish
Para View:
Max VoLtage: XXX
Min VoLtage: XXX
Max FrEquency: XXX
Min FrEquency: XXX
Safety: XXX
Note:
The inverter need to be restarted to finish parameter setting.

Commissioning 16
Before starting up commissioning at site, please make sure below procedures
and requirements are fully meet.
· Mounting location is meet the requirements.
· All of the electrical wiring is firmly connected, including PV wiring, Grid wiring
and Earth wiring.
· The inverter setting has been finished accordingly to local standards or
regulations.
Commissioning Procedures
· Turn on the AC switch between inverter output and the public grid;
· Turn on the DC switch on the inverter;
· Turn on the PV switch of the system.
5.Commissioning
Sign Color Explanation
COM
GreenOn
Off
On
Off
On
Off
Green
Red
FAULT
Inverter is feeding power
Inverter is not feeding power at the moment
Power On
No Power
Fault occurred
No fault
POWER
DOWN ENT
UP ESC
POWER FAULTCOM
FAULT
Red LED
Green LED
Green LED
COM
POWER
LED Indication
Power

Shut Down & Restart the Inverter
17
The inverter needs maintenance periodically, the following details should be
noticed.
PV connection: check the PV connection twice a year
AC connection: check the AC connection twice a year
Earth connection: check the Earth connection twice a year
Heat sink: clean the heat sink once a year with dry towel
The LCD and LED will report the fault when the error occurs, please follow
thetrouble shooting list to solve the problem.
·Turn off the DC switch on the inverter;
·Turn off the PV switch of the system;
·Turn off the AC switch between inverter output and the public grid.
Follow the procedures below when the inverter needs to be restarted.
·Follow the Shut Down Procedures of Article 6 to shut down inverter;
·Follow the Commissioning Procedures of Article 5 to turn on the inverter.
7.Maintenance&Trouble Shooting
6.Shut Down & Restart the Inverter
6.1 Shut Down Procedures
7.1 Maintenance
7.2 Fault Code and Trouble Shooting
6.2 Restart the inverter
Note:
The inverter will be operable after minimum 5 minutes.

Maintenance&Trouble Shooting
18
Trouble-Shooting List
GFCI Fault Ground Fault
Circuit Interrupter
fault
Ground Fault Circuit
Interrupter fault restart the inverter
Bus High
Fault/Bus
Fault
Bus Voltage High
/Bus Fault
· PV Input voltage high
· AC side poor connection
· check PV input voltage within
450Vdc(up to 3.0kw model),
500Vdc(up to 5.0kw model)
· check AC connector, circuit breaker
well connection
No Utility Utility loss
· utility loss
· AC side circuit breaker
turn off
· AC side poor connection
· inverter fault
· grid back to the normal, the inverter
will restart automatically
· replace the AC circuit breaker
· check AC connector well
connection
· after seceral retart the fault remains,
replace inverter
Ground
Current
Fault
Leakage current
high
1. poor earthing, leakage
current high
2. PV(+) or PV(-) earthed
1. check the AC output wring and
restart the inverter
2. check PV array wiring
Over
Temperatu
re Fault
Inverter too hot · inverter enclosure too hot
· temperatrue sensor fault
· turn off the inverter still the
temperature down to the normal. Or
install the inverter at a well ventilated
site.
· replace the temperature sensor
PV Over
Fault
PV input voltage
high · PV array's Voc high
· re-design the PV array
configuration
· measure the PV array voltage is the
same as inverter displayed.
M Grid
Volt Fault
Grid voltage out of
range
· grid voltage out of the
setting range
· grid back to the normal, the inverter
will restart automatically
· check Country standard setting is
correct
Isolation
Fault
Insulation
Resistance high · PV(+) or PV(-
Code Error
Display Error Message Possible Fault Correctie Measure
E0
E6/E11
E9
E10
E13
E15
E17
E18 ) earthed
check the resistance between PV(+)
and ground, PV(-) and ground bigger
than 2MΩ.
E19
E12
E24
E29
Current
DC Offset DC bias high · AC side DC bias high restart the inverter
Over
Current Over current fault · grid fluctuate · AC side poor connection
· the inverter will restart automatically
· check the AC output wring and
restart the inverter
Relay 1/2
Fault Relay fault · inverter fault restart the inverter
MGrid
FreqFault
Grid frequency out
of range
· grid fluctuate
· grid frequency out of
setting range
· grid back to the normal, the inverter
will restart automatically
· check inverter frequency setting
range correct
