Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8 Fitting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
9 Connecting the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
10 Using the inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
11 Cleaning and caring for the inverter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
13 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
14 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
15 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MSI924M-IO-16s.book Seite 7 Mittwoch, 5. April 2017 5:18 17

EN
Explanation of symbols MSI924M
8
1 Explanation of symbols
!
A
I
2 General safety instructions
2.1 General safety
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
!WARNING!
•Only use the device as intended.
•Do not operate the device in a damp or wet environment.
•Do not operate the device near any flammable materials.
•Do not operate the device in areas that are potentially explosive.
•Maintenance and repair work may only be carried out by qualified per-
sonnel who are familiar with the risks involved and the relevant regula-
tions.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
MSI924M-IO-16s.book Seite 8 Mittwoch, 5. April 2017 5:18 17

EN
MSI924M General safety instructions
9
•This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Electrical devices are not toys
Always keep and use the device out of the reach of children.
2.2 Safety when installing the device
!WARNING!
•Installing the device may only be performed by qualified personnel
who are familiar with the guidelines and safety precautions to be
applied.
•If electrical devices are incorrectly installed on boats, corrosion dam-
age might occur. The device should be installed by a specialist
(marine) electrician.
ANOTICE!
•Ensure that the device is standing firmly.
The device must be set up and fastened in such a way that it cannot tip
over or fall down.
•Do not expose the device to a heat source (such as direct sunlight or
heating). Avoid additional heating of the device in this way.
•If cables have to be fed through metal walls or other walls with sharp
edges, use ducts or tubes to prevent damage.
•Do not lay cables which are loose or bent next to electrically conduc-
tive material (metal).
•Do not pull on the cables.
•Do not lay the 220 V mains cable and the 24 V DC cable in the same
duct.
•Fasten the cables securely.
•Lay the cables so that they cannot be tripped over or damaged.
2.3 Operating the device safely
!WARNING!
•Operate the device only if you are certain that the housing and the
cables are undamaged.
MSI924M-IO-16s.book Seite 9 Mittwoch, 5. April 2017 5:18 17

EN
Scope of delivery MSI924M
10
•Even after the fuse triggers, parts of the inverter remain live.
•Always disconnect the power supply when working on the device.
ANOTICE!
•Make sure the air inlets and outlets of the device are not covered.
•Ensure good ventilation. The inverter produces dissipated heatwhich
has to be diverted.
•Do not connect the 220 V output of the inverter (fig. 55, page 4) to
a different 220 V source.
3Scopeofdelivery
4Accessories
5 Target group for this manual
The electrical installation (chapter “Connecting the inverter” on page 14) is intended
for professionals who are familiar with the applicable regulations of the country in
which the equipment is to be installed and/or used.
All other chapters are intended for the users.

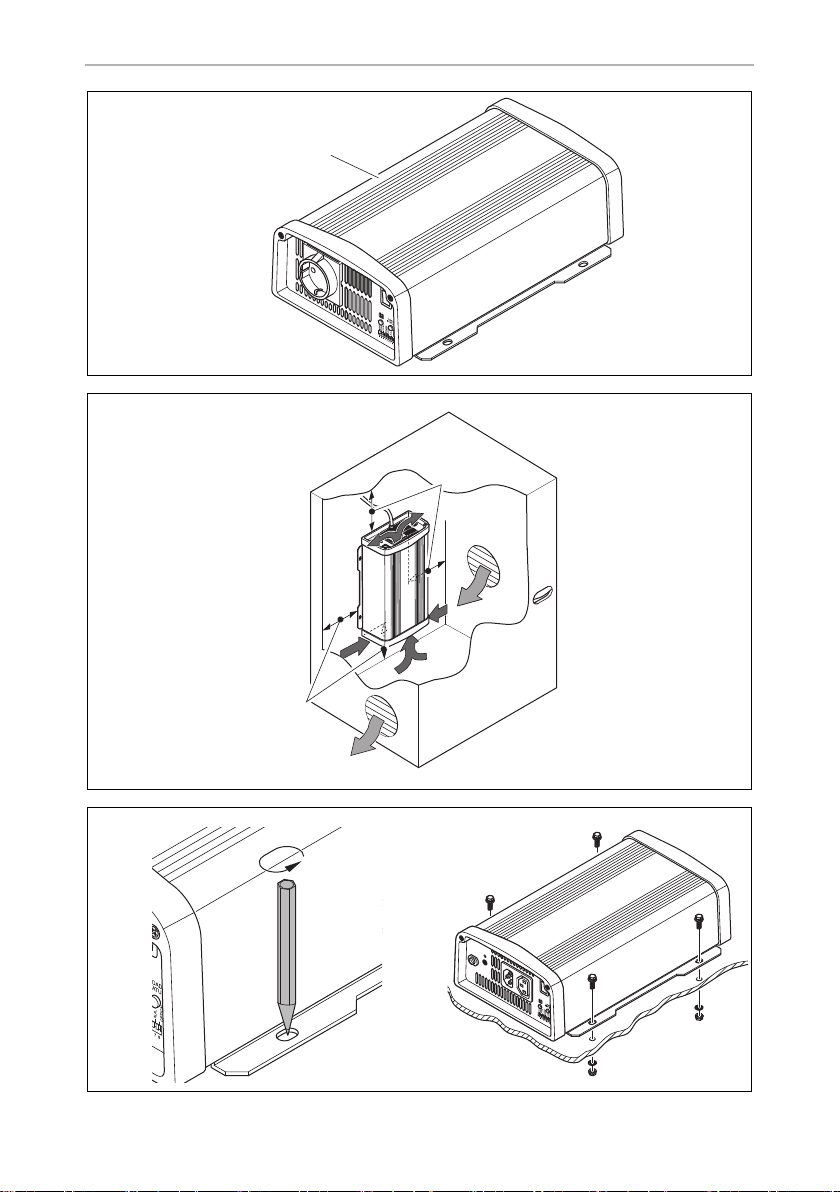

No. in
fig. 1,
page 3
Designation
1 Sine wave inverter
– Operating manual
Designation Ref. no.
Remote control MCR9M
MSI924M-IO-16s.book Seite 10 Mittwoch, 5. April 2017 5:18 17

EN
MSI924M Intended use
11
6 Intended use
!
The wave inverter converts direct voltage of 24 Vginto a 220 V AC supply of 50 Hz
or 60 Hz.
7 Technical description
The inverters can be operated wherever a 24 Vgconnection is available. The light-
weight and compact construction of this device allows for easy installation in mobile
homes, commercial vehicles or motor and sailing yachts.
The output voltage corresponds to the household voltage from the socket (pure sine
wave, THD < 3 %).
Please observe the values for constant output power and peak output power as indi-
cated in chapter “Technical data” on page 22. Never connect devices that have a
higher power requirement.
I
The inverter has various protective mechanisms.
•Overvoltage shutdown: The inverter shuts itself off when the voltage exceeds
the cut-off value. It restarts when the voltage returns to the restart value.
•Undervoltage shutdown: The inverter shuts itself off when the voltage sinks
below the cut-off value. It restarts when the voltage rises to the restart value.
•Excess temperature shutdown: The inverter switches off when the tempera-
ture inside the device or the temperature on the cooling element exceeds a cut-
off value. It restarts when the voltage rises to the restart value.
•Overload shutdown: The LED on the inverter indicates an operating fault
(constant red light) when an excess load is connected or a short circuit has
occurred. The fuse in the device must be pressed in again by hand after it is
triggered by excess current.
•Incorrect polarity protection: The incorrect polarity protection prevents the
wrong polarity when connecting the inverter.
WARNING!
Never use the inverter on vehicles where the positive terminal of the bat-
tery is connected to the chassis.
NOTE
Note when connecting devices with an electrical drive (such as power
drills and refrigerators), that they often require more power than is indi-
cated on the type plate.
MSI924M-IO-16s.book Seite 11 Mittwoch, 5. April 2017 5:18 17

EN
Technical description MSI924M
12
I
7.1 Control elements
The inverter has the following connections, displays and control elements on the
back:
The inverter has the following connections, displays and control elements on the
front:
NOTE
The individual values are found in the chapter “Technical data” on
page 22.

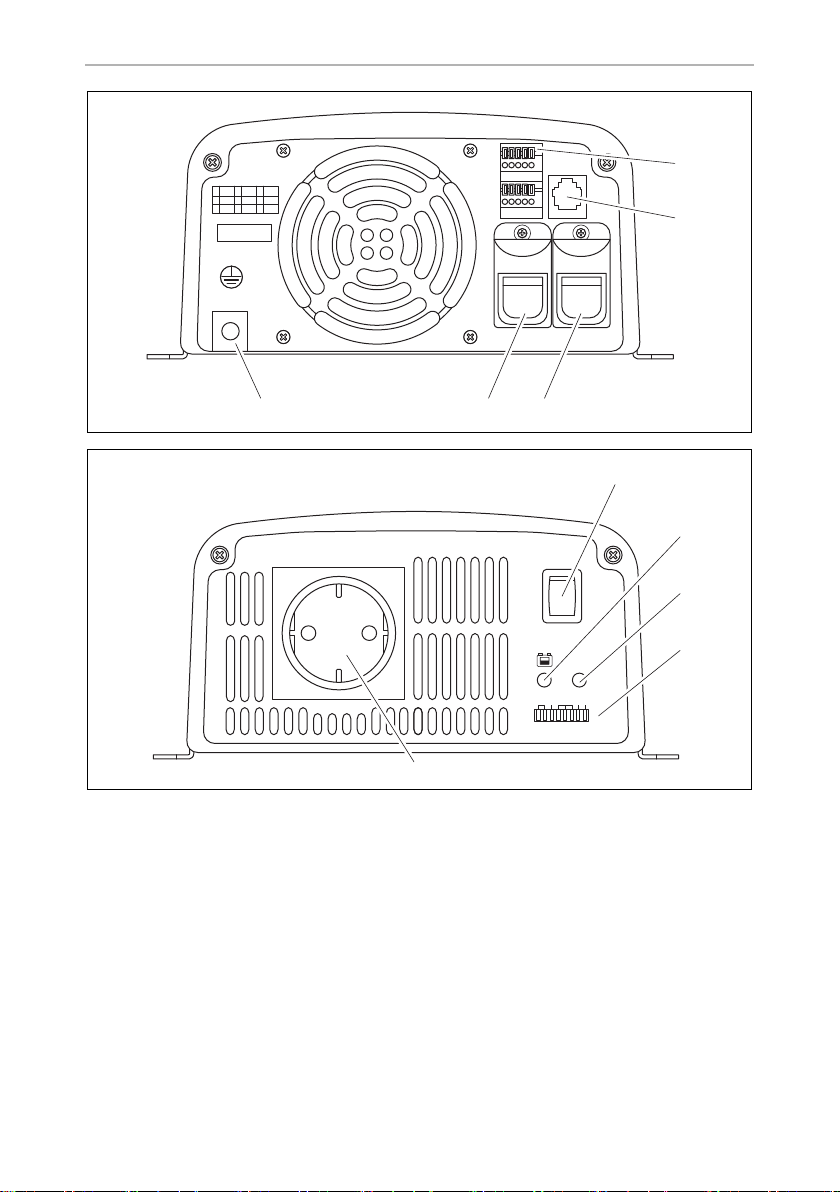

No. in
fig. 4,
page 4
Designation Description
1 Terminal Setup operation via remote control
2 RS-232 port,
REMOTE port
Connection of a PC using a serial RS-232 interface or
connection of the MCR9M remote control
3 POS+ Positive terminal
4 NEG– Negative terminal
5 Earth terminal Earthing on the vehicle bodywork, not needed for
truck installation
No. in
fig. 5,
page 4
Designation Description
1 Main switch
“ON/OFF/REMOTE”
switch:
Switches the device on, off or to operation via the
remote control (accessory)
2 “Input Level” LED Displays the input voltage range
3 “Load Level” LED Displays the power being supplied
4 Dip switch Makes settings on the inverter (such as mains voltage,
mains frequency, energy-saving mode).
5 Safety socket 220 V output
MSI924M-IO-16s.book Seite 12 Mittwoch, 5. April 2017 5:18 17

EN
MSI924M Fitting the inverter
13
8 Fitting the inverter
8.1 Tools required
For the electrical connection you will need the following tools:
•Crimping tool
•3 multi-coloured, flexible connection cables. Determine the necessary thickness
from the table in chapter “Connecting the inverter” on page 14.
•Cable lugs and conductor sleeves
For fastening you will require the following tools:
•Machine bolts (M4) with washers and self-locking nuts or
•self-tapping screws or wood screws.
8.2 Mounting instructions
When selecting the installation location, observe the following instructions:
•The inverter can be mounted horizontally or vertically.
•The inverter must be installed in a place that is protected from moisture.
•The inverter may not be installed in the presence of flammable materials.
•The inverter may not be installed in a dusty environment.
•The place of installation must be well ventilated. A ventilation system must be
available for installations in small, enclosed spaces. The minimum clearance
around the inverter must be at least 25 cm (fig. 2, page 3).
•The air intake on the underside or the air outlet on the back of the inverter must
remain clear.
•For ambient temperatures higher than 40 °C (such as in engine or heating
compartments, or direct sunlight), the heat from the inverter under load can lead
to automatic shutdown.
•The device must be installed on a level and sufficiently sturdy surface.
ANOTICE!
Before drilling any holes, make sure that no electrical cables or other
parts of the vehicle can be damaged by drilling, sawing and filing.
MSI924M-IO-16s.book Seite 13 Mittwoch, 5. April 2017 5:18 17

EN
Connecting the inverter MSI924M
14
8.3 Mounting the inverter
➤Hold the inverter against the installation location and mark the fastening points
(fig. 3A, page 3).
➤Attach the inverter using your chosen fastening method (fig. 3B, page 3).
9 Connecting the inverter
9.1 General instructions
!
•When setting up a socket distribution circuit (mains setup), comply with the
applicable regulations.
•Only use copper cables.
•Keep the cables as short as possible (< 1.8 m).

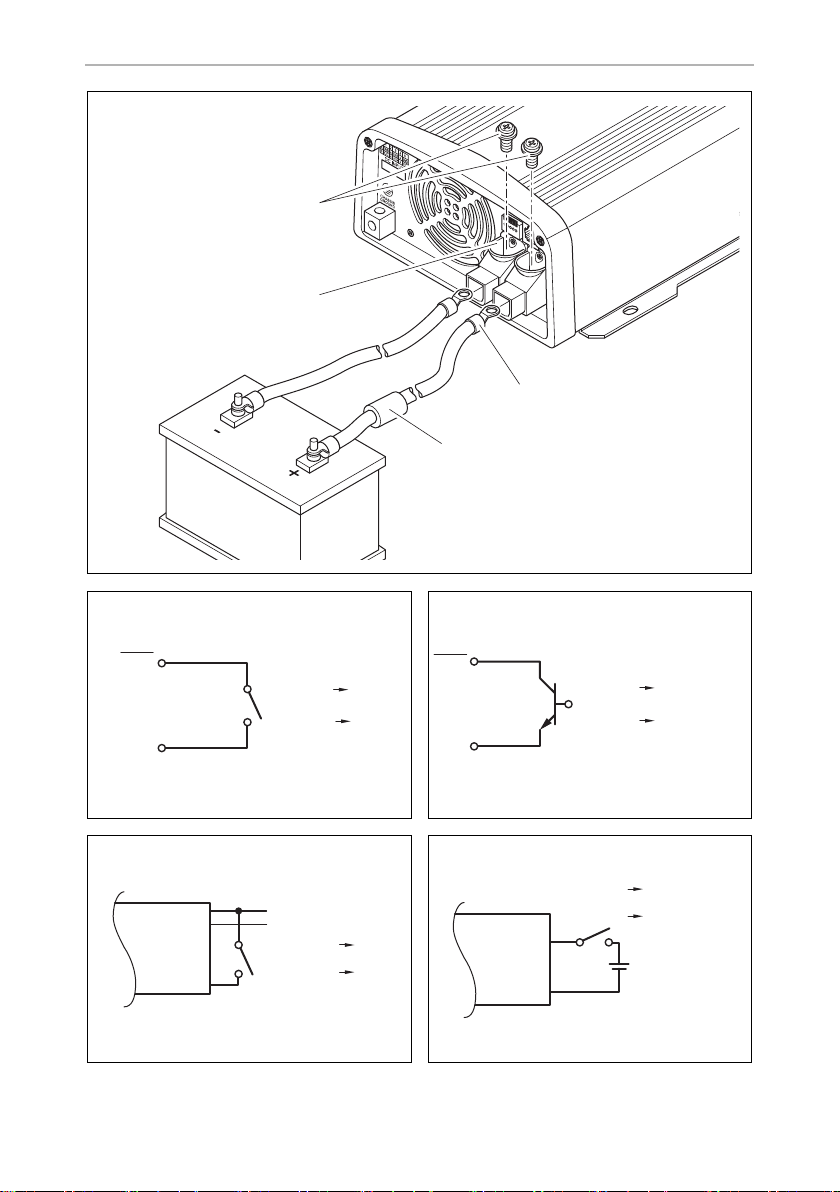

•Keep to the specified cable cross section and fit a cable fuse (fig. 63, page 5)
as close to the battery as possible on the positive cable (see the table).
WARNING!
•The inverter may only be connected by a qualified workshop. The
following information is intended for technicians who are familiar
with the guidelines and safety precautions to be applied.
•Never use the inverter on vehicles where the positive terminal of the
battery is connected to the chassis.
•If you do not fit a fuse to the positive cable, the cables can over-
load, which might result in a fire.
•Reversed polarity can damage the inverter.
•The inverter should not be used to connect to a ring main, it must
only be used to power individual appliances that are plugged into
the inverter outlet either directly or using a purpose-made, moulded
extension lead
Device Required cable
cross section
Cable fuse
(fig. 63, page 5)
MSI924M ≤10 mm² 50 A
MSI924M-IO-16s.book Seite 14 Mittwoch, 5. April 2017 5:18 17

EN
MSI924M Connecting the inverter
15
9.2 Connecting the inverter to the battery
I
➤Set the main switch (fig. 51, page 4) to “OFF”.
➤Loosen the screw (fig. 61, page 5) from the red positive terminal (fig. 62,
page 5).
➤Push the cable lug (fig. 62, page 5) of the positive cable into the red positive
terminal and fasten it with the screw.
➤Connect the negative cable to the black negative terminal (fig. 64, page 5).
➤Lay the positive cable from the inverter to the positive terminal of the vehicle bat-
tery and connect it.
➤Lay the negative cable from the inverter to the negative terminal of the vehicle
battery and connect it.
➤Connect the earth terminal to the vehicle chassis.
9.3 Connecting the MCR9M remote control (accessory)
A
➤Connect the remote control (accessory) to the remote port (fig. 42, page 4).
NOTE
Tighten the nuts and bolts to a maximum torque of 12 – 13 Nm. Loose
connections may cause overheating.
NOTICE!
•Only plug in the connection to theremote controlinthe remote port.
The device can be damaged by connecting it incorrectly.
•Ensure that the remote control and inverter are supplied with the
same input voltage.
•Follow the instruction manual of the remote control.
MSI924M-IO-16s.book Seite 15 Mittwoch, 5. April 2017 5:18 17

EN
Using the inverter MSI924M
16
10 Using the inverter
10.1 Switching on the inverter
➤Set the main switch (fig. 51, page 4) of the inverter to the “ON” position.
Set the On/Off switch to “OFF” to switch off.
➤The inverter performs a self-test.
During the self-test, the LEDs flash.
✓After the self-test is completed successfully, the “Input Level” (fig. 52, page 4)
and “Load Status” (fig. 53, page 4) LEDs light up green.
Observe the following when using the device (see also chapter “Troubleshooting”
on page 20)
The inverter switches off if:
•the battery voltage drops below 21 V for 10 seconds,
•the battery voltage drops below 18 V for 0.3 seconds
•the battery voltage exceeds 32 V,
•the inverter overheats.
➤If this happens, shut down the inverter with the main switch(fig. 51, page 4).
➤Check that the inverter is sufficiently ventilated and that the ventilation grilles are
unimpeded.
➤Wait 5 – 10 minutes and switch the inverter on again without any electric
consumers.
After an under voltage (below 21 V) occurs the battery needs to be recharged to
keep 25 V for 3 seconds to restart the inverter.
When operating the inverter at high load for lengthy periods, it is advisable to start
the engine in order to recharge the vehicle battery.
MSI924M-IO-16s.book Seite 16 Mittwoch, 5. April 2017 5:18 17

EN
MSI924M Using the inverter
17
10.2 Status indications
“Input Level” LED(fig. 52, page 4)
The “Input Level” LED shows the present range of the input voltage.
“Load Level” (fig. 53, page 4)
The “Load Level” LED shows the power being supplied by the inverter.
10.3 Configuring the inverter
I
You can adjust the device using the dip switch (fig. 54, page 4).
Display Input voltage
Red, slow flash < 21.0 V
Green 21.0 – 30.0 V
Red, quick flash > 30.0
Display Output voltage
Off 0 – 80 W
Green 80 – 320 W
Orange 320 – 720 W
Red, slow flash 720 – 800 W
Red, quick flash > 800 W
NOTE
Settings can only be made using the dip switch if the S8 dip switch is
“On”.
The S1 and S2 dip switches have no function.
MSI924M-IO-16s.book Seite 17 Mittwoch, 5. April 2017 5:18 17

EN
Using the inverter MSI924M
18
Setting the mains frequency
!
You can set the mains frequency using the S3 dip switch.
Switching to energy-saving mode
You can set the energy-saving mode using the S4, S5 and S6 dip switches. In this
way, the battery you connect to the inverter is not discharged as quickly.
The inverter operates in energy-saving mode as long as the required power is below
the set level. If the required power exceeds the set level, the inverter works in normal
mode.
The values to be set on your inverter can be found in the following table:
WARNING! Danger of electrocution
Only adjust the S3 DIP switch when the respective frequency for the
output voltage should be used.
Dip switch
Net frequency S3
50 Hz Off
needed for usage with microwave
60 Hz On
Energy-saving
mode
Dip switch
S4 S5 S6
Off Off Off Off
needed for usage with microwave
– On Off Off
70 – 110 W On On Off
180 – 240 W On On On
MSI924M-IO-16s.book Seite 18 Mittwoch, 5. April 2017 5:18 17

EN
MSI924M Cleaning and caring for the inverter
19
Defining settings
Using the S8 dip switch you can define whether the default settings or the settings of
dip switches S3 – S7 are used.
Default settings
11 Cleaning and caring for the inverter
A
➤Occasionally clean the product with a damp cloth.
Dip switch
Parameter S8
Default settings On
needed for usage with microwave
Use dip switch S3 – S7 Off
Mains voltage Net frequency Energy-saving mode
220 V 50 Hz Off
NOTICE!
Do not use sharp or hard objects or cleaning agents for cleaning as these
may damage the product.
MSI924M-IO-16s.book Seite 19 Mittwoch, 5. April 2017 5:18 17

EN
Troubleshooting MSI924M
20
12 Troubleshooting
!
I
The “Load Status” LED (fig. 53, page 4) lights up red to indicate the fault:
WARNING!
Do not open the device. You risk sustaining an electric shock by doing
this.
NOTE
If you have detailed questions on the specifications of the inverter
please contact the manufacturer (addresses on the back of the
instruction manual).
LED display Cause Remedy
Quick flash Input voltage is too high Check the input voltage and reduce
it.
Slow flash Input voltage too low The battery needs recharging.
Check the cables and connections.
Occasional flash Overheating Switch off the inverter and the con-
sumer.
Wait 5 to 10 minutes and switch the
inverter on again without any elec-
tric consumers.
Reduce the load and make sure the
inverter has better ventilation. Then
switch the consumer back on.
Constantly lit Short circuit or reversed
polarity
Excessive load
Switch off the inverter and remove
the consumer.
Then switch the inverter back on
without the consumer. If no exces-
sive load is now shown, then there
is a short circuit in the consumer or
the total load was higher than the
power specified on the data sheet.
Check the cables and connections.
MSI924M-IO-16s.book Seite 20 Mittwoch, 5. April 2017 5:18 17
