Servicing Notes
When servicing or replacing gas carrying
components disconnect from gas before
commencing operation and check appliance is
gas sound after completion. When checking for
gas leaks use a liquid leak detector at all joints
and connections to check for leaks in the
system. Use a product specifically
manufactured for leak detection. Leak testing of
the appliance shall be conducted in accordance
to the manufacturer’s instructions.
CAUTION: DO NOT USE A FLAME
TO CHECK FOR GAS LEAKS.
Do not use re-conditioned or unauthorised gas
controls.
Disconnect from electricity supply before
commencing servicing, particularly before
removing any of the following: control panel,
side panels, cooktop tray, or any of the
electrical components or cover boxes. Before
electrical reconnection make sure the range is
electrically safe.
1. To Remove the Hand Rail
Remove the handrail plastic blanking plugs and
remove the 2 end bracket fixing screws.
2. To Remove Control Panel
Disconnect from electricity supply.
Pull off all the control knobs. Remove the hand
rail (see 2) Remove the 2 cross headed screws
that were hidden by the hand rail end brackets.
Open the broiler door and R H oven door and
remove the 2 screws underneath the control
panel.
Pull the control panel forward and support so
that the wires are not strained.
Reassemble in reverse order. When replacing
leads refer to the wiring diagram. Check
operation of timer, ignition, and oven light
switches.
3. To Remove the Cooktop
Disconnect from electricity supply.
Remove the grates, cooktop burner caps and
tops. If there are screws holding the cooktop
burners to the cooktop, remove them (not the
spark electrode fixing screws).

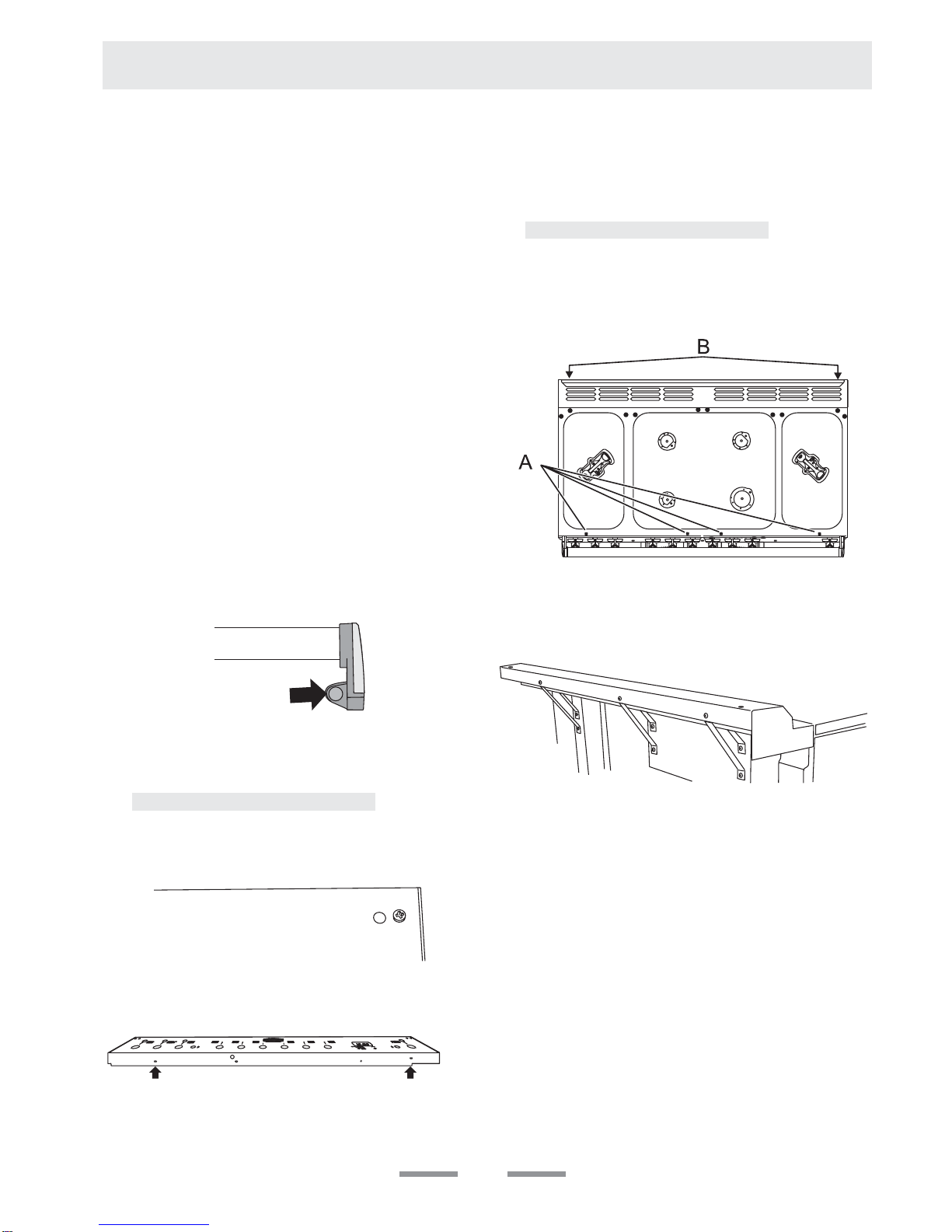

A Cooktop front fixing screws
B Cooktop rear fixing screws
Remove the 2 rear cooktop fixing screws (B)
and the 4 front cooktop fixing screws (A).
Remove the screws holding the flue grille stays
and if the rear extenstion is fitted remove the
screws holding that as well.
Lift the cooktop clear of the appliance. Replace
in reverse order.
Reassemble in reverse order ensuring that the
leads are reconnected. When replacing the
cooktop take care not to damage the ignition
electrodes
Check for correct burner operation.

5
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
4. To Remove a Side Panel
Disconnect from electricity supply.
Remove control panel (see 2). Pull the cooker
forward. Remove the 4 retaining screws for
each panel (2 at the front and 2 at the rear). The
lower front retaining screws (one each side) are
situated beneath the lower edge at the front
corners of the side panels
Reassemble in reverse order.
5. To Remove Oven Light Switch
Remove control panel (see 2).
NB The old switch may be destroyed during
removal.
Remove switch button and old switch from its
bezel by gripping the switch body behind the
control panel and twisting sharply.
The switch bezel can then be removed by
folding back its locking wings and pushing
forward. Fit the new bezel to the control panel
by first lining up the raised key on its body with
the cutout in the control panel and pushing it in
from the front. Assemble the new switch to the
bezel by lining up the key sections and pushing
home. Fit the new button by pushing in from the
front.
Replace control panel in reverse order and test
for correct operation.
6. To Remove Electronic Timer
Disconnect from electricity supply.
Pull off the timer control buttons and remove the
control panel (See 2). Remove the timer/
mounting bracket assembly from the control
panel by removing the two fixing screws.
Remove the timer from its mounting bracket by
depressing the plastic lugs on the timer case, at
the same time pulling the unit forward.
Reassemble in reverse order. When replacing
leads refer to the wiring diagram. Check
operation of timer.
7. To Remove A Thermostat
Remove control panel (see 2) and cooktop (see
3). Open the appropriate oven door and remove
the oven shelves.
RH oven
Remove oven roof. Remove the two fixings that
secure the thermostat phial cover. Unclip the
thermostat phial from the clips in the oven back
panel & remove from the top rear of the oven.
LH oven
Remove the two screws holding the thermostat
phial to the oven fan cover at the rear of the
oven. Pull the unit forward to access the rear of
the cooker. Remove both rear cover boxes by
removing the fixing screws and lifting clear.
Feed the thermostat capillary clear of the oven.
Disconnect the wires from the thermostat and
undo the two fixings that secure the control to
the mounting plate. Fit the replacement and re-
assemble in reverse order. Ensure that the phial
is clipped to the oven rear, positioned centrally
between the clips. Check that the thermostat
functions correctly.
8. To Change Broiler Controller
Remove the control panel (see 2) and cooktop
(see 3). Disconnect wiring from controller.
Remove 2 screws holding switch/controller to
mounting panel. Fit new controller and
reassemble in reverse order. Check for correct
operation.
BEFORE SERVICING ANY GAS CARRYING
COMPONENTS TURN OFF GAS SUPPLY.
9. To Change Cooktop Control Valve
Remove the cooktop top, see 3. Undo the nut at
rear of the valve and remove the screw(s)
securing valve to gas rail. Remove old valve,
discard old gasket/seal. Fit new gasket/seal to
new valve.
Reassemble in reverse order. Check valve is
adjusted for correct gas. Check range is gas
sound.

SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
6
10.To Change Cooktop Burner Orifice
Remove burner cap and head. Remove old jet.
Fit new orifice. Note the Wok burner has 2
orifices. Reassemble in reverse order. Check
appliance is gas sound.
11. To Change Cooktop Burner
Electrode
Lift off cooktop grates, remove burner cap.
Remove the screw holding the electrode. Pull
electrode vertically up sufficiently to grip the
lead between thumb and forefinger. Pull off the
electrode, but keep hold of the lead. Fit new
electrode to the lead. Fix electrode in burner
with screw. Replace burner cap. Check the
burner ignition. Replace grates.
12.To Remove or Change a Cooktop
Burner.
Remove the cooktop tray (see 3).
Center cooktop burners
Remove the control panel (see 2). The burners
are mounted in 2’s on cross supports.
Disconnect the burner feed pipes at the
burners. Remove the screw at the front holding
the cross support. Slide the support to the right
to release in from the rear location.
Lift the cross support and burners clear. The
burners are fixed to the cross supports with
screws underneath Remove the appropriate
burner and fit the new one. Reassemble in
reverse order. Check burner operation is
satisfactory.
Wok burners
Disconnect the burner feed pipes at the burner.
Fit the new one and reassemble in reverse
order. Check burner operation is satisfactory.
top of range with cooktop removed

7
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.

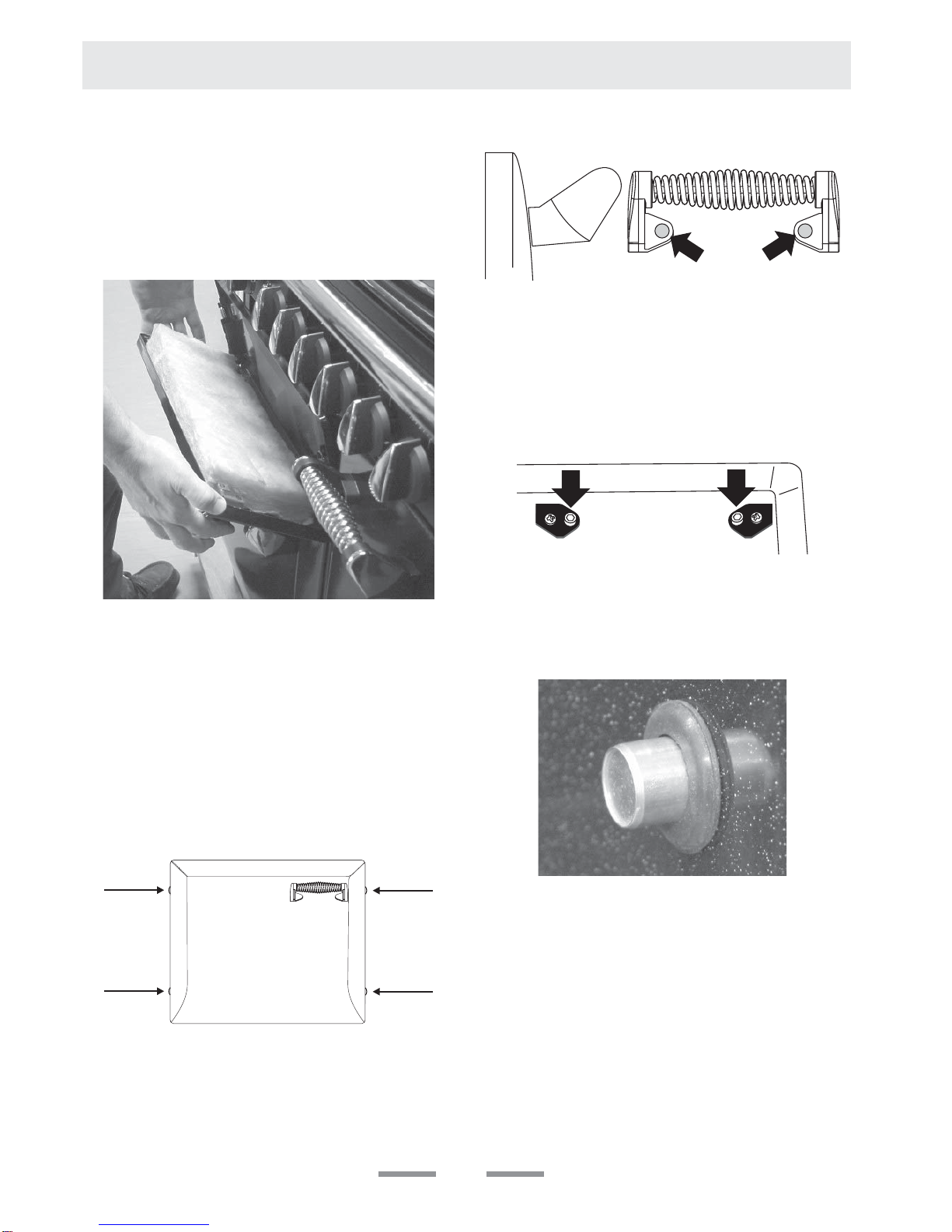

13.To Remove Broiler Outer Door
Panel
Open left hand oven door and remove 2 screws
from bottom edge of broiler door. Open broiler
door, support broiler door outer panel and
remove two screws from top inner face of broiler
door. There is a pad of fibre insulation inside the
door.
Reassemble in reverse order making sure that
the pad of insulation is in place.
14.To Remove an Oven Door
Open oven door and remove Handyrack (where
fitted) by springing one side out of the bracket
on the door and sliding the other side free.
Support the door and remove the two screws
securing the upper hinge and packing to the
cooker front. Remove the door from the lower
hinge by lifting slightly and moving outwards.
Reassemble in reverse order.
15.To Change Oven Door Outer
Panel
Remove the two plastic blanking plugs from the
door handles. Remove the 4mm Hex headed
screws holding the handle to the door with the
hexagon key tool. Remove two screws from top
edge and two from bottom edge of the door.
Remove outer door panel. Fit door handle to
new panel. Fit the plastic blanking plugs to the
fixing holes.
The handles should be above the fixings.
Fit panel to door. If replacing the outer panel on
the right hand door (with the Thermodial) take
care to make sure the sensor of the Thermodial
is sealed to the door by the rubber grommet.
Reassemble in reverse order.

SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
8

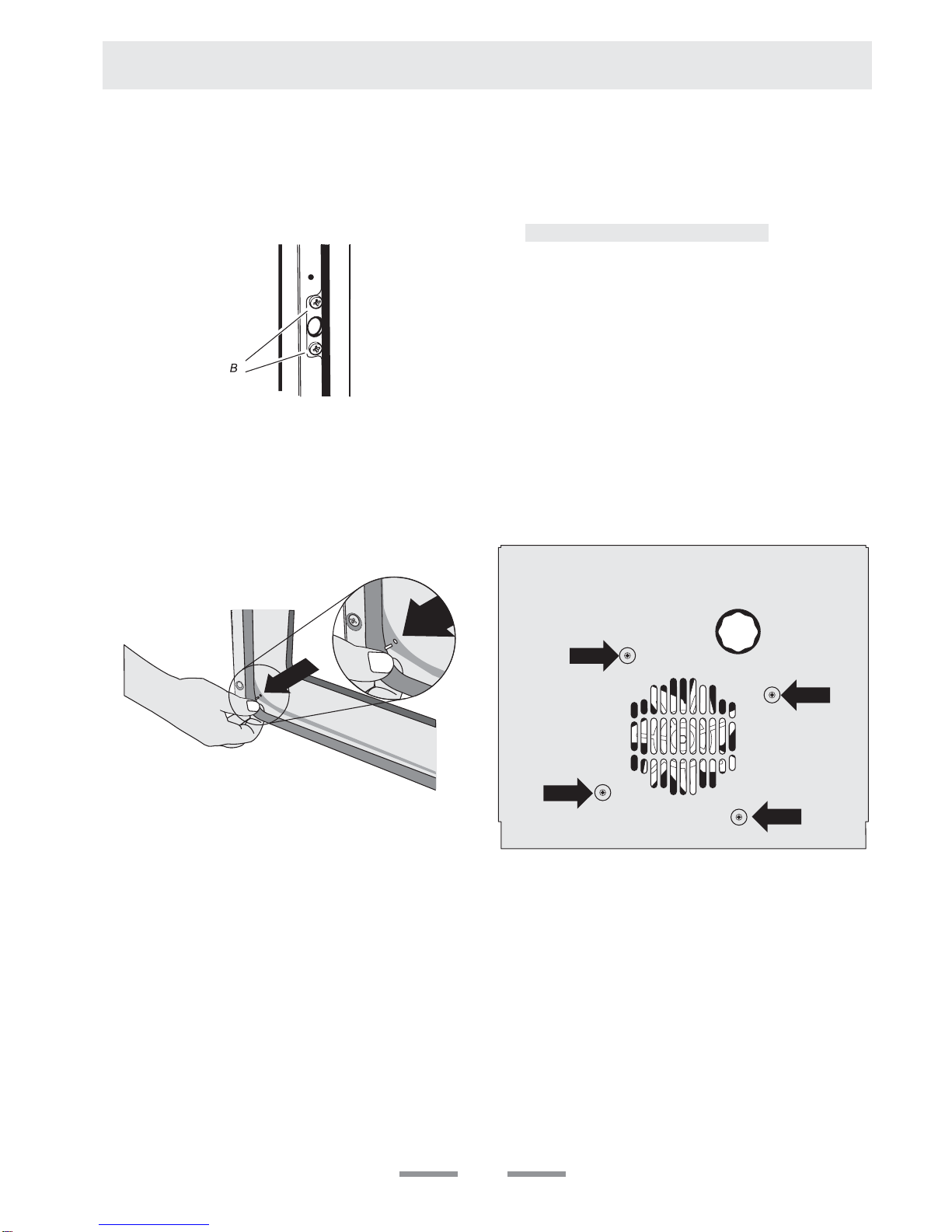

16.To Change Oven Door Catch
Remove outer door panel (see 15). Remove
screws ‘B’ holding catch assembly to inner door
panel. Fit new catch and reassemble in reverse
order.
Check correct door operation.
17.To Change Oven Door Seal
Open oven door. The seal is held in place by
small hooks on the rear face. At the corner pull
seal diagonally away from the door centre until
that hook is released. Proceed to the next hook
and release it in a similar way, and so on.
Fig. 4
When fitting new seal, position the seal join at
the bottom. Hook the new seal in one of the
corner holes of the door, and proceed round
the door snapping in each hook in turn.
18.To Adjust Oven Door Catch Keep
Open oven door, slacken off locknut at base of
keep, and screw in or out as required until
required fit is obtained. Retighten locking nut.
19.To Change Ignition Generator
Disconnect from electricity supply.
Pull cooker forward to gain access to the cover
box at the rear of the left hand cooker. Remove
the screws securing the cover and lift clear. Pull
off all the leads to the generator noting their
positions. Slacken the two screws holding
generator to cooker and remove generator.
Fit new generator to cooker and replace leads.
Reassemble in reverse order. Refer to wiring
diagram. Check ignition performance.
20.To Remove Oven Inner Back.
Open the oven door. Remove oven furniture.
For the LH oven unscrew the 2 thermostat phial
fixing screws.
Remove the fixings that secure the inner back
to the oven rear. Lift the removable panel away.
Re-assemble in reverse order. Ensure that the
retaining fixings are fully tightened. For the LH
oven unscrew the 2 thermostat phial fixing
screws. Remove the screws that secure the
inner back to the oven rear. Lift the removable

9
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
panel away. Re-assemble in reverse order.
Ensure that the retaining fixings are fully
tightened.
21.To Replace the Cooling fan
Disconnect from electricity supply.
Pull cooker forward to gain access to the rear of
the cooker.
Support the fan and remove the screws holding
the cooling fan mounting bracket. Gently lift the
fan and bracket away from the range taking
care not to strain the electrical connection.
Disconnect the leads from the fan noting the
orientation. Remove the fan from the mounting
bracket. Fit the new fan and reassemble in
reverse order.
22.To Replace an Oven Fan
Disconnect from electricity supply.
Pull the unit forward to access the cover boxes
at the rear of the appliance. Remove the fixings
that secure the cover and lift it clear. Remove
the fan wiring, noting the connection positions.
Remove the inner back as detailed in Section
20. Hold the fan blades and undo the centre nut
(LH thread), brass washers, fan blade and
Circlip. Undo the fixings that retain the fan and
remove it from the cavity rear. Fit the
replacement and re-assemble parts in reverse
order. Check that the oven operates
satisfactorily.
23.To Remove an Oven fan Element
Disconnect from electricity supply.
Remove the inner back as detailed in Section
20.
Remove the fixings that secure the element
within the oven and lift the element away
carefully. Disconnect the leads and connect to
the replacement element and re-assemble parts
in reverse order. Check that the oven operates
correctly.
24.To Remove Broiler Element.
Disconnect from electricity supply.
Remove broiler pan from broiler chamber. From
inside broiler compartment remove enamelled
front shield from broiler roof, 2 screws and
washers. Remove 2 screws and washers
securing the broiler element front support.
Remove 1 screw from each of the broiler
elements and withdraw broiler elements from
broiler chamber. Disconnect the leads and
connect to the replacement elements and re-
assemble parts in reverse order. Check
operation of broiler.

SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
10
25 To Remove the LH Oven Bottom
and Top Elements
Disconnect from the electricity supply.
Bottom Element
Pull the cooker forward to access the cover
boxes at the rear of the unit. Remove the fixings
that secure the cover and lift it clear.
Remove the 2 screws ‘A’ and allow the plate to
drop down.
Remove the 2 screws B, holding the element to
the bottom sheet..
Disconnect the leads, noting their positions.
Withdraw bottom element. Fit the new element
and re-assemble parts in reverse order.
Top Element
Open the LH oven door and undo the fixings
that secure the heat shield. Remove the top
element bracket fixings and withdraw element.
Replace the element and re-assemble parts in
reverse order. Check that the oven operates
satisfactorily.
26.To change oven light bulb.
Disconnect from the electricity supply.
Remove the oven furniture. Unscrew the bulb.
Fit an Edison screw fitting 15w 125-130v lamp,
FOR OVENS. It must be a special bulb, heat
resistant to 300 °C.

11
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.

12
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.

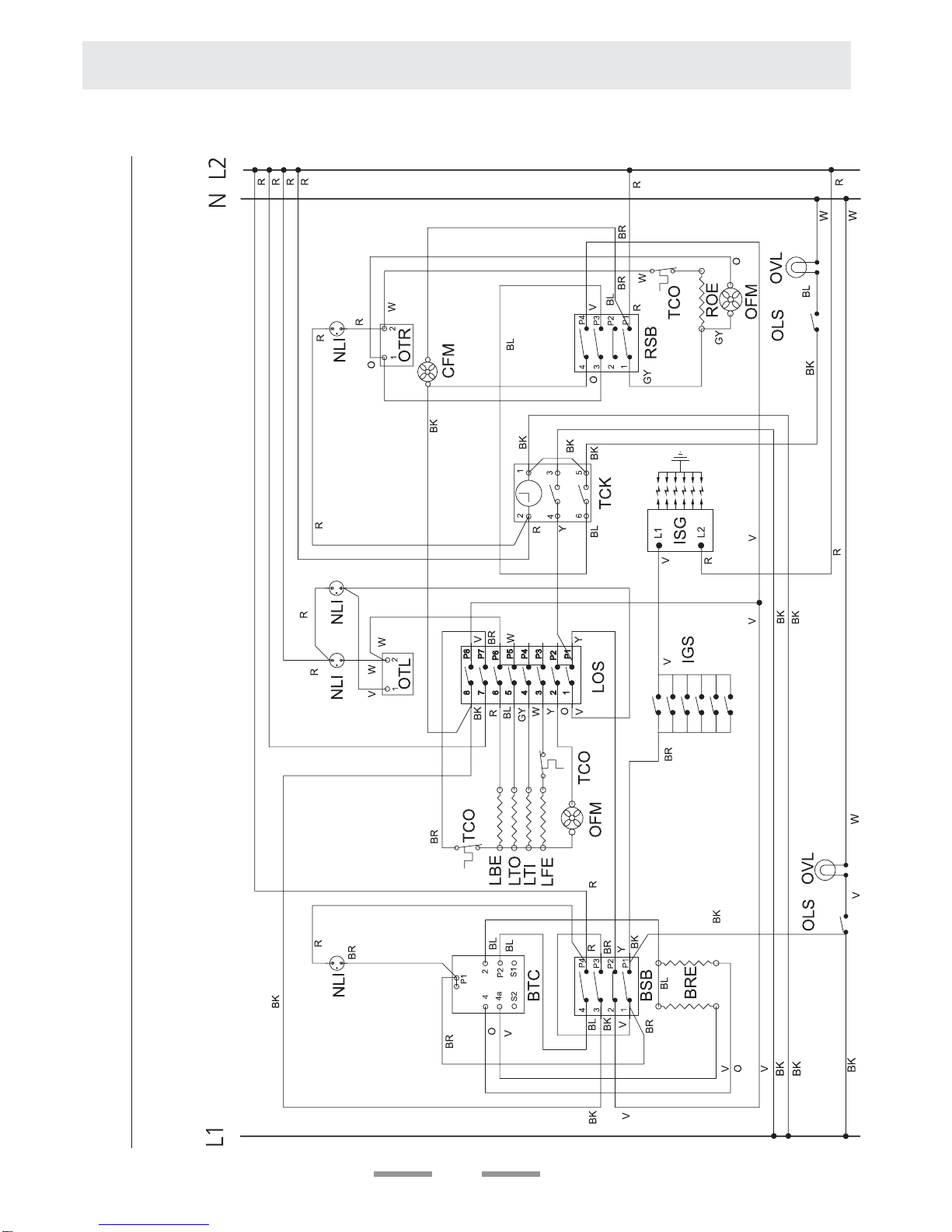

Schematic circuit diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
Code Description BRE Broiler elements BSB Broiler switch block BTC Broiler controller CFM Cooling fan motor IGS Ignition switches ISG Ignition spark generator LOS Left hand oven switch block NLI Neon indicator light OFM Oven fan motor OLS Oven light switch OTL Left hand oven thermostat OTR Right hand oven thermostat OVL Oven light bulb RBE Right hand top outer element RFE Right hand fan element ROE Right hand oven element RSB Right hand oven switch block RTI Right hand fan element RTO Right hand top inner element TCK Timer clock TCO Thermal cut out
Code Color BK Black BL Blue GY Grey O Orange R Red V Violet W White Y Yellow

13
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
Schematic circuit diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

14
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
Technical Data
This cooker is supplied set for Natural gas.
A conversion kit from NG to LP gas is included.
INSTALLER: Please leave these instructions with the User.

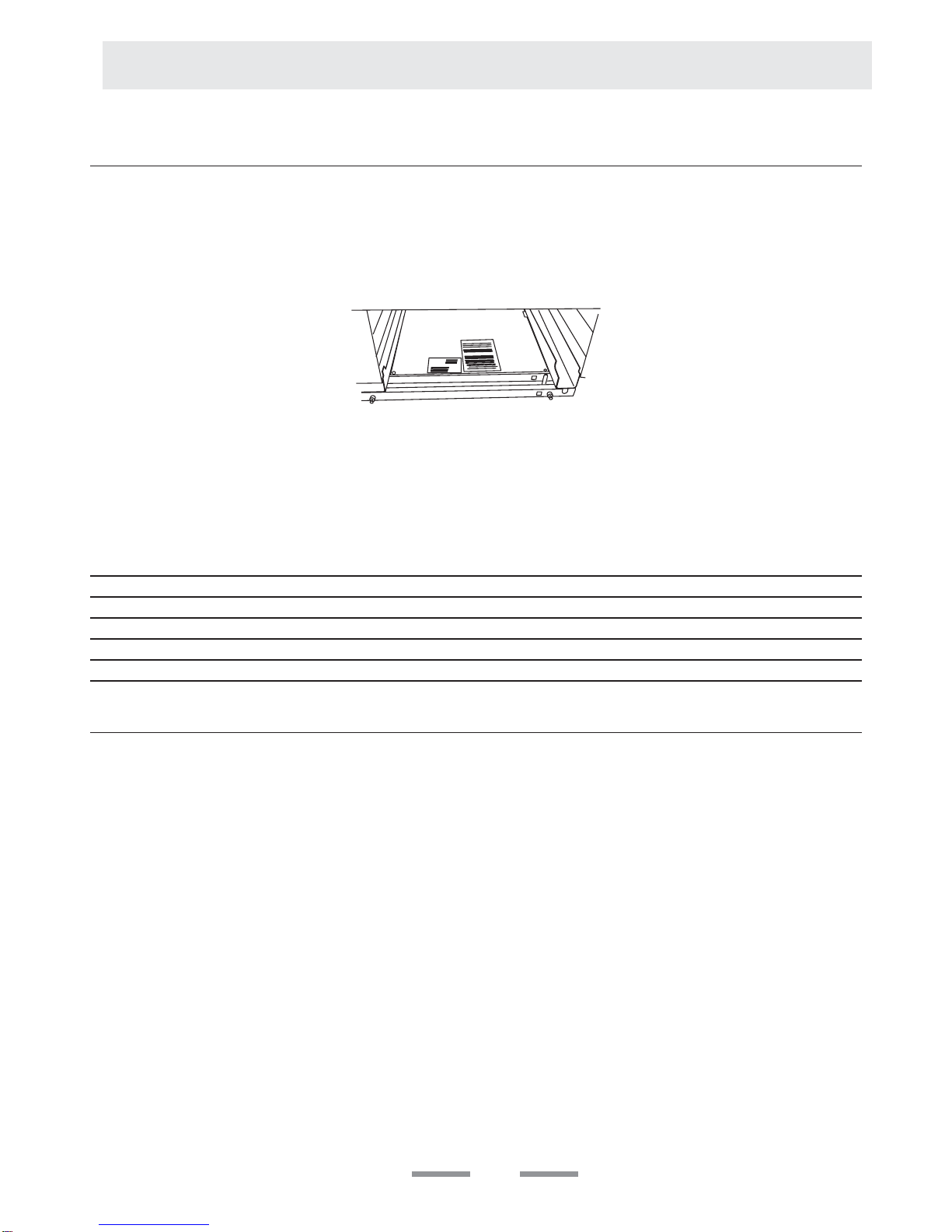

DATA BADGE LOCATION: Inside base of drawer cavity - remove drawer. For removal of drawer see
installation instructions.
Country of Destination: USA
Gas Electric
Natural Gas 4.0” W.C 120/240V 60Hz
Propane 10.0” W.C.
(See appliance data badge for test pressures)
Dimensions
Overall height (splash not fitted) minimum 35 3/8” maximum 36 7/16”
Overall width 43 5/16” See ‘Positioning the Range’
Overall depth without spacer 26 3/4”
Overall depth with spacer 28 3/4”
Space for fixing See ‘Positioning the Range’
Minimum space above cooktop 30”
Connections
Gas:Electric
1/2” NPT at rear right-hand side 240V 60Hz

15
SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
Ratings Natural Gas Propane Gas
Orifice Screw Orifice Screw
Cooktop
Wok burner 15,000Btu/hr internal 110 82 15,000Btu/hr internal 71 49
external 166 external 93
Large Burner 12,000Btu/hr 170 70 12,000Btu/hr 106 38
Medium Burners 9,200Btu/hr 150 53 8,000Btu/hr 84 31
Small Burner 5,000Btu/hr 107 43 4,200Btu/hr 61 22
Gas burner inputs based on Gross Calorific Value
Ovens Left hand Multifunction Oven Right hand Fan Oven
Fan element 2.5kW 2.5kW
Top element 1.2kW
Browning Element 1.15kW
Bottom element 1.0kW
Broiler 2.3kW
Maximum total electrical load at 240V 7.4kW*
*approximate total including oven lights, oven fan etc.

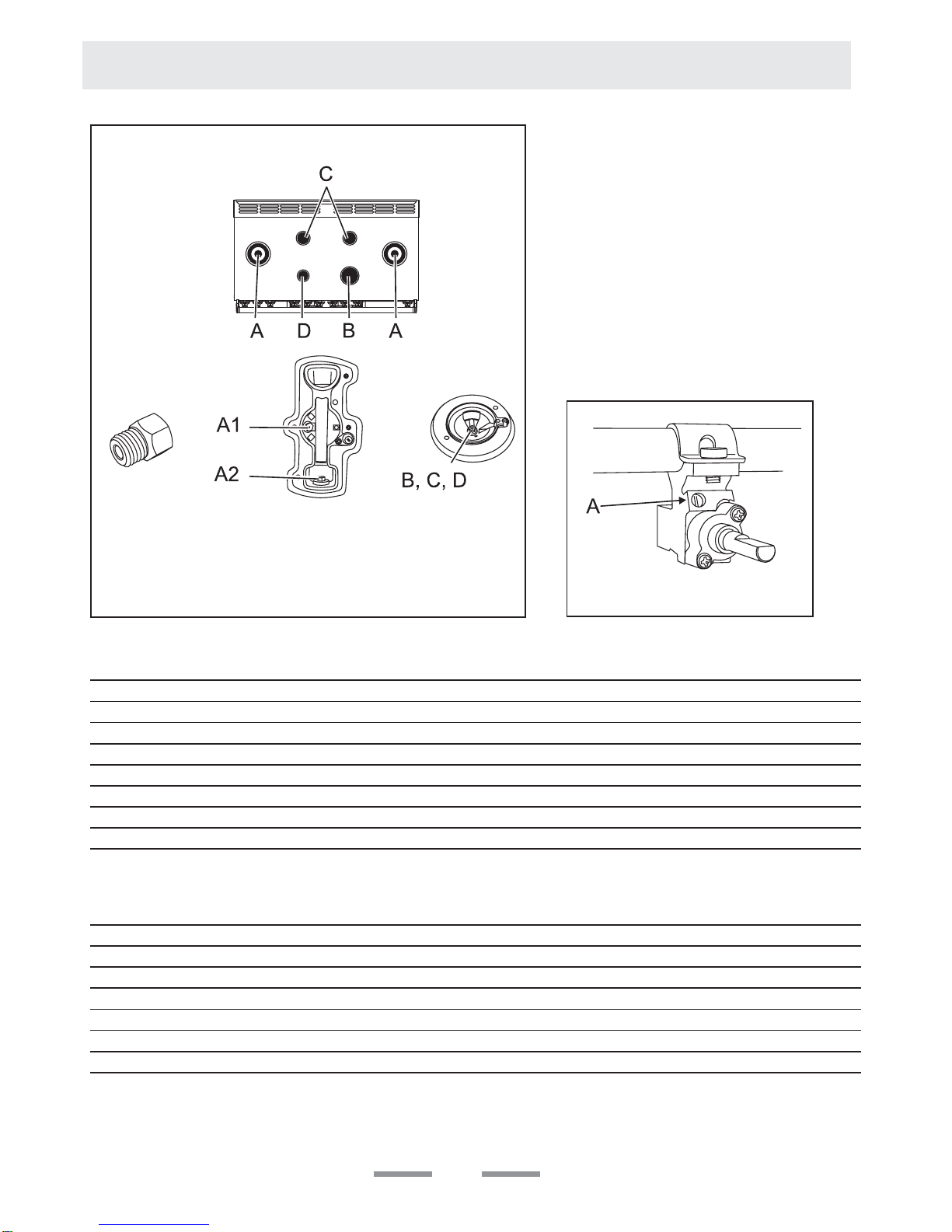

Orifices
A Wok burner
B Large Burner
C Medium Burners
D Small Burner
A valve bypass screw

Aga Ranges LLC
110 Woodcrest Road
Cherry Hill
NJ 08003
Telephone Number 1-800-633-9200
Email [email protected]
