agape SDL500 User manual

ISTRUZIONI DI MONTAGGIO
ASSEMBLY INSTRUCTIONS
Contenitori/ Storage Units
1/6
4x4
4X42 . . . .
MANUTENZIONE
Per la normale pulizia si
consiglia di utilizzare
detergenti di uso comune.
Si sconsiglia l'utilizzo di
detergenti abrasivi, acidi e
anticalcare.
MAINTENANCE
For normal cleaning use
common detergents.
Do not use either abrasive
detergents or solvents,
acids and anti limestone.
NOTA
La ferramenta in dotazione
permette Il ssaggio degli
accessori su pareti in
mattoni pieni o forati e in
calcestruzzo.
Per pareti in cartongesso è
necessario rinforzare
adeguatamente la zona
interessata ed
eventualmente adottare
sistemi di ssaggio specici.
NOTE
The assembly material
supplied allows the
installation of the accessories
on solid and hollow brick
walls and on concrete walls.
For plasterboard walls it is
necessary to reinforce
adequately the area
concerned and to adopt
specic xing systems if
necessary.
Specchio contenitore
Wall mounted mirror cabinet
400 (15” 3/4)
400 (15”3/4)
125 (4”7/8)
A4X4289
40x40
A4X4293
60x60
A4X4291
40x120
A4X4292
40x60 A4X4290
40x80
A4X4290H
60x80
A4X4291H
60x120
A4X4289
CONTENUTO DELLA CONFEZIONE
PACKAGE CONTENTS
ISTRUZIONI DI MONTAGGIO
ASSEMBLY INSTRUCTIONS
COD.
06244 20060500/3 - SV
VERS.
STRUMENTI
TOOLS
2/6
4x4 . . .
CONTENITORE INSTALLATO
STORAGE MOUNTED
ø 8 (5/16”)
ø 8 (5/16”)
(B) (C)
Kit di fissaggio - Kit for fixing
(A)
Guida/Rail
Ripiani-Quantità variabile
Shelves-Variable quantity
Maniglia/Handle
4 Supporti per ripiano
4 Shelve Support
ISTRUZIONI DI MONTAGGIO
ASSEMBLY INSTRUCTIONS
4x4 . . .
3/6
Togliere il biadesivo
Remove the double sided tape
Denire la posizione della maniglia (in alto o in basso).
Dene the position of the handle (on top or on the bottom).
Asportare la pellicola / Remove the film
15
36
ø 8 (5/16”)
a
b
x2
2
4
7
ISTRUZIONI DI MONTAGGIO
ASSEMBLY INSTRUCTIONS
4x4 . . .
4/6
8 11
10 12
Supporti x 4
Support x 4
biadesivo
double sided tape
Maniglia /
Handle
Posizionare la maniglia allineata al bordo dell’anta.
Position the handle aligned with the door’s edge.
maniglia
handle
biadesivo
double sided tape
anta
door
c
Prima di applicare la maniglia sgrassare e
pulire con cura la superficie di incollaggio
Please clean and degrease carefully the mirror
surface before glueing the handle
9
c
Ripiani
Shelves
Ricavare la nicchia in base alle misure
del 4x4 e alla posizione degli ancoraggi.
Create the niche based on the measures
of the 4x4 and on the bracing's position.
CONTENUTO DELLA CONFEZIONE
PACKAGE CONTENTS
ISTRUZIONI DI MONTAGGIO
ASSEMBLY INSTRUCTIONS
COD.
06244 20060500/3 - SV
VERS.
STRUMENTI
TOOLS
5/6
4x4 . . . . incassato / built
INSTALLATO
MOUNTED
PREDISPOSIZIONE
PREDISPOSITION
ø 8 (5/16”)
125
Fascette preforate
Predrilled ties
Viti autoperforanti 3,5x13
self-drilling screw
PREDISPOSIZIONE per incasso e
semincasso
PREDISPOSITION for built-in end
testimoni di intonaco
plaster
Semincasso/ Semi-built-in
Incassototale / built-in
ISTRUZIONI DI MONTAGGIO
ASSEMBLY INSTRUCTIONS
6/6
1
3
100
100
Ripetere le
operazioni
Repeat the
procedure
Fissaggio ancoraggi al anco
Fixing of the bracing alongside
muratura
masonry
Max 100
rivestimento/coating
intonaco/plaster
15/35
125
15
35
Semincasso/ Semi-built-in
Incasso totale / Built-in
2
4
Inserire e bloccare il contenitore con
malta rapida o schiuma poliuretanica
Insert and block the container with rapid
mortar or polyuretane foam
5
Terminata l'applicazione del rivestimento incidere
delicatamente per asportare la pellicola eccedente
Finished the coating, incise carefully to remove
the film in excess.
Per semincasso/ For semi-built-in
4x4 . . . . incassato / built

Other agape Bathroom Fixture manuals

agape Ottocento CER766 User manual

agape

agape Ottocento CER766 User manual

agape NEB ACER0701 User manual

agape

agape NEB ACER0701 User manual

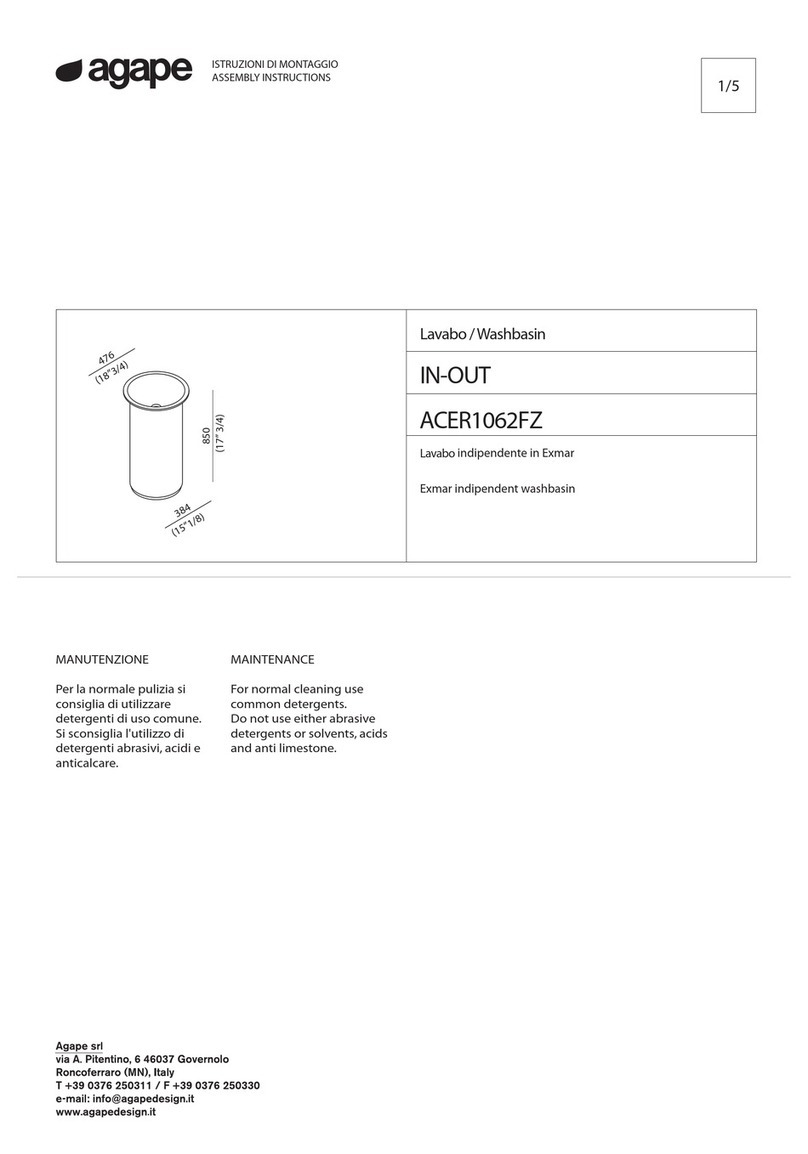

agape IN-OUT ACER1062FZ User manual

agape

agape IN-OUT ACER1062FZ User manual

agape LIMON ELIM436D Series User manual

agape

agape LIMON ELIM436D Series User manual

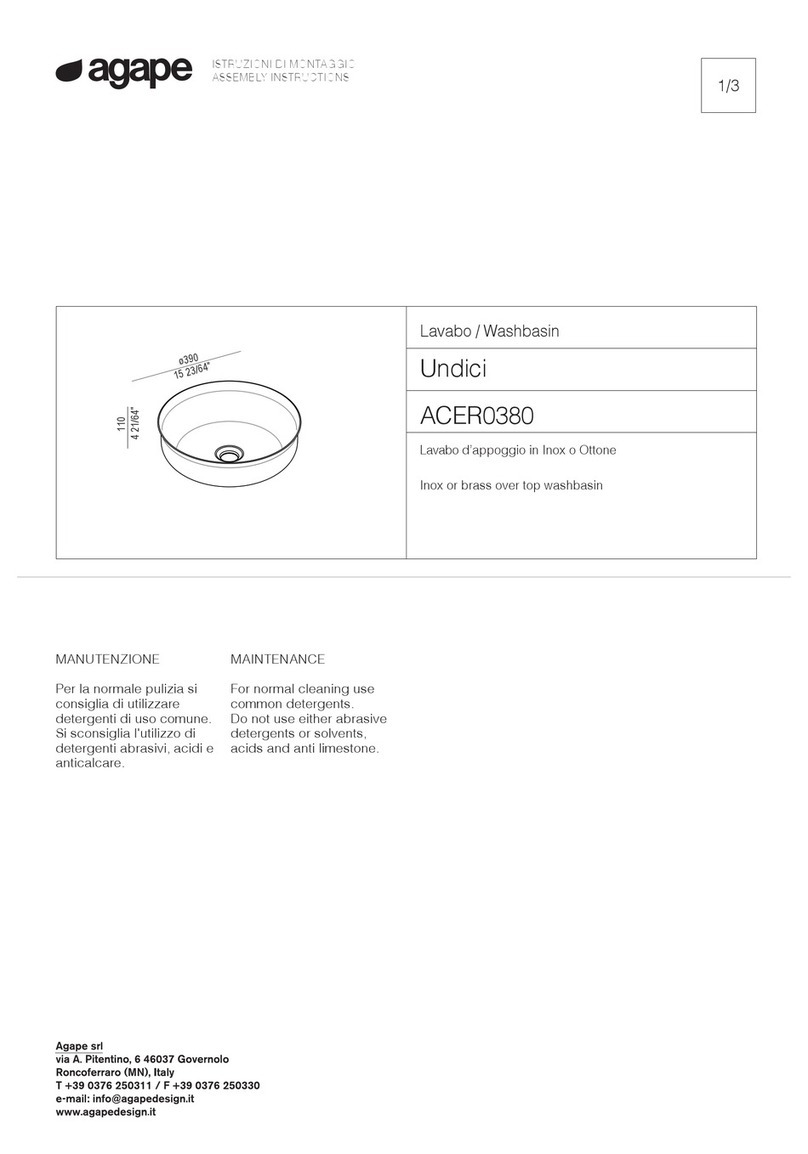

agape Undici ACER0380 User manual

agape

agape Undici ACER0380 User manual

agape SPOON M User manual

agape

agape SPOON M User manual

agape SEN925 User manual

agape

agape SEN925 User manual

agape MARSIGLIA ACER0705M User manual

agape

agape MARSIGLIA ACER0705M User manual

agape BJHON1 User manual

agape

agape BJHON1 User manual

agape BJHON 2 ACER1082MZ Series User manual

agape

agape BJHON 2 ACER1082MZ Series User manual

agape Nivis CER763M User manual

agape

agape Nivis CER763M User manual

agape NIVIS ACER0763FP0 User manual

agape

agape NIVIS ACER0763FP0 User manual

agape 369 A369217 User manual

agape

agape 369 A369217 User manual

agape ACER1082F BJHON2 Series User manual

agape

agape ACER1082F BJHON2 Series User manual

agape PEAR ACER0895WR User manual

agape

agape PEAR ACER0895WR User manual

agape VIEQUES ACER0798P User manual

agape

agape VIEQUES ACER0798P User manual

agape Undici ACER0384 User manual

agape

agape Undici ACER0384 User manual

agape VIEQUES ACER0798F User manual

agape

agape VIEQUES ACER0798F User manual

agape 815 User manual

agape

agape 815 User manual

agape Novecento XL ACER1070 User manual

agape

agape Novecento XL ACER1070 User manual

agape Novecento XL ACER1072 User manual

agape

agape Novecento XL ACER1072 User manual

agape ACER1061S User manual

agape

agape ACER1061S User manual

agape FLAT D XG1 User manual

agape

agape FLAT D XG1 User manual

agape ACER0995 User manual

agape

agape ACER0995 User manual

Popular Bathroom Fixture manuals by other brands

Kohler Sterling Ensemble AFD 7110 Series Installation and care guide

Kohler

Kohler Sterling Ensemble AFD 7110 Series Installation and care guide

METHVEN SATINJET ESCAPE MKII installation guide

METHVEN

METHVEN SATINJET ESCAPE MKII installation guide

antoniolupi ALBUME10 quick start guide

antoniolupi

antoniolupi ALBUME10 quick start guide

Svedbergs 9082 manual

Svedbergs

Svedbergs 9082 manual

Speakman SE-810 instructions

Speakman

Speakman SE-810 instructions

Fantini Rubinetti CUPOLINO HAMMAM 9100W098 instructions

Fantini Rubinetti

Fantini Rubinetti CUPOLINO HAMMAM 9100W098 instructions

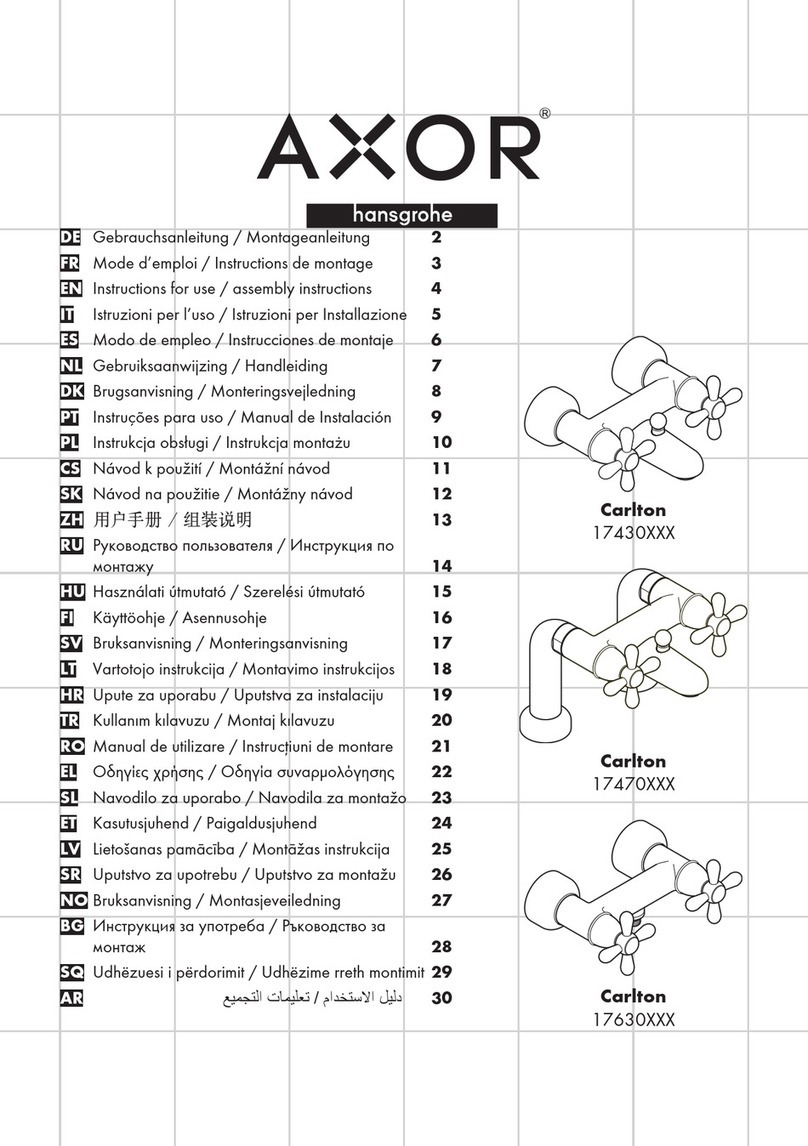

Hans Grohe AXOR Carlton 17430 Series Instructions for use/assembly instructions

Hans Grohe

Hans Grohe AXOR Carlton 17430 Series Instructions for use/assembly instructions

URIDAN ADMIRAL KH-10 installation instructions

URIDAN

URIDAN ADMIRAL KH-10 installation instructions

Hans Grohe ShowerTablet Select 300 13151000 Instructions for use/assembly instructions

Hans Grohe

Hans Grohe ShowerTablet Select 300 13151000 Instructions for use/assembly instructions

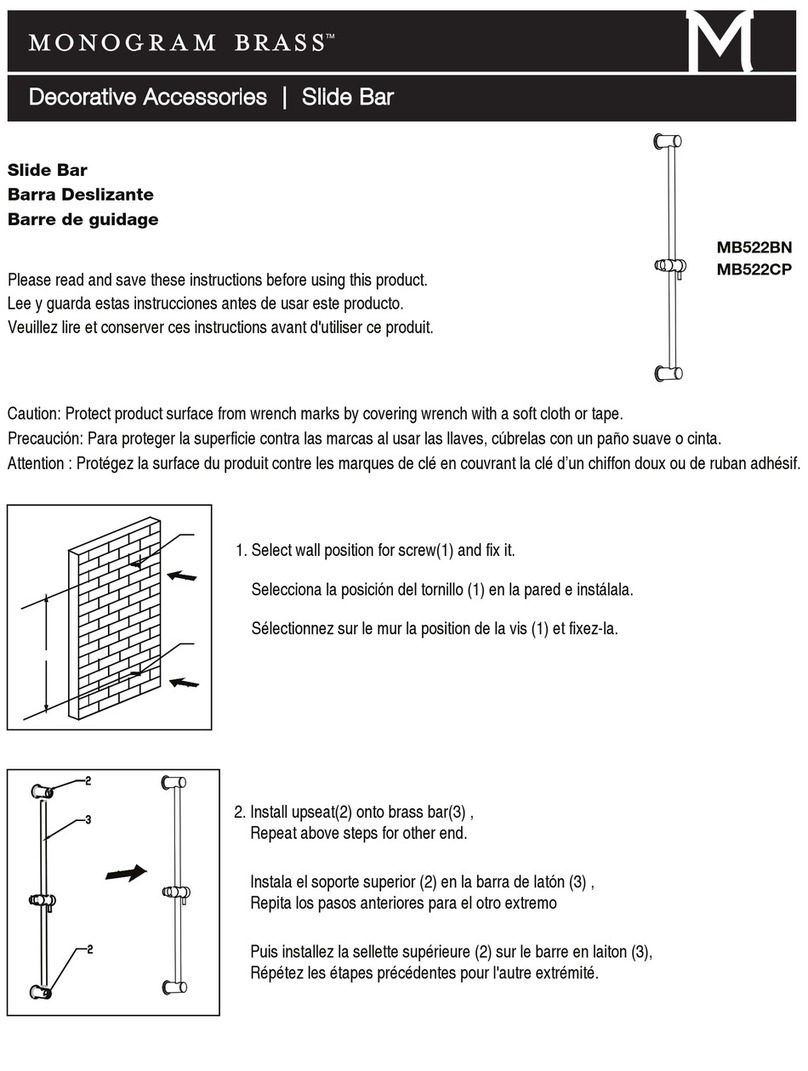

Monogram Brass MB522BN instructions

Monogram

Monogram Brass MB522BN instructions

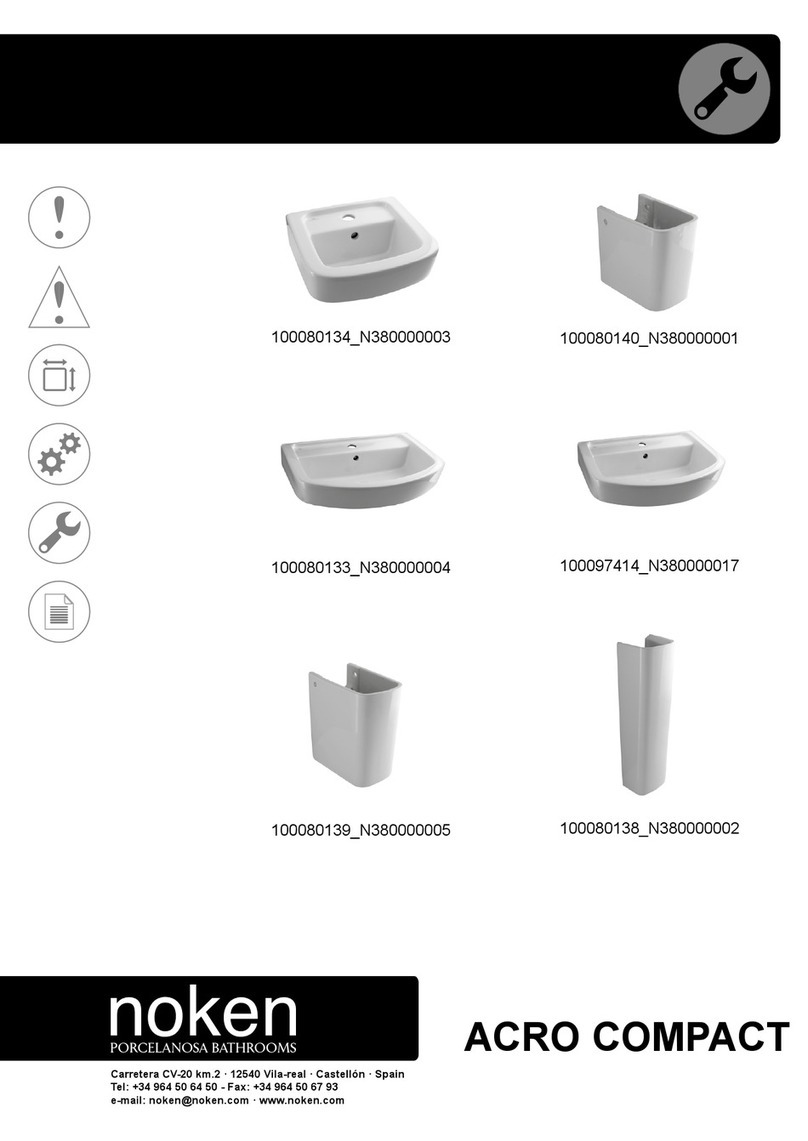

noken ACRO COMPACT 100080134 N380000003 manual

noken

noken ACRO COMPACT 100080134 N380000003 manual

Fantini Rubinetti ACQUA ZONE C001A Installation

Fantini Rubinetti

Fantini Rubinetti ACQUA ZONE C001A Installation

Aurlane CAB188 Assembly instructions

Aurlane

Aurlane CAB188 Assembly instructions

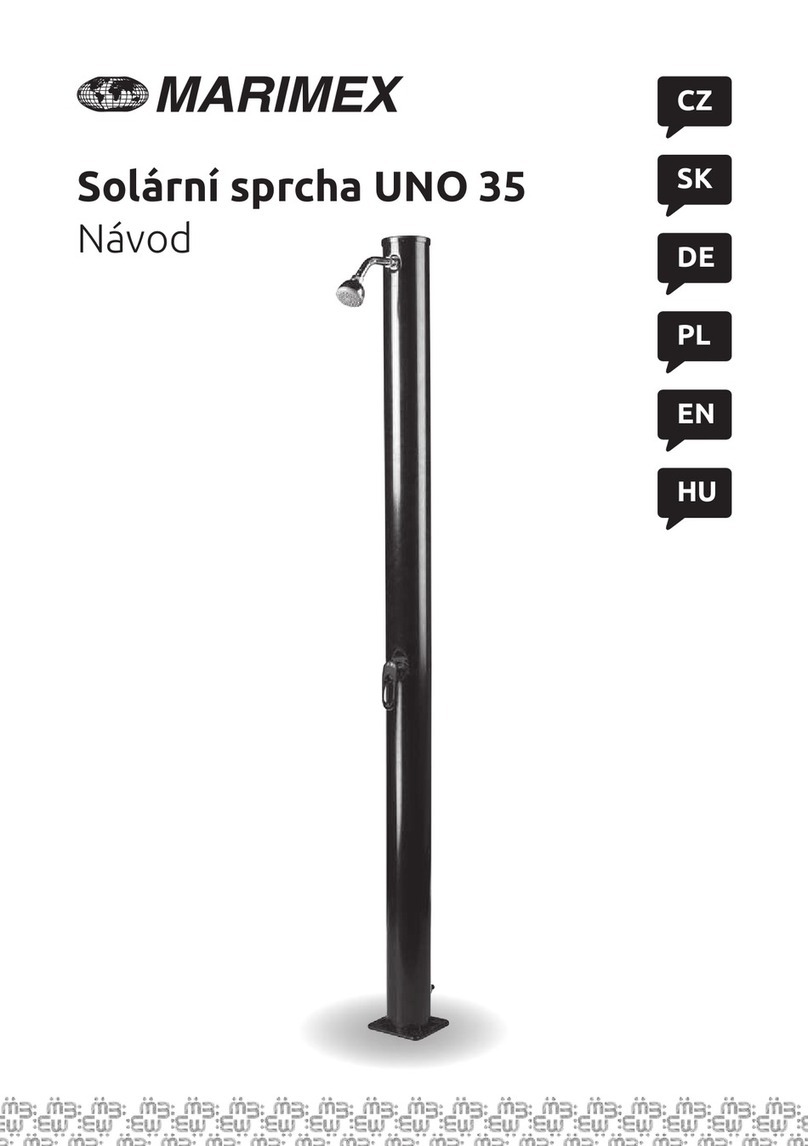

MARIMEX UNO 35 Instruction
