INSTALLATION GUIDE
Agilent Technologies
MPS Mainframe
Model 66000A
!A
Agilent Part No. 66000-90001 Printed in Malaysia
Microfiche Part No. 66000-90002 September 2004
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2
CERTIFICATION
Agilent Technologies certifies that this product met its published specifications at time of shipment from the factory. Agilent
Technologies further certifies that its calibration measurements are traceable to the United States National Bureau of
Standards, to the extent allowed by the Bureau's calibration facility, and to the calibration facilities of other International
Standards Organization members.
WARRANTY
This Agilent Technologies hardware product is warranted against defects in material and workmanship for a period of one
year from date of delivery. Agilent Technologies software and firmware products, which are designated by Agilent
Technologies for use with a hardware product and when properly installed on that hardware product, are warranted not to
fail to execute their programming instructions due to defects in material and workmanship for a period of 90 days from date
of delivery. During the warranty period Agilent Technologies will, at its option, either repair or replace products which
prove to be defective. Agilent Technologies does not warrant that the operation of the software, firmware, or hardware shall
be uninterrupted or error free.
For warranty service, with the exception of warranty options, this product must be returned to a service facility designated
by Agilent Technologies. Customer shall prepay shipping charges by (and shall pay all duty and taxes) for products returned
to Agilent Technologies for warranty service. Except for products returned to Customer from another country, Agilent
Technologies shall pay for return of products to Customer.
Warranty services outside the country of initial purchase are included in Agilent Technologies product price, only if
Customer pays Agilent Technologies international prices (defined as destination local currency price, or U.S. or Geneva
Export price).
If Agilent Technologies is unable, within a reasonable time to repair or replace any product to condition as warranted, the
Customer shall be entitled to a refund of the purchase price upon return of the product to Agilent Technologies.
LIMITATION OF WARRANTY
The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by the Customer,
Customer-supplied software or interfacing, unauthorized modification or misuse, operation outside of the environmental
specifications for the product, or improper site preparation and maintenance. NO OTHER WARRANTY IS EXPRESSED
OR IMPLIED. AGILENT TECHNOLOGIES SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
EXCLUSIVE REMEDIES
THE REMEDIES PROVIDED HEREIN ARE THE CUSTOMER'S SOLE AND EXCLUSIVE REMEDIES. AGILENT
TECHNOLOGIES SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.
ASSISTANCE
The above statements apply only to the standard product warranty. Warranty options, extended support contracts, product
maintenance agreements and customer assistance agreements are also available. Contact your nearest Agilent
Technologies Sales and Service office for further information on Agilent Technologies' full line of Support Programs.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3
SAFETY SUMMARY
The following general safety precautions must be observed during all phases of operation, service, and repair of this
mainframe. Failure to comply with these precautions or with specific warnings elsewhere in this guide violates safety
standards of design, manufacture, and intended use of the mainframe. Agilent Technologies assumes no liability for the
customer's failure to comply with these requirements.
GENERAL
This product is a Safety Class 1 instrument (provided with a protective earth terminal).
Any LEDs used in this product are Class 1 LEDs as per IEC 825-l.
This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada.
ENVIRONMENTAL CONDITIONS
With the exceptions noted, all instruments are intended for indoor use in an installation category II, pollution degree 2 environment.
They are designed to operate at a maximum relative humidity of 95% and at altitudes of up to 2000 meters. Refer to the specifications
tables for the ac mains voltage requirements and ambient operating temperature range.
BEFORE APPLYING POWER.
Verify that the product is set to match the available line voltage and the correct fuse is installed.
GROUND THE INSTRUMENT.
To minimize shock hazard, the mainframe must be connected to an electrical ground. The mainframe must be connected to the ac power
supply mains through a three-conductor power cable, with the third wire firmly connected to an electrical ground (safety ground) at the
power outlet. Any interruption of the protective (grounding) conductor or disconnection of the protective earth terminal will cause a
potential shock hazard that could result in personal injury.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE.
Do not operate the instrument in the presence of flammable gases or fumes.
KEEP AWAY FROM LIVE CIRCUITS.
Operating personnel must not remove instrument covers. Component replacement and internal adjustments must be made by qualified
service personnel. Do not replace components with power cable connected. Under certain conditions, dangerous voltages may exist even
with the power cable removed. To avoid injuries, always disconnect power, discharge circuits and remove external voltage sources before
touching components.
DO NOT SERVICE OR ADJUST ALONE.
Do not attempt internal service or adjustment unless another person, capable of rendering first aid and resuscitation, is present.
DO NOT EXCEED INPUT RATINGS.
This mainframe is equipped with a power line filter to reduce electromagnetic interference and must be connected to a properly grounded
receptacle to minimize electric shock hazard. Operation at line voltages or frequencies in excess of those stated on the line rating label
may cause leakage currents in excess of 5.0 mA peak.
SAFETY SYMBOLS.
The WARNING sign denotes a hazard. It calls attention to a procedure, practice, or the like, which, if not correctly
performed or adhered to, could result in personal injury. Do not proceed beyond a WARNING sign until the
indicated conditions are fully understood and met.
The CAUTION sign denotes a hazard. It calls attention to an operating procedure, or the like, which, if not correctly
performed or adhered to, could result in damage to or destruction of part or all of the product. Do not proceed
beyond a CAUTION sign until the indicated conditions are fully understood and met.
DO NOT SUBSTITUTE PARTS OR MODIFY INSTRUMENT.
Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized modification to the
instrument. Return the instrument to an Agilent Technologies Sales and Service Office for service and repair to ensure that safety features
are maintained.
Instrumentsthat appear damaged or defectiveshould be made inoperativeand secured against unintended operation until theycan be
repaired by qualified service personnel.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

4
SAFETY SYMBOL DEFINITIONS
Symbol Description Symbol Description
Direct current Terminal for Line conductor on permanently
installed equipment
Alternating current
Caution, risk of electric shock
Both direct and alternating current
Caution, hot surface
Three-phase alternating current
Caution (refer to accompanying documents)
Earth (ground) terminal In position of a bi-stable push control
Protective earth (ground) terminal Out position of a bi-stable push control
Frame or chassis terminal On (supply)
Terminal for Neutral conductor on
permanently installed equipment Off (supply)
Terminal is at earth potential
(Used for measurement and control
circuits designed to be operated with
one terminal at earth potential.)
Standby (supply) - Units with this symbol are
not completely disconnected from ac mains
when this switch is off. To completely
disconnect the unit from ac mains, either
disconnect the power cord or have a qualified
electrician install an external switch.
Herstellerbescheinigung
Diese Information steht im Zusammenhang mit den Anforderungen der Maschinenläminformationsverordnung vom 18
Januar 1991. * Schalldruckpegel Lp <70 dB(A) * Am Arbeitsplatz * Normaler Betrieb * Nach EN 27779 (Typprufung).
Manufacturer's Declaration
This statement is provided to comply with the requirements of the German Sound Emission Directive, from 18 January
1991. * Sound Pressure Lp <70 dB(A) *At Operator Position * Normal Operation * According to EN 27779 (Type Test).
Printing History
The current edition of this guide is indicated below. Reprints of this guide containing minor corrections and updates may
have the same printing date. New editions are identified by a new printing date and, in some cases, by a new part number.
A new edition incorporates all new or corrected material since the previous edition. Changes to the guide occurring
between editions are covered by change sheets shipped with the guide.
Edition 1 ... October, 1991 (Agilent Model 66000A)
Update April 2000, September, 2004
© Copyright 1991 Agilent Technologies, Inc.
This document contains proprietary information protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated into another language without the prior consent of Agilent Technologies.
The information contained in this document is subject to change without notice.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

5
DECLARATION OF CONFORMITY
According to ISO/IEC Guide 22 and CEN/CENELEC EN 45014
Manufacturer’s Name and Address
Responsible Party Alternate Manufacturing Site
Agilent Technologies, Inc. Agilent Technologies (Malaysia) Sdn. Bhd
550 Clark Drive, Suite 101
Budd Lake, New Jersey 07828
USA
Malaysia Manufacturing
Bayan Lepas Free Industrial Zone, PH III
11900 Penang,
Malaysia
Declares under sole responsibility that the product as originally delivered
Product Names a) Modular Power System Mainframe
b) Keyboard
c) dc Power Modules
Model Numbers a) 66000A
b) 66001A
c) 66101A; 66102A; 6103A; 66104A; 66105A; 66106A
Product Options This declaration covers all options and customized products based on the above
products.
Complies with the essential requirements of the Low Voltage Directive 73/23/EEC and the EMC
Directive 89/336/EEC (including 93/68/EEC) and carries the CE Marking accordingly.
EMC Information ISM Group 1 Class A Emissions
As detailed in Electromagnetic Compatibility (EMC), Certificate of Conformance Number
CC/TCF/00/077 based on Technical Construction File (TCF) HPNJ4, dated
Oct. 30, 1997
Assessed by: Celestica Ltd, Appointed Competent Body
Westfields House, West Avenue
Kidsgrove, Stoke-on-Trent
Straffordshire, ST7 1TL
United Kingdom
Safety Information and Conforms to the following safety standards.
IEC 61010-1:2001 / EN 61010-1:2001
UL 1244
CSA C22.2 No. 1010.1:1992
This DoC applies to above-listed products placed on the EU market after:
January 1, 2004
Date Bill Darcy/ Regulations Manager
For further information, please contact your local Agilent Technologies sales office, agent or distributor, or
Agilent Technologies Deutschland GmbH, Herrenberger Stra β e 130, D71034 Böblingen, Germany
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6
Table Of Contents
1. General Information
Introduction..................................................................................................................................................9
Safety Considerations...................................................................................................................................9
Instrument Identification..............................................................................................................................9
Options and Parts .......................................................................................................................................10
Description.................................................................................................................................................10
Specifications and Supplemental Characteristics .......................................................................................11
2. Installation
Installation..................................................................................................................................................13
Items Supplied............................................................................................................................................13
Input Power................................................................................................................................................13
Line Voltage Conversion.........................................................................................................................13
Fuses........................................................................................................................................................14

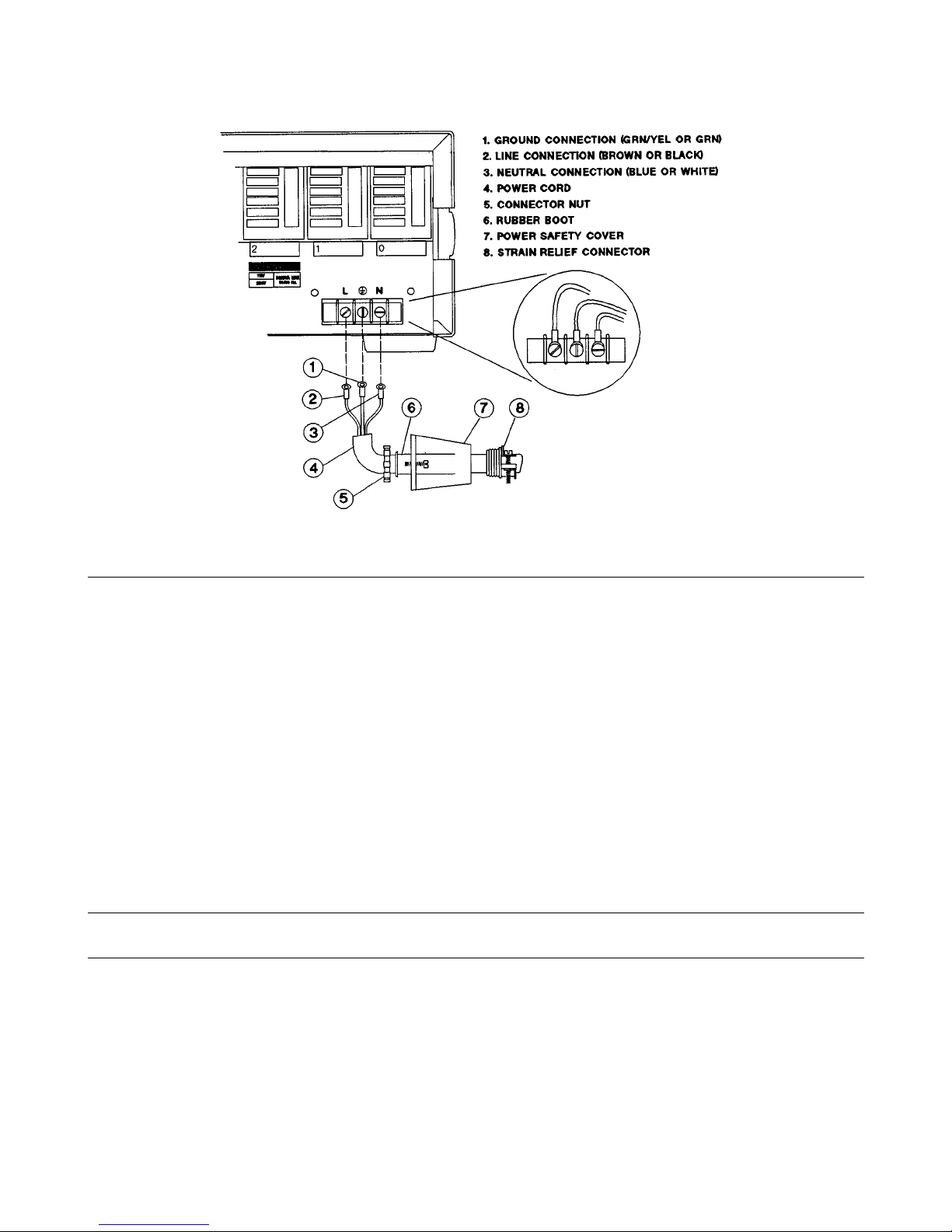

Power Cord Installation..............................................................................................................................14
Location and Cooling.................................................................................................................................15
Bench Operation......................................................................................................................................15
Rack Mounting........................................................................................................................................15
Temperature Performance .......................................................................................................................15
Rear Panel Switches...................................................................................................................................16

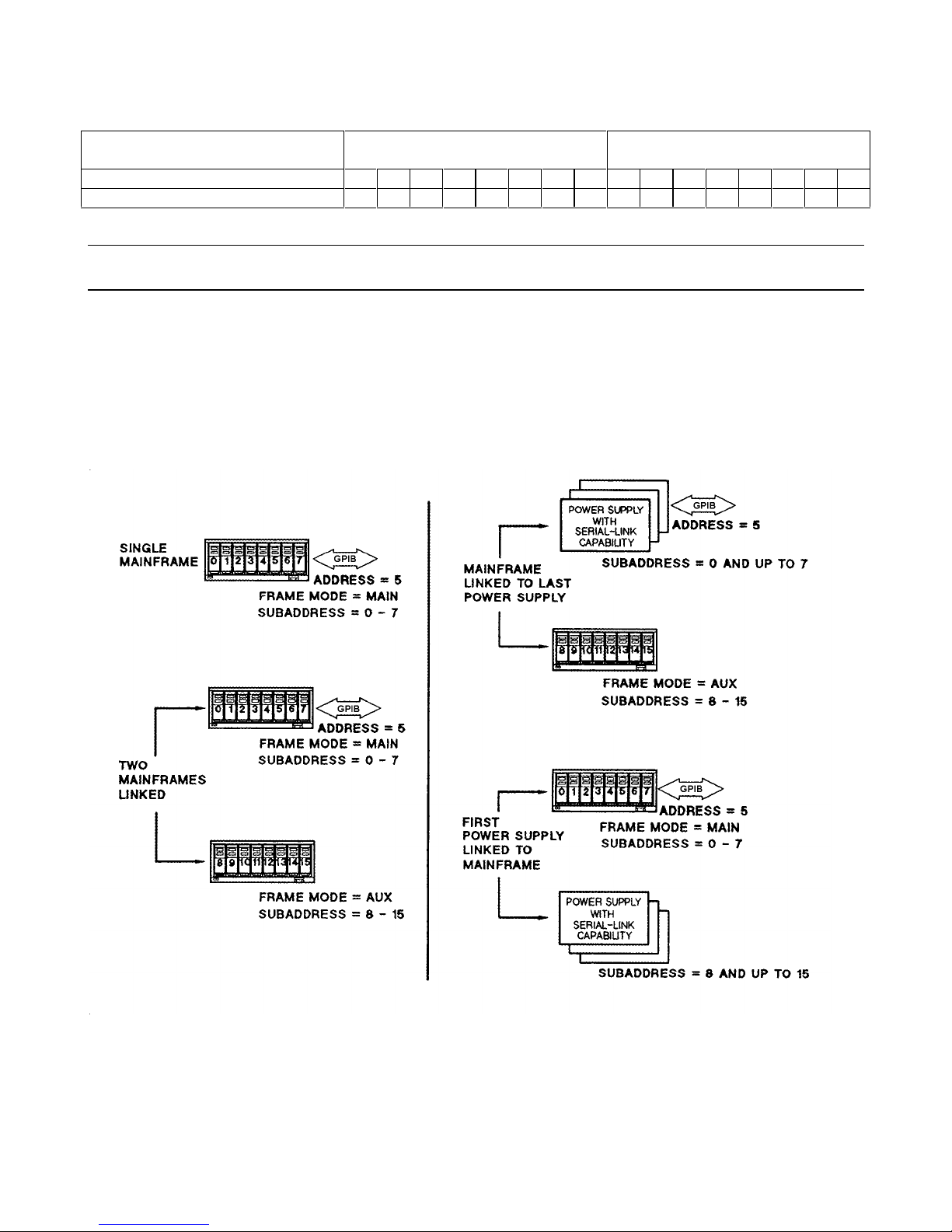

Address Switches .................................................................................................................................16
Frame Mode Switch ................................................................................................................................16

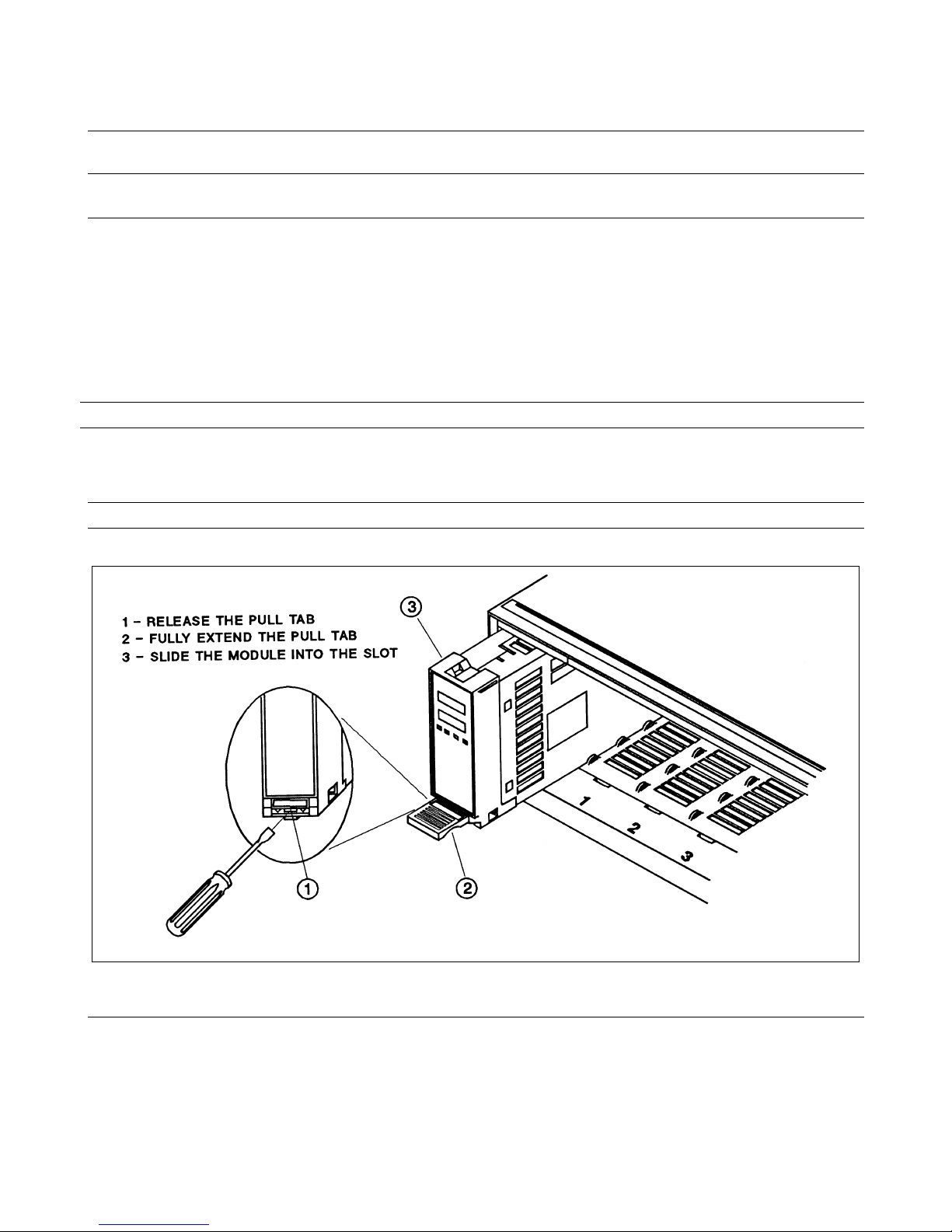

Module Installation.....................................................................................................................................18
Module Removal........................................................................................................................................18
Mainframe Turn-On Checkout...................................................................................................................19
3. Connections
Rear Panel ..................................................................................................................................................21
Module Connections...................................................................................................................................21
Controller Connections...............................................................................................................................22
Multiple MPS Mainframes......................................................................................................................22
MPS Mainframe/Power Supply Connections..........................................................................................22
Keyboard Connection.................................................................................................................................22
Digital Connections....................................................................................................................................22
Trigger Connections...................................................................................................................................24
Index ..............................................................................................................................27
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

7
Figures
2-1. Power Cord Plug Configurations............................................................................................14
2-2. Power Cord Installation..........................................................................................................15
2-3. Rear Panel Switches ...............................................................................................................16
2-4. Switch Settings.......................................................................................................................17
2-5. Module Pull Tab.....................................................................................................................18
3-1. Rear Panel Connections..........................................................................................................21
3-2. Controller Connections...........................................................................................................23
3-3. Digital Connector ...................................................................................................................24
3-4. Examples of the Remote Inhibit Function..............................................................................25
Tables
1-1.Specifications and Supplemental Characteristics............................................................................11
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information 9
1
General Information
Introduction
This guide describes how to install the Agilent 66000A Modular Power System (MPS) Mainframe. It includes the
following information:
nspecifications and operating characteristics
nconnecting the power cord to the mainframe
nsetting the address and frame switches
ninstalling modules in the mainframe
nmainframe rear panel connections
Mainframe turn-on and checkout procedures are included with the module manual since an installed module is required to
properly check out mainframe operation. Refer to the module User's Guide for more information.
Related Documents Agilent Part No.
Programming Guide for Agilent Series 66lxxA MPS Power Modules 5959-3362
Installation Guide for DC Module Connectors 5959-3366
User's Guide for Agilent 66lxxA Power Modules 5959-3360
Service Guide for Agilent Series 66lxxA MPS Power Modules 5959-3364
Service Guide for Agilent 66000A Modular Power System Mainframe 66000-90003
Quick Reference Card for optional Agilent 66001A MPS Keyboard 66001-90001
Agilent 66000A Modular Power System Product Note 5988-2800EN
Safety Considerations
This mainframe is a Safety Class 1 instrument, which means that it has a protective earth terminal. That terminal must be
connected to earth ground through a power source equipped with a 3-wire ground receptacle.
Refer to the safety summary page at the beginning of this manual for general safety information. Before installation or
operation, check the mainframe and review this manual for safety markings and instructions. Safety information for specific
procedures is located at the appropriate places in this manual.
Instrument Identification
Agilent Technologies instruments are identified by a 10-digit serial number. The format is described as follows: first two
letters indicate the country of manufacture. The next four digits are a code that identify either the date of manufacture or of a
significant design change. The last four digits are a sequential number assigned to each instrument.
Item Description
US The first two letters indicates the country of manufacture, where US = USA; MY = Malaysia; SG = Singapore.
3648 This is a code that identifies either the date of manufacture or the date of a significant design change.
0101 The last four digits are a unique number assigned to each power supply.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information
10
Options and Parts
The following options are available with the mainframe:
Option Description
908 Rack Mounting Kit
909 Rack Mounting Kit with handles
0L2 Extra Manual Set Power Cords
831 12 AWG unterminated power cord
833 1.5 mm2unterminated power cord
834 10 AWG unterminated power cord
841 20 A/250 V NEMA 6-20P plug with 12 AWG power cord
843 20 A/250 V JIS C8303 plug with 12 AWG power cord
845 16 A/220 V IEC 309 plug with 1.5 mm2power cord
846 30 A/120 V L5-30P locking plug with 10 AWG power cord
847 16 A/220 V CEE 7/7 plug with 1.5 mm2power cord
848 15 A/240 V BS 546 plug with 1.5 mm2power cord
The following mainframe items can be ordered separately:
Part Description Part Number
Safety cover, ac input 5040-1676
Strain relief 1400-1195
Screw, strain relief 0515-2086
Power barrier block (Figure 2-2) 0360-2421
Screw, power barrier block 2470-0001
Serial link cable (1 meter) 5080-2148
Digital connector plug (Figure 3-3) 1252-1488
Filler panel (8 supplied) 66000-40006
Mainframe Installation Guide 66000-90001
Description
The Agilent 66000 Modular Power System (MPS) is an integrated, fully programmable power system that saves rack space
and GPIB addresses, and is easy to install and use. Each Agilent 66000A MPS Mainframe can accommodate up to eight
single-slot modules. With an auxiliary mainframe connected through a serial link cable, up to sixteen single-slot modules
can be controlled from a single GPIB address. For applications requiring a broader range of power ratings, the Agilent
66000 system can be serial-linked to the Agilent 667xA, 665xA, 664xA, and 603xA series power supplies.
Modules are removed and installed through the front of the mainframe. Each module has a connector that attaches to the
back of the mainframe. With the module connector wired and attached to the mainframe, the module slides in and out of the
mainframe without disturbing the application connections.
The optional Agilent 66001A MPS Keyboard is available for controlling the Agilent 66000 Modular Power System without
having to connect it to a computer.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information 11
Specifications and Supplemental Characteristics
Table 1-1 lists the specifications and supplemental characteristics of the MPS mainframe. Module specifications are
included in the appropriate module User’s Guide. Specifications are warranted in the temperature range of 0 to 55 degrees
C. Supplemental characteristics are not warranted, but are descriptions of minimum, maximum, or average performance
that has been determined by design or type testing.
Table 1-1. Specifications and Supplemental Characteristics
PERFORMANCE SPECIFICATIONS
AC Input Ratings
Standard: 87- 132 Vac
174- 250 Vac
Frequency tolerance: 47 - 63 Hz
SUPPLEMENTAL CHARACTERISTICS
Maximum AC Line Current Ratings (with 8 power supply modules operating at maximum output)
100 Vac: 29 A rms
120 Vac: 25 A rms
200 Vac: 16 A rms
220/230 Vac: 16 A rms
240 Vac: 15 A rms
Maximum power input: 3200 VA; 1800 W maximum; 1600 W typical
GPIB Interface Capabilities
Languages: Standard Commands for Programmable Instruments (see module
Programming Guide)
IEEE 488.2 Capabilities: SH1, AH1, T6, L4, SR1, RL1, PPO, DC1, DT1, El, and CO
Serial Link Capabilities (Multiple mainframes sharing one GPIB address)
Number of mainframes: 2
Number of modules: 16
Serial-linked power supplies: total number of modules and serial-linked power supplies (Agilent
667xA/665xA/664xA/603xA) cannot exceed 16
Chain length: 30 m (100 ft) maximum
TrigIn/TrigOut Characteristics
Maximum Ratings:
± 16.5 V between center conductor and chassis
Trig Out (HC TTL output): V OL @ 4 ma = 1.34 V maximum
V
OL @ 2 ma = 0.8 V maximum
V
OH 4 ma = 2.66 V minimum
V
OH 2 ma = 3.18 V minimum
Trig In (10k pull-up): I I
L
@ 4 V = 700 µA
I IH @5.25 V = 200 µA
V I
L
= 0.8 V maximum
V IH = 2.0 V minimum
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

General Information
12
Table 1-1. Specifications and Supplemental Characteristics (continued)
INH/FLT Characteristics
Maximum Ratings:
±16.5 V between pins 3 and 4
+ 16.5 V between pins 1 and 2
- 5.3 V between pins 1 and 2
INH (10k pull-up): I I
L
@ 4 V = 700 µA
I IH @ 5.25 V = 200 µA
V
I
L
= 0.8 V maximum
V
IH = 2.0 V minimum
DFI (open collector): V CE = 0.4 V maximum @ IC = 2.2 mA
I IH @ 5.25 V = 200 µA
V
I
L
= 0.8 V maximum
V
IH = 2.0 V minimum
Dimensions
Width: 426 mm (16.75 in)
Height: 178 mm (7 in), add 13 mm (0.5 in) for removable feet
Depth: 678 mm (26.7 in), including module connectors
Weight (does not include modules)
Net: 15 kg/33 lbs.
Shipping: 19 kg/41 lbs.
Environmental & Safety
Compliance
CSA 556B IEC 348 UL 1244 VDE 0411
RFI Suppression
VDE 0871.6.78 Level B
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Installation 13
2
Installation
Installation
When you receive your mainframe, first look for any obvious damage that could have occurred during shipment. If there is
damage, notify the carrier and the nearest Agilent Sales Office immediately. Warranty information is printed behind the
cover page of this manual.
Save the shipping carton and packing materials in case the mainframe has to be returned to Agilent Technologies in the
future. If you return the mainframe for service, attach a tag identifying the owner and model number. Also include a brief
description of the problem.
Items Supplied
In addition to this manual, check that the following items are included with the mainframe:
Power Cord Your mainframe was shipped with a power cord for the type of outlet used at your location. Depending
on the option that was ordered, some power cords are shipped without a plug. If the appropriate cord was not included,
refer to the option list in Chapter 1 and contact your nearest Agilent Sales and Service Office to obtain the correct cord.
Your mainframe cannot use a standard power cord. The power cords listed in Chapter 1 have heavier
gauge wire.
Filler Panels Eight filler panels are included with each mainframe. Filler panels are installed in empty module slots.
Serial Cable A 1-meter serial cable that connects to the J1 connector next to the GPIB connector. This is used to
serially connect two mainframes or a mainframe with power supplies that have the serial-link capability on the same GPIB
address.
Keyboard A quick reference card for the optional Agilent 66001A MPS Keyboard is included with the
Reference mainframe.
Card
Manual If applicable, change sheets may be included with this manual. If change sheets are included, make
Change Sheet the corrections to the manual.
Input Power
You can operate your mainframe either from a 87 - 132 Vac or a 174 - 250 Vac single phase ac power source. Refer to
Chapter 1 for complete input power specifications and requirements.
Line Voltage Conversion
The mainframe contains no line voltage switches. Refer to the module User’s Guidefor information on changing the line
voltage.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Installation
14
Fuses
The mainframe fuse is located inside the mainframe. Refer to the mainframeService Manual for information about
replacing the fuse.
Power Cord Installation
The power cord supplied with your mainframe may or may not include a power plug. Figure 2-1 shows the various power
plugs. Ring terminals are attached to one end of the power cord to facilitate mainframe installation.

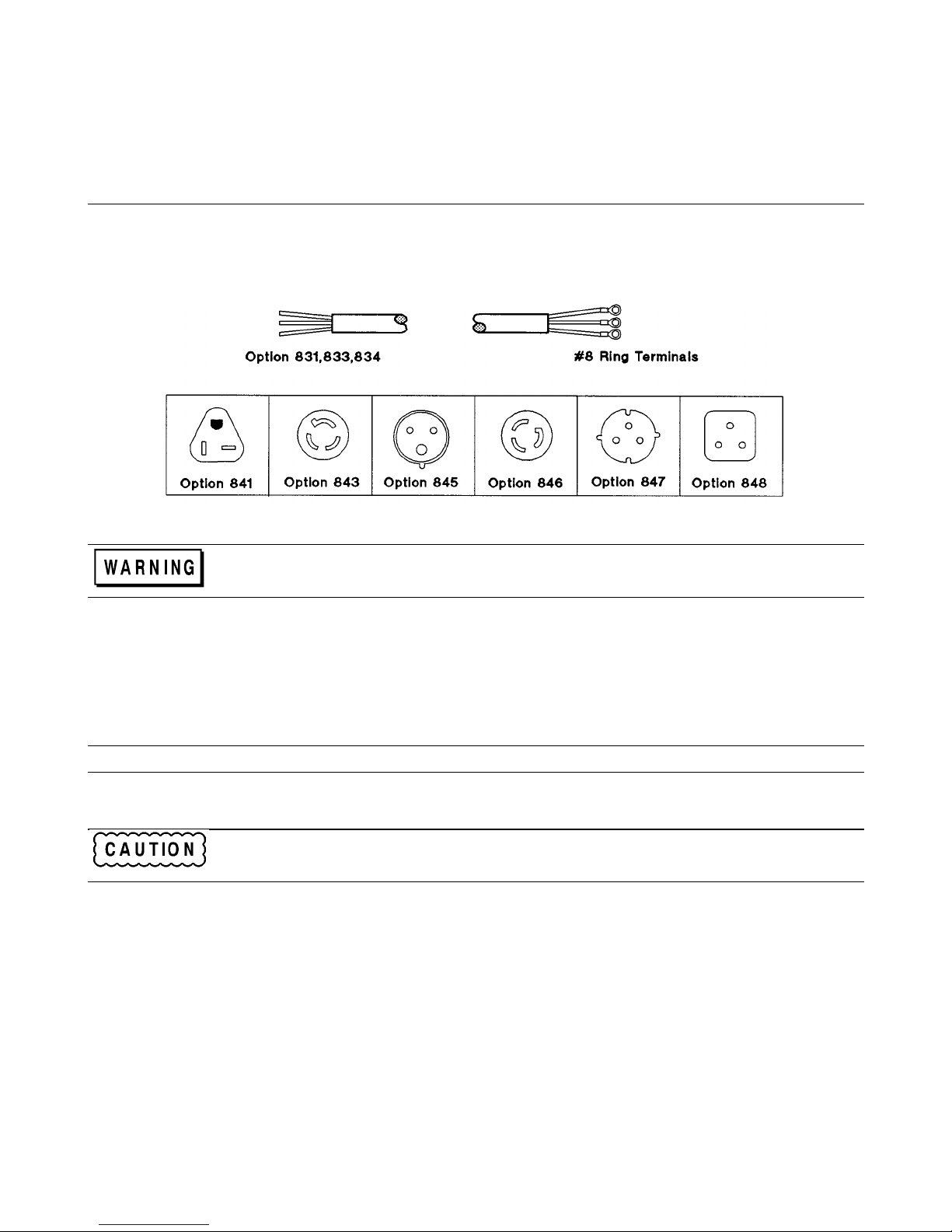

Figure 2-1. Power Cord Plug Configurations
If your power cord will be directly wired into your location’s power system, installation must be done
by a qualified electrician and in accordance with local electrical codes.
To install the power cord, refer to Figure 2-2 and proceed as follows:
■ Position the strain relief connector, safety cover, rubber boot, and connector nut on the power cord.
■ Secure the ground wire to the earth ground stud.
■ Connect the neutral wire to the "N" input terminal.
■ Connect the line wire to the "L" input terminal.
Note Route the power cord wires upward from the terminal block. This allows room to install the safety cover.
■ Replace the safety cover and tighten the cover and strain relief screws.
Do not apply power to the mainframe until directed to do so in the Check-out procedure located in the
module User’s Guide.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Installation 15
Figure 2-2. Power Cord Installation
Location and Cooling
Bench Operation
Chapter 1 gives the dimensions of your mainframe. The mainframe has plastic feet that are shaped to ensure self-alignment
when stacked with other Agilent System II cabinets. The feet may be removed for rack mounting. Your mainframe must be
installed in a location that allows sufficient space at the sides and rear of the mainframe for adequate air circulation. Do not
block the vents at the sides and rear of the mainframe.
Rack Mounting
The mainframe can be mounted in a standard 19-inch rack panel or cabinet. Refer to Chapter 1 for mainframe dimensions.
A fully loaded mainframe can weigh over 36 kg (80 lbs). Install the mainframe into the rack before installing the modules
into the mainframe.
Rack mounting kits are available as option numbers 908 and 909 (with handles). Installation instructions are included with
each rack mounting kit.
Note Instrument support rails are also required for rack mounting. These are normally supplied with the
cabinet and are not included with the rack mounting kits.
Temperature Performance
The mainframe can operate within the temperature range of 0°to 55°C. Fans in each module cool the modules by drawing
in air through the sides of the mainframe and exhausting it out the back. Using Agilent rack mount or slide kits will not
impede the flow of air.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Installation
16
Rear Panel Switches
The six-position rear panel switch is shown in the following figure.
Figure 2-3. Rear Panel Switches
Address Switches
Address switches A0 through A4 set the primary GPIB address. The address is set in binary, A0 being the least significant
bit and A4 being the most significant bit. Figure 2-3 shows the factory-set address of "5" (binary 00101). Any address from
decimal 0 to decimal 30 is a valid GPIB address. Refer to the following diagram for switch settings.
Address Switch Positions Address Switch Positions Address Switch Positions
A4 A3 A2 A1 A0 A4 A3 A2 A1 A0 A4 A3 A2 A1 A0
0 00000 1001010 2010100
1 00001 1101011 2110101
2 00010 1201100 2210110
3 00011 1301101 2310111
4 00100 1401110 2411000
5 00101 1501111 2511001
6 00110 1610000 2611010
7 00111 1710001 2711011
8 01000 1810010 2811100
9 01001 1910011 2911101
3011110
Frame Mode Switch
The frame mode switch determines the IEEE 488 secondary addresses (also referred to as subaddresses) of the modules that
are installed in the mainframe. The frame mode switch must be set to MAIN when the mainframe is connected directly to
the GPIB. With the frame mode switch set to MAIN, modules are assigned secondary addresses of 0 to 7, which
corresponds to the slot locations indicated on the mainframe.
The frame mode switch must be set to AUX (auxiliary) when the mainframe is serially-linked to another mainframe that is
directly connected to the GPIB. This also applies when the mainframe is serially linked to an Agilent 603xA/664xA/665xA/
667xA power supply that is directly connected to the GPIB.
In mainframes that have the frame mode switch set toAUX, modules are assigned secondary addresses of 8 to 15.
Secondary address 8 corresponds to slot location 0 on the mainframe and secondary address 15 corresponds to slot location
7 on the mainframe as shown in the following diagram.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Installation 17
Mainframe Slot Locations/Addresses
Mainframe Mode
Switch = MAIN Mainframe Mode Switch = AUX
Slot Location 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
Secondary Address 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Note Secondary addresses are reserved for the mainframe whether modules occupy the associated slot locations
or not.
You may want to apply stick-on labels over the slot locations of the mainframe to indicate that the modules installed in the
auxiliary mainframe are at secondary addresses 8 to 15. You may also label the modules according to their slot locations.
If any modules are removed, they can then be reinstalled in the same slot.
Figure 2-4 illustrates the relationship of the switch settings and secondary addresses. Refer to Chapter 3 for connection
information.
Figure 2-4. Switch Settings
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Installation
18
Module Installation
Note A fully loaded mainframe can weigh over 36 kg (80 lbs). Install the mainframe into the rack before
installing the modules into the mainframe.
All modules install through the front of the mainframe. Installation (and removal) can be accomplished even when the
mainframe is rack-mounted. To install the modules in the mainframe, refer to Figure 2-5 and proceed as follows:
■ Use a flat-bladed screwdriver and release the pull tab by pressing down.
■ Extend the pull tab from the module so that the serial number is visible.
■ Slide the module into the slot until it is fully inserted in the mainframe.
■ Push the pull tab into the front of the module. The slot number should be visible below the pull tab.
Note If the module is not fully inserted in the mainframe, the pull tab will not retract into the module.
■ Install filler panels in the front of any unused mainframe slots.
■ Install the module connectors on the back of the mainframe.
Note Instructions for wiring and installing module connectors are included with each module.
Figure 2-5. Module Pull Tab
Module Removal
All modules are removed through the front of the mainframe. Modules may be removed even when the mainframe is turned
on.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Installation 19
■ There must be no or minimal current flowing through the connector pins at the back of the module
that is being removed. This can be accomplished by disabling the module. If this precaution is
repeatedly violated at high current, the connector pins at the back of the module
will be damaged.
■ There must be no activity on the GPIB bus, the trigger connectors, or the FLT/INH connector of
the mainframe when a module is removed. This can be accomplished by not generating any GPIB
or FLT/INH activity, and by setting all modules to the trigger idle state (refer to the module
Programming Guide). If this precaution is violated, GPIB commands to other modules may be
corrupted, trigger or FLT/INH data may be lost, or an inadvertent trigger may be generated in
another module.
To remove the module from the mainframe, proceed as follows:
■ Use a flat-bladed screwdriver and release the pull tab by pressing down (see Figure 2-5).
■ Grasp the pull tab and pull the module out of the mainframe.
Note The module connector remains attached to the mainframe after the module has been removed.
Mainframe Turn-On Checkout
The turn-on checkout procedures that verify module operation also verify the operation of the MPS mainframe. You cannot
verify the operation of the mainframe without having at least one installed module. The module self-test sequence checks
the following mainframe functions:
■ mainframe microprocessor
■ GPIB interface
■ module/mainframe communications link
Refer to the module User’s Guidefor complete information on the turn-on checkout procedure.
