Agilent Technologies 6010A User manual

USER’S GUIDE
AGILENT 6010A, 6011A, 6012B,
6015A, 6023A and 6028A
DC AUTORANGING POWER SUPPLY
Agilent Part Number 5964-8120 Printed in Malaysia
Microfiche Part No. 5964-8121 September, 2004

2
CERTIFICATION
Agilent Technologies certifies that this product met its published specifications at time of shipment from the factory.
Agilent Technologies further certifies that its calibration measurements are traceable to the United States National
Bureau of Standards, to the extent allowed by the Bureau’s calibration facility, and to the calibration facilities of other
International Standards Organization members.
WARRANTY
The 601xA/B and 602xA Agilent Technologies hardware products are warranted against defects in material and
workmanship for a period of one year from date of delivery. Agilent software and firmware products, that are
designated by Agilent for use with a hardware product and when properly installed on that product, are warranted
not to fail to execute their programming instructions due to defects in material and workmanship for a period of 90
days from date of delivery. During the warranty period Agilent Technologies will, at its option, either repair or replace
products that prove to be defective. Agilent does not warrant that the operation for the software firmware, or
hardware shall be uninterrupted or error free.
For warranty service, with the exception of warranty options, this product must be returned to a service facility
designated by Agilent. Customer shall prepay shipping charges (and shall pay all duty and taxes) for products
returned to Agilent for warranty service. Except for products returned to a Customer from another country, Agilent
shall pay for return of products to the Customer.
Warranty services outside the country of initial purchase are included in Agilent's product price, only if Customer
pays Agilent international prices (defined as destination local currency price, or U.S. or Geneva Export price).
If Agilent is unable, within a reasonable time to repair or replace any product to condition as warranted, the
Customer shall be entitled to a refund of the purchase price upon return of the product to Agilent.
LIMITATION OF WARRANTY
The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by the
Customer, Customer-supplied software or interfacing, unauthorized modification or misuse, operation outside of the
environmental specifications for the product, or improper site preparation and maintenance. NO OTHER
WARRANTY IS EXPRESSED OR IMPLIED. AGILENT SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
EXCLUSIVE REMEDIES
THE REMEDIES PROVIDED HEREIN ARE THE CUSTOMER'S SOLE AND EXCLUSIVE REMEDIES. AGILENT
SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.
ASSISTANCE
The above statements apply only to the standard product warranty. Warranty options, extended support contacts,
product maintenance agreements and customer assistance agreements are also available. Contact your nearest
Agilent Technologies Sales and Service office for further information on Agilent's full line of Support Programs.
Copyright 1999 Agilent Technologies Edition 1___January, 1999
Update 1___February, 2000
Update 2___September, 2004

3
Safety Summary
The
f
ollowin
g
g
eneral sa
f
et
y
p
recautions must be observed durin
g
all
p
hases o
f
o
p
eration o
f
this instrument. Failure to
com
p
l
y
with these
p
recautions or with s
p
eci
f
ic warnin
g
s elsewhere in this manual violates sa
f
et
y
standards o
f
desi
g
n,
manu
f
acture, and intended use o
f
the instrument. A
g
ilent Technolo
g
ies assumes no liabilit
y
f
or the customer’s
f
ailure to
comply with these requirements.
GENERAL
This product is a Safety Class 1 instrument (provided with a protective earth terminal). The protective features of this
product may be impaired if it is used in a manner not specified in the operating instructions.
Any LEDs used in this product are Class 1 LEDs as per IEC 825-1.
ENVIRONMENTAL CONDITIONS
This instrument is intended for indoor use in an installation category II, pollution degree 2 environment. It is designed to
operate at a maximum relative humidity of 95% and at altitudes of up to 2000 meters. Refer to the specifications tables for
the ac mains voltage requirements and ambient operating temperature range.
BEFORE APPLYING POWER
Verify that the product is set to match the available line voltage, the correct fuse is installed, and all safety precautions are
taken. Note the instrument’s external markings described under "Safety Symbols".
GROUND THE INSTRUMENT
To minimize shock hazard, the instrument chassis and cabinet must be connected to an electrical ground. The instrument
must be connected to the ac power supply mains through a three-conductor power cable, with the third wire firmly
connected to an electrical ground (safety ground) at the power outlet. For instruments designed to be hard-wired to the ac
power lines (supply mains), connect the protective earth terminal to a protective conductor before any other connection is
made. Any interruption of the protective (grounding) conductor or disconnection of the protective earth terminal will cause
a potential shock hazard that could result in personal injury. If the instrument is to be energized via an external
autotransformer for voltage reduction, be certain that the autotransformer common terminal is connected to the neutral
(earthed pole) of the ac power lines (supply mains).
ATTENTION: Un circuit de terre continu est essentiel en vue du fonctionnement sécuritaire de l’appareil. Ne
jamais mettre l’appareil en marche lorsque le conducteur de mise … la terre est d‚branch‚.
FUSES
Only fuses with the required rated current, voltage, and specified type (normal blow, time delay, etc.) should be used. Do
not use repaired fuses or short-circuited fuseholders. To do so could cause a shock or fire hazard.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the instrument in the presence of flammable gases or fumes.
KEEP AWAY FROM LIVE CIRCUITS
Operating personnel must not remove instrument covers. Component replacement and internal adjustments must be made
by qualified service personnel. Do not replace components with power cable connected. Under certain conditions,
dangerous voltages may exist even with the power cable removed. To avoid injuries, always disconnect power, discharge
circuits and remove external voltage sources before touching components.
DO NOT SERVICE OR ADJUST ALONE
Do not attempt internal service or adjustment unless another person, capable of rendering first aid and resuscitation, is
present.
DO NOT EXCEED INPUT RATINGS
This instrument may be equipped with a line filter to reduce electromagnetic interference and must be connected to a
properly grounded receptacle to minimize electric shock hazard. Operation at line voltages or frequencies in excess of
those stated on the data plate may cause leakage currents in excess of 5.0 mA peak.
DO NOT SUBSTITUTE PARTS OR MODIFY INSTRUMENT
Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized
modifications to the instrument. Return the instrument to an Agilent Technologies Sales and Service Office for service and
repair to ensure that safety features are maintained.
Instruments that appear damaged or defective should be made inoperative and secured against unintended operation until
they can be repaired by qualified service personnel.
This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme NMB-001 du Canada.

4
SAFETY SYMBOLS
Direct current
Alternating current
Both direct and alternating current
Three-phase alternating current
Earth (ground) terminal
Protective earth (ground) terminal
Frame or chassis terminal
Terminal is at earth potential. Used for measurement and control circuits designed to be operated with
one terminal at earth potential.
Terminal for Neutral conductor on permanently installed equipment
Terminal for Line conductor on permanently installed equipment
On (supply)
Off (supply)
Standby (supply). Units with this symbol are not completely disconnected from ac mains when this
switch is off. To completely disconnect the unit from ac mains, either disconnect the power cord or have
a qualified electrician install an external switch.
In position of a bi-stable push control
Out position of a bi-stable push control
Caution, risk of electric shock
Caution, hot surface
Caution (refer to accompanying documents)
WARNING The WARNING sign denotes a hazard. It calls attention to a procedure, practice, or the like, which, if not
correctly performed or adhered to, could result in personal injury. Do not proceed beyond a WARNING
sign until the indicated conditions are fully understood and met.
Caution The CAUTION sign denotes a hazard. It calls attention to an operating procedure, or the like, which, if
not correctly performed or adhered to, could result in damage to or destruction of part or all of the
product. Do not proceed beyond a CAUTION sign until the indicated conditions are fully understood and
met.

5
DECLARATION OF CONFORMITY
According to ISO/IEC Guide 22 and CEN/CENELEC EN 45014
Revision: B.00.00 Issue Date: Created on 11/24/2003 3:35
PM Document No. 60xyA.11.24.doc
Manufacturer’s Name and Address
Responsible Party Alternate Manufacturing Site
Agilent Technologies, Inc. Agilent Technologies (Malaysia) Sdn. Bhd
550 Clark Drive, Suite 101
Budd Lake, New Jersey 07828
USA
Malaysia Manufacturing
Bayan Lepas Free Industrial Zone, PH III
11900 Penang,
Malaysia
Declares under sole responsibility that the product as originally delivered
Product Names a) 1 kW Single Output System dc Power Supplies
b) 1 kW Single Output dc Power Supplies
c) 200 W Single Output System dc Power Supplies
Model Numbers a) 6030A; 6031A; 6032A; 6035A
b) 6010A; 6011A; 6012B; 6015A
c) 6033A 6038A
(and other customized products based upon the above)
Product Options This declaration covers all options and customized products based on the above products.
Complies with the essential requirements of the Low Voltage Directive 73/23/EEC and the EMC
Directive 89/336/EEC (including 93/68/EEC) and carries the CE Marking accordingly.
EMC Information ISM Group 1 Class A Emissions
As detailed in Electromagnetic Compatibility (EMC), Certificate of Conformance Number
CC/TCF/00/078 based on Technical Construction File (TCF) HPNJ5, dated
Oct. 29, 1997
Assessed by: Celestica Ltd, Appointed Competent Body
Westfields House, West Avenue
Kidsgrove, Stoke-on-Trent
Straffordshire, ST7 1TL
United Kingdom
Safety Information and Conforms to the followingsafety standards.
IEC 61010-1:2001 / EN 61010-1:2001
UL 1244
CSA C22.2 No. 1010.1:1992
This DoC applies to above-listed products placed on the EU market after:
January 1, 2004
Date Bill Darcy/ Regulations Manager
For further information, please contact your local Agilent Technologies sales office, agent or distributor, or
Agilent Technologies Deutschland GmbH, Herrenberger Straβe 130, D71034 Böblingen, Germany

6
Acoustic Noise Statement
Herstellerbescheinigung
Diese Information steht im Zusammenhang mit den Anforderungen der
Maschinenlärminformationsverordnung vom 18 Januar 1991.
* Schalldruckpegel Lp < 70 dB(A) * Am Arbeitsplatz * Normaler Betrieb * Nach DIN 45635
T. 19 (Typprüfung)
Manufacturer’s Declaration
This statement is provided to comply with the requirements of the German Sound Emission
Directive, from 18 January 1991. This product has a sound pressure emission (at the operator
position) < 70 dB.
* Sound Pressure Lp < 70 dB(A) * At Operator Position * Normal Operation * According to
ISO 7779 (Type Test).

Table Of Contents
1. General Information
Introduction ....................................................................................................................................................9
Description......................................................................................................................................................9
Safety Considerations .....................................................................................................................................9
Options............................................................................................................................................................9
Accessories ...................................................................................................................................................10
Instrument & Manual Identification..............................................................................................................11
Ordering Additional Manuals........................................................................................................................11
Related Documents .......................................................................................................................................11
Specifications ...............................................................................................................................................11
2. Installation
Introduction ..................................................................................................................................................17
Initial Inspection............................................................................................................................................17
Mechanical Check.......................................................................................................................................17
Electrical Check..........................................................................................................................................17
Preparation for Use .......................................................................................................................................17
Location & Cooling.....................................................................................................................................17
Outline Diagram..........................................................................................................................................18
Bench Operation..........................................................................................................................................18
Rack Mounting............................................................................................................................................18
Input Power Requirements..........................................................................................................................18
Power Connection.........................................................................................................................................19
Agilent Models 6010A, 6011A, 6012B, and 6015A...................................................................................19
Agilent Models 6023A, 6028A...................................................................................................................19
Line Voltage Option Conversion...................................................................................................................20
Agilent Models 6010A, 6011A, 6012B, and 6015A...................................................................................20
Agilent Models 6023A, 6028A...................................................................................................................21
AC Line Impedance Check ...........................................................................................................................23
Repackaging for Shipment ............................................................................................................................23
Rear Panel Screw Sizes and Part Numbers ...................................................................................................24
3. Operating Instructions
Introduction ..................................................................................................................................................25
Turn-On Checkout Procedure .......................................................................................................................26
Initial Setup & Interconnections....................................................................................................................28
Connecting the Load ...................................................................................................................................28
Overvoltage Protection................................................................................................................................30
Protective Shutdown ...................................................................................................................................30
Operating Modes...........................................................................................................................................31
Normal Mode..............................................................................................................................................31
Constant Voltage Operation........................................................................................................................33
Constant Current Operation.........................................................................................................................34
Remote Voltage Sensing ...............................................................................................................................34
Analog Programing .......................................................................................................................................36
Constant Voltage Output, Resistance Control.............................................................................................36
Constant Voltage Output, Voltage Control .................................................................................................37
Constant Current Output, Resistance Control..............................................................................................38
Constant Current Output, Voltage Control..................................................................................................39
7

Multiple-Supply Operation............................................................................................................................39
Auto-Parallel Operation ..............................................................................................................................39
Series Operation..........................................................................................................................................40
Monitor Signals.............................................................................................................................................41
A 100 VAC Input Power Option 100
General Information......................................................................................................................................43
Description .................................................................................................................................................43
Scope of Appendix A..................................................................................................................................43
Using Appendix A.......................................................................................................................................43
Section 1 Manual Changes........................................................................................................................... 43
Section 2 Manual Changes........................................................................................................................... 43
Section 3 Manual Changes............................................................................................................................44
Index ......................................................................................................................................................................45
8

General Information 9
1
General Information
Introduction
This manual contains specifications, installation instructions, and operating instructions for DC Power Supply Models:
Agilent6010A, 6011A, 6012B, 6015A, 6023A and 6028A. Refer to "Related Documents" for other information concerning
these products.
Description
These power supplies are autoranging supplies.Autoranging allows the power supply to deliver full output power over a
higher voltage and current combination than would be possible with a rectangular output characteristic (see figure 1-1).
They use a 20k Hz pulse-width modulation circuit with power MOSFETs to provide the autoranging output characteristic
with laboratory performance.
Output voltage and current are continuously indicated on two 3 ½ digit displays. Front-panel controls allow the user to set
output voltage, current and Overvoltage Protection (OVP) trip levels. OVP protects the load by quickly and automatically
interrupting energy transfer if a preset voltage trip level is exceeded. Push button switches allow the display to alternately
show the programmed values of voltage and current or the overvoltage limit. LED indicators show the operating state of the
unit (CV, CC, Unregulated and Overvoltage).
All connections are made to rear-panel screw-on terminals.
Output voltage can be locally or remotely sensed.
A six-position MODE switch located on the rear panel is used to change from front panel control to remote voltage or
remote resistance control. See section 3 for a description of remote programming, remote sensing and several methods of
multiple supply operation.
Either the positive or negative output terminal may be grounded or the output may be floated (including output voltage) up
to ±240 Vdc on models 6011A, 6012B, 6023A and 6028A or ±550 Vdc on models 6010A and 6015A from chassis
ground.
The power supply is fan cooled and is packaged in an Agilent Technologies System II-compatible modular that provides
easy access for servicing. A thermostat shuts down the supply if an over-temperature condition occurs and resets
automatically.
Safety Considerations
This product is a Safety Class 1 instrument (provided with a protective earth terminal). The instrument and this manual
should be reviewed for safety markings and instructions before operation. Refer to the Safety Summary page at the
beginning of this manual for general safety information. Safety information for specific procedures is located at appropriate
places in this manual.
Options
Options are standard factory modifications or accessories that are delivered with the supply. The following options are
available. Note lower output power and voltage specifications for Option 100, which is described in Appendix A.

10 General Information
Option Description
100 Input power: 100 Vac + 6%, -10%; 48-63 Hz single phase.
120 Input power: 120 Vac +6%, -13%. 48-63 Hz single phase.
220 Input Power: 220 Vac +6%, -13%; 48-63 Hz, single phase.
240 Input power: 240 Vac +6%, -13%; 48-63 Hz, single phase.
800
908 Rack mounting kit
909 Flanges with Handles
Accessories
The System-II cabinet accessories listed below may be ordered with the power supply or separately from your local Agilent
Technologies Sales and Support Office (see list of addresses at rear of this manual).
For Agilent Models 6023A and 6028A
Agilent Part No Description
5062-3989 Front handle kit for 5-1/4 inch high cabinets
1460-1345 Tilt stand (1) snaps into standard foot on; must be used in pairs
5062-3977 Rack flange kit for 5-1/4 inch high cabinet (will be shipped with supply if ordered as Option 908)
5062-3983 Rack mount flange kit with handles
1494-0060 Rack slide kit, non tilting
5060-2865 Service kit, includes extenders for control and power mesh boards, three cables to allow GP-IB and
PSI boards to lie on table outside unit, and control board test connector.
5060-2866 FET service kit. Includes FETs and all components that should be replaced with FETs.
59510A Relay Accessory
59511A Relay Accessory (Polarity Reversing)
For Agilent Models 6023A and 6028A
For Agilent Models 6023A and 6028A
Agilent Part No Description
5062-3960 Rack mounting adapter kit for side mounting one 7-inch high cabinet, includes one rack flange and one
half-module width extension adapter. (Will be shipped with instrument if ordered as Option 908). This
rack mounting adapter kit is not compatible with front handle kit Agilent P/N 5061-3990).
5062-3961 Rack mounting adapter kit for center mounting one 7-inch high cabinet, includes one rack flange and
one quarter-module width extension adapter (two kits required), there will be surplus of hardware.
5062-3978 Rack flange kit for 7-inch high cabinet. Must be used with another half-module width unit of equal
depth with lock link kit 5061-9694. (Will be shipped if instrument is ordered as Option 800).
5061-9694 Lock link kit for joining units of equal depth, contains hardware for three side-by-side joints (four
units) and two over-under joints (three units). Locking cabinets together horizontally in a configuration
wider than one full module is not recommended. 5062-3978 and 5061-9694 will be shipped if Option
800 is ordered.
5062-3990 Front handle kit for 7-inch high cabinets. Corresponding flange kit is 5061-2072. This front handle kit
is not compatible with rack mounting adapter kit (Agilent PIN 5062-3960) or Option 908.
5061-2072 Flange kit to be used with front handle kit 5062-3990.
5062-3984 Rack mounting flange kit with handles for 7-inch high cabinet. Must be used with another half-module
width unit of equal depth with lock link kit 5061-9694.
5062-4003 Bail handle kit for carrying 7-inch high, half-module width cabinet.
1460-1345 Tilt stand (1) snaps into standard foot on instrument, must be used in pairs.
5062-3998 Support shelf bit for mounting on or more 7-inch high cabinets of any depth to 20 inches.
5062-4027 Front filler panel, half-module width, for 7-inch high cabinet on support shelf.
1494-0065 Slide kit for 5061-0098 support shelf.
06033-60005 Service kit, includes extenders for control and power mesh boards, three cables to allow GP-IB and
One additional User’sGuide
Service Manual
0L2
0B3
Rack mount kit for two units side by side (models 6023A and 6028A only)

General Information 11
PSI boards to lie on table outside unit, and control board test connector.
5060-0138 GP-IB connector non-metric to metric conversion kit.
5060-2860 FET service kit, includes FETs and all components that should be replaced with FETs.
59510A Relay Accessory
59511A Relay Accessory (Polarity Reversing)
Instrument and Manual Identification
The serial numbers listed on the front of this guide indicate the versions of the supplies that were available when the manual
was issued. If changes have been made to the instrument since the publication of this manual the manual may include a
loose yellow "Manual Change’’sheet. That sheet updates this manual by defining any differences between the version of
your supply and the instruments described in this manual, and may also include information for correcting any manual
errors. Note that because not all changes to the product require changes to the manual, there may be no update information
required for your version of the supply.
Ordering Additional Manuals
One User’s Guide is shipped with each power supply. Additional User’s Guides and Operating and Service manuals may be
purchased directly from your local Agilent Technologies Sales office. Specify the model number, serial number prefix, and
the manual part number provided on the title page. (When ordered at the same time as the power supply, additional manuals
may be purchased by adding Option 910 to the order. Each Option 910 includes one User’s Guide and one Operating and
Service Manual).
Related Documents
The following service documents can be ordered from your local Agilent Sales Office.
Agilent 6010A Operating and Service manual Agilent part number 06010-90001
Agilent 6011A Operating and Service manual Agilent part number 06011-90001
Agilent 6012B Operating and Service manual Agilent part number 06012-90004
Agilent 6015A Operating and Service manual Agilent part number 06015-90001
Agilent 6023A Operating and Service manual Agilent part number 06023-90001
Agilent 6028A Operating and Service manual Agilent part number 06010-90001
Specifications
Specifications for the power supply fall into two major categories: performance specifications and supplemental
characteristics.
Performance specifications describe the power supply's warranted performance. All performance specifications are at the
rear output terminals with a resistive load. Specifications apply over the full operating temperature range of 25 +/- 5°C
unless otherwise specified range. The Service Manual has procedures for verifying the performance specifications.
Supplemental characteristics give typical but non-warranted performance parameters. Design or type testing determines
supplemental characteristics. They are useful in understanding the power supply’s operation when accessing applications for
the power supply.

12 General Information
Table 1-1 Performance Specifications
Agilent Technologies Model 6010A 6011A
DC Output: Voltage, current and power spans indicate range Volts 0-200 V 0-20 V
over which output may be varied using front panel controls. Amps 0-17 A 0-120 A
Maximum Power 1000-1200 W 840-1072 W
Load Effect (Load Regulation) Voltage load effect is given for a load
current change equal to the current rating of the supply. Current load Voltage 0.01% + 5 mV 0.01% + 3 mV
effect is given for a load voltage change equal to the voltage rating of the
supply. Current 0.01% + 10 mA 0.01% + 15 mA
Source Effect (Line Regulation): Given for a change within the rated
line voltage for any output within the rated output voltage, current and Voltage 0.01% + 5 mV 0.01% + 2 mV
power of the supply Current 0.01% + 5 mA 0.01% + 25 mA
PARD (Ripple and Noise): Measured at any line voltage and under any Voltage 22 mV/50 mV28 mV/50 mV
load condition within rating (rms 10 Hz to 10 Mhz/p-p 10 Hz to 20 MHz) Current 15 mA/1, 4 120 mA/1,4
Load Effect Transient Recovery: Maximum time required for output
voltage to recover within the specified band around the nominal output Time 10%/50% 2 ms/3 ms 2 ms/3 ms
voltage following a step change (10% or 50%) in output current while
operating in the constant voltage mode Level 10%/50% 150 mV/500mV 100 mV/300mV
Table 1-2. Supplemental Characteristics
Agilent Technologies Model 6010A 6011A
Programming: Given for control of the Voltage Resolution 70 mV 5 mV
output over the GP-IB or with front panel controls Current Resolution 7 mA 40 mA
Front Panel Voltmeter: Range 20 V, 200 V 20 V, 200 V
Resolution 100 mV, 1 V 10 mV, 100 mV
Accuracy 0.65% + 3.5 counts,
0.65% + 3.5 counts 0.6% + 2 counts, 0.8% + 2 counts
T.C. (per/°C) 80 ppm + 1 mV,
80 ppm + 1 mV 80 ppm + 1mV, 100ppm + 1 mV
Front Panel Ammeter: Range 20 A 200 A
Resolution 10 mA 100 mA
Accuracy 0.6% + 4 counts 0.7% + 300 mA4
T.C. (per/°C) 100 ppm + 2 mA 100 ppm + 3 mA
Display OVP: Range 2000 V 200 V
Resolution 1 V 100 mV
Accuracy 2.5% + 1.1 V 2.5% + 625 mV
T.C. (per/°C) 200 ppm + 3 mV 150 ppm + 3 mV
Maximum AC Input Current: +6% -13% (48-63) Hz 100 Vac (Opt.100) 24 24
120 Vac (Std.) 24 A 24 A
220 Vac (Opt.220) 15 A 15 A
240 Vac (Opt.240) 14 A 14 A

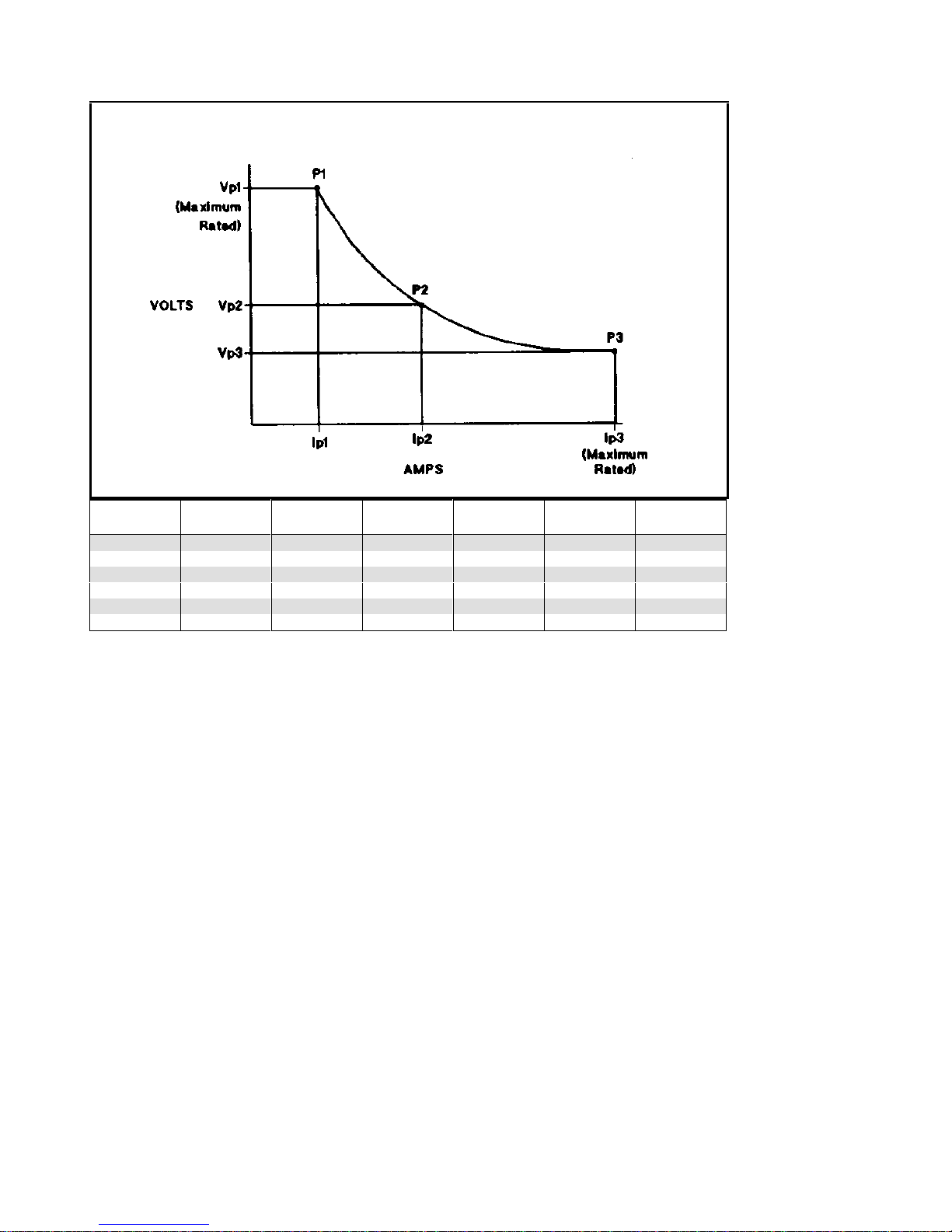

Typical input power at rated output power: (see point P2on Figure 1-1) 1435 W 1375 W
Temperature Coefficient: Output change per degree Celsius change Voltage 80 ppm + 15 mV 100 ppm + 2 mV
in ambient following 30 minute warm-up. Current 100 ppm + 4 mA 180 ppm + 15 mA
Drift (Stability): Change in output (dc to 20 Hz) over 8-hour internal Voltage 0.03 % + 17 mV 0.03% + 3 mV
under constant line, load, and ambient following 30-minute warm-up Current 0.03% + 5 mA 0.1% + 25 mA
Programming Response Time: The maximum time required Settling
Band 300 mV 30 mV
to change from zero volts to full scale voltage or from full scale Up Full Load 300 ms (0.4Ω) 300 ms (40 Ω)
voltage to 2 volts (6 volts for Agilent 6028A and 5 volts for Agilent 6015A) No Load 300 ms 300 ms
and settle within the specified band. Full load is defined as the Down Full Load 500 ms (0.4Ω) 600 ms
resistance equal to Vp1/Ip1. Light load is as specified Light Load 3.5 s (open Ω) 1.5 s (50 Ω)
Overvoltage Protection: Trip voltage adjustable via front Range 0-214 V 0-22 V
panel control using the Display OVP function Resolution 600 mV 100 mV
Accuracy 0.3% + 1.25 V 0.25% + 625 mV
Voltage 0.3% + 60 mV 0.25% + 2 mV
Monitoring Output Accuracy: 0 to 5 V signals from rear panel terminals that
indicate 0 to full scale output voltage and current. Output impedance = 10K Ω.Current 0.36% + 10 mA 0.3% + 35 mA
Remote Analog Programming Accuracy Resistance (0 to 4K) Voltage 0.5% + 35 mV 0.5% + 215 mV
Current 1% + 800 mA31% + 170 mA
Voltage (0 to 5V) Voltage 0.25% + 35 mA 0.3% + 215 mV
Current 0.4% + 800 mA30.36% + 170 mA
Ac power on 17 A 50 A
Reverse Voltage Protection: Maximum continuous current caused by reverse
voltage impressed across the output terminals. Ac power off 7 A 20 A

General Information 13
6012B 6015A 6023A 6028A NOTES.
0-60 V 0-500 V 0-20 V 0-60 V
0-50 A 0-5 A 0-30 A 0-10 A
1000-1200 W 1000-1050 W 200-242 W 200-242 W
0.01% + 5 mV 0.01% + 40 mV 0.01% + 2 mV 0.01% + 3 mV
0.01% + 10 mA 0.03% + 34 mA 0.01% + 9 mA 0 01% + 5 mA
0.01% + 3 mV 0.01% + 13 mV 0.01% + 1 mV 0.01% + 2 mV
0.01% + 10 mA 0.03% + 17 mA 0 01% + 6 mA 0 01% + 2 mA
0.005% + 5 mV/40 mV550 mV/160 mV 3 mV/30 mV 3 mV/30 mV
25 mA/1, 4 50 mA1, 4 30 mA/1, 4, 7 5 mA/1, 4
2 ms/3 ms 5 ms/61 ms/2 ms 1 ms/6
100 mV/300 mV 200 mV/650 mV/150 mV 75 mV/6
1. P-P PARD not specified
2. Initially, for each degree
below 20°C the ripple
increases 2.4 mV/°C.
After load is applied
for 15 minutes, the increase
becomes 1.4 mV/°C.
3. After a five-minute wait.
4. CC PARD is specified for
a 1.2 m (4 feet) length load
lead
5. P-P 75mV (20 Hz to
100MHz
6. 50% change not specified
7. Typical common mode current
1 mA RMS/40 mA P-P
6012B 6015A 6023A 6028A
20 mV 15 mV 5 mV 15 mV
20 mA 2.5 mA 10 mA 10 mA
20 V, 200 V 2000 V 20 V, 200 V 20 V, 200 V
10 mV, 100 mV 1 V 10 mV, 100 mV 10 mV, 100 mV
0.65% + 3.5 counts,
0.65% + 3.5 counts 1% + 3.5 counts 0.6% + 20 mV, 0.6 + 200mV 0.6% + 20 mV, 0.6 + 200mV
80 ppm + 1mV,
80 ppm + 1mV 100 ppm + 30 mV 75 ppm + 0.25 mV 75 ppm + 0.25 mV
200 A 20 A 200 A 200 A
100 mA 10 mA 100 mA 100 mA
0.6% + 4 counts 1% + 4 counts 0.6% + 200 mA 0.6% + 70 mA
100 ppm + 2 mA 100 ppm + 7.5 mA 100 ppm + 1.5 mA 100 ppm + 1.5 mA
200 V 2000 V 200 V 200 V
100 mV 1 V 100 mV 100 mV
2.5% + 550mV 3% + 1 count 2.5% + 250mV 2.5% + 250 mV
200 ppm + 3 mV 100 ppm + 30 mV 200 ppm + 1 mV 200 ppm + 1 mV
24 24 6.0 A 6.0 A
24 A 24 A 6.5 A 6.5 A
15 A 15 A 3.8 A 3.8 A
14 A 14 A 3.6 A 3.6 A
1450 W 1256 W 340 W 325 W
80 ppm + 4 mV 100 ppm + 30 mV 70 ppm + 0.6 mV 70 ppm + 0.6 mV
100 ppm + 8 mA 100 ppm + 7 mA 100 ppm + 2 mA 100 ppm + 2 mA
0.03 % + 5 mV 0.03% + 40 mV 0.02 % + 1 mV 0.02% + 2 mV
0.03% + 10 mA 0.03% + 17 mA 0.03% + 10 mA 0.03% + 10 mA
90 mV/200 mV 750 mV 5 mV 15 mV
300 ms/120 ms (3.4 Ω)350 ms (250 Ω)100 ms (2 Ω)150 ms (2 Ω)
300 ms/ 120 ms 250 ms 100 ms 120 ms
2 s/400 ms (3.4 Ω)600 ms (250 Ω)200 ms (2 Ω)150 ms (2 Ω)
3 s/ 35 s (100 Ω) 7 s (100 Ω) 500 ms (50 Ω) 750 ms (50 Ω)
0-64 V 0-535 V 0-23 V 0-67 V
200 mV 1.5 V 100 mV 100 mV
0.25% + 550 mV 0.3% + 1.25 V 0.25% + 250 mV 0.25% + 250 mV
0.3% + 15 mV 1% + 150 mV 0.25% + 2 mV 0.25% + 2 mV
0.36% + 20 mA 0.5% + 100 mA 0.3% + 15 mA 0.3% + 15 mA
0.5% + 70 mV 1% + 600 mV 0.5% + 12 mV 0.5% + 36 mV
1% + 500 mA 2% + 425 mA 1% + 110 mA 1% + 40 mA
0.3% + 70 mV 0.8% + 600 mV 0.25% + 12 mV 0.25% + 36 mV
0.36% + 500 mA 0.7% + 425 mA 0.3% + 110 mA 0.3% + 40 mA
50 A 5 A 30 A 10 A
20 A 5 A 15 A 5 A

14 General Information
Table 1-2 Supplemental Characteristics (continued)
DC Floating Voltage: Either output terminal may be floated up to the following voltage (including the output voltage) from
earth ground:
±240 Vdc on Models 6011A, 6012B, 6023A, and 6028A
±550 Vdc on Models 6010A and 6015A
Exceeding these voltages can result in damage to the equipment.
Efficiency (typical): 80% on maximum output boundary
Remote Sensing: The power supply maintains specifications at the load with up to 0.5 Volt per load lead with sense wire
resistance less than 0.2 Ωper lead and sense lead length less than 5 metres. Operation with up to 2 volts per load lead is possible
with some degradation of the load effect specification.
Multiple Operations: Up to two similar units may be connected in series, parallel or auto-parallel, to provide increased
output capabilities. Mixing supplies with dissimilar output capabilities is not recommended because under certain
conditions, the lower output supply may be stressed beyond its maximum voltage and or current capabilities by the higher
output supply.
Reactive Loads: Stable with inductive loads up to 100 mH and capacitive loads up to 10 F. CC compensation that provides
up to 10 H (with increased settling times) is available on special order.
Voltage Overshoot (typical): The output voltage will overshoot its steady state value by less than 250 mV (1 V on Model
6015A) due to any of the following conditions:
1. Up programming
2. Crossover from CC to CV mode
3. A step change of up to 5A
4. AC power on
Temperature Rating (°C):
•Operating is 0-50 (Agilent 6010A/6011A/6012B/6015A)
0-55 (Agilent 6023A/6028A)
•Storage is - 40 + 75 (all models)
Weight kg. (Lbs.)
Model Agilent 6010A Agilent 6011A Agilent6012B Agilent 6015A Agilent 6023A Agilent 6028A
Net 15.9 (35) 16.8 (37) 15.9 (35) 16.3 (36) 8.6 (19) 8.6 (19)
Shipping 21.3 (47) 22.3 (49) 21.4 (47) 21.7 (48) 10.5 (23) 10.5 (23)
Dimensions: See Figure 2-1.
Certification:
The unit is designed to comply with these requirements:
•IEC 348-Safety Requirements for Electronic Measuring Apparatus.
•CSA Electrical Bulletin 556B-Electronic Instruments and Scientific Apparatus for Special Use and Applications.
•VDE 0871.6.78 Level B-RFI Suppression of Radio Frequency Equipment for Industrial, Scientific, and Medical (ISM)
and similar purposes.
•VDE 0411-Electronic Measuring Instruments and Automatic Controls.
•UL 1244-Electrical and Electronic Measuring & Testing Equipment.
•ANSI C39.5 Part 0 Draft 8-Electrical Testing, Measurement, and Control Equipment.
•Agilent Class B – Environmental Specifications

General Information 15
Model Agilent
6010A Agilent 6011A Agilent 6012B Agilent 6015A Agilent 6023A Agilent 6028A
Vp1 200 V 20 V 60 V 500 V 20 V 60 V
Ip1 5 A 50 A 17.5 A 2 A 10 A 3.3 A
Vp2 120 V 14 V 40 V 350 V 14 V 40 V
Ip2 10 A 76 A 30 A 3 A 17.2 A 6 A
Vp3 60 V 7 V 20 V 200 V 6.7 V 20 V
Ip3 17 A 120 A 50 A 5 A 30 A 10 A
Figure 1-1. Output Characteristic Curve

16 General Information
Figure 1-2. Output Impedance

Installation 17
2
Installation
Introduction
This section contains instructions for checking and repackaging the supply; bench or rack mounting, connecting the supply
to ac input power, and converting the supply from one line voltage to another if required..
Note: All power supplies generate magnetic fields that may affect the operation of other instruments. If your
instrument is susceptible to operating magnetic fields, do not locate it in the immediate vicinity of the
power supply. Typically, at three inches from the supply, the electromagnetic field is less than 5 gauss.
Many CRT’s, such as those used in computer displays, are susceptible to magnetic fields much
lower than 5 gauss. Check susceptibility before mounting any display near the power supply.
Initial Inspection
Before shipment, this supply was inspected and found to be free of mechanical and electrical defects. As soon as the supply
is unpacked, inspect for any damage that may have occurred in transit. Save all packing materials until the inspection is
completed. If damage is found, file a claim with the carrier immediately. The Agilent Technologies Sales and Support office
should be notified as soon as possible.
Mechanical Check
This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents
and scratches, and that the meter face and rear-panel plastic covers are not scratched or cracked.
Electrical Check
Section III contains an abbreviated check that can be used quickly to place the supply into operation. Refer to the inside
cover page of the manual for Certification and Warranty statements.
Preparation for Use
In order to be put into service, the power supply must be connected to an appropriate ac input power source. Also, the line
voltage for which the supply is set must be checked. Additional steps may include line voltage conversion and rack
mounting. Do not apply power to the supply before reading the “Input Power Requirements” section in this chapter.
Location and Cooling
The supply is fan cooled and must be installed with sufficient space in the rear and on sides for airflow. It should be used in
an area where the ambient temperature does not exceed + 50 °C (55 °C for models 6023Aand 6028A).
Caution: When mounting several units in an enclosed rack, care should be taken to insure there is sufficient airflow
through the enclosure. Failure to provide sufficient airflow may result in damage to the power supply or
other equipment in the enclosure.

18 Installation
Outline Diagrams
Figure 2-1 illustrates the outline shape and dimensions of the cabinet.
6023A ONLY 6028A
ONLY
Figure 2-1. Outline Diagram
Bench Operation
The supply cabinet has plastic feet, which are shaped to ensure self-aligning when stacked with other Agilent Technologies
System II cabinets.
Rack Mounting
The supply can be mounted in a standard 19-inch rack enclosure. Rack mounting accessories for these units are listed in the
ACCESSORIES paragraph in Section I. Complete installation instructions are included with each rack mounting kit.
Support rails are also required for rack mounting. These are usually supplied with the system cabinet.
Input Power Requirements
This supply may be operated from a nominal 120 V, 220 V or 240 V single-phase ac power source (48-63 Hz). The input
voltage range and input current required for each of the nominal inputs is listed in Table 1-1. To operate from 100 Vac line,
Option 100 must be installed. This is a factory-installed option. A label on the rear panel indicates the nominal line voltage
for which the supply was set at the factory. If necessary, the user can convert the instrument from one line voltage option to
another by following the instructions in the “Line Voltage Option Conversion” section in this chapter.

Installation 19
Power Connection
Caution: Connection of this supply to an ac power source should only be performed by an electrician or other
qualified person. Before connecting the supply to the ac power source, check the label on the rear panel to
ensure that the supply is set for the correct ac voltage to be used. If necessary, convert the line voltage to
another by following the instructions under “Line Voltage Conversion”.
Agilent Models 6010A, 6011A, 6012B and 6015A.
To connect input power, to the instrument proceed as follows:
a. Remove the AC filter assembly cover by unscrewing the four locating screws.
b. Insert the power cord through the strain relief clamp located on the cover.
c. Connect the wires to the terminal block in accordance with the prevailing color codes.
Green or green/yellow to the terminal labeled " ''
White or blue wire to the terminal labeled "N'' *
Black or brown wire to the terminal labeled ''L"
* In a 2-phase system, such as 208 in the USA, the second phase is connected to the "N'' terminal.
WARNING: For proper protection by the instrument circuit breaker, the wire connected to the "L’’terminal on
the instrument must be connected to the "L’’ side of the line (hot); the wire connected to the ’’N"
terminal must be connected to the "N" side of the line (neutral or common).
To protect operating personnel, the wire connected to the " ’’ terminal must be connected to
earth ground. In no event shall this instrument be operated without adequate ground connection.
d. Replace the cover, tighten all four screws and tighten the strain relief clamp. (All four screws must be tightened for unit
to meet RFI specifications.)
e. Connect the other end of the power cord to an appropriate power source.
Note:Connections to the ac power line must be made in accordance with applicable electrical codes. The
international color code for identifying mains supply conductors is green/yellow, blue, and brown for
earth, neutral, and line respectively. Corresponding USA/Canadian codes are green, white, and black.
Caution: Before applying power to the instrument, check to see that the rear-panel circuit breaker CB1 is on. The
breaker may trip due to rough handling during transit. If the breaker is found to be tripped at any other
time for unknown reasons, refer to the troubleshooting procedures in the Service Manual.
Agilent Models 6023A and 6028A.
The power supply is shipped from the factory with a power-cord plug appropriate for the user’s location. Figure 2-2
illustrates the standard configuration of power-cord plugs used by Agilent Technologies. With each drawing is the Agilent
Part Number for a replacement power cord equipped with a plug of that configuration. If a different power cord is required,
contact the nearest Agilent Technologies Sales and Service office.
To protect operating personnel, the National Electrical Manufacturers Association (NEMA) recommends that the instrument
panel and cabinet be grounded. This supply is equipped with a three-conductor power cable; the third conductor is the
ground conductor. When the cable is plugged into an appropriate receptacle the supply is grounded. In no event shall this
supply be operated without an adequate cabinet ground connection.

20 Installation
The offset pin on the standard power cable three-prong connector is the ground connection. If a two-contact receptacle is
encountered, it must be replaced with a properly grounded three-contact receptacle in accordance with the National
Electrical Code and any local codes and ordinances. The work should be done by a qualified electrician only.
Note: To reduce noise pickup, it is good practice to keep the ac input lines separated from signal lines.
Line Voltage Option Conversion
Caution: Conversion to or from 100 V operation requires replacement of internal components and calibration in
addition to the line voltage components, and is to be done only at the factory. Failure to configure and
calibrate the power supply properly may result in damage to the unit.
Agilent Models 6010A, 6011A, 6012B and 6015A.
Line voltage conversion is accomplished by adjusting three components: a two-section line select switch, and a line-voltage
jumper. To convert the supply from one line voltage option to another, proceed as follows:
WARNING: Some components and circuits are at ac line voltage even with the LINE switch off. To avoid
electric shock hazard, disconnect line cord and load, and wait two minutes before removing covers.
a. Remove the outside cover by removing the four screws that hold the carrying straps, spread the bottom of the cover
slightly and carefully slide the cover to the rear of the supply until it is clear. Next remove the top inside cover by
removing the nine screws, four on top, three on right side, and two on left side, which connect the top inside cover to
the supply chassis.
b. Remove the FET board to reach the line-voltage jumper (W1) terminals.
c. Use a small-blade screwdriver to set the two switch sections of S2 to match the pattern printed on the main board for
the nominal line voltage to be used. For example, to set switches for 120 V operation, move forward switch section so
that its white slot is toward front of supply and move rearward switch section so that its white slot is toward rear of the
instrument.
d. Set switch S1 to match the rearward section of S2, i.e., toward the rear for 100/120 V operation, toward the front for
220/240 V operation.
e. One end of W1 is soldered to the main board; the other end has a female quick-connect terminal that fits onto one of
two terminals soldered to the main board. For 100 V or 120 V operation, W1 must be connected to terminal J9; for 220
V or 240 V operation, W1 must be connected to terminal J10. Be certain that the jumper is firmly mated with the
connector on the main board. Do not grip jumper insulation with pliers; either grip the jumper wire by hand or grip the
jumper terminal with pliers.
f. Replace FET board, inside top cover and outside top cover. Mark the unit clearly with a tag or label indicating correct
line voltage to be used.
g. Change line label.
