Agri-Fab SUPER 17 User manual

Model No.
45-02175
PRINTED IN USA
SUPER 17
ATV CART
IMPORTANT!
The wheel bearings are not prelubricated.
The wheel hubs must be lled with grease after the wheels
are assembled to the axle.
OWNERS
MANUAL
• Assembly
• Operation
• Maintenance
• Repair Parts
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
FORM NO. 40314 (4/24/07)
the fastest way to purchase parts
www.speedepart.com
™
Digitally signed by WMV-Dresden
DN: cn=WMV-Dresden, c=DE,
o=WMV-Dresden,
[email protected]
Date: 2017.01.26 13:00:49 +01'00'
WMV-
Dresden

2
SAFETY RULES
Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate
the equipment. Exercise caution at all times when using power equipment.
CARTON CONTENTS
LOOK FORTHIS SYMBOLTO POINT OUT
IMPORTANT SAFETY PRECAUTIONS. IT
MEANS —ATTENTION! BECOMEALERT!
YOUR SAFETY IS INVOLVED.
CAUTION: VEHICLE BRAKING AND
STABILITY MAY BE AFFECTEDWITHTHE
ADDITION OF AN ACCESSORY OR AN
ATTACHMENT.BEAWARE OFCHANGING
CONDITIONS ON SLOPES.
Exercise caution at all times when using power equipment.
Read this owners manual before attempting to assemble or operate the cart.
Read the vehicle owners manual and know how to operate your tractor, before using the cart attachment.
Do not at any time carry passengers in this cart. It has not been designed to carry passengers.
Never allow children to operate the tractor or the cart attachment.
Do not allow adults to operate the tractor or cart attachment without proper instructions.
Always begin with the transmission in rst (low) and gradually increase speed as conditions permit.
Tow the cart at reduced speed over rough terrain and hillsides or near creeks and ditches to prevent tipping over and
loss of control. Do not drive too close to a creek or ditch.
Vehicle braking and stability may be affected with the attachment of this cart. Do not ll cart to maximum weight capacity
without checking the capability of the towing vehicle to safely pull and stop with the cart attached.
Before operating vehicle on any grade (hill) refer to the safety rules in the vehicle owner's manual concerning safe
operation on slopes. Refer also to the slope guide on page 9 of this manual. Stay off steep slopes!
Do not tow this cart on highways or on public thoroughfares.
Maximum towing speed is 20 m.p.h.
Follow maintenance and lubrication instructions as outlined in this manual.
1. Tailgate Guides (2)
2. Corner Caps (2)
3. Latch Lock Lever
4. Hitch Bracket
CARTON CONTENTS 5. Latch Stand Bracket
6. Tailgate Reinforcement Bracket
7. Tailgate
8. Front Panel
9. Wheel Support
10. Axle Extension Bracket
11. Axle
12. Tongue
13. Cart Body (2)
14. Wheels (2)
135
4
2
11
13
14
9
12
10
6
78

3

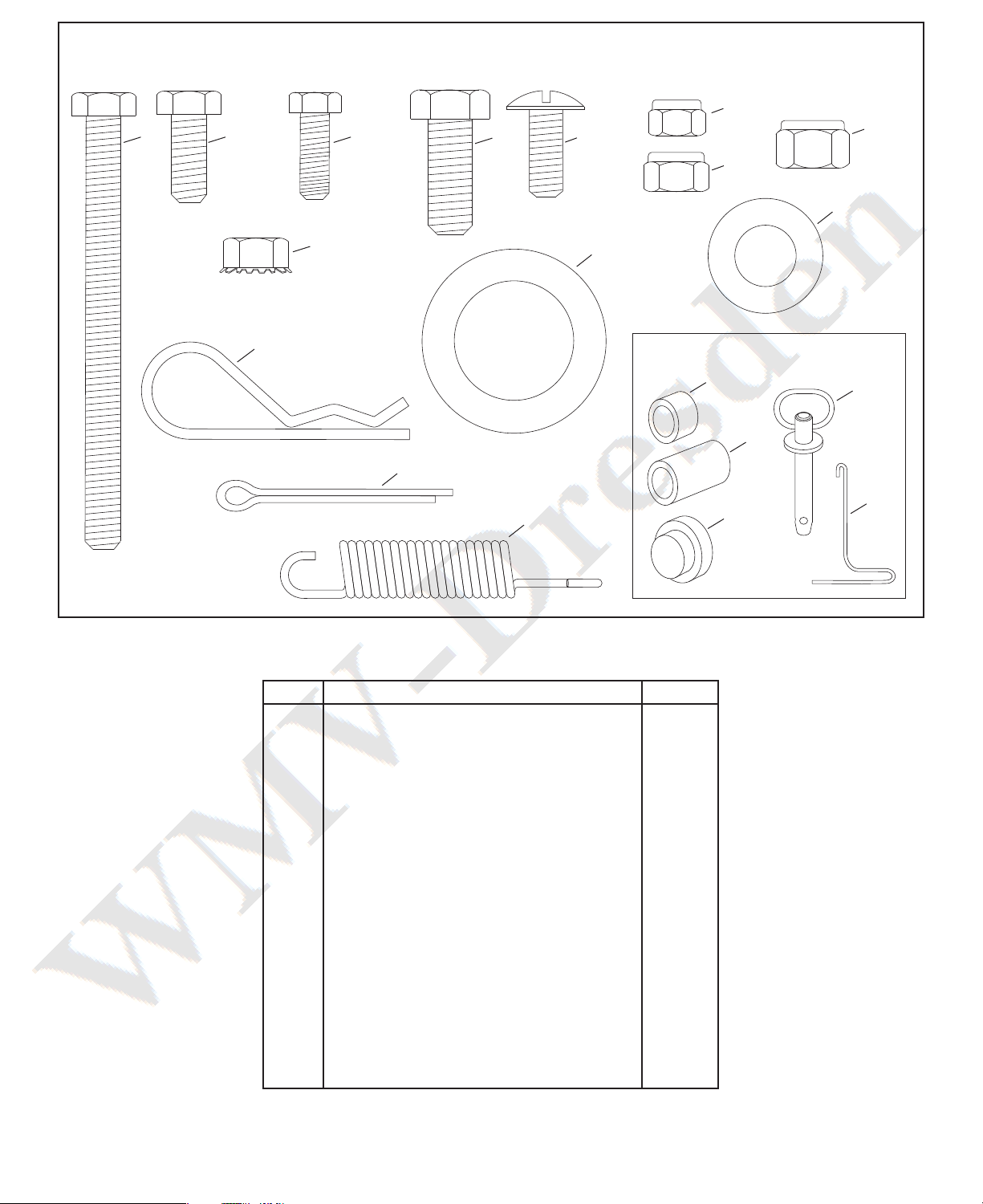

HARDWARE PACK
REF. DESCRIPTION QTY.
A Hex Bolt, 5/16" x 3-3/4" 1
B Hex Bolt, 5/16" x 3/4" 8
C Hex Nut, 5/16" (SEMS) 2
D Hex Bolt, 1/4" x 3/4" 24
E Hex Bolt, 3/8" x 1" 1
F Slt. Truss Hd. Bolt, 5/16" x 3/4" Lg. 12
G Nylock Nut, 1/4" 24
H Nylock Nut, 5/16" 21
I Nylock Nut, 3/8" 1
J Flat Washer, 1/2" 1
K Flat Washer, 1" 4
L Hair Cotter Pin, 3/32" 1
M Cotter Pin, 1/8" x 1-1/2" Lg. 2
N Spring 1
O Spacer Tube (Short) 2
P Spacer Tube (Long) 2
Q Hub Cap 2
R Hitch Pin 1
S Spring Puller Tool 1
AB
C
DE
J
L
K
Not Shown Full Size
HARDWARE SHOWN FULL SIZE
O
N
P
F
G
Q
M
R
S
H
I

4

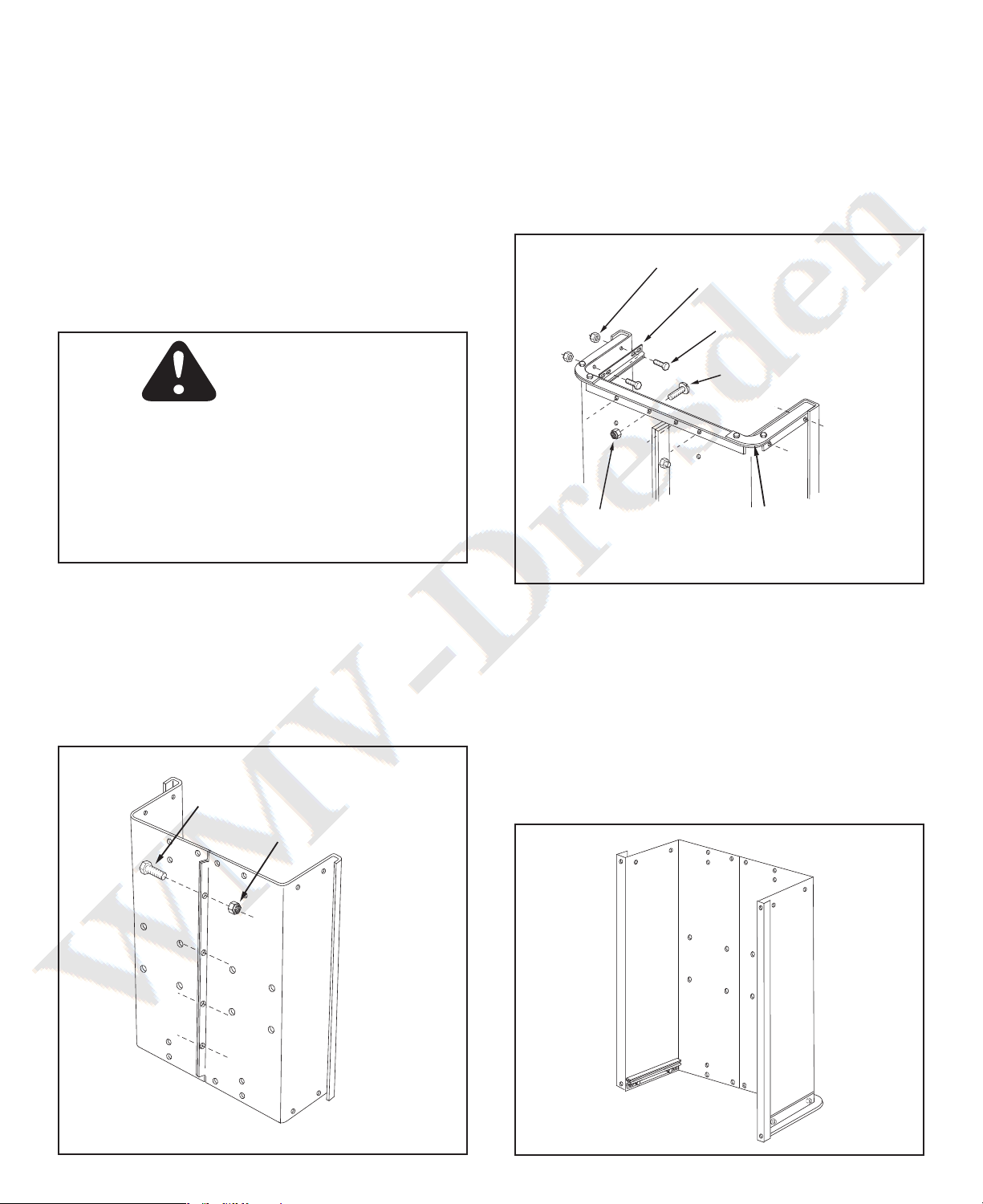

ASSEMBLY INSTRUCTIONS
FIGURE 1
5. Position the tailgate reinforcement bracket on outside
of cart as shown in gure 2. Assemble to the bottom of
the cart body using four 5/16" x 3/4" truss head bolts
and 5/16" nylock nuts. Do not tighten yet. See gure
2.
6. Position the tailgate guides on the inside of the cart
bodies with guide channels to the front as shown in
gure 2. Assemble using four 1/4" x 3/4" hex bolts and
1/4" nylock nuts. Do not tighten yet. See gure 2.
FIGURE 3
TOOLS REQUIRED FOR ASSEMBLY
(1) Screwdriver
(1) Pliers
(2) 7/16" Wrenches
(1) 1/2" Wrench
(2) 9/16" Wrenches
(1) Grease Gun
1. Remove the hardware pack and all loose parts
from the carton. Be sure the carton is empty before
discarding.
2. Lay out all the parts and hardware as shown on pages
2 and 3.
FIGURE 2
DO NOT LEAVE THE CART UNATTENDED IN
UPRIGHT POSITION DURING ASSEMBLY. A
FALLING CART CAN CAUSE PERSONAL INJURY!
PAY CLOSE ATTENTION TO THE STABILITY OF
THE CART WHILE IT REMAINS IN AN UPRIGHT
POSITION. FOR BEST STABILITY, ASSEMBLE
ON A SMOOTH, LEVEL SURFACE.
CAUTION
3. Position cart body halves upright on a smooth level
surface such as a garage oor or a paved driveway.
See gure 1.
4. Assemble halves together using four 1/4" x 3/4" hex
bolts and 1/4" nylock nuts as shown in gure 1. Do not
tighten at this time.
7. At this time, with the cart body halves pulled together,
tighten the four truss head bolts assembled in step 5
and then the four hex bolts assembled in step 6. Leave
loose for now the bolts that were assembled in step 4.
8. Carefully reverse the position of the cart so that it rests
on the end with the tailgate reinforcement bracket, as
shown in gure 3. Proceed with the assembly steps
which follow.
1/4" x 3/4"
HEX BOLT
5/16" x 3/4"
TRUSS HEAD BOLT
5/16" NYLOCK NUT
1/4" NYLOCK NUT
TAILGATE
REINFORCEMENT
BRACKET
TAILGATE GUIDE
1/4" x 3/4" HEX BOLT
1/4" NYLOCK NUT

5

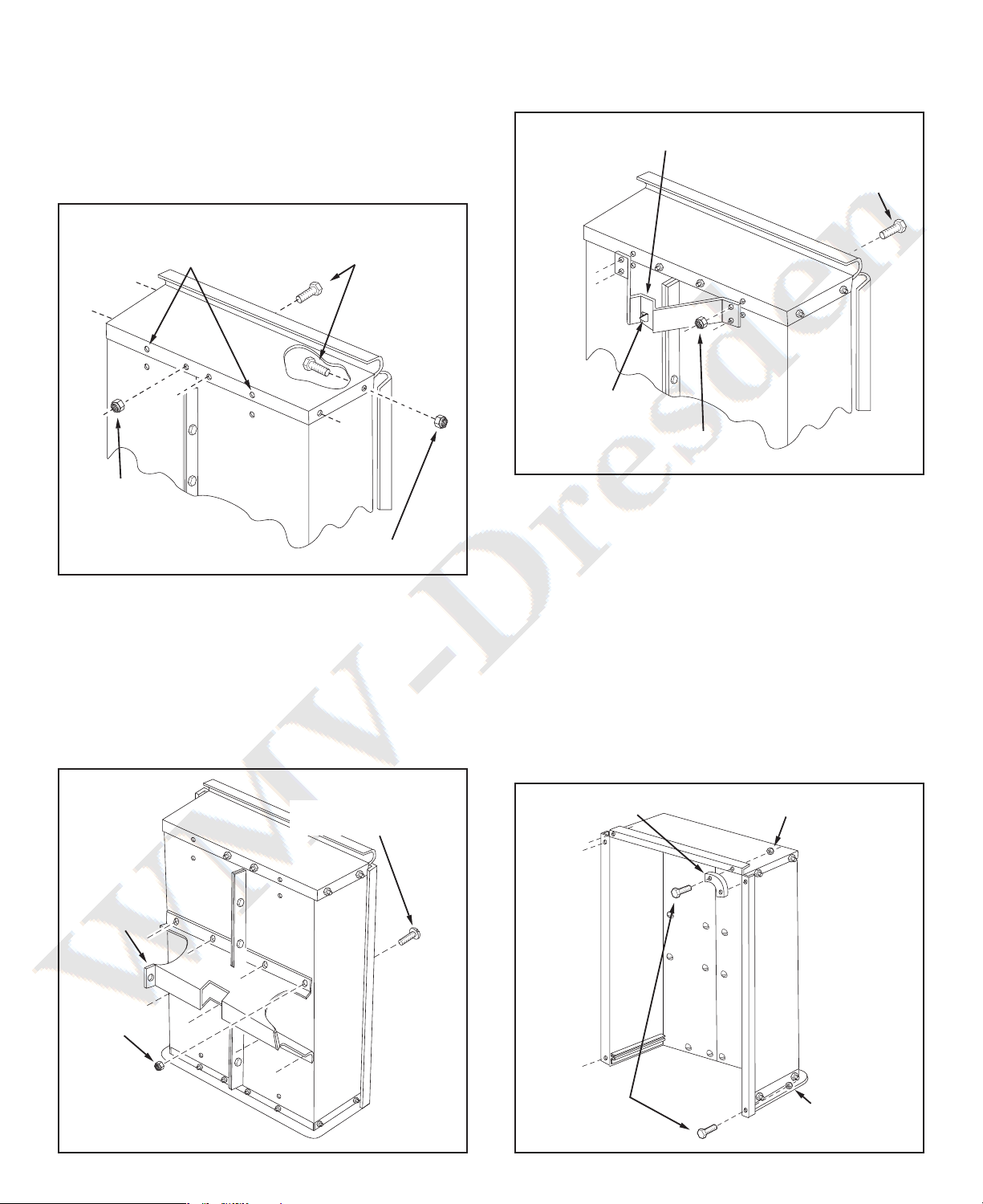

FIGURE 5
12. Turn the latch stand bracket so that the aligning tab is
at the rear (bottom) of the bracket. Assemble the latch
stand bracket to the cart using four 1/4" x 3/4" hex bolts
and 1/4" nylock nuts. TIGHTEN. See gure 6.
FIGURE 6
11. Assemble the wheel support to the cart using eight 5/16"
x 3/4" truss head bolts and 5/16" nylock nuts as shown
in gure 5. Heads of bolts go on the inside of the cart.
Tighten.
FIGURE 4
FIGURE 7
13. Assemble the two corner caps to the front corners of
the cart using four 1/4" x 3/4" hex bolts and 1/4" nylock
nuts. Also assemble two 1/4" x 3/4" hex bolts and 1/4"
nylock nuts to the two rear corners of the cart. Tighten.
See gure 7.
9. Assemble the front panel over the end of the cart using
six 1/4" x 3/4" hex bolts and 1/4" nylock nuts as shown
in gure 4. Leave two holes in the bottom of the panel
empty as shown. With the cart body halves pulled together,
tighten the bolts in the bottom of the front panel, then
tighten the bolts in the sides. See gure 4.
10. At this time tighten the bolts assembled in step 4, which
fasten the bottom of the cart together.
1/4" x 3/4"
HEX BOLTS
1/4" HEX NUT
1/4" HEX NUT
LEAVE HOLES OPEN FOR
LATCH STAND BRACKET
5/16"
NYLOCK
NUT
WHEEL
SUPPORT
5/16" x 3/4"
TRUSS HEAD BOLT
1/4" x 3/4"
HEX BOLT
LATCH STAND BRACKET
1/4" NYLOCK NUT
ALIGNING TAB
AT BOTTOM
CORNER CAP
1/4" x 3/4"
HEX BOLT
1/4" NYLOCK NUT
1/4" NYLOCK
NUT

6
FIGURE 9
16. Place the tongue, open side facing up, onto the wheel
support and the latch stand bracket. See gure 9.
17. Place a long spacer tube on each side of the tongue and
assemble the axle through the axle extension brackets,
the two spacer tubes and the tongue. See gure 9.
FIGURE 10
18. Place the latch lock lever through the slot in the tongue
as shown in gure 10. Assemble the 5/16" x 3-3/4" hex
bolt through the tongue, the lever and two 5/16" hex
nuts (SEMS) (one on each side of the lever). Assemble
a 5/16" nylock nut onto the end of the bolt so that the
bolt has no end play, but can rotate freely. Tighten the
two 5/16" hex nuts (SEMS) against the sides of the latch
lock lever so that the lever is centered in the slot. See
gure 10.
5/16" HEX NUTS (SEMS)
5/16"
NYLOCK
NUT
LATCH
LOCK
LEVER
5/16" x 3-3/4"
HEX BOLT
AXLE
TONGUE
LATCH STAND
BRACKET
LONG SPACER TUBES
AXLE EXTENSION
BRACKET
14. To prevent accidental tipping during the following
assembly procedures, lower the cart to rest upside down
on its top anges, so that the wheel support is facing
up. See gure 8.
15. Assemble both axle extension brackets to the wheel
support using eight 5/16" x 3/4" hex bolts nad 5/16"
nylock nuts. See gure 8.
5/16" x 3/4"
HEX BOLT
5/16" NYLOCK NUT
AXLE EXTENSION BRACKETS
WHEEL
SUPPORT
FIGURE 8
FIGURE 11
LONG END
OF SPRING
LATCH LOCK LEVER
SPRING PULLER TOOL
19. Hook the short end of the spring into the hole in the
latch lock lever. Use the spring puller tool to hook the
long end of the spring into the square hole in the tongue.
The spring puller tool can be stored when nished. See
gure 11.

7

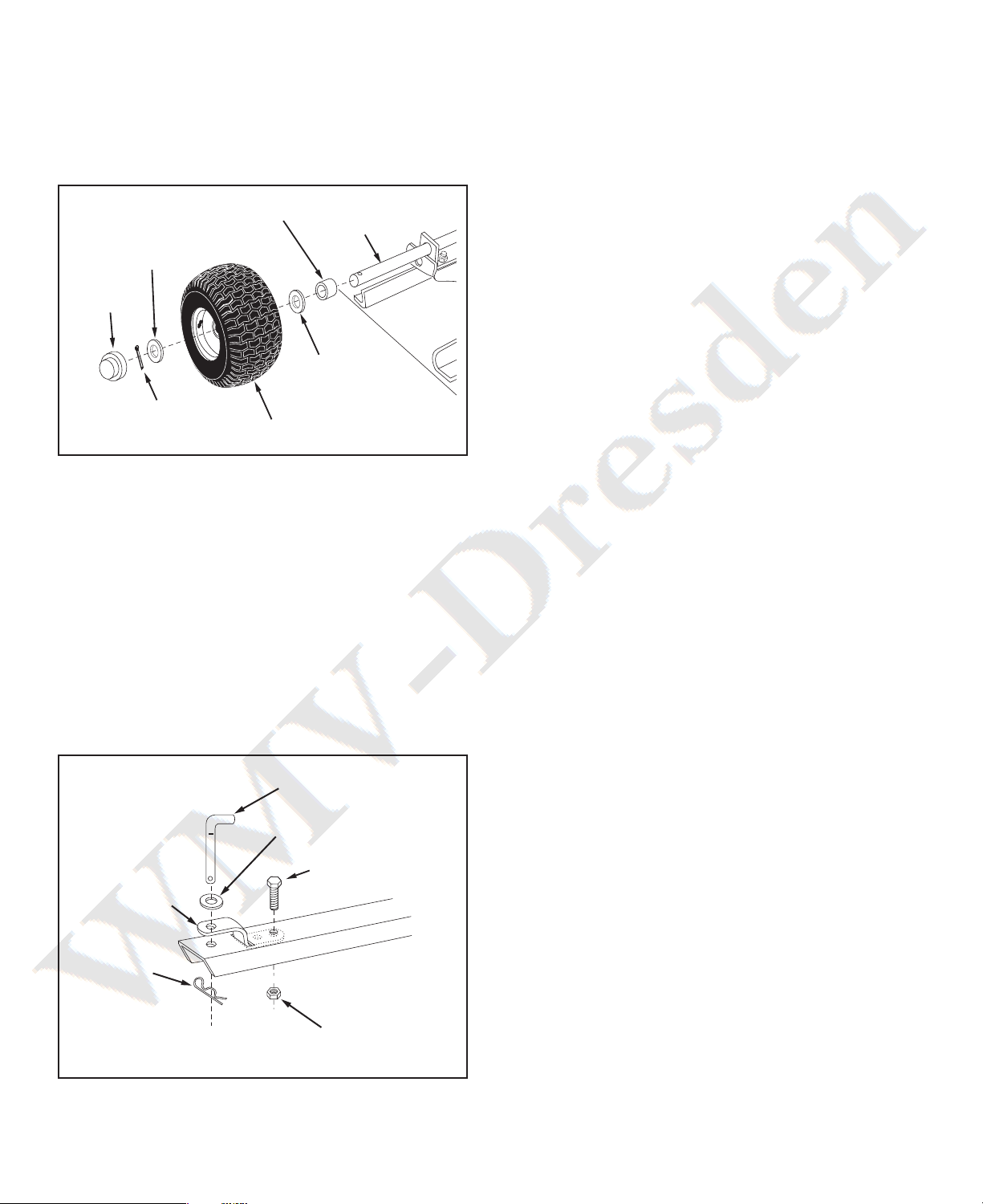

IMPORTANT: Make sure the tongue is securely locked to
the latch stand bracket by the latch lock lever.
21. Turn the cart over so that it rests right side up on its
wheels.
22. Assemble the end of the hitch bracket with two holes
down through the slot at the front of the drawbar tongue.
Fasten it to the tongue using the 3/8" x 1" hex bolt and
3/8" nylock nut. Tighten. See gure 13.
23. Assemble the hitch pin and 1/2" at washer to the tongue
and hitch bracket and secure with the 3/32" hair cotter
pin. See gure 13.
FIGURE 13
24. Place the tailgate down into the tailgate guides so that
the holes in the bottom lip of tailgate t over the slotted
head screws in the bottom of the cart.
3/8" x 1"
HEX BOLT
3/8" NYLOCK
NUT
HITCH
BRACKET
1/8" HAIR
COTTER
PIN
HITCH PIN
1/2" FLAT WASHER
COTTER
PIN
HUB CAP
FLAT
WASHER
FLAT
WASHER
AXLE
SHORT SPACER TUBE
WHEEL
20. Assemble a short spacer tube, a 1" at washer, a wheel
(valve stem facing out), and another 1" at washer onto
the axle. Secure with a cotter pin, spreading the ends
so that a hub cap can t over the pin. Assemble the hub
cap by pressing it onto the at washer. Fill wheel hub with
grease. Repeat on other end of axle. See gure 12.
IMPORTANT: Pump grease into whel hub until grease is
forced out ends of hub.
FIGURE 12

8
OPERATION
CAUTION: VEHICLE BRAKING AND
STABILITY MAY BE AFFECTED WITHTHE
ADDITION OF AN ACCESSORY OR AN
ATTACHMENT.BE AWARE OF CHANGING
CONDITIONS ON SLOPES.
1. Refer to the vehicle owners manual for instructions on
safe operation on slopes.
2. Use the slope guide provided on page 9 of this manual
to determine if slope angle is too steep for safe
operation.
3. For best handling and traction, distribute the weight of
the load evenly in the cart.
4. Always test to make sure your tractor has adequate
towing and braking capabilities whenever hauling a
substantial amount of weight in your cart. Use extra
caution when operating on slopes.
5. To dump material from the cart, remove the tailgate by
lifting it straight up and out from between the guides.
Release the spring latch on the tongue by pulling the
latch lock handle forward, away from the cart. The cart
bed will then tilt backwards to empty its contents. After
emptying, pull the front of the bed down toward the cart
tongue until the latch snaps into place. Replace the
tailgate if desired.
6. The maximum towing speed for this cart is 20 m.p.h.
NOTE
DO NOT EXCEED WEIGHT CAPACITY OF CART
(See the specications on this page for each model)
One cubic foot of dirt weighs approximately 150 lbs.
CAUTION: TO AVOID POSSIBLE
INJURY, BEFORE RELEASING THE
LATCH BE SURE THAT NO ONE IS
NEAR THE CART.
MAINTENANCE
1. At the beginning of each season, using a light machine
oil, lubricate the latch, the latch pivot bolt, and the area
of the axle where the draw bar tongue pivots .
2. At the beginning of each season, grease the wheel
bearings. Apply grease through the grease zerk until
grease if forced out the ends of the wheel hub.
3. Check periodically for loose bolts.
4. Keep tires lled. Do not exceed maximum tire pressure
of 10 Lbs.
SPECIFICATIONS FOR "ATV" DUMP CART
MODEL 45-02175
Tires: 18.0" x 9.5" Pneumatic
Axle: 1.0" Dia. Steel
Capacity: Up to 1700 Lbs. Max.
Approx. Sh. Wt. 195 Lbs.

9
SLOPE GUIDE
(Keep this sheet in a safe place for future reference.)
Use this guide to determine if a slope is safe for the operation of your tractor and cart. Refer also
to the instructions in your vehicle owners manual.
CAUTION: DO NOT OPERATEYOURTRACTOR AND CART ON A SLOPE
IN EXCESS OF 10 DEGREES. BE SURE OFYOURTRACTOR'STOWING AND BRAKING CAPABILITIES BEFORE OPERATING ON A SLOPE. AVOID ANY SUDDEN TURNS OR MANEUVERS WHILE ON A SLOPE.
A POWER POLE
A CORNER OF A BUILDING
OR A FENCE POST
FOLD ALONG DOTTED LINE, REPRESENTING A 10 DEGREE SLOPE
SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

10

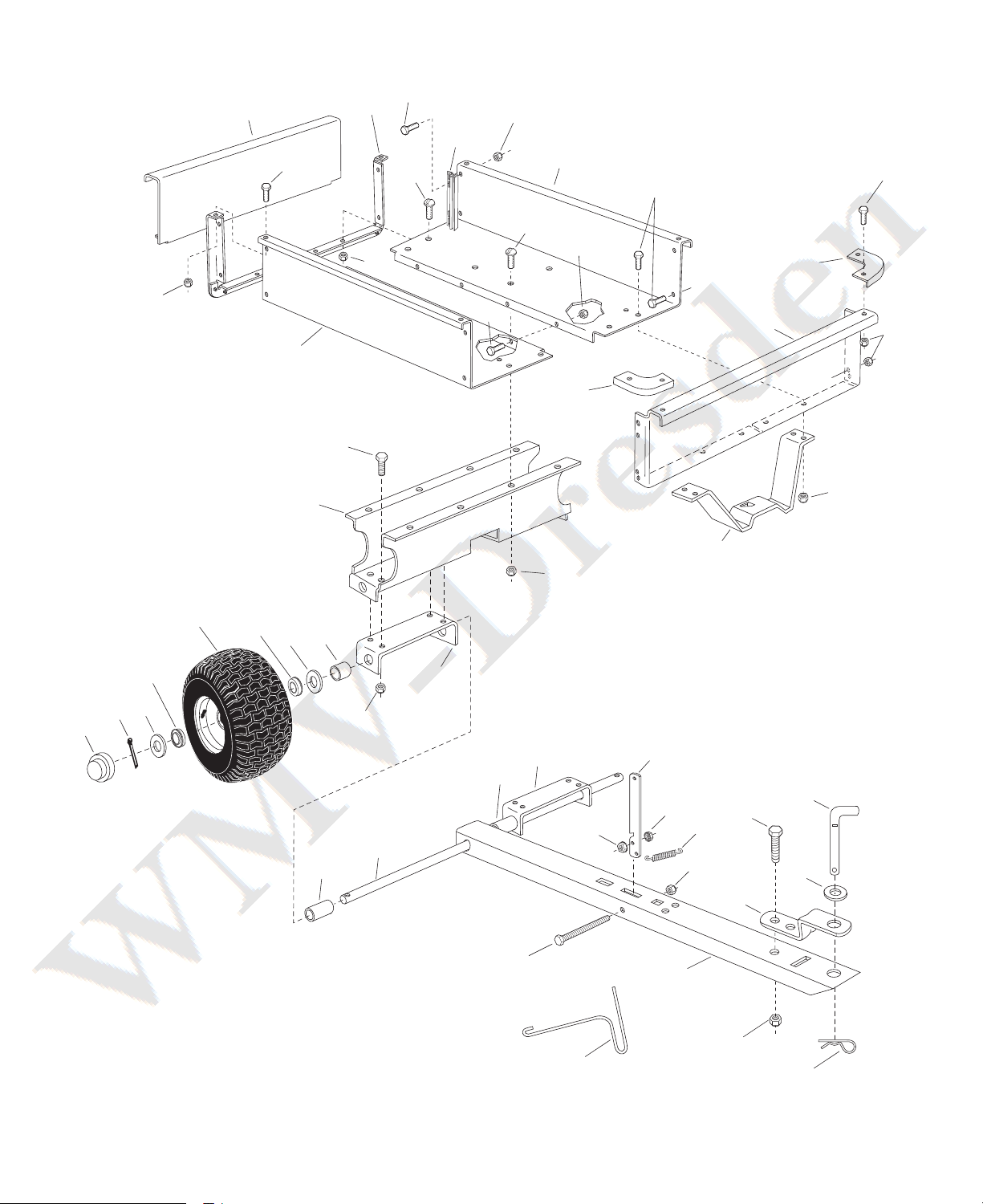

REPAIR PARTS FOR CART MODEL 45-02175
14
16
15
9
6
11
10
29
25
28
17
13
13
25
24
32
30
31
32
33
16 19
8
33
33 22
20
25
27
2
18
18
26
A
23
12
18
23
5
12
A
18
23
7
1
3
23
4
23
26
25
18
1
30
30

REPAIR PARTS LIST FOR CART MODEL 45-02175
* Purchase Common Hardware Locally
REF. PART DESCRIPTION Quantity
NO. NO.
1 23984 Cart Body 2
2 23504 Tailgate 1
3 62457 Tailgate Reinforcement Bracket 1
4 23548 Guide, Tailgate 2
5 23490 Front Panel 1
6 23487 Wheel Support 1
7 24757 Latch Stand Bracket 1
8 24498 Latch Lock Lever 1
9 23014 Hitch Bracket 1
10 24756 Tongue (Draw Bar) 1
11 24462 Axle, Wheel 1" Dia. 1
12 23484 Cap, Front Corner 2
13 23357 Axle Extension Bracket 2
14 48906 Wheel, 18.0" x 9.5" 2
15 43093 Cotter Pin, 1/8" Dia. x 1-1/2" 2
16 43601 Washer, Flat 1.032" 4
17 43014 Hub Cap 2
18 43012 Hex Bolt, 1/4-20 x 3/4" * 24
19 45132 Spacer Tube (Short) 2
20 47407 Hex Bolt, 5/16-18 x 3-3/4" 1
21 43343 Hair Cotter Pin, 3/32" 1
22 47408 Spring 1
23 47189 Nylock Nut, 1/4-20 Thread * 24
24 43182 Hex Bolt, 5/16-18 x 3/4" Lg.* 8
25 47810 Nylock Nut, 5/16" Thread 21
26 43814 Slt. Truss Hd. Bolt, 5/16-18 x 3/4" Lg.* 12
27 47622 Spring Puller Tool 1
28 43001 Hex Bolt, 3/8-16 x 1" Lg. * 1
29 HA21362 Nylock Nut, 3/8-16 Thread * 1
30 65408 Wheel Bearing Kit 2
31 R19171616 Flat Washer, 17/32" x 1" 1
32 43884 Pin, Hitch 1
33 46980 Hex Nut, 5/16-18 (SEMS) 2
40314 Owners Manual 1
the fastest way to purchase parts
www.speedepart.com

12
REPAIR PARTS
303 West Raymond
Sullivan, IL. 61951
217-728-8388
www.agri-fab.com
the fastest way to purchase parts
www.speedepart.com
This document (or manual) is protected under the U.S. Copyright Laws and the copyright laws of foreign countries,
pursuant to the Universal Copyright Convention and the Berne convention. No part of this document may be reproduced
or transmitted in any form or by an means, electronic or mechanical, including photocopying or recording, or by any
information storage or retrieval system, without the express written permission of Agri-Fab, Inc. Unauthorized uses and/or
reproductions of this manual will subject such unauthorized user to civil and criminal penalties as provided by the United
States Copyright Laws.
© 1990 Agri-Fab, Inc.
