Agria 100-R User manual

4242
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 744b 01.10
&
Multi-purpose power hoeMulti-purpose power hoe
Multi-purpose power hoeMulti-purpose power hoe
Multi-purpose power hoe
100-R100-R
100-R100-R
100-R
OriginalOriginal
OriginalOriginal
Original
OperatingOperating
OperatingOperating
Operating
InstructionsInstructions
InstructionsInstructions
Instructions
Honda engine

2agria Multi-Purpose Power Hoe 100-R
Symbols, Name Plate
Please complete:
Machine Type No.........................
Identification No.
...................................................
Engine Type: ............................
Engine No...................................
Date of Purchase: ......................
For name plate, refer to p3/fig.A/8.
For engine type and number, refer to
p3/fig. B/6.
Please state these data when orde-
ring spare parts to avoid wrong deli-
veries.
Only use original agria spare parts!
Specifications, figures and dimensi-
ons stated in these instructions are
notbinding.Noclaimscanbederived
from them. We reserve the right for
improvements without changing the-
se instructions.
Amount of delivery:
l Operating instructions
l Powerhoe/multi-purpose machine
l Standard hoeing tools 50 cm
l Mounted guard 50 cm
l Depth bar
l Tool kit
l Handlebar with tool kit
and knob screw

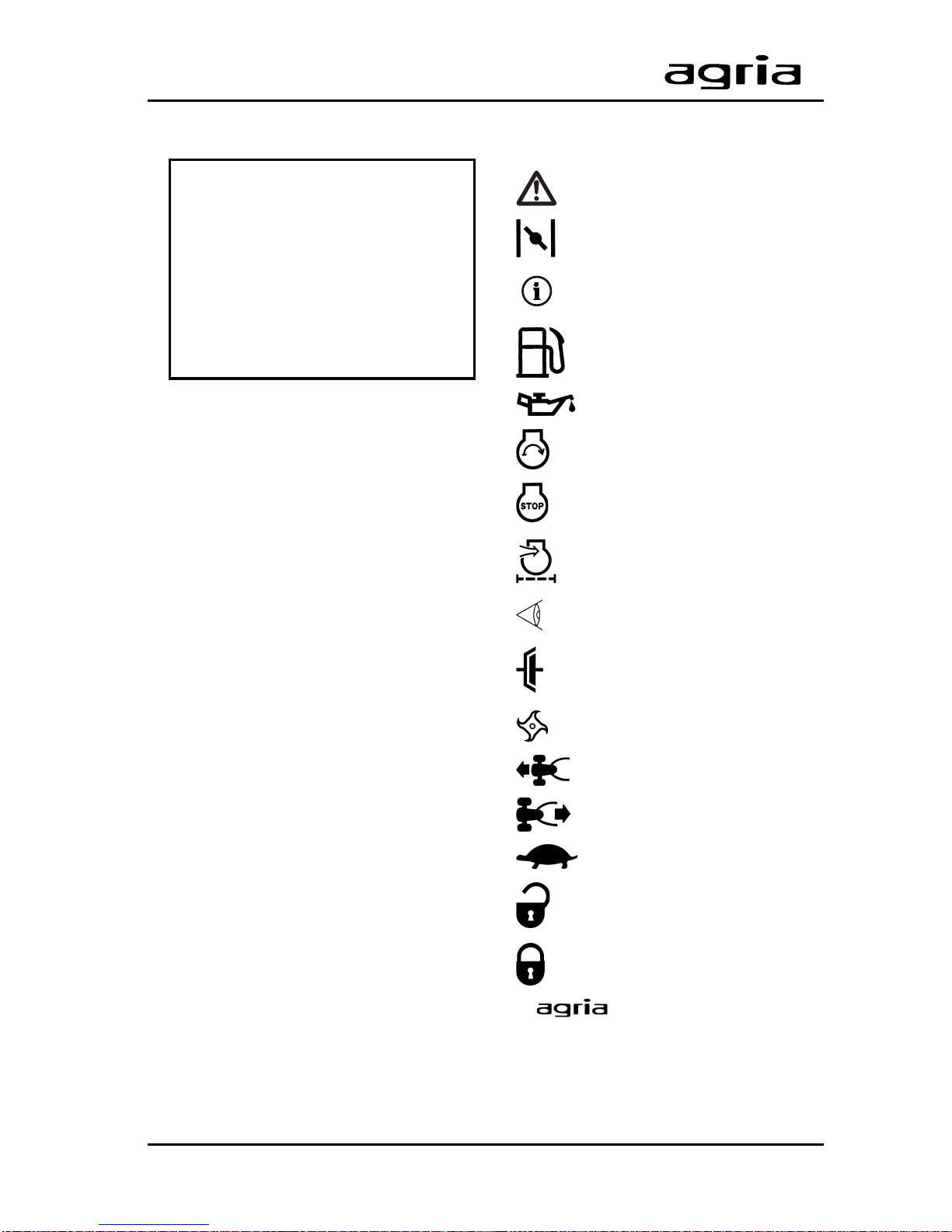

Symbols
Warning – Danger
Choke
Important information
Fuel
Oil
Engine Start
Engine Stop
Air filter
Visual check
Clutch
Hoeing drive
Forward
Reverse
Slow
Open
Closed
è- Serviceç= please
contact your specialised agria works-
hop

agria Multi-Purpose Power Hoe 100-R 3
Designation of Parts
A
B

4agria Multi-Purpose Power Hoe 100-R
Designation of Parts
Figure A
1Handlebar
2 Tool kit
3Steering bar
4Engine
5 Weight holder/engine guard
6Gear shift lever
8Name plate (machine identification number)
9 Transmission oil control plug
10 Name plate for trailer linkage
11 Guard
12 Guard discs
13 Hoeing tools, left side
14 Hoeing tools, right side
15 Gearbox housing cap / transmission oil drain plug, filling opening
16 R-clip for depth bar
17 Hitch
18 Depth bar
19 V-belt guard
20 Attachment nut of belt guard
Figure B
1Air filter
2Carburetor
3Fuel tank cap
4Fuel tank
5Choke lever
6Engine type number
7Starter handle
8Cooling-air screen
9Exhaust with guard
10 Spark plug, spark plug connector
11 Engine oil plug (also filling and control opening)
12 Engine oil drain plug
13 Fuel tap

agria Multi-Purpose Power Hoe 100-R 5
Index
3
5
6
2
1
4
Amount of delivery............................ 2
Symbols, Name Plate ....................... 2
Designation of Parts .......... 3, 50
Recommendations
Lubricants, Anti-Corrosive Agents.... 6
Fuel ................................................... 6
Maintenance and Repair .................. 6
Unpacking and Assembly ....... 7
1. Safety Instructions......... 8–12
2. Specifications

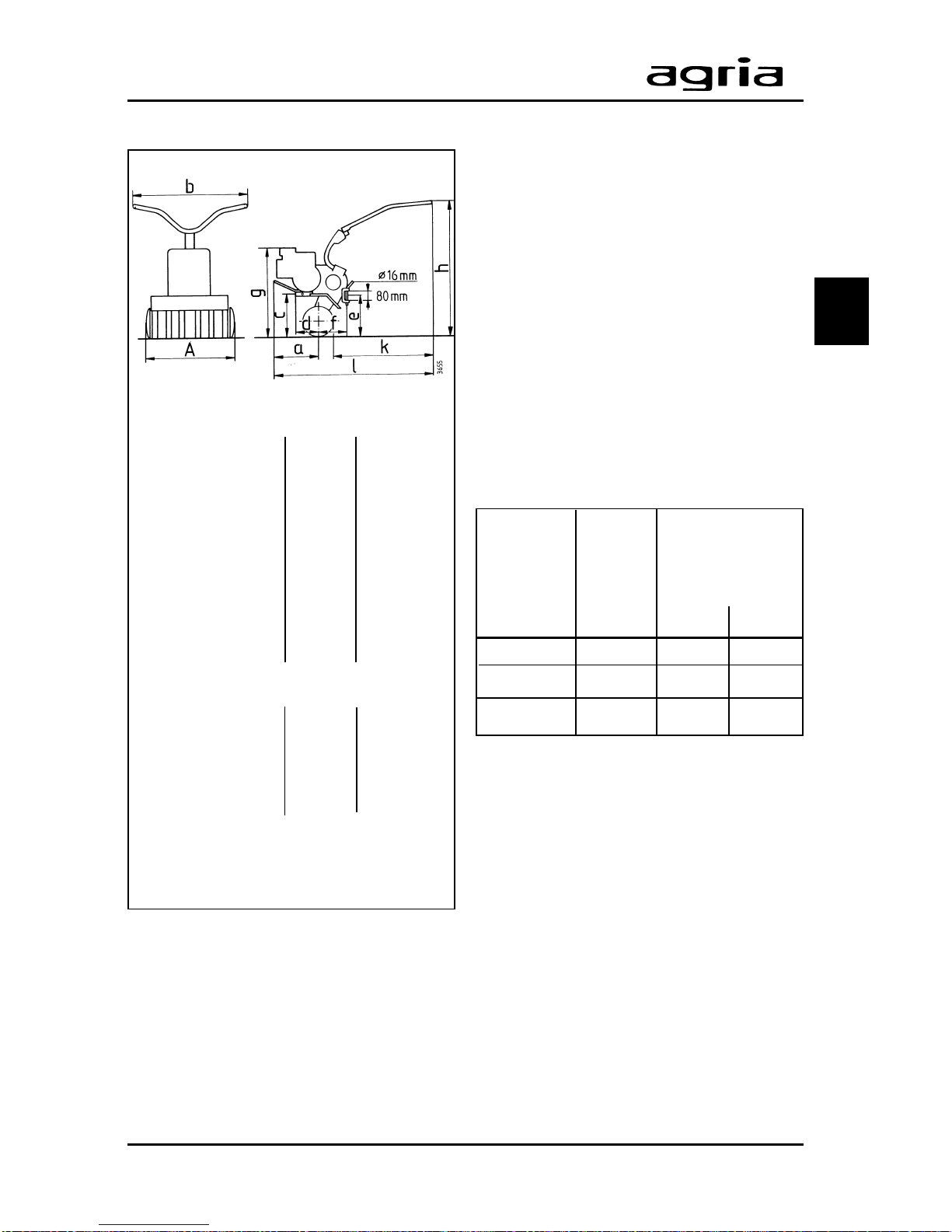

Dimensions ..................................... 13
Power Hoe ...................................... 13
Noise Level ..................................... 13
Vibration Acceleration Value........... 13
Engine............................................. 14
Operation on Slopes....................... 14
3. Devices and Operating
Elements
Engine............................................. 15
Safety circuit Function .................... 17
Clutch.............................................. 18
Gearshifting .................................... 18
Steering Handle .............................. 19
Hoeing Tools ................................... 20
Depth Bar........................................ 21
Support Wheel ................................ 21
Ridger ............................................. 22
Drive Wheels................................... 23
Differential Hub ............................... 24
Wheel Weight.................................. 24
Attachments.................................... 25
Coupling device .............................. 26
Front Weight.................................... 26
4. Commissioning and
Operation
Commissioning the Machine .......... 27
Starting the Engine ......................... 28
Shutting off the Engine ................... 29
Hoeing............................................. 30
Operation ........................................ 31
End of Operation............................. 32
5. Maintenance
Engine............................................. 33
Air Filter .......................................... 34
Fuel System.................................... 35
Air Cooling System ......................... 36
Spark Plug ...................................... 36
Governor ......................................... 36
Exhaust Pipe .................................. 37
Engine Speed Actuation ................. 37
Carburetor Setting .......................... 37
Machine .......................................... 38
Clutch Free Play............................. 39
Safety circuit ................................... 39
V-belt............................................... 40
Drive Wheels................................... 41
General ........................................... 41
Cleaning.......................................... 41
Storage ........................................... 42
6.Troubleshooting and
Remedies ...........................44-45
Electric Wiring Diagram ............... 46
Lubrication Chart.......................... 46
Varnishes and Wear Parts ............ 47
Inspection and
Maintenance Chart....................... 48
Declaration Conformity ................ 51
Note fold-out pages!
Figs. A and B ............................ 3
Fig. C ....................................... 50

6agria Multi-Purpose Power Hoe 100-R
Recommendations
Lubricants and
Anti-Corrosive Agents:
Use the lubricants specified for engine
and gearbox (see “Specifications”).
We recommend using Bio-lubricating
oil orBio-lubricating grease for“open”
lubrication points or nipples (as speci-
fied in the operating instructions).
We recommend using Bio-slushing oil
to preserve machines and attachments
(do not apply on painted covers). You
can brush or spray the oil.
Anti-corrosive agents are environment-
ally friendly and degrade fast.
Using ecologically safe Bio-lubricants
and Bio-anti-corrosives, you contribute
to environmental protection and to the
wellbeing of humans, animals and
plants.
Fuel
This engine runs smoothly on conven-
tional unleaded regular and super-
grade petrol as well as on leaded
supergrade petrol.
Do not add oil to petrol.
If, for environmental reasons, you use
unleaded petrol, make sure the fuel is
drainedcompletelywhenshuttingdown
the engine for more than 30 days.This
is to prevent resin residue from depo-
siting in the caburetor, fuel filter, and
tank.Or add a fuel stabilizer to the fuel.
For further instructions refer to „Engine
Preservation“.
Maintenance and Repair:
The trained mechanics of your agria
workshopexpertly carryoutanymainte-
nance and repair work.
Only carry out major maintenance work
and repairs on your own, if you have the
proper tools and knowledge of machi-
nes and internal combustion engines.
Donot hammeragainstthe flywheelwith
a hard object or metal tools as it might
crack and shatter in operation, causing
injuries and damage.Only use suitable
tools to pull off the flywheel.

agria Multi-Purpose Power Hoe 100-R 7

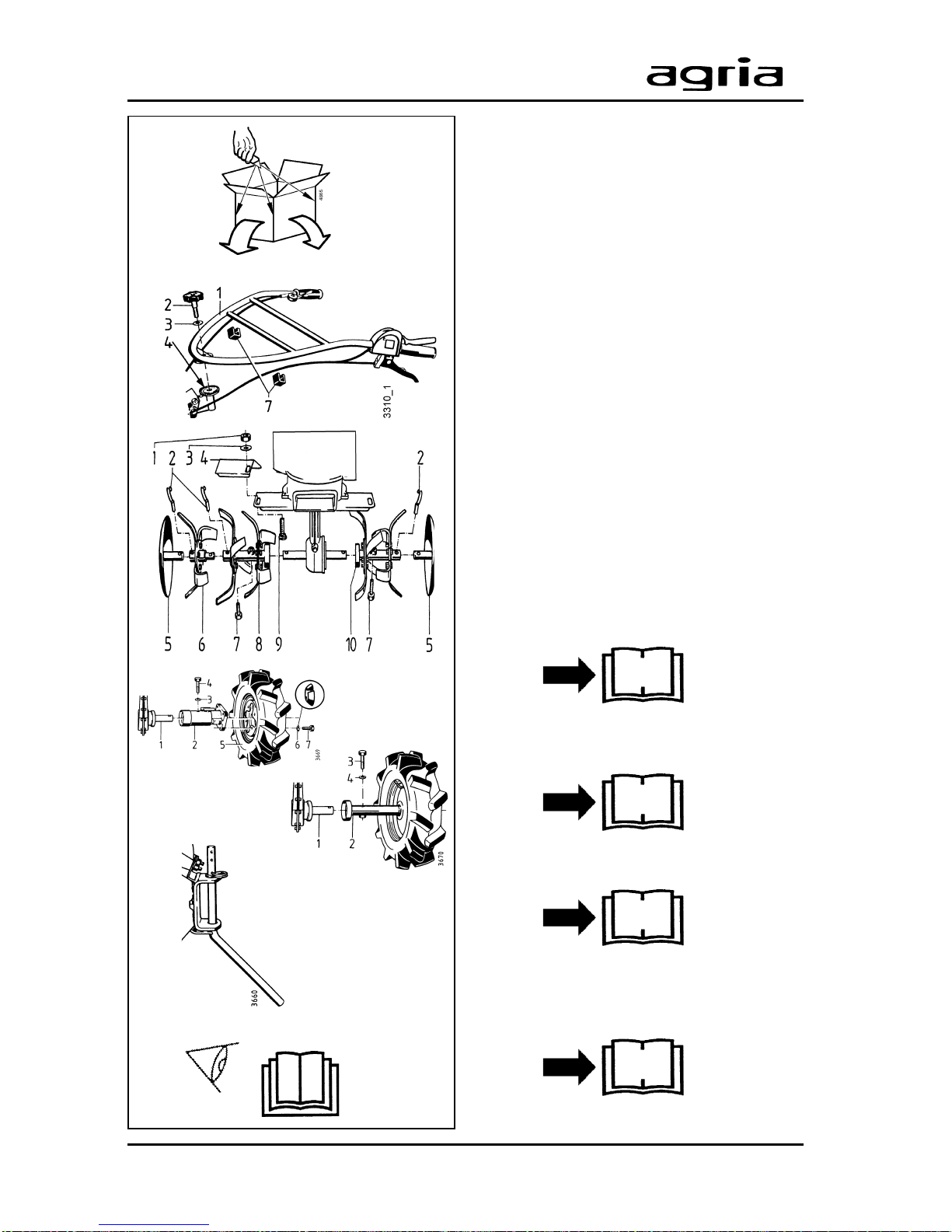

Unpacking and Assembly
 Open the top of the cardboard box.
Mount handlebar
Remove screw (2) together with was-
her (3).
l Placethetoothedring(4)ofthestee-
ring handle (1) onto the toothed ring of
the steering bar joint. Insert screw (2)
together with washer (3) from the top
and tighten it. Make sure that Bowden
cables and electric cables are routed in
such a way that they do not get squee-
zed or damaged.
l Attach all cables and electric lines to
the handlebars using the retaining clips
(7).
Take the machine out of the box or cut
the box open on all 4 corners and fold
down the sides to remove the machine.
Fit the hoeing tools and hoeing
guards
or
l Fit the drive wheels
Mount the depth bar
Carry out all steps for starting-up
20
23-24
27
21






8agria Multi-Purpose Power Hoe 100-R
1. Safety Instructions
1
Before starting the machine, read the
operating instructions and note:
Warning
This symbol marks all paragraphs in
theseoperating instructions which affect
your safety.Pass all safety instructions
on to other users and operators.
Due Use
Themulti-purposepowerhoe is a hand-
controlled automatic single-axle ma-
chine which can power and/or pull vari-
ous implements approved by the man-
ufacturer.Propulsion is achieved using
the hoe tools approved by the manufac-
turer. The multi-purpose power hoe is
intended for use in turning over the
ground and for snow clearance in land-
scape gardening (including the leisure
sector).The area to be covered must be
in line with the usual size of such areas
in landscape gardening. (Due use)
Any other type of operation is consid-
ered undue.The manufacturer is not li-
able for any damages resulting from
undue use, for which the risk lies with
the user alone.
When the multi-purpose power hoe is
used on public roads, the local national
road traffic rules must be observed, e.g.
reflectors, lights.
The multi-purpose power hoe is not in-
tended for use on such areas as vary
stonyorrockygroundor as atree-stump
milling machine.
Dueuseincludescompliancewithman-
ufacturer’s instructions on operation,
maintenance and repair.
Any unauthorized changes to the multi-
purpose power hoe render manufactur-
er liability null and void.
General Instructions on
Safety and Accident
Prevention
Basic Rule:
Therespectivenationalaccidentpreven-
tion regulations have to be adhered to,
as well as all other generally accepted
rules governing operational safety, oc-
cupational health and road traffic regu-
lations.
When driving on public roads, you have
to observe the current traffic code.
Accordingly, check the multi-purpose
machine for road and operational safe-
ty each time you take up operation.
Only persons familiar with the machine
and instructed on the hazards of opera-
tion are allowed to use, maintain and
repair the machine.
Teenagers younger than 16 years are
not allowed to operate the machine!
Only work in good light and visibility.
Operator’s clothes should fit tight.Avoid
wearing loose fitting clothes.Wear solid
shoes.
Note the warning and instruction signs
onthemachineforsafeoperation.Com-
pliance is for your own safety.
When transporting the machine on ve-
hicles or trailers outside the area to be
cultivated, ensure that the engine is
turned off.
Careful with rotating tools – keep at a
safe distance!
Beware of coasting tools.Before you
startanymaintenanceor repaironthem,
waituntiltools havecome to a complete
stop.
Foreign poweredpartsshear and crush!

agria Multi-Purpose Power Hoe 100-R 9
1. Safety Instructions
1
Riding on the attachment during opera-
tion is not permitted.
Mounted or trailed attachments and
loads/weights affect the machine’s driv-
ing, steering, braking, and tipping char-
acteristics.Therefore,ensurethatsteer-
ing and braking functions are sufficient.
Match operating speed to conditions.
Donot changesettingsofgovernor.High
engine speed increases risk of acci-
dents.
Working Area and Dangerous Area
The user is liable to third parties stay-
ing within the machine’s working range.
Staying in the hazardous area is not
permitted.
Check the immediate surroundings of
the machine before you start it. Watch
out for children and animals.
Before you start work, clear the area
from any foreign object. During opera-
tion,alwayswatch out forfurtherobjects
and remove them in time.
For operationinenclosedareas,ensure
that a safety distance is kept to enclo-
sures to prevent damage to tools.
Operation and
Safety Devices
Before you start the engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all protective devices are
mounted and positioned to provide pro-
tection.
With no attachment mounted, make
sure PTO-shaft is covered with the cap.
Starting the engine
Donot startenginein closed rooms.The
carbon monoxide contained in the ex-
haust fume is extremely toxic when in-
haled.
Before you start the engine, move all
controls to neutral or idling speed.
When starting the engine, do not step in
frontof themachineandtheattachment.
Do not use assist-starting liquids when
using electrical assist-starting devices
(jumper cable). Danger of explosion!
Operation
Neverleavethe operator’spositionatthe
steering handle while the machine is at
work.
Never adjust the handles during work –
danger!
During operation keep a distance to the
machine as defined by the length of the
steeringhandle,especiallynotwhen you
turn the machine.
Riding on the attachment during opera-
tion or in transport is not permitted.
In case of blockages in the attachment,
turnofftheengineandcleantheattach-
ment with an appropriate tool.
In case of damage to the machine or
theattachment,immediatelyturnoff the
engine and have it repaired.
Ifsteeringcauses problems, immediate-
ly bring the machine to a halt and turn it
off.Have the malfunction repaired with-
out delay.
To preventthemachinefromslippingon
slopes make sure it is secured by an-
other person using a bar or a rope.This

10 agria Multi-Purpose Power Hoe 100-R
1. Safety Instructions
1
person must be located at a higher po-
sitionthan the vehicleat asafe distance
from the attachment at work.
Ifpossible,alwayswork diagonallytothe
slope.
End of Operation
Never leave the machine unattended
with the engine running.
Before you leave the machine, turn off
the engine.Then close fuel taps.
Secure machine against unauthorized
use.If the machine is equipped with an
ignition key, remove the key. On other
versions,removethe sparkplugconnec-
tor.
Attachments
Onlymount attachments withtheengine
and PTO switched off.
Always use appropriate tools and wear
gloves when changing attachments and
parts thereof.
For mounting and dismounting attach-
ments bring the stands into proper po-
sition and ensure stability.
Secure the basic machine and attach-
ments against rolling off (parking brake,
wheel chocks).
Beware of injuries while couplingattach-
ments.
Linkage attachments as specified and
only couple at specified points.
Secure basic machine and attachment
against unauthorized use and rolling off
when you leave the machine.If neces-
sary, install transport or protective de-
vices and secure.
Hoeing
Adjust the hoeing guards in such a way
thatonlythetoolpenetratingthe soil are
not covered.
When hoeing, make sure the depth bar
is adjusted properly.
Weigths
Always fit weights properly and at spec-
ified points.
Maintenance
Do not maintain or clean the machine
while the engine is running.
Before you work on the engine, always
remove the spark plug connector.
Check regularly and, if necessary, re-
place all guards and tools subject to
wear and tear.
Replace damaged cutting tools.
Alwayswearsafetyglovesanduse prop-
er tools when exchanging cutting tools.
Do not carry out repairs like welding,
grinding, drilling, etc. on structural and
safety parts (e.g. coupling devices)!
Keep the basic machine and the attach-
ment clean to avoid risk of fire.
Check nuts and bolts regularly for tight
fit and re-tighten, if necessary.
Ensurethat youre-install allguards and
adjust them properly after maintenance
and cleaning.
Only use original agria spare parts.All
other commercial spare parts must cor-
respondtoquality and technicalrequire-
ments specified by agria.

agria Multi-Purpose Power Hoe 100-R 11
1. Safety Instructions
1
Storage
It is not allowed to store the machine in
rooms with open heating.
Never parkthe machineinclosedrooms
with fuel left in tank. Fuel vapours are
hazardous.
Engine,Fuel, and Oil
Neverlettheengine run inclosedrooms.
Extreme danger of intoxication! For the
same reason, also replace damaged
exhaust pipes immediately.
Becarefulwhendealingwithfuel.Great
danger of fire! Never refill fuel close to
open fire, inflammable sparks or hot
engine parts.Do not refill fuel in closed
rooms.Do not smoke when refilling!
Refill only with the engine switched off
and cooled down.
Do not spill any fuel, use a proper filling
device.
In case of fuel-spillage, pull the multi-
purpose machine away from the spill-
age before you start the engine.
Make sure fuel is of specified quality.
Store fuel in approved cans only.
Store anti-corrosive agents and stabi-
lizing liquids out of reach of children. If
sicknessand vomitingoccur,seeadoc-
tor.If the fuel has contacted eyes, rinse
them thoroughly, avoid inhaling of va-
pours.
Read and observe enclosed instruc-
tions.
Before you dispose of opened and
seemingly empty pressurised tins (e.g.
ofassist-starting liquids) makesure they
are completely empty.Empty them in
ventilated places safefromspark forma-
tion or flames.If necessary, dispose of
tins in hazardous waste deposits.
Be careful when draining hot oil, dan-
ger of burns.
Make sure oil used is of specified qual-
ity.Storage is in approved cans only.
Disposeof oil,greases,andfiltersseper-
ately and properly.
Tyres andTyre Air
Pressure
When working on the tyres, make sure
the multi-purpose machine is parked
properly and secured against rolling off.
Any repairs are to be carried out by
trained mechanics only and with the
appropriate tools.
Regularlycheck airpressureinthetyres.
Excessive pressure may cause bursts.
When adding weight, make sure the air
pressure in the tyres is correct.
Re-tighten attachment bolts or nuts of
drive-wheels or check torques when
doing maintenance work.

12 agria Multi-Purpose Power Hoe 100-R
1. Safety Instructions
1
Electrical System and
Battery
When working on the electrical system,
make sure the battery is disconnected
(negative terminal) (if equipped).
Make sure to connect the battery prop-
erly – first connect the positive terminal
and then negative terminal. Disconnect
in reverse order.
Be careful with battery gases – explo-
sive!
Avoid spark discharge and open flames
near batteries.
Remove plastic cover (if equipped) to
recharge battery and to prevent highly
explosive gases from building up.
Careful when handling battery fluid!
Onlyuse specified circuit breakers.Ifthe
circuit breakers are too strong, they will
destroy the electrical system – danger
of fire.
Always cover the positive terminal with
the specified cover or terminal cap.
Persons having a pacemaker may not
touch live parts of the ignition system
when the engine is running.
Explanation of
Warning Signs
Before any cleaning,
maintenance,and re-
pair work switch off
the engine and pull
sparkplugconnector.
With the engine run-
ning, keep at a safe
distance from cutting
or hoeing tools.
Do not work without
guards mounted. Be-
fore starting the en-
gine, bring guards in
proper position.
With the engine run-
ning, keep at a safe
distance from knife.
Do not touch any
moving machinery
parts. Wait until they
have come to a com-
plete stop.
With the engine run-
ning, keep at a safe
distance.
SignsWhen working with the machi-
ne, wear individual protective
ear plugs.
Wear protective gloves.
Wear solid shoes.

agria Multi-Purpose Power Hoe 100-R 13
2. Specifications
2
Machine dimensions:
All dimensions in mm
.............. 4.00-8 5.0-10.........tools
a.................420 .....420.......... 420
b.................630 .....630.......... 630
c..................400 .....440.......... 330
d.................150 .....150.......... 150
e.................390 .....440.......... 320
f..................250 .....250.......... 250
g.................730 .....800.......... 840
h.......................860–1080
k..................590 .....550.......... 660
l.................1200 .. 1200........ 1200
A.................435 .....670 500–700)1
A............. 635 )2
)1= incl. guard discs
)2= incl. differential hubs
Power hoe
Tyres (accessory):
4.00-8.......................rough tread tyres
5.0-10.................................... field tyre
Tyre pressure:
4.00-8........................................ 1.0bar
5.0-10........................................ 1.2bar
Clutch:
V-belt clutches with idler pulleys posi-
tioned between engine and gearbox
Only use original agria spare parts!
(see list of wear parts on p51)
Gearbox:
3-speed mechanical gearbox
2 forward speeds and 1 reverse speed
Hoeing and wheel shaft are roller
chain driven via the gearbox.
For ground speeds see table below
Transmission oil ....... SAE 90-API GL5
Filling quantity...................approx. 0.9l
Steering handle:........height and side
adjustable
Weight: ......................... approx. 51 kg
Noise level:
Noise level at operator’s ear ... 83 dBA
(in accordance with EN 709 and EN
1553)
Vibration acceleration value:
on handlebar:.............. ahw = <2.5 m/s2
inaccordancewithISO 5349 standard at85%
of rated engine speed with tool at work.
Gear Speed Ground speed
[ rpm][km/h]
Tools Tyres
ndw 4.00-8 5.0-10
I38 3.0 3.6
II 124 9.9 11.7
R28 2.2 2.6

14 agria Multi-Purpose Power Hoe 100-R
2. Specifications
2
Engine
Manufacturer: ..........................Honda
Engine type: ........... GX 160 K1 QPU
Version: ....................... Fan-air cooled
1-cylinder, 4-stroke
petrol ohv engine
Bore:........................................ 68 mm
Stroke:..................................... 45 mm
Cubic capacity: ................... 163 ccm
Compression ratio: ................. 8.5 : 1
Output: .................................... 4.0 kW
at 3,600 rpm
Max. torque: ..........................10.8 Nm
at 2,500 rpm
Spark plug: ................ NGK BPR6 ES
Spark plug gap: ............... 0.7–0.8 mm
Ignition system:
Contactless solenoid ignition, ignition
point is pre-set, radio remote screened
according to VDE 0879
Valve lash (engine cold):
Intake: ............... 0.15 mm ±- 0.02 mm
Outlet: ................0.20 mm ± 0.02 mm
Starter:
Soft-pull recoil starter with mechanical
decompression facility
Fuel tank capacity: .................... 3.6 l
Fuel:..... Commercially available petrol
octane number min. 85 RON
(refer to fuel recommendations)
Air filter: .................. Dry element filter
with foamed preliminary filter
Carburetor: ...........Throttle valve type
Mixture control screw:
opened approx. 2 1/8 turns in base
setting
Rated speed: ...................... 3600 rpm
Top no-load speed: ............3850 rpm
Idling speed:.............1250–1600 rpm
Engine oil:
Filling quantity..................approx. 0.6 l
Multi-grade oil SAE 10 W-40
SG, SF or higher quality grade
Operability on Slopes:
max ................................. > 20° (44%)
(with oil level at “max“”= upper level
mark)

agria Multi-Purpose Power Hoe 100-R 15
3. Devices and Operating Elements
3
The agria power hoe/multi-purpose
machinetype 100-Risa machine forsoil
cultivation and issuitableforattachment
operation.Thefollowingattachments are
available:
l Hoeing and ridging attachment
l Ploughs
l Snow dozer
Engine
The 4-stroke engine runs on conventio-
nalpetrol(seefuel recommendations of
p6). During the first 20 operating hours
(break-in period) do not run the engine
at top speeds.Even after break-in pe-
riod neveruse engine at a higher speed
than is necessary for the job in hand.
IHigh engine speed is harm-
ful to any engine and con-
siderably affects its durability. This
applies especially for no load opera-
tion. Any overspeed (have the engi-
ne roar) can result in immediate da-
mage.
Cooling
The engine is fan-cooled.
Therefore, keep the grille at the recoil
starter and the cooling fins of the cylin-
der clean and free from dirt and suk-
ked-in plant trash.
Idling speed
Always ensure that idling-speed is ad-
justed correctly.
At low speeds and with the speed con-
trol lever set to the stop in neutral, the
engineissupposedtorun smoothly and
without run-out.
Air Filter
The air filter purifies the air intake. A
clogged filter reduces engine output.
Ignition System
The engine is equipped with a mainte-
nance-free, contactless electronic igni-
tionsystem.Werecommendtohavethe
necessarycheck-upsdonebyanexpert
only.

16 agria Multi-Purpose Power Hoe 100-R
3
3. Devices and Operating Elements
Choke
The choke lever (B/5) is on the carbure-
tor.
l Close the chokefor cold starts:move
the lever to the left.
l Open the choke for warm starts and
operation: move the lever to the right.
Fuel tap
The fuel tap (B/13) is on the carburetor.
l Move the tap to the right to open it.
l Move the tap to the left to close it.

agria Multi-Purpose Power Hoe 100-R 17
3. Devices and Operating Elements

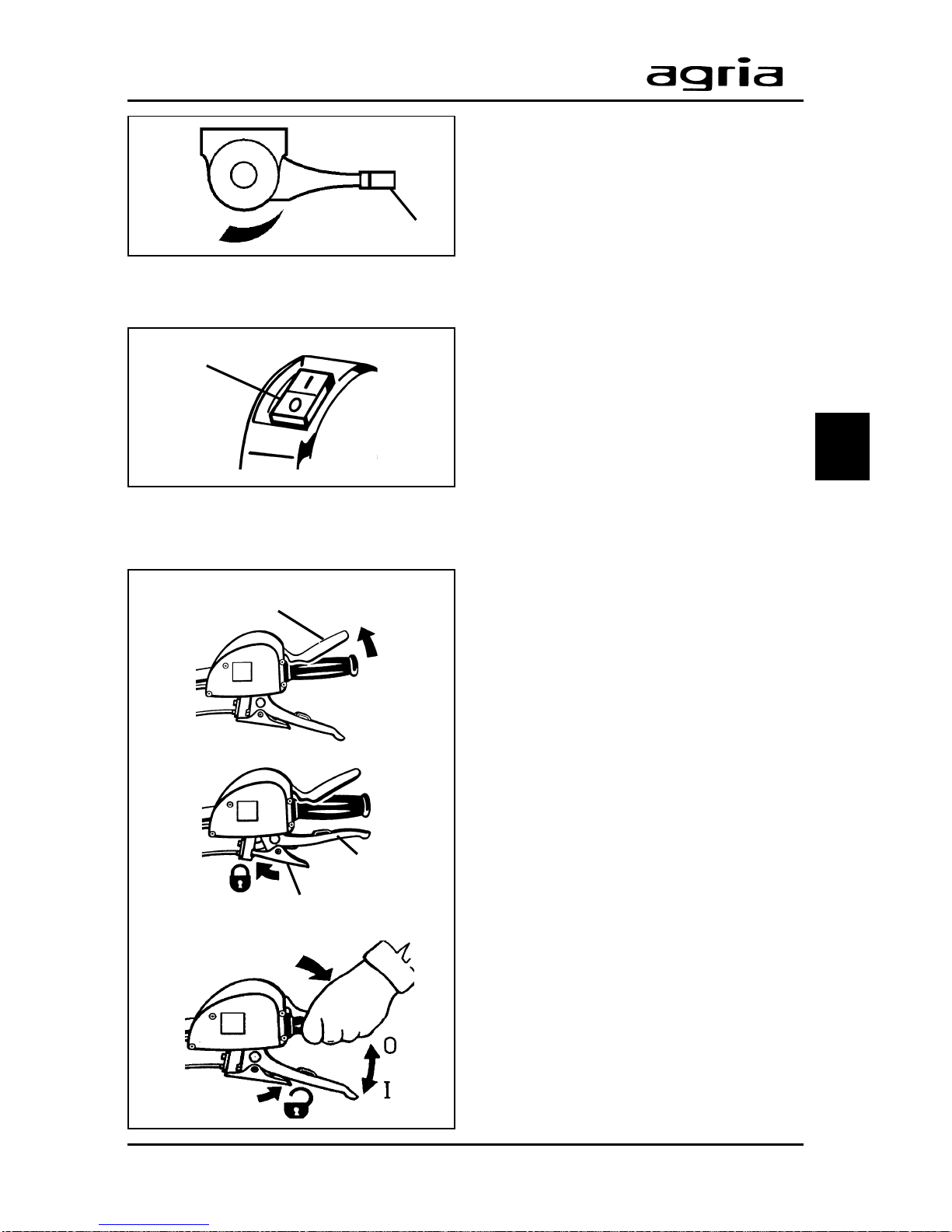

Speed Control Lever
The speed control lever (C/7) on the
steering handle is for stepless setting
ofenginespeedfrommin.=idletomax.
= full throttle.
Engine Shut-off Switch
The machine is equipped with an elec-
tricshut-offswitch (C/3).Onpressingthe
switch, the ignition is turned off (engine
is shut off).
Position "I" = Operation
Position "0" = Engine off
IThe engine shut-off switch also
serves as an emergency
shut-off.Set the switch to “0” for fast
shut-off.
Safety circuit
The machine is equipped with a safety
circuit lever.
Stop position: When releasing the
lever (C/4), the ignition system is shut
off (engine is off).
Beware – engine keeps running due to
centrifugal mass.
Start position: For starting the en-
gineandfor short breaks,pull the clutch
lever (C/5) and fasten with pawl.
Operating position: To operate the
machine press safety circuit lever (C/4)
down.
W
Do not tie down safety circuit lever.
IThe safety circuit lever also
serves as an emergency
shut-off.In an emergency, move the
lever to position “STOP” to shut off the
enginefast.Theleverautomaticallygoes
to STOP position.
C/3
C/4
C/5
Stop



max min
C/6
C/7
3

18 agria Multi-Purpose Power Hoe 100-R
3
3. Devices and Operating Elements

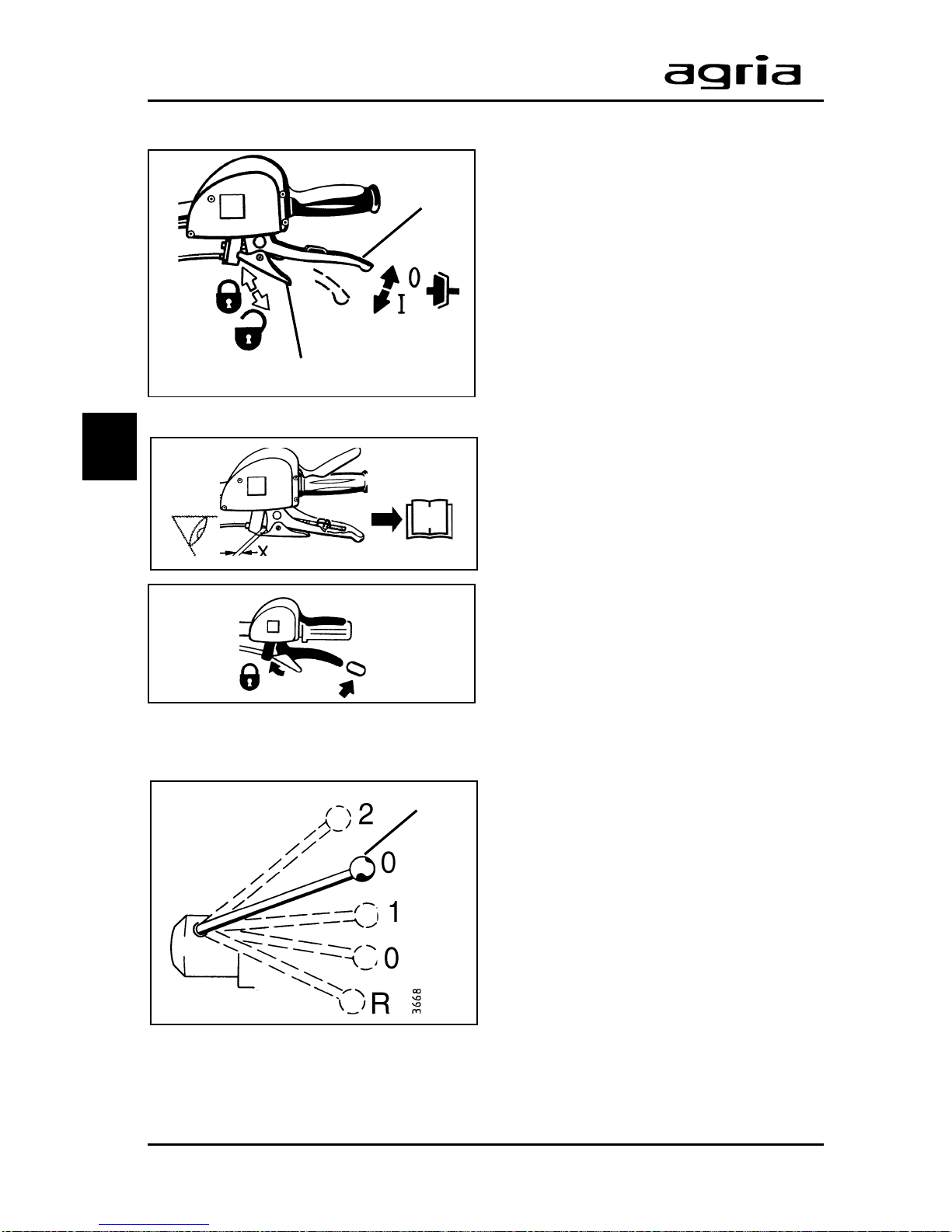

Clutch
The machine is equipped with a V-belt
clutch which is actuated via the clutch
lever (C/5).
With clutch levers pulled, the machine
is decoupled and the engine does not
drive the power hoe.
Whenthe machineisdecoupled youcan
lock the clutch lever with pawl (C/6).
To prevent the clutch from slipping du-
ring operation the lever is set to a free
play (see service and maintenance).
INote: Always park the machine
with the clutch lever pulled
(“0” – pawl locked in place). Otherwise
clutch problems may result due to dis-
tortion of the V-belt.
Gearshifting
Gears R, 1 and 2 are shifted with lever
(A/6).
There is a neutral position “0” between
the individual speeds.
C/5
39
C/6
C/6

agria Multi-Purpose Power Hoe 100-R 19
3. Devices and Operating Elements
Steering Handle
Steering handle height adjustment
l Unscrew hex bolt (2) from the rec-
tangular clamping piece (3) and remo-
ve it from steering bar joint.
l Adjustthe steering handletothe desi-
red height and fit it into the proper hole
of the joint.
l Insert hex bolt and tighten it with the
rectangularclamping piece.(Ensurethat
the tang of the clamping piece (3) locks
into the elongated hole on the bottom
part of the joint).
Steering handle side adjustment
l Loosen knob screw (1) until all not-
ches are out of mesh.
l Swingthe steeringhandleto thedesi-
red height and fit it into proper toothing.
l Re-tighten knob screw.
G
H
3

20 agria Multi-Purpose Power Hoe 100-R
3
3. Devices and Operating Elements

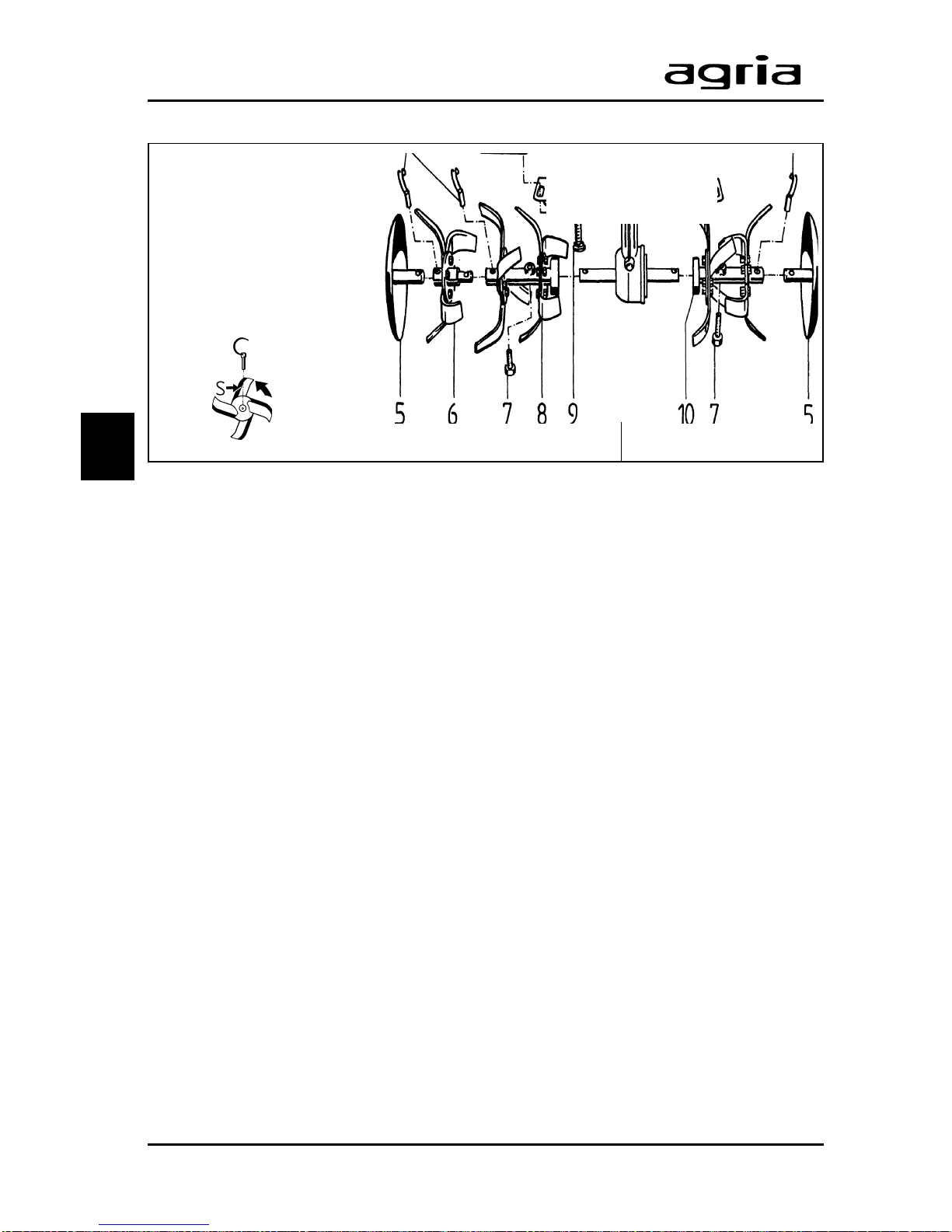

Hoeing tools
Working width:
Base hoeing tools
approx. ...................................... 45 cm
Base and add-on hoeing tools approx.
65 cm
Fitting the hoeing tools
WOnlyfit/remove the hoeingtools
while the engine is shut off and
the spark-plug connector is removed!
Wear safety gloves!
50 cm hoeing width including guard discs
l Fit the hoeing tools (8 and 10) onto
both ends of the hoeing shaft. Ensure
that the cutting edges point into travel
direction.Whenfittingthe secondhoeing
tool (left or right), ensure the blades fa-
cing towards the housing are fitted in a
staggered way to the blades on the op-
posite end of the shaft. Do not align the
blades on respective shaft ends paral-
lel to each other.
l Attachthehoeingtoolswith hexbolts
(7), pushing the bolts through the holes
on hub and shaft.
70 cm hoeing width including guard discs
l Fit the base hoeing tools in the same
way as described in 50 cm working
width.
l Fit add-on hoeing tools (accessory
no.1008 111) (6) into the hubs of the
base hoeing tools.
l Attach the tools with linch pin (2)
through hub and shaft hole.
l Attachthe extensionguards(4)using
the attachment bolts (9, 3 +1).
Guard discs
The discs are to prevent shrubs and
bushes from being damaged by the hoe
and to protect young plants from being
covered with soil. In addition, they offer
protection for the operator when hoeing
along headlands or fences.
l Fit the guard discs (5) in the outer
hubs of the hoeing tools.
l Insert R-clips (2) in hub/shaft holes
to secure them.
Hoeing width e.g. 50 cmHoeing width e.g. 70 cm
1Hex nut
2R-clip
3Star washer
4Extension guard
5Guard discs
6Add-on hoeing tool
7Hex bolt
8Base hoeing tool, right
9Countersunk bolt
10 Base hoeing tool, left
S = cutting edge
View from the front
