Agria 3400 User manual

Versions with:
- Differential
- Steering Brake Clutch
- Safety hillholder
- Petrol Engine EH 34 D
- Diesel Engine L100 AE
Before commissioning the machine, read operating instructions
and observe warnings and safety instructions.
Operating Instructions No. 998 749-C 04.10
3247/4291A
&
Two-Wheel TractorTwo-Wheel Tractor
Two-Wheel TractorTwo-Wheel Tractor
Two-Wheel Tractor
3400; 3400KL3400; 3400KL
3400; 3400KL3400; 3400KL
3400; 3400KL
OriginalOriginal
OriginalOriginal
Original
OperatingOperating
OperatingOperating
Operating
InstructionsInstructions
InstructionsInstructions
Instructions

2agria-Two-Wheel Tractor 3400; 3400KL
Symbols, Name Plate
Please complete:
Machine Type No.:.....................
Identification No.:
..................................................
Engine Type:..............................
Engine No.:................................
Date of Purchase: .....................
For name plate,refer to
p3/fig. A/17,
p7/fig. C/17,
p11/fig. E/17,
p15/fig. G/17.
For engine type and number,
refer to
p81/fig. J/17,
p85/fig. K/13.
Please state these data when order-
ing spare parts to avoid wrong deliv-
eries.
Only use original agria spare parts!
Specifications, figures and dimen-
sions stated in these instructions are
notbinding.Noclaimscanbederived
from them. We reserve the right for
improvementswithoutchangingthese
instructions.
This delivery comprises:
l Operating instructions
l Two-wheel tractor
l Tool kit
l Assembly hook ring for shifters
Symbols
è- Serviceç= contact
Your agria-workshop
Warning – Danger
Important information
Fuel
Choke
Speed control
Engine Start
Engine Stop
Battery charge indicator
Clutch
Forward
Reverse
Fast
Slow
Differential lock
PTO
Brake
Hand brake
Closed (locked)
Open (unlocked)
Engine Oil
Transmission Oil

agria-Two-Wheel Tractor 3400; 3400KL 3
Designation of Parts:
Figure B
Petrol Engine / Differential Version
Figure A
25

4agria-Two-Wheel Tractor 3400; 3400KL
Figure A
3 Tool kit
4Handlebar
5Hex head bolt for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9 Transmission oil filling opening and oil dip-stick
10 Attachment bolts for wings and floating axle stop
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
18 Socket (for generator version)
19 Machine identification no.(on right side, hammered into housing)
20 Transmission oil drain plug
21 Hub adapter
22 Attachment bolt
25 Disc brake (only version safety hillholder)
Petrol Engine / Differential Version
Figure B
1PTO engagement lever
2Swivel control lever
3Engine shut-off switch
4Safety circuit lever
5Engine clutch engagement lever
(and safety hillholder ! pay attention to model type)
6 Pawl for clutch lever
7 Forward/Reverse ball handle (with steering handle swivelled (front
attachment) = Gear-shift ball handle)
8Gear-shift ball handle (with steering handle swivelled (front attachment)
= Forward/Reverse ball handle)
9Speed control lever
10 Differential lock lever
11 Differential lock pawl
Designation of Parts:

agria-Two-Wheel Tractor 3400; 3400KL 5
Index
3
5
6
2
1
4
Amount of Delivery........................ 2
Recommendations
Lubricants ...................................... 6
Maintenance and Repair ............... 6
Fuel ................................................ 9
Designation
of Parts...............3, 7, 11, 15, 82, 86
Electrical Wiring............. 10, 13, 14
1. Safety Instructions .......... 17–23
2. Specifications
Dimensions .................................. 24
Machine ....................................... 25
Vibration Acceleration Value........ 25
Track Widths .......................... 26, 27
Petrol Engine ............................... 28
Diesel Engine............................... 29
Noise Levels .......................... 28, 29
Operation on Slopes.............. 28, 29
3. Devices and Operating
Elements
Engine.......................................... 30
Safety circuit ................................ 32
Clutch........................................... 33
Safety hillholder ........................... 33
Gearbox....................................... 34
Differential Gear........................... 35
Steering Brake Clutch.................. 36
PTO.............................................. 37
Reversing Lock............................ 37
Steering Handle ........................... 38
Drive-Wheels ............................... 41
Front and Wheel Weights ............ 45
Stand ........................................... 45
Engine Cover ............................... 46
Electric Starter Version ................ 47
Mounting and Dismounting
Implements .................................. 48
4. Commissioning and Operation
Commissioning the Machine .49, 51
Starting the Petrol Engine ........... 50
Starting the Diesel Engine..... 52, 53
Shutting off the Petrol Engine...... 54
Shutting off the Diesel Engine ..... 55
Operation ..................................... 56
Driving with Mounted Trailer ........ 58
5. Maintenance
Petrol Engine ........................ 62 - 66
– Air Filter .................................... 63
– Spark Plug ................................ 64
Diesel Engine........................ 67 - 70
– Engine Oil Filter ........................ 67
– Air Filter .................................... 68
Machine ....................................... 71
Adjustments on Levers ................ 73
General Maintenance .................. 75
Storage ........................................ 76
6.Troubleshooting .............. 77 - 79
Varnishes,
Wear Parts .................................. 80
Lubrication Chart....................... 83
Inspection and
Maintenance Chart.................... 84
Conformity Declaration ............. 87
Note fold-out pages!
Figs. A + B, Petrol Engine /
Differential Version ...................... 3
Figs. C + D,Diesel Engine /
Differential Version ...................... 7
Figs. E + F,Petrol Engine /
Steering Brake Clutch Version .11
Figs. G + H, Diesel Engine /
Steering Brake Clutch Version .15
Fig. J,Diesel Engine .................. 82
Fig. K, Petrol Engine .................. 86

6agria-Two-Wheel Tractor 3400; 3400KL
Recommendations
Lubricants and
Anti-Corrosive Agents
Use the specified lubricants for en-
gine and gearbox (see “Specifica-
tions”).
We recommend using bio-lubricat-
ing oil or bio-lubricating grease for
“open”lubricatingpointsornipples(as
specified in the operating instruc-
tions).
Werecommendusingbio-slushingoil
for preservation of machines and im-
plements (do not apply on painted
external covers). Oil can be brushed
or sprayed on.
Anti-corrosive agents are environ-
mentally friendly and degrade fast.
Usingecologicallysafe bio-lubricants
and bio-anti-corrosives, you contrib-
ute to environmental protection and
to the wellbeing of humans, animals
and plants.
Maintenance and
Repair
The trained mechanics of your agria
workshop carry out expert mainte-
nance and repair.
Youshouldonlycarryoutmajormain-
tenance work and repairs on your
own, if you have the proper tools and
knowledge of machines and internal
combustion engines.
Do not hammer against the flywheel
with a hard object or metal tools as it
might crack and shatter in operation
causing injuries and damage.Only
use suitable tools for pulling the fly-
wheel.

agria-Two-Wheel Tractor 3400; 3400KL 7
Designation of Parts:
Figure D
Diesel Engine / Differential Version
Figure C
<34018361
28

8agria-Two-Wheel Tractor 3400; 3400KL
Designation of Parts:
Diesel Engine / Differential Version
Figure C
3 Tool kit
4Handlebar
5Hex head bolt for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9 Transmission oil filling opening and oil dip-stick
10 Attachment bolts for wings and floating axle stop
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
18 Socket
19 Machine identification no.(on right side, hammered into housing)
20 Transmission oil drain plug
21 Hub adapter
22 Attachment bolt for hub adapter
25 Start switch (on E-Start version only)
26 Battery charge control light (on E-Start version only)
27 Battery (on E-Start version only)
28 Disc brake (only version safety hillholder)
Figure D
1PTO engagement lever
2Swivel control lever
4Safety circuit lever
5Engine clutch engagement lever
(and safety hillholder ! pay attention to model type)
6Click-and ratchet arrangement for clutch lever
(Pawl for clutch lever <34018361)
7 Forward/Reverse ball handle (with steering handle swivelled (front
attachment) = Gear-shift ball handle)
8Gear-shift ball handle (with steering handle swivelled (front attach-
ment) = Forward/Reverse ball handle)
9Speed control lever
10 Differential lock lever
11 Differential lock pawl

agria-Two-Wheel Tractor 3400; 3400KL 9
Fuel Recommendations
Petrol Engine
Robin EH 34 D
This engine runs smoothly on com-
mercial unleaded regular and
supergrade petrol as well as on
leaded supergrade petrol.
Do not add oil to petrol.
If, forenvironmental reasons,youuse
unleaded petrol, make sure the fuel
is drained completely when shutting
down the engine for more than 30
days.This is to prevent resin residue
from depositing in the caburetor, fuel
filter, and tank. Or add a fuel stabi-
lizer.
For further instructions refer to “En-
gine Preservation”.
Diesel Engine
Yanmar L100 AE
This diesel engine runs on conven-
tional diesel fuel of a min.cetane rat-
ing of 45.
Do not use diesel fuel oil substitutes,
they may be harmful to the fuel sys-
tem. Fuel should be free of water or
dust.
Winter operation:
To ensure reliable winter operation
use “winter diesel fuel”, to be pur-
chased at filling stations.
At outside temperatures of below
-15°C , take the following additional
precautions:
add commercial flow conditioners
or
add paraffine oil to depress diesel
pour-point:
Paraffine winter summer
oil: diesel diesel
fuel fuel
pour-point
50% app.-31°C app.-25°C
30% app.-26°C app.-15°C
10% app.-20°C app.- 9°C
As a last resort, you can add up to
30% of regular petrol to avoid
paraffine deposits.However, this has
negative effects on consumption rate
and performance.

10 agria-Two-Wheel Tractor 3400; 3400KL
ElectricalWiring:

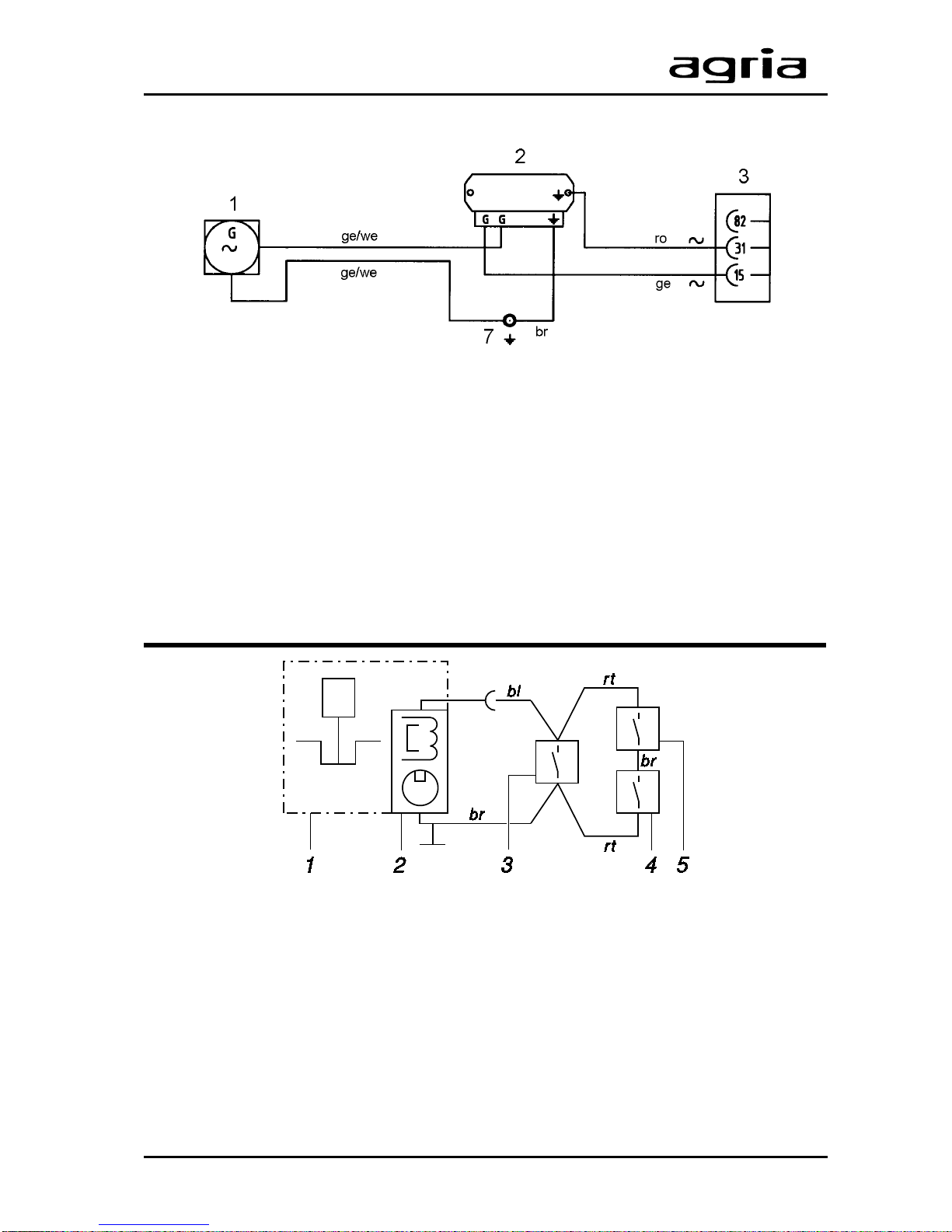

Safety circuit Circuit,
Petrol Engine Version
1Engine
2Magnet ignition system
3Engine shut-off switch
4Switch in clutch lever
5Switch in safety circuit lever

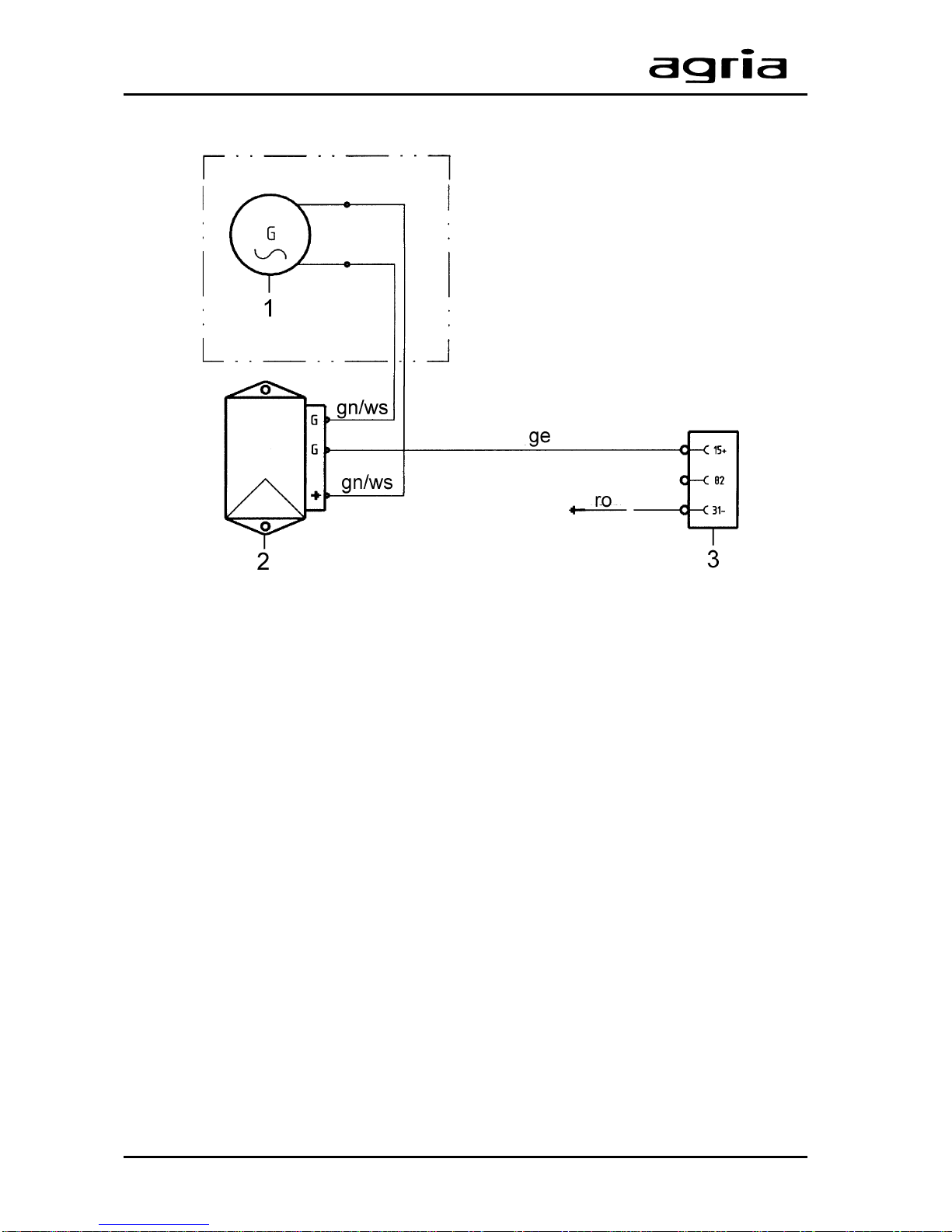

Generator,
Petrol Engine Version
1Generator 12V 90W (101746)
2Regulator (56698)
3Socket (63554)
Petrol Engine
IEnsure AC regulator connec-
tion on housing is insulated
(not connected to ground)
ge/we = yellow/white
ge = yellow
ro =red
br =brown
bl = blue
br = brown
rt = red

agria-Two-Wheel Tractor 3400; 3400KL 11
Designation of Parts:
Petrol Engine / Steering Brake Clutch Version
Figure E
Figure F

12 agria-Two-Wheel Tractor 3400; 3400KL
Designation of Parts:
Petrol Engine / Steering Brake Clutch Version
Figure E
3 Tool kit
4Handlebar
5Hex head bolt for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9 Transmission oil filling opening and oil dip-stick
10 Attachment bolts for wings and floating axle stop
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
18 Socket (for generator version)
19 Machine identification no.(on right side, hammered into housing)
20 Transmission oil drain plug
23 Hex nut on hub
24 Steering brake clutch
Figure F
1PTO engagement lever
2Swivel control lever
3Engine shut-off switch
4Safety circuit lever
5Engine clutch engagement lever
6 Pawl for clutch lever
7 Forward/Reverse ball handle (with steering handle swivelled (front
attachment) = Gear-shift ball handle)
8Gear-shift ball handle (with steering handle swivelled (front attach-
ment) = Forward/Reverse ball handle)
9Speed control lever
12 Steering brake clutch lever, left
13 Steering brake clutch lever, right
14 Central hand brake lever

agria-Two-Wheel Tractor 3400; 3400KL 13
ElectricalWiring:
Diesel Engine / Recoil Starter Version
1Generator 12V 90W
2Regulator
3Socket
Diesel Engine
ge = yellow
ro =red
sw = black
ws =white
gnws = green-white

14 agria-Two-Wheel Tractor 3400; 3400KL

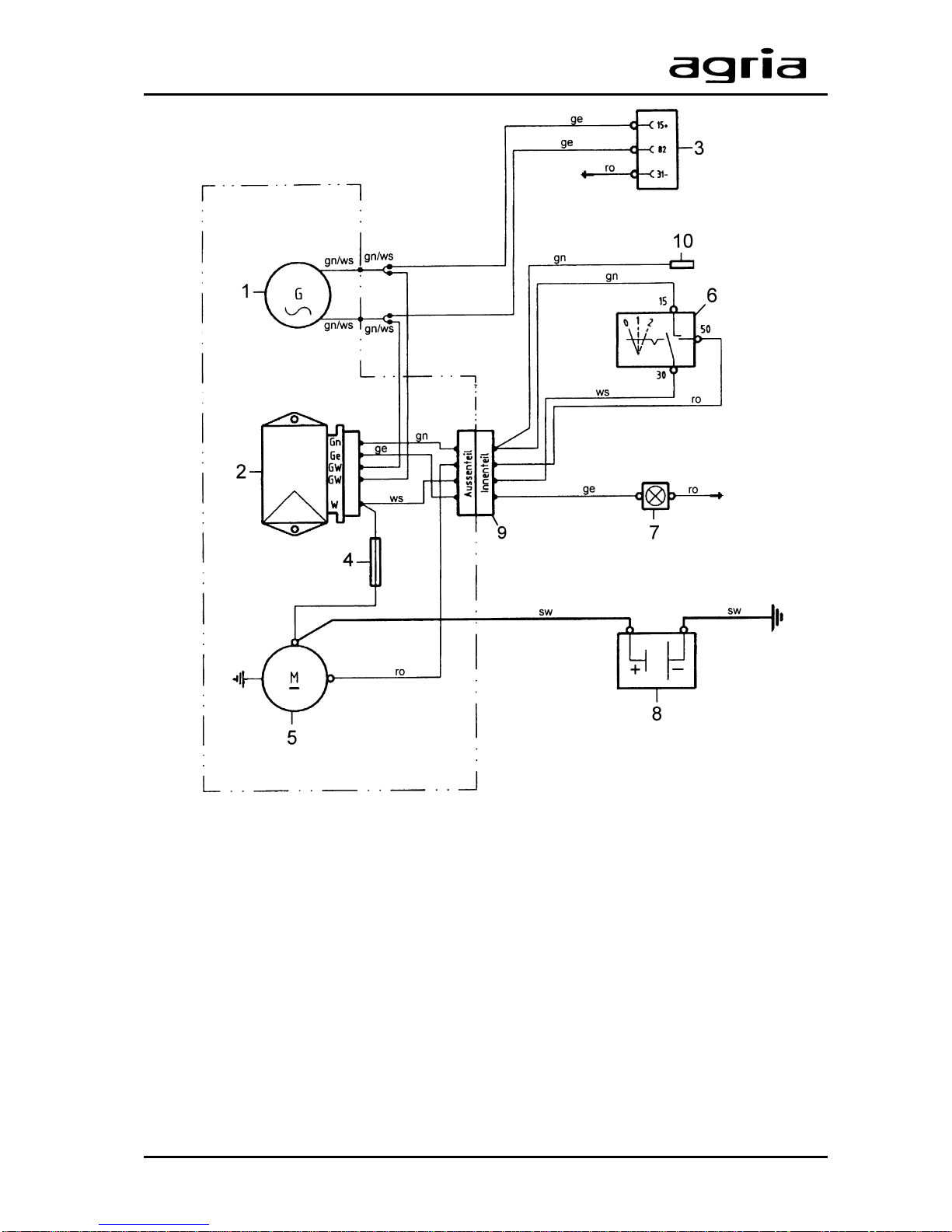

ElectricalWiring:
Diesel Engine / E-Starter Version
1Generator 12V 90W
2Regulator
3Socket
4Fuse 15A (glass tube)
5Electric starter 12V
6Start switch
7Battery charge control light, 12V 2W
8Battery 12V 20Ah
9Central connector for regulator
10 Work light terminal 12V 55W
(snap-in receptacle diameter:4 mm)
Diesel Engine
ge = yellow
ro =red
sw = black
ws =white
gnws = green-white

agria-Two-Wheel Tractor 3400; 3400KL 15
Designation of Parts:
Diesel Engine / Steering Brake Clutch Version
Figure G
Figure H
<34018361

16 agria-Two-Wheel Tractor 3400; 3400KL
Designation of Parts:
Diesel Engine / Steering Brake Clutch Version
Figure G
3 Tool kit
4Handlebar
5Hex head bolt for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9 Transmission oil filling opening and oil dip-stick
10 Attachment bolts for wings and floating axle stop
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
18 Socket
19 Machine identification no.(on right side, hammered into housing)
20 Transmission oil drain plug
23 Hex nut on hub
24 Steering brake clutch
25 Start switch (on E-Start version only)
26 Battery charge control light (on E-Start version only)
27 Battery (on E-Start version only)
Figure H
1PTO engagement lever
2Swivel control lever
4Safety circuit lever
5Engine clutch engagement lever
6Click-and ratchet arrangement for clutch lever
(Pawl for clutch lever <34018361)
7 Forward/Reverse ball handle (with steering handle swivelled (front
attachment) = Gear-shift ball handle)
8Gear-shift ball handle (with steering handle swivelled (front attach-
ment) = Forward/Reverse ball handle)
9Speed control lever
12 Steering brake clutch lever, left
13 Steering brake clutch lever, right
14 Central hand brake lever

agria-Two-Wheel Tractor 3400; 3400KL 17
1. Safety Instructions
1
Before starting the engine, read the op-
erating instructions and note:
Warning
This symbol marks all paragraphs in
theseoperatinginstructionswhichaffect
your safety.Pass all safety instructions
to other users and operators.
Due Use
Thetwo-wheeltractoris a hand-control-
ledautomaticsingle-axlemachine which
can power and/or pull various imple-
ments approved by the manufacturer.
Areasof applicationareforsuch asturn-
ing over the ground, mowing grass and
meadowland, snow clearance and
sweeping (due use).
Any other type of operation is consid-
ered undue.The manufacturer is not li-
able for any damages resulting from
undue use, for which the risk lies with
the user alone.
When the single-axle tractor/the tool
carrier/the all-purpose machine is used
on public roads, the local national road
traffic rules must be observed, e.g. re-
flectors, lights.
Due use includes compliance with
manufacturer’s instructions on opera-
tion, maintenance and repair.
Any unauthorized changes to the two-
wheeltractorrendermanufacturer liabil-
ity null and void.
General Instructions on
Safety and Accident
Prevention
Basic Rule:
The standard accident prevention regu-
lations must be adhered to, as well as
all other generally accepted rules gov-
erning operational safety, occupational
health and road traffic regulations.
For drives on public roads, the current
traffic code applies.
Accordingly, check the two-wheel trac-
tor for road and operational safety each
time you take up operation.
Onlypersonsfamiliarwith thetractorand
instructed on the hazards of operation
are allowed to use, maintain and repair
the tractor.
Teenagers of 16 years or younger may
not operate the two-wheel tractor!
Only work in good light and visibility.
Operator’s clothes should fit tight.Avoid
wearing loose fitting clothes.Wear solid
shoes.
Note the warning and instruction signs
on the tractor for safe operation. Com-
pliance is for your own safety.
When transporting the tractor on vehi-
cles or trailers outside the area to be
cultivated,ensure that theengineis shut
off.
Careful with rotating tools – keep at a
safe distance!

18 agria-Two-Wheel Tractor 3400; 3400KL
1. Safety Instructions
1
Beware of coasting tools.Before you
startanymaintenanceorrepair onthem,
waituntiltools havecome to a complete
stop.
Foreign poweredparts shear andcrush!
Riding on the attachment during opera-
tion is not permitted.
Implements and their weight affect the
driving, steering, braking, and tip-over
characteristics of the tractor.Therefore,
ensure steering and braking functions
are sufficient.Match operating speed to
conditions.
Donotchangesettingsofgovernor.High
engine speed increases risk of acci-
dents.
Working Area and Danger
Zone
The user is liable to third parties work-
ing within the tractor’s working range.
Staying in the danger zone is not per-
mitted.
Check the immediate surroundings of
the tractor before you start it.Watch out
for children and animals.
Before you start work, clear the area
from any foreign object. During opera-
tion,alwayswatchout forfurtherobjects
and remove them in time.
For operationin enclosed areas,ensure
that a safety distance is kept to enclo-
sures to prevent damage to tools.
Operation and
Safety Devices
Before you start the engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all protective devices are
mounted and positioned to provide pro-
tection.
Withno implement mounted, makesure
PTO-shaft is covered with the protec-
tive cap.
Starting the engine
Donot start engineinclosed rooms.The
carbon monoxide contained in the ex-
haust fume is extremely toxic when in-
haled.
Before you start the engine set all oper-
ating elements to neutral or idling posi-
tion.
For starting the engine, do not step in
front of the two-wheel tractor and the
implement.
Do not use assist-starting liquids when
using electrical assist-starting devices
(jumper cable). Danger of explosion.

agria-Two-Wheel Tractor 3400; 3400KL 19
1. Safety Instructions
1
Operation
Never leavethe operator’spositionat the
steering handle while tractor is at work.
Never adjust the operating handles dur-
ing work – danger!
During operation do not leave the op-
erator’s position at the steering handle,
especially not when you turn the ma-
chine.
Riding on the implement during opera-
tion or in transport is not permitted.
Ifclogging occurs in theimplement,shut
off the engine and clean the implement
with an appropriate tool.
Incase ofdamage tothetwo-wheeltrac-
torortothe implement,immediately shut
off the engine and have it repaired.
If steering causes problems, immedi-
atelybringthe two-wheeltractortoahalt
and turn it off.Have the malfunction re-
moved without delay.
To prevent the tractor from sliding on
slopes make sure it is secured by an-
other person using a bar or a rope.This
person must be located at a higher po-
sitionthan the vehicleat a safedistance
from the attachment at work.
Ifpossible,alwaysworkdiagonallyto the
slope.
End of Operation
Never leave the two-wheel tractor unat-
tended with the engine running.
Before you leave the two-wheel tractor,
shutoff the engine.Thenclosefueltaps.
Secure two-wheel tractor against unau-
thorized use.If tractor is equipped with
ignitionkey, remove the key.For all other
versions, remove spark plug connector.
Implements
Only mount implements with the engine
and PTO shut off.
Always use appropriate tools and wear
gloves when changing implements and
parts thereof.
For mounting and dismounting imple-
ments bring stand into proper position
and ensure stability.
Secure two-wheel tractor and imple-
ments against rolling off (parking brake,
wheel chocks).
Beware of injuries while coupling imple-
ments.
Hitch implements as specified and only
couple at specified points.
Securetwo-wheeltractorandimplement
against unauthorized use and rolling off
when you leave the machine.If neces-
sary,installtransport orsecurity devices
and secure.

20 agria-Two-Wheel Tractor 3400; 3400KL
1. Safety Instructions
1
Hoeing Attachment
Adjustprotectivecoverof hoeing attach-
ment so that only those parts of tools
whichpenetratethe soilarenot covered.
When hoeing, make sure depth bar is
adjusted properly.
Mowing Implement
Handle with care! Sharp blades of the
cutter bar may cause injuries! Remove
knife guards only for mowing and refit
immediately after work has finished.
For transport and storagealways mount
the knife guards.Secure finger bars
additionally with tension springs.
Do not transport the dismounted cutter
bar without knife guards.
When mounting and dismounting the
cutter bar, make sure all blades are pro-
tected by the knife guards.
To exchangethe knife and to mount/dis-
mount the knife driver, make sure that
you turn screws away from cutting
blades.
For grinding the mowing knives, always
wear safety goggles and gloves.
Trailer
Make sure to not exceed permissible
tongueload oftrailerhitch,floating draw-
bar or hitch.
When coupling the drawbar, make sure
manoeuvrability at coupling point is suf-
ficient.
Do not exceed gross axle weight rating,
towing capacity and gross weights.
Beforedriving,checkbrakefunction and
rear lighting for proper operation.
Regularly check brake systems closely.
Have adjustments and repairs on the
brake system carried out by a profes-
sional workshop or an authorized brake
service station only.
When driving with mounted trailer, do
not use single-wheel braking.
On tractors equipped with single-wheel
transmission do not engage single-
wheeltransmission.Single-wheel trans-
mission must be locked!
For tractors equipped with differential
lock; do not use differential lock when
driving in curves.
Only one passenger may ride on the
trailer, provided a safe passenger seat
is available.
No additional passengers may be car-
ried.
When driving downhill, shift into lower
gearsin time.Onslopesneverde-clutch
to change gears.
Weights
Fit weights properly and at specified
points.
