AGROdeviate HAWKINS TRAILBLAZER - STO User manual

TRAILBLAZER™ - STO
OWNER’s Manual
Revised 08.20
308.708.8185 | [email protected] | Manual Part Number - 123007 | Rev. 08/20
For Part Numbers 602416, 602421, 602422

Table of Contents
General Information
HOW TO USE THIS MANUAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
SIGNAL WORDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
EQUIPMENT SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
Safety
OPERATIONAL SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
Installation
INSTALLATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
Operations
WHAT TO EXPECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
BLADE ADJUSTMENT CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
BOLT TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
Parts Guide
ARM ASSEMBLIES WITH BLADES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LEFT HAND ARM ASSEMBLY WITH BLADES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
RIGHT HAND ARM ASSEMBLY WITH BLADES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
/” AXLE KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 
/” AXLE KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 

General Information
1
This manual is divided into sections. The rst section contains a Table of Contents, General Information,
Installation Guide and a Part Number Index. The remaining sections divide the machine into assemblies
and sub-assemblies which illustrate and list all parts.
Hawkins Ag parts in this manual are specially designed for this machine and should be replaced with
Hawkins Ag parts only.
Information in this manual was current at time of printing. However, due to Hawkins ongoing product
improvement, production changes may cause your machine to appear slightly dierent in detail. Hawkins
Ag reserves the right to change specications or design without notice and without incurring obligation
to install the same on machines previously manufactured.

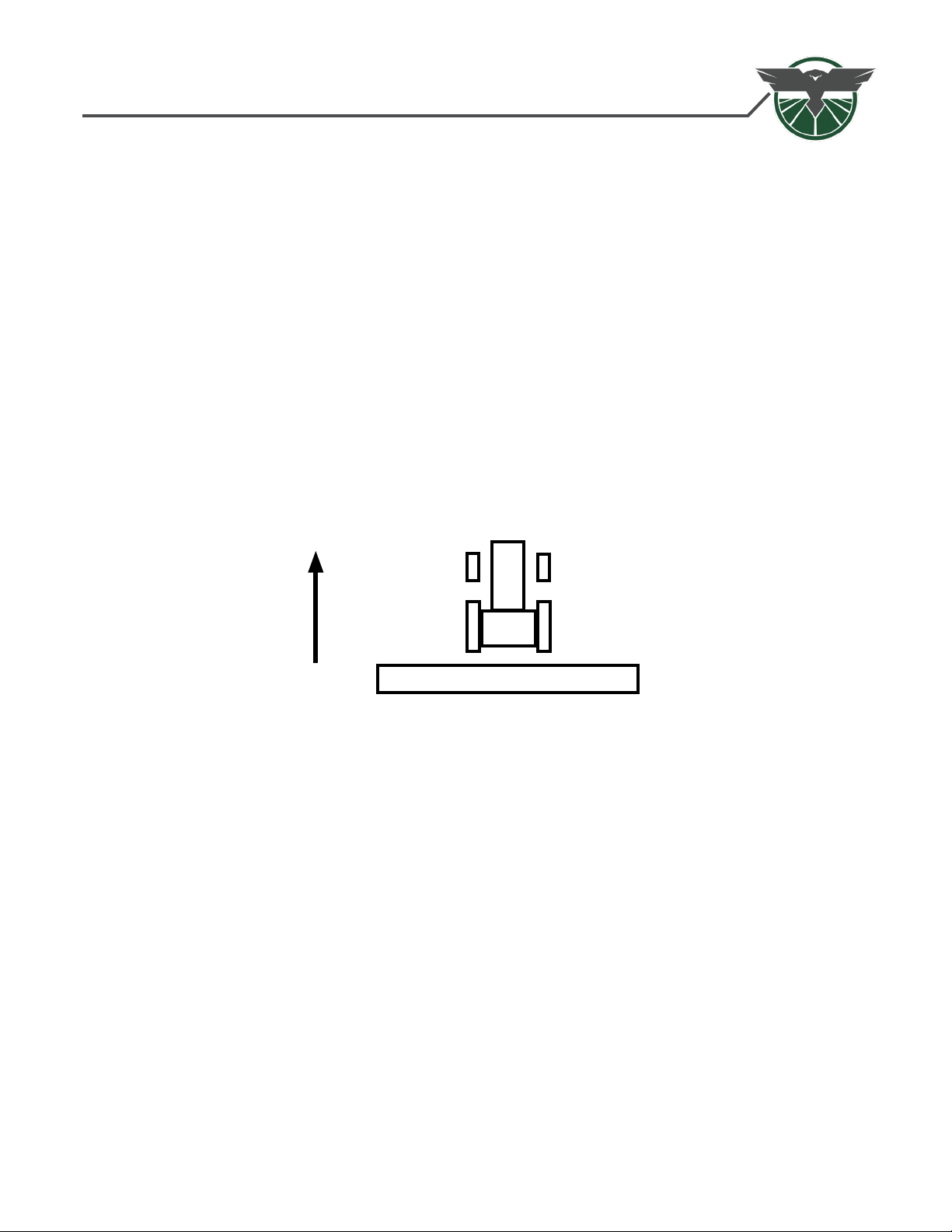

Right-hand and left-hand as used in this manual are determined by facing the direction the machine will
travel while in use.
How To Use This Manual
Replacement manuals are available. Call the Hawkins Ag Main Oce at 308.708.8185, or download a
printable PDF from our website, www.HawkinsAg.com.
Manual Replacement Information
When this manual is revised, the modication date is printed on the front cover and on the revised
page(s).
Manual Revisions
Repaint parts where paint is worn or scratched to prevent rust. Aerosol touch-up paint is available. To
order, call Hawkins Ag at 308.708.8185.
Touch-up Paint
308.708.8185 | [email protected]| Rev. 08/20
Travel
Left Right
Front
Back

WARRANTY INFORMATION
AGROdeviate LLC (AGROdeviate) warrants each Hawkins Ag product it manufactures to be free from
defects in material and workmanship for a period not to exceed one (1) year from the date of sale to
the original owner. The warranty is valid provided written notice of the alleged defect is received by
AGROdeviate during said period and within ten (10) working days after its discovery.
In addition, AGROdeviate warrants each TOOLBAR FRAMEWORK to be free from defects in
material and workmanship for a period not to exceed three (3) years from the date of sale to the
original owner. The warranty is valid providing written notice of the alleged defect is received by
AGROdeviate during said period and within ten (10) working days after its discovery.
This warranty is subject to completion of Product Registration and submission to AGROdeviate.
Warranty applies only if product is installed, operated, and maintained according to product manual
and instructions. Warranty will be void if the product has been subject to misuse, misapplication,
neglect, collision with obstruction, or alteration.
For products, parts, and components NOT manufactured by AGROdeviate, the warranty
obligations of AGROdeviate shall be limited to the Original Equipment Manufacturers’ warranty.
Tires on AGROdeviate equipment are warranted through the respective tire manufacturer and their
network of dealers.
All returns must be pre-approved by AGROdeviate and authorization issued before return. All
returns must include a copy of the original invoice in order to be processed. Any returns without a
copy of the original invoice will not be eligible to receive credit.
If determined that the product is defective in material and/or workmanship, the necessary parts will be
replaced and/or repaired. All warranty repair or labor is to be performed by an AGROdeviate authorized
party. AGROdeviate obligation under this warranty shall be limited to repairing or replacing parts deemed
defective. Warranty does not cover travel expenses. AGROdeviate will bear no other costs including loss,
incurred labor, rental fees, nor other.
All returns shall be pre-paid. If warranty is approved by AGROdeviate, return freight will be credited.
This warranty by AGROdeviate LLC is expressly in lieu of all other warranties, expressed or implied,
including warranty of merchantability and tness for use. We neither assume, nor authorize, any
other entity to accept for us any liability relating to the sale of our products.
2
308.708.8185 | [email protected]| Rev. 08/20
Introduction
GENERAL INFORMATION
Thank you for your purchase of Trailblazer™- STO row units. Putting your trust in our equipment is something we don’t
take lightly and are humbled that you chose Hawkins Ag. Having designed all of our equipment with farmers like you
in mind, we hope you enjoy years of productive use from it. Please read and understand this manual before operation.

General Information
3
Note the use of signal words DANGER, WARNING, and CAUTION with the
safety messages. The appropriate signal word for each has been selected
using the following guidelines:
SAFETY
308.708.8185 | [email protected]| Rev. 08/20
TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS MANUAL IS USED TO CALL YOUR
ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY AND THE SAFETY OF OTHERS.
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
Signal Words:
THIS SYMBOL MEANS:
-ATTENTION!
-BECOME ALERT!
-YOUR SAFETY IS INVOLVED!
If you have questions not answered in this manual, require additional copies, or the manual is damaged,
please contact Hawkins Ag, 2120 4th Ave., Holdrege, NE 68949, 308.708.8185, or visit our website:
www.hawkinsag.com.
DANGER
WARNING
CAUTION
DANGER: Indicates an imminently hazardous situation that, if not avoided,
will result in death or serious injury. This signal word is to be limited to
the most extreme situations typically for machine components which, for
functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided,
could result in death or serious injury, and includes hazards that are
exposed when guards are removed. It may also be used to alert against
unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.

308.708.8185 | [email protected]| Rev. 08/20
General Information
4
Safety of the operator is one of the main concerns in designing and developing a new
piece of equipment. Designers and manufacturers build in as many safety features as
possible. However, every year many accidents occur which could have been avoided by
a few seconds of thought and a more careful approach to handling equipment. You, the
operator, can avoid many accidents by observing the following precautions in this section.
To avoid personal injury, study the following precautions and insist those working with
you, or for you, follow them.
In order to provide a better view, certain photographs or illustrations in this manual may
show an assembly with a safety shield removed. However, equipment should never be
operated in this condition. Keep all shields in place. If shield removal becomes necessary
for repairs, replace the shield prior to use.
Replace any CAUTION, WARNING, DANGER or instruction safety decal that is not readable
or is missing. Location of such decals is indicated in this booklet.
Do not attempt to operate this equipment under the inuence of drugs or alcohol.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The
operator should be a responsible adult familiar with farm machinery and trained in this
equipment’s operations. Do not allow persons to operate or assemble the unit until they
have read this manual and have developed an understanding of the safety precautions
and how it works.
To prevent injury or death, use a tractor with a Rollover Protective Structure (ROPS). Do
not paint over, remove or deface any safety signs or warning decals on your equipment.
Observe all safety signs and practice the instructions on them.
Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely,
is in question - DON’T TRY IT.
EQUipment Safety Guidelines
SAFETY... YOU CAN LIVE WITH IT!

Operational Safety
308.708.8185 | [email protected]| Rev. 08/20 5
REmember
Before Operation
• Carefully study and understand this manual.
• Do not wear loose-tting clothing which may catch in moving parts.
• Always wear protective clothing and substantial shoes.
• It is recommended that suitable eye protection be worn.
• The operator may come in contact with certain materials which may require specic
safety equipment (ie: extremely dusty, molds, fungus, bulk fertilizers).
• Keep bolts tightened to specic torque listed on page 26.
• Give the unit a visual inspection for any loose bolts, worn parts or cracked welds, and
make necessary repairs. Follow the maintenance safety instructions included in this
manual.
• Be sure that there are no tools lying on or near the equipment.
• Do not use the unit until you are sure that the area is clear, especially children and
animals.
• Because it is possible that this equipment may be used in dry areas or in the presence
of combustibles, special precautions should be taken to prevent res and re ghting
equipment should be readily available.
• Don’t hurry the learning process or take the unit for granted. Ease into it and become
familiar with your new equipment.
• Practice operation of your equipment and its attachments. Completely familiarize
yourself and other operators with its operation before using.
Your best assurance against accidents is a careful and responsible operator. If there is any
portion of this manual or function you do not understand, contact Hawkins Ag.
During Operation
• Keep hands, feet, and clothing clear of moving parts.
• Do not clean, lubricate or adjust your equipment while it is moving.
• Be especially observant of the operating area and terrain - watch for holes, rocks or
other hidden hazards. Always inspect the area prior to operation.
• Periodically clear the equipment of brush, twigs or other materials to prevent buildup
of dry combustible materials.
• Do not walk or work under raised components or attachments unless securely posi-
tioned and blocked.
• Keep all bystanders, pets and livestock clear of the work area.
• Never stand alongside of unit with engine running or attempt to start engine and/or
operate machine while standing alongside of unit.
• As a precaution, always recheck the hardware on equipment following every 100
hours of operation. Correct all problems. Follow the maintenance safety procedures.

Operational Safety
308.708.8185 | [email protected]| Rev. 08/20 6
Following Operation
• Store the unit in an area away from human activity.
• Do not park equipment where it will be exposed to livestock for long periods of time.
Damage and livestock injury could result.
• Do not permit children to play on or around the stored unit.
• Make sure all parked machines are on a hard, level surface.
Performing Maintenance
• Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.
• Before working on this machine, stop the towing vehicle, set the brakes, shut o the
engine and remove the ignition keys.
• Be certain all moving parts on attachments have come to a complete stop before
attempting to perform maintenance.
• Always use the proper tools or equipment for the job at hand.
• Use extreme caution when making adjustments.
• Follow the torque chart in this manual when tightening bolts.
• Replace all shields and guards after servicing and before moving.
• After servicing, be sure all tools, parts and service equipment are removed.
• Never replace hex bolts with less than Grade 5 bolts unless otherwise specied. Refer
to bolt torque chart for head identication marking.
• Where replacement parts are necessary for periodic maintenance and servicing,
genuine factory replacement parts must be used to restore your equipment to
original specications. The manufacturer will not claim responsibility for use of
unapproved parts and/or accessories and other damages as a result of their use.
• If equipment has been altered in any way from the original design, the manufacturer
does not accept any liability for injury or warranty.
• A rst aid kit should be kept readily accessible while performing maintenance on this
equipment.

INstallation Guide
Needed Tools:
Included Parts:
6 x 413072
3/4” Flat Washer SAE
2 x 305101
3/4”-10 Nut Nylon Lock
1 x 305023
3/4”-10 Dual Thread Axle
• Safety Glasses
• Protective Gloves
• Rubber Mallet
• Impact Driver
• Socket Wrench
For All Kits
• 3/4” Impact Socket
• 3/4” Combination Wrench
• 9/16” Impact Socket
7
308.708.8185 | [email protected]| Rev. 08/20
4 x 413009
3/8 Flat Washer SAE
6 x 413011
5/8” Flat Washer SAE
6 x 411143
3/8-16 X 1 1/4 GR5 Bolt
2 x 409009
5/8”-11 Nut Nylon Lock
1 x 305073
5/8”-11 Dual Thread Axle
5/8” Axle Kit Hardware 3/4” Axle Kit Hardware
*Tools needed will depend on which axle size your strip-till machine has.
2 x 250013
5/8” to 3/4” Sleeve
1 x 321530
Top Cap with Logo
1 x 602412
LH Arm with Blades
1 x 602413
RH Arm with Blades
Included In All Kits
For 5/8” Axle Kit, you will need:
• 15/16” Impact Socket
• 15/16” Combination Wrench
For 3/4” Axle Kit, you will need:
• 1-1/8” Impact Socket
• 1-1/8” Combination Wrench

For All Kits
• 3/4” Impact Socket
• 3/4” Combination Wrench
• 9/16” Impact Socket
INstallation Guide
308.708.8185 | [email protected]| Rev. 08/20 8
(1) Remove Orthman™ 1tRIPr™ Residue Manager
1.1 - Pull pin.
1.2 - Using leather gloves, carefully remove residue manager.
1.3 - Remove the depth band scraper for easier installation of Trailblazer™ - STO.
(1.1)
(1.2)
CAUTION
DO NOT place any body part beneath the residue manager as you remove it.
(1.3)

INstallation Guide
308.708.8185 | [email protected]| Rev. 08/20 9
(2) Remove nut & washer from bolt on depth band
2.1 - Use 15/16”Socket and Wrench to loosen nut and washer. Then remove nut and washer.
2.2 - DO NOT remove the bolt from depth band at this time.
5/8” Axle Kit:
2.1 - Use 1-1/8”Socket and Wrench to loosen nut and washer. Then remove nut and washer.
2.2 - DO NOT remove the bolt from depth band at this time.
3/4” Axle Kit:

INstallation Guide
308.708.8185 | [email protected]| Rev. 08/20 10
(3) - Use new axle & rubber mallet to replace bolt on depth band
3.1 - Aligning the New Axle (305073) with the threaded end of the bolt, use rubber mallet to
tap in the new axle in place of the bolt. Be careful not to damage the threads on the New Axle
(305073).
3.2 - Ensure the New Axle (305073) is centered, and the same amount of the New Axle
(305073) is protruding from each side.
CAUTION
DO NOT place any body part beneath the depth band while replacing the bolt
New Axle
5/8” Kit (305073)
3/4” Kit (305023)
5/8” Axle Kit:
3/4” Axle Kit:
3.1 - Aligning the New Axle (305023) with the threaded end of the bolt, use rubber mallet to
tap in the new axle in place of the bolt. Be careful not to damage the threads on the New Axle
(305023).
3.2 - Ensure the New Axle (305023) is centered, and the same amount of the New Axle
(305023) is protruding from each side.

INstallation Guide
308.708.8185 | [email protected]| Rev. 08/20 11

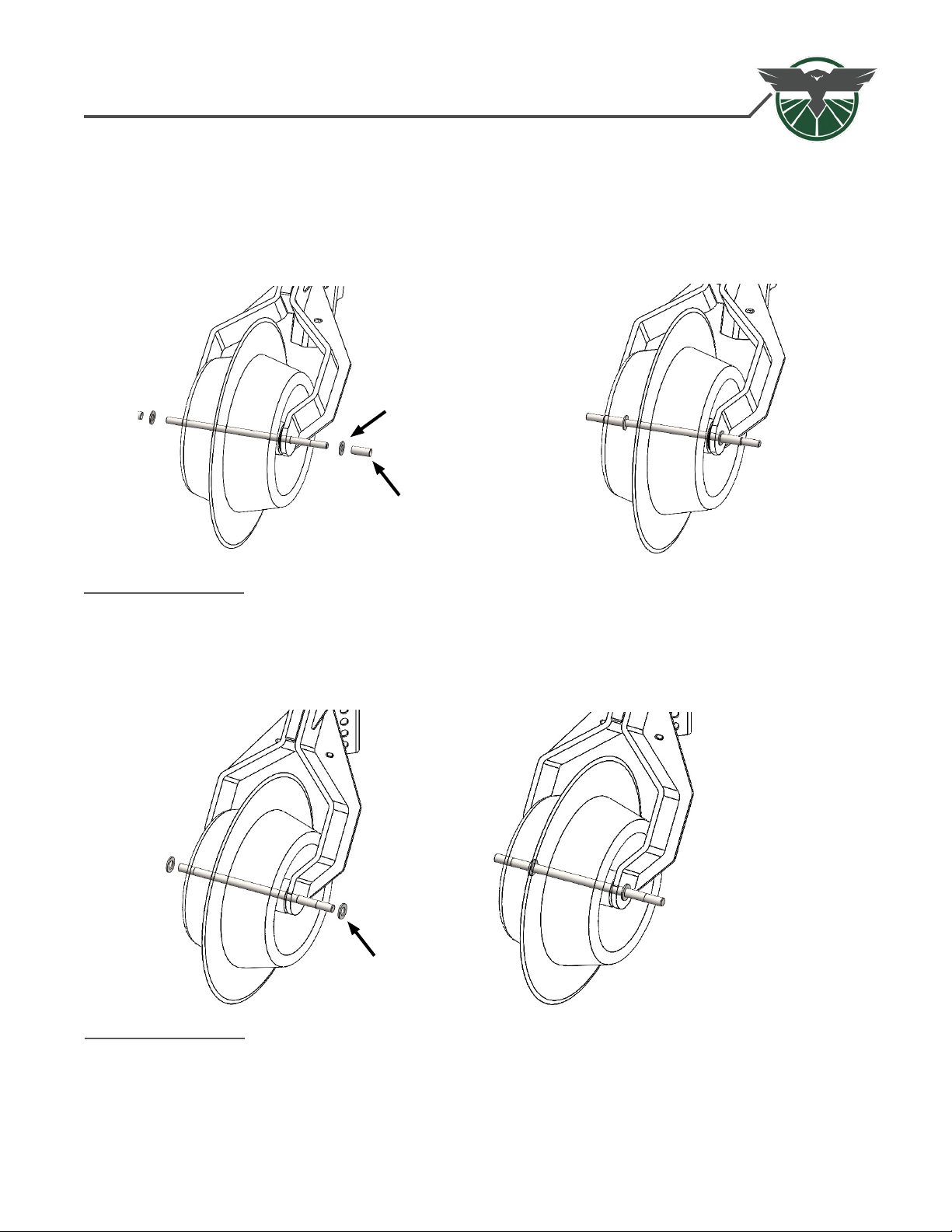

(4) - Add new hardware as shown
4.1 - Slide one (1) 3/4” SAE Washer (413072) over each end of the axle.
5/8” Axle Kit:
3/4” Axle Kit:
4.1 - Slide one (1) 5/8” SAE Washer (413011) over each end of the axle.
4.2 - Slide one (1) 5/8” to 3/4” Sleeve (250013) over each end of the axle.
Washer (413011)
Sleeve (250013)
Washer (413072)

Installation Guide
308.708.8185 | [email protected]| Rev. 08/20 12

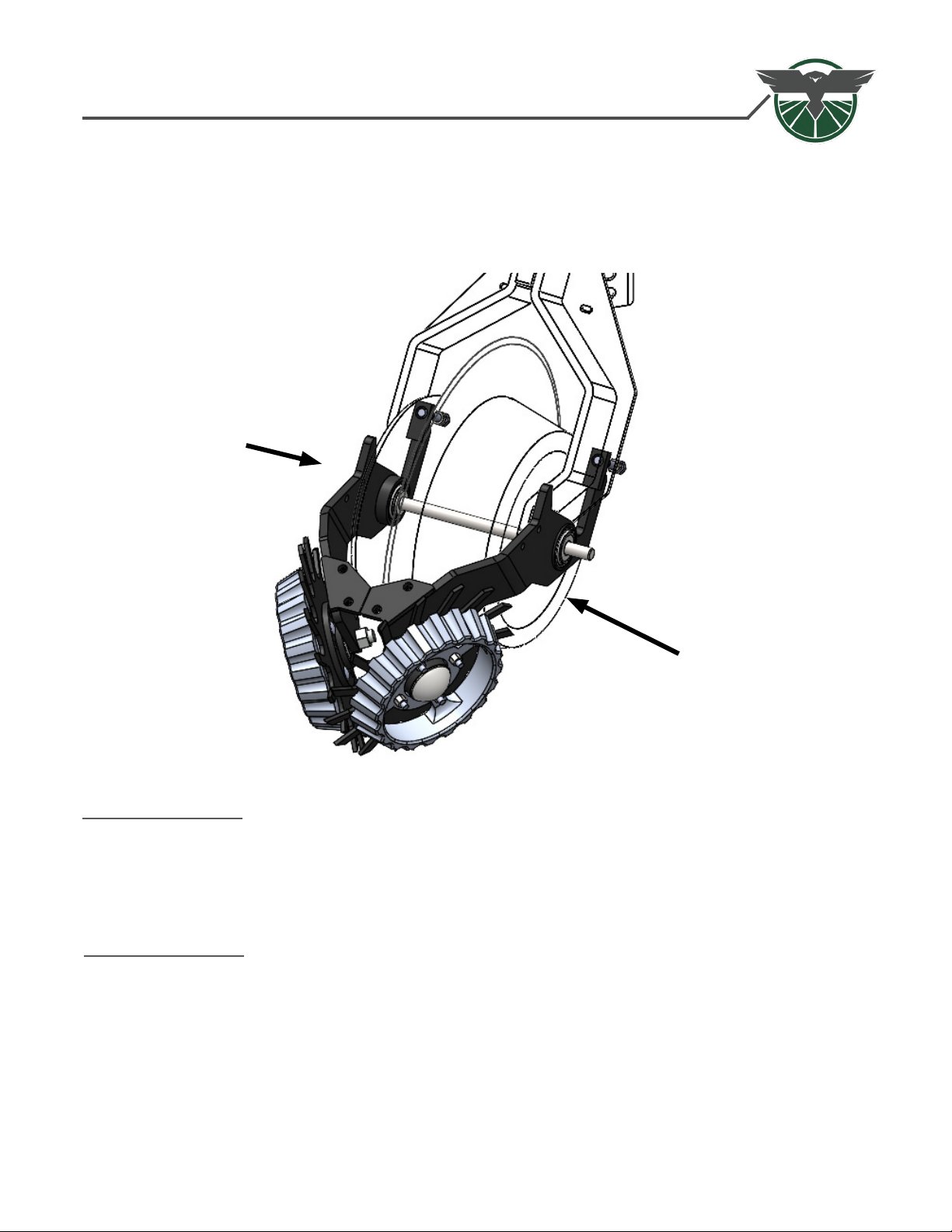

(5) - Add Arms with Blades
5.1 - Slide RH Arm with Blade (602413) over the axle.
5.2 - Slide LH Arm with Blade (602412) over the axle.
LH Arm with Blades
1 x (602412)
RH Arm with Blades
1 x (602413)
5.1 - Slide RH Arm with Blade (602413) over the 5/8” to 3/4” Sleeve (250013).
5.2 - Slide LH Arm with Blade (602412) over the 5/8” to 3/4” Sleeve (250013)
5/8” Axle Kit:
3/4” Axle Kit:

Installation Guide
308.708.8185 | [email protected]| Rev. 08/20 13

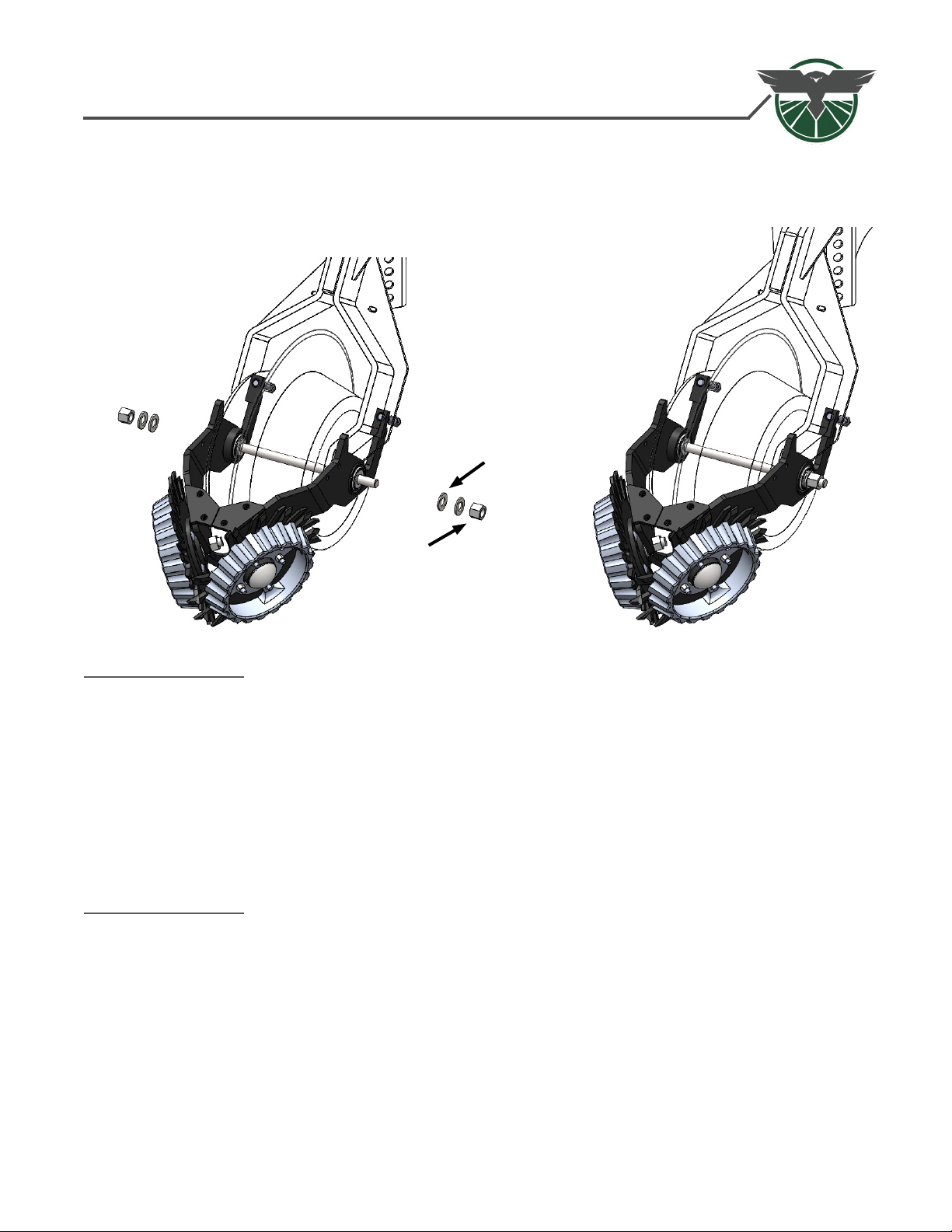

(6) - Add retaining hardware
6.1 - Slide two (2) SAE Washers (413011) over the axle.
6.2 - Tighten one (1) Lock Nut (409009) on each end of the axle.
6.3 - Start with 15/16” Impact Driver on one side and 15/16” Wrench on the other. When the
nut on that side is ush, or slightly past ush with end of axle, switch and use the Impact Driver
on the opposite side. Arms should move freely. If arms do not move freely, check that bearings
move freely and that the Arms are not obstructed.
5/8” Axle Kit:
3/4” Axle Kit:
6.1 - Slide two (2) SAE Washers (413072) over the axle.
6.2 - Tighten one (1) Lock Nut (305101) on each end of the axle.
6.3 - Start with 1-1/8”Impact Driver on one side and 1-1/8”Wrench on the other. When the nut
on that side is ush, or slightly past ush with end of axle, switch and use the Impact Driver on
the opposite side. Arms should move freely. If arms do not move freely, check that bearings
move freely and that the Arms are not obstructed.
Washer
5/8” - (413011)
3/4” - (413072)
Lock Nut
5/8” - (409009)
3/4” - (305101)

Installation Guide
308.708.8185 | [email protected]| Rev. 08/20 14
(7) - Add rear arms
7.1 - Place Top Cap with Logo (321530) on top of arms.
7.2 - Bolt Top Cap with Logo (321530) to both side arms with four (4) Bolts (411143) and four
(4) Washers (413009). Tighten bolts with impact and 9/16 Socket.
5/8” AND 3/4” Axle Kits:
Bolt
(413011)
Washer
(413009)
