Aigo I2900 User manual

Important Statement
1. Thanks you for purchasing aigo power cabin I2900
products produced by Beijing Huaqi Information Digital
Technology. Before you use power cabin I2900, please read
this user's manual seriously.When you begin to use this
product, Beijing Huaqi Information Digital Technology Will
deem you have already read user's manual of this product.
2. Within one month after having purchased the product, fill
out “three guarantees certificate for products” and mail or
return to Beijing Huaqi Information Digital Technology for
registration, in order to provide a better service for you.What
this user's manual covers refered to the newest information
when this user's manual was compiled, if content change is
involved , regret not to issue prior notification.
V1.0

Table of Contents
Company Introduction
Ⅰ. Product overview ................................................6
Ⅱ. Technical parameters...........................................7
Ⅲ. Working principle................................................7
Ⅳ. Using method......................................................8
Ⅴ. The sketch map of the product…………………24
Ⅵ.Notice items when use ...................................... 11
Ⅶ.Troubleshooting...........................................127
Ⅷ.List of accessories...........................................138
Ⅸ.The explanation of the poisonous and harmful..28
Ⅹ.Service clauses…………………………………30
Ⅺ. Contact us..........................................................33

Company Introduction
Established in 1993,Beijing Huaqi Information Digital
Technology is a high-tech enterprise created in Chun Kwan
Village of Beijing. since the company was founded, always
persist in the criterion of “Six Win” idea, namely to guarantee
six cooperative parties including “the populace, the agent, the
staff, the company, the supplier, the society”, that obtain the
reasonable benefit satisfying and development opportunities
together, enable the company to develop in a solid, stable
way.
Huaqi has over 1400 employees with over 200 highly
qualified and well-trained R&D staff, We also have an
integrated national marketing system. Besides headquarter in
Beijjing, there are 17 platform organisations,as well as many
Exclusively-invested and holding subsidiaries such as Huaqi
Information Technology (singapore) PTE Ltd, Huaqi
Information Technology (France) PTE Ltd., Huaqi
Information Technology (Nanking) PTE Ltd. Shanghai Huaqi
International Co., Ltd, Shanghai aigo Digital Technology Co.,
Ltd., Beijing Huaqi Digital Lab Inc., aigo Research Institute

of Image Computer Co., Ltd., Huaqi Image Data Intelligence
Technology Co., Ltd., Beijing Legend Advertisement Co., Ltd,
Beijing aigo Chess Club (BACC),and so on, formed a
medium-sized enterprise group with Beijing Huaqi
Information Digital Technology Co., Ltd as essential
component,many branchese and subsidiaries as component
parts.
“become international enterprise make chinese people pride”
is the struggle purpose of Beijing Huaqi Information Digital
Technology. On Oct.18, 2001, Huaqi Information passed
ISO9001 quality system certificate of international
standerization organisation and the certificate of UKAS
British Royal Crown,perfects the management mechanism
regarding the customer as focus,
bases on IT industry, welcomes the approach of WTO .In
Oct.,2003,Huaqi Information established formally Singapore
subcompany .In the same period, Shanghai Huaqi
International Co., Ltd, was also established.Now, Huaqi
Information sells products far to countries and areas such as
France,Germany,America,Canada ,Australia,Denmark,southe
ast Asia ,and so on , tries all best to entry international market.

with the spirit of“ clinging, six win, rank among the best” ,
more specialized ,internationalized operation system ,Huaqi
Information is shouldering the mission of “constructs aigo
into international brand make chinese people pride”, bases it
on native place, moves towards the world!

Power Cabin I2900 Manual
Ⅰ.Productoverview
“Power cabin I2900” is one of solar energy mobile power
source series products, has the all-weather charging
technology, May through the charging connector under the
sunlight charge 5 kind of brand mobile telephones or mini
USB connector digital product * direct charging, also
charge them through built-in accumulator discharge either
weak sunlight or under the non-sunlight condition. Own
charging way is also very flexible, may directly charge the
product through sunlight or cold lightsource indoor, can use
alternating current to charge when having external power
supply. Is suitable as standby power supply such as on
business, traveling, long rides in a carriage and ship
environment ,field work, and so on, has safe protection,
good compatibility, large capacity, small volume, long service
life, high performance-to-price ratio.

Ⅱ.Technicalparameters
Monocrystalline silicon solar cell board
Working voltage：5.5V(Max.)
Charging current：60mA(Max.)
non-crystalline cell board：
Working voltage：8.6V （Max.）
Working current：10mA（Max.）
host：
Accumulator capacity：1200mAh
USB output voltage：5V(Max.)
Output current：310mA(Max.)
DC output：7.2V
Max. current：300mA
External size：118x75x18 (mm)
Ⅲ.Workingprinciple
Under the sunlight and weak photosource, store the electrical energy

produced by the photocell through the control circuit into built-in
accumulator, also can directly charge the mobile telephone with the
electrical energy produced by the photocell, on condition that have not
illumination, may charge the built-in accumulator through alternating
current or rear non-crystalline board, also can charge the electrical
appliance with stored electrical energy via the output plug by the control
circuit .
Ⅳ.Usingmethod
1. pull the protective film of cell board apart and wipe it
clean , switch to OFF position, place charger suffering
the direct radiation under the sunlight, will brighten red
indicating light. In order to fully make use of solar
energy, it is best to be vertical with the light, generally
shine above 8 hours under the abundant sunlight, built-in
accumulator can be fully charged.
2. When no sunlight for a long time, can make use of
configured AC to DC charger to charge the built-in
accumulator, charging method is connect configured AC
to DC charger to DC input interface through connecting

line, directly charge the charger, when charge ,the red
indicating light will brighten, when the red indicating
light on the charger extinguishes, indicate built-in
accumulator has been fully charged.
3. Non-crystalline solar cell is equipped, can use the head
lamp to charge built-in accumulator of this product in the
room. When charge ,the red indicating light will
brighten.
4. switch at 5.8VDC , green indicating light on output
charger will brighten, equip transfer plug in appropriate
specification and connect with mobile telephone, mobile
telephone will have the charging instruction, indicating
the charge is ongoing, when the green indicating light
flashes or extinguishes, indicate electrical quantity in
built-in accumulator is insufficient, need to fully charged
for use again .
5. When charge the product and mobile telephone at the
same time, the indicating light is red. Green indicating
light will brighten simultaneously.
6. To be used as electric torch, switch to “LED”.

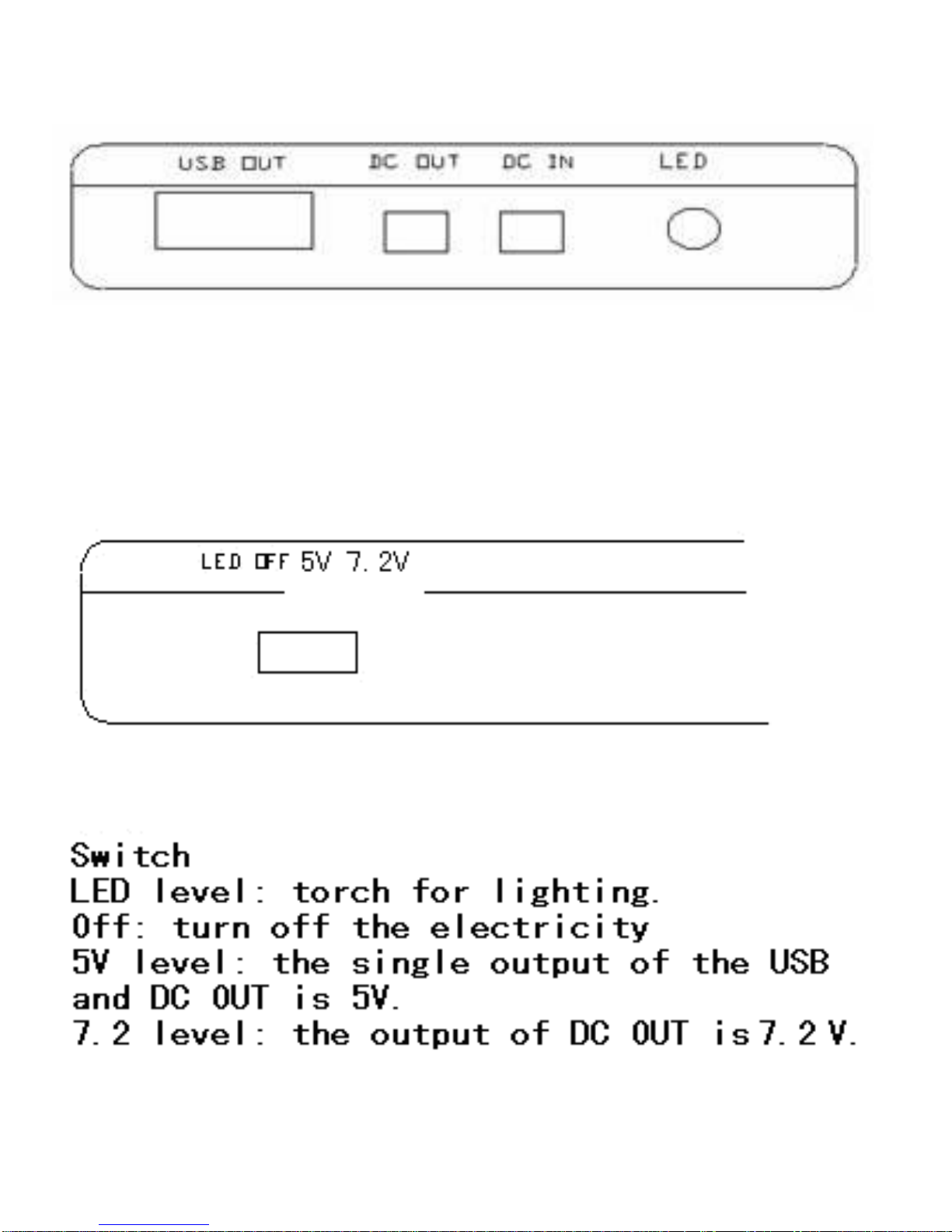

Ⅴ. The sketch map of the product

USB OUT: single output(max) 5V 310mA
DC OUT: single output(max) 7.2V 300mA
DC IN: 220 to 5V 500mA
LED: Torch

Ⅵ.Noticeitemswhenuse
(1) Please charge the accumulator before use this product,
can through the power supply or sun shines on the
photocell.
(2) Not to use in any place near the fire resource.
(3) Built-in accumulator is charged only for emergency uses
such as traveling, on business and itinerancy .
(4) not to throw “power cabin”into the water, also not wet
built-in accumulator and electrical appliance
components。
(5) Not to output anode and cathode with short-circuit cell
of metal conductor.
(6) Not to disassemble or anatomize any components inside
the power cabin.
(7) This “power cabin”also has DC charger as standby, if an
emergency charging is needed to built-in accumulator,
only connect configured DC charger to 110V～240V AC
power supply , insert output DC power supply into the
solar cell to directly charge the socket of mobile
telephone, at this time built-in accumulator will be

charged quickly.
(8) Refer to specification before use. Improper operation
can lead to the damage of built-in accumulator and
electrical appliance components or the attenuation of
cell capacity.
Ⅶ.Troubleshooting
1. When directly charge, indicating light LED has the red
scintillation for reason of a low voltage inside the
accumulator, so when charge, first charge the built-in
accumulator. The solution is that charge mobile
telephone through built-in accumulator, according to
using method（2*）.
2. When built-in accumulator charges mobile telephone,
“power cabin” has a slight sound, which is normal.
3. When built-in accumulator charges mobile telephone, red
and green indicating light LED flashes, indicating
charging will be finished which is normal.
4. If the switch is set at CH end, indicating light LED is not
bright, which indicates the voltage in built-in

accumulator is somewhat low, because of protection
circuit of built-in accumulator, it will stop for protecting
itself, only have charged built-in accumulator ,can work
normally.
5. If the switch is set at LED end, and indicating light LED
is not bright, it is possible that the voltage in built-in
accumulator is excessively low, charge built-in
accumulator, can return to normal condition.
Ⅷ.Listofaccessories
Power cabin ：
A host
Peripheral accessories：
A 110V~220V charger
5 brands of charging interface on mobile telephone (seven)
prolonged line
USB
Power cabinI2900 manual
Maintenance card
Certificate

Ⅸ.The explanation of the poisonous and harmful
The certificate regarding the I2900 solar charger
The contents and names of the poisonous or harmful materials
or elements contained in the I2900 solar charger provided by
Huaqi Information are listed in the following table, see it for
more details.
The table for the poisonous and harmful
The poisonous and the harmful
Part
（Pb）（Hg）（Cd）（Cr(VI) （PBB）（PBDE）
Shell o x o o o o
Circuit Board x x x x x x
Battery o o o o o o
USB line o o o o o o
Connector o o o o o o
Solar panel o o o o o o
adapter o o o o o o
O shows that the contents of the poisonous and harmful are below the limitation defined by SJ/T11363-2006.
X shows that the contents of the poisonous and harmful are above the limitation defined by SJ/T11363-2006.
During the environment-protective term, if you use it
normally, there will be no leakage and mutation. When the

users use this electronic information, it won’t have serious
pollution or harm to the environment or persons and
properties.
All the above information provided by our company is true, if
there is any problem, our company will bear all the liabilities.
Ⅹ.Service clauses.
Honorific customers:
Thank you for your purchasing and using Aigo products. In
order to protect your legal rights, the owner of Aigo Brand,
Beijing Huaqi Information Digital Tech, will give you the
following four-part guarantee, including Sunshine service
guarantee, special reminder, service procedure and
explanation. If needed, we will supply service as this proof.
Aigo sunshine service guarantee
scope when the hardware is breakdown during the use , may
obtain the service with maintenance certificate, the shopping
receipt to any service site of Huaqi customer service center.
Welcome you to visit our website anytime http://www.aigo.com
or dial 400-610-6666. please choose service organization
nearest from you, when accept the service , must show
maintenance certificate and shopping receipt of this product.

3.breakdown recovery time
When your machine needs to be serviced, we will return to
your machine within a local effective working day (two
effective working days if other places).In case the special
case, cannot complete the service in the effective working day,
service personnel of our company will telephone you ahead of
time to consult the repair date.Above date does not contain in
the way time.
4.Limited liability guarantee
Our company only pledge above free maintenance service
when your product is broken-down.If has the following
situation, please choose the compensated service which our
company provides. “The service pledge”in Our company, is
only restricted in hardware service.
A. Your product continues to enjoy the pledge of warranty
period for the original machine after is maintained by
service organization of our company.If the serviced part
has exceeded free maintenance deadline, you have to pay
certain service fees, our company will service your
product, the cost standard is provided by our company's
service organization. If you have the special service

demand, please choose payable service in our company.
B. When you request our company's service organization to
provide maintenance service, you should show
maintenance certificate, shopping receipt, if you cannot
show maintenance certificate for the product, shopping
receipt or maintenance certificate, the shopping receipt is
not consistent with the product sent for repair, our
company is entitled to provide nothing on maintenance
service.
C. Alter maintenance card sequence number, so cause
sequence number is not consistent with airframe number.
D. The damage caused by wrong installation due to operate
not according to specification.
E. Artificial damages.
F. All natural disasters such as flood, fire,etc..
G. Repair, change,modify or disassemble the product not by
authorized service personnel.
5、Special tips
A. You should ask the distributor to open the box to chech
and accept the machine before the product is given . the
slight defect or the breakdown discovered after this

product (the flaw discovered only after be used is not
limited in this),is estimated that it’s not our company’s
fault.
B. Our company does not assume any responsibility to all
extra pledges which the Seller has made to you, , asks
you to demand the written document when buying the
machine from the seller,to guarantee the seller can
realize extra pledges.
C. In order to provide a higher quality after sales service to
you, and protect your rights and interests, our company
welcomes you to supervise our work.
Ⅺ.Contactus
Address: Room 1007-1010, the 10th Floor, Ideal International
Plaza, NO. 2 , Zhongguancun Square, Haidian
District, Beijing.
Web site：http://www.aigo.com
Tel: [phone]

Fax: [phone]
Mail address: Customer Service Center, Huaqi Information
Digital Tech., Post Box 069, Chun Kwan
Village, Haidian District, Beijing.
Zip code: 100080
Order online: http://shop.aigo.com
Aigo club: http://www.aigoclub.com
Sunshine hotline: [phone]
Service NO. (if 400 NO. is unavailable): 010-82607776
