Before Using the Player
Product Introduction
aigo Portable Solar Charger S2902 (S2902) is a portable battery power
kit based on intellectual voltage regulation proprietary technology. The
solar charger can distinguish output voltage and current on different
requirements automatically.
S2902 can charge most of mobile phones and *USB interface digital
products with operating voltage between 4.5V - 9V directly. The device
is portable, environmental-friendly, lightweight, durable and versatile
for traveling use.
Note: *USB interface digital products refer to digital products that are
equipped with built-in rechargeable battery and can be recharged via USB
interface.
aigo S2902
| 6 |
Package Contents
- aigo Portable Solar Charger S2902
- 100V - 240V Power Adapter (optional)
- Extension USB Cable
- User Manual
- 7 Sets of Charging Connectors (optional)
aigo S2902
| 7 |
Technical Specifications
Voltage is adjustable between 5V-9V
High storage capacity 2500mAh
USB output, connect the USB cable to charge external device
Wide range of charging connections to charge a variety of devices
Polycrystalline Silicon Solar Panel:
- Peak power supplied by photocell: 1.54W
- Operating voltage: 5.5V (max)
- Charging current: 280mA (max) / 3.8V
Solar Charger:
- Battery capacity: 2500mAh / 3.8V
- Output voltage: 4.5V-9V (adjustable)
- Output current: 1A (max)
- Output power: 4W (max) Dimensions: 137 x 79 x 24 (mm)
- Weight: 240 (g)

aigo S2902
| 8 |
Product Features
1. High transforming rate when converting light energy into electrical
energy.
2. Professional built-in circuit to prevent over-discharge, over-charge,
over-current and heat reduction when charging the built-in battery by
power adapter or sunlight.
3. Double short-circuit protection.
4. 3-Color LED Indicator.
aigo S2902
| 9 |

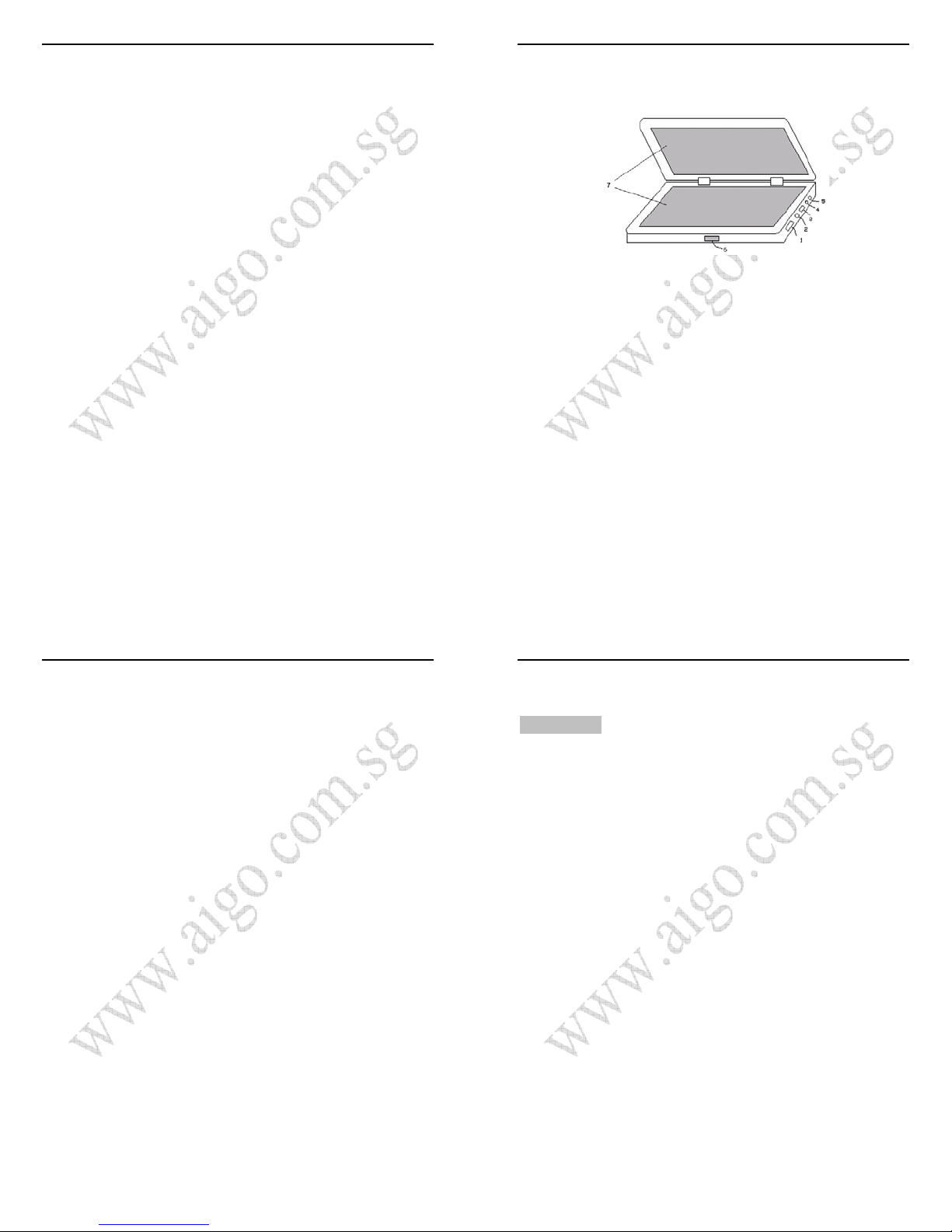

Product Overviews
Product Material: Fireproof plastic (ABS)
1——USB Interface (Output Interface)
2——LED Light (Torchlight function)
3——Control Switch (ON / OFF / LED)
4——3-Color LED Indicator (Intelligent LED Indicator)
5——DC Interface (Input Interface)
6——Output Voltage Switch (adjustable 4.5V / 5V / 6.3V / 9V)
7——Polycrystalline Silicon Solar Panel
aigo S2902
| 10 |
The 3-Color LED Indicator
A: When charging the built-in battery:
Red light: Low voltage < 3.8V.
Orange light: Mid voltage between 3.8V - 4.1V.
Green light: High voltage, fully charged.
Remarks: It is normal to see LED indicator flashing in Red, Orange and
Green color during the charging process.
B: When discharging the built-in battery:
Red light: Low voltage < 3.5V.
Orange light: Mid voltage between 3.5V - 4.1V.
Green light: High voltage between 4.1V - 4.2V.
Remarks:
1. When Control Switch is turned ON and is NOT charging any external
device, the LED indicator turns RED indicates that the power is low and it
requires charging immediately (using direct sunlight or power adapter).
2. When Control Switch is turned ON and while charging an external device,
LED indicator will flash in Red, Orange and Green color.
3. When Control Switch is turned ON and there is no LED indicator, it
indicates that the power is low and it requires charging immediately (using
direct sunlight or power adapter).
aigo S2902
| 11 |
Using aigo Portable Solar Charger S2902
IMPORTANT:
To stabilize the built-in battery on the solar charger, we would
recommend the following:
1. Use up the remaining power on the new solar charger until the
built-in battery is totally flat (Example: Connect it to a mobile phone and
starts charging).
2. When the built-in battery has finally gone flat, starts charging the
new solar charger for at least 12 hours using the power adapter (repeat
this process for the very first 3 times when using the new solar
charger).
Under direct sunlight, the product transforms light energy absorbed by
solar panel into electric energy and through the control circuit to store
electric energy in the built-in battery, or directly charge cell phone or
other digital products with the electric energy (It depends upon the
sunlight intensity. If the electronic mobile equipments need high current,
may cause no charging to external electronic products). During the
absence of sunlight, the product can be charged with the bundled
power adapter, and it also can charge other devices at the same time.

aigo S2902
| 12 |
1). Charging under direct sunlight
a. Open the cover on the solar charger and keep solar panels upright
facing direct sunlight.
b. Turn Control Switch to OFF position.
Note: When the 3-Color Indicator turns Red color, it indicates that the
built-in lithium battery is being charged and voltage is under 3.8V;
if the light turns Orange color, the storage capacity is larger and the
voltage is between 3.8V - 4.1V;
if the light becomes Green color, it means the built-in battery is full.
When the cover on the solar charger is closed, the 3-Color Indicator is
OFF and the solar panel stops working.
2). Charging using power adapter
a. Connect the cable of the power adapter to the DC interface on the
solar charge.
b. The 3-Color Indicator will turn Red color. The 3-Color Indicator will
flash in Red, Orange and Green color.
c. When the 3-Color Indicator turns Green color, it indicates that the
internal built-in battery is fully charged.
aigo S2902
| 13 |
3). Charge an external portable digital device
a. Set the Output Voltage to the most suitable voltage level according
to your electronic equipments charging voltage.
b. Select the correct charging connector which is suitable for the
electronic equipments and connect the electronic equipment to the
charging connector and solar charger (through the USB cable).
c. Switch the Control Switch to ON and 3-Color Indicator turns Red (the
LED indicator will flash in Red and Green color) to indicate charging is
in progress.
d. When the battery indicator on the external electronic mobile
equipment indicates fully charged, please switch Control Switch on the
solar charger to OFF and disconnect the power adapter (Please
change setting to 6.3V for Nokia mobile phones if it is not charging).
Note:
1. Before using the solar charger, please charge it for more than 12 hours
using power adapter for the first three times (see page 11).
2. When LED indicator flashes in Red and Green color, it means that the
sunlight intensity is low. However, we may also charge using the power
adapter.
