INTRODUCTION
This Service Manual is intended for use by the appropriate service personnel servicing the approved
Historical Horse Racing Pari-Mutuel Wagering Terminal (Wagering Terminal, which is identified on the
cover page.
Any attempts by other than suitably qualified service personnel to carry out additional servicing may
result in injury to personnel, damage to equipment and voiding of the warranty. Such actions may also
contravene jurisdictional regulations.
This product complies with CAN ICES-3 (A)/NMB-3 (A)
Warning:
This terminal weighs 120 kilograms and is top heavy.
Exercise extreme care transporting, removing or installing the terminal or
personal injury may result.
The venue is responsible for providing a bench of sufficient strength and
stability to safely mount and anchor the terminal.
Ensure that the bench provided can support the weight and will not allow the
terminal to topple if people fall against it.
During installation, ensure that the terminal is securely mounted on its base so
that it cannot topple when routing the wiring in the terminal.

Page 6 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Chapter 1
Wagering Terminal Physical
Components/Basic Operation

Page 7 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Terminal Body Assembly
The Terminal Body Assembly consists of four major assemblies: The Main Terminal Assembly, the
Main Door, the Belly Door Assembly and the Monitor Door Assembly.
There are three lock assemblies mounted on the right side of the terminal. The front lock (Belly Door
Lock) secures the Belly Door. A large button at the side of the door assembly (Just below the lock itself)
once depressed opens the belly door for access to the Bill Acceptor Cashbox Door; the middle door
lock (Main Door Lock) secures the Main Door Locking Bar. A knurled lever (Main Door Release)
protruding from the right side of the terminal below this lock opens the Main Door. The rear lock is a
switch (Credit Reset / Audit Mode Switch) that enables the operator to perform Credit Reset and Audit
Mode functions.
Monitor
Mask/Surround
Dual 24” LCD
Monitor
Assemblies
Patron
Tracking
Module
Coin Entry
Reset/Audit
Switch
Ticket
Printer
Exit Point
Belly
Panel
Door and
Artwork
Main Door
Lock and
Door
Release
Lever
Belly Door Lock
Belly Panel Door
Release
Note Validator
and Bezel

Page 8 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Dual 24” Monitor Assembly
The Dual Monitor Assembly comprises of a Monitor Mask, a Monitor Control Panel and a Frame that
includes the 2 x 24” monitors. To access the Monitor Frame and the Monitor Control Panels it is
required to open the Monitor Door Assembly.
Note: The Monitor Door Assembly can only be opened if the Main Door is open.
Open the Main Door by rotating the Main Door Lock clockwise and raising the Main Door Release
knurled lever.
Once the main door is open there is a knurled knob (Monitor Door release) on the R/H side of the bill
acceptor head; lift this to unlock and open the monitor door assembly.
Monitor Assembly
Dual 24” LCD
Monitor
Assemblies
Monitor
Mask
Assembly.

Page 9 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Monitor Door Release
Monitor Door Opened. Monitor Controls
Lift Knob
to Unlock
Monitor
Door
MEI Bill
Acceptor
Power and DVI
Connections
Power LED on
Monitor Control
Panel

Page 10 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Note: The monitor control panel is located at the rear of the LCD assembly on the bottom left hand
side and has an LED to show power is applied to the monitor.
Monitor Control label
Monitor
Control
Panel
Power LED
(Turned Off

Page 11 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Main Door Assembly
The Main Door is situated at the front of the Terminal Body and includes the Belly Door Assembly, the
Coin Validator and Chute Mechanism, the Chip Tray, the Patron Tracking Module (where fitted) and the
speakers.
To open the Main Door, rotate the Main Door Lock clockwise and raise the Main Door Release
as indicated:
Patron Tracking
Module / Light
Panel Assembly
Bill
Acceptor
Bezel
Speakers
Coin
Diverter
Chip Tray
Coin Chute
Assembly
Coin
Validator
Coin In
Printer
Bezel
Door Optic
Emitter

Page 12 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Button Panel
The button panel consists of an LCD touchscreen with one (1) mechanical play button to allow the
patron to interact with the Wagering Terminal. The buttons also allow the operator and service
technician to carry out testing and audit functions on the terminal. The buttons can be replaced
individually, or the buttons may have LED’s or micro switches replaced without the need to replace the
entire button.
Door Optics
The door optics consists of one door mounted optic and one terminal mounted optic; with the two
installed optics the Wagering Terminal software can detect if the main door is open, closed or
misaligned.
Speakers
The speakers are located on the door assembly and supply sound to the patrons and venue staff alike.

Page 13 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A

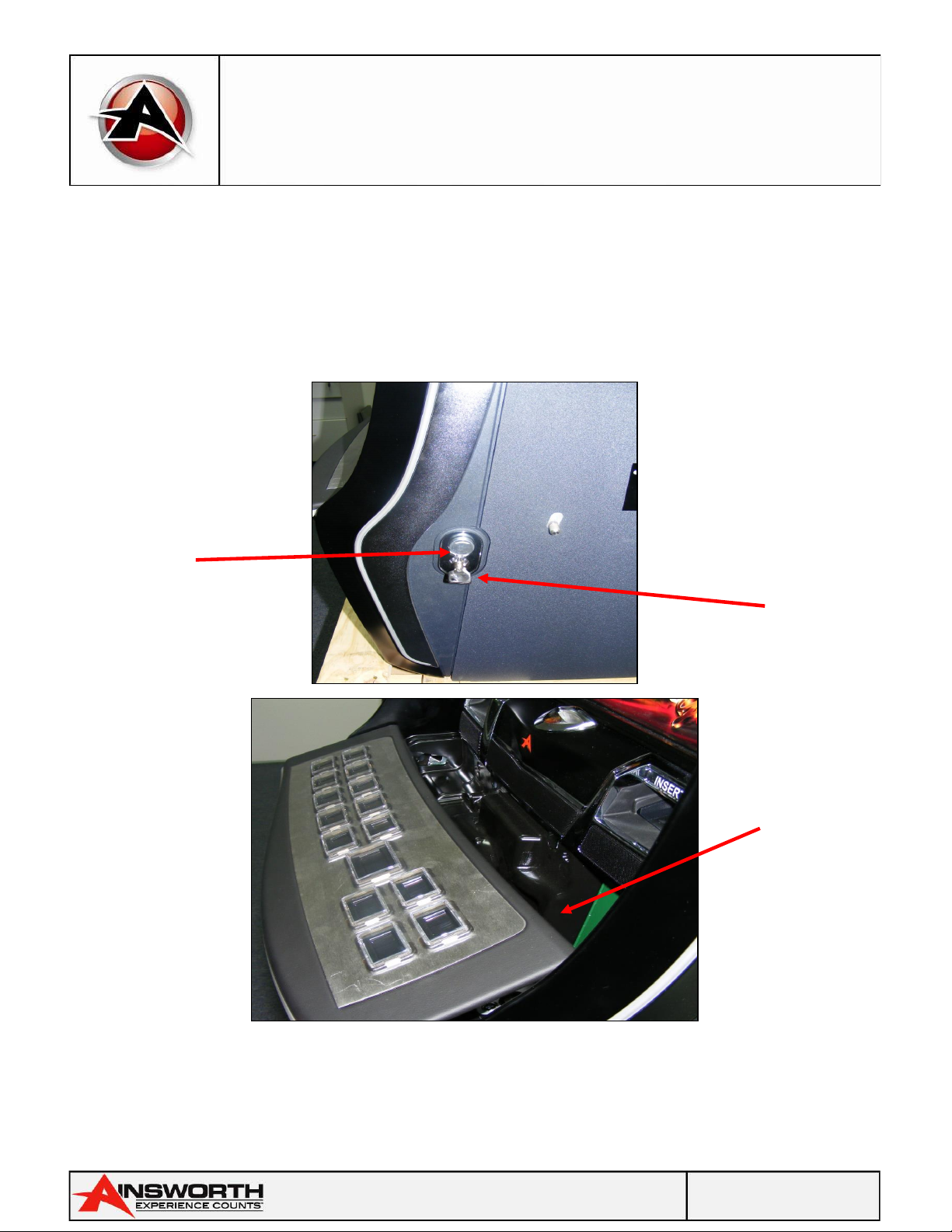

Belly Panel Door Assembly
The Belly Panel Door is situated at the front of the Main Door and includes the LCD touchscreen with
Bash Button Panel assembly, the Belly Panel Artwork and LED Belly Panel lighting. The Belly Panel
assembly is also used to access the BACC Stacker Assembly during cash clearances by venue staff. To
open the belly door, rotate the belly door lock and press the belly panel door release as indicated:
Belly Panel Door
Lock
Belly Panel
Door Release
Button
Belly
Panel
Door Opening

Page 14 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Belly Panel Door Assembly (con’t)
Belly Panel Door Open
Button
Panel and
LED
Backlight
Connector
Harness
Access to
Stacker
Door
through
Belly Panel
Door
Gas strut on
Belly Panel Door
Button
Panel
Belly Door
Open
Detection
Switch

Page 15 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Internal Components
Terminal Internal Components
2 x 24” LCD
Monitor
Assemblies
Hard
Meter
Assembly
Logic
Cage
Assembly
Patron
Tracking
Blank /
Light
Panel
Assembly
Power
Supply
Bill Validator &
Stacker
Assembly
Optional
Cashbox
Chute
Thermal
Ticket
Printer
Power
Switch
Optional
Cyclone 210
Hopper

Page 16 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Note Validator Assembly
Note Validator
Note Validator
The Note Validator receives notes that are entered through the Note Bezel and accepts or rejects notes
by testing them. If the Note Validator rejects a note, the note returns to the patron through the Note
Validator Bezel. If the Note Validator accepts the note, it adds the value of the note in credits to the
Credit Meter, and the note is guided into the Note Stacker for storage.
Note: The Note Validator Head can be separated on a pivot to provide access to clear minor note
jam clearances.
Note
Validator
Note
Stacker
and
Housing
Note
Validator
Diagnostic
LED’s
Note
Validator
locking
lever
Note Door
Security
Lock

Page 17 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
The Note Validator incorporates an illuminated bezel that indicates to the patron whether the Note
Validator can accept notes and a label showing which denominations. The illuminated bezel
incorporates rows of LED’s which normally illuminate sequentially, indicating that notes may be
entered into the terminal. Constant illumination of a single row of LED’s indicates a Validator fault.
Note Stacker
The Note Stacker provides a secure facility for storing notes (up to 500) accepted by the Note Validator.
After removing the Note Stacker from the terminal, unlock the Note Stacker lock to remove the notes.
The interior of the stacker accommodates a mechanism that retains the notes under spring tension
once they have been inserted as indicated:
Note
Stacker
Unit
Note
Stacker
Door Open
Note
Validator
Door Open
Detection
Switch

Page 18 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Printer (Optional)
The Printer is an optional device which is fitted to our A600-H Wagering Terminal. The Printer is located
beside the Logic Cage and the tickets exit through the top of the main door.
It is possible to obtain from AGT further assistance regarding the ticket printer in the form of technical
/ service manuals on request. Below is the Ithaca 950 one of the many models of printer used by AGT
for our A600-H Wagering Terminal’s. *Please Note* the printer can slide forward for easy paper refill
as shown:
Ticket Printer
Ticket
Dispensing
Slot

Page 19 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Patron Tracking Module Provision
Space is provided above the Note, Printer and Coin in Bezels in the door for a Patron Tracking Module
to be fitted. The Patron tracking can be mounted on the door or in a tray (preferred). Note: To access
this space the Main Door assembly must be open.
Logic Cage Assembly
The Logic Cage Assembly is mounted below the Patron Tracking Shelf and is positioned between the
Bill Acceptor and the Ticket Printer Assemblies. It contains the mainboard assembly that comprise the
Wagering Terminal hardware and software. To access the mainboard assembly:
1. Unlock and slide the security seal latch left to open the Logic Cage door.
2. The mainboard may then be accessed.
Note: A micro switch on the side of the mainboard assembly enables the terminal to monitor when the
Logic Cage Door opens. An alarm is then activated, and the incident recorded.
Synergy XLR Logic Cage
Logic
Cage
Security
Lock
Logic Door
Security
Latch

Page 20 of 108
A600
-
H
Service Manual
Pari-Mutuel Wagering Terminal
985 108
–
28 Rev A
Logic Cage Security Door Open
A600-H Wagering Terminal Motherboard Front Panel Layout
Logic
Cage
Security
Switch
Mainboard
Status LEDs
CFast
Card Slots
Mainboard
Tray
Mainboard
Handle
(Pull to
remove
Mainboard)
