45884 PARTS LIST
910 11 12
13 14 15 16
2 3 41
x6 x4 x2 x2
6 7 85
x4 x2 x2
x2
18
Backboard
Straight
Connector
3 Way Connector Velcro
T Connector
x1
Ball Return Net
x1
Basketball
5” Dia.
17
Tube - 1
Φ25.4x698mm
Tube - 2
Φ25.4x514mm
Tube - 3
Φ25.4x584mm
Tube - 4
Φ25.4x610x160mm
Tube - 7
Φ25.4x206mm
Tube - 8
Φ25.4x89mm
Tube - 5
Φ25.4x464mm
Tube - 6
Φ25.4x349mm
Tube - 10
Φ25.4x698mm
Air Pump
x1 x6 x6
x8 x7
x1
Tube - 9
Φ25.4x550x120mm
x2
x4
45884 PRE-INSTALLED PARTS
Rim Net
P1 P2
x2
P3
Electronic
Scorer
x1
Rim with Paddle
x2
ASSEMBLY INSTRUCTIONS:
1. Find a clean, level place to begin the assembly of your Basketball Game. We
recommend that two adults work together to assemble this basketball game.
2. Remove all the parts from the box and verify that you have all of the listed
parts as shown on the Parts list below. Carefully cut or tear the four corners
of the box so that the bottom of the box can be used as your work surface.

5
FIG.1
3. Attach tube 1, 2 with connector 15, 17 as shown in FIG 1.
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
FIG. 1
FIG.2
4. Attach tube 3, 5 with connector 15 as shown in FIG 2.
1
1
2
2
2
2
17
17
15
FIG. 2
15
5
5
5
5
3
3
4
X 2
5
X 2
6
X 6
P3
X 2

6
FIG.3
5. Attach tube 1, 8 with T connector 16, as shown in FIG 3.
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
FIG. 3
FIG.4
6. Attach tube 10 with connector 17 as shown in FIG 4.
FIG. 4
16
1
8
17
10

7
FIG.5

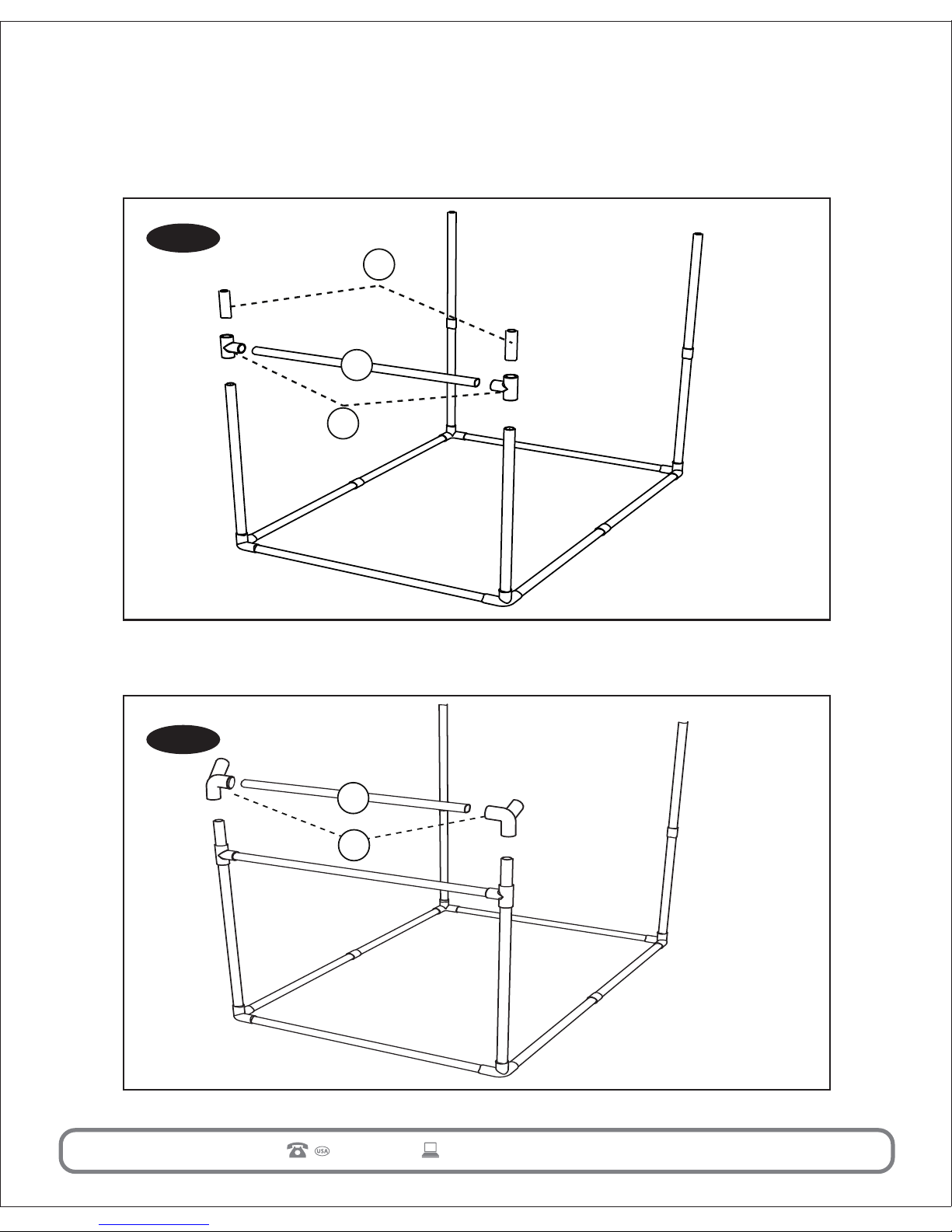

7. Attach tube 1, 6, 7 with connector 16, 17 as shown in FIG 5.
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
FIG. 5
1
1
1
6
6
7
7
17
16

8
FIG.6

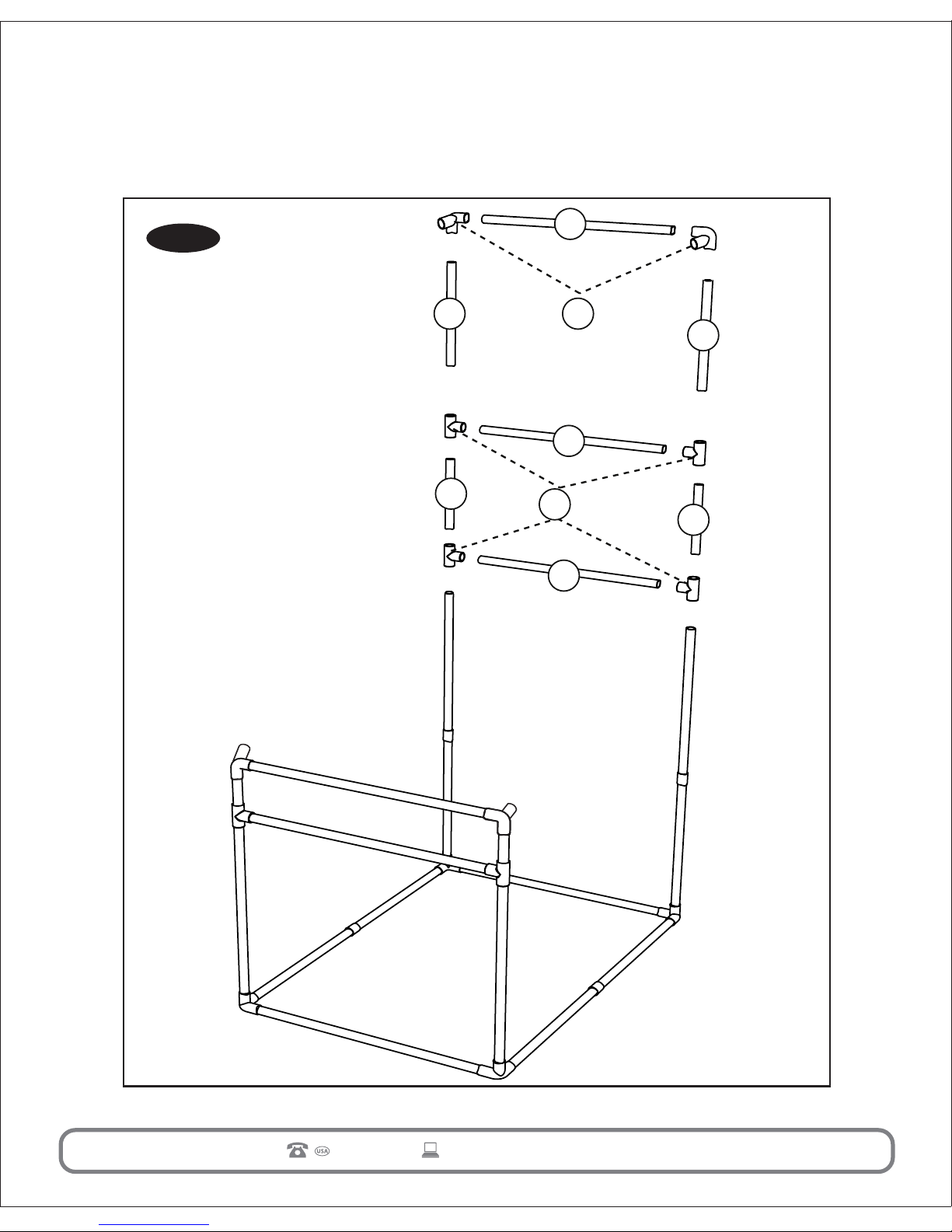

8. Attach tube 4, 9 with connector 15 as shown in FIG 6.
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
FIG. 6
4
9
15

9
FIG.7

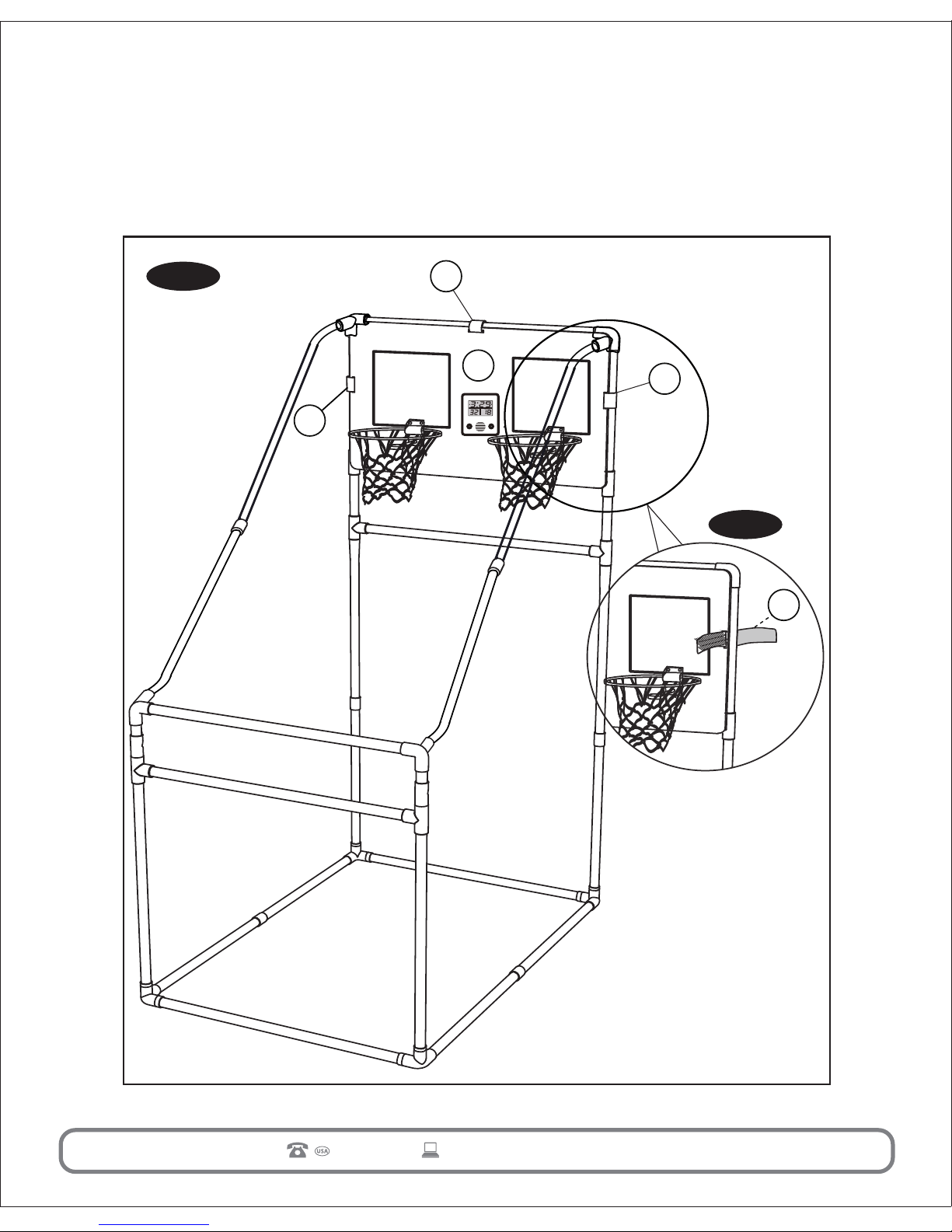

9. Attach the Backboard (#11) to the Tubes using four Velcros (#18) as shown in
FIG. 7 and 7A.
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
FIG. 7
FIG. 7A
11
18
18
18
18

10
FIG.8

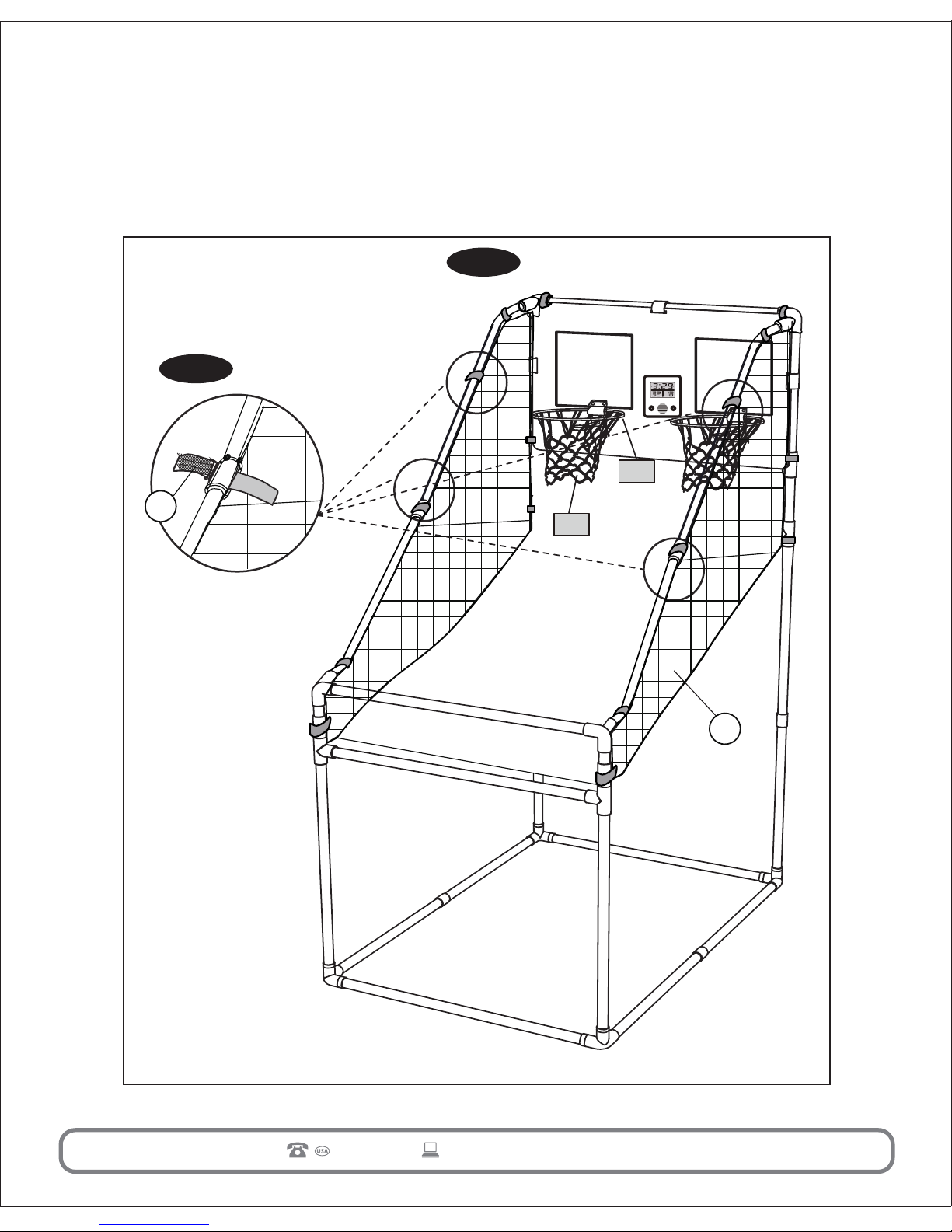

10. Slide velcro strap of Ball Return Net (#12) to the mainframe (pre-installed).
See FIG. 8 and 8A.
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
FIG. 8
FIG. 8A
12

11
FIG.9

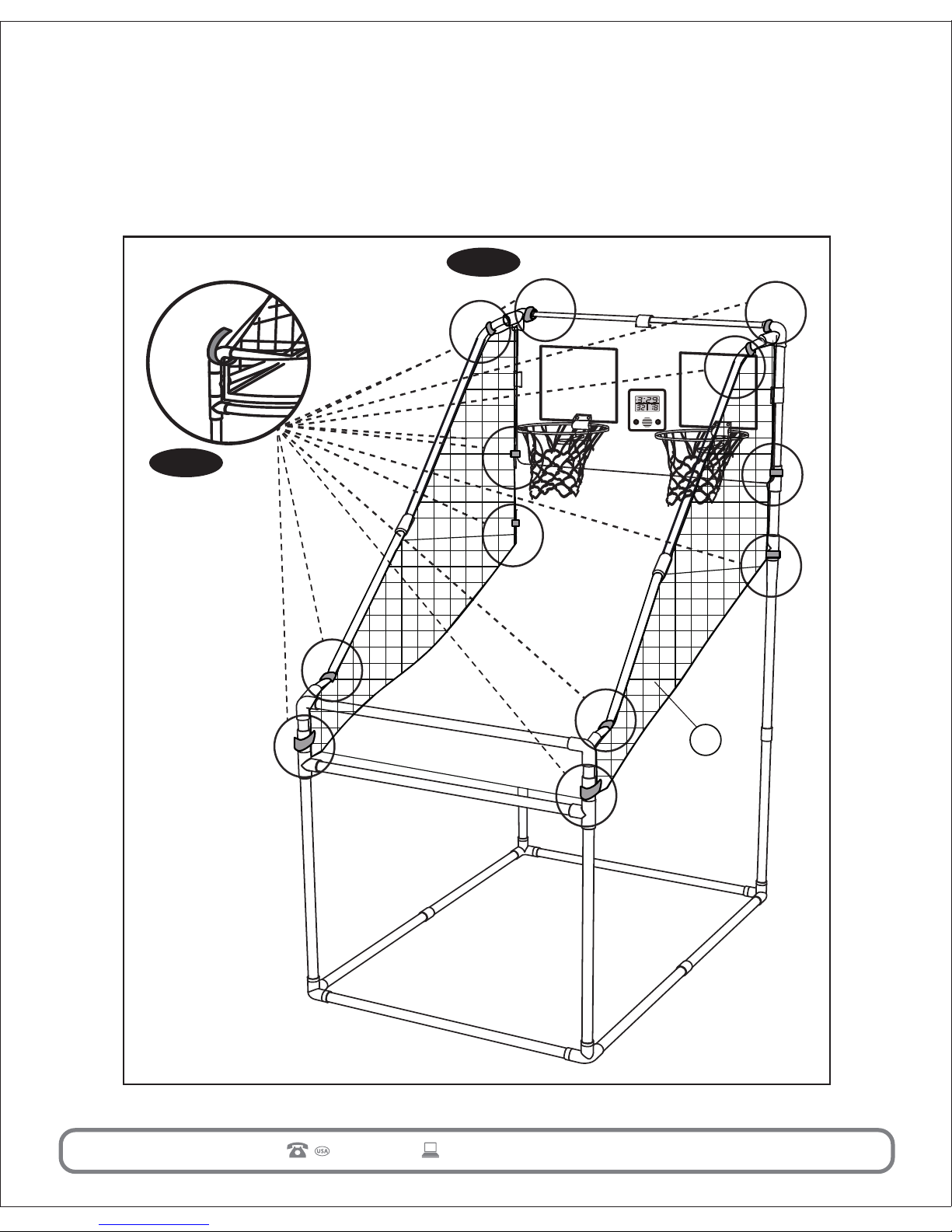

11. Attach the Ball Return Net (#12) to the Tubes using four Velcros (#18) as
shown in FIG. 9 and 9A.
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
FIG. 9
FIG. 9A
12
P1
P3
18

iv. ELECTRONIC SCOREBOARD INSTRUCTIONS
12
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
How To Play
1. To turn game power on, press ON/OFF/START button. Note: Display will read G 1.
2. To turn game power off, press and hold ON/OFF/START button for approximately
3 seconds.
3. To switch between game modes after game is turned on, press SELECT/SOUND
ON OFF button.
4. Once game mode is selected, for example G 1, press ON/OFF/START button to
begin play.
5. To turn sound off, press and hold SELECT/SOUND ON OFF button for
approximately 3 seconds. To turn sound back on, repeat.
Game Modes
G 1: Single Player, One Hoop
. Player must score only on Home hoop.
. 2 points are counted for every shot made on only the Home hoop.
. There is no time limit or point maximum.
G 2: Single Player, Any Hoop
. Player must score on HOME or VISITOR hoop.
. 2 points are counted for every shot made on either hoop.
. There is no time limit or point maximum.
G 3: Single Player, Alternating Hoop
. Player must score on alternating hoops. For example: score on HOME, score on
VISITOR, score on HOME, score on VISITOR, etc.
. 2 points are counted for every shot made on the correct hoop.
. There is no time limit or point maximum.
G 4: Two Player, Count Up
. Each player must score on their own hoop - HOME or VISITOR.
. 2 points are counted for every shot made.
. Time is preset to one minute.
. The winner is the player who scores the most points in one minute on their
own hoop.
Timer OR Game
Mode Display
Player 2
Score
On/Off Start
Button
Select/Sound
On Off
Button
Player 1
Score

13
877-852-8164
AFTER SALES SUPPORT 45884
[email protected]
G 5: Two Player, Count Down
. Each player must score on their own hoop - HOME or VISITOR.
. Each player starts with 20 points and 2 points are deducted for every shot
made in their own hoop.
. There is no time limit.
. The winner is the player who gets to zero, or scores 10 shots, first.
G 6: Two Player, Match Play
. There are 12 games in a match. Each game in 5 seconds.
. Each player must score on their own hoop - HOME or VISITOR.
. The player that scores first on their own hoop during each 5 second game
receives 2 points.
. The winner is the player with the most points at the end of the 12 game match.
G 7: Two Player, Pro-Match Play
. Same as Match Play, above, except that during games 4-6 and 10-12, the
player that scores first on their own hoop receives 3 points instead of 2.
G8 : Two Player, Any Hoop, 10 scores in 99 seconds.
. Each Player can score on Home or Visitor hoop.
. Game Finished at either scores 10 or 99 seconds.
. 2 Points are counted for every shot made.
The Electronic System goes into sleep mode after 13 minutes
Reminding:
a. Batteries must be installed according to the correct polarization (+ and -) requires.
b. Please clean the battery contacts and also those of the devices prior to battery installation.
c. If the game will not be used for a long period of time, we recommend that the batteries should
be removed.
AAA AAA AAA
A2
P2

14
v. FAQ
vi. Other Useful Information
Please read the instructions carefully, and follow all assembly, operation or
safety instructions properly in order to avoid damage or injury. For the
assembly, at least one adult is required.
