Welcome
Congratulations!
You have made an excellent choice with the purchase of this quality
AIRBRUSH HEAVEN product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Airbrush Heaven.
We want you to be completely satised with your purchase so this
AIRBRUSH HEAVEN product is backed by a comprehensive
manufacturer’s 1 year warranty and outstanding after sales service
through our helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 1 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt/invoice
safe). This does not affect your statutory rights. However be aware
that the warranty will become null and void if the product is found
to have been deliberately damaged, misused and/or disassembled
other than directed. See warranty certicate for full details at the
back of this guide.
1
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

General Information &
Safety Instructions
• Industrial applications must follow OSHA requirements.
• Maintain a safe working environment. Keep the work area well lit
and make sure there is adequate work space.
• Use the product only in a well ventilated area.
• Check for damaged parts including hoses before using this
product. Carefully check that it will operate properly and perform
its intended function. Replace or repair damaged or worn parts
immediately.
• Always read and adhere to all safety warnings and instructions
provided in the directions of the medium being used.
• Wear ANSI approved safety impact eye goggles and an ANSI
approved dust mask or respirator when using this product.
• Do not exceed the maximum pressure rating of 50 PSI.
• Adult supervision is advised when children are using this product.
• The airbrush is designed only to spray non-ammable medium.
Never spray petrol, parafn, or any ammable liquids.
WARNING! The warnings, precautions, and instructions discussed
in this manual cannot cover all possible conditions and situations
that may occur. The operator must understand that common sense
and caution are factors, which cannot be built into this product.
2
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Contents
1 x Single Action Airbrush
3 x nozzles (0.3mm, 0.5mm & 0.8mm)
3 x needles (0.3mm, 0.5mm & 0.8mm)
1 x 2cc Metal Reservoir Cup
1 x 5cc Metal Reservoir Cup & Cap
1 x 13cc Metal Reservoir Cup & Cap
1 x Hose
1 x Hose Adaptor Ring
2 x Hose Connectors
1 x Nozzle Spanner
1 x Fitted Protective Case
Features
• Single action trigger
• Multiple metal cups
• Multiple nozzles
• Multiple adjustable needles
• Hose Adaptors
Contents & Features
3
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.

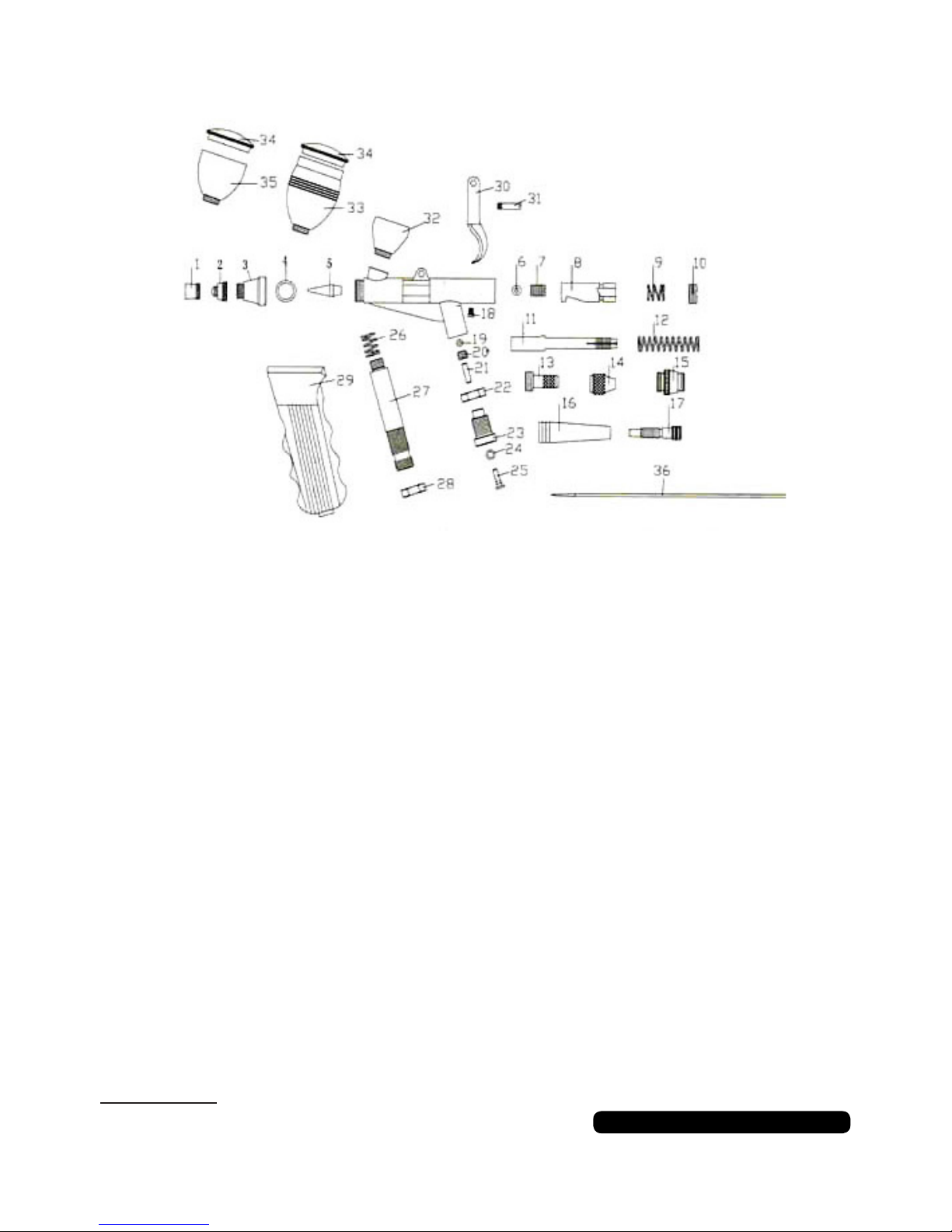

Parts & Assembly
4
Screw for Valve
Spring
Valve Spindle
Hex Nut
Holder
Trigger
Trigger Bolt
Colour Cup 2cc
Colour Cup 13cc
Cup Cover
Colour Cup 5cc
Needle
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]
Changing the Needle & Nozzle
• Unscrew and remove the handle.
• Loosen the needle locking nut.
• Pull the needle out & remove the nozzle cap.
• Unscrew the nozzle counter clockwise & remove.
• Screw the new nozzle into place, rst with ngers then spanner.
• Replace the nozzle cap and insert the chosen needle.
• Tighten the needle locking nut.
• Replace the handle and screw back onto the airbrush body.
Please Note:
DO NOT over tighten the nozzel as it will render the
airbrush unuseable. For a full video demonstation
please visit www.airbrushheaven.co.uk
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
Spring Case
Needle Check Net
Nut
Standard Handle Adjusting
Adjusting Screw
Guide Screw
O-Ring
Seal Screw
Relieve Valve Stem
Nut
Valve Assembly
O-Ring
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Needle Cap
Nozzle Cap
Head Cap
O-Ring
Nozzle
O-Ring for Needle Guide
Needle Guide
Needle Nut
Spring
Stopper
Needle Chucking Guide
Spring

5
Storage
• Always disconnect the airbrush from its air supply source before
any maintenance on the airbrush body.
• When not in use, tools and equipment should be kept in a dry
location to inhibit rust.
Basic Cleaning
• Empty the reservoir cup or jar of used medium.
• Remove and wipe clean the reservoir cup or jar.
• Reattach the clean reservoir cup or jar and ll with the
appropriate cleaning solution.
• Spray the cleaner through the airbrush until it sprays clear.
• Unscrew and remove the handle.
• Loosen the needle locking nut.
• Pull the needle out & wipe down the needle.
• Push the needle back into the airbrush & re-tighten the needle
locking nut carefully.
• Replace the handle and screw back onto the airbrush body.
• Re-connect to the airline & spray until dry.
Please Note:
Spray into a cleaning jar or filter of some kind. This keeps overspray out of the air
and you. We recommend the Clean Pot available from our website.
For full cleaning advice and video demonstrations please visit:
www.airbrushheaven.co.uk
General Maintenance
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

6
Setting up & using the Airbrush
• Attach the hose to the compressor.
(We recommend our AS-18A or AS-186 compressor for this model)
• Set air pressure to 2-40 PSI on the compressor.
• Remove the protection cap from the airbrush.
• Add your chosen medium to the reservoir cup.
• Press down on the trigger to allow air to ow through the brush.
• Pull the trigger backwards to start spraying.
You can vary the amount of medium ow by tightening or loosening
the adjusting screw at the rear of the airbrush.
Always test spray before starting your main project.
Mixing & Thining Medium
Generally, the most common medium used in conjunction with an
airbrush is paint. It is highly recommended that you dilute your
medium down to the same consistency as semi skimmed milk.
Read the directions on the container to see if thinners or water
should be used to dilute the medium to the correct consistency.
When mixing medium, it’s highly recommended you use the same
brand and type for best results.
Please Note:
Use the correct solvent for thinning: Use lacquer thinner for all lacquer medium,
paint thinner for all oil based medium, enamel thinners for all enamel based medium,
acrylic thinners for acrylic and clean water for water based medium.
Aways read the label of your selected medium.
Using the Airbrush
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

• Single action trigger
• 3, 5 & 13cc Metal reservoir cups
• 0.3, 0.5 & 0.8mm Fluid nozzle
• 50 Psi maximum
• 1/8th” BSP (9mm) & 5mm screw connectors
Specifications
7
Trouble Shooting
PROBLEM
Medium leaking.
Poor medium
atomization.
Air bubble(s) in the cup.
Medium leaks from back.
Air leaking
Medium spatter.
CAUSE
Head of needle bent or
distorted.
Nozzle and needle not
fully contacted.
Airbrush nozzle is
partially blocked.
Needle screw loose.
Faulty nozzle seal ring
causes air blowback.
The gap between needle
and its seal is enlarged.
Valve lever stuck
Bent needle tip.
SOLUTION
Repair or replace parts.
Loosen screw, make
sure nozzle and needle
fully contacted and then
screw tightly.
Wash nozzle with
relevant cleaner.
Make sure screw is
tight.
Replace nozzle seal ring.
Take off parts on the
back, fasten screw or
replace the seal.
Take trigger off; apply
lube after cleaning and
put trigger back.
Replace needle.
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Warranty
This product is guaranteed to be free from defects in workmanship and parts for a period of 12 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets conferred by this warranty are in addition to all rights and remedies in respect of
the product the consumer has under existing U.K. laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt/invoice must be presented with the warranty card when making a claim under
this warranty.
Service during the Warranty Period
Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.
Extent of the Warranty
This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.
Normal Wear and Tear
This warranty does not cover normal wear and tear of the product or parts.
Exclusions
This warranty does not cover the following:
• Any defect caused by accident, misuse, abuse, improper installation or operation, lack of reasonable
care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.
• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s
or vehicle outlet power surge or liquid ingress.
• Any product that has not been installed, operated or maintained in accordance with the
manufacturer’s operating instructions provided with the product.
• Any product that has been used for purposes other than domestic use.
• The product if it is located outside of the U.K., N. Ireland or Republic of Ireland
• Any damage caused by improper power input or improper cable connection.
Warranty Certificate
1
YEAR
WARRANTY
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Warranty Card
Airbrush
Please keep your purchase receipt/invoice together with your warranty card
Fault Description:
Name:
Address:
Date of purchase:
Location of purchase:
Service Helpline
We recommend that you attach a photocopy of your receipt/invoice, showing the date of purchase, to
this warranty card and keep it for your reference. In the event of a product fault, please call the After
Sales Support team. Please ensure that you have the product details (as shown on this card) to hand
so that the support team are able to respond as quickly and efciently as possible.
1
YEAR
WARRANTY
Model Number: BD-116C
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]
Service Helpline
QUESH LTD,
B7, FIRST BUSINESS PARK
FIRST AVENUE, CREWE, CHESHIRE.
CW1 6BG

For further help, advice and video demonstrations please visit:
www.airbrushheaven.co.uk
