Welcome
Congratulations!
You have made an excellent choice with the purchase of this quality
AIRBRUSH HEAVEN product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Airbrush Heaven.
We want you to be completely satised with your purchase so this
AIRBRUSH HEAVEN product is backed by a comprehensive
manufacturer’s 1 year warranty and outstanding after sales service
through our helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 1 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt/invoice
safe). This does not affect your statutory rights. However be aware
that the warranty will become null and void if the product is found
to have been deliberately damaged, misused and/or disassembled
other than directed. See warranty certicate for full details at the
back of this guide.
1
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

General Information &
Safety Instructions
WARNING! The warnings, precautions, and instructions discussed
in this manual cannot cover all possible conditions and situations
that may occur. The operator must understand that common sense
and caution are factors, which cannot be built into this product.
2
Contents
1 x Spray Booth
1 x Filter
1 x Extractor Hose
1 x Extractor End Piece
1 x Turntable
Features
 •Portablefoldawaydesign
 •Independentfanandlightingcontrol
 •Retractablemainslead
 •Easychangelter
 •2.5mRetractableventilationhose
 •Turntable
 •Carryhandle
 •LRFSupport(LittleRubberFeet)
Contents & Features
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

3
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]
Parts
Carry Handle
Lower Panel
Filter
Upper panel
Filter Frame
3-Way Switch
Retract
Button
Extractor
Port
Extractor
Hose
Spring Clip
Turntable
Extraction
End Piece

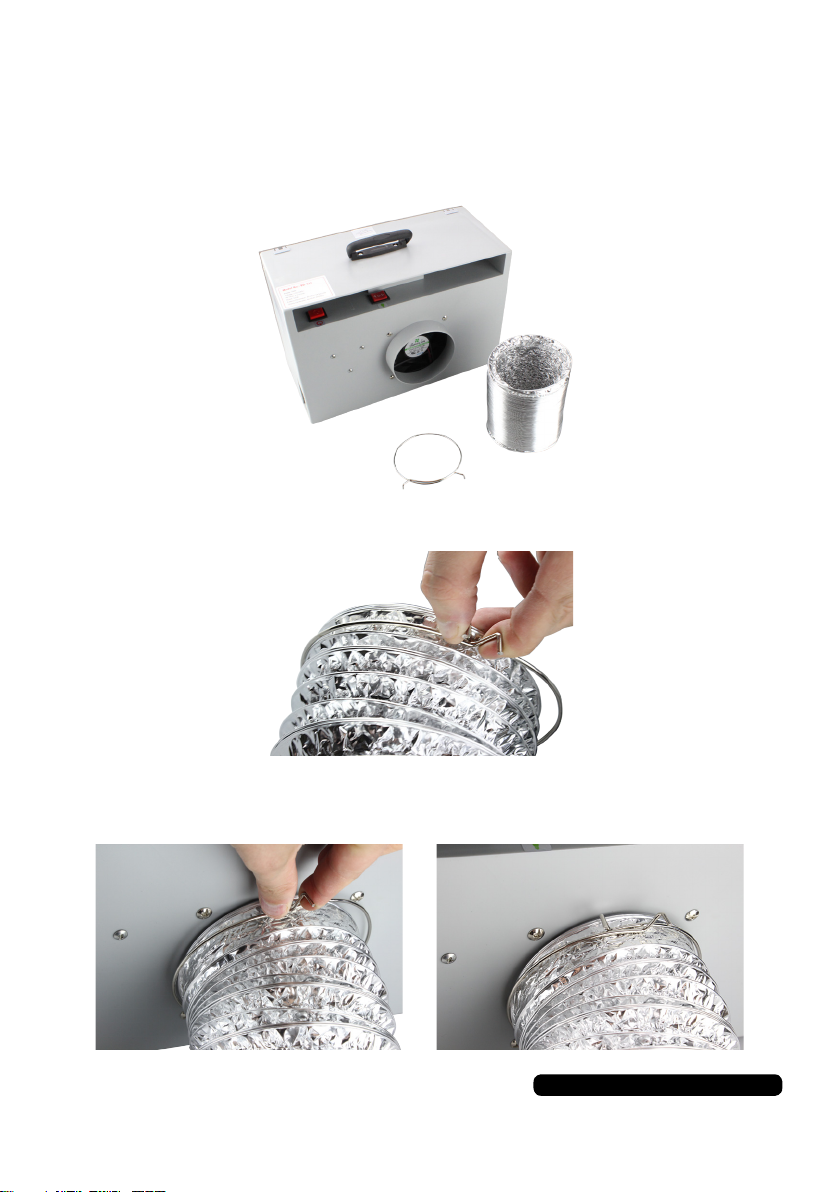

Setting Up You Spray Booth
First you will need to attach the extractor hose.
Place the spring clip over the end of the extractor hose.
Then place the hose over the extractor port on the back of the
spray booth and release the spring clip to hold the hose in place.
Setup
4
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

5
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]
Setup

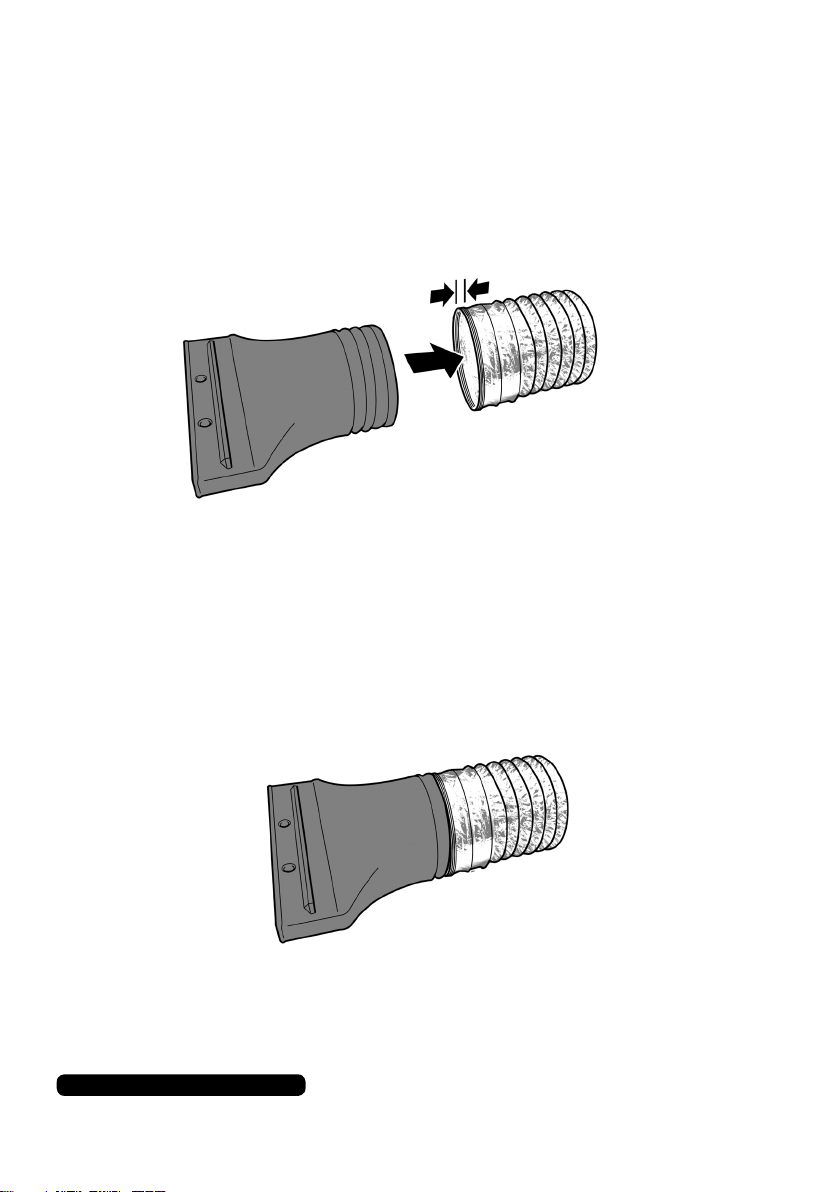

To t the extraction end piece, pinch at least three loops together
and stretch the next few loops taught.
Slide the hose over the end of the extractor end piece.

6
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

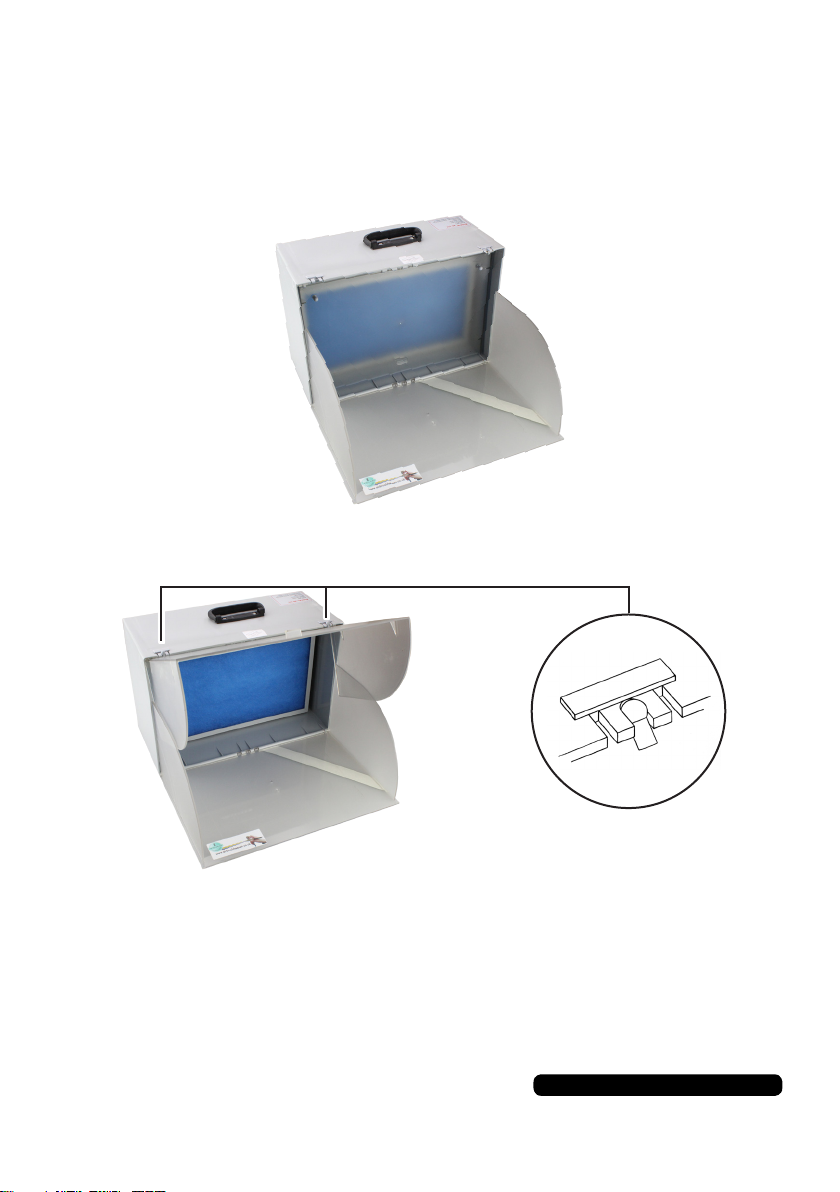

Once the hose is securely tted into place you will need to open the
the spray area. To do this lower the bottom panel into position rst.
Next raise the upper panel into position and lock it into position.
Make sure the clips lock fully into place to hold the upper panel up.
Setup

7
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

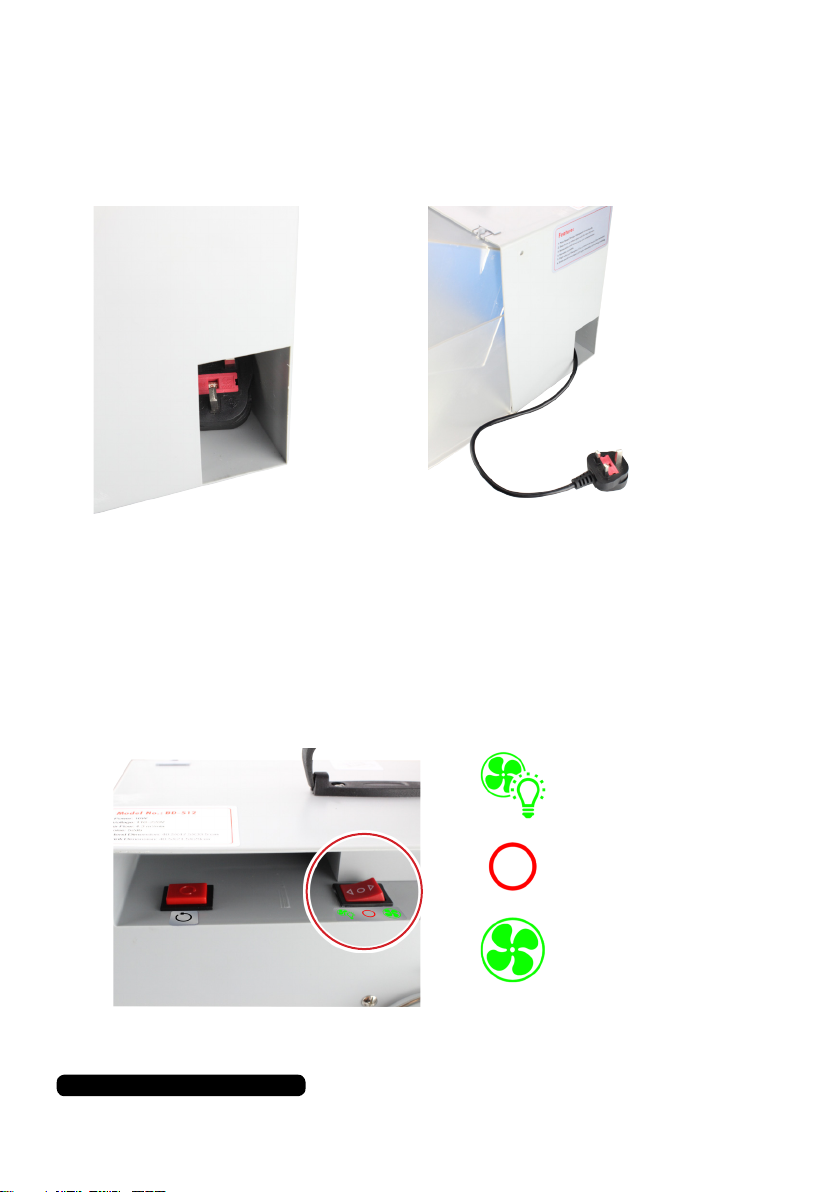

Now the panels are securely in place you can now access the
mains lead stored in the bottom right side panel.
Pull the plug to extend the mains cable (up to 1.3m) and connect it
to the mains outlet point.
You have two option when using the spray booth, ‘fan only’ and
‘fan and light’. The 3 way switch is located on the back on the
spray booth.
Press the switch for the required function.
Setup
Fan & Light
Off
Fan only

8
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

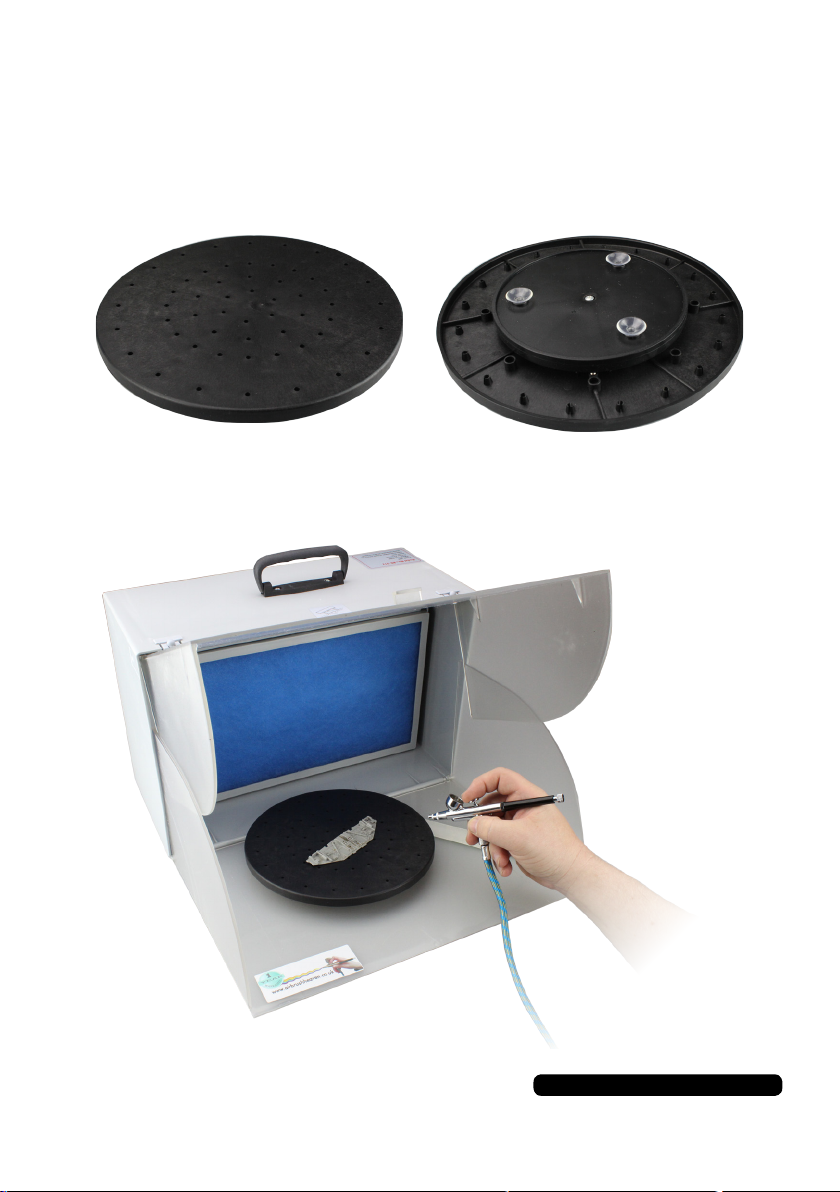

The turntable supplied with the spray booth is independent from
the booth itself. you can use it in conjunction with the spray booth
or as a workstation. The turntable a is 360ofree rotating platform.
You can secure the position of the turntable with the sucker feet to
most surfaces.
The Turntable

9
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

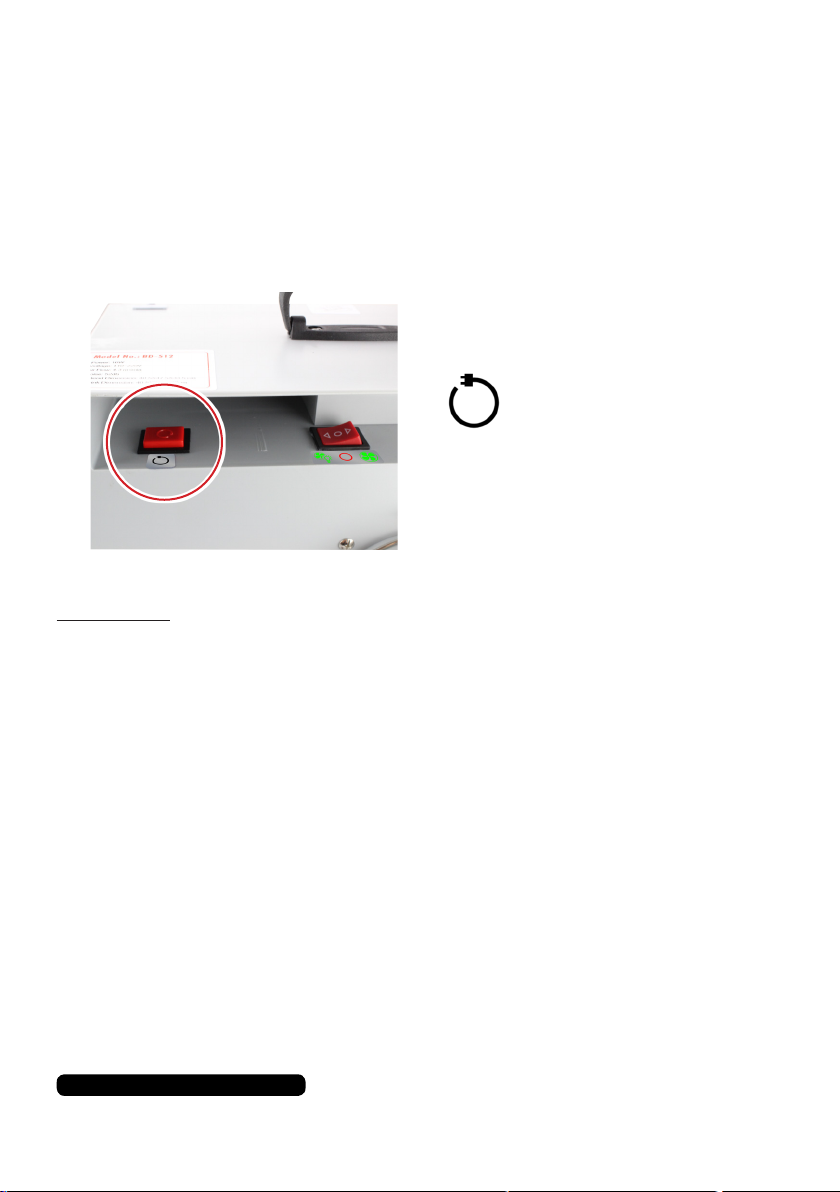

After you have nished with the unit press the switch located on
the back to the ‘Off’ position. Disconnect the mains lead from the
mains outlet. Press the cable retraction button located on the back
of the unit.
Please Note:
The retraction mechanism is spring loaded, watch your fingers and surroundings.
Once the cable has retracted to within the housing, unclip the top
panel and push it down and raise the bottom panel till it meets the
case. The spray booth is closed.
If you need to move the spray booth completely, release the spring
clip at the back of the spray booth and remove the hose off the
extraction outlet. Collapse the hose. Place the spring clip and the
extractor hose in a safe place for later use.
Storing the Booth
Retract Cable

10
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

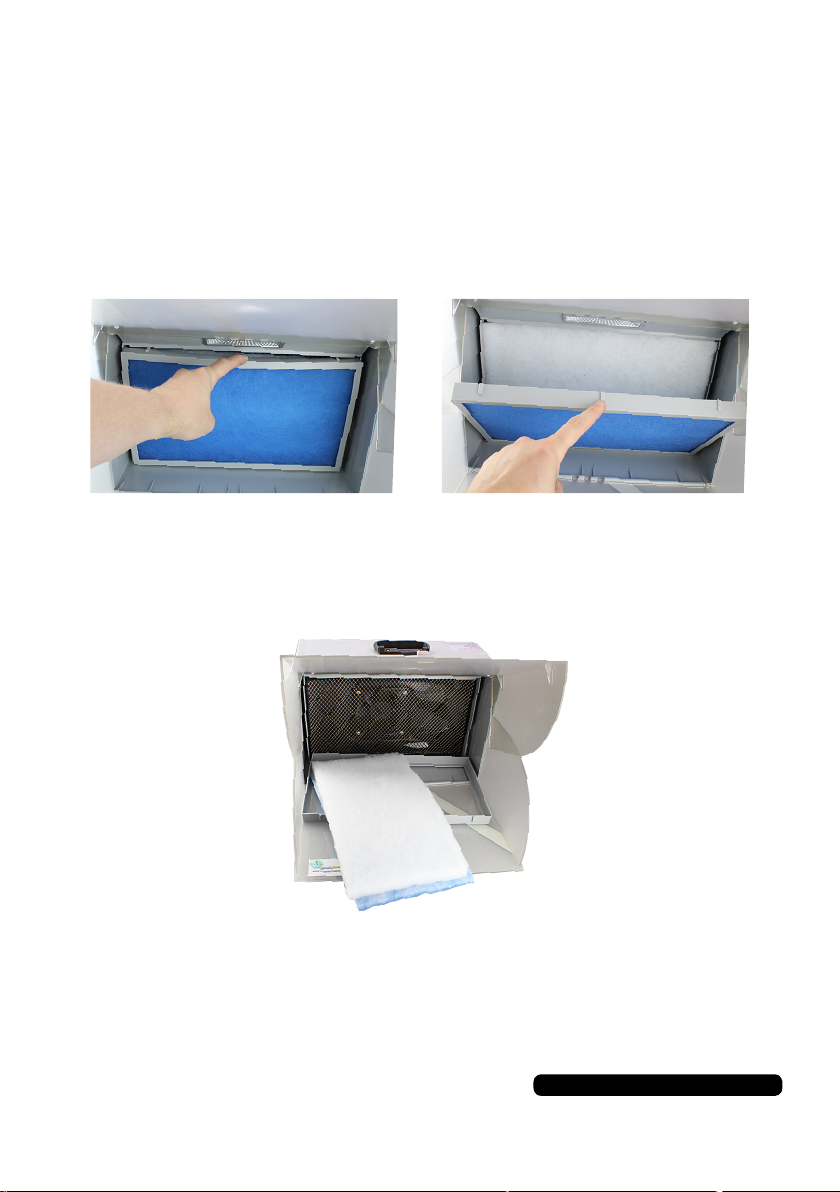

The spray booth is provided with a lter already installed but you
will need to change this later on through a fair amount of use.
To do this press down on the lter housing inside the booth, unclip
the tabs and pull it towards you.
You will see two lters, the blue one the main lter and a white
thinner secondary lter to protect the working parts. Remove the
blue lter and dispose of it safely depending on the chemicals used
with it and replace a new lter within the frame.
Place the frame on the bottom edge at the read mesh and lift the
frame up till the tabs click into place.
Replacement lters are available from our website.
Changing the Filter

 •Power:25W
 •Airow:3m3/min
 •Noise:45dB
 •DeployedDimensions:405mmx475mmx335mm
 •StoredDimensions:405mmx215mmx290mm
 •NetWeight:5Kg
 •HoseLength:2.5m
Specifications
