Aircat 806 Owner's manual

MODEL: 806
3/8" High Performance Ratchet
SPECIFICATIONS
Important Warnings - Ratchets
1. Eye protection and hearing protection and safety gloves must always be worn when operating an impact wrench or impact
driver.
2. When using heavy impact sockets or sockets on impact wrenches with 3/4” drive anvils or larger, a socket retaining ring
and pin should be used to prevent the socket falling off and causing injury.
Accessory Hazards
3. Disconnect the assembly power tool for threaded fasteners from the energy supply before changing the inserted tool or
accessory.
4. Do not touch sockets or accessories during impacting as this increases the risk of cuts, burns or vibration injuries.
5. Use only sizes and types of accessories and consumables that are recommended by the assembly power tool for threaded
fasteners manufacturer; do not use other types or sizes of accessories and consumables.
Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher
pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air line will
cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can be viewed
in the illustration below. The air inlet, used for connecting air supply, has standard 1/4”NPT American Thread. Line pressure should be increased to compensate for
unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8”I.D. and ttings should have the same inside dimensions.
Air Supply
806 200 1/2 3/8 65 2.5 10-1/2 1/4 3/8 I.D. 90 psi 4
Model No.
Free
Speed
RPM
Bolt
Capacity
(in.)
Square
Drive
(in.)
Max.
Torque
ft.-lb.
@ 90psi
Weight
(lbs.)
Length
(in.)
Air
Inlet
(NPT)
Rec. Hose
Size
Rec.
Air
Pres.
Air
Cons.
(cfm)
MODEL: 806
3/8" High Performance Ratchet

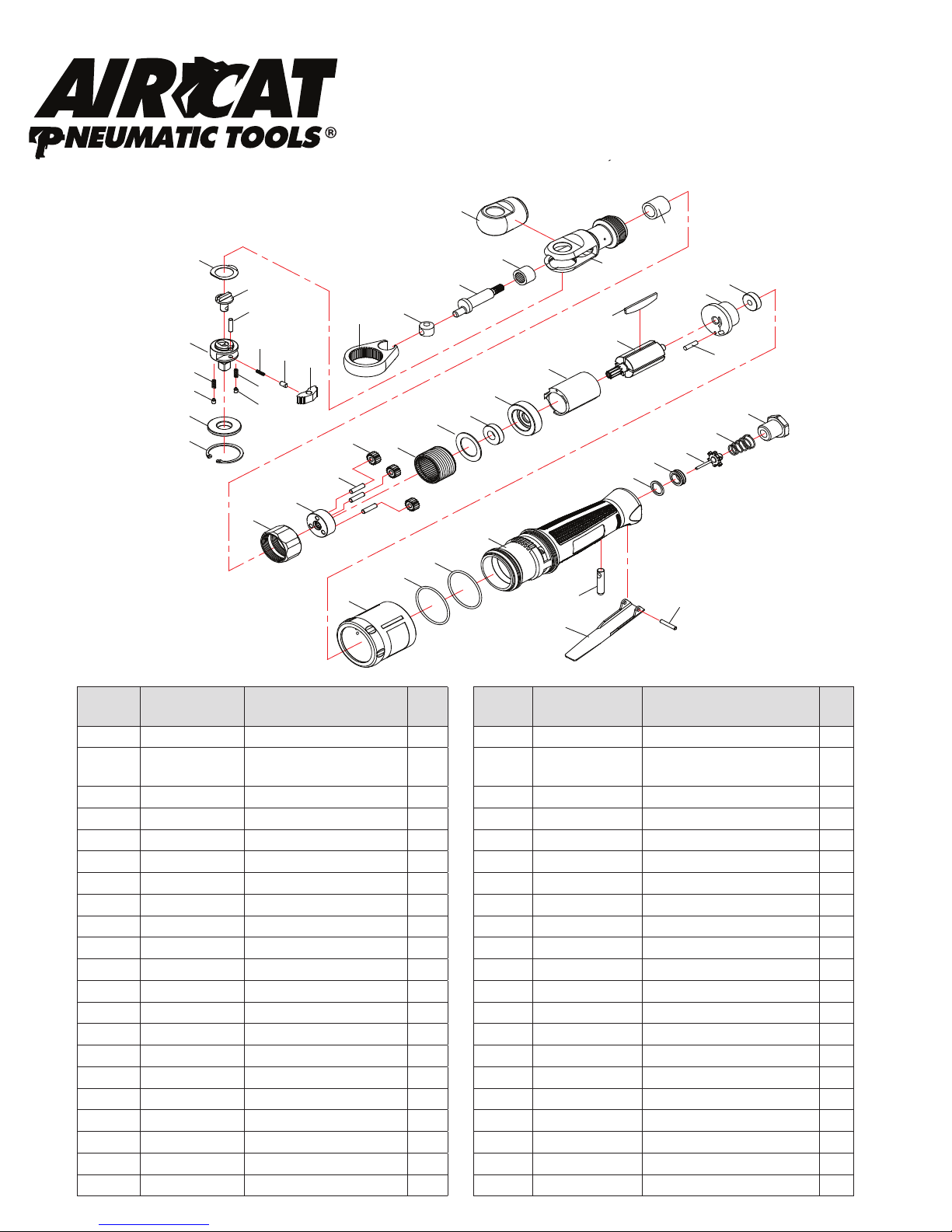

Exploded View & Parts List
37
36
1
2
3
4
5
6
15
18
19
20
21
11 7
8
9
23
27
22
34
24
25
29
35
39
40
41
42
32
33
38
10
10
39
40
12
14
13
17
26
28
30
31 16
43
Ref
#
Part Number Description Qty Ref
#
Part Number Description Qty.
1 9863810A AIR INLET BUSHING 1 22 9863825L PLANET GEAR 3
2 9638006 THROTTLE VALVE SPRING 1 23 & 24 9863827LASY GEAR PLATE (1) & GEAR PIVOT
(3) ASSEMBLY
1
3 9328804C THROTTLE VALVE 1 25 9863828L CLAMP NUT 1
4 9328835 THROTTLE VALVE SEAT 1 26 9863829L BUSHING 1
5 9328825S SPACER 1 27 9863830L RATCHET HOUSING 1
6 9863801A-RD MOTOR HOUSING 1 28 9B1212 NEEDLE BEARING 1
7 9863805A VALVE STEM 1 29 9863832L CRANK SHAFT 1
8 9863855 THROTTLE LEVER 1 30 9863834L DRIVE BUSHING 1
9 9863803 SPRING PIN 1 31 9863835 RATCHET YOKE 1
10 9589054 O-RING 2 32 9863835L WAHSER 1
11 9863822A-BK DEFLECTOR 1 33 9863836LF REVERSE BUTTON 1
12 9B626Z BALL BEARING 1 34 9863842 PAWL PIVOT 1
13 9863811 REAR END PLATE 1 35 9863838L-3 3/8" RATCHET ANVIL 1
14 9308013 SPRING PIN 1 36 9863839L SPRING 1
15 9863818L-4 ROTOR 1 37 9863840L SPRING CAP 1
16 9633816-CH6 ROTOR BLADE 4 38 9863841 RATCHET PAWL 1
17 9633817N CYLINDER 1 39 9863844 FRICTION SPRING 2
18 9863817 FRONT END PLATE 1 40 9863843L STEEL POST 2
19 9B608ZZ BALL BEARING 1 41 9863847-3 3/8" THRUST WASHER 1
20 9863823L WASHER 1 42 9863848 ANVIL RETAINING RING 1
21 9863824L INTERNAL GEAR 1 43 9863850L HEAD COVER 1
SERVICE CENTER LISTINGS ENCLOSED
AIRCAT and NITROCAT air tools are warranted to be free from defects in material and workmanship for 2 years from date
of purchase. We will repair or replace; at our option any defective part or unit which proves to be defective in material or
workmanship during this 2 year period. The foregoing obligation is AIRCAT and Florida Pneumatic's sole liability under this
or any implied warranty, under no circumstances shall it be liable for any incidental or consequential damages.
This warranty applies to the tool only. The warranty does not apply to any attached accessories/consumable products;
such as drill chucks, sander backing pads, air hammer retainers and chisels or “kit” accessories or any other accessory
included with the tool.
an AIRCAT or Florida Pneumatic Authorized Service Center) are not covered by this warranty.
Return your tool to an AIRCAT or Florida Pneumatic Authorized Service Center freight prepaid. Be sure to include your
name, address, copy of purchase with date and description of the suspected defect.
AIRCAT whose policy is continued product improvement reserves the right to make changes in design or construction at
any time without incurring any obligation on tools previously sold.
Tune-Up and Head Kits for all AIRCAT PNEUMATIC impact wrenches and ratchets are available.
For Authorized Service Centers, please visit www.aircat.com/warranty-service
