AirClean systems PowderSafe AC730C User manual

OPERATOR’S MANUAL
Type B
Ductless Balance Enclosure
Models:
AC730C AC740C

TABLE OF CONTENTS
SECTION PAGE
Declaration of Conformity 3
Symbols & Denitions 4
Cautions and Precautions 5
Specications 6
Product Overview 7
Airow Diagram 8
Unpacking and Installation 9-11
Controller Instructions 12-14
Operating Instructions 15
Prelter 16
Main Filter(s) 18
Filter Serial # Instructions 20
Fluorescent Bulbs 21
Cleaning 26
Spare Parts 27
Cart Assembly 28-29
Warranty 30
Shipping Claims 31
Contact Info 32

DECLARATION OF CONFORMITY
We: AirClean® Systems, Inc.
of: 3248 Lake Woodard Drive
Raleigh, North Carolina 27604
USA
declare that:
Product Name: PowderSafe Type B
Model Numbers: AC730C, AC740C
in accordance with the following Directives:
73/23/EEC The Low Voltage Directive as amended by 93/68/EEC
89/336/EEC EMC Directive as amended by 92/31/EEC
has been designed and manufactured to the following specications:
Safety: IEC 61010: 2001 SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT
EMC: CISPR 11 Electromagnetic Disturbance Characteristics - Limits And
Methods of Measurement
IEC 61000-4-2 Electromagnetic Compatibility, ESD
IEC 61000-4-3 Electromagnetic Compatibility, Radiated Immunity
IEC 61000-4-4 Electromagnetic Compatibility, Fast Transient
IEC 61000-4-5 Electromagnetic Compatibility, Surge
IEC 61000-4-6 Electromagnetic Compatibility, Conducted Immunity
IEC 61000-4-8 Electromagnetic Compatibility, MM
IEC 61000-4-11 Electromagnetic Compatibility, Voltage Interruption
The CE marking has been afxed on the device according to article 10 of the EMC Directive 89/336/EEC.
I hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specications. The unit complies with the essential requirements of the
directives.
Signed by:………………………………………
Name: M. Kevin McGough
Position: General Manager
Raleigh, North Carolina USA 15- Apr-2004

4
The lightning ash with arrowhead symbol within an equilateral triangle alerts the user
to the presence of dangerous voltages within the product’s enclosure that maybe of
sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle alerts the user to the presence of
important operating maintenance or service instructions.
The two persons lifting symbol within a circle alerts the user that two persons are
required for safe lifting of the object.
The presence of this symbol means that this equipment has been designed, tested and
certied as complying with the applicable Underwriter’s Laboratory (USA) regulations
and recommendations.
The presence of this symbol means that this equipment has been designed, tested and
certied as complying with all of the essential requirements applicable to European
Union (CE) regulations and recommendations.
This symbol alerts the user to the correct replacement fuses for the product.
Abbreviation Denition
PPE Personal Protective Equipment
OSHA Occupational Safety and Health Administration
ACGIH American Conference of Government Industrial Hygienists
TLV Threshold Limit Value
HEPA High-Efciency Particulate Air
MSDS Material Safety Data Sheet
ANSI American National Standards Institute
SYMBOLS AND DEFINITIONS

5
Signal Words and Meanings
WARNING - Indicates a potentially hazardous situation, which if not avoided,
could result in death or serious injury.
CAUTION - indicates a potentially hazardous situation, which if not avoided,
may result in minor or moderate injury. It may also be used to alert against unsafe
practices or potential equipment damage.
Cautions
Always use a properly grounded line cord and receptacle.
Always replace fuses with those specied.
These instructions must be placed in an easily seen location.
DO NOT operate the equipment without the lters in place.
DO NOT use this system until it has been properly installed.
DO NOT operate this enclosure if the linecord appears damaged or frayed in any
way.
DO NOT attempt to access non-user serviceable components of system.
DO NOT operate this enclosure if display is blank or hard to read. If display is hard
to read, call technical support at 800-849-0472.
CAUTIONS AND PRECAUTIONS

6
SPECIFICATIONS AC730C AC740C
Physical Dimensions
Outside Dimensions 32”w x 33”h x 30”d 48”w x 33”h x 30”d
Inside Dimensions 31”w x 20”h x 22”d 47”w x 20”h x 22”d
Weight
Filters included 150 lbs. 250 lbs.
AirowCharacteristics
LowAirowAlarm Audible/Visible Audible/Visible
Volume of Filtered Air 250 CFM 300 CFM
Linear Face Velocity 100 FPM 100 FPM
Electrical
Voltage 110V or 220V 110V or 220V
Current 3.0A / 1.5A 6.0A / 3.0A
Power Consumption 330W 660W
Operation
Speed Selection Variable Speed Variable Speed
Construction
Top and Base Material Polypropylene Polypropylene
Front Panel Polycarbonate Polycarbonate
Prelter1
Type (particulate) ACFPRE8 ACFPRE5
Weight 9 oz. 11 oz.
Dimensions 23”l x 11”w x 1”h 41”l x 11”w x 1”h
Requirements 1 1
Filter2(HEPA)
Type ACFHEPA ACFHEPA-42
Weight 9 lbs. 18 lbs.
Dimensions 24”l x 12”w x 3”h 42”l x 12”w x 3”h
Requirements 2 2
Options
Cart (with two 4” locking wheels) 32”l x 30”w x 34”h 48”l x 30”w x 34”h
NOTE 1
Your enclosure is shipped with the prelter(s) attached to the inside of the enclosure. AirClean® Systems prelters
are ltrete electrostatic particulate lters with 65% efciency for particulate down to 0.5 microns in diameter (DOP
test). The prelter must be checked on a scheduled basis. Refer to the “MAINTENANCE” section of this manual.
NOTE 2
Your AirClean® Systems PowderSafe™ enclosure was shipped with the primary and permanent HEPA lters in-
stalled. The HEPA lters protect the operator from particulate but will not protect the operator from any fumes.
The HEPA lters must be changed on a scheduled basis. Refer to the “MAINTENANCE” section of this manual.
TECHNICAL SPECIFICATIONS

7
Type B Enclosure
AirClean® Systems Type B enclosures provide maximum operator protection during weighing
and lter change out. Variable Airow Volume Control ensures constant operator protection
from exposure to pharmaceutical compounds.
AirClean® Systems HEPASafe™ lter change technology allows for safe and easy change
of all contaminated lters, while under negative pressure. A permanent HEPA lter protects
the operator during primary HEPA lter change out. If the primary HEPA lter should ever be
compromised, it would also act as a permanent “nondisturbed” backup safety lter. The pre-
lter and primary HEPA lter are simply bagged out within the enclosure.
OVERVIEW
Independently tested and validated for personal protection from particulate.
Copies of these reports are available from AirClean® Systems upon request.

8
How PowderSafe™ Type B Works:
1. Air enters at “A” and is drawn in a laminar ow toward the rear plenum of the
enclosure while being mixed with contaminated air ”B”.
2. At “C” the contaminated air rst enters a roughing pre-lter before entering
the primary HEPA lter.
3. Air cleaned by the primary HEPA lter enters the permanent safety HEPA
lter at ”D”.
4. Clean air is returned to the room at “E”.
AIRFLOW DIAGRAM
Figure1.Airowdiagram

9
1) Make sure that your workstation arrived secured to a pallet/skid. Inspect the exterior
packaging (box) for damage. Note any damage or absence of pallet on the freight
carrier’s waybill and call AirClean® Systems immediately.
2) Put on safety glasses and cut banding material.
3) Remove box top and sleeve.
4) Remove shrink-wrap and foam. If you use a sharp object to cut the shrink-wrap
and foam, make sure not to cut into the workstation.
UNPACKING AND INSTALLATION INSTRUCTIONS

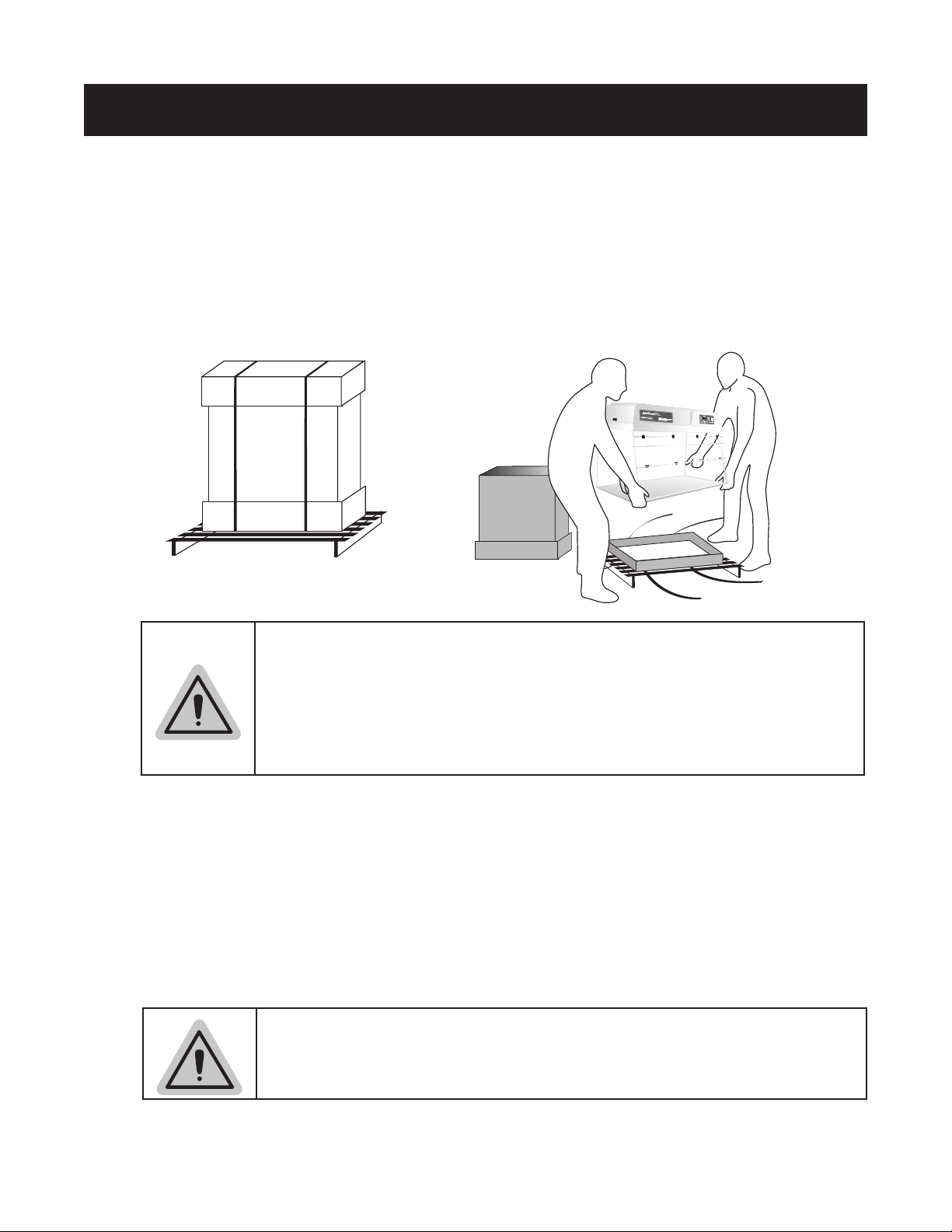

Figure 2. Unpacking the workstation
Note: Ready access is required to the power entry module and On/Off switch
located at the upper right side of the enclosure behind the AirSafe™ controller.
CAUTION: This workstation should not be installed
near doors, windows or air conditioning/ heating/
ventilation systems. Air must be allowed to circulate
freely around the enclosure. Allow at least 6” between
the top and the right side of the enclosure and any
obstructions.
5) If ordered, assemble the mobile cart. Assembly instructions are included with the cart
and also in the OPTIONS section of this manual. (page 29)
6) Designate the appropriate installation location. Make sure that the desired area is
stable enough to hold the workstation and that there is an appropriate AC wall
receptacle near the workstation. Do not place workstations near doors, windows, or
air returns.
CAUTION: DO NOT lift the workstation by the head
assembly, the sash, or any protruding wires.
7) Based upon the size of the enclosure, make sure to have adequate equipment and
personnel to put in place. See Technical Specications on pages 8-10.

10
8) Place the workstation in the desired location. Once in place, make sure that it is secure
and stable.
9) Visually inspect your workstation, checking for any damage that may have occurred
in shipping. Pay special attention to the sash hinges. If damage has occurred, call
AirClean® Systems immediately. DO NOT attempt to use workstation.
10) Make sure that the rear hatch cover is secure and seated properly. See gure 4.
Figure 4. 730C Rear
Figure 3. Lifting the workstation properly.
Sash Hinges

11
13) Make sure that any exterior linecord connections are secure and seated properly. These
connections are located on the back right side of the workstation. See gure 5.
14) Locate the power entry module on the right side of the workstation. Insert the female
end of the linecord into the power entry module and the male end into an appro-
prate electrical outlet. See gure 5.
CAUTION: Only use approved accessories with the
exterior connectors.
Figure 5. AC730C/AC740C Linecord power entry module
730C side

12
MODE SELECT SET
PROGRAMMING
QUICK KEYS
BLOWER PUMP LIGHT TIMER
AUX ALARM POWER
MODEL 300
CONTROLLER
QUICK KEYS
BLOWER - Default screen will continuously display face velocity while blower
is activated.
PUMP - Inactive key for enclosure.
LIGHT - One touch to enable uorescent light.
TIMER - User denable lab event timer.
AUX - Inactive key for enclosure.
Figure 6. AirSafe™automatic safety controller layout.
CONTROLLER INSTRUCTIONS
• All other settings are factory pre-set and should not be changed.

13
The AirSafe™ Automatic Safety Controller is the rst of its kind on the market. This
breakthrough was designed to give the user a variety of options with the ease of ngertip
control. The keypad consists of 13 keys, each with a specic function:
Allows the operator to move between
MODE different program screens.
Allows movement within each program
SELECT screen. The user modiable
portions of the screen will blink.
Allows operator to adjust the following
SET user denable settings:
• Face velocity • Time/Date
• Lab event timer • Gas detection
* All other settings are factory preset and should not be changed.
ALARM Allows deactivation of the audible alarm but keeps the visible
alarm active.
POWER Turns on/off power to the controller and its keys. This DOES NOT
cut off power to the entire enclosure.
(The main power switch is located above the power inlet on the top of each
polypropylene fume hood.)
MAIN MENU - Displays the time and date when the main power is on and the controller
power is off. When controller power is activated the screen will display one
of the following and may be changed by pressing the “Select” arrow key:
• Airow Monitor (Measured in Linear Feet per Minute)
• Lab Event Timer (Preset at 20 minutes)
• Current GAS DET reading (If a bonded carbon lter is installed)
NOTE: Activating the Lab Event Timer (by menu or Quick Key) will automatically switch
the main menu to display the timer countdown. To switch the display back to the Airow
Monitor, just toggle with the “Select” up arrow key.
PROGRAMMING KEYS
PROGRAMMING MENUS
MODE
SELECT
SET

14
PROGRAMMING MENUS
BLOWER CONTROL – This menu is preset at the factory to meet O.S.H.A. face velocity
standards while in AUTOMATIC mode. From this screen you can:
• Turn the blower on/off.
• Switch from automatic to manual blower speed based on the application.
• Change the output of the blower.
TIMER – This menu allows the operator to turn the timer on/off and to program an
appropriate event time. Once the operator has programmed the desired time,
the Timer can be activated by touching the Timer Quick Key on the front of the
controller.
TIME/DATE – The operator can change displayed time and date.
ALARM SETTINGS –All alarm points for face velocity and gas detection have been preset
by the manufacturer and should not be altered.
ALARM SCREEN – Allows the operator to turn the low airow and gas detector alarm
on/off in this screen. This controls both the audible and the visible alarms.
If the operator turns off the alarm in this screen, nothing (audible or visible)
will alert you if the airow is below the selected face velocity or the HEPA
lter is clogged.
NOTE: The operator can deactivate the audible alarm, when it sounds, by
touching the alarm button on the controller. The visible alarm will still work.
FILTER – This menu shows the serial number and the purchase date of the lter. For
every new lter installed, a new lter serial number must be entered. Refer to
the “MAINTENANCE” section for complete instructions. The rst lter serial
number has already been entered for you prior to shipment.
BLOWER HOURS – Displays the hours and minutes that the blower has been active.
GAS DETECTOR – (for carbon hoods only) A solid state hydrocarbon detector warns
the user of lter breakthrough. Alarms are audible and visible.
ADDITIONAL INFORMATION
• Keep the right hand side of the unit away from the wall and
turbulent places. The hood should not be placed near doors or
high-trafc areas.
• To avoid confusion, each alarm has a distinctive sound and will ash what
the problem is on the display screen.
• Unless the operator turns the blower off (by Quick key or in the blower menu)
before turning the power off, the blower will automatically come on each time
the operator activates the unit.
• Anything the operator changes within the program is automatically saved.
• Allow each hood to run for at least 5 minutes before use so the airow
sensor can warm up, stabilize, and settle at the correct airow.

15
The following operating instructions are specic for using powders and particulate in your
AirClean®Systems PowderSafe™ enclosure.
NOTE: Ensure that the INSTALLATION AND ASSEMBLY INSTRUCTION steps have
been completed.
A. To operate the PowderSafe™ enclosure:
1. Connect the supplied power cord to the unit and to the power outlet. Flip the switch on
the power inlet module. This will activate the main power. The screen on the controller
should light up and display the time and the date. Press power button. Check the blower
to assure it is on . If not, press blower button. Allow the enclosure to run for 5 minutes
before beginning your application.
2. Before use, ensure that you are not using an incompatible substance within the
enclosure. With a HEPA lter, use only powders and particulate in the enclosure. For
other substances, please call AirClean®Systems to verify compatibility before use (in
this case, your lter may have another model number). Dial 919-255-3220 or
800-849-0472, Monday-Friday 8:00 AM-5:00 PM EST.
3. Perform any part of your process that involves powders and particulate inside your
enclosure. NEVER manipulate powders or particulate at the front edge of your
enclosure.
B. When working within the enclosure, keep the front panels down and preform your
procedure in the center to rear of the enclosure. Never open the front panels completely.
Only open during operation, cleaning or maintenance.
C. If the low airow alarm sounds and/or lights up, the prelter or HEPA lter may be clogged.
D. When this happens refer to the “MAINTENANCE” section of this manual.
REMEMBER: Following the instruction assures better protection of the operator and the
environment, and extends the life of the enclosure and lter. Correct use of the PowderSafe™
enclosure is the responsibility of the operator!
OPERATING INSTRUCTIONS

16
Pre-lters
Pre-lters should be checked each month. In most cases, they should be changed every
1 to 3 months. Prelter replacement is required when discoloration of the prelter occurs
or when the low airow alarm comes on. See the “PRE-FILTER CHECK/REPLACEMENT”
section of this manual for complete instructions.
PRE-FILTER CHECK / REPLACEMENT
A.TocheckthePre-lter:

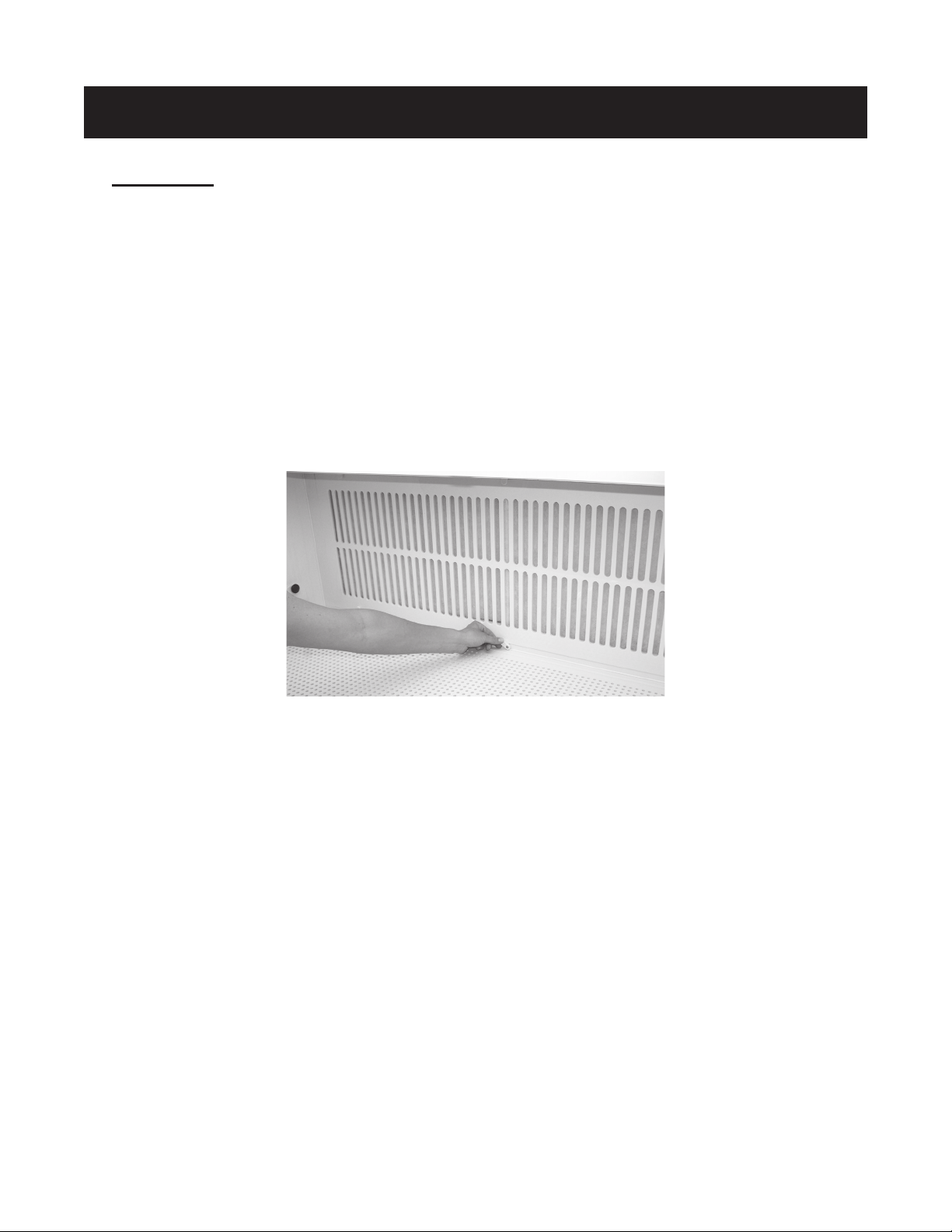

1. Look through the sash to the inside of your unit. The pre-lter and pre-lter grid are located at the
back of the unit.
2. Look through the slats on the pre-lter grid. If the prelter is discolored (the original color is
green), replacement is needed.
B.ToreplacethePre-lter:
1. Don the proper PPE for handling the substance that have been used inside the enclosure (refer to
the MSDS sheets).
2. Turn the unit on and make sure that the blower is running.
3. Place an appropriate poly bag on the base of the enclosure. You will place the saturated pre-lter
inside the bag and seal it before removing it from the hood.
MAINTENANCE
Figure7.AC740CPre-ltergrid.

17
4. Remove the 4 black knobs or turn the 6 polypropylene clips that hold the prelter grid in place.
This will expose the clogged pre-lter. Do not remove the pre-lter from the hood!
5. Remove the pre-lter from the pre-lter grid and place it inside the poly bag. Wipe any residue off
of the pre-lter grid and base of the enclosure. Place the rag inside the bag with the pre-lter and
seal the bag. Dispose of the pre-lter in accordance with your local guidelines for the substances
that have been used inside the hood.
6. Inspect the HEPA lter for blockage. If replacement is needed, refer to the “FILTER
REPLACEMENT” Type B, sub-section of this manual for complete instructions.
7. Place the new pre-lter into the pre-lter grid and secure into place with the 4 black knobs or 6
polypropylene clips.
8. Dispose of your PPE in accordance with your local guidelines for the substances that have been
used inside the hood.
Figure8.AC740CPre-lterclips.

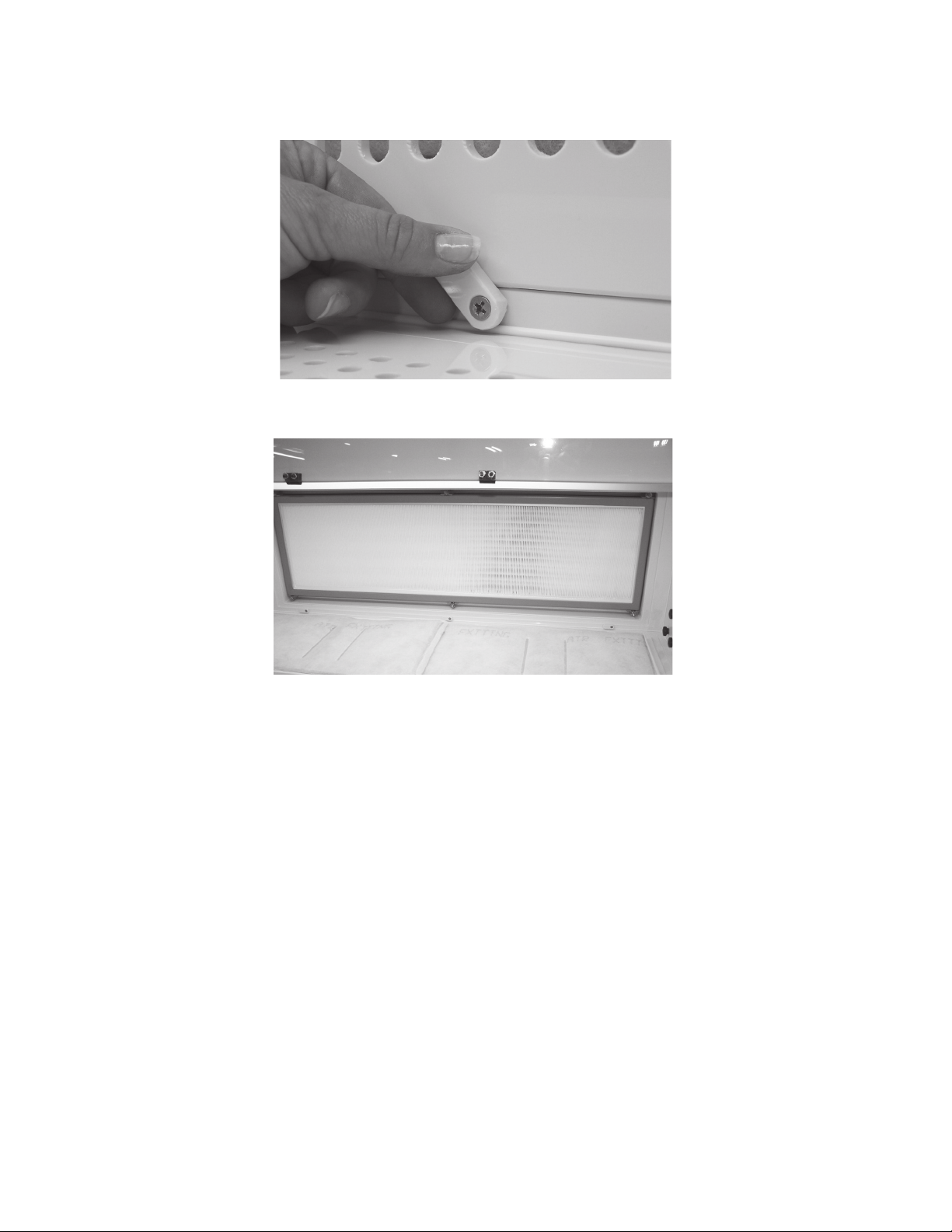

Figure9.AC740CPre-lterandHEPAlter.

18
FILTER REPLACEMENT
HEPA Filters
The HEPA lter must be changed atlease every two years. See the “FILTER REPLACEMENT”
section of this manual for complete instructions.
The HEPA lter must be changed every two years or whenever it is clogged. The frequency with
which the lter must be changed depends upon usage. OSHA and the American Conference of
Government Industrial Hygienists (ACGIH) have published guidelines for Threshold Limit Values
(TLV’s) of exposure to chemicals and particulate. Local regulations may also contain specic TLV’s.
It is the express responsibility of the user to follow these regulations.
If the level of the substance being used exceeds the published TLV’s prior to the annual change
date, the HEPA lter must be changed. If the lter is changed prior to the annual date, it should be
changed every two years from this new date.
A.ToremovethespentACFHEPAlter:
1. Turn the unit on and make sure that the blower is running. The safety lter, located in the
top of the workstation, will protect you from any residual powders that might come off of the
saturated primary HEPA lter while replacing it.
2. Place 2 appropriate poly bags on the base of the workstation. You will place the saturated
prelter and HEPA lter inside the bag and seal it before removing it from the hood.
3. Don the proper PPE for handling the substance that have been used inside the hood (refer to
the MSDS sheets). Remove the 4 black knobs or turn the 6 polypropylene clips that hold the
prelter grid in place. This will expose the saturated pre-lter. DO NOT REMOVE THE PRE-
FILTER FROM THE HOOD!
MAINTENANCE
CAUTION: Disconnect the linecord from the power entry module
prior to proceeding.
Figure10.AC740CPre-lterclips.

19
4. Remove the pre-lter from the pre-lter grid and place it inside the poly bag. Wipe any residue
off of the pre-lter grid and base of the workstation. Place the rag inside the bag with the pre-
lter and seal the bag.
5. With a small wrench, remove the ¼ - 20 hex nuts and remove the lter hold down.
6. Place the spent HEPA lter into the second poly bag. Wipe any residue off of the lter hold
down frame and any other obvious areas. Place the second rag into the bag and seal the bag.
Dispose of both bags in accordance with your local guidelines for the substances that have
been used inside the hood.

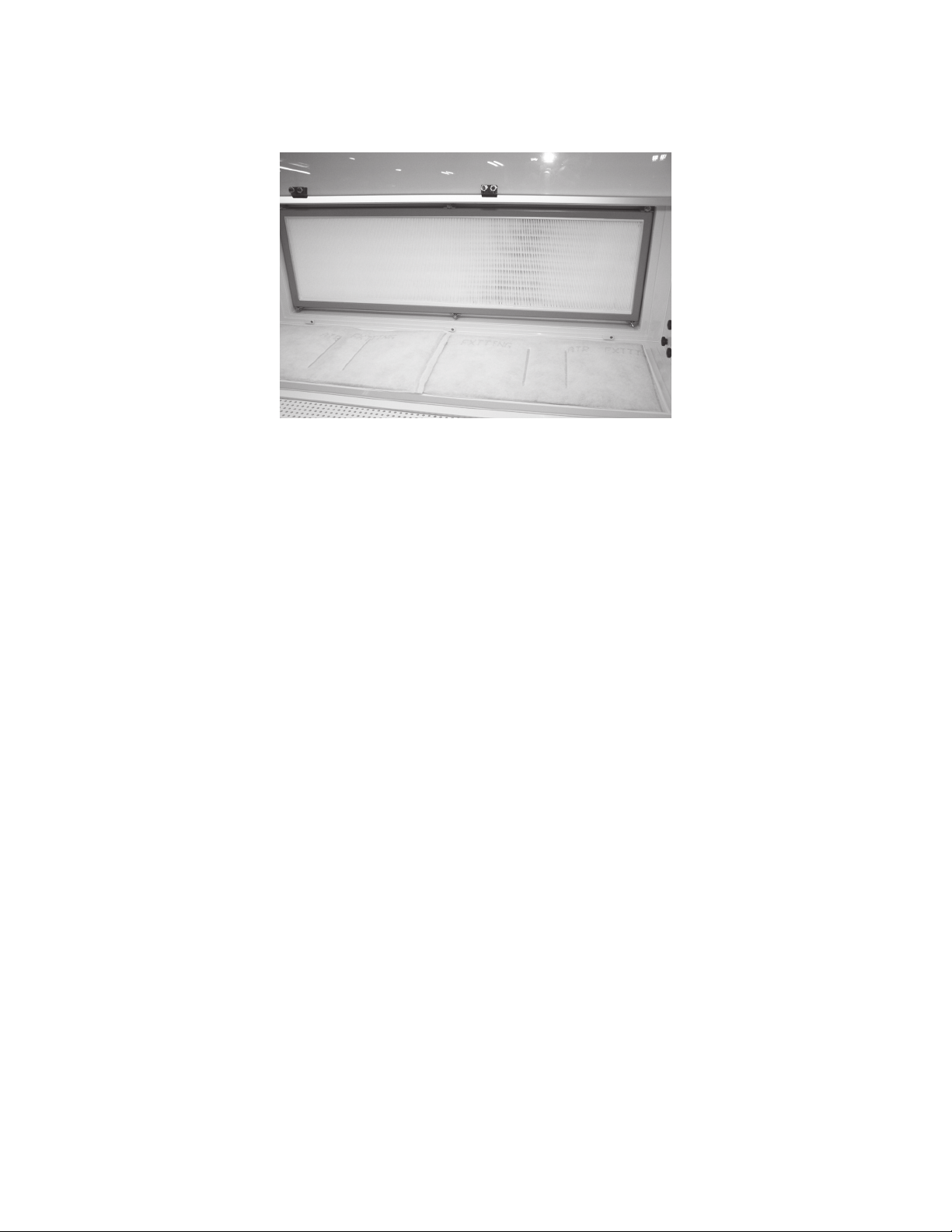

Figure11.AC740CPre-lterandHEPAlter.

20
B.ToinstallthenewACFHEPAlter:
1. Remove the ACFHEPA from the packaging. Visually inspect the HEPA lter for rips in the lter
media.
2. Place the lter into the lter grid with the gasket and screen side facing away from you.
3. Place the lter hold down frame over the HEPA lter and secure it with the hex nuts.
4. Place the new pre-lter into the pre-lter grid and secure into place with the 4 black knobs or 6
polypropylene clips.
5. Dispose of your PPE in accordance with your local guidelines for the substances that have
been used inside the hood.
Check the display screen to assure that the enclosure is functioning
properly:
1. If the Low Airow Alarm is not activated, proceed to use the enclosure.
2. If the Low Airow Alarm is activated, contact our Technical Support Department at
[phone]. Direct dial [phone], Monday - Friday 8:00AM - 5:00PM EST.
MAINTENANCE
FILTER SERIAL NUMBER ENTRY
• Press the “MODE” up arrow key until the lter screen is displayed. This screen will
display the days remaining for lter life.
• Press the “SELECT” up arrow key. The rst 2 digits of the old lter serial number will
be blinking.
• Using the “SET” keys, enter the new serial number starting with the rst two digits.
Press the “SELECT” up arrow key to move to the next set of digits.
• Repeat until the entire serial number is entered.
• Press the “SELECT” up arrow key until the “<” symbol is blinking.
• Finish by pressing the “SET” up arrow key once to reset the lter serial number.
