Airgo 700-3 series User manual

Owner’s Manual
Dealer: this manual must be given to the user of the wheelchair
User: before using, read this manual and save for future reference
AMG Medical Inc.
Montreal, QC H4T 1V5
www.amgmedical.com MONTREAL

TABLE OF CONTENTS
AIRGO™ OWNER’S MANUAL
AMG Medical Inc • www.amgmedical.com
Tableofcontents.................................2
Readbeforeuse..................................3
Choosingtherightchair ......................3
Reviewthismanualoften.....................3
Your Airgo™ wheelchair and it's parts . . . . . . . . . . . . . . . . 4
Airgo™ wheelchair specifications . . . . . . . . . . . . . . . . . . . 5
Basicsafetyprecautions...........................6
Generalwarnings...............................6-7
Safety / handling of wheelchair . . . . . . . . . . . . . . . . . . . . . 8
Folding and unfolding the wheelchair. . . . . . . . . . . . 8
Stabilityandbalance .......................8-9
Transferring................................9
Tilting ....................................9
Tilting - Ramps & inclines . . . . . . . . . . . . . . . . . . . 10
Maintenance.................................11-13
Requiredtools.............................13
Chairbasics.................................14-19

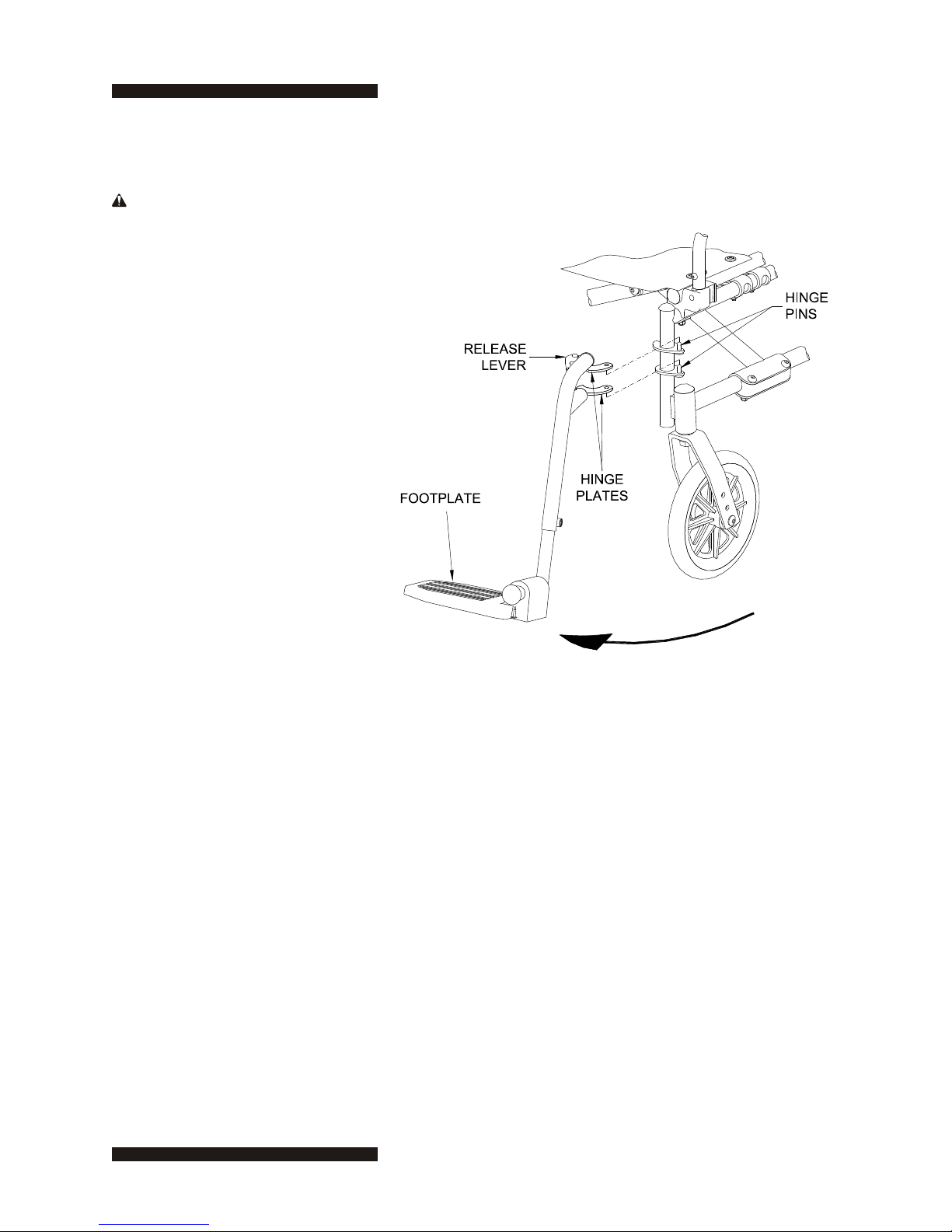

Installing the swing-away footrest . . . . . . . . . . . . . 14
Adjusting the swing-away footrest . . . . . . . . . . . . . 15

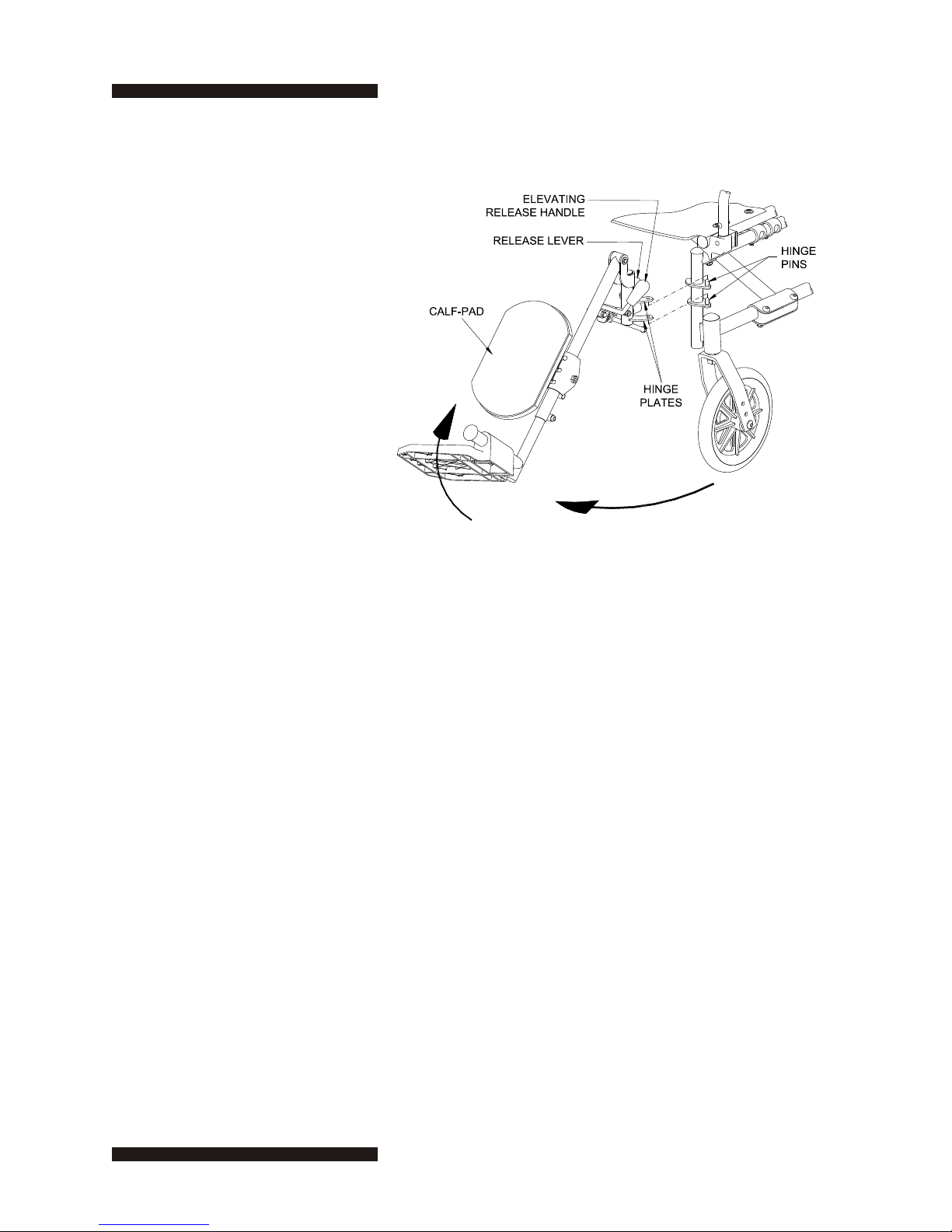

Installing the swing-away elevating leg rest . . . . . . 16

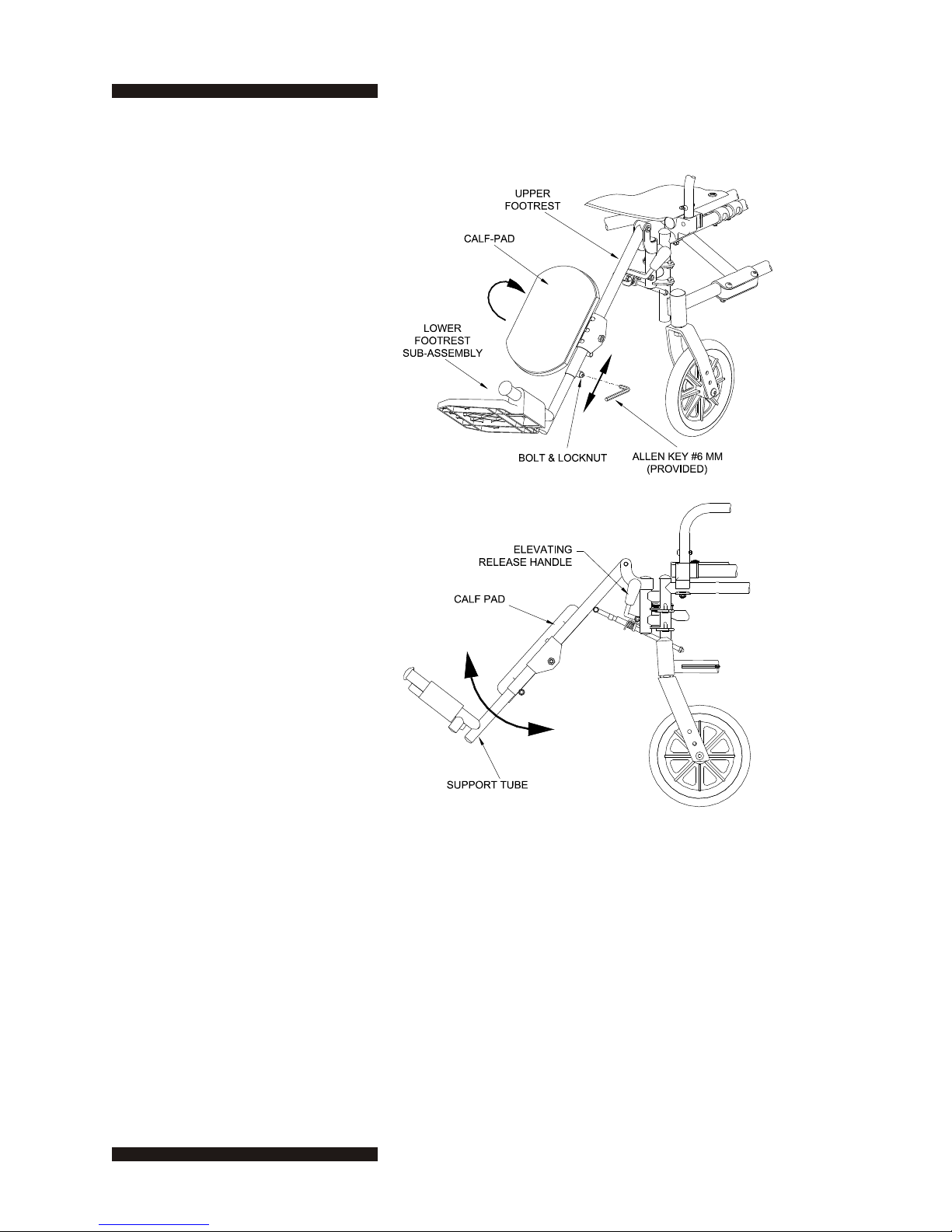

Adjusting the swing-away elevating leg rest. . . . . . 17
Adjusting armrest height . . . . . . . . . . . . . . . . . . . . 18
Removing 3-in-1 armrest and/or flip-back armrest. 18
Seatandback................................19-20

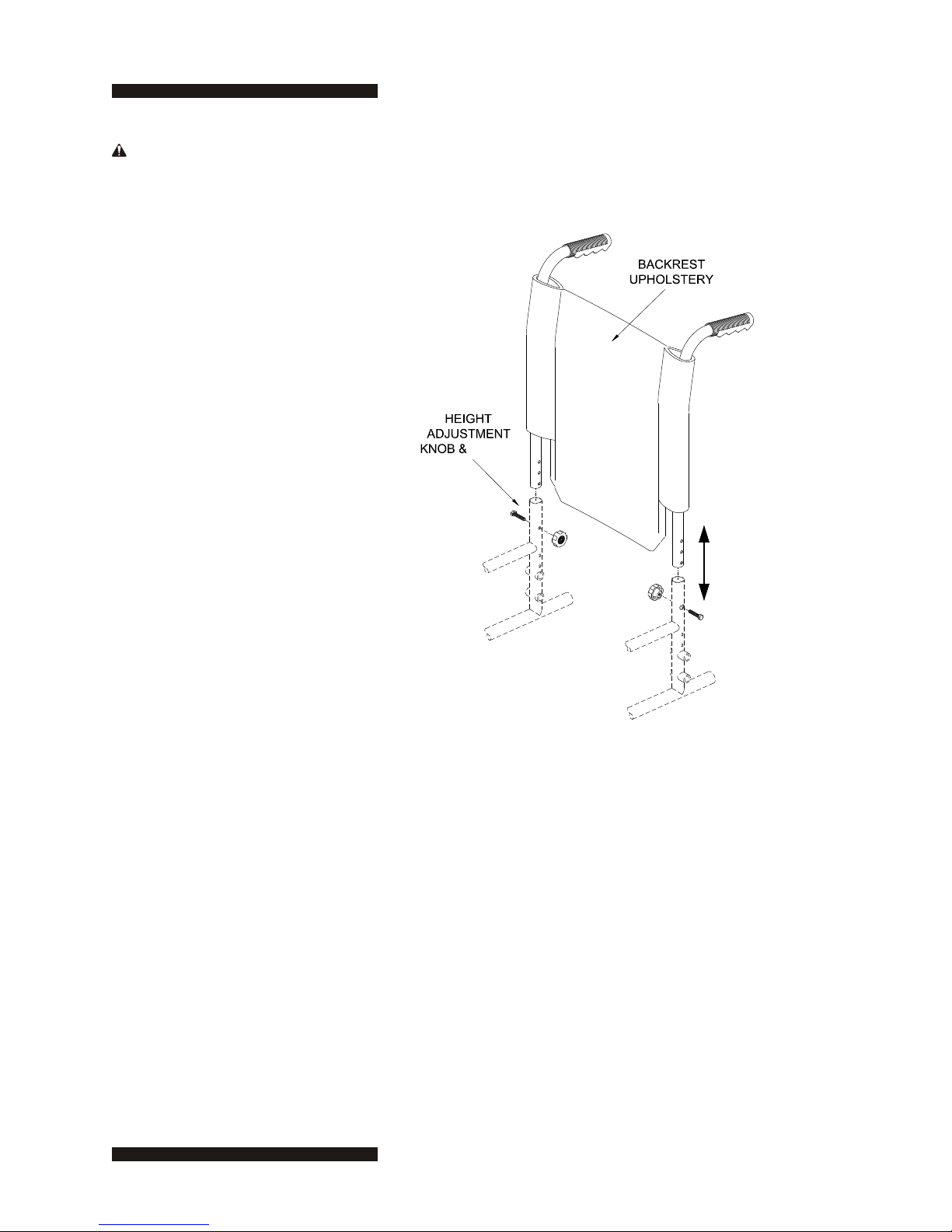

Adjusting backrest height . . . . . . . . . . . . . . . . . . . . 19
Replacing the back upholstery . . . . . . . . . . . . . . . . 20
Replacing the seat upholstery . . . . . . . . . . . . . . . . . 20
Rearwheels.................................21-22
Frontcasters...................................23
Seat-to-floorheight..............................24
Anti-tippers....................................25
Wheellocks....................................26
Limitedwarranty................................27
2
NOTE: All illustrations and
specifications in the manual
are based on the latest
product information
available at the time of
publication.
AMG Medical Inc. reserves
the right to make changes at
any time, without notice.

READ BEFORE USE
A. CHOOSING THE RIGHT CHAIR
B. REVIEW THIS MANUAL OFTEN
Airgo™ offers many wheelchair accessories options and
configurations to meet the needs of the individual user.
However, the final selection of options, accessories and
adjustments should be made together by you, with your
health care advisor and/or Airgo™ dealer. Selecting the
best Airgo™ wheelchair configuration depends on such
things as:
1. Your level of physical strength, balance and
coordination.
2. The types of hazards you must overcome in the
environments in which you will use the
wheelchair (home, work and other places you
frequent regularly).
3. The options needed for your comfort and safety.
Before using this wheelchair, you and each person who
may assist you, should read this manual carefully and
follow all instructions. Review the warnings and
precautions often until you are fully familiarized with them.
3
AMG Medical Inc • www.amgmedical.com
AIRGO™ OWNER’S MANUAL

AIRGO™ WHEELCHAIR AND PARTS 4
1. Padded backrest
2. Padded armrest
3. Wheel-lock
4. Padded seat
5. Swing-away footrest / elevating leg rest
6. Push handle grip
7. Rear wheel
8. Hand rim
9. Anti-tipper device
10. Side frame
11. Front fork
12. Front caster
AMG Medical Inc • www.amgmedical.com
AIRGO™ OWNER’S MANUAL

AIRGO™ WHEELCHAIR SPECIFICATIONS
Seat width 16, 18, 20 or 22-inches
Seat depth 16 or 18-inches
Seat-to-floor 17 ¾ or 19 ¾ inches
Overall width 23, 25, 27 or 29 inches
Overall depth
(without front rigging) 30 ½ inches or 32 ½ inches
Back style Adjustable
Back height 16, 17 & 18-inches in 1-inch increment
Arm style Flip-back, detachable desk arm with height adjustment
Flip-back, detachable full arm with height adjustment
Flip back, detachable desk arm with fixed height
Front rigging Swing-away Footrests and Elevating Leg rests
Rear axle Dual Position
Rear wheels 24” Polyurethane (PU) Airless or Pneumatic
Hand rims Composite or Aluminium
Wheel locks Pull to Lock
Front casters 8” PU Solid or Pneumatic
Upholstery Black Nylon
Weight capacity The 16” and 18” seat width wheelchair models have a
weight limitation of 250 lbs. (114 kg).
The 20” and 22” seat width wheelchair models have a
weight limitation of 350 lbs. (159 Kg).
Limited warranty Limited Lifetime
5
AMG Medical Inc • www.amgmedical.com
AIRGO™ OWNER’S MANUAL

BASIC SAFETY PRECAUTIONS 6
Before using your wheelchair, please read and keep in mind
the following safety precautions. Failure to do so could
result in personal injury and/or damage to your wheelchair.
• Before using, you should receive training in the safe use
of a wheelchair from an authorized dealer and/or health
care advisor.
• After engaging the wheel locks, practice bending,
reaching and transferring, taking into account the limit
of your abilities.
• NEVER try new manoeuvres on your own until you are
sure you can do so safely.
• Familiarize yourself with the areas where you plan to
use your wheelchair.
• Look for hazards and learn to how to avoid them.
• Use of anti-tippers is recommend for added safety.
• Ensure that the wheelchair rolls smoothly and that all
parts are working properly.
• Check for noise, vibration or a change in ease of use.
which may indicate loose fasteners, or damage to your
wheelchair.
• Always consult an authorized Airgo™ dealer to find
and correct any problems or if you have any doubt
about the condition of your wheelchair.
• Do not exceed the weight limit listed on the product.
The listed weight limit is for the combined weight of
rider and all items carried. Exceeding the listed weight
limit risks damage to the wheelchair, a fall, tip-over or
loss of control which can cause severe injury to the user
or others.
• Do not attempt to operate your wheelchair on roads,
streets or highways.
• Do not operate your wheelchair in hilly or overly rough
terrain, sandy, oily, wet or icy surfaces.
• Unauthorized modification of your wheelchair or the
use of non-AMG replacement parts may change the
AMG Medical Inc • www.amgmedical.com
GENERAL WARNINGS
AIRGO™ OWNER’S MANUAL

GENERAL WARNINGS 7
AMG Medical Inc • www.amgmedical.com
structure of the wheelchair and may cause a safety
hazard and will void the warranty.
• Do not attempt ANY inclines or declines greater
than 9°.
• Do not attempt inclines without anti-tippers installed
• Do not attempt to ride over curbs or obstacles. This
may cause your wheelchair to tip over risking personal
injury and/or a damage to your wheelchair.
• Do not use on an escalator. Serious injury may occur.
• Do not attempt to reach objects if you have to move
forward in the seat.
• Do not lean over the top of the back upholstery. This
will change your center of gravity and may cause your
wheelchair to tip over risking personal injury and/or
damage to your wheelchair.
• Do not try to pick up an object from the floor by
reaching down between your knees. You are less likely
to tip if you reach over the side of your chair.
• Wheelchair users should NOT be transported in a
vehicle while in the wheelchair unless the vehicle is
properly equipped to do so.
• Do not tie down or attach any thing to the wheels. This
may cause your wheelchair to tip over risking personal
injury and/or damage to your wheelchair.
• Do not stand or step on the footplates while
transferring.
• Never lift your wheelchair by any of its detachable
parts.
• WHEEL LOCKS ARE NOT BRAKES. Do not use the
wheel locks to slow down or to stop your wheelchair
while it is still moving.
• Always engage the wheel locks when transferring,
resting or using a wheelchair lift.
• Check pneumatic tire pressure regularly to ensure
proper air pressure. Failure to do so could result in the
malfunction of the wheel locks, and may cause serious
injury.
AIRGO™ OWNER’S MANUAL

SAFETY / HANDLING OF WHEELCHAIR 8
AMG Medical Inc • www.amgmedical.com
WARNING:
WARNING:
DO NOT place your hands or
fingers between seat rail and
side panel. DO NOT sit or
transfer into the wheelchair
unless it is fully open and the
seat frame rails are fully
seated into the frame saddles.
DO NOT attempt to reach
objects if you must move
forward in the seat or if you
must reach down between
your knees. DO NOT shift
your weight in the direction
you are reaching.
FOLDING AND UNFOLDING THE WHEELCHAIR
Unfolding
Folding
STABILITY AND BALANCE
Reaching, leaning and bending
Forward or sideward
1. Tilt the wheelchair toward you far enough to take
the weight off the opposite wheel.
2. Push down on the top of the seat rail closet to you
until the wheelchair is fully open.
3. Make sure seat rails are fully seated into frame
saddles.
1. Fold up the footplates and ensure that the swing-
away footrests / leg rests are in locked position in
front of the wheelchair.
2. Standing at one side of the chair, use both hands
to grasp the middle of the seat upholstery at the
front and back edge and lift up.
3. Standing at one side of the chair, use both hands
to grasp the armrest furthest from you and pull the
armrests towards you until the wheelchair folds.
Your wheelchair has been designed and engineered to
maintain balance during normal daily activity as long as you
do not move beyond the center of gravity. To assure stability
and proper operation of your wheelchair, you must at all
times maintain proper balance.
Although it is not recommended, you might occasionally
lean, bend or reach while sitting in your wheelchair. Consult
with your health care advisor and/or authorized dealer for
assistance in developing safe techniques suited to your
abilities and limitations.
1. Operate the wheelchair as close as possible to the
object you wish to reach.
2. Rotate the front casters fully forward.
3. Engage both wheel locks.
AIRGO™ OWNER’S MANUAL

SAFETY / HANDLING OF WHEELCHAIR 9
AMG Medical Inc • www.amgmedical.com
WARNING:
WARNING:
WARNING:
DO NOT lean over the top of
the back upholstery. DO NOT
engage the wheel locks.
If you shift your weight while
reaching, it is better to roll
backwards than to tip over.
Before attempting a transfer,
always engage both wheel
locks. DO NOT step on the
foot-plates, as this could
cause the wheelchair to tip
over.
DO NOT attempt to tilt
your wheelchair without
assistance. Tilting the
wheelchair backward beyond
its balance point can be
dangerous and may result in
injuries.
Reaching, leaning and bending (contd.)
Backward
TRANSFERRING
TILTING
1. Operate your wheelchair as close as possible to
the object.
2. Rotate front casters fully forward. Reach only as
far as your arm will extend without changing
your sitting position. If in doubt, reposition the
wheelchair or ask for help.
1. Position the wheelchair as closely as possible
along side the seat to which you are transferring.
2. Remove or flip back the armrest.
3. Engage wheel locks.
4. Shift body weight into the seat with transfer.
Tilting should only be performed with the assistance of an
attendant.
1. Grasp the push handles securely and ensure that
handgrips are firmly attached.
2. Make sure the occupant's feet are secure on the
footplates and that arms, hands and fingers are
clear of wheels and/or pinch points.
3. Advise the occupant prior to tilting the
wheelchair backward.
4. Place one foot on the tipping lever (located on
the rear bottom of the wheelchair) and apply
downward force until the balance point is
reached (approximately 30°).
5. Lower the front end slowly.
AIRGO™ OWNER’S MANUAL

SAFETY / HANDLING OF WHEELCHAIR 10
AMG Medical Inc • www.amgmedical.com
WARNING:
WARNING:
DO NOT attempt inclines or
declines without anti-tipper
installed. DO NOT attempt
any incline or decline of more
than nine degrees. During
decent, the lowest part of the
footrest should be no closer
to the ground than 2-1/2
inches to permit proper
clearance.
DO NOT allow the
wheelchair to drop off the
curb edge. DO NOT attempt
to lift the wheelchair by any
detachable armrest, leg rests
or other removable parts.
DO NOT attempt to step over
a high curb without two
attendants. ALWAYS check
the hand grips to make sure
that they are secure and are
not rotating or slipping off.
TILTING – RAMPS & INCLINES
Ascent
Descent
Curbs & steps
Going up (method 1)
Going up (method 2)
Lean the upper part of your body slightly forward as you
propel up an incline. If it becomes necessary to stop, avoid
any abrupt or sudden forward movement as this could
cause tipping.
NOTE - This should only be performed with the assistance
of an attendant.
Always face forward when going down a ramp, but DO
NOT lean forward as this could cause the wheelchair to tip.
Leaning backward can increase the stability slightly. It is
critical to keep the wheelchair under control at all times and
to handle the wheelchair slowly.
NOTE - This should only be performed with the assistance
of an attendant.
1. Tilt the wheelchair backward to its “balance
point” and move forward until the front casters
pass over the top of the curb or the step.
2. Lower the front casters slowly on top of the
curb.
3. Lift the wheelchair and push it forward until the
rear wheels roll up and over the curb.
4. Ensure the wheelchair is completely cleared of
the curb and cannot roll backwards.
1. Turn the wheelchair backward until the rear
wheels are against the curb or step.
2. Tilt back to its “balance point” and pull up the
wheelchair over the curb.
3. Lower down front casters only once the
wheelchair is far enough from the edge of the
curb.
AIRGO™ OWNER’S MANUAL

SAFETY / HANDLING OF WHEELCHAIR 11
AMG Medical Inc • www.amgmedical.com
WARNING:
Wheelchairs are especially
prohibited on escalators.
It is extremely dangerous and
should never be attempted.
Curbs & steps (contd.)
Going down
Stairways
Initial adjustments should be made to suit personal body
structure and preference.
NOTE - This should only be performed with the assistance
of an attendant.
1. Turn the wheelchair backward and carefully
step down to the next step.
2. Hold the wheelchair securely and pull the
wheelchair to where the rear wheels reach the
curb edge.
3. Slowly roll the rear wheels down onto the lower
level.
4. Tilt back to its “balance point” and turn face
forward.
5. Carefully lower the front casters by placing one
foot on the tipping lever until the wheelchair is
completely cleared of the curb/step.
Never use the wheelchair on stairs UNLESS you have
someone to help you. Ramps or elevators are
recommended.
NOTE – Every six months take your wheelchair to a
qualified dealer for a thorough inspection and servicing.
Regular cleaning will reveal loose or worn parts and
enhance the smooth operation of your wheelchair. To
operate properly and safely, your wheelchair must be cared
for just like any other vehicle. Routine maintenance will
extend the life and efficiency of your wheelchair.
MAINTENANCE
AIRGO™ OWNER’S MANUAL

MAINTENANCE 12
AMG Medical Inc • www.amgmedical.com
Initially, all the following points should be checked. Thereafter we recommend that you follow
these maintenance procedures:
Weekly Monthly PeriodicallyTo check...
General
• Wheelchair rolls straight (no excess drag or pull to one side)
Frame and crossbraces
• Inspect for loose or missing hardware
• Inspect for bent frame or cross braces
Seat and back
• Inspect for rips or sagging
• Inspect for loose or broken hardware
• Inspect cane hand grips for wear/looseness/deterioration
Rear wheels
• No excessive side movement when lifted and spun
Hand rims
• Inspect for signs of rough edges or peeling
Spokes
• Inspect for broken spokes
Front casters / forks
• Inspect axle assembly for proper tension by spinning caster.
Caster should come to a gradual stop
• Check hardware for tightness
• Wheel bearings are clean and free of moisture
CAUTION: As with any vehicle, the wheels and tires should be
checked periodically for cracks and wear, and should be replaced.
Tires
• Inspect for cracks or wear
• If pneumatic, check for proper inflation
CAUTION: As with any vehicle, the wheels and tires should be
checked periodically for cracks and wear, and should be replaced.
Wheel locks
• Do not interfere with tires when rolling
• Pivot points free of wear and looseness
• Wheel locks easy to engage
• Wheel locks prevent wheelchair from moving when engaged
Ö Ö
Ö
Ö
Ö
Ö
Ö
Ö
Ö
Ö
ÖÖ
Ö
Ö
Ö
Ö
Ö
Ö
Ö
Ö
ÖÖ
AIRGO™ OWNER’S MANUAL

MAINTENANCE 13
AMG Medical Inc • www.amgmedical.com
Cleaning
Storage
REQUIRED TOOLS
1. Frame
• Clean the frame with mild soap at least once
a month.
2. Axle and Moving Parts
• Clean the area around axles and moving parts
periodically with a slightly damp (not wet) cloth.
• Wipe off or blow away any fluff, or dirt on axles
or moving parts.
3. Upholstery
• Hand-wash.
• Drip-dry only.
1. Store your wheelchair in a clean, dry area.
If you fail to do so, parts may rust or corrode.
2. If stored for more than three months, have your
wheelchair inspected by an Airgo™ authorized dealer
before using.
Allen keys: 4 mm and 6 mm
Screw driver: Philips # 2
Socket wrenches: 8 mm, 10 mm, 13 mm, and 17 mm
or 1 adjustable wrench
AIRGO™ OWNER’S MANUAL

CHAIR BASICS 14
AMG Medical Inc • www.amgmedical.com
FRONT RIGGING
Installing the swing-away footrest
1. Turn the footrest to the side (open footplate is
perpendicular to wheelchair).
2. Install the hinge plates onto the hinge pins on the
wheelchair frame.
3. Push the footrest towards the inside of the wheelchair
until it locks into place.
4. Repeat STEPS 1-3 for the other footrest assembly.
5. To release the footrest, push the footrest release lever
inward, rotate footrest assembly outward and lift the
footrest assembly off the hinge pins.
NOTE - The footplate will be on the inside of the
wheelchair when locked in place.
WARNING:
After ANY adjustments,
repair or service and
BEFORE use, make sure all
attaching hardware is
tightened securely otherwise
injury or damage may result.
AIRGO™ OWNER’S MANUAL

CHAIR BASICS 15
Adjusting the swing-away footrest
1. Remove impact guards and/or calf strap, if necessary.
2. Loosen, but do not remove the bolt & locknut that
secure the lower footrest sub-assembly to upper footrest
support.
3. Reposition the lower footrest sub-assembly to the
desired height.
4. Securely tighten the bolt & locknut.
5. Repeat STEPS 1- 4 for the other footrest, if necessary.
6. Replace impact guards and/or calf strap, if necessary.
7. Reinstall the swing-away footrest assembly.
AMG Medical Inc • www.amgmedical.com
AIRGO™ OWNER’S MANUAL

CHAIR BASICS 16
AMG Medical Inc • www.amgmedical.com
Installing the swing-away elevating leg rest
1. Place the elevating leg rest assembly on the outside of
the wheelchair and install the hinge plates onto the
hinge pins on the wheelchair frame.
2. Rotate leg rest assembly toward the inside of the
wheelchair until it locks in place.
3. Repeat STEPS 1-2 for the other leg rest assembly.
NOTE - The footplate will be on the inside of the
wheelchair when the leg rest is locked in place.
4. After seated in wheelchair, adjust the footrest to correct
height by loosening the locknut and sliding the lower
footrest tube up or down until desired height is
achieved.
5. Tighten locknut securely.
6. To release the leg rest, push the leg rest release handle
toward the inside of the wheelchair (facing the front of
the wheelchair) and swing the leg rest assembly to the
outside of the wheelchair.
AIRGO™ OWNER’S MANUAL

CHAIR BASICS 17
AMG Medical Inc • www.amgmedical.com
Adjusting the swing-away elevating leg rest
1. To adjust the elevating leg rest, raise legs until the
desired height is obtained.
2. To reposition leg rest to normal position, support leg
with one hand and push release handle downward with
the other hand.
3. To adjust the calf pad, turn the pad towards the outside
of the wheelchair.
4. Slide the calf pad up or down until the desired position
is obtained.
5. To secure the calf pad, turn the calf pad towards the
inside of the wheelchair.
AIRGO™ OWNER’S MANUAL

CHAIR BASICS 18
AMG Medical Inc • www.amgmedical.com
Adjusting armrest height
Removing 3-in-1 armrest and/or flip-back armrest
1. Unlock the armrest by pulling the height adjustment
knob horizontally.
2. Slide armrest up or down until the desired position is
obtained.
3. Lock the armrest by releasing the height adjustment
knob and having knob end positioned into key seat of
the armrest.
4. Repeat STEPS 1-3 for other armrest.
1. Press the flip-back release lever located on the armrest.
2. Flip the armrest back.
3. Pull the rear knob and remove the armrest.
4. To install the armrest, reverse above procedure.
WARNING:
WARNING:
WARNING:
After ANY adjustments,
repair or service and
BEFORE use, make sure all
attaching hardware is
tightened securely otherwise
injury or damage may result.
Make sure the height
adjustment knob is securely
in locked position BEFORE
using the wheelchair.
Make sure the armrest is
securely locked BEFORE
using the wheelchair.
AIRGO™ OWNER’S MANUAL

CHAIR BASICS 19
AMG Medical Inc • www.amgmedical.com
SEAT AND BACK
Adjusting backrest height
1. Remove the knob and bolt from both sides.
2. Slide backrest up and down to the desired height.
3. Securely tighten the screw and knob on both sides
WARNING:
After ANY adjustments,
repair or service and
BEFORE use, make sure all
attaching hardware is
tightened securely- otherwise
injury or damage may result.
AIRGO™ OWNER’S MANUAL
BOLT

CHAIR BASICS 20
AMG Medical Inc • www.amgmedical.com
Replacing the back upholstery
1. Remove the knob and bolt on both sides.
2. Pull the back cane off the wheelchair frame.
3. Remove the four (4) mounting screws and washers that
secure the existing back upholstery to the back canes.
4. Pull the existing back upholstery off the back cane.
5. Install the NEW back upholstery over the back canes.
6. Secure the NEW back upholstery to the back canes with
the existing mounting screws and washers.
7. Secure the back cane to the wheelchair frame with knob
and bolt.
AIRGO™ OWNER’S MANUAL
BACK
CANES
KNOB &
SCREW
