1. Introduction
The Wireless USB Adapter (hereafter called USB adapter), compliant with IEEE
802.11b/g, is a high-efficiency wireless adapter for wireless networking at home, in
office, or in public places. This USB adapter connects directly to any USB-ready
desktop/notebook computers, so that you can share files, printers, and high-speed
access to the Internet over your existing wireless network easily, without
disassembling your computer.
The USB adapter has a data rate of up to 54Mbps, and can auto-negotiate to 54, 48,
36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1Mbps to be compatible with any IEEE 802.11b/g
device.
The USB adapter is compatible with Windows 98SE/ME/2000/XP and can be used in
either Ad-hoc mode (computer-to-computer, without a wireless router) or
Infrastructure mode (computer-to-wireless router, a wireless router is required).
1.1 Features
‧ With the IEEE 802.11g 2.4GHz (OFDM) standard
‧ High data transfer rate - up to 54Mbps
‧ Supports 64/128/256-bit WEP and WPA data encryption security
‧ Supports peer-to-peer communication among any wireless users, no Access Point
required
‧Automatic fallback increases data security and reliability
‧Supports the most popular operating systems: Windows 98SE/ME/2000/XP
‧Portable and mini-size design
‧Suitable for any IBM-compatible notebook or desktop PC
1.2 Package Contents
Before you begin the installation, please check the items of your package. The
package should include the following items:
‧ One Wireless USB Adapter
‧ One USB Extension Cable
‧ One Quick Installation Guide
‧ One Driver & Utility CD (with User’s Manual)
If any of the above items is missing, contact your supplier as soon as possible.

4
2. Installation Procedures
2.1 Install Utility Software
Note: Before installing the utility software, DO NOT insert the USB adapter into your
computer. If the adapter is inserted already, Windows will detect the adapter and
request for a driver. Click Cancel to quit the wizard and remove the adapter from your
computer.

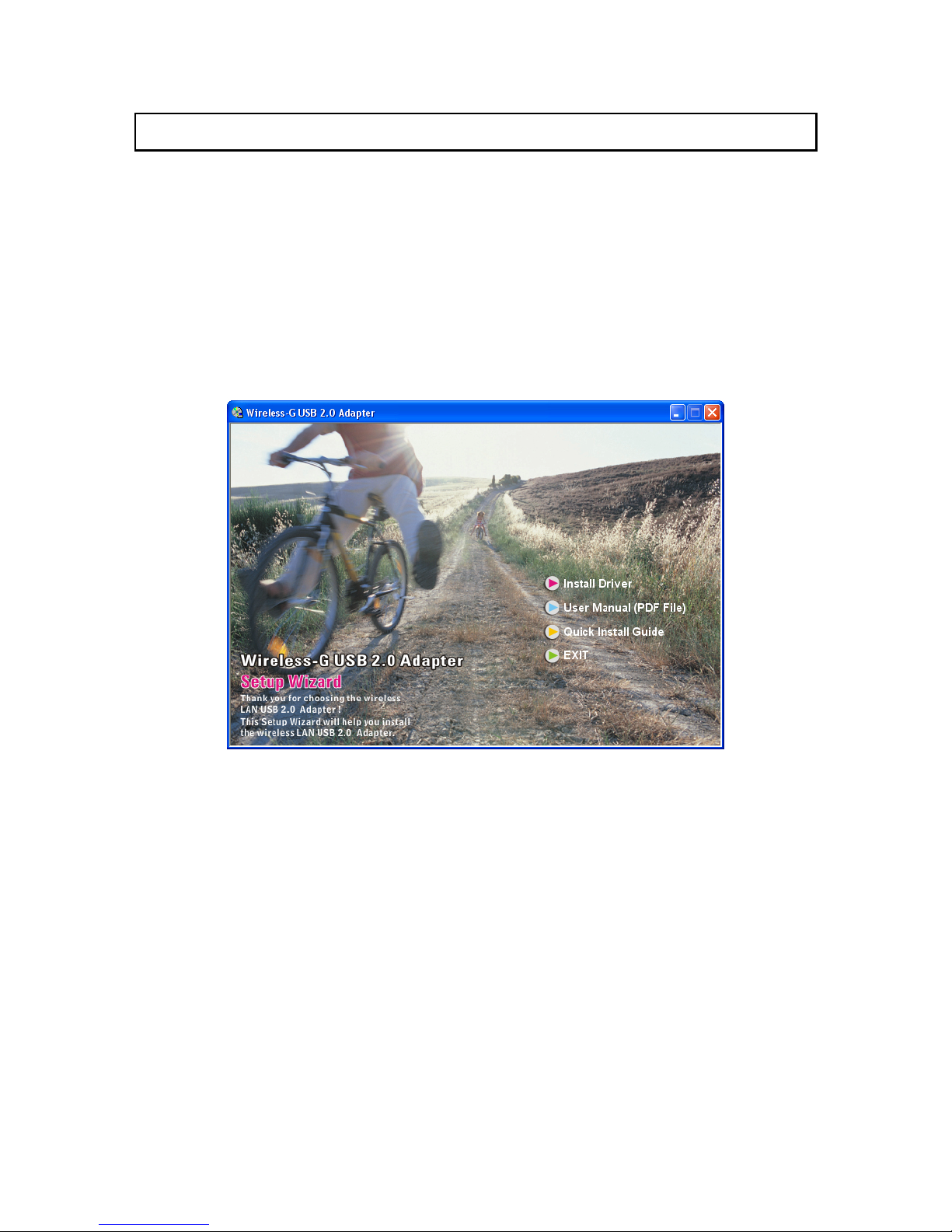

Step 1 Insert the provided Driver and Utility CD into your CD drive.
Step 2 Click Install Driver from the Setup menu.
Note: If the Setup menu does not appear automatically, go to Start, Run, type
D:\autorun.exe (where Dis the letter of your CD drive) and click OK.

5

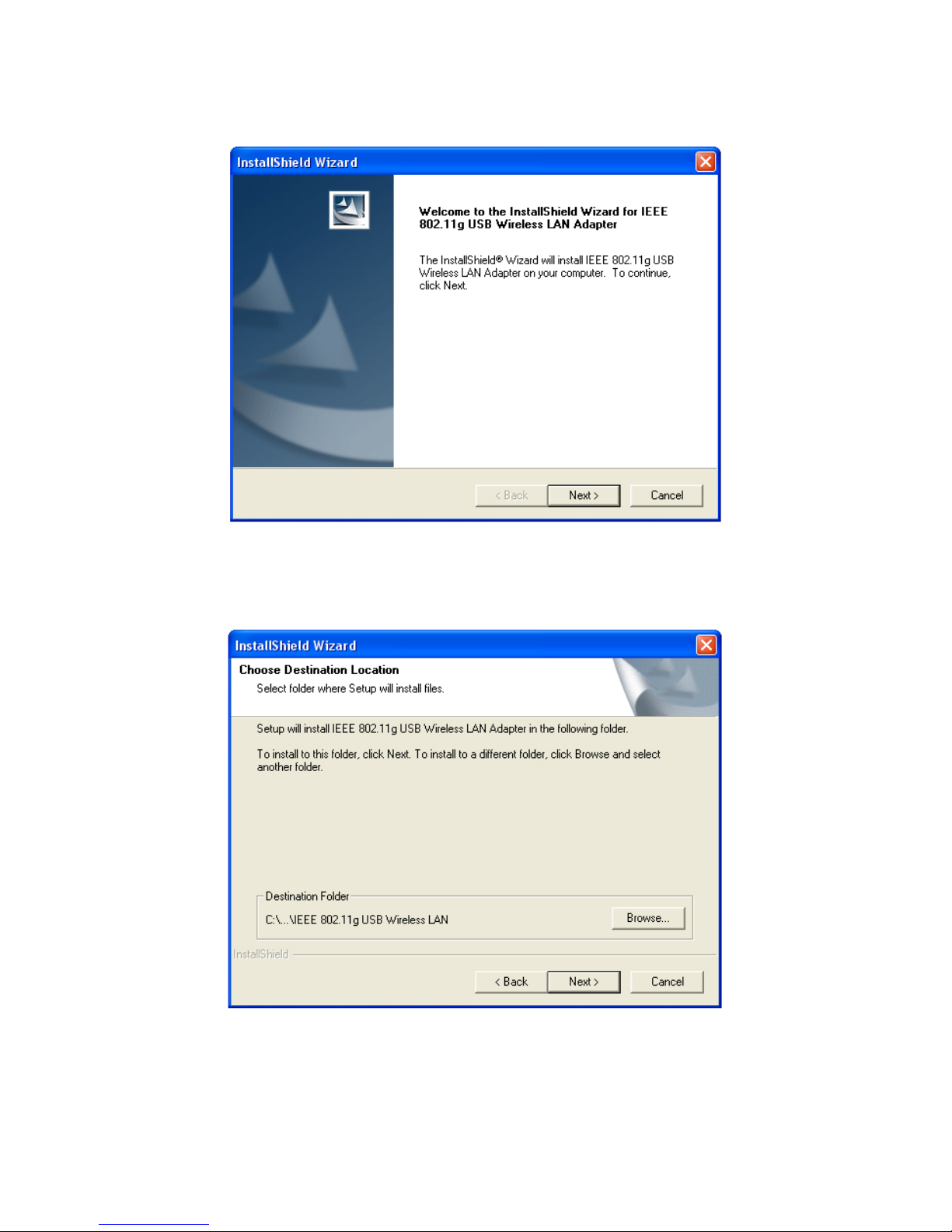

Step 3 When the welcome screen appears, click Next.
Step 4 Click Next to accept the default destination folder for the software or click
Browse to manually select a different destination folder.

6
Step 5 For Windows XP, click Continue Anyway at the Windows Logo Compatibility
screen.
For Windows 2000, click Yes at the Digital Signature screen.
Step 6 Remove the Driver & Utility CD from your CD drive and then restart your
computer.

7
2.2 Install Driver
Note: In most cases, Windows will automatically install the driver after the computer is
restarted. If the Found New Hardware Wizard appears, follow the instructions below.
The Found New Hardware Wizard will look different depending on your operating
system. Follow the on-screen instructions to complete the installation. For Windows
98SE and ME users, you may be prompted to insert the Windows 98SE or ME CD
during the driver installation. Be sure to have your Windows 98SE or ME CD ready.
Step 1 After the computer is restarted, insert the USB adapter into the USB port of the
computer. If there is not enough room to insert the adapter directly to the USB port,
you may use the supplied USB extension cable for more space.
Step 2 Select Install the software automatically and click Next.
Step 3 For Windows XP, click Continue Anyway at the Windows Logo Compatibility
screen.

8
For Windows 2000, click Yes at the Digital Signature screen.
For Windows 98SE or ME, insert the Windows 98SE or ME CD if prompted to do so
and click OK.
Step 4 Click Finish. Restart the computer if you are prompted to do so.

9
3. Configuring USB Adapter as a Wireless Client
The USB adapter can be set to either Station or Access Point Mode from the Mode
drop-down menu. Station mode is the default selection and should be selected if you
want to connect to a wireless router/access point or conduct peer-to-peer networking.
To open the utility, go to Start, (All) Programs, IEEE 802.11g USB Wireless LAN
Adapter, IEEE 802.11g USB Wireless LAN Utility.
Note to Windows XP Users:
If you encounter the Wireless Zero Configuration dialog box, click Yes to enable the
Wireless LAN Utility to configure your USB adapter.

10

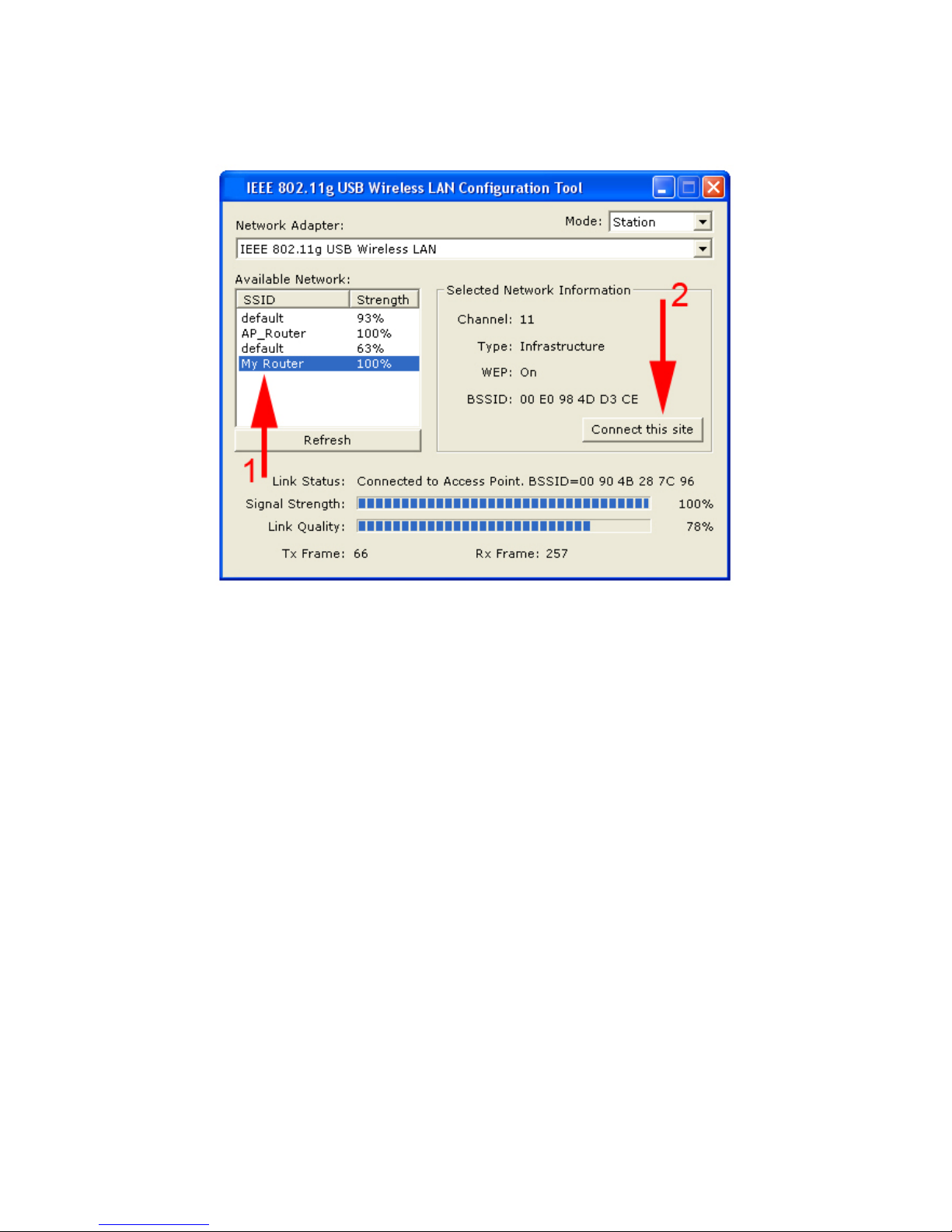

Step 1 Select the SSID of your wireless router/access point from the Available
Network list and click on the Connect this site button.
Step 2 Verify that the adapter has adequate Signal Strength and Link Quality and
then restart the computer.
Mode: Select from Station or Access Point. For more information regarding Access
Point, please refer to the next section, 4. Configuring USB Adapter as an Access
Point.
Network Adapter: Displays the name of the USB adapter.
Available Network: Lists all the available wireless router/access point in your area.
You can click on the Refresh button to update the list.
Selected Network Information: Displays the network information for the currently
selected SSID. (An SSID must be highlighted first).
Link Status: Displays the current link status.
Signal Strength: Displays the current signal strength.
Link Quality: Displays the current link quality.
Tx Frame: Displays the number of frames transmitted.
Rx Frame: Displays the number of frames received.

11
Current Network Information: Displays the network information of the wireless
router/access point that the USB adapter is currently connected to.
More Setting: Click on this button to access the USB adapter’s configuration settings,
including WEP and WPA encryption settings.

12

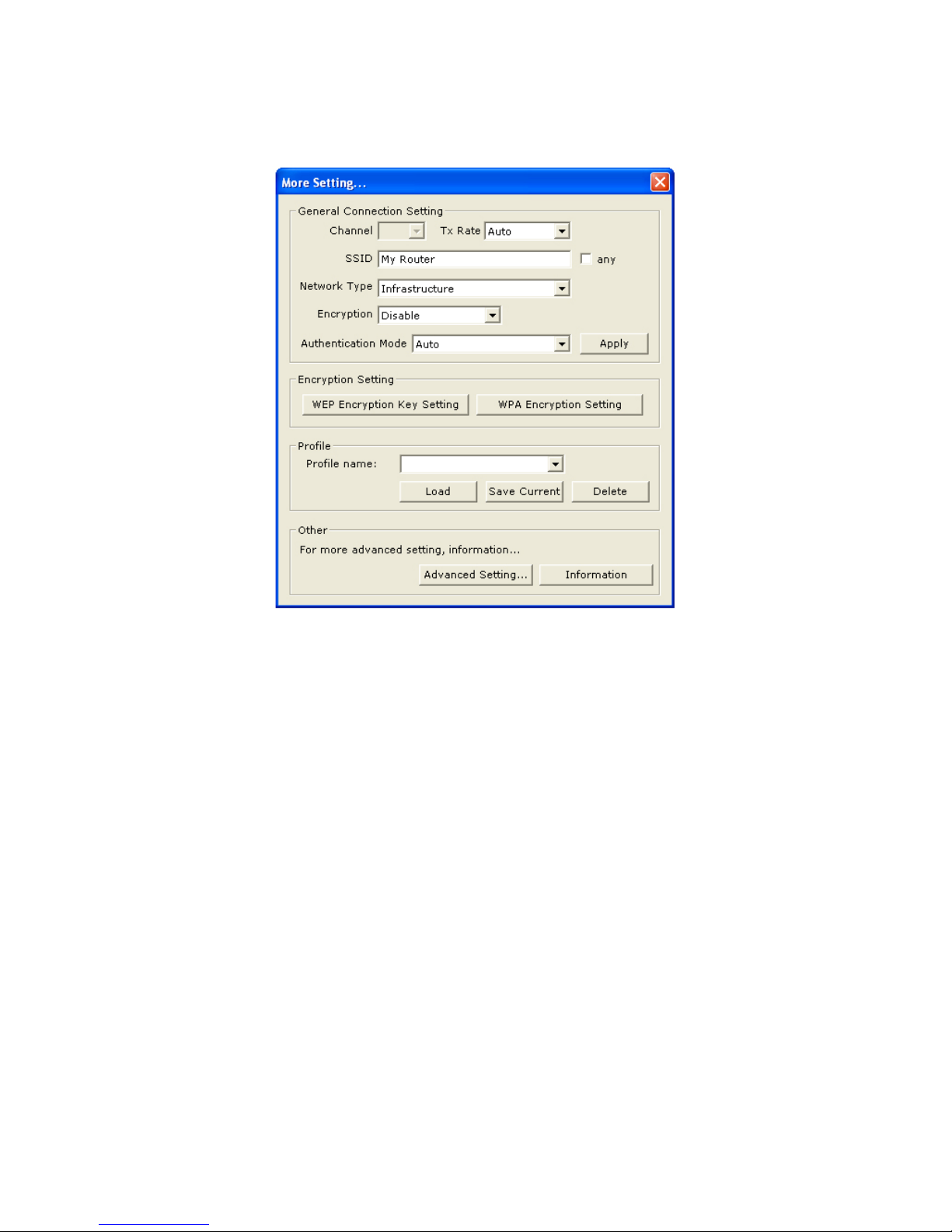

3.1 Configuring General Settings
Click Change to configure the adapter’s General Connection Setting.
Channel: This setting is for Access Point Mode only.
Tx Rate: Select the desired transmission rate, or leave the default setting of Auto to
allow the adapter to automatically select the optimum rate.
SSID: You can manually enter the SSID of the wireless router/access point you wish
to connect to.
Any (check box): Allows you to connect to any available wireless router/access point.
(Check this box if you’re trying to connect to a public hot spot and don’t know the
SSID).
Network Type: Choose from Infrastructure (for connecting to a wireless
router/access point) or Ad-Hoc (for computer-to-computer networking, bypassing the
wireless router/access point).
Encryption: Choose from Disable WEP, or Enable WEP.
Authentication Mode: Choose from Auto (recommended), Open System, or
Shared Key.
Click Apply to save the changes.

13

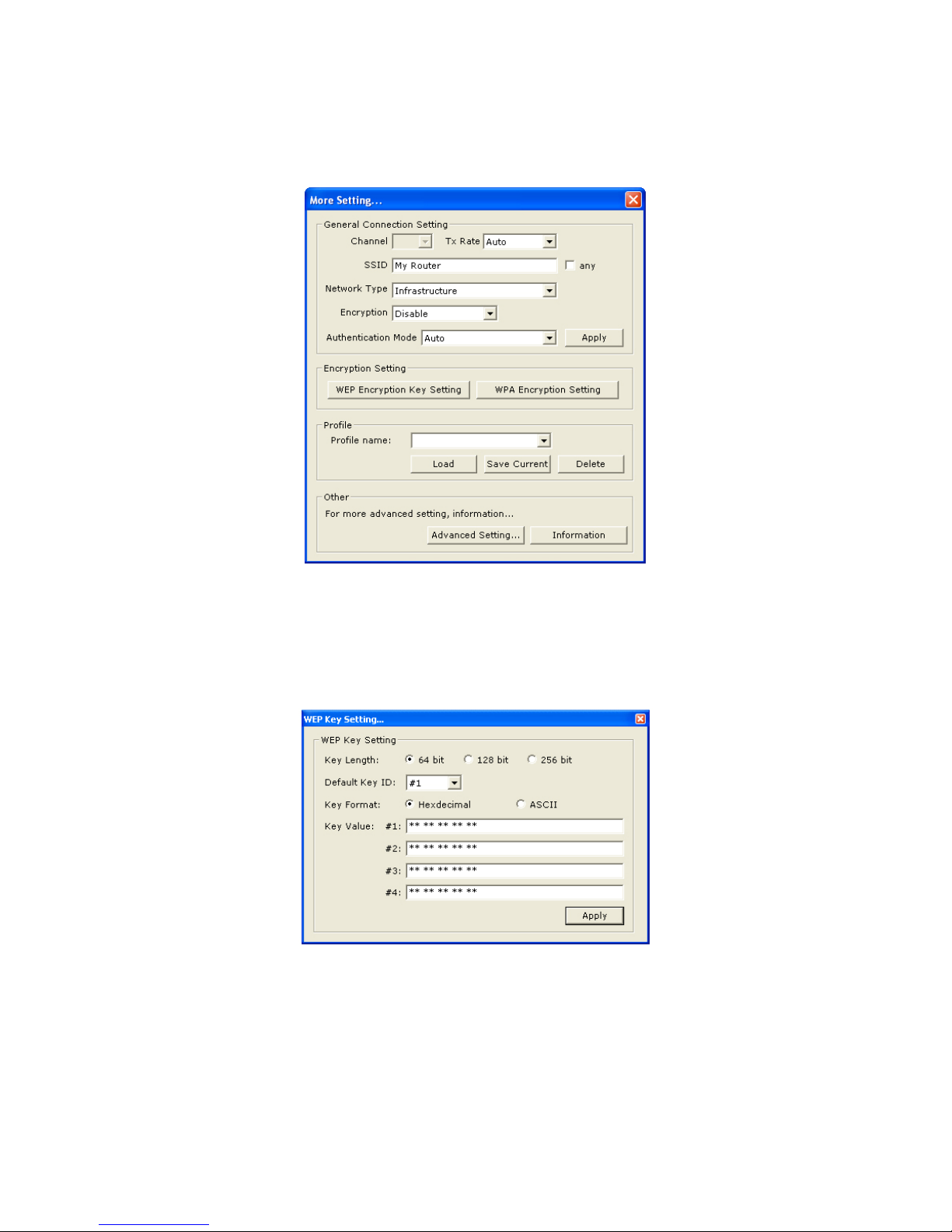

3.2 Configuring Encryption Security
Click WEP Encryption Key Setting to configure the WEP settings.
Click Change to configure the WEP Key Setting and then click Apply to save the
settings.
Note: The WEP Key settings must be identical to the WEP settings of the wireless
router/access point you wish to connect to.
Key Length: Select the appropriate encryption key length.
Default Key ID: Select which of the four Key Value you want to use.
Key Format: Select either Hexadecimal (0-9, A-F) or ASCII (any number or letter).

14
Key Value: Enter the applicable key values. Up to four key values may be entered.
Note the following rules when entering Key values:
‧ 64-bit key length requires 10 Hexadecimal characters (0-9, A-F) or 5ASCII
characters (any number or letter).
‧ 128-bit key length requires 26 Hexadecimal characters (0-9, A-F) or 13 ASCII
characters (any number or letter).
‧ 256-bit key length requires 58 Hexadecimal characters (0-9, A-F) or 19 ASCII
characters (any number of letter).
After you have applied the changes, return to the utility’s main screen and select the
wireless router/access point you wish to connect to.
Click Yes at the Use Previous WEP Setting dialog box to connect to the encrypted
wireless router/access point.

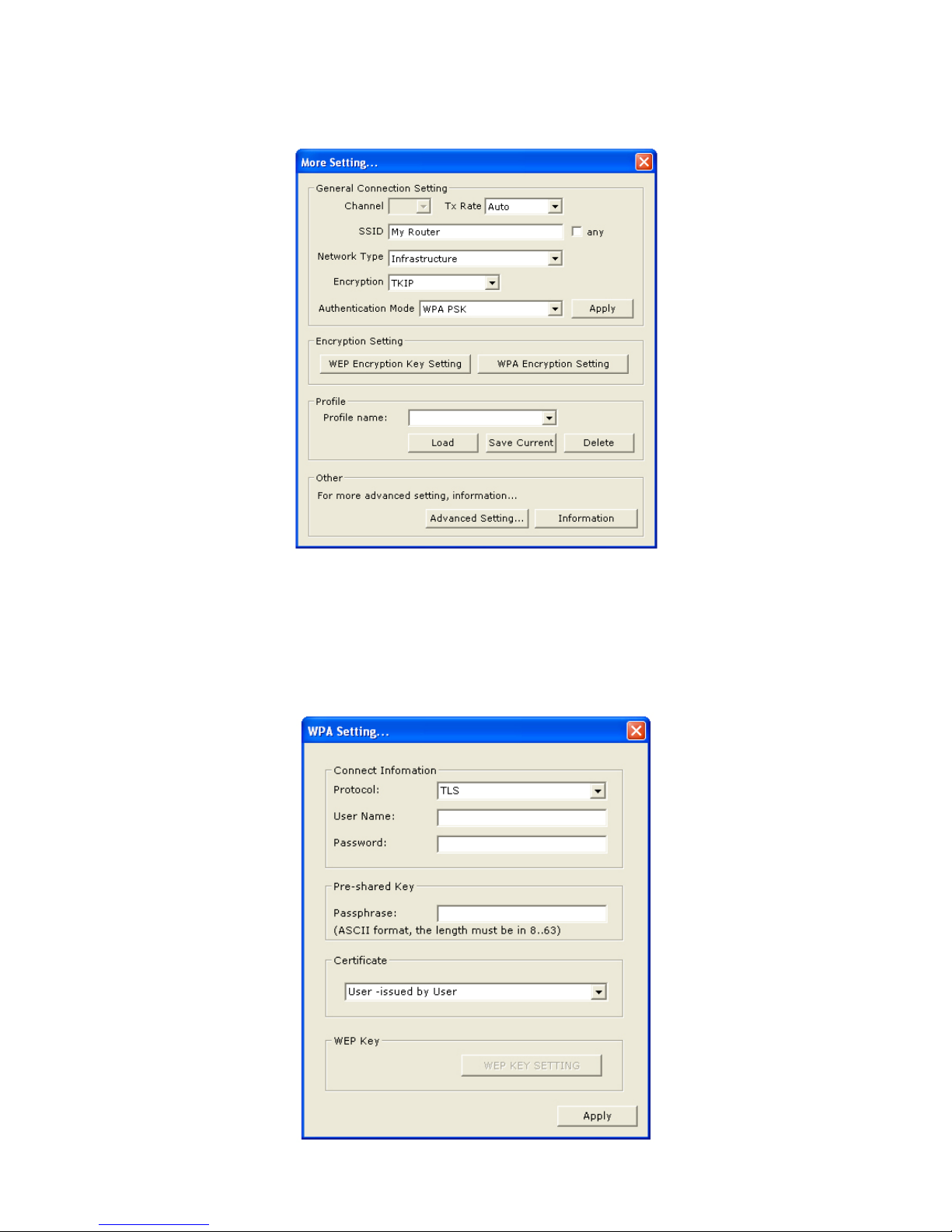

If you want to use WPA encryption, click on Change in the General Connection
Setting.

15
1. Select TKIP for Encryption, WPA PSK for Authentication Mode, and click Apply.
2. Click on WPA Encryption Setting and click Change.
3. Enter the appropriate passphrase in the Passphrase field under the Pre-shared
Key section and click Apply. (The passphrase must be identical to the passphrase set
on your wireless router/access point and it has to be between 8 to 63 ASCII
characters long).

16
3.3 Configuring Profile
After you have configured all the settings, you can save your settings as a profile so
you don’t have to re-configure them the next time.
Type in a name for the profile in the Profile name field and click Save Current.
To load a profile, select the profile from the drop-down menu and click Load.
To delete a profile, select the profile from the drop-down menu and click Delete.

17
3.4 Advanced Settings
Click on Advanced Setting from the More Setting window to configure the adapter’s
advanced settings.
User Interface: select the language for the adapter’s user interface.
Power Consumption Setting:
•Continuous Access Mode: provides the best signal throughput but least
power save.
•Maximum Power-Saving Mode: provides the best power save but least
throughput.
•Fast Power-Saving Mode: provides average power save and throughput.
Country Roaming: select the country you are in.
•World Mode: the adapter will get its country setting from the access point.
•User Select: choose your country.
Fragmentation Threshold: choose from 256 to 2346 bytes.
RTS/CTS Threshold: choose from 0 to 2347 bytes.

18

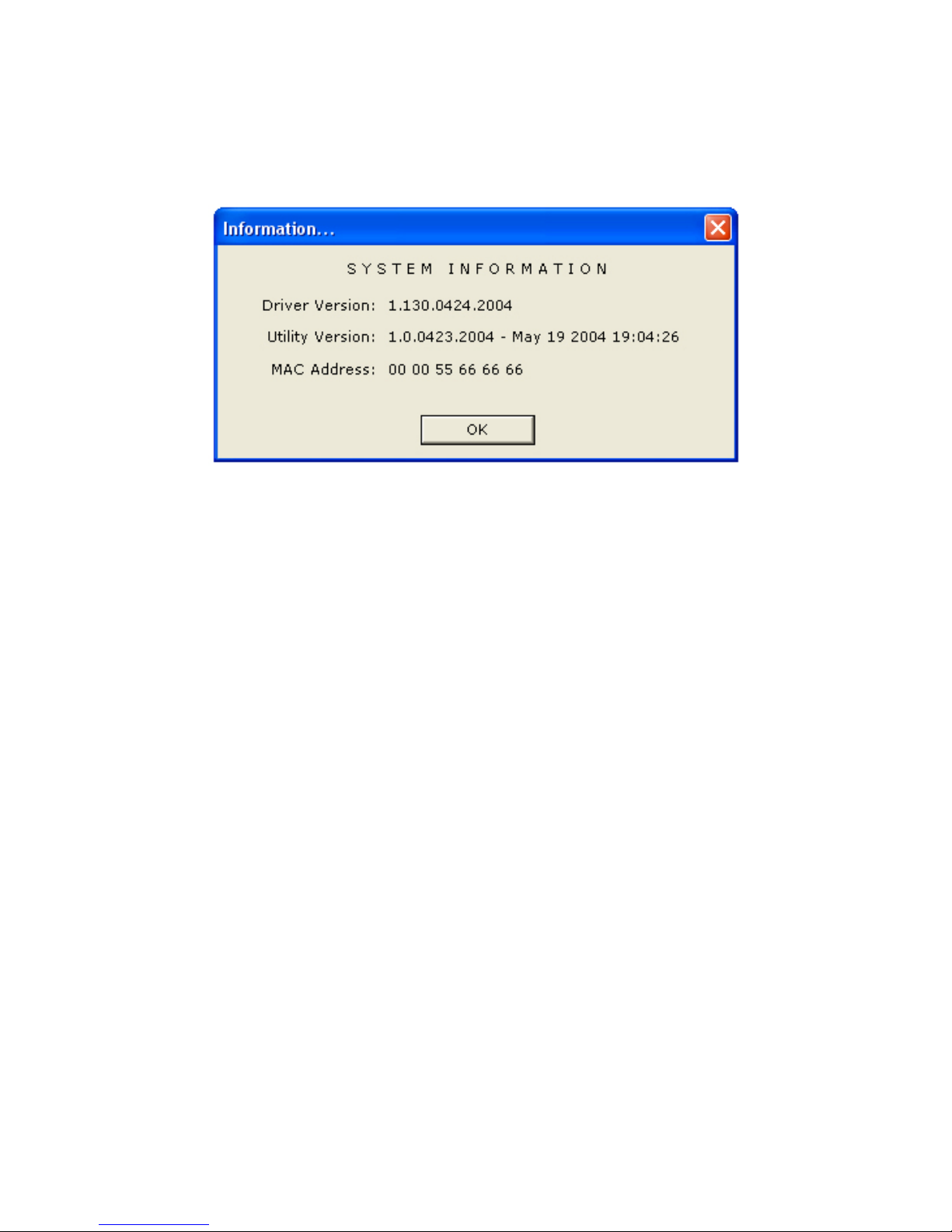

3.5 Information
Click on Information from the More Setting window to view the driver and utility’s
information.

19
4. Configuring USB Adapter as an Access Point
4.1 Configuring Access Point
You can configure the USB Adapter as an access point for other wireless clients on
your network.
Note: You will not be able to access the Internet if you configure the USB adapter as
an access point. To allow other wireless clients to access the Internet, you will need to
configure your computer as a router and a DHCP server. The vendor will not provide
any technical support in regards to the USB adapter functioning as an access point.
Select Access Point from the Mode drop-down menu.
The default settings for the access point are as follows:
Channel: 6
SSID: WLAN_AP
WEP: Disable
Tx Power: Level 0
To configure the access point, click on More Setting.

20
Click on Change to configure the settings.
Channel: select the channel you want to use.
Basic Rate: select the applicable transfer rate.
Tx Rate: select from Auto to 54 Mbps.
SSID: enter the desired SSID for the access point.
Hide SSID (check box): check to disable the broadcast of SSID.
Tx Power: select the transmission signal power.
Click Apply to submit the changes.
Bridge Adapter: If you have another Ethernet card installed in your computer, you
can select the other Ethernet card as the bridge adapter. This will allow any wireless
client that is connected to the access point to be bridged to the wired network that the
other Ethernet card is connected to.
