AirLive WMM-3000PCI User manual

WMM-3000PCM/PCI
MIMO-G Wireless LAN Adapter
User’sManual

Production component
This WIRELESS production should contain the following items:
1. One piece of CardBus or PCI adapter MIMO WIRELESS LAN Card
2. One piece of CD which contain drivers, user’s manual, and utility
Quick Installation
1. Insert the product’s CD into CD-ROM.
2. Exit all application programs and insert the 11B/G MIMO WIRELESS LAN Card into the
PCMCIA slot on notebook or PCI slot on desktop.
3. Following “Found New Hardware Wizard” window to install driver step by step.
4. Install “Driver & Utility”
5. Configure your MIMO WIRELESS LAN Card with “Zero Configure”
or “ AirLive MIMO Wireless Utility” to connect to WIRELESS network.
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received; including interference that may cause
undesired operation. Federal Communications Commission (FCC) Statement.
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
-1- AirLive MIMO-G Wireless LAN Adapter User’s Manual

FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
-2- AirLive MIMO-G Wireless LAN Adapter User’s Manual

Contents
Chapter 1 System Requirements___________________________ 5
1-1 Hardware _______________________________________________________________ 5
1-2 Software ________________________________________________________________ 5
Chapter 2 Install Driver for Windows Series_________________ 6
2-1 Set up MIMO WIRELESS LAN Card for Windows Series_____________________ 6
Chapter 3 Configure MIMO WIRELESS LAN Card____________ 8
3-1 Install Utility_____________________________________________________________ 8
3-2 Configure MIMO WIRELESS LAN Card with Zero Configure ________________ 10
Chapter 4 Configure with “AirLive MIMO Wireless Utility” for
Windows 98/ME/2000/XP _________________________________ 13
4-1 Site Survey Page _______________________________________________________ 13
4-1-1 Add/Edit Profile ______________________________________________________ 14
4-2 Authentication & Security _______________________________________________ 16
4-2-1 802.1x Setting _______________________________________________________ 17
4-2-2 CA Server___________________________________________________________ 18
4-3 Profile Page ____________________________________________________________ 20
4-4 Link Status Page________________________________________________________ 21
4-5 Statistics Page _________________________________________________________ 22
4-6 About Page ____________________________________________________________ 24
Chapter 5 Example_______________________________________ 25
5-1 Adding profile in site survey page _______________________________________ 25
5-2 Add profile in profile page _______________________________________________ 28
5-3 WEP encryption ________________________________________________________ 32
5-4 Configure connection with WPA-PSK ____________________________________ 35
-3- AirLive MIMO-G Wireless LAN Adapter User’s Manual

5-5 Configure connection with WPA2-PSK ___________________________________ 38
5-6 Configure connection with WPA by 802.1x setting_________________________ 41
5-7 Configure connection with WPA2 by 802.1x setting________________________ 50
-4- AirLive MIMO-G Wireless LAN Adapter User’s Manual

Chapter 1 System Requirements
Before installing the adapter and related software, make sure the computer system meets the
minimum requirements described below.
1-1 Hardware
The adapter can be installed in any recent-model IBM-type microcomputer with a PCMCIA on
notebook or PCI slot on desktop which support CardBus or PCI interface. The CardBus adapter is a
Type II CardBus card, and can be installed in a Type II or Type III CardBus slot.
1-2 Software
The drivers included with the adapter allow the adapter to be used in Microsoft Windows 98, ME,
2000, and XP.
-5- AirLive MIMO-G Wireless LAN Adapter User’s Manual

Chapter 2 Install Driver for Windows Series
This section describes the installation of the 11B/G MIMO WIRELESS LAN Card driver for the
Windows98/ME/2000 and Windows XP operating systems.
2-1 Set up MIMO WIRELESS LAN Card for Windows Series
Step 1: After inserting the MIMO WIRELESS LAN Card into the PCMCIA slot on notebook or
PCI slot desktop, the Windows will auto-detect the MOMO WIRELESS LAN Card and a “Found
New Hardware Wizard” window will show up. Select “Cancel” to install the driver from
CD-Rom.
Step 2: Insert the Product CD-ROM into the CD-ROM drive. Select “Utility” to install Driver and
Utility.
-6- AirLive MIMO-G Wireless LAN Adapter User’s Manual

Step 3: After installing the driver, you can check if your device is active in the device management
as follows
-7- AirLive MIMO-G Wireless LAN Adapter User’s Manual

Chapter 3 Configure MIMO WIRELESS
LAN Card
This chapter will show you how to configure your MIMO WIRELESS LAN Card by using utility
in the Product CD Package under Windows series Operation System

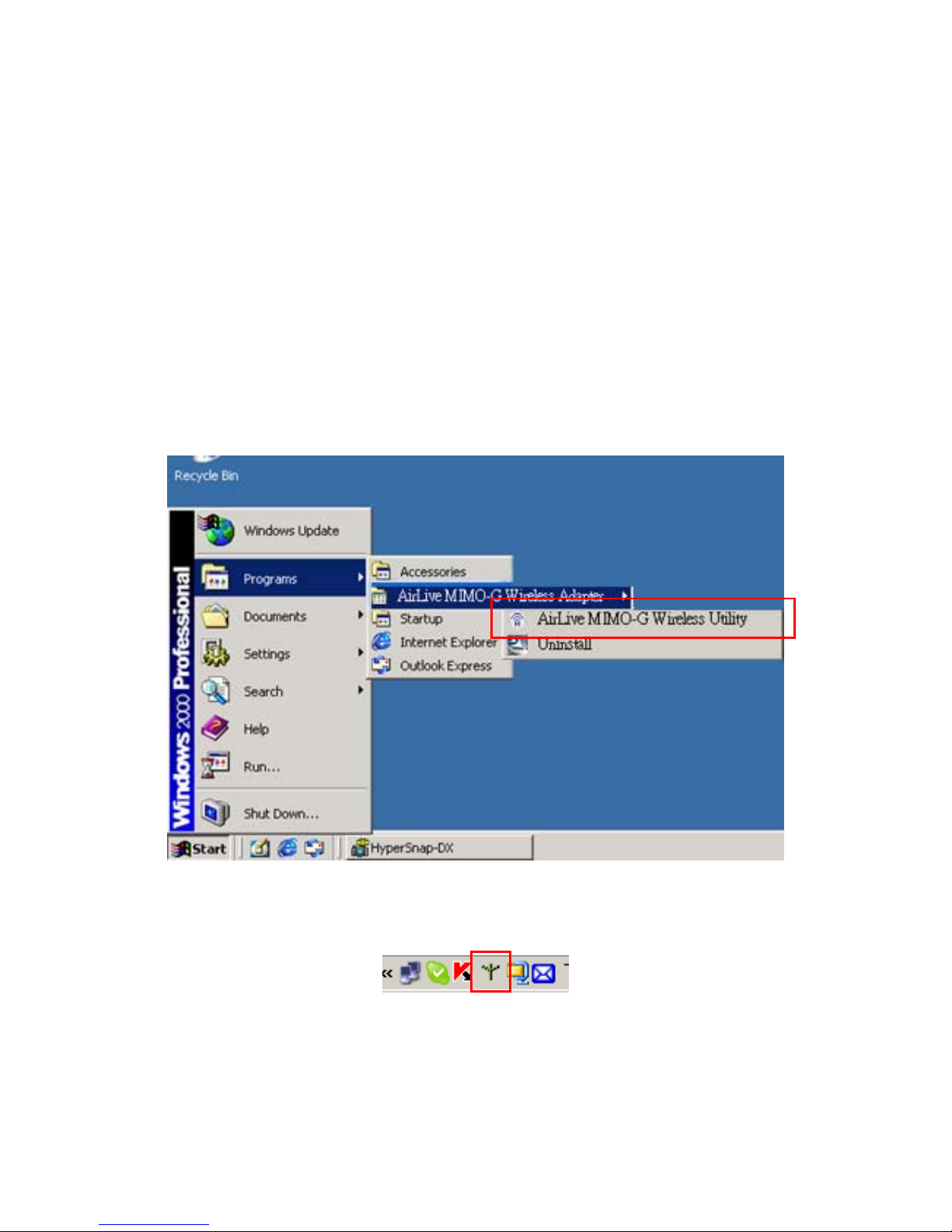

3-1 Install Utility
1. After finishing the install process, you can execute the utility as follows
3. You will see the utility icon after you executing program “Wireless Utility” if your MIMO
WIRELESS Card is alive
-8- AirLive MIMO-G Wireless LAN Adapter User’s Manual

4. If your operation system belong to Windows XP and have update to SP1, click the right button
on the icon. You will see the frame below. If you want to configure your MIMO Wireless LAN
Card with “Wireless Zero Configure” supported by XP, you should choose “Use Zero
Configuration as Configuration utility”.
-9- AirLive MIMO-G Wireless LAN Adapter User’s Manual

3-2 Configure MIMO WIRELESS LAN Card with Zero Configure
After installing MIMO Wireless LAN Card, the Windows XP will display a “WIRELESS
Network Connection ” message.
Click on the message and the “Automatic WIRELESS Network Configuration” will then appear
automatically and allow users to connect to an available WIRELESS infrastructure network (Access
Point), shown as follows. You may click the Advanced button to make advanced configuration for
the WIRELESS LAN Card, shown as below.
In order to reconfigure you WIRELESS connection, you can deal as follow procedure
1.click left button on the network icon as bellow.
Choose one
suitable server
-10- AirLive MIMO-G Wireless LAN Adapter User’s Manual

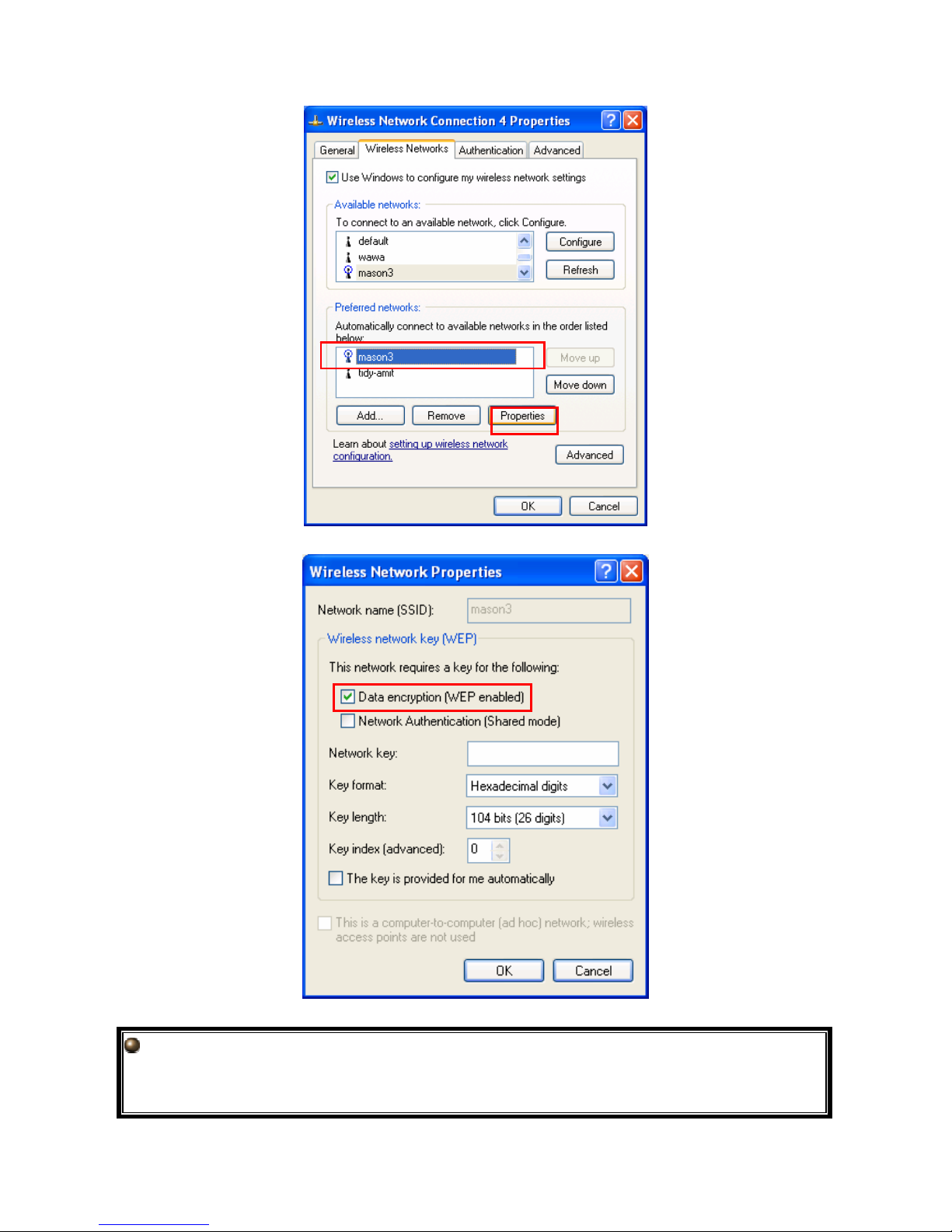

2. Click Properties to continue
3. Click WIRELESS Networks to reconfigure the WIRELESS network connection.
4. If you need a key(WEP) to connect the WIRELESS network, you should keyin the key that
supported by the WIRELESS network router or access point
-11- AirLive MIMO-G Wireless LAN Adapter User’s Manual

Note: Under the Windows XP, it is recommend to use the “
A
utomatic WIRELESS Networ
k
Configuration” to configure your MIMO-G WIRELESS LAN Card. The WIRELESS LAN
Utility comes with the WIRELESS LAN Card is not support the Windows XP.
-12- AirLive MIMO-G Wireless LAN Adapter User’s Manual

Chapter 4 Configure with
“AirLive MIMO Wireless Utility” for Windows
98/ME/2000/XP
4-1 Site Survey Page
1. the means of item
zSSID : Name of AP
zBSSID : Mac Address of AP
zSignal : Signal strength of AP
zChannel : AP used channel
zEncryption : what encrypted mechanism doesAP used, the encrypted mechanism contain four
ways , WEP, AES, TKIP, NOT USE
zAuthentication : What authentication mechanism does AP used.
zNetwork Type : What Network Type does the AP belong to.
-13- AirLive MIMO-G Wireless LAN Adapter User’s Manual

2. The connected AP
zthe system will choose the suitableAP when you start up utility in the first time
zif you want to connect with another AP, double click mouse’s left button in the SSID of AP.
zindicate connect successful.
3. if the connect is success, it will show the SSID of the connectedAP
4. rescan and upgrade all the AP’s information in time
5. connect with selected AP
6. Save the selected AP’s information to Profile

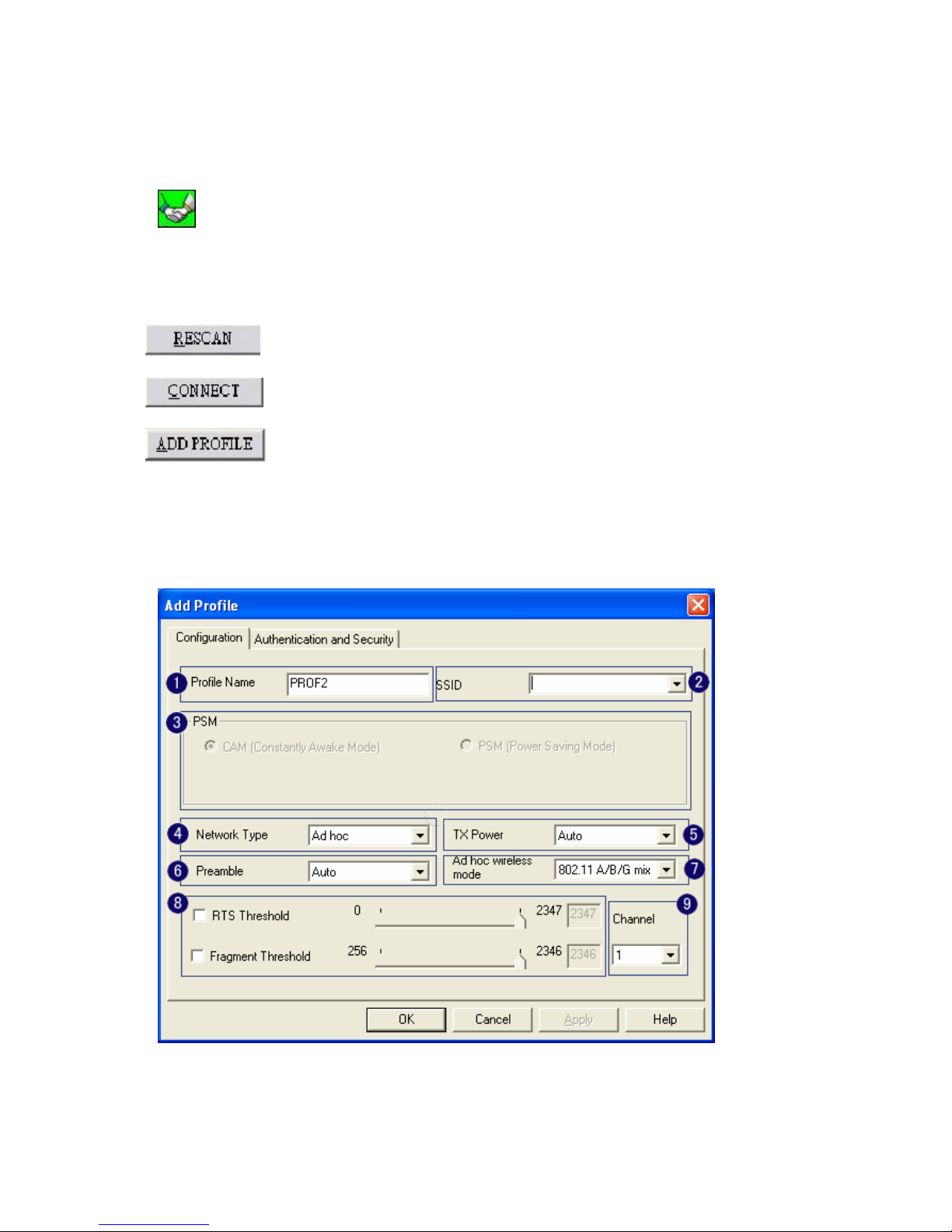

4-1-1 Add/Edit Profile
System Configuration : as figure bellow
-14- AirLive MIMO-G Wireless LAN Adapter User’s Manual

1. Profile Name: Different AP can be set up into different Profile Name
2. SSID: The drop-down menu can select which AP is detected by system
3. Power Save Mode: can select［CAM（Constantly Awake Mode）］ or ［Power Saving Mode］
mode. Selecting the” CAM when AC Power” means the power saving mode can automatically
switch into CAM, if the computer uses the AC power, not using the batteries instead. Selecting
the “Power Save Mode” can only work under the infrastructure mode.
4. Network Type: Can select “Infrastructure” or “802.11 Ad Hoc” mode. When set up to
“Infrastructure” mode, the “Power Saving” mode will be enabled, but the “11b Preamble Type”
will not; When set up to “802.11 Ad Hoc” mode, the “Power Saving Mode” will not be enabled,
but “11b Preamble” will, and the channel selection in the session 7 will show up as well.
5. TX Power: Transmit power, the amount of power used by a radio transceiver to send the signal
out. User can choose power value by sliding the bar.
6. Preamble: There are three types, Auto, Long and Short are supported.
7. Ad hoc wireless mode: There are five types. 802.11B only, 802.11 B/G mixed 802.11A only,
802.11a/b/g mixed and 802.11G only modes are supported.
8. RTS Threshold: User can adjust the RTS threshold number by sliding the bar or key in the value
directly. The default value is 2312.
9. Fragment Threshold: User can adjust the RTS threshold number by sliding the bar or key in the
value directly. The default value is 2312.
Note: Channel: Only available for setting under ad-hoc mode. User can choose the channel
frequency to start their ad-hoc network.
Profile function is based on the needs to set up the most linkable AP in order to record the system
configuration and to set up the authentication security. The function of each session is shown below
-15- AirLive MIMO-G Wireless LAN Adapter User’s Manual

4-2 Authentication & Security
As shown in picture . When the Encryption feature is enabled, the other setups are same as the said
WEP setting.
1. Authentication Type: There are three type of authentication modes supported by utility
. They are open, Shared, WPA-PSK and WPA system.
2. 802.1x Setting: It will display to set when user use radius server to authenticate client certificate
for WPA authentication mode. The detail operation will explain in section 5-6 Configure
connection with WPA by 802.1x setting
3. Encryption Type: For open and shared authentication mode, the selection of encryption type are
None and WEP. For WPA, WPA2, WPA-PSK and WPA2-PSK authentication mode, the
encryption type supports both TKIP and AES.
4. WPA Pre-shared Key: This is the shared secret betweenAP and STA. For WPA-PSK and
WPA2-PSK authentication mode, this field must be filled with character longer than 8 and less
than 32 length.
5. WEP Key: Only valid when using WEP encryption algorithm. The key must matched AP key.
There are several formats to enter the keys.
i. Hexadecimal、40bits：10 Hex characters.
ii. Hexadecimal、128bits：32Hex characters.
-16- AirLive MIMO-G Wireless LAN Adapter User’s Manual

iii. ASCII、40bits：5 ASCII characters.
iv. ASCII、128bits：13 ASCII characters.
4-2-1 802.1x Setting
802.1x is a authentication for 『WPA』and 『WPA2』certificate to server. Show as figure
1. Authentication type:
i. PEAP: Protect Extensible Authentication Protocol. PEAP transport securely
authentication data by using tunneling between PEAP clients and an authentication
server. PEAP can authenticate wireless LAN clients using only server-side
certificates, thus simplifying the implementation and administration of a secure
wireless LAN.
ii. TLS／Smart Card: Transport Layer Security. Provides for certificate-based and
mutual authentication of the client and the network. It relies on client-side and
server-side certificates to perform authentication and can be used to dynamically
generate user-based and session-based WEP keys to secure subsequent
communications between the WLAN client and the access point.
iii. TTLS: Tunneled Transport Layer Security. This security method provides for
certificate-based, mutual authentication of the client and network through an
-17- AirLive MIMO-G Wireless LAN Adapter User’s Manual

encrypted channel. Unlike EAP-TLS, EAP-TTLS requires only server-side
certificates.
iv. LEAP: Light Extensible Authentication Protocol. It is an EAP authentication type
used primarily in CiscoAironet WLANs. It encrypts data transmissions using
dynamically generated WEP keys, and supports mutual authentication.
v. MD5-Challenge: Message Digest Challenge. Challenge is an EAP authentication
type that provides base-level EAP support. It provides for only one-way
authentication - there is no mutual authentication of wireless client and the network.
2. Session Resumption: user can choose “ Disable ”, “ Reauthentication ”, “ Roaming ”,
“ SameSsid ” and “ Always ”.
3. Identity and Password: Identity and password for server.
4. Use Client Certicate: Client Certicate for server authentication.
5. Tunnel Authentication
i. Protocol: Tunnel protocol, List information include “ EAP-MSCHAP ”,
“ EAP-MSCHAP v2 ”, “ CAHAP ” and “ MD5 ”
ii. Tunnel Identity: Identity for tunnel.
iii. Tunnel Password: Password for tunnel.
6. CA Server: Certificate Authority Server. Each certificate is signed or issued by it. The detail
operation will explain in section 4-2-2 CA Server
4-2-2 CA Server
Depending on the EAP in use, only the server or both the server and client may be authenticated and
require a certificate. Server certificates identify a server, usually an authentication or RADIUS
server to clients. Most EAPs require a certificate issued by a root authority or a trusted commercial
CA. Show as the figure.
1. Certificate issuer: Choose use server that issuer of certificates.
2. Allow intimidate certificates: It must be in the server certificate chain between the server
certificate and the server specified in the certificate issuer must be field.
3. Server name: Enter an authentication sever root.
-18- AirLive MIMO-G Wireless LAN Adapter User’s Manual

-19- AirLive MIMO-G Wireless LAN Adapter User’s Manual
