Home
System Uptime: specifies the amount of time, which the system has been up.
This time is reset every time the system is reset.
LAN IP Address: indicates the IPAddress of your LAN.
MAC address: MAC address is the address of your MAC.
Security: for your password, which is configured in the “System” section.
Application Code Version: tells the version of the application code which you
are using.
Download Code Version: tells the version of the download code which you are
using.
1

WAN
WAN status
Interface Status: these are the details of your interface’s status.
Enabled: “Yes”, lets you know that your interface is enabled and ready to be
used.
Service: either “Routed or Bridged”, tells you the level of your interface’s
connection.
Protocol: refers to how you are transmitting data. (i.e. Ethernet)
Interface Status: either “Up” or “Down”.
Under Network Settings: these are the details of your network settings.
2

Dynamic IP Assignment: “Yes” or “No”, depending on whether or not you are
using a dynamic IP.
IP address: your specified IP.
MAC address: Your specified MAC address.
Subnet Mask: indicates the IP address of your mask.
Default Gateway: is the IP address of the gateway. The gateway IP could be
retrieved from DHCP offer in DHCP mode, or be set up
manually in fixed IP mode.
DNS address: refers to the address of your dynamic name server, if applicable.
VLAN: VLAN tag value encoded in the Ethernet header in all outgoing packets
Priority Tag: Priority Tag value encoded in the Ethernet header in outgoing
packets.
3

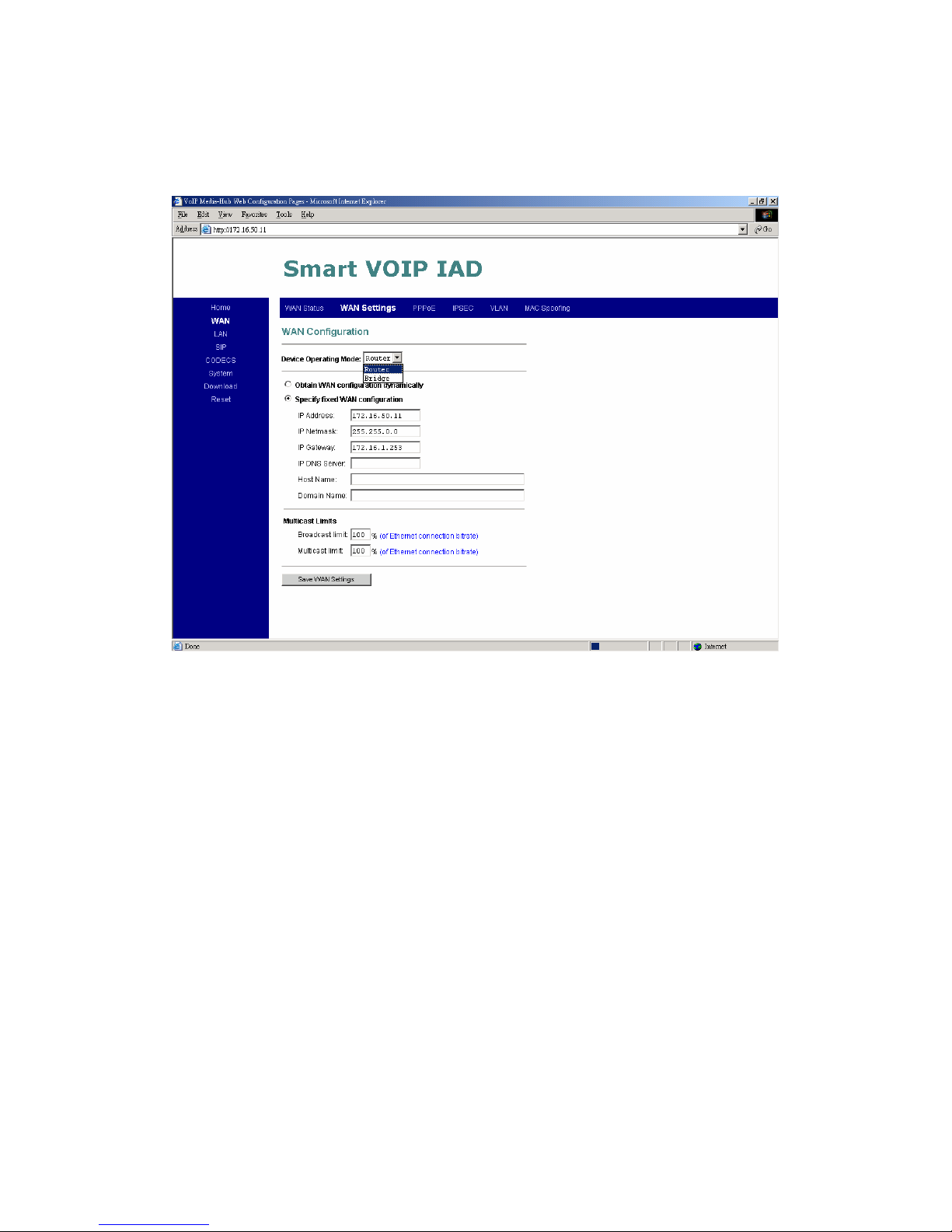

WAN Configuration
1. Device Operating Mode: you choose either “Router” or “Bridged”
depending on your operation.
2. You will check either “Obtain WAN configuration dynamically” or “Specify
fixed WAN configuration”.
When you choose “Obtain WAN configuration dynamically”, the information
is detected automatically through DHCP.
If you choose “Specify fixed WAN configuration”, you are required to enter
the IP address, IP of the Sub mask, IP of the Gateway, and IP of the DNS
Server, if applicable.
3. Multicast Limits:
Broadcast Limit: the value specifies the maximum limit on the percentage of
broadcast packets which will be bridged to the destination
interface (as a percentage of the source side bandwidth)
4

Multicast Limit: the value specifies the maximum limit on the percentage of
multicast packets which will be bridged to the destination
interface (as a percentage of the source side bandwidth)
5

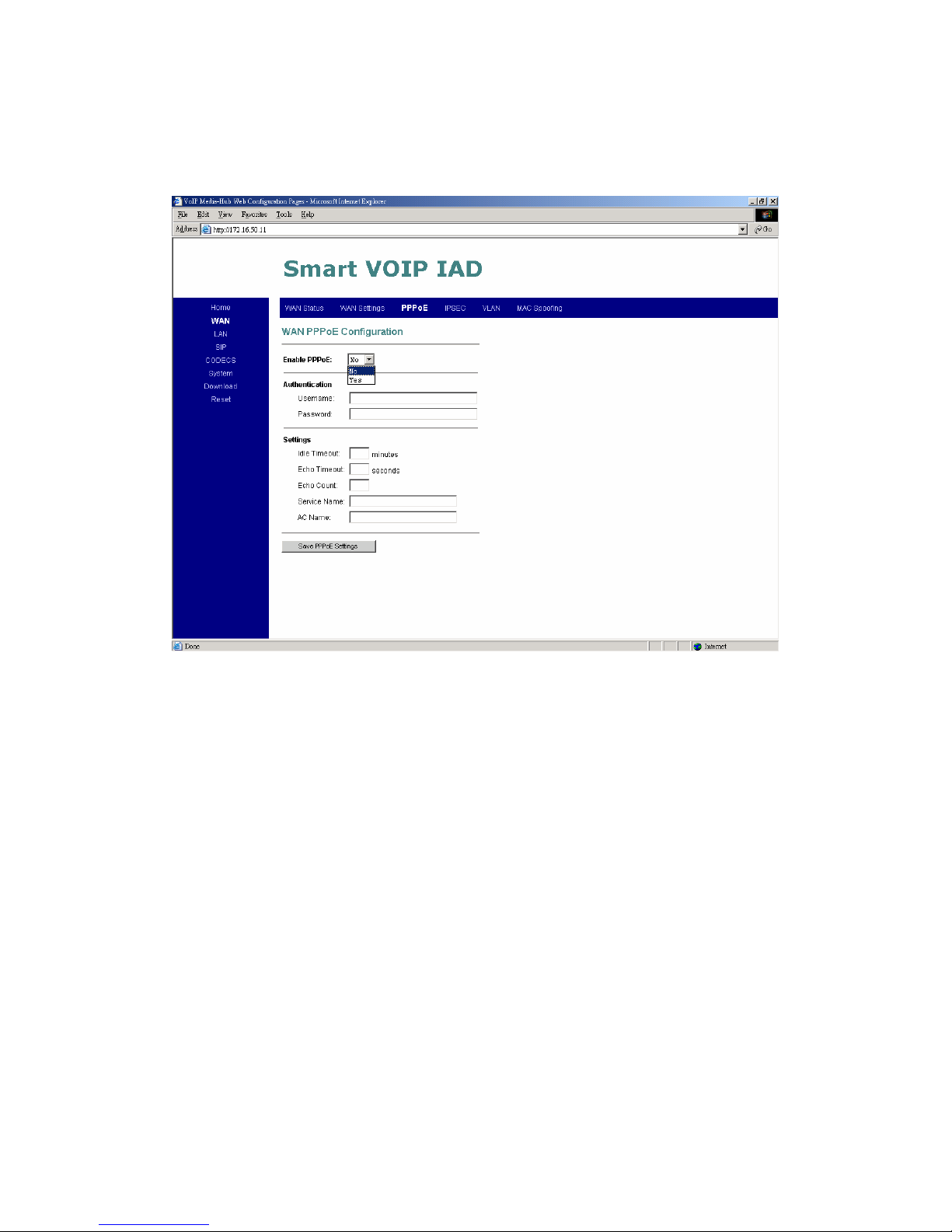

WAN PPPoE Configuration
1. Enable PPPoE: “Yes” or “No”, to enable/disable PPPoE
2. Under “Authentication”, you enter the username and password given by
your ISP.
3. Settings:
Idle Timeout: Idle timeout before PPP connection is closed due to inactivity
Echo Timeout: the duration between PPP echo requests sending to server.
Echo Count: the number of unanswered PPP echo requests before PPP
connection is closed.
Service Name: PPPoE Service name
AC Name: PPPoE AC name
6

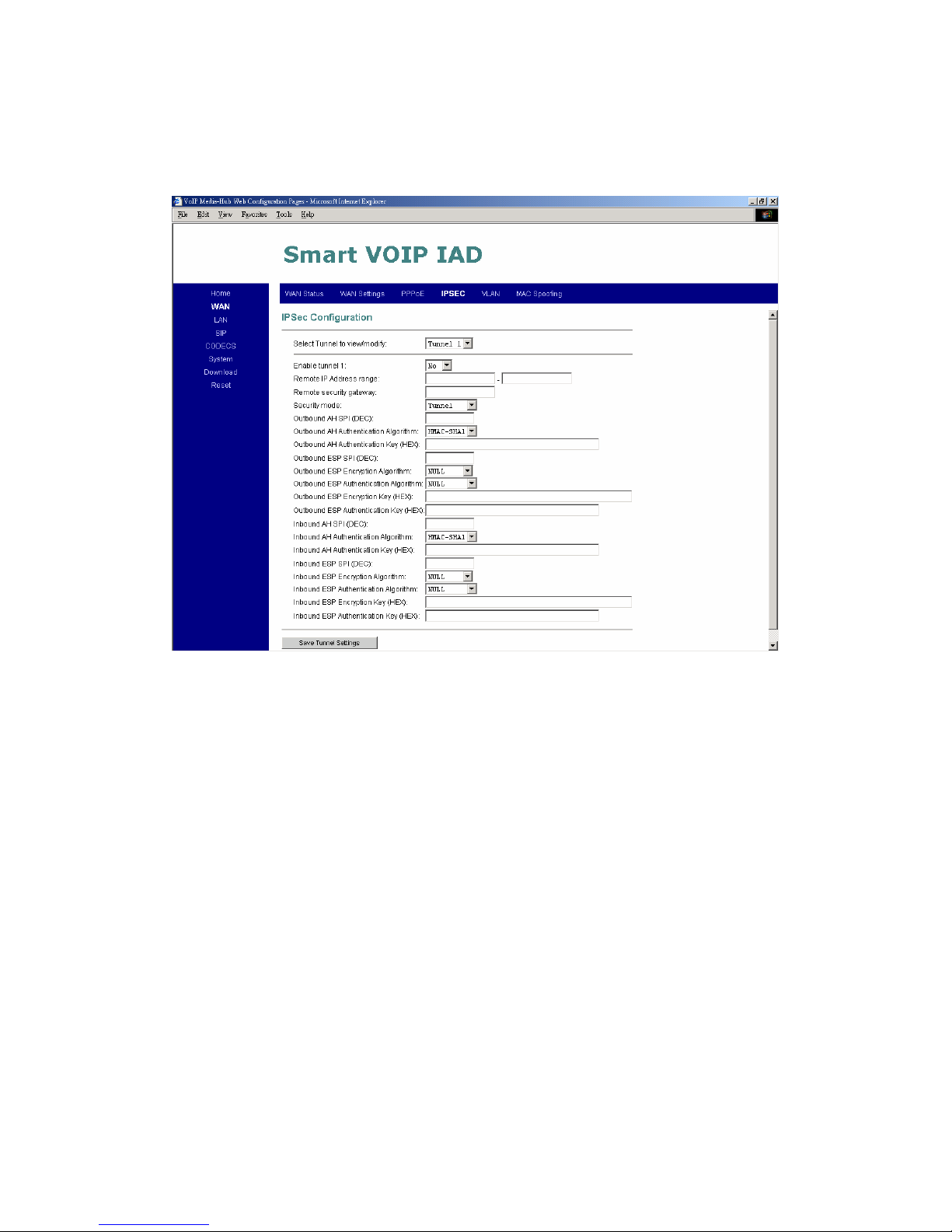

IPSec Configuration
This page allows configuration of the device’s IPSec (IP Security) settings.
Enable tunnel 1: Enable/disable tunnel 1 IP sec
Remote IP Address range: start and end of remote IP address range.
Remote security gateway: Remote security gateway IP address
Security Mode: IPSec mode (tunneling/transport)
Outbound AH SPI (DEC): Outbound AH security parameter index number.
Outbound AH Authentication Algorithm: in HMAC-MD5 or HMAC-SHA1
Outbound AH Authentication Key (HEX): hex number up to 40 nibbles
Outbound ESP SPI (DEC):Outbound ESP security parameter index number
Outbound ESP Encryption Algorithm: in 3DES-CBC or DES-CBC
Outbound ESP Authentication Algorithm: in HMAC-MD5 or HMAC-SHA1
Outbound ESP Encryption Key (HEX):hex number up to 48 nibbles
Outbound ESP Authentication Key (HEX): hex number up to 40 nibbles
Inbound AH SPI (DEC): Inbound AH security parameter index number
Inbound AH Authentication Algorithm: in HMAC-MD5 or HMAC-SHA1
7

Inbound AH Authentication Key (HEX): hex number up to 40 nibbles
Inbound ESP SPI (DEC):Inbound ESP security parameter index number
Inbound ESP Encryption Algorithm: 3DES-CBC or DES-CBC
Inbound ESP Authentication Algorithm: in HMAC-MD5 or HMAC-SHA1
Inbound ESP Encryption Key (HEX): hex number up to 48 nibbles
Inbound ESP Authentication Key (HEX): hex number up to 40 nibbles
8

WAN VLAN Configuration
WAN VLAN Tag: VLAN tag for all outgoing packets on interface. The value
should be between 0 and 4094
WAN Priority Tag: Priority tag for all outgoing packets on interface. The value
should be between 0 and 7
9

MAC Spoofing Configuration
WAN MAC Address (Spoofed):
Only available when devices under the router mode. The spoofed MAC
address to be used by the device’s WAN interfaces, the Ethernet address of
the outgoing packets from the WAN interface would be replaced with this
address. If blank, the WAN interfaces will use the value of MAC
10

LAN
LAN Configuration
1. Under “Network Settings”, you enter the IP address and subnet mask of
your network.
2. Multicast Limits:
Broadcast Limit: the value specifies the maximum limit on the percentage of
broadcast packets which will be bridged to the destination
interface (as a percentage of the source side bandwidth)
Multicast Limit: the value specifies the maximum limit on the percentage of
multicast packets which will be bridged to the destination
interface (as a percentage of the source side bandwidth)
11

DHCP Server Configuration
These configuration parameters are for the device’s internal DHCP server.
1. Server Setting:“Yes” or “No”, to enable/disable DHCP
Client IP Address Range: Minimum and Maximum limit on the DHCP IP
address pool
2. Client Network Information
Domain Name: LAN domain name provided to DHCP clients during the
OFFER process.
DNS Server: This statically assigned DNS server IP address will be
provided to clients during the OFFER process.
3. Static Address Assignment
Up to eight static DHCP address assignments can be configured. To add a
static IP assignment, enter the LAN device’s host name (must be unique in the
private network) and/or MAC address. Specify the Internal address to be
assigned and press the "Add" button.
12

Router Configuration
These configuration parameters are for the device’s internal router.
1. Dynamic Routing: Whether or not dynamic routing on TX/RX interfaces is
enabled/disabled.
2. Static Routing
Under “Static Routing”, you can specify your routing path of your internal
network.
13

Port Forwarding Configuration
1. Under “Reserved Ports”, specified are the ports, which cannot be forwarded
to the LAN.
2. Under “Port Forwarding to LAN”, you enter the specifications, which you
will be forwarding to the lan, including port range, protocol(Both, TCP or
UDP), and destination IP address.
Click on “Save NAPT Settings” to save your configurations.
14

LAN VLAN Configuration
LAN VLAN Tag: VLAN tag for all outgoing packets on interface. The value
should be between 0 and 4094
LAN Priority Tag: Priority tag for all outgoing packets on interface. The value
should be between 0 and 7
Click on “Save VLAN Settings”, to save your configurations.
15

SIP
SIP Configuration
1. Under “SIP Server Settings”, you enter the server address,port,domain
name, and expiration time unit, if you choose to send registration request with
an expiration time.
2. Gateway Settings
• Dial Plan: refer to appendix D of this guide
• # use as a quick dial function: If this box is checked, the dialed digits
would be sent out when ‘#’ key is pressed.
• Enable # to be recognized as dial number: allow ‘#’key to be appeared in
the INVITE request URI
• Enable * to be recognized as dial number: allow ‘*’ key to be appeared in
the INVITE request URI
• For the line on the endpoint, enter the Line Phone Number, Caller-ID
Name, signaling port value, authentication Username and Password,
and select if AEC is to be performed on this line.
