1. Introduction
1 AirLive IGR-842POE User Manual
1
1.Introduction
1.1 Overview
The IGR-842POE is a 6 port Gigabit with 2-Port Gigabit TP/SFP slots Ring industrial
switch. With robust design and wide working temperature from -40 degree to 70 degree ,
The IGR-842POE is able to work in any demanding environment such as factory or
intersection.
IGR-840POE can be power by two power source for power redundancy to prevent power
failure for one power supply. Moreover, IGR-842POE provide the H/W network status
detection to provide the quick response network backup. Furthermore, with special chain
technology, IGR-842POE is allowed to work with existing network without disconnection
current network.

1. Introduction
AirLive IGR-842POE User Manual
2
IGR-842POE is also a PoE switch which can power on any PoE client such as IP cameras ,
VoIP phone.
Note:
If the switch is used in outdoor environment or connect with cable to outdoor , it is
suggested to add a lightning arrester to protect the switch..
1.2 How to Use This Guide
IGR-842POE
is a SNMP and web smart PoE Switch with many functions. It is
recommended that you read through the entire user’s guide whenever possible. The user
guide is divided into different chapters. You should read at least go through the first 2
chapters before attempting to install the device.
Recommended Reading
Chapter 1: This chapter explains the basic information for IGR-842POE
. It is a must
read.
Chapter 2
: This chapter is about hardware installation. You should read through the
entire chapter.
Chapter 3:
3.1 Important Information
: This section has information of default setting such as
IP, Username, and Password.
3.3 Management Interface
: This section introduces Web management, and
Console management.
3.4 Introduction to Web Management: This section tells
you how to get into the
WebUI using HTTP.
1.3 Firmware Upgrade and Tech Support
If you encounter a technical issue that cannot be resolved by information on this guide, we
recommend that you visit our comprehensive website support at www.airlive.com
. The tech
support FAQ are frequently updated with latest information.
In addition, you might find new firmware’s that either increase software functions or provide
bug fixes for IGR-842POE. You can reach our web page
http://www.airlive.com/product/IGR-842PoE

2. Installing the IGR-842POE
3 AirLive IGR-842POE User Manual
This chapter describes the hardware features and the hardware installation procedure for
the IGR-842POE. For software configuration, please go to chapter 3 for more details.
2.1 Before You Start
It is important to read through this section before you install the IGR-842POE
The maximum cabling distance is 100 meters by Cat5e RJ45 cable.
Do not create a network loop.
Always check the LED lights for troubleshooting
2.2 Package Content
Unpack the contents of the IGR-842POE Plus and verify them against the checklist below.
One unit of IGR-842POE
Quick Installation Guide
Wall mount kit
2
2.Installing the IGR-842POE

2. Installing the IGR-842POE
AirLive IGR-842POE User Manual
4
Compare the contents of your IGR-842POE package with the standard checklist above. If
any item is missing or damaged, please contact your local dealer for service.
2.3 Optional Accessory
The IGR-842POE has the following optional accessories which you can purchase from
AirLive
1000Base-SX MiniGBIC Transceiver (Model: SFP-SX v2) or 1000Base-LX
MiniGBIC Transceiver (Model: SFP-LX v2) is for your SFP slots of IGR-842POE, it
allows you to use fiber cable for extending transmission distance.

2. Installing the IGR-842POE
5 AirLive IGR-842POE User Manual
Note: While installing MiniGBIC into SFP slot of IGR-842POE, please notice the
direction of MiniGBIC is correct, and make sure that MiniGBIC is indeed installed
in the IGR-842POE.

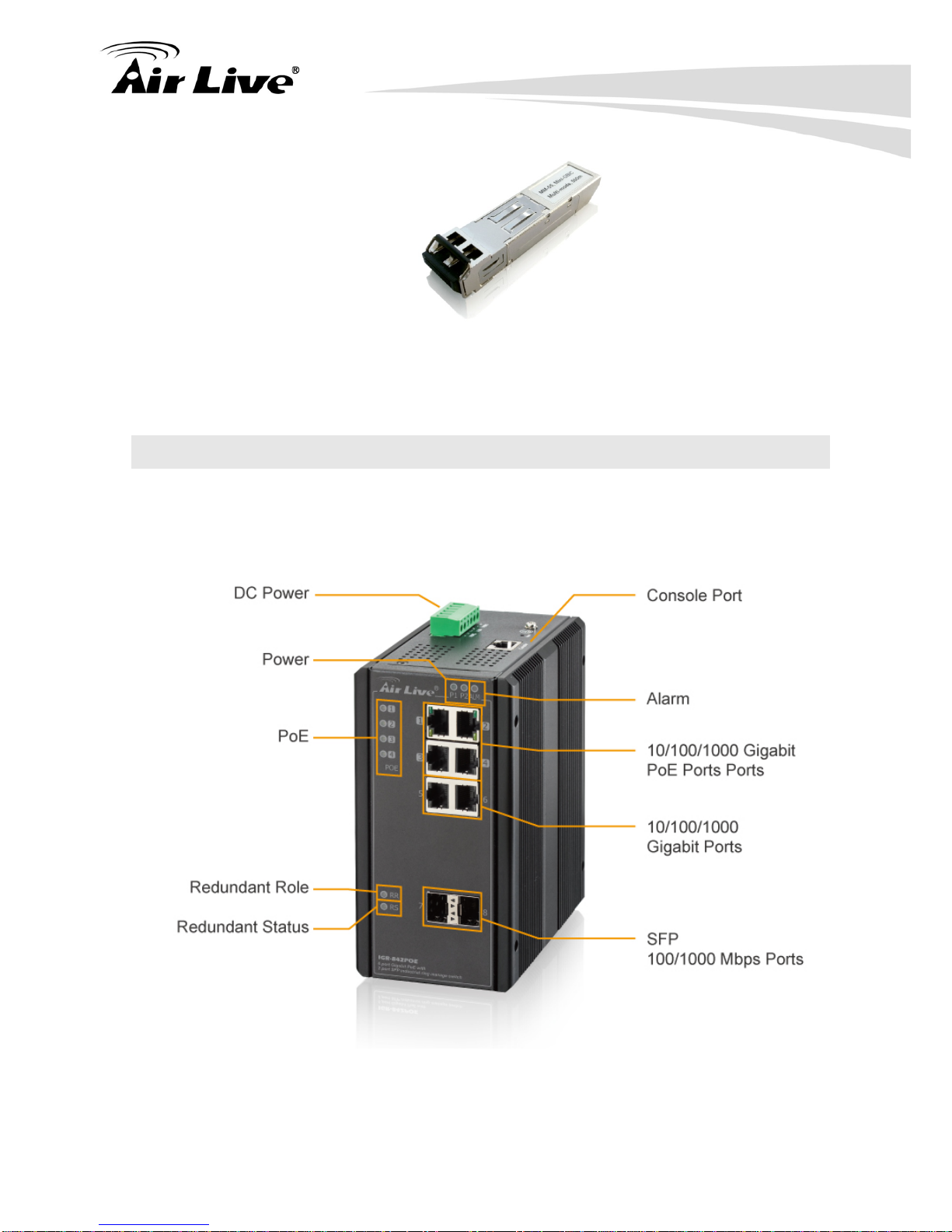

2.4 Knowing your IGR-842POE
Below are descriptions and diagrams of the product:

2. Installing the IGR-842POE
AirLive IGR-842POE User Manual
6
2.5 Hardware Installation
Set the IGR-842POE on a sufficiently large flat space with a power outlet nearby. The
surface where you put your IGR-842POE should be clean, smooth, level and sturdy. Make
sure there is enough clearance around the IGR-842POE to allow attachment of cables,
power cord and allow air circulation.
2.5.1.Wall-mounted Installation
Screw on the wall-mounting plate on with the plate and screws in the accessory kit.

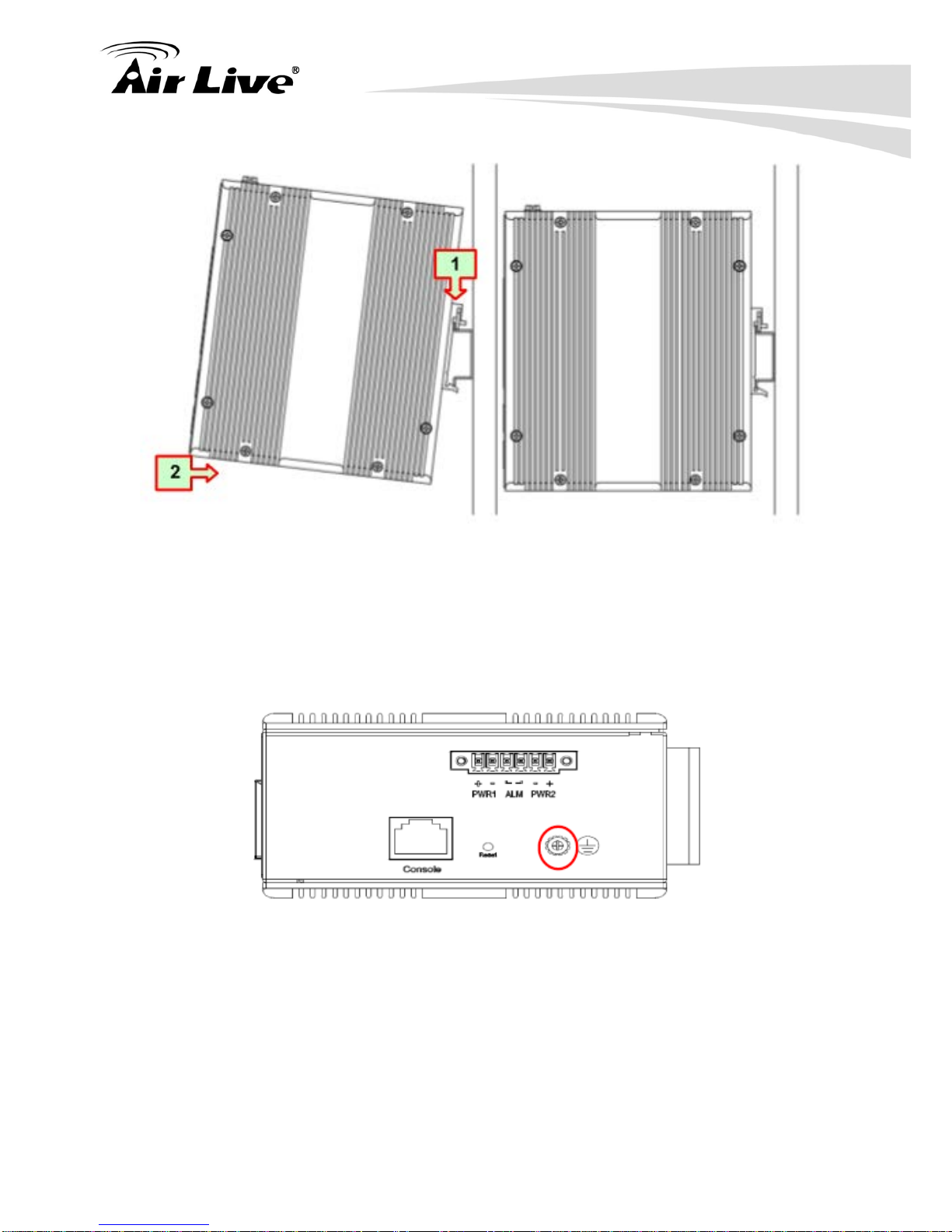

2.5.2.DIN-Rail Mounting

2. Installing the IGR-842POE
7 AirLive IGR-842POE User Manual
Screw the din-clip with screws in the accessory kit.
Hook the unit onto the din-rail.
Push the bottom of the unit towards the din-rail until it locks in place.
2.5.3.Ground Connection
IGR-842POE must be properly grounded for optimum system performance.

2. Installing the IGR-842POE
AirLive IGR-842POE User Manual
8
2.5.4.Power On

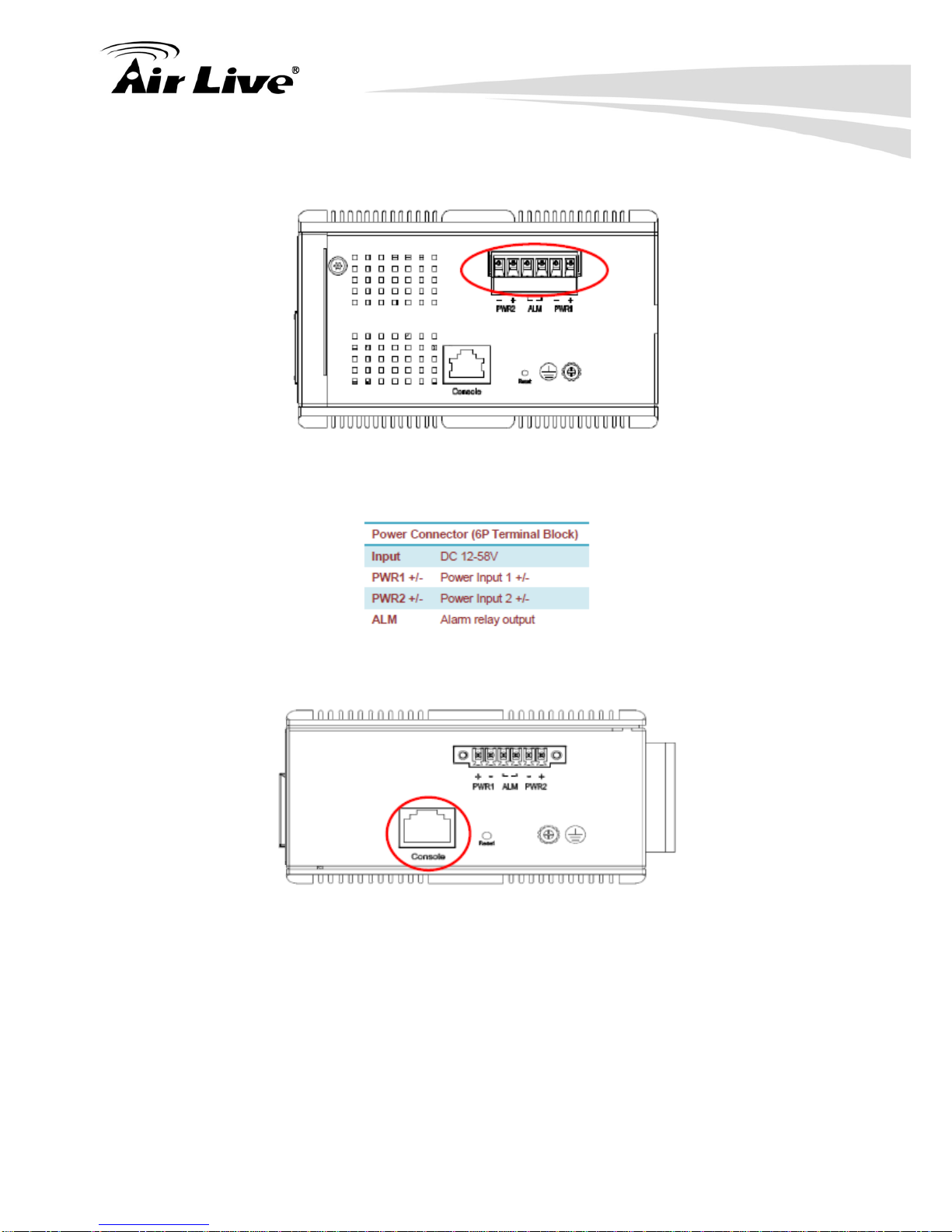

The DC power interface is a 6-pin terminal block with polarity signs on the top panel.
The IGR-842POE can be powered from two power supply (input range 12V – 58V). The DC
power connector is a 6-pin terminal block; There is alarm contact on the middle terminal
block.
2.5.5.Console Connection
The Console port is for local management by using a terminal emulator or a computer with
terminal emulation software.
DB9 connector connect to computer COM port
Baud rate: 115200bps
8 data bits, 1 stop bit
None Priority
None flow control

2. Installing the IGR-842POE
9 AirLive IGR-842POE User Manual
2.6 LED Table

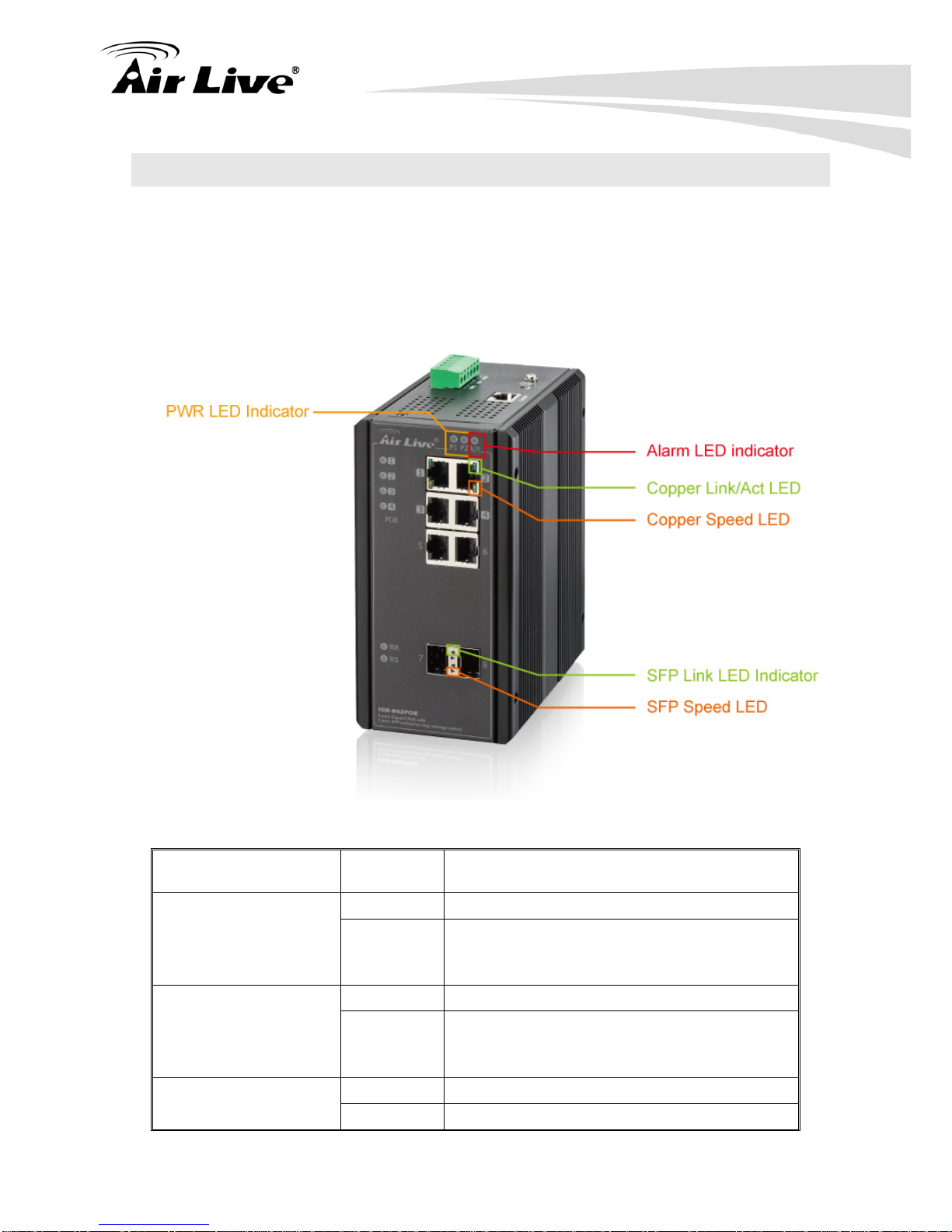

The LED Indicators gives real-time information of systematic operation status. The
following table provides descriptions of LED status and their meaning.
LED Status Description
P1
Green
P1 power line has power
Off
P1 power line disconnect or does not have
supply
power
P2
Green
P2 power line has power
Off
P2 power line disconnect or does not have
supply
power
Alarm
Red
Alarm event occurs
Off
No alarm

2. Installing the IGR-842POE
AirLive IGR-842POE User Manual
10
Copper ports Speed Yellow
A 100 Mbps or a 1000Mbps connection is
detected
Off
No link or a 10 Mbps connection is detected
SFP port Link/Act
Green
Ethernet link up
Off
Ethernet link down
SFP port Speed
Yellow
SFP port speed 1000Mbps connection is
detected.
Off
No link or a SFP port speed 100Mbps
connection
is detected

3. Introduce the IGR-842POE
11 AirLive IGR-842POE User Manual
3
3.Introduce the
IGR-842POE
3.1 Important Information
The following information will help you to get start quickly. However, we recommend you to
read through the entire manual before you start. Please note the username and password
are case sensitive.
The default IP address is 192.168.2.1
The default Subnet Mask is 255.255.255.0
The default username is admin
The default password is airlive
Note : The default PoE mode is “Disable”
3.2 Prepare your PC
The IGR-842POE can be managed remotely by a PC through RJ-45 cable. The default IP
address of the IGR-842POE is 192.168.2.1 with a subnet mask of 255.255.255.0. This
means the IP address of the PC should be in the range of 192.168.2.2 to 192.168.2.253.
To prepare your PC for management with the IGR-842POE, please do the following:
1. Connect your PC directly to the copper port of IGR-842POE
2. Set your PC’s IP address manually to 192.168.2.100 (or other address in the same
subnet)
3.3 Management Interface
The IGR-842POE can be configured using on the management interfaces below:

3. Introduce the IGR-842POE
AirLive IGR-842POE User Manual
12
Web Management (HTTP): You can manage your IGR-842POE by simply typing its IP
address in the web browser. Most functions of IGR-842POE can be accessed by web
management inter face. We recommend using this interface for initial configurations.
To begin, simply enter IGR-842POE’s IP address (default is 192.168.2.1) on the web
browser. The default username is admin and password is airlive.
3.4 Introduction to Web Management
The IGR-842POE offers Web Management interfaces for users. Users can easily access
and control IGR-842POE via web browsers. The Web-Based Management supports
Internet Explorer 10 or later version. If you want to check the cameras’ stream, please use
Firefox , because other browser does not support the plug-in for video.
3.4.1.Getting into Web Management
Web Management (HTTP)
1. Launch the Internet Explorer.
2. Type http://192.168.2.1. Press “Enter”.
3. The login screen appears.
4. Key in the user name and password. The default user name is “admin” and password
is “airlive”.
5. Click “Enter” or ”Login”, then the home screen of the Web-based management
appears.

3. Introduce the IGR-842POE
13 AirLive IGR-842POE User Manual
3.4.2.Menu Structure of IGR-842POE
The web management menu of IGR-842POE is divided into 3 parts: Top Bar, Side Menu
Bar, and Main Screen.
Top Bar: It display panel GUI. You can direct click the port on the Switch figure
on the top of web page. Then, you will see the port information. On the left-top
corner, there is a pull-down list for Auto Logout. For the sake of security, we provide
auto-logout function to protect you from illegal user as you are leaving. If you do not
choose any selection in Auto Logout list, it means you turn on the Auto Logout
function and the system will be logged out automatically when no action on the
device 3 minutes later. If OFF is chosen, the screen will keep as it is. Default is ON.
Side Menu
Main Screen
Top Bar

3. Introduce the IGR-842POE
AirLive IGR-842POE User Manual
14
Side Menu: All management functions will show in Side Menu, you can choose any
one of them to configure its setting. The detailed introduction for all management
function will explain in below chapters. The following list is the full function tree for
web user interface.
Main Screen: Once choosing any function of Side Menu, the configuration page of
the function will show in Main Screen. You can configure the function by instruction
of manual.

5. Web Management: Monitor of IGR-842POE
15 AirLive IGR-842POE User Manual
4
4.Web Management:
Configuration of
IGR-842POE
4.1 System
This chapter describes the entire basic configuration tasks which includes the System
Information and any manage of the Switch (e.g. Time, Account, IP, Syslog and NTP.)
Please Click Maintenance, Configuration and Save starup-config to save the configuration.
4.1.1.System Information
You can identify the system by configuring the contact information, name, and location of
the switch.
The switch system information is provided here.
Web interface
To configure System Information in the web interface:
1. Click Monitor, System and Information.
2. Check the contact information for the system administrator as well as the name and
location of the switch. Also indicate the local time zone by configuring the appropriate
offset.
Parameter description:
1. Contact
The system contact configured in Configuration | System | Information | System
Contact.
