1. Introduction
AirLive WN-220ARM User’s Manual 1
1 1. Introduction
1.1 Overview
AirLive WN-220ARM is the center of your home or office network, you can share a
high –speed Internet connection, files, and multi - player games with the flexibility, speed,
security and simplicity! The WN-220ARM ties functions All-in-one of wireless 150Mbps 11n-lite
networking technology.
AirLive WN-220ARM also a built - in 4- port full - duplex 10/100Mbps Switch to connect you’re
wired - Ethernet devices together. Finally, the Router function ties it all up and lets your whole
network shares a high – speed cable or DSL Internet connection.
Wireless High-Speed 150Mbps and high speed DSL lead you to enjoy various
applications. Seamlessly work with X-Box360, online game and download application or IPTV
streaming.
The QoS (Quality of Service) feature allows prioritizing the different package according the
802.11e WMM protocol and triple play (Voice, Video and Data) automatically. TheAirLive
WN-220ARM also provides the capability to control total bandwidth or limit the bandwidth by
application. Therefore, the administrator can setup different class of connection speeds for
different applications.

1. Introduction
AirLive WN-220ARM User’s Manual
2
1.2 Features
If you encounter a technical issue that cannot be resolved by information on this guide, we
recommend that you visit our comprehensive website support at www.airlive.com. The tech
support FAQ are frequently updated with latest information.
In addition, you might find new firmware that either increase software functions or provide bug
fixes for WN-220ARM. You can reach our on-line support center at the following link:
http://www.airlive.com/support/support_2.jsp
Since 2009, AirLive has added the “Newsletter Instant Support System” on our website.
AirLive Newsletter subscribers receives instant email notifications when there are new
download or tech support FAQ updates for their subscribed airlive models. To become an
AirLive newsletter member, please visit: http://www.airlive.com/member/member_3.jsp

1. Introduction
AirLive WN-220ARM User’s Manual 3
1.3 Product Overview
Enjoy Your AirLive Wireless
Compatible with AirLive Wireless IP Camera
Green WLAN for Smart Power Saving
Support Easy Setup Wizard
TR069 Remote Management
IPv6 support
1.4 Packing List
WN-220ARM
2dbi antenna
Power Adapter
CD
QIG
1.5 Specification Table
Device Interface
ADSL Line ADSL port (Annex A) 1
ADSL2 /2+
Standard Module
1-port ADSL2+ connector
ITU 992.1 (G.dmt) Annex A,
ITU 992.2 (G.lite),
ITU 992.3 ADSL2 (G.dmt.bis),
ITU 992.5 ADSL2+
●
Ethernet LAN RJ-45 port, 10/100Mbps, auto-MDI/MDIX 4
Antenna For 2.0 dBi Fixed antenna 1
WPS Button For WPS connection 1
Wireless On/Off
Button Enable /Disable Wireless Radio 1
LED Indication Status/ ADSL/ LAN1 ~ LAN4/ WiFi ●
Power Jack
DC Power Jack and switch, powered via
external DC 12V/0.6A switching power
adapter
1

1. Introduction
AirLive WN-220ARM User’s Manual4
Wireless LAN (WiFi)
Standard IEEE 802.11b/g/n (1x1) compliance ●
SSID SSID broadcast or in stealth mode ●
Channel Auto-selection, manually ●
Security WEP, WPA, WPA-PSK, WPA2, WPA2-PSK ●
WPS WPS (Wi-Fi Protected Setup) ●
WMM WMM (Wi-Fi Multimedia) ●
Functionality
ADSL WAN PPPoE / PPPoA / IPoA / Static IP / Dynamic
IP ●
WAN Connection Auto-reconnect, dial-on-demand, manually ●
IPv6 support Dual stack IPv6 support ●
One-to-Many NAT
Virtual server, special application, DMZ,
Super DMZ (IP pass through)
And IPTV IGMP V1 V2 Pass through
●
NAT Session Support NAT session 8000
SPI Firewall IP/Service filter, URL blocking, MAC control ●
DoS Protection DoS (Deny of Service) detection and
protection ●
Routing Protocol Static route, dynamic route (RIP v1/v2) ●
Ovislink IPcam
support Ovislink IPcam support ●
Remote
management
TR069 (2-wire/ Motive)
●
Management SNMP, UPnP IGD, syslog ●
Administration Web-based UI, remote login,
backup/restore setting ●
Environment & Certification
Package dimension (mm)Package
Information Package weight (g)
Operation Temp. Temp.: 0~40oC, Humidity 10%~90%
non-condensing ●
Storage Temp. Temp.: -10~70oC, Humidity: 0~95%
non-condensing ●
EMI Certification CE/FCC compliance ●
RoHS RoHS compliance ●

1. Introduction
AirLive WN-220ARM User’s Manual 5
1.6 Hardware Installation
1.6.1 Front View
※Reset: Press “Wireless on/off” and “WPS” button for 5 sec simultaneously.

1. Introduction
AirLive WN-220ARM User’s Manual6

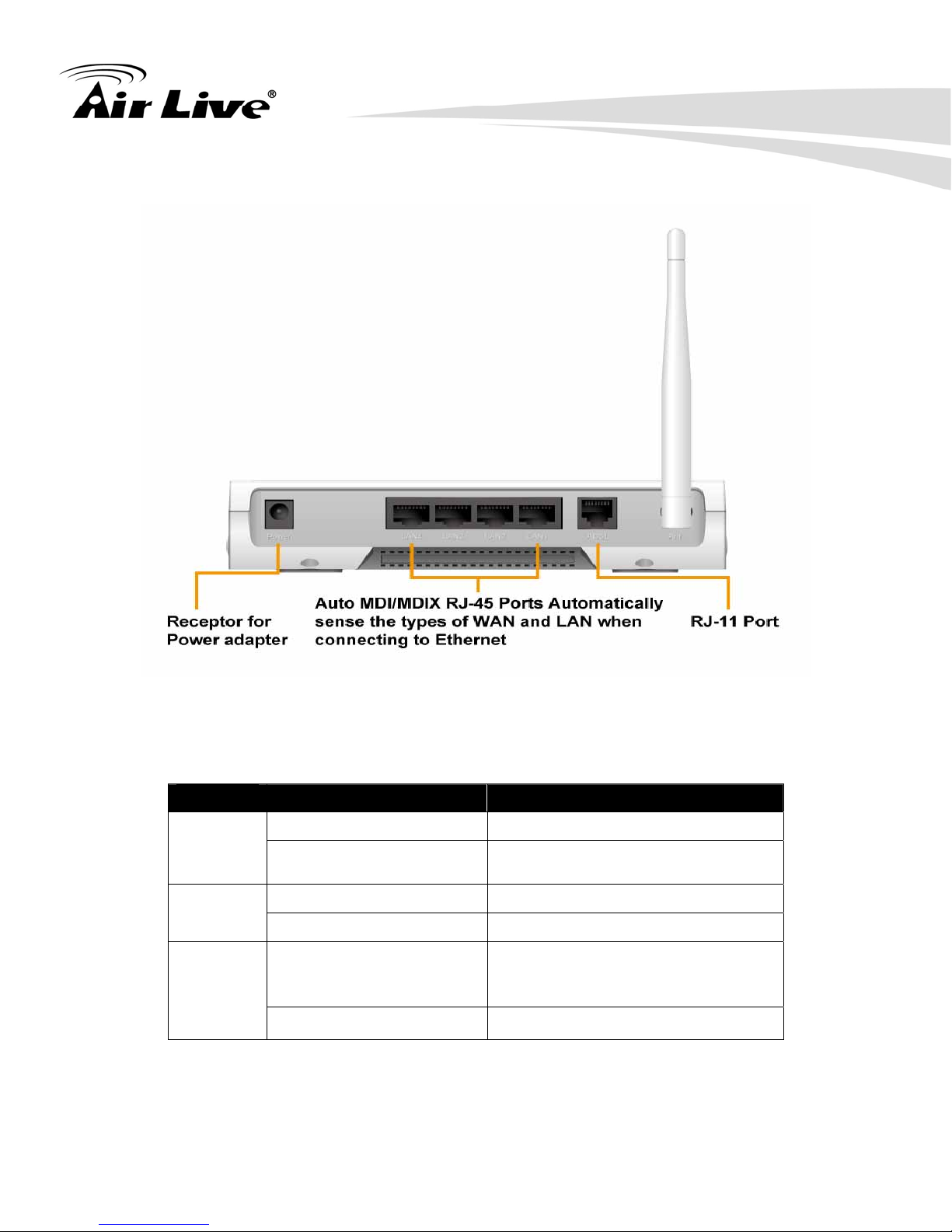

1.6.2 Rear View
1.6.3 LED Indicators
LED Status Description
Green in flash xDSL connection is established
ADSL Green in fast flash Data packet transferred via DSL
Line
Green WiFi is on.
WLAN Green in flash Data access
RJ45 cable is plugged, and
Ethernet
connection is established.
Green
LAN
Green in flash Data access

1. Introduction
AirLive WN-220ARM User’s Manual 7
1.6.4 Button Definition
Description
Enable
“Wireless”
and WPS
1. When Wireless is off, press this button (about 1 sec) to
enable "Wireless Radio".
2. When Wireless is On, press this button (about 1 sec) to
execute WPS function.
Press “Wireless on/off” and “WPS” button for 5 sec
simultaneously.
Reset
1.6.5 How to Operate

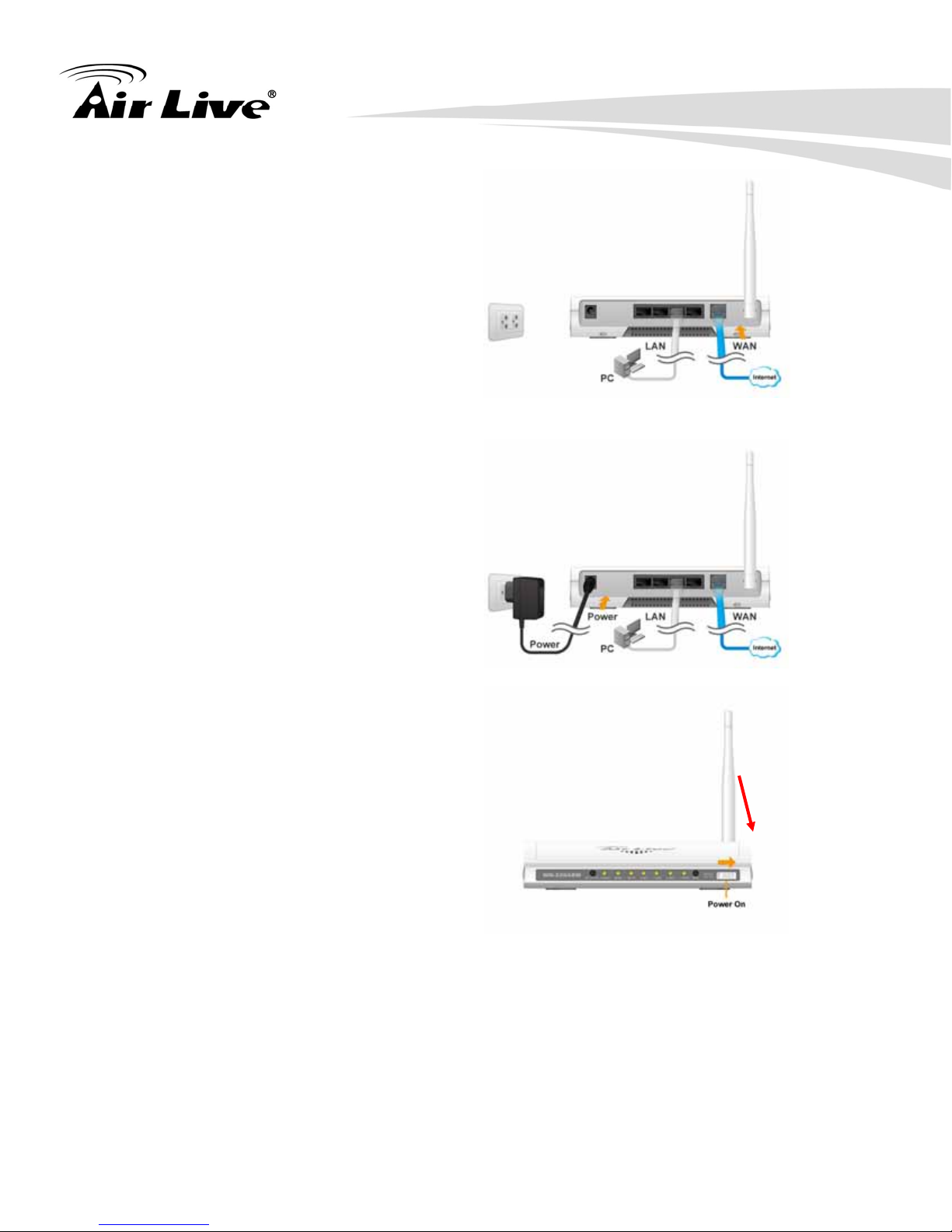

DO NOT connect WiFi Broadband Router to power before performing the installation
steps below.
Step 1.
Plug the RJ45 cable into LAN port
1~4 and connect with your PC or
NB.

1. Introduction
AirLive WN-220ARM User’s Manual8
Step 2.
Plug your RJ-11 into the DSL port
and connect with your xDSL
modem.
Step 3.
Plug the power jack into it.
Step 4
Power ON.

2.Getting Started
AirLive WN-220ARM User’s Manual 9
2.1 Easy Setup by Windows Utility
Step 1.
Install the Easy Setup
Utility from the provided
CD click the “Start” then
follow the steps to
configure the device.

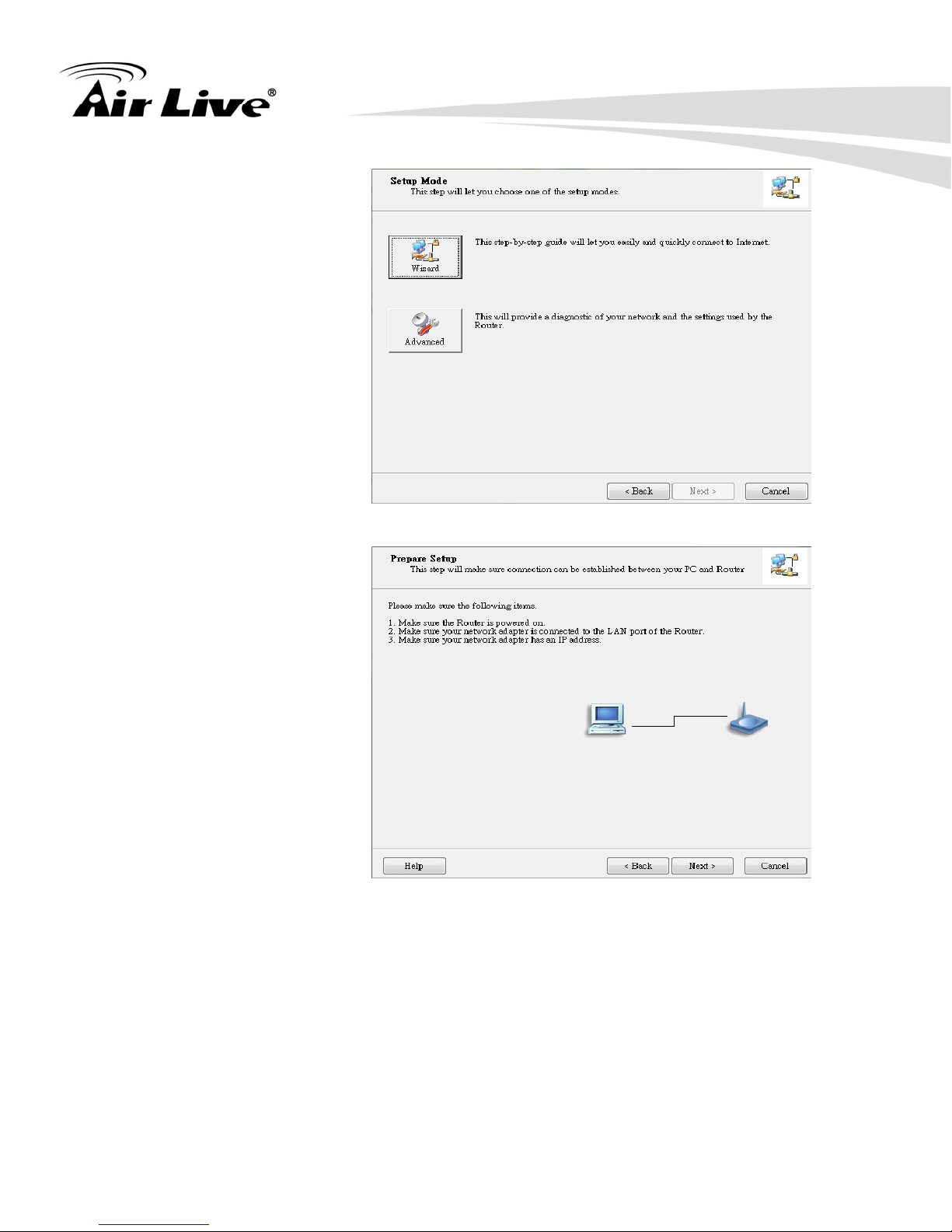

Step 2.
Select Language then
click “Next” to continue.
2 2. Getting Started

2.Getting Started
AirLive WN-220ARM User’s Manual10
Step 3.
Then click the “Wizard”
to continue.
Step 4.
Click “Next” to continue.

2.Getting Started
AirLive WN-220ARM User’s Manual 11
Step 5.

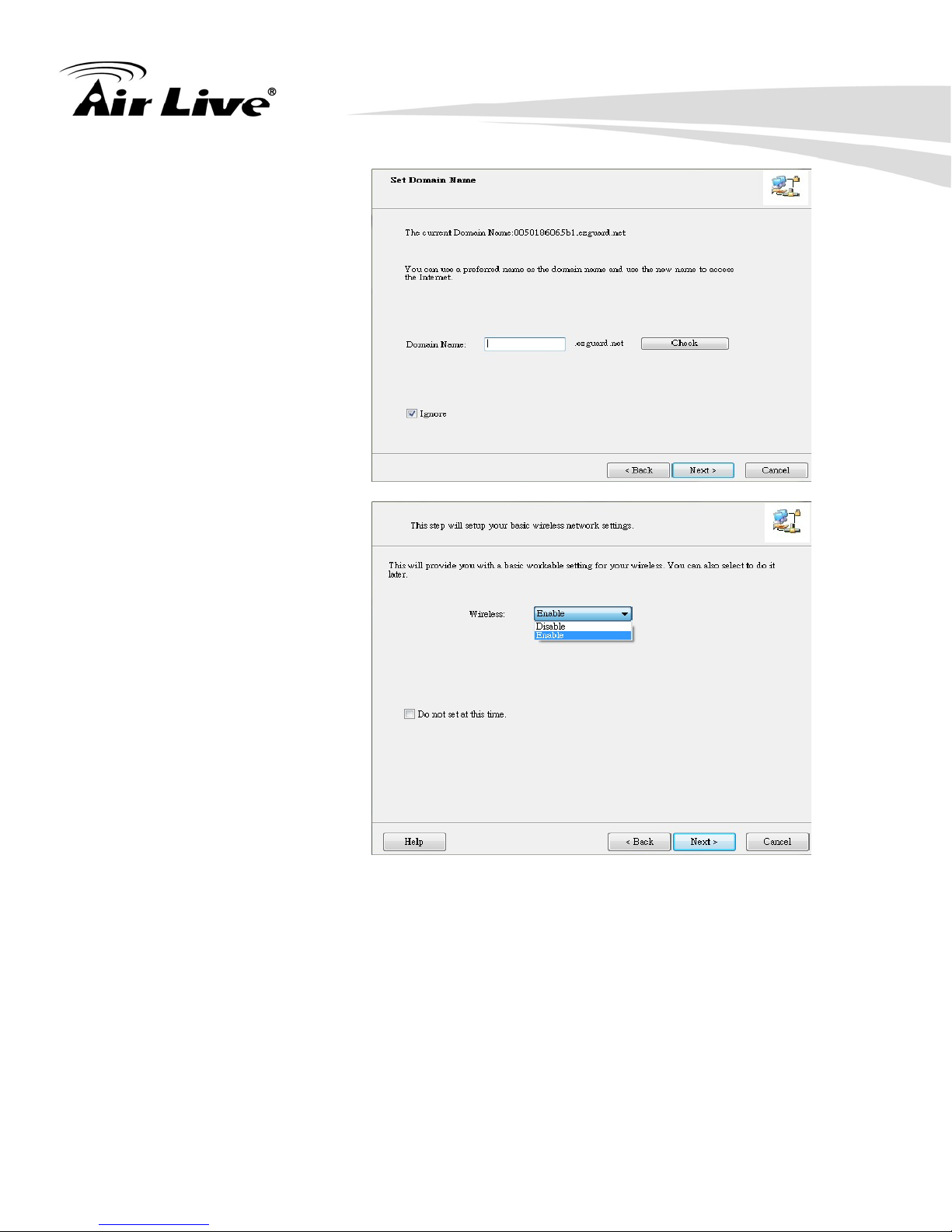

One free DDNS account
‘MAC address.ezguard
.net’ for end user to
access the NAS router
remotely, you can
rename an alias name to
remember it easily. Once
you type in a name, you
can click ‘check’ to see if
the name server accepts
it or not. You also can
click ‘Ignore’ to pass it.
Step 6.
Select Wireless Enable,
and then click “Next” to
continue.

2.Getting Started
AirLive WN-220ARM User’s Manual12
Step 7.
Enter SSID, Channel
and Security options,
and then click “Next” to
continue.
Step 8.
Select Auto Detect WAN
service.

2.Getting Started
AirLive WN-220ARM User’s Manual 13
Step 9.
Save the setting.
Step 10.
Congratulations!
Setup is completed.
Now you have already
connected to Internet
successfully.

2.Getting Started
AirLive WN-220ARM User’s Manual14
2.2 Easy Setup by Web UI
You can also browse UI of the web to configure the device.
2.2.1 Browse to Activate the Setup Wizard
Type in the IP Address
(http://192.168.1.254)
Type the default
password ‘airlive’ in the
System Password and
then click ‘login’ button.
Select “Wizard” for basic
settings in simple way.
Press “Next” to start the
Setup Wizard.

2.Getting Started
AirLive WN-220ARM User’s Manual 15
2.3 Setup Wizard
Step 1
You can change the
password of
administrator here.
Step 2
Select Time Zone.

2.Getting Started
AirLive WN-220ARM User’s Manual16
Step 3
You can select Auto
detecting WAN type or
setup WAN type
manually.
Step 4
The system will detect
the WAN type if you
choose to let the system
detect automatically.
Step 5
Type in Host name and
ISP registered MAC
address. (if no such
information, you can go
next)
