Airwheel T5 User manual

T5
User Manual

Thank you for buying the Airwheel T5.
Please read the product instructions carefully before
using the Airwheel T5 and follow all instructions, notes
and warnings in this manual. Failure to do so will result
in damage to the product and will not be covered by the
warranty.
Please keep the manual and warranty card in a safe place.

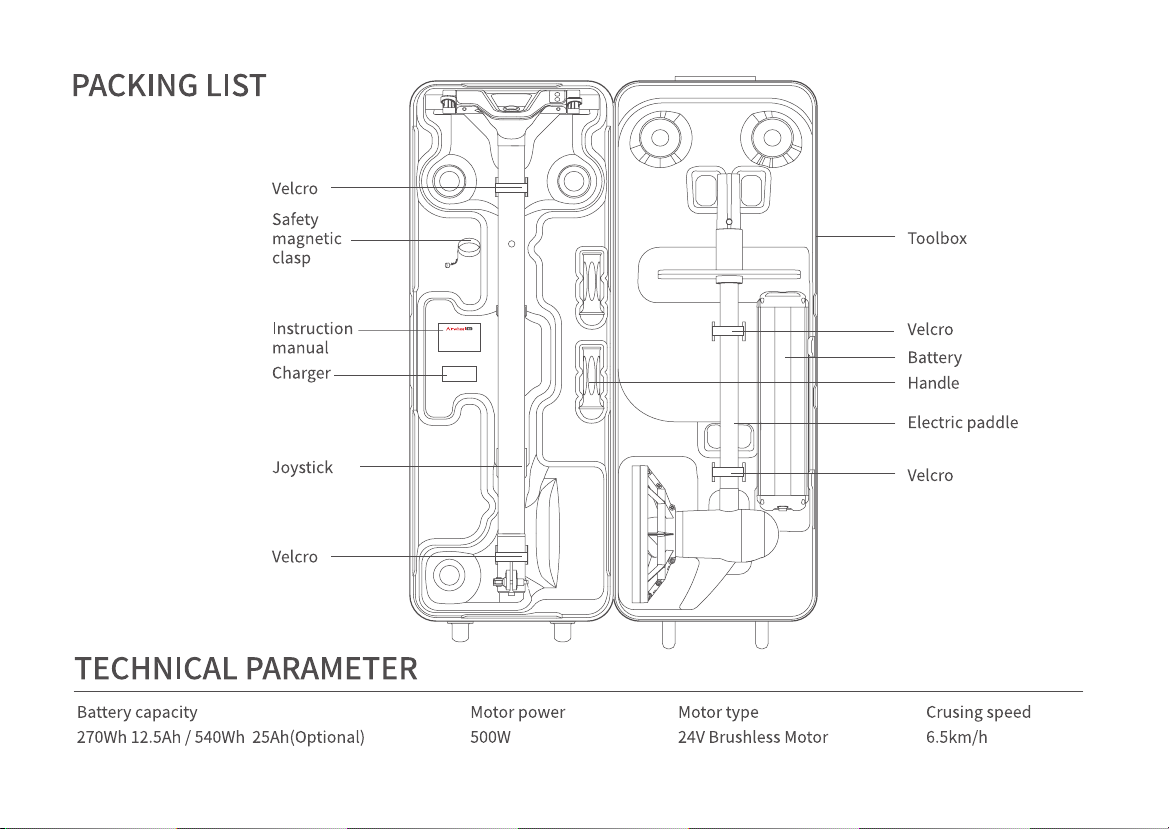

Packing List
Wakeboard
Paddle Pump w/ gauge

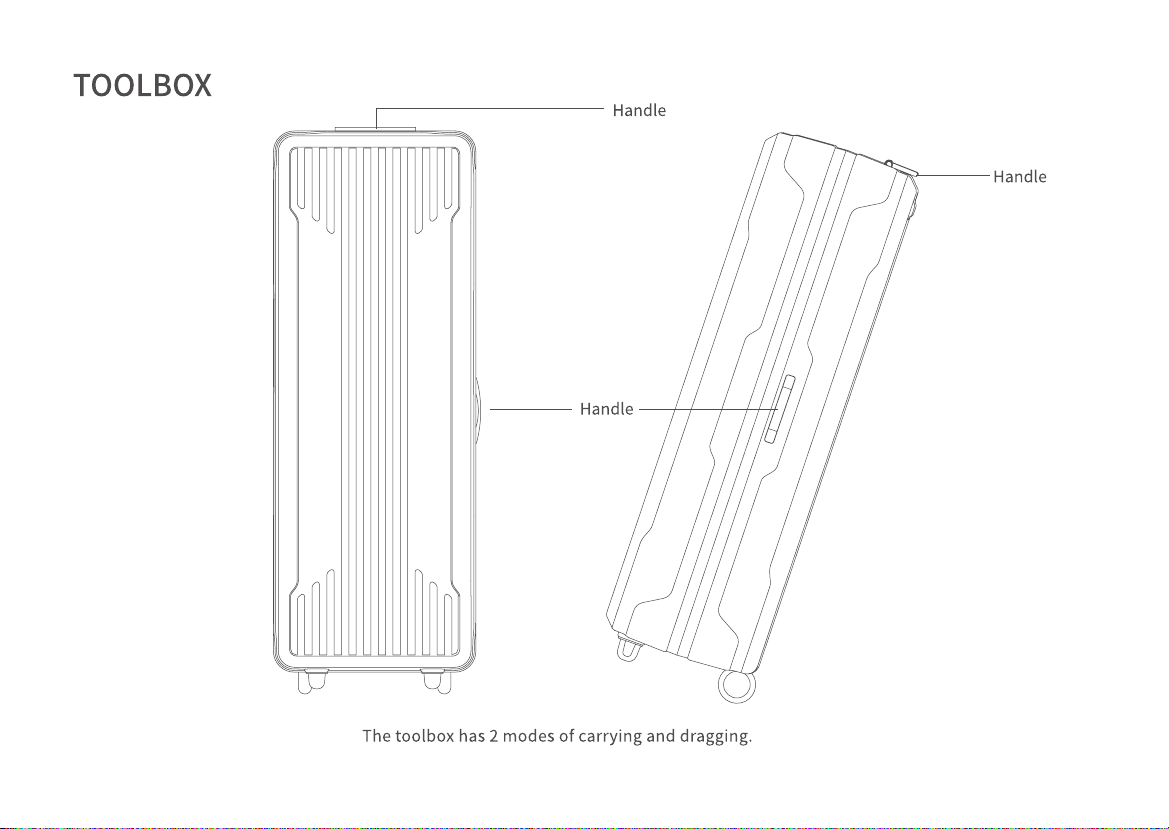

Toolbox
Repair kitFin
Charger 1Joystick 1Battery 1Handle 2
Safety magnetic clasp 1Wakeboard 1Toolbox 1Repair kit 1
Instruction manual 1Paddle 1Pump w/ gauge 1Fin 1
Electric paddle 1Base cover 1Water ba󽗌e 1
PRODUCTS AND ACCESSORIES

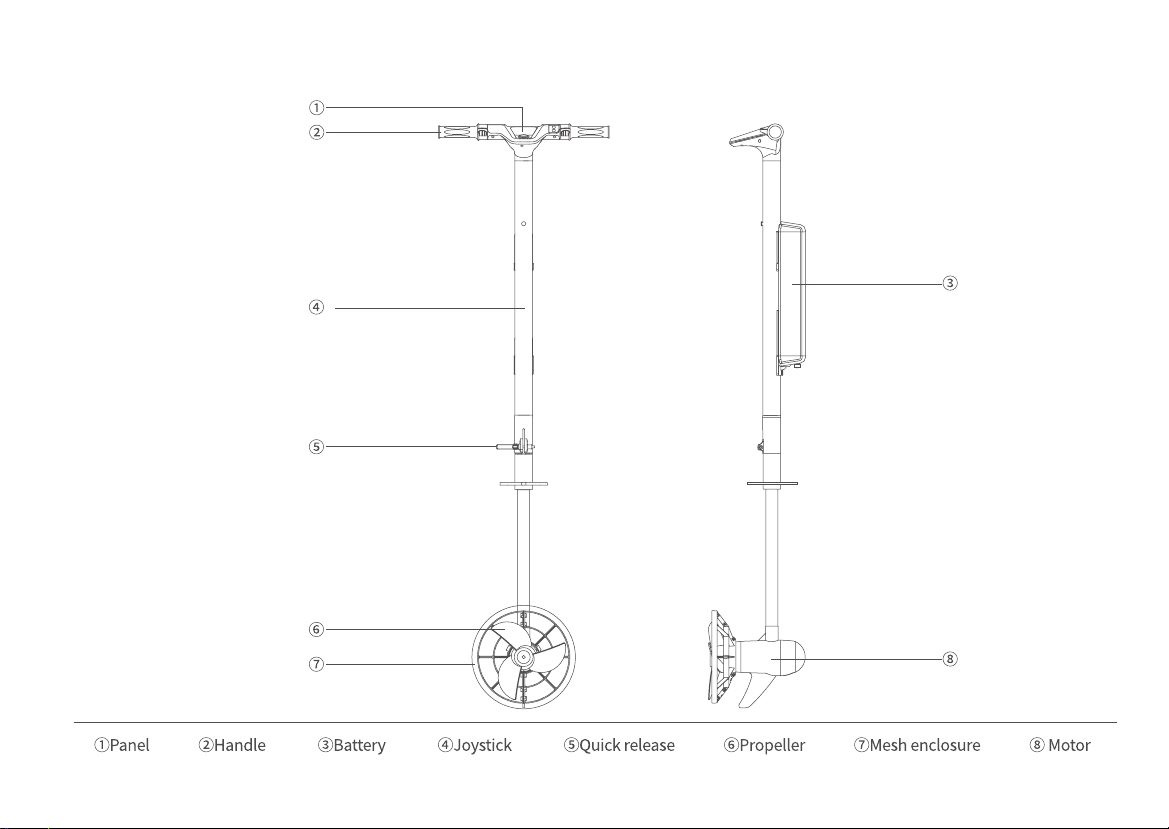

ELECTRIC PADDLE

battery
Safety
pin

• Unpack and unroll your SUP on a smooth, clean, 󽗊at surface.
• Connect the air tap on your pump to the in󽗊ation valve on your SUP. Firmly pushthe air tap inwards and twist clockwise to
secure the connection.
• Before you begin to pump, please consult the recommended PSI on the valve(s) of your SUP and in󽗊ate to the appropriate
value. DO NOT over-in󽗊ate your SUP.
• The PSI may not register on your pump until you reach at least 7 PSI - keep pumping!
• Once the desired air pressure has been reached, please safely disconnect the air tap of your pump and secure the valve on
your SUP.
WARNING: Please only use the pump provided or other recommended pumps. DO NOT use an air compressor as you will risk over-
in󽗊ating the board and severely damaging your SUP beyond repair. Your warranty will be void in the event of damage via over-in󽗊ation.
OPERATION OF VALVES
In order to in󽗊ate easily,Remove the valve cover(b)-clockwise whirl it(b), Put it(a)in “Output” position.
After in󽗊ating,screw in valve cover(b) and anticlockwise whirl it(b).
阀门
INFLATABLE

1. The board can be in󽗊ated either with our hand pump or an electric pump. The electric pump can in󽗊ate the board to a moderate pressure and save
a lot of time with about 90% of the required air volume. You will need to use your hand pump to in󽗊ate the chambers to the correct pressure.
2. Do not use an air compressor. Damage to your board caused by over in󽗊ation from an air compressor is notcovered by your warranty.
3. After 2 or 3 days there may be a small decrease of pressure due to temperature change. If so, add a few pumps of air.
4. Before undertaking a long paddle, in󽗊ate the board for a full 24 hours to be sure the board is airtight. If you are seeing a consistent decrease in air
pressure, follow the instructions for leak detection in the board repair sectionof this manual.
5. Do not over-in󽗊ate the board. A max pressure of 12 PSI is adequate. The easiest gauge of a good workingpressure is to have the chambers in󽗊ated
to a 󽗉rm pressure when you press on them.
6. Do not pump to a high pressure and let the board sit out in the sun. If the board is going to be in a warm environment, slightly under-in󽗊ate the
board and allow the heat from the sun to increase the internal pressure.When paddling, the colder temperature of the water may cause a slight loss
in chamber pressure. It is a goodidea to carry a pump with you so that you can add some air to the chambers if necessary.
Airwheel has chosen PVC to provide superior protection from ultraviolet light. However, to ensure extra years of 󽗊exibility and bright colors, avoid storing
the board where it will be exposed to weather or in direct sunlight.
Please review the following list for storage and board care tips.
1. Before storing, hose o󽗈 the board and let it dry completely to prevent mildew buildup.
2. Do not use harsh chemicals for cleaning. Most dirt can be removed with a mild soap and fresh water.
3. You may store the board in󽗊ated or de󽗊ated.if you de󽗊ate the board, we recommend that you store it in theprotective bag that came with the board.
4. We do not recommend hanging the board.
5. Do not store in extreme conditions.(i.e. above 150F or below -10F)
6. Store in a clean, dry place.
BOARD CARE AND STORAGE
INFLATION TIPS AND PRECAUTIONS

FIN TYPE:
We have three ways to install 󽗉ns, which can be
chosen according to the actual situation.
Your SUP either has a Bravo Fin or Smart Lock
Fin System. Please check your fin type and
follow the necessary instructions.
TIP: Before you begin please ensure the 󽗉n box
slot is clean and free of sand and grit.
Slide the 󽗉n into the
󽗉n box.Make sure 󽗉n
and card slot of 󽗉n
box in the same
position.
Slide the 󽗉n into the
󽗉n box.Make sure 󽗉n
and card slot of 󽗉n
box in the same
position.
Place the bolt in the
chute and rotate
tightly to ensure that
the 󽗉n do not fall o󽗈.
Insert the gasket into
the slot to ensure
that the gasket can
catch the 󽗉n.
Unscrew the plate from the screw (Figure 1) and
place into the 󽗉n slot via the gap (Figure 2).
TIP: Use the screw to slide the plate into place
along the slot.Insert the 󽗉n into the 󽗉n box slot
via the central gap, slide the 󽗉n to the back and
󽗉rmly push down the other end (Figure 3).Line
up the screw with the screw plate and tighten
until fully secure (Figure 4).
FIN Screw Fin
Slide Fin
US Fin

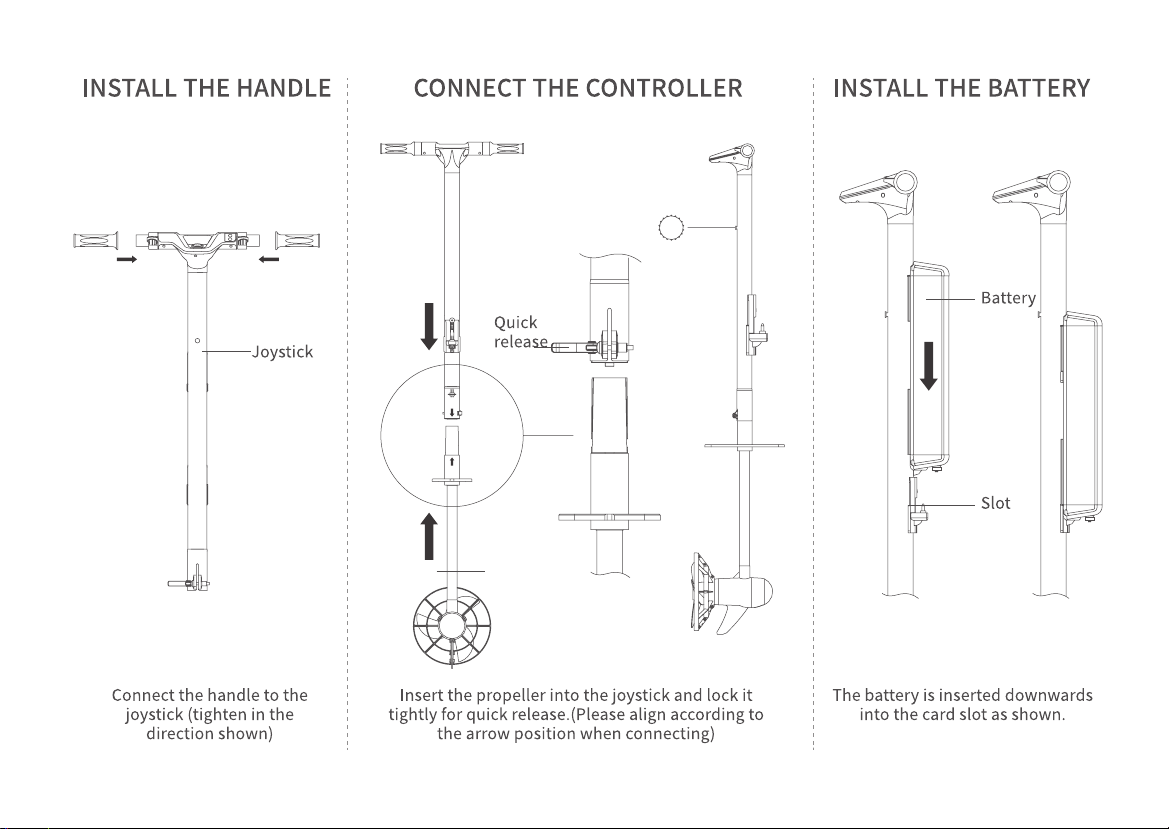

Conne ct the thr uster
Base cover
Fixing plate
Quick
release
Base cover
Electric stand up paddle Fixing plate
Electric stand up paddle
1.
2.
3.

Your 3-Piece paddle easily connects together and is fully height adjustable.
In case of any punctures or rips, our Repair Kit comes
with patches,and a valve tool.
If the connection at the lock of the propeller rod is loose, please rotate the lock several times and tighten it.
SUP PADDLE
REPAIR KIT

Safe ty

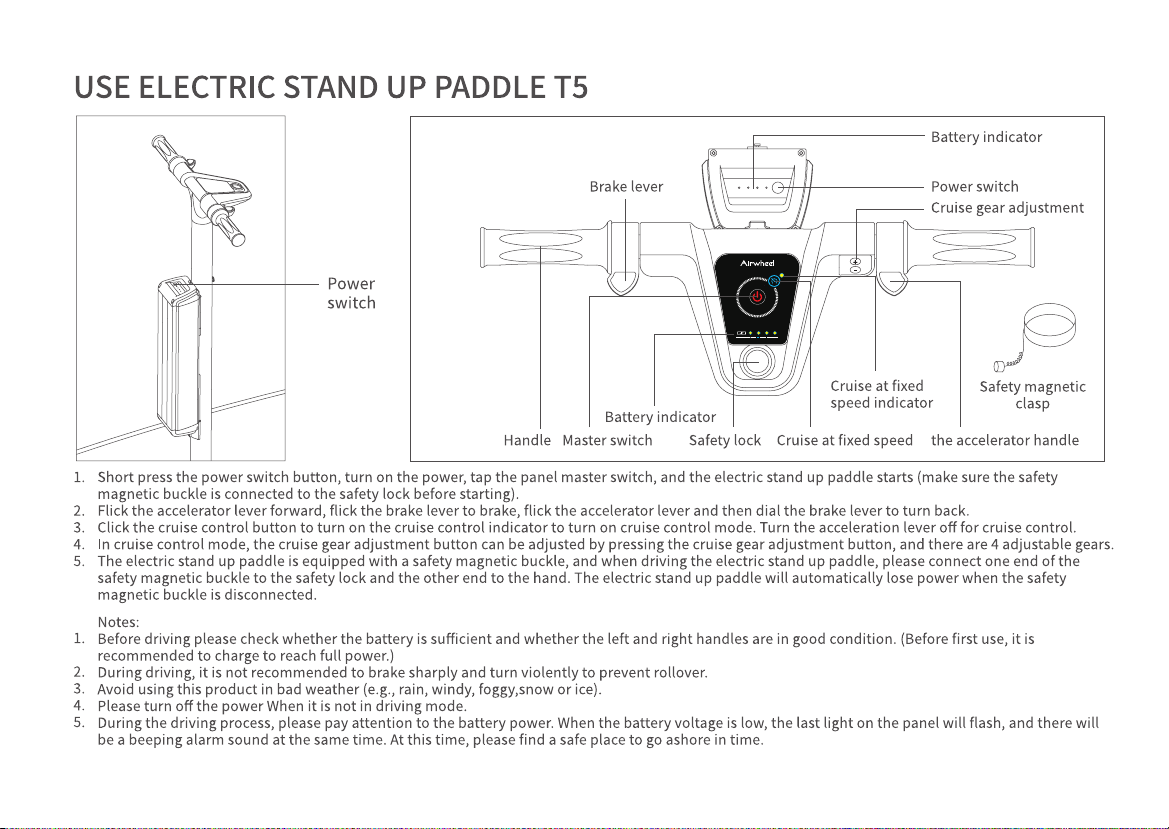

For the precautions in the driving of the electric stand up paddle, please be sure to read carefully and drive the electric stand up paddle as required. Do not use
this product until you have carefully read the instructions to understand the performance of it; do not lend it to someone who cannot manipulate the product.
Ve
ry important
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.

Safe ty
For the precautions in the driving of the electric stand up paddle, please be sure to read carefully and drive the electric stand up paddle as required. Do not use
this product until you have carefully read the instructions to understand the performance of it; do not lend it to someone who cannot manipulate the product.
Very important
Notes:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.

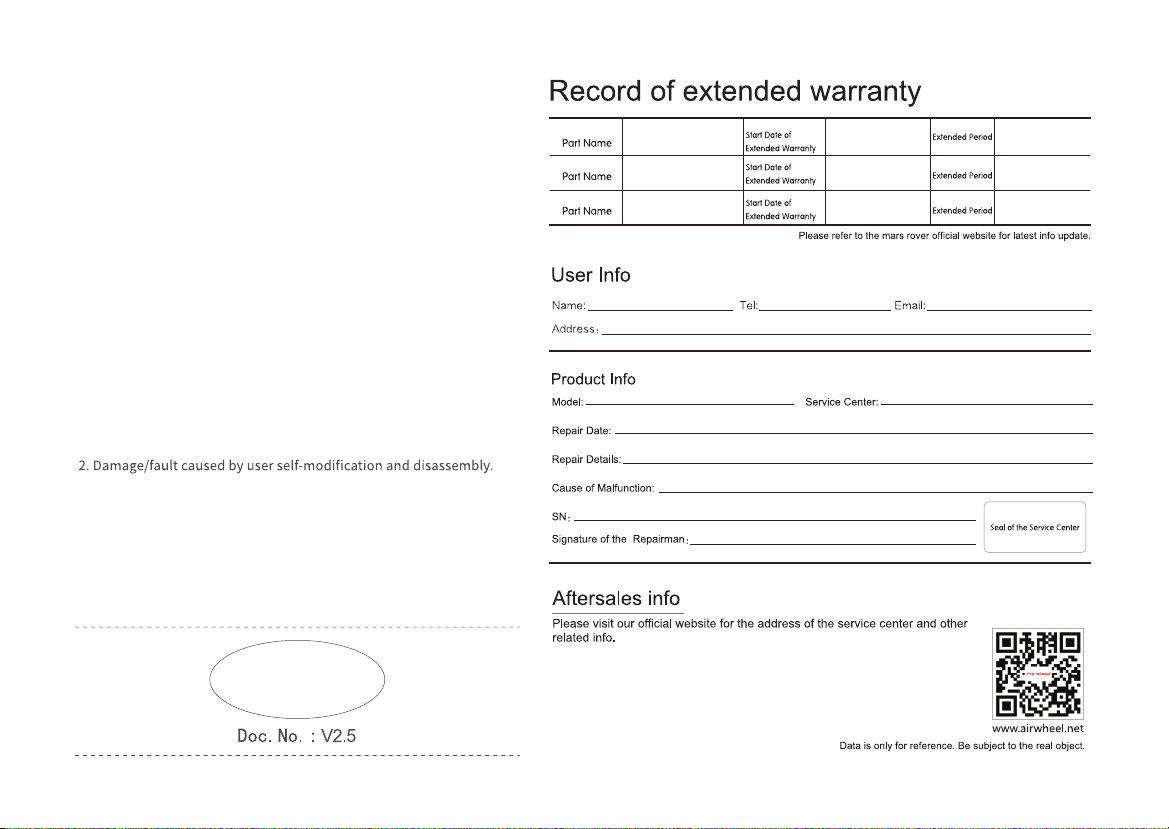

AFTER-SALE
Please keep the warranty card and purchase invoice as after-sales proof.
Our products are warranted for a one-year warranty from the date of
purchase. During the warranty period, when the product is damaged due
to non-man-made or external forces, it can be returned to the factory for
free repair or replacement. The warranty provisions will be implemented
after the warranty period is exceeded.
Our products are warranted for a one-year warranty from the date of
purchase. During the warranty period, when the product is damaged due
to non-man-made or external forces, it can be returned to the factory for
repair or replacement. Only the parts cost fee and round-trip freight are
charged. After the warranty period, when the product fails and needs to
repair, the company charges the maintenance fee according to the cost
price.
The following conditions are not covered by the warranty:
1.Malfunction is cause by users who are not in accordance with the
provisions of the operationinstruction handbook to use, maintain and
adjust.
3. Malfunctions caused by improper storage by users or accidents.
4 There is no warranty card or invoice. Or the ticket item does not match
the products.
5. Damage to appearance after use is not covered by the warranty.
6.Normal wear and tear and discoloration from evironmental exposure
7.Damage caused by hitting submerged objects, beaching, or dropping
8.Damage caused by mooring or storing board in water.
Research:Airwheel Europe S.A.
Supervisor:Airwheel Holding Limited
Manufacture:Changzhou Airwheel Technology Co.,Ltd.
Address:5th Floor,East Wing,Building No.10,High-Tech Park,Kewu Road,Xinbei
District,Changzhou,Jiangsu,China
Website:www.airwheel.net
E-mail:[email protected]
CERTIFICATE
