SERVICE MANUAL
DATA
STEREO CAR CD RECEIVER BASIC CD MECHANISM : CDC02AW1
CDC-R307
CDC-RV407
YZ
YZ
S/M Code No. 09-004-429-0R1
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-002-429-0T1).

– 2 –
RADIO SECTION
(FM)
Frequency Range 87.5 MHz –108 MHz (50 kHz steps)
Usable Sensitivity 12.7 dBf
50 dB Quieting Sensitivity 17.2 dBf
IF Rejection 80 dB
Frequency Response 30 Hz – 15,000 Hz
S/N Ratio 63 dB
Stereo Separation 35 dB at 1 kHz
Alternate Channel Selectivity 70 dB
Capture Ratio 3 dB
(MW)
Frequency Range 531 kHz – 1,602 kHz (9 kHz steps)
Usable Sensitivity 30 µV (30 dB)
(LW)
Frequency Range 144 kHz – 288 kHz
(1 -kHz/9 -kHz steps)
Usable Sensitivity 30 µV (30 dB)
CD SECTION
Frequency Response 17 Hz – 20 kHz +0/–3 dB
Dynamic Range More than 80 dB
Channel Separation More than 65 dB
S/N Ratio More than 85 dB
Wow/Flutter Unmeasurable
AUDIO SECTION
Max. Power Output 45 W x 4 channels
AUX IN input
Input Sensitivity (load impedance)
AUX IN 300 mV (10 kΩ)
GENERAL
Power Supply Voltage 14.4 V (11 to 16 V allowable),
DC, negative ground
Load Impedance 4 Ω
Tone Control Bass ±10 dB at 100 Hz
Treble ±10 dB at 10 kHz
Preamp Output Voltage (load impedance)
2.2 V (10 kΩ)
Installation Size 182 (W) x 53 (H) x 155 (D) mm
(71/4(W) x 21/8(H) x 61/8(D) inches)
STEERING-WHEEL-MOUNTED REMOTE CONTROL UNIT
Dimensions Approx. 67 (W) x 26 (H) x 27 (D) mm
(23/4(W) x 11/16 (H) x 11/8(D) inches)
(excluding holder)
Weight Approx. 38 g (1.33 oz.)
(including holder, battery)
SPECIFICATIONS
• Design and specifications are subject to change without notice.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-KCG-905-010 IB,INST YZ(9L)-I
1 8A-KC4-901-010 IB,YZ(9L) R307,RV407
2 8Z-KC1-030-010 CASE,DFP-C
3 8Z-KC1-231-110 HLDR,HALF-C
4 8Z-KC1-235-010 HLDR,REAR MTG
5 8Z-KC1-232-010 KEY,REMOVE-C
6 87-B10-141-010 NUT,5 TYPE-2
7 87-B10-144-010 W,5.2-10-0.5
8 87-B10-145-010 W-SPR,5.3-8.5-1.5
9 87-B10-143-010 UT1+5-15 W/O SLOT
10 87-B10-216-010 U+2.6-4.0 ZINC BLK(BH M2.6)
11 8Z-KC1-244-010 S-SCREW,5*6 TH+TAPPING ST
12 8Z-KC1-250-010 S-SCREW,HEXAGON
*13 R8-AZR-190-040 AZR-1 RCKCGNF
*NOTE: This remote controller is not an accessory part.
It is an individual model.

– 3 –
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
Precaution to replace Optical block
(KSS – 710A)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care
the clothes do not touch the diode.
1) After the connection, remove solder
shown in right figure.
Solder

CAUTION WHEN SERVICING
2. Servicing Position
Put the DFP onto the CD case to fix it. (Fig. 2)
1. Disassembly Instruction
1) Remove the COVER TOP and COVER BOTTOM.
2) Remove the DFP.
3) Remove the four screws (indicated by arrows) from CD
mechanism. (Fig. 1)
Screw (a) ×2: VTT 2.6-6
Screw (b) ×2: VTT 2.6-3B
Fig. 1
Fig. 2
– 4 –

– 5 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
88-KT1-606-080 IC,PST994D
8Z-KT1-622-010 C-IC,LC75374E
87-A21-562-010 IC,LA4743B
87-A21-528-030 C-IC,UPD178018AGC-554-3B9
87-020-784-080 IC,TC4053BF
88-KT1-608-010 C-IC,LC75854W
87-A90-951-010 RCR UNIT,SBX1971-52
87-A21-467-010 C-IC,CXA2581N
87-A21-533-030 C-IC,CXD2587Q
87-017-888-080 IC,NJM4558MD
87-A21-534-030 C-IC,UPD78012FGC-656-AB8
87-A21-161-040 C-IC,BA6392FP
87-A20-712-040 C-IC,BA6417F
88-KT1-607-080 C-IC,SAA6579T
TRANSISTOR
87-A30-287-040 C-TR,DTC114TKA
87-A30-289-040 C-TR,2SA1037AK(R)
89-324-122-080 C-TR,2SC2412KR
87-A30-290-010 TR,KTA1658(Y)
87-A30-291-010 TR,KTC4369(Y)
89-418-580-080 TR,2SD1858-TV2
89-423-953-010 TR,2SD2395F
89-113-625-080 C-TR,2SA1362GR
87-A30-283-040 C-TR,DTA114YKA
87-A30-248-040 C-TR,2SB1197KQ
87-A30-011-080 C-TR,DTB113ZK
87-A30-273-040 C-TR,DTC124EKA
87-026-210-040 C-TR,DTC144EK
DIODE
87-A40-250-080 C-DIODE,DAN217
87-A40-649-080 ZENER,MTZJ11A
87-A40-509-080 ZENER,MTZJ6.8C
87-020-330-080 DIODE,DAP202K
87-A40-620-080 ZENER,MTZJ6.2A
87-A40-650-080 ZENER,MTZJ6.8A
87-017-932-080 ZENER,MTZJ6.2B
87-070-136-080 ZENER,MTZJ5.1B
87-A40-798-010 DIODE,1N5402(3A/200V)
87-020-465-080 DIODE,1SS133
87-020-331-080 C-DIODE,DAN202K
87-A40-523-080 ZENER,MTZJ9.1B
87-A40-337-080 ZENER,MTZJ6.8B
87-001-783-080 DIODE,1N4002
87-020-331-080 C-DIODE,DAN202K
MAIN C.B
ANT101 8Z-KT1-614-010 ANT,AW-002
C101 87-010-178-080 CHIP CAP,1000P
C102 87-010-197-080 CAP,CHIP 0.01 DM
C103 87-010-186-080 C-CAP,S 4700P-50 KB
C104 87-010-186-080 C-CAP,S 4700P-50 KB
C105 87-010-490-040 CAP,E 0.1-50 M 5L
C106 87-010-198-080 CAP,CHIP 0.022
C107 87-010-198-080 CAP,CHIP 0.022
C108 87-018-131-080 CAP,TC U 1000P-50 KB
C109 87-010-197-080 CAP,CHIP 0.01 DM
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C112 87-010-197-080 CAP,CHIP 0.01 DM
C113 87-010-197-080 CAP,CHIP 0.01 DM
C115 87-010-178-080 CHIP CAP,1000P
C116 87-010-197-080 CAP,CHIP 0.01 DM
C117 87-010-197-080 CAP,CHIP 0.01 DM
C118 87-010-197-080 CAP,CHIP 0.01 DM
C119 87-010-495-040 CAP,E 2.2-50 GAS
C120 87-010-185-080 C-CAP,S 3900P-50 B
C121 87-010-220-080 C-CAP,S 0.018-25BK
C122 87-010-220-080 C-CAP,S 0.018-25BK
C123 87-012-358-080 C-CAP,S 0.47-10 FZ
C124 87-012-358-080 C-CAP,S 0.47-10 FZ
C131 87-010-182-080 C-CAP,S 2200P-50 KB
C132 87-010-182-080 C-CAP,S 2200P-50 KB
C151 87-012-149-080 C-CAP,S 30P-50 J CH
C152 87-010-315-080 C-CAP,S 27P-50 J CH
C153 87-010-495-040 CAP,E 2.2-50 M 5L
C154 87-012-157-080 C-CAP,S 330P-50 J CH
C155 87-010-175-080 CHIP CAP,560P-50 J SL
C156 87-010-196-080 CHIP CAPACITOR,0.1-25
C157 87-010-553-040 CAP,E 47-16 M 5L
C202 87-012-358-080 C-CAP,S 0.47-10 FZ
C203 87-010-196-080 CHIP CAPACITOR,0.1-25
C205 87-010-553-040 CAP,E 47-16 GAS
C206 87-010-198-080 CAP,CHIP 0.022
C207 87-010-196-080 CHIP CAPACITOR,0.1-25
C208 87-010-196-080 CHIP CAPACITOR,0.1-25
C209 87-010-196-080 CHIP CAPACITOR,0.1-25
C211 87-010-198-080 CAP,CHIP 0.022
C212 87-010-196-080 CHIP CAPACITOR,0.1-25
C214 87-010-196-080 CHIP CAPACITOR,0.1-25
C216 87-010-198-080 CAP,CHIP 0.022
C217 87-010-196-080 CHIP CAPACITOR,0.1-25
C218 87-010-196-080 CHIP CAPACITOR,0.1-25
C219 87-010-182-080 C-CAP,S 2200P-50 B
C220 87-010-553-040 CAP,E 47-16 GAS
C251 87-012-368-080 C-CAP,S 0.1-50 ZF
C252 87-010-182-080 C-CAP,S 2200P-50 B
C301 87-012-358-080 C-CAP,S 0.47-10 FZ
C302 87-012-358-080 C-CAP,S 0.47-10 FZ
C303 87-010-805-080 CAP,S 1-16
C304 87-010-805-080 CAP,S 1-16
C305 87-010-184-080 CHIP CAPACITOR,3300P(K)
C306 87-010-184-080 CHIP CAPACITOR,3300P(K)
C307 87-010-198-080 CAP,CHIP 0.022
C308 87-010-198-080 CAP,CHIP 0.022
C309 87-010-805-080 C-CAP,S 1-16 ZF
C310 87-010-805-080 C-CAP,S 1-16 ZF
C311 87-A11-177-080 C-CAP,S 0.15-16 KB
C312 87-A11-177-080 C-CAP,S 0.15-16 KB
C313 87-A11-177-080 C-CAP,S 0.15-16 KB
C314 87-A11-177-080 C-CAP,S 0.15-16 KB
C315 87-010-805-080 C-CAP,S 1-16 ZF
C316 87-010-805-080 C-CAP,S 1-16 ZF
C317 87-010-196-080 CHIP CAPACITOR,0.1-25
C318 87-010-498-040 CAP,E 10-16 GAS
C321 87-010-555-040 CAP,E 100-10 GAS
C322 87-010-198-080 CAP,CHIP 0.022
C331 87-A11-062-080 C-CAP,S 2.2-16 ZF
C332 87-A11-062-080 C-CAP,S 2.2-16 ZF
C333 87-A11-062-080 C-CAP,S 2.2-16 ZF
C334 87-A11-062-080 C-CAP,S 2.2-16 ZF
C335 87-010-491-040 CAP,E 0.22-50 GAS
C336 87-010-491-040 CAP,E 0.22-50 GAS
C339 87-010-805-080 CAP,S 1-16
C340 87-010-805-080 CAP,S 1-16
C342 87-012-140-080 CAP,470P
C344 87-012-140-080 CAP,470P
C401 87-010-494-040 CAP,E 1-50 M 5L SRE
C405 87-010-196-080 CHIP CAPACITOR,0.1-25
C406 87-010-196-080 CHIP CAPACITOR,0.1-25
C407 87-012-358-080 C-CAP,S 0.47-10 FZ
C408 87-012-358-080 C-CAP,S 0.47-10 FZ
C409 87-010-805-080 C-CAP,S 1-16 ZF
C410 87-010-805-080 C-CAP,S 1-16 ZF
C451 87-012-358-080 C-CAP,S 0.47-10 FZ
C452 87-012-358-080 C-CAP,S 0.47-10 FZ

– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C453 87-012-358-080 C-CAP,S 0.47-10 FZ
C454 87-010-197-080 CAP,CHIP 0.01 DM
C501 87-012-358-080 C-CAP,S 0.47-10 FZ
C502 87-012-358-080 C-CAP,S 0.47-10 FZ
C503 87-012-358-080 C-CAP,S 0.47-10 FZ
C504 87-012-358-080 C-CAP,S 0.47-10 FZ
C505 87-010-178-080 CHIP CAP,1000P
C506 87-010-178-080 CHIP CAP,1000P
C507 87-010-178-080 CHIP CAP,1000P
C508 87-010-178-080 CHIP CAP,1000P
C509 87-010-805-080 CAP,S 1-16
C510 87-010-498-040 CAP,E 10-16 GAS
C511 87-012-368-080 C-CAP,S 0.1-50 ZF
C512 87-012-368-080 C-CAP,S 0.1-50 ZF
C513 87-012-368-080 C-CAP,S 0.1-50 ZF
C514 87-012-368-080 C-CAP,S 0.1-50 ZF
C519 87-010-805-080 C-CAP,S 1-16 ZF
C801 8A-KC7-623-000 CAP,E 2200U-16 BT(125C)
C901 87-016-039-090 CAP,DL 0.022F-5.5 Z 70 FM
C902 87-012-358-080 C-CAP,S 0.47-10 FZ
C903 87-010-196-080 CHIP CAPACITOR,0.1-25
C904 87-010-315-080 C-CAP,S 27P-50 CH
C905 87-010-314-080 C-CAP,S 22P-50V
C906 87-010-196-080 CHIP CAPACITOR,0.1-25
C907 87-010-178-080 CHIP CAP,1000P
C908 87-010-178-080 CHIP CAP,1000P
C909 87-010-198-080 CAP,CHIP 0.022
C910 87-010-322-080 C-CAP,S 100P-50 CH
C911 87-010-322-080 C-CAP,S 100P-50 CH
C912 87-010-198-080 CAP,CHIP 0.022
C914 87-010-198-080 CAP,CHIP 0.022
C916 87-010-198-080 CAP,CHIP 0.022
CON401 87-A61-219-010 CONN,20P H 52089-2020
CON402 88-KTA-603-010 CONN,15P CAM-B68
CON851 8A-KT1-632-010 CONN,ASSY 8P ISO WHITE A
CON852 8A-KT1-631-010 CONN,ASSY 8P ISO BLACK A
D909 87-027-262-010 LED,TLR-124(RED)
F251 8Z-KC1-621-010 FUSE,15A 32V
FFC401 88-KC4-641-010 FF-CABLE,20P 1.0 90MM
J401 87-A61-225-010 JACK,PIN 2P XR-401
L101 87-003-143-080 COIL,4.7UH
L102 8Z-KT1-619-010 COIL,68MH K7-D
L201 87-003-149-080 COIL,47UH
L202 87-003-102-080 COIL,10UH
L301 87-003-102-080 COIL,10UH
L401 87-003-102-080 COIL,10UH
L402 87-003-102-080 COIL,10UH
L851 8Z-KT1-615-010 FLTR,AMORPHOUS-CHOKE
S901 87-A91-070-010 SW,TACT SKHHLV
SFR101 87-024-437-080 SFR,100K H RH063MC
TU101 8A-KC8-620-010 TU UNIT,FAE347-A11
X501 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309
X901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49
FRONT C.B
C951 87-012-358-080 C-CAP,S 0.47-10 FZ
C952 87-012-358-080 C-CAP,S 0.47-10 FZ
C953 87-010-176-080 C-CAP,S 680P-50 SL
C954 87-010-194-080 CAP,CHIP 0.047
C955 87-010-194-080 CAP,CHIP 0.047
C956 87-010-194-080 CAP,CHIP 0.047
C957 87-012-358-080 C-CAP,S 0.47-10 FZ
C958 87-010-197-080 CAP,CHIP 0.01 DM
C959 87-010-197-080 CAP,CHIP 0.01 DM
C960 87-010-194-080 CAP,CHIP 0.047
CON951 88-KTA-602-010 CONN,15P CAM-B67
L951 87-005-906-080 C-COIL,S 10.0UHK
L952 87-005-906-080 C-COIL,S 10.0UHK
L953 87-005-906-080 C-COIL,S 10.0UHK
LCD951 8A-KC3-610-010 LCD,AKC-3/4(2 COLOR)<307>
LCD951 8A-KC3-611-010 LCD,AKC-3/4(NO COLOR)<407>
LED951 87-017-827-070 C-LED,SEC1201C RED
LED952 87-017-827-070 C-LED,SEC1201C RED
LED953 87-017-827-070 C-LED,SEC1201C RED
LED954 87-A40-813-040 C-LED,SEC1E01C BLUE
LED955 87-A40-813-040 C-LED,SEC1E01C BLUE
LED956 87-A40-813-040 C-LED,SEC1E01C BLUE
PL951 8Z-KT1-641-010 LAMP,T-3<307>
PL952 8Z-KT1-641-010 LAMP,T-3<307>
S951 87-036-251-080 SW,TACT SKQCAE
S952 87-036-251-080 SW,TACT SKQCAE
S953 87-036-251-080 SW,TACT SKQCAE
S954 87-A90-001-080 C-SW,TACT SKQMAL
S955 87-036-251-080 SW,TACT SKQCAE
S956 87-036-251-080 SW,TACT SKQCAE
S957 87-036-251-080 SW,TACT SKQCAE
S958 87-A90-001-080 C-SW,TACT SKQMAL
S959 87-A90-001-080 C-SW,TACT SKQMAL
S960 87-A90-001-080 C-SW,TACT SKQMAL
S961 87-036-251-080 SW,TACT SKQCAE
S962 87-036-251-080 SW,TACT SKQCAE
S963 87-036-251-080 SW,TACT SKQCAE
S964 87-036-251-080 SW,TACT SKQCAE
S965 87-036-251-080 SW,TACT SKQCAE
S966 87-036-251-080 SW,TACT SKQCAE
S967 87-A91-597-010 SW,RTRY SIM-026MT
JACK AUX C.B
FC951 8A-KC7-611-010 F-CABLE,3P(AUX)
J951 85-HRL-623-010 JACK,3.5 ST BLK
CD C.B
C803 87-A10-711-080 C-CAP,E 100-6.3 M MF
C804 87-010-178-080 CHIP CAP,1000P
C805 87-016-669-080 C-CAP,S 0.1-25 K B
C806 87-010-184-080 CHIP CAPACITOR,3300P(K)
C808 87-016-669-080 C-CAP,S 0.1-25 K B
C809 87-010-880-080 C-CAP,E 47-6.3 MF
C811 87-016-669-080 C-CAP,S 0.1-25 K B
C813 87-016-669-080 C-CAP,S 0.1-25 K B
C816 87-010-880-080 C-CAP,E 47-6.3 MF
C831 87-012-156-080 C-CAP,S 220P-50 CH
C832 87-010-194-080 CAP,CHIP 0.047
C833 87-012-156-080 C-CAP,S 220P-50 CH
C834 87-012-156-080 C-CAP,S 220P-50 CH
C835 87-016-669-080 C-CAP,S 0.1-25 K B
C836 87-012-156-080 C-CAP,S 220P-50 CH
C837 87-010-186-080 CHIP CAPACITOR,4700P(K)
C838 87-010-194-080 CAP,CHIP 0.047
C839 87-010-880-080 C-CAP,E 47-6.3 MF
C840 87-016-669-080 C-CAP,S 0.1-25 K B
C841 87-016-669-080 C-CAP,S 0.1-25 K B
C842 87-016-526-080 C-CAP,S 0.47-16 BK
C843 87-012-155-080 C-CAP,180P-50CH
C844 87-012-155-080 C-CAP,180P-50CH
C845 87-010-177-080 C-CAP,S 820P-50 SL
C846 87-010-177-080 C-CAP,S 820P-50 SL
C847 87-010-885-080 C-CAP,E 22-10 MF
C848 87-010-885-080 C-CAP,E 22-10 MF
C849 87-010-318-080 C-CAP,S 47P-50 CH
C850 87-010-318-080 C-CAP,S 47P-50 CH
C851 87-A12-034-080 C-CAP,E 2.2-35 M MF
C852 87-A12-034-080 C-CAP,E 2.2-35 M MF
C853 87-010-178-080 CHIP CAP,1000P
C854 87-010-178-080 CHIP CAP,1000P
C855 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C856 87-016-669-080 C-CAP,S 0.1-25 K B
!

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
B
C
E
2SA1037
2SA1362
2SB1197
2SC2412
2SD2395
KTA1658
KTC4369
B C E
C857 87-010-880-080 C-CAP,E 47-6.3 MF
C861 87-016-669-080 C-CAP,S 0.1-25 K B
C862 87-016-669-080 C-CAP,S 0.1-25 K B
C863 87-010-880-080 C-CAP,E 47-6.3 MF
C881 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C882 87-016-669-080 C-CAP,S 0.1-25 K B
C883 87-016-669-080 C-CAP,S 0.1-25 K B
C884 87-010-178-080 CHIP CAP,1000P
C885 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C886 87-016-669-080 C-CAP,S 0.1-25 K B
C887 87-016-669-080 C-CAP,S 0.1-25 K B
C888 87-016-669-080 C-CAP,S 0.1-25 K B
C889 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
C891 87-012-156-080 C-CAP,S 220P-50 CH
C892 87-012-156-080 C-CAP,S 220P-50 CH
C893 87-012-156-080 C-CAP,S 220P-50 CH
C894 87-012-156-080 C-CAP,S 220P-50 CH
C895 87-012-156-080 C-CAP,S 220P-50 CH
C896 87-012-156-080 C-CAP,S 220P-50 CH
C897 87-012-156-080 C-CAP,S 220P-50 CH
CN801 87-A61-125-080 C-CONN,16P H FLZ-SM1-TB
CN891 87-A61-220-080 C-CONN,20P H 52271-2090
L801 87-A50-536-080 C-COIL,10UH K LQH3C24
L802 87-A50-536-080 C-COIL,10UH K LQH3C24
L831 87-A50-536-080 C-COIL,10UH K LQH3C24
L832 87-A50-536-080 C-COIL,10UH K LQH3C24
L833 87-A50-536-080 C-COIL,10UH K LQH3C24
L861 87-A50-536-080 C-COIL,10UH K LQH3C24
L881 87-A50-536-080 C-COIL,10UH K LQH3C24
S861 87-A91-627-080 SW,PUSH MPU10372MLBO
X831 87-A70-262-080 C-VIB,16.93MHZ CSTCW
X861 87-A70-251-080 C-VIB,CER 10.00MHZ CSTCC
SENSOR C.B
SW1 87-A91-627-080 SWITCH
SW2 87-A91-627-080 SWITCH
LED L C.B<407>
LED958 87-A40-814-080 LED,SEL2E10C BLUE
LED R C.B<407>
LED959 87-A40-814-080 LED,SEL2E10C BLUE
DTA114YKA
DTB113ZK
DTC114TKA
DTC124EKA
DTC144EK
E C B
2SD1858

WIRING - 1 (MAIN)
– 8 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 9 –
SCHEMATIC DIAGRAM - 1 (MAIN)

WIRING - 2 (FRONT / JACK AUX / LED)
307 ONLY 307 ONLY
- 10 -
123456789101112131415
J
I
H
G
F
E
D
C
B
A
A
B
C
D
E
F
G
H
I
J
123456789101112131415
161718192021 161718192021 2223242526272829303132 2223242526272829303132

SCHEMATIC DIAGRAM - 2 (FRONT / JACK AUX / LED)
– 11 –

WIRING – 3 (CD / SENSOR) <1 / 2>
– 12 –
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

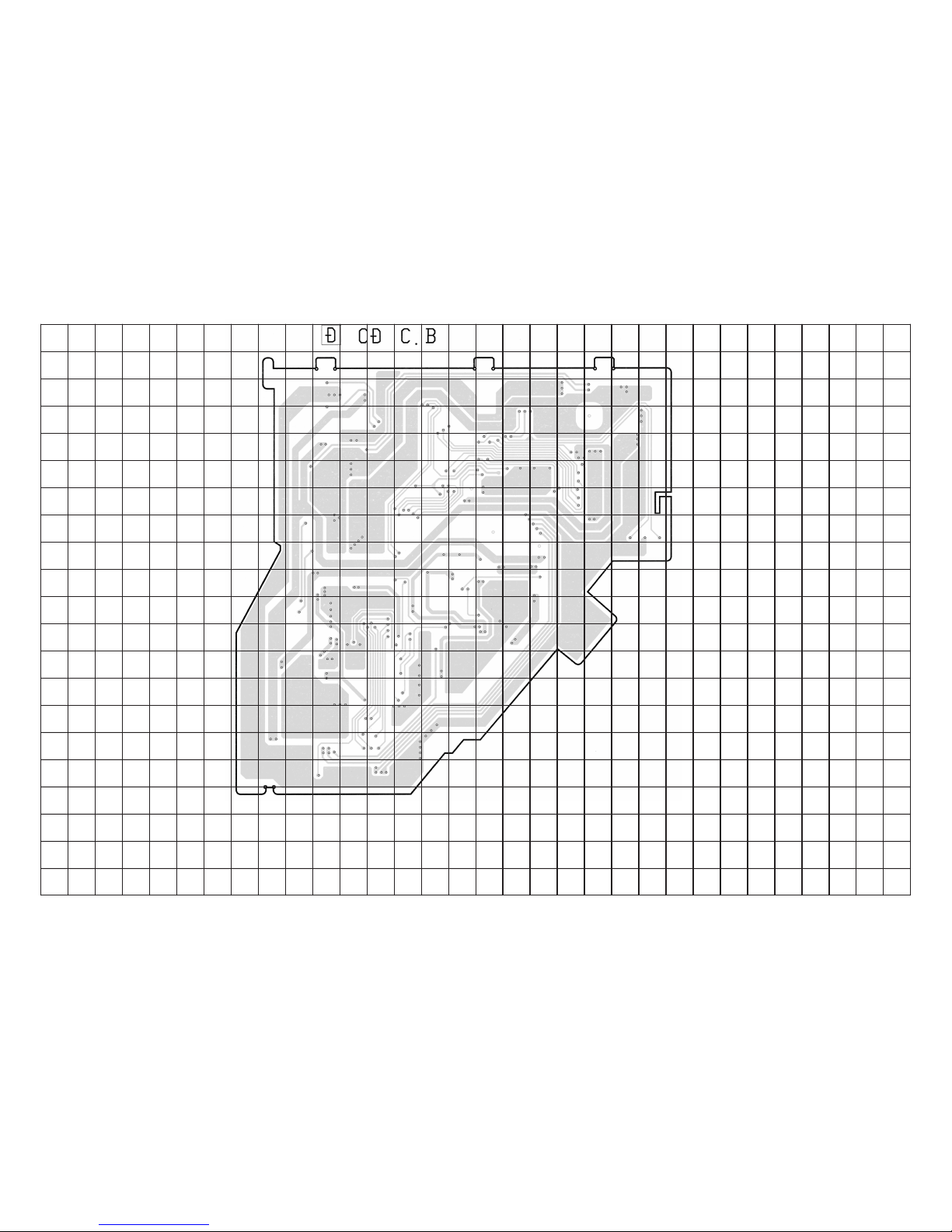

WIRING – 3 (CD) <2 / 2>
– 13 –
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

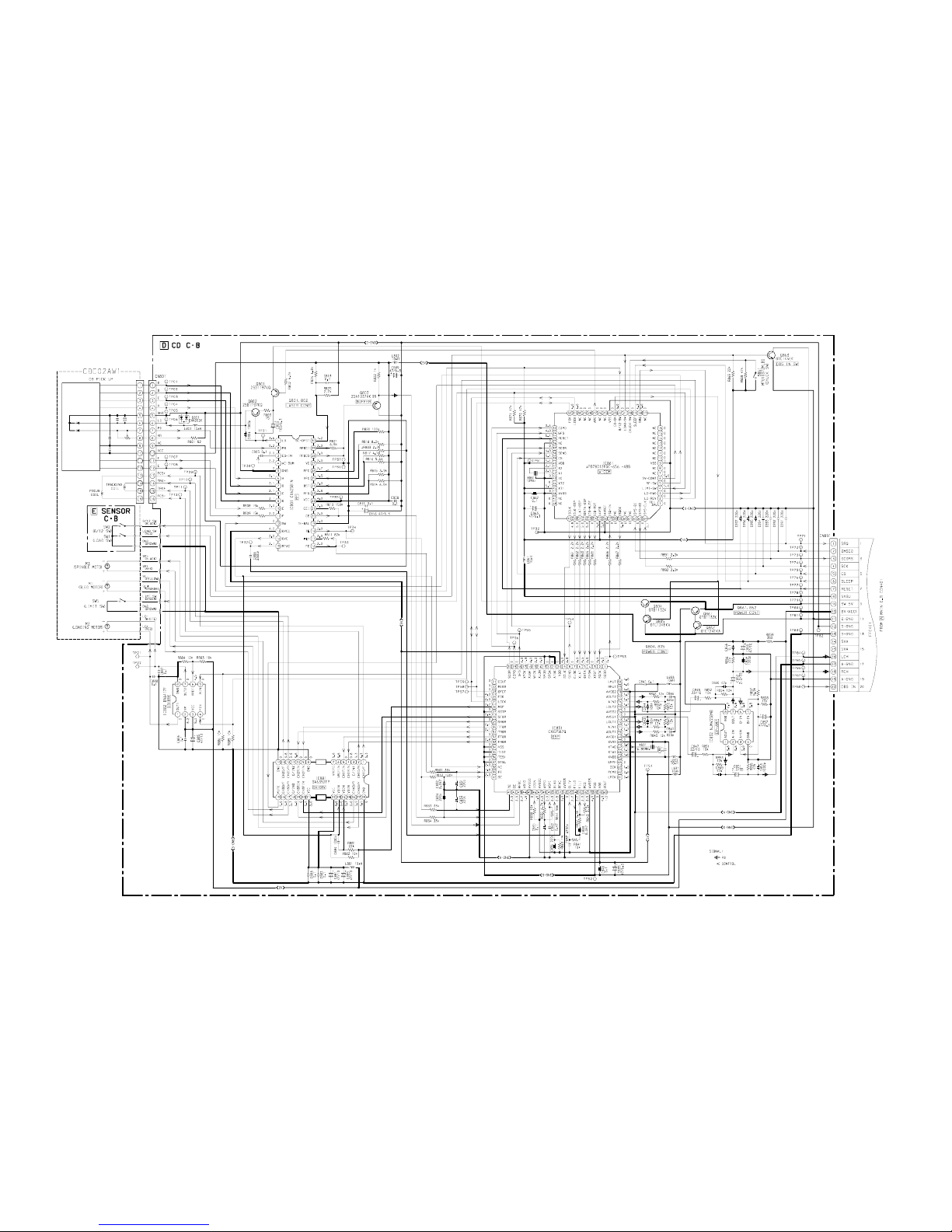

SCHEMATIC DIAGRAM - 3 (CD / SENSOR)
– 14 –

– 15 –

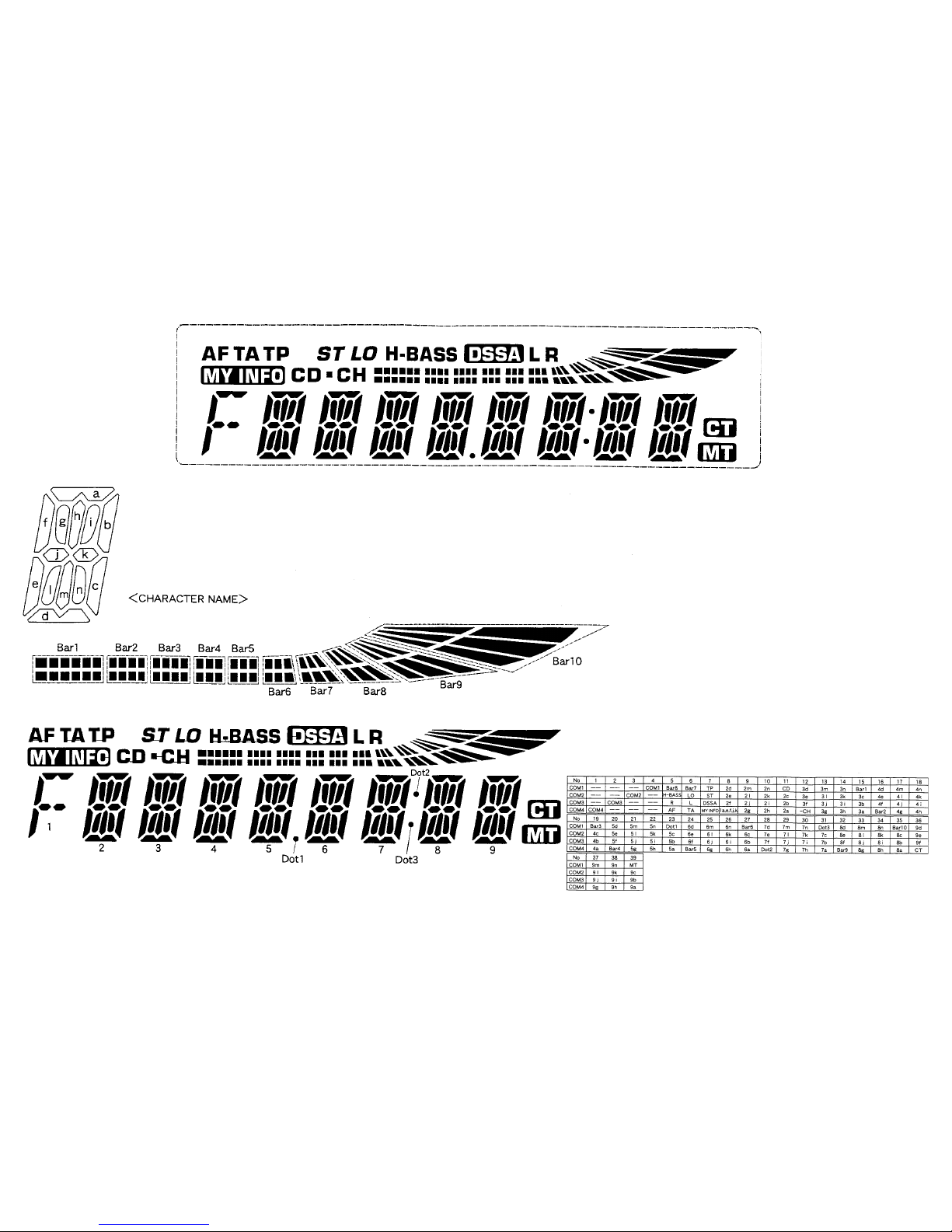

LCD DISPLAY < CDC-R307>
LCD, AKC-3 / 4 (2 COLOR)

– 16 –

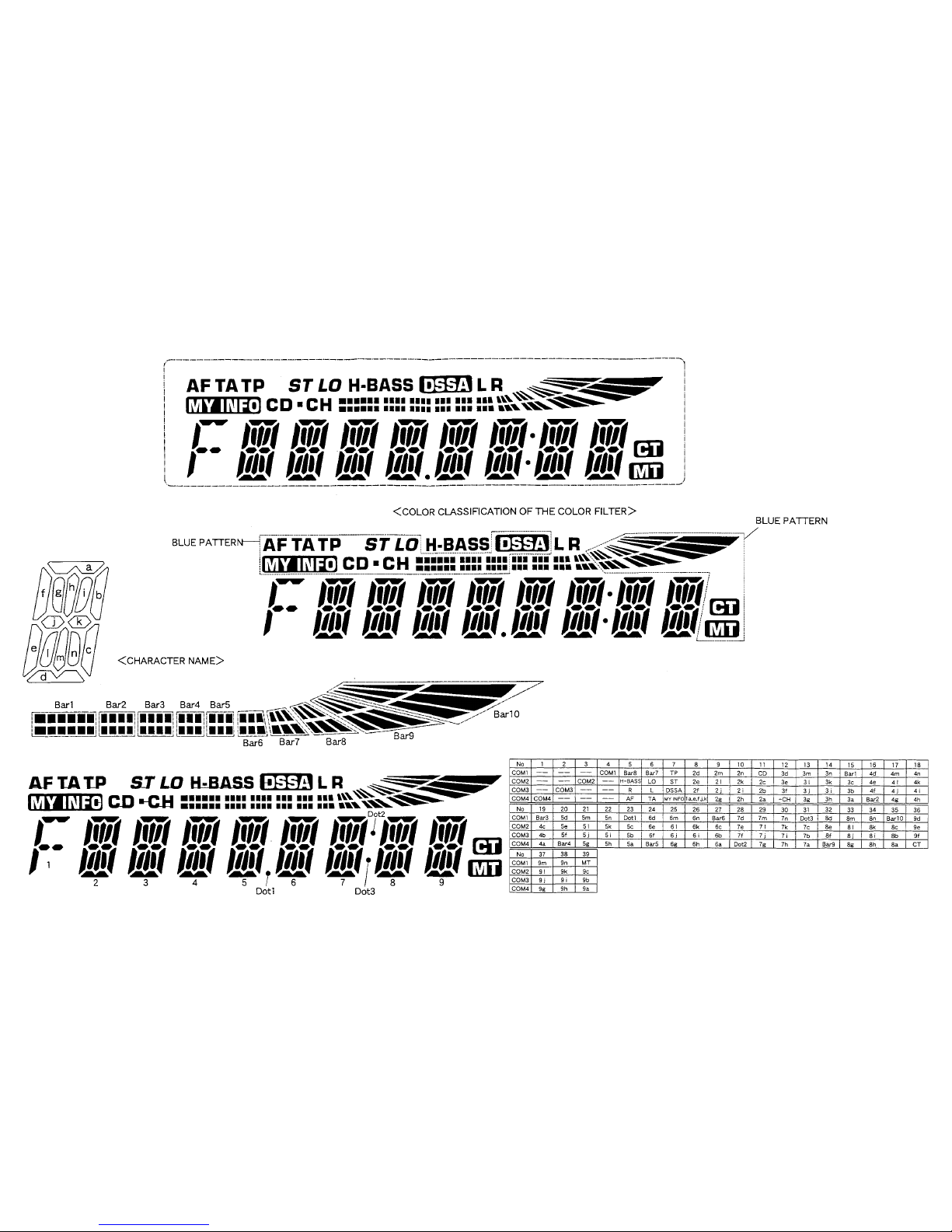

LCD, AKC-3 / 4 (NO COLOR)
LCD DISPLAY < CDC – RV407>

– 17 –
IC DESCRIPTION
IC, µPD178018AGC–554–3B9
Pin No. Pin Name I/O Description
1 FM/AM S-M I Input RDS AF IN signal and FM/AM S meter signal.
2 LEVEL IND I Input level indicator signal.
3 A-VOL CONT I Detect mic input and operate auto volume. (Not used)
4 CD CONNECT I Connectivity check to CD changer.
5 CD DISP SEL O Communication timing signal output to CD changer ("H" = TX, "L" = RX).
6 CD CLO O Output synchronous clock signal for sending to CD changer.
7 CD DI I Input data signal for receiving from CD changer.
8 CD DO O Output data signal for sending to CD changer.
9 CD CLI I Input synchronous clock signal for receiving from CD changer.
10 LCD CE O LCD driver (LC75854W) : Output CE signal.
11 CLK SEL O CLock selection for CDS and LCD driver (LC75854W) ("H" = CDS, "L" = LCD).
12 LCD DI I/O LCD driver (LC75854W) : Input data signal.
13 LCD DO O LCD driver (LC75854W) : Output data signal.
14 LCD CLO O LCD driver (LC75854W) : Output synchronous clock signal.
15 CD ACC CONT O Output CD changer ACC signal.
16 POWER MUTE O Output POWER MUTE signal.
17 ST-BY MUTE O Output STANDBY MUTE signal.
18 POWER CONT O Output POWER CONTROL signal.
19 CONT1 O LCD driver contrast controller 1.
20 CONT2 O LCD driver contrast controller 2.
21 GND – GND.
22 VDD – Power supply.
23 MUTE O Output audio mute.
24 BAND CONT O Output AM/FM power supply switching ("H" = AM, "L" = FM).
25 RADIO CONT O Output radio power switching ("L" = Radio mode).
26 RDS MODE O Output "H" when RDS AF mode. (Not used)
27 IF REQ O Output request for IF count signal.
28 AM IF I Input AM IF count signal.
29 FM IF I Input FM IF count signal.
30 VDD PLL – Power supply for PLL.
31 FM OSC I Input FM local oscillation.
32 AM OSC I Input AM local oscillation.
33 GND PLL – Connected to GND for PLL.
34 EO0 O Output error from charge pump. (Not used)
35 EO1 O Output error from charge pump.
36 GND – GND.
37 LOC/DX O Output LOC/DX switching when seeking radio broadcast ("H" = LOC, "L" = DX).
38 SD/ST IND I Input stereo signal. Enable when receiving FM broadcast ("H" = MONO, "L" = ST)/
Input FM/AM broadcast detection signal when seeking ("H" = Detect broadcast).
39 PHONE MUTE I External mute control.
40 CDS CS O CDS : Output CS signal.

– 18 –
41 CDS RESET O CDS : Output reset signal.
42 CDS SLEEP O CDS : Output sleep signal.
43 CDS STOP I CDS : Input stop signal.
44 CDS IN I CDS : Input disc inserted status detection.
45 TEST I Test point.
46 ~ 47 NC I Not connected.
48 LED O Output security LED ON/OFF ("H" = 120 ~ 130ms, 1 cycle = 3sec).
49 ~ 51 MI-1 ~ MI-3 I Input diode matrix for initial setting.
52 ~ 54 MO-1 ~ MO-3 O Output diode matrix for initial setting.
55 MO-4 O Output diode matrix for initial setting. (Not used)
56 ~ 57 NC O Not connected.
58 ACC IN O Input ACC (power supply for accessory) ON/OFF.
59 BEEP O Output beep (3kHz, 50ms).
60 REMOTE I Input remote controller.
61 E-VOL CE O Output CE to electric volume (LC75374E).
62 E-VOL DO O Output data to electric volume (LC75374E).
63 E-VOL CLO O Output clock to electric volume (LC75374E).
64 DRV CONT O Output "H" when DRV status is 1/2.
65 RDS DI I Input RDS data (Pull down when not used).
66 DFP IN I Detect DFP (front panel) existence.
67 FLAP IN I Detect OPEN/CLOSE of FLAP DFP ("H" = DFP IN enable).
68 RDS CLI I Input RDS clock (Pull down when not used).
69 EJECT IN I Input eject detection when FLAP IN (Pin 67) is "L".
70 BATT IN I Input battery ON/OFF.
71 RE-1 I Input rotary encoder 1.
72 RE-2 I Input rotary encoder 2.
73 S-REQ I Input S-REQ signal.
74 REG CPU – Regulator for CPU power supply.
75 GND – GND.
76 X-OUT O System clock oscillator (4.5MHz) output.
77 X-IN I System clock oscillator (4.5MHz) input.
78 REG OSC – Regulator for oscillation circuit.
79 VDD – Power supply.
80 RESET I Input system reset.
Pin No. Pin Name I/O Description

– 19 –
1 RVR IN I 4dB volume control input. Must be driven at a low impedance.
2 R COM – 1dB volume control common pin.
For the connection of capacitors that compensate for bass and treble in the tone control circuits.
3 ~ 5 RT1 ~ RT3 – A high-frequency compensation capacitors must be connected between RT1 and RT2.
A low-frequency compensation capacitors must be connected between RT2 and RT3.
6 RT OUT O Tone control output.
7 RS IN I Super bass input. Must be driven at a low impedance.
8 NC – Connected to GND.
9 NC – Not connected.
10 ~ 11 RSB1 ~ RSB2 – For the connection of RCH super bass compensation capacitors.
12 FR IN I Fader input. Must be driven at a low impedance.
13 FR OUT
O Fader output. The front and rear sides can be attenuated independently.
14 RR OUT
15 VSS – GND.
16 CL
I Serial data and clock input for control.
17 DI
18 CE – Chip enable. Data is written in the internal latch when the chip enable signal goes "L"
from "H", and each analog switch is activated. Data transfer is enabled at "H".
19 VREF – Generates a 1/2VDD power source. A capacitor must be connected between VREF and
GND as a troubleshooting against power ripples.
20 RL OUT
O Fader output. The front and rear sides can be attenuated independently.
21 FL OUT
22 FL IN I Fader input. Must be driven at a low impedance.
23 ~ 24 LSB2 ~ LSB1 – For the connection of LCH super bass compensation capacitors.
25 NC – Not connected.
26 NC – Connected to GND.
27 LS IN I Super bass input. Must be driven at a low impedance.
28 LT OUT O Tone control output.
For the connection of capacitors that compensate for bass and treble in the tone control circuit.
29 ~ 31 LT3 ~ LT1 – A high-frequency compensation capacitors must be connected between LT1 and LT2.
A low-frequency compensation capacitors must be connected between LT2 and LT3.
32 L COM – 1dB volume control common pin.
33 LVR IN I 4dB volume control input. Must be driven at a low impedance.
34 LSELO O Input selector output pin.
35 AUX(L)
36 CD(L)
I Signal input pins.
37 TUN(L)
38 TP(L)
39 VDD – Power supply.
Pin No. Pin Name I/O Description
IC, LC75374E

– 20 –
1 S1 O LCD segment output.
2 S2 O LCD segment ouptut. (Not used)
3 ~ 37 S3 ~ S37 O LCD segment output.
38 ~ 39 S38 ~ S39 O LCD segment output. (Not used)
40 ~ 43 COM1 ~ COM4 O LCD common driver output.
44 ~ 45 KS1 ~ KS2 O Key scan output. (Not used)
46 ~ 49 KS3 ~ KS6 O Key scan output.
50 ~ 54 KI1 ~ KI5 I Key scan input. These pins incorporate pull-down resistors.
55 TEST – Test pin. (Connected to GND)
56 VDD – Power supply.
57 VDD1 I 2/3 bias voltage is applied to the LCD drive externally.
(Must be connected to VDD2 when a 1/2 bias drive scheme is used)
58 VDD2 I 1/3 bias voltage is applied to the LCD drive externally.
(Must be connected to VDD1 when a 1/2 bias drive scheme is used)
59 VSS – GND.
60 OSC I Resistor and capacitor are attached externally form an oscillator circuit.
61 DO O Serial data interface pin; output data.
62 CE O Serial data interface pin; chip enable.
63 CL O Serial data interface pin; synchronization.
64 DI I Serial data interface pin; data transferred.
40 TP(R)
41 TUN(R)
I Signal input pins.
42 CD(R)
43 AUX(R)
44 RSELO O Input selector output pin.
Pin No. Pin Name I/O Description
IC, LC75854W
Pin No. Pin Name I/O Description
