SERVICE MANUAL
DATA
BASIC TAPE MECHANISM : CDS-363AG1-A
STEREO CAR CASSETTE RECEIVER
CT-R430M
CT-R410
CT-R420
CT-RV425
CT-X430
CT-X4300
S/M Code No. 09-003-339-2T2
YZ(ST)
YZ(ST)
YZ(ST)
YZ(ST)
YZ(ST),YH(ST)
YL(ST)
SIMPLE
• Replace this Service Manual with ”Revision Publishing” when it is issued.

ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
R430M YZ ...............XX..................................A...................
R410 YZ ................XX...................................B..................
R420 YZ ................XX....................................C.................
RV425 YZ ...............XX.....................................D................
X430M YZ ...............XX.......................................F..............
X430M YH ...............XX........................................G.............
X4300M YL ..............XX.........................................H............
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 709 87-010-178-080 0E CHIP CAP 1000P A...................
C 703 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 707 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 708 87-010-197-080 0E CAP, CHIP 0.01 DM A...................
C 704 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 706 87-010-314-080 0E C-CAP,S 22P-50V A...................
C 705 87-010-315-080 0E C-CAP,S 27P-50 CH A...................
C 701 87-010-490-040 0E CAP, ELECT 0.1-50 A...................
C 702 87-010-555-040 0E CAP,E 100-10 GAS A...................
C 710 87-010-178-080 0E CHIP CAP 1000P A...................
C 711 87-010-322-080 0E C-CAP,S 100P-50 CH A...................
C 741 87-016-526-080 0E C-CAP,S 0.47-16 BK A...................
C 743 87-016-526-080 0E C-CAP,S 0.47-16 BK A...................
C 742 87-016-526-080 0E C-CAP,S 0.47-16 BK A...................
C 744 87-016-669-080 0E C-CAP,S 0.1-25 K B A...................
D 701 87-020-465-080 0E DIODE,1SS133 (110MA) A...................
D 707 87-020-465-080 0E DIODE,1SS133 (110MA) A...................
D 702 87-020-465-080 0E DIODE,1SS133 (110MA) A...................
D 705 87-020-465-080 0E DIODE,1SS133 (110MA) A...................
D 741 87-A40-830-040 0E DIODE,KDS226-RTK A...................
IC 701 87-A21-530-030 2M C-IC,UPD178018A-XXX A...................
L 701 87-003-149-080 0E COIL,47UH A...................
LED 701 87-027-262-010 0E LEDE,TLR-124(RED) A...................
Q 701 87-A30-470-040 C-TR,KTC3875SY-RTK A...................
SW 701 87-A91-070-010 0E SW,TACT SKHHLV A...................
SW 702 87-A91-152-010 1A SW,SL 1-1-2 SSSS212-11-A A...................
X 701 87-A70-175-010 1B VIB,XTAL 4.5MHZ AT-49 A...................
C 201 87-010-178-080 0E CHIP CAP 1000P A...................
C 202 87-010-178-080 0E CHIP CAP 1000P A...................
C 207 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 208 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 209 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 204 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 203 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 205 87-010-555-040 0E CAP,E 100-10 GAS A...................
C 206 87-010-555-040 0E CAP,E 100-10 GAS A...................
C 212 87-010-380-080 0E CAP, ELECT 47-16V A...................
C 210 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 213 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 214 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 215 87-010-555-040 0E CAP,E 100-10 GAS A...................
C 211 87-010-555-040 0E CAP,E 100-10 GAS A...................
CN 201 87-009-031-010 0E CONNECTOR, 3P A...................
CN 202 87-099-408-010 0E CONN,8P EH V WHT A...................
CNA 201 8Z-KTA-607-010 CONN ASSY,3P DECK-1 A...................
CNA 202 8Z-KTG-652-010 CONN ASSY,8P MOTOR A...................
IC 201 87-A21-191-010 IC,KIA6225S A...................
Q 201 87-A30-295-010 TR,KRA226M A...................
Q 204 87-A30-470-040 C-TR,KTC3875SY-RTK A...................
Q 203 87-A30-470-040 C-TR,KTC3875SY-RTK A...................
Q 202 87-A30-487-080 TR,KRC111M-AT A...................
C 102 87-010-178-080 0E CHIP CAP 1000P A...................
C 101 87-010-178-080 0E CHIP CAP 1000P A...................
C 103 87-010-186-080 0E CAP,CHIP 4700P A...................
C 109 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 108 87-010-197-080 0E CAP, CHIP 0.01 DM A...................
C 106 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 104 87-010-490-040 0E CAP, ELECT 0.1-50 A...................
C 107 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 105 87-010-553-040 0E CAP,E 47-16 GAS A...................
C 118 87-010-178-080 0E CHIP CAP 1000P A...................
C 111 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 117 87-010-197-080 0E CAP, CHIP 0.01 DM A...................
C 116 87-010-197-080 0E CAP, CHIP 0.01 DM A...................
C 112 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 113 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 115 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 114 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 119 87-010-553-040 0E CAP,E 47-16 GAS A...................
C 110 87-010-553-040 0E CAP,E 47-16 GAS A...................
C 120 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 121 87-010-197-080 0E CAP, CHIP 0.01 DM A...................
D 102 87-020-465-080 0E DIODE,1SS133 (110MA) A...................
D 101 87-020-465-080 0E DIODE,1SS133 (110MA) A...................
J 101 8Z-KT1-614-010 1A ANT,AW-002 A...................
L 101 87-003-143-080 0E COIL 4.7 UH A...................
L 102 8Z-KT1-619-010 1A COIL,68MH K7-D A...................
Q 109 87-A30-295-010 TR,KRA226M A...................
Q 101 87-A30-467-040 C-TR,KRA111S-RTK A...................
Q 106 87-A30-467-040 C-TR,KRA111S-RTK A...................
Q 105 87-A30-470-040 C-TR,KTC3875SY-RTK A...................

ELECTRICAL MAIN PARTS LIST - 2
Q 108 87-A30-470-040 C-TR,KTC3875SY-RTK A...................
Q 107 87-A30-470-040 C-TR,KTC3875SY-RTK A...................
Q 103 87-A30-470-040 C-TR,KTC3875SY-RTK A...................
Q 102 87-A30-470-040 C-TR,KTC3875SY-RTK A...................
Q 104 87-A30-471-040 C-TR,KTA1504SY-RTK A...................
Q 110 87-A30-473-080 TR,KRC102M-AT A...................
TU 101 8A-KC8-620-010 2B TU UNIT, FAE347-A11 A...................
C 1103 87-010-175-080 0E CAP 560P A...................
C 1104 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 1102 87-010-315-080 0E C-CAP,S 27P-50 CH A...................
C 1106 87-010-495-040 0E CAP,E 2.2-50 GAS A...................
C 1101 87-012-149-080 0E C-CAP,S 30P-50 CH A...................
C 1105 87-012-157-080 0E C-CAP,S 330P-50 CH A...................
IC 1101 88-KT1-607-080 1H C-IC,SAA6579T A...................
X 1101 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 A...................
C 505 87-010-184-080 0E CHIP CAPACITOR 3300P(K) A...................
C 506 87-010-184-080 0E CHIP CAPACITOR 3300P(K) A...................
C 508 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 507 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 502 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 504 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 503 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 501 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 509 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 519 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 516 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 515 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 510 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 518 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 517 87-010-553-040 0E CAP,E 47-16 GAS A...................
C 512 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 511 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 513 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 514 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 527 87-010-184-080 0E CHIP CAPACITOR 3300P(K) A...................
C 526 87-010-491-040 0E CAP,E 0.22-50 GAS A...................
C 525 87-010-491-040 0E CAP,E 0.22-50 GAS A...................
C 523 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 522 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 521 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 520 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 524 87-010-553-040 0E CAP,E 47-16 GAS A...................
D 501 87-020-465-080 0E DIODE,1SS133 (110MA) A...................
IC 501 8Z-KT1-622-010 2A C-IC,LC75374E A...................
Q 504 87-026-576-080 0E C-TR,DTC343TK A...................
Q 503 87-026-576-080 0E C-TR,DTC343TK A...................
Q 501 87-026-576-080 0E C-TR,DTC343TK A...................
Q 502 87-026-576-080 0E C-TR,DTC343TK A...................
Q 506 87-A30-467-040 C-TR,KRA111S-RTK A...................
Q 508 87-A30-467-040 C-TR,KRA111S-RTK A...................
Q 507 87-A30-467-040 C-TR,KRA111S-RTK A...................
Q 505 87-A30-484-040 0E C-TR,KRA102S A...................
C 607 87-010-180-080 0E C-CER 1500P A...................
C 608 87-010-180-080 0E C-CER 1500P A...................
C 606 87-010-180-080 0E C-CER 1500P A...................
C 605 87-010-180-080 0E C-CER 1500P A...................
C 609 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 603 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 602 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 601 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 604 87-016-083-080 0E C-CAP,S 0.15-16 RK A...................
C 611 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 613 87-010-490-040 0E CAP, ELECT 0.1-50 A...................
C 612 87-010-552-040 0E CAP,E 22-16 GAS A...................
C 610 8Z-KT1-633-090 1B CAP,E 3300U-16 PW A...................
D 601 87-001-783-080 0E DIODE,1N4002 A...................
D 608 87-001-783-080 0E DIODE,1N4002 A...................
D 603 87-001-783-080 0E DIODE,1N4002 A...................
D 602 87-001-783-080 0E DIODE,1N4002 A...................
D 606 87-001-783-080 0E DIODE,1N4002 A...................
D 607 87-001-783-080 0E DIODE,1N4002 A...................
D 605 87-001-783-080 0E DIODE,1N4002 A...................
D 604 87-001-783-080 0E DIODE,1N4002 A...................
IC 601 8Z-KTG-622-010 2A IC,TA8259H A...................
C 802 87-010-182-080 0E C-CAP,S 2200P-50 B A...................
C 804 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 801 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
C 808 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 805 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 806 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 807 87-010-498-040 0E CAP,E 10-16 GAS A...................
C 810 87-010-198-080 0E CAP, CHIP 0.022 A...................
C 811 87-010-553-040 0E CAP,E 47-16 GAS A...................
CN 801 8Z-KT1-624-010 CONN,16P SOC017 A...................
D 802 87-001-783-080 0E DIODE,1N4002 A...................
D 804 87-017-931-080 0E ZENER,MTZJ5.6B A...................
D 801 87-070-022-010 0E DIODE,IN5402 (RECT) A...................
D 803 87-070-334-080 0E ZENER,MTZJ10B A...................
D 805 87-A40-337-080 0E ZENER,MTZJ 6.8B A...................
D 807 87-A40-509-080 0E ZENER,MTZJ6.8C A...................
D 806 87-A40-523-080 0E ZENER,MTZJ9.1B A...................
F 801 8Z-KC1-621-010 1B FUSE,15A 32V A...................
L 801 8Z-KT1-615-010 1C FLTR,AMORPHOUS -CHOKE A...................

ELECTRICAL MAIN PARTS LIST - 3
Q 806 87-A30-473-080 TR,KRC102M-AT A...................
Q 803 87-A30-473-080 TR,KRC102M-AT A...................
Q 804 87-A30-473-080 TR,KRC102M-AT A...................
Q 805 87-A30-475-080 TR,KRA104M-AT A...................
Q 802 87-A30-476-010 TR,KTA1046Y A...................
Q 807 89-423-953-010 1A TR,2SD2395F A...................
Q 808 89-423-953-010 1A TR,2SD2395F A...................
Q 809 8Z-KTH-626-080 TR,KTC3203Y A...................
Q 801 8Z-KTH-627-080 TR,KTA1273Y A...................
Q 811 87-A30-473-080 TR,KRC102M-AT A...................
Q 812 87-A30-473-080 TR,KRC102M-AT A...................
Q 813 8Z-KTH-623-080 TR,KTA1267Y A...................
Q 810 8Z-KTH-626-080 TR,KTC3203Y A...................
C 304 87-010-178-080 0E CHIP CAP 1000P A...................
C 303 87-010-178-080 0E CHIP CAP 1000P A...................
C 301 87-010-401-080 0E CAP, ELECT 1-50V A...................
C 302 87-010-401-080 0E CAP, ELECT 1-50V A...................
C 714 87-010-197-080 0E CAP, CHIP 0.01 DM A...................
C 713 87-010-197-080 0E CAP, CHIP 0.01 DM A...................
CN 701 88-KTA-603-010 1C CONN,15P CAM-B68 A...................
D 719 87-017-932-080 0E ZENER,MTJ6.2B A...................
D 716 87-017-932-080 0E ZENER,MTJ6.2B A...................
D 718 87-017-932-080 0E ZENER,MTJ6.2B A...................
D 720 87-017-932-080 0E ZENER,MTJ6.2B A...................
87-A61-225-010 1A JACK,PIN 2P XR-401 A...................
C 903 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 904 87-010-494-040 0E CAP,E 1-50 GAS A...................
C 907 87-012-140-080 0E CAP 470P A...................
C 908 87-012-140-080 0E CAP 470P A...................
CNA1401 8A-KT1-631-010 1E CONN ASSY,8P ISO-BLACK-A A...................
CNA1402 8A-KT1-632-010 1D CONN ASSY,8P ISO-WHITE-A A...................
C 1001 87-010-176-080 0E C-CAP,S 680P-50 SL A...................
C 1002 87-010-194-080 0E CAP, CHIP 0.047 A...................
C 1003 87-010-194-080 0E CAP, CHIP 0.047 A...................
C 1004 87-010-196-080 0E CHIP CAPACITOR,0.1-25 A...................
CN 1001 88-KTA-602-010 1A CONN,15P CAM-B67 A...................
D 1002 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................
D 1001 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................
D 1003 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................
D 1004 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y A...................
IC 1001 88-KT1-608-010 1H C-IC,LC75854W A...................
J 1001 87-A61-229-010 1B JACK,3.5 BLK ST W/SW A...................
LCD1001 8A-KTF-610-010 LCD,AKT-10/11/15 (2COLOR) A...................
LED1002 87-017-827-070 0E C-LED,SEC 1201C RED A...................
LED1003 87-017-827-070 0E C-LED,SEC 1201C RED A...................
LED1001 87-017-827-070 0E C-LED,SEC 1201C RED A...................
LED1005 87-A40-813-040 1E C-LED,SEC1E01C BLUE A...................
LED1006 87-A40-813-040 1E C-LED,SEC1E01C BLUE A...................
LED1004 87-A40-813-040 1E C-LED,SEC1E01C BLUE A...................
PL 1001 8A-KT7-655-010 LAMP,9V-50MA A...................
PL 1002 8A-KT7-655-010 LAMP,9V-50MA A...................
Q 1001 87-A30-469-040 C-TR,KRC111S-RTK A...................
Q 1002 87-A30-472-040 C-TR,KRA226S-RTK A...................
Q 1004 87-A30-472-040 C-TR,KRA226S-RTK A...................
Q 1003 87-A30-472-040 C-TR,KRA226S-RTK A...................
S 1005 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1006 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1001 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1003 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1002 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1009 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1008 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1004 87-A90-001-080 1A C-SW,TACT SKQMAL A...................
S 1007 87-A90-001-080 1A C-SW,TACT SKQMAL A...................
S 1014 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1013 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1010 87-036-251-080 0E SW,T CT 6X3.5 160 A...................
S 1015 87-A90-001-080 1A C-SW,TACT SKQMAL A...................
S 1012 87-A90-001-080 1A C-SW,TACT SKQMAL A...................
S 1011 87-A90-001-080 1A C-SW,TACT SKQMAL A...................
VR 1001 87-A91-597-010 1B SW,RTRY SIM-026MT A...................
W 1001 8A-KT9-611-010 F-CABLE,3P 50MM A...................
C 709 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 703 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 707 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 708 87-010-197-080 0E CAP, CHIP 0.01 DM .BCD................
C 704 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 706 87-010-314-080 0E C-CAP,S 22P-50V .BCD................
C 705 87-010-316-080 0E C-CAP,S 33P-50 CH .BCD................
C 701 87-010-490-040 0E CAP, ELECT 0.1-50 .BCD................
C 702 87-010-555-040 0E CAP,E 100-10 GAS .BCD................
C 710 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 711 87-010-322-080 0E C-CAP,S 100P-50 CH .BCD................
C 712 87-016-039-090 1B CAP,DL 0.022F-5.5 Z 70 FM .BCD................
C 743 87-016-526-080 0E C-CAP,S 0.47-16 BK .BCD................
C 741 87-016-526-080 0E C-CAP,S 0.47-16 BK .BCD................
C 742 87-016-526-080 0E C-CAP,S 0.47-16 BK .BCD................
C 744 87-016-669-080 0E C-CAP,S 0.1-25 K B .BCD................
D 705 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
D 701 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
D 702 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
D 713 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
D 710 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................

ELECTRICAL MAIN PARTS LIST - 4
D 741 87-A40-830-040 0E DIODE,KDS226-RTK .BCD................
IC 701 87-A21-530-030 2M C-IC,UPD178018A-XXX .BCD................
L 701 87-003-149-080 0E COIL,47UH .BCD................
LED 701 87-027-262-010 0E LEDE,TLR-124(RED) .BCD................
Q 701 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
SW 701 87-A91-070-010 0E SW,TACT SKHHLV .BCD................
SW 702 87-A91-152-010 1A SW,SL 1-1-2 SSSS212-11-A .BCD................
X 701 87-A70-175-010 1B VIB,XTAL 4.5MHZ AT-49 .BCD................
C 201 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 202 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 209 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 203 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 204 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 205 87-010-555-040 0E CAP,E 100-10 GAS .BCD................
C 206 87-010-555-040 0E CAP,E 100-10 GAS .BCD................
C 208 87-012-365-080 0E C-CAP,S 0.027-25VBK .BCD................
C 207 87-012-365-080 0E C-CAP,S 0.027-25VBK .BCD................
C 212 87-010-380-080 0E CAP, ELECT 47-16V .BCD................
C 210 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 214 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 213 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 215 87-010-555-040 0E CAP,E 100-10 GAS .BCD................
C 211 87-010-555-040 0E CAP,E 100-10 GAS .BCD................
CN 201 87-009-031-010 0E CONNECTOR, 3P .BCD................
CN 202 87-099-408-010 0E CONN,8P EH V WHT .BCD................
CNA 201 8Z-KTA-607-010 CONN ASSY,3P DECK-1 .BCD................
CNA 202 8Z-KTG-652-010 CONN ASSY,8P MOTOR .BCD................
IC 201 87-A21-191-010 IC,KIA6225S .BCD................
Q 201 87-A30-295-010 TR,KRA226M .BCD................
Q 203 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
Q 204 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
Q 202 87-A30-487-080 TR,KRC111M-AT .BCD................
C 102 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 101 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 103 87-010-186-080 0E CAP,CHIP 4700P .BCD................
C 109 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 108 87-010-197-080 0E CAP, CHIP 0.01 DM .BCD................
C 106 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 104 87-010-490-040 0E CAP, ELECT 0.1-50 .BCD................
C 107 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 105 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 111 87-010-194-080 0E CAP, CHIP 0.047 .BCD................
C 115 87-010-194-080 0E CAP, CHIP 0.047 .BCD................
C 114 87-010-194-080 0E CAP, CHIP 0.047 .BCD................
C 117 87-010-197-080 0E CAP, CHIP 0.01 DM .BCD................
C 116 87-010-197-080 0E CAP, CHIP 0.01 DM .BCD................
C 113 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 112 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 112 87-010-213-080 0E C-CAP,S 0.015-50 B .BCD................
C 113 87-010-213-080 0E C-CAP,S 0.015-50 B .BCD................
C 110 87-010-553-040 0E CAP,E 47-16 GAS .BCD................
C 120 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 121 87-010-197-080 0E CAP, CHIP 0.01 DM .BCD................
D 102 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
D 101 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
J 101 8Z-KT1-614-010 1A ANT,AW-002 .BCD................
L 101 87-003-143-080 0E COIL 4.7 UH .BCD................
L 102 8Z-KT1-619-010 1A COIL,68MH K7-D .BCD................
Q 109 87-A30-295-010 TR,KRA226M .BCD................
Q 101 87-A30-469-040 C-TR,KRC111S-RTK .BCD................
Q 106 87-A30-469-040 C-TR,KRC111S-RTK .BCD................
Q 105 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
Q 107 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
Q 108 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
Q 103 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
Q 102 87-A30-470-040 C-TR,KTC3875SY-RTK .BCD................
Q 104 87-A30-471-040 C-TR,KTA1504SY-RTK .BCD................
Q 110 87-A30-473-080 TR,KRC102M-AT .BCD................
TU 101 8A-KC8-620-010 2B TU UNIT, FAE347-A11 .BCD................
C 1103 87-010-175-080 0E CAP 560P .BCD................
C 1104 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 1107 87-010-197-080 0E CAP, CHIP 0.01 DM .BCD................
C 1102 87-010-315-080 0E C-CAP,S 27P-50 CH .BCD................
C 1106 87-010-495-040 0E CAP,E 2.2-50 GAS .BCD................
C 1101 87-012-149-080 0E C-CAP,S 30P-50 CH .BCD................
C 1105 87-012-157-080 0E C-CAP,S 330P-50 CH .BCD................
IC 1101 88-KT1-607-080 1H C-IC,SAA6579T .BCD................
Q 1101 87-A30-469-040 C-TR,KRC111S-RTK .BCD................
X 1101 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 .BCD................
C 506 87-010-184-080 0E CHIP CAPACITOR 3300P(K) .BCD................
C 505 87-010-184-080 0E CHIP CAPACITOR 3300P(K) .BCD................
C 507 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 508 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 501 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 504 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 503 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 502 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 509 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 519 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 516 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 518 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 515 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 510 87-010-498-040 0E CAP,E 10-16 GAS .BCD................

ELECTRICAL MAIN PARTS LIST - 5
C 517 87-010-553-040 0E CAP,E 47-16 GAS .BCD................
C 514 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 512 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 511 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 513 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 527 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 521 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 520 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 522 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 523 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 524 87-010-553-040 0E CAP,E 47-16 GAS .BCD................
C 526 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F .BCD................
C 525 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F .BCD................
D 501 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
IC 501 8Z-KT1-622-010 2A C-IC,LC75374E .BCD................
Q 8 87-A30-469-040 C-TR,KRC111S-RTK .BCD................
Q 502 87-026-576-080 0E C-TR,DTC343TK .BCD................
Q 503 87-026-576-080 0E C-TR,DTC343TK .BCD................
Q 504 87-026-576-080 0E C-TR,DTC343TK .BCD................
Q 501 87-026-576-080 0E C-TR,DTC343TK .BCD................
Q 505 87-A30-467-040 C-TR,KRA111S-RTK .BCD................
Q 506 87-A30-468-040 0E C-TR,KRC102S-RTK .BCD................
Q 5075 87-A30-469-040 C-TR,KRC111S-RTK .BCD................
C 608 87-010-180-080 0E C-CER 1500P .BCD................
C 607 87-010-180-080 0E C-CER 1500P .BCD................
C 605 87-010-180-080 0E C-CER 1500P .BCD................
C 606 87-010-180-080 0E C-CER 1500P .BCD................
C 609 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 601 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 602 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 603 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 604 87-016-083-080 0E C-CAP,S 0.15-16 RK .BCD................
C 611 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 613 87-010-490-040 0E CAP, ELECT 0.1-50 .BCD................
C 612 87-010-552-040 0E CAP,E 22-16 GAS .BCD................
C 610 8Z-KT1-633-090 1B CAP,E 3300U-16 PW .BCD................
D 605 87-001-783-080 0E DIODE,1N4002 .BCD................
D 606 87-001-783-080 0E DIODE,1N4002 .BCD................
D 604 87-001-783-080 0E DIODE,1N4002 .BCD................
D 601 87-001-783-080 0E DIODE,1N4002 .BCD................
D 607 87-001-783-080 0E DIODE,1N4002 .BCD................
D 603 87-001-783-080 0E DIODE,1N4002 .BCD................
D 602 87-001-783-080 0E DIODE,1N4002 .BCD................
D 608 87-001-783-080 0E DIODE,1N4002 .BCD................
IC 601 8Z-KTG-622-010 2A IC,TA8259H .BCD................
C 802 87-010-182-080 0E C-CAP,S 2200P-50 B .BCD................
C 804 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 801 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 808 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 807 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 806 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 805 87-010-555-040 0E CAP,E 100-10 GAS .BCD................
C 810 87-010-198-080 0E CAP, CHIP 0.022 .BCD................
C 812 87-010-498-040 0E CAP,E 10-16 GAS .BCD................
C 811 87-010-553-040 0E CAP,E 47-16 GAS .BCD................
D 802 87-001-783-080 0E DIODE,1N4002 .BCD................
D 804 87-017-931-080 0E ZENER,MTZJ5.6B .BCD................
D 808 87-017-931-080 0E ZENER,MTZJ5.6B .BCD................
D 801 87-070-022-010 0E DIODE,IN5402 (RECT) .BCD................
D 803 87-070-334-080 0E ZENER,MTZJ10B .BCD................
D 805 87-A40-337-080 0E ZENER,MTZJ 6.8B .BCD................
D 807 87-A40-509-080 0E ZENER,MTZJ6.8C .BCD................
D 806 87-A40-523-080 0E ZENER,MTZJ9.1B .BCD................
D 809 87-A40-620-080 0E ZENER,MTZJ6.2A .BCD................
D 811 87-020-465-080 0E DIODE,1SS133 (110MA) .BCD................
D 812 87-070-136-080 0E ZENER,MTZJ5.1B .BCD................
D 813 87-A40-509-080 0E ZENER,MTZJ6.8C .BCD................
D 814 87-A40-509-080 0E ZENER,MTZJ6.8C .BCD................
F 801 8Z-KC1-621-010 1B FUSE,15A 32V .BCD................
L 801 8Z-KT1-615-010 1C FLTR,AMORPHOUS -CHOKE .BCD................
Q 804 87-A30-473-080 TR,KRC102M-AT .BCD................
Q 806 87-A30-473-080 TR,KRC102M-AT .BCD................
Q 803 87-A30-473-080 TR,KRC102M-AT .BCD................
Q 805 87-A30-475-080 TR,KRA104M-AT .BCD................
Q 802 87-A30-476-010 TR,KTA1046Y .BCD................
Q 808 89-423-953-010 1A TR,2SD2395F .BCD................
Q 807 89-423-953-010 1A TR,2SD2395F .BCD................
Q 809 8Z-KTH-626-080 TR,KTC3203Y .BCD................
Q 801 8Z-KTH-627-080 TR,KTA1273Y .BCD................
Q 815 87-A30-467-040 C-TR,KRA111S-RTK .BCD................
Q 811 87-A30-473-080 TR,KRC102M-AT .BCD................
Q 812 87-A30-473-080 TR,KRC102M-AT .BCD................
Q 813 8Z-KTH-623-080 TR,KTA1267Y .BCD................
Q 814 8Z-KTH-626-080 TR,KTC3203Y .BCD................
Q 810 8Z-KTH-626-080 TR,KTC3203Y .BCD................
C 303 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 304 87-010-178-080 0E CHIP CAP 1000P .BCD................
C 302 87-010-401-080 0E CAP, ELECT 1-50V .BCD................
C 301 87-010-401-080 0E CAP, ELECT 1-50V .BCD................
C 713 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
C 714 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
CN 701 88-KTA-603-010 1C CONN,15P CAM-B68 .BCD................
D 716 87-017-932-080 0E ZENER,MTJ6.2B .BCD................

ELECTRICAL MAIN PARTS LIST - 6
D 718 87-017-932-080 0E ZENER,MTJ6.2B .BCD................
D 719 87-017-932-080 0E ZENER,MTJ6.2B .BCD................
D 720 87-017-932-080 0E ZENER,MTJ6.2B .BCD................
L 301 87-003-143-080 0E COIL 4.7 UH .BCD................
C 904 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 903 87-010-494-040 0E CAP,E 1-50 GAS .BCD................
C 908 87-012-140-080 0E CAP 470P .BCD................
C 907 87-012-140-080 0E CAP 470P .BCD................
CN 802 8A-KT1-631-010 1E CONN ASSY,8P ISO-BLACK-A .BCD................
CN 801 8A-KT1-632-010 1D CONN ASSY,8P ISO-WHITE-A .BCD................
J 901 87-A61-225-010 1A JACK,PIN 2P XR-401 .BCD................
C 1001 87-010-176-080 0E C-CAP,S 680P-50 SL .BCD................
C 1002 87-010-194-080 0E CAP, CHIP 0.047 .BCD................
C 1003 87-010-194-080 0E CAP, CHIP 0.047 .BCD................
C 1004 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .BCD................
CN 1001 88-KTA-602-010 1A CONN,15P CAM-B67 .BCD................
D 1002 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y .BCD................
D 1001 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y .BCD................
D 1003 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y .BCD................
D 1004 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y .BCD................
IC 1001 88-KT1-608-010 1H C-IC,LC75854W .BCD................
J 1001 87-A61-229-010 1B JACK,3.5 BLK ST W/SW .BCD................
LCD1001 8A-KTB-610-010 LCD,AKT-11(NO COLOR) .B.D................
LCD1001 8A-KTF-610-010 LCD,AKT-10/11/15 (2COLOR) ..C.................
LED1003 87-017-827-070 0E C-LED,SEC 1201C RED .BCD................
LED1002 87-017-827-070 0E C-LED,SEC 1201C RED .BCD................
LED1001 87-017-827-070 0E C-LED,SEC 1201C RED .BCD................
LED1006 87-A40-813-040 1E C-LED,SEC1E01C BLUE .BCD................
LED1004 87-A40-813-040 1E C-LED,SEC1E01C BLUE .BCD................
LED1005 87-A40-813-040 1E C-LED,SEC1E01C BLUE .BCD................
LED1007 87-A40-814-080 1C LED,SEL2E10C BLUE ...D................
LED1008 87-A40-814-080 1C LED,SEL2E10C BLUE ...D................
PL 1002 8A-KT7-655-010 LAMP,9V-50MA .BC.................
PL 1001 8A-KT7-655-010 LAMP,9V-50MA .BC.................
Q 1001 87-A30-469-040 C-TR,KRC111S-RTK .BCD................
Q 1002 87-A30-472-040 C-TR,KRA226S-RTK .BCD................
Q 1004 87-A30-472-040 C-TR,KRA226S-RTK .BCD................
Q 1003 87-A30-472-040 C-TR,KRA226S-RTK .BCD................
S 1005 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1009 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1002 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1008 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1003 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1006 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1001 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1007 87-A90-001-080 1A C-SW,TACT SKQMAL .BCD................
S 1004 87-A90-001-080 1A C-SW,TACT SKQMAL .BCD................
S 1014 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1010 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1013 87-036-251-080 0E SW,T CT 6X3.5 160 .BCD................
S 1011 87-A90-001-080 1A C-SW,TACT SKQMAL .BCD................
S 1012 87-A90-001-080 1A C-SW,TACT SKQMAL .BCD................
S 1015 87-A90-001-080 1A C-SW,TACT SKQMAL .BCD................
VR 1001 87-A91-597-010 1B SW,RTRY SIM-026MT .BCD................
W 1001 8A-KT9-611-010 F-CABLE,3P 50MM .BCD................
C 709 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 703 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 707 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 708 87-010-197-080 0E CAP, CHIP 0.01 DM ....EFGH............
C 704 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 706 87-010-314-080 0E C-CAP,S 22P-50V ....EFGH............
C 705 87-010-315-080 0E C-CAP,S 27P-50 CH ....EFGH............
C 701 87-010-490-040 0E CAP, ELECT 0.1-50 ....EFGH............
C 702 87-010-555-040 0E CAP,E 100-10 GAS ....EFGH............
C 710 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 711 87-010-322-080 0E C-CAP,S 100P-50 CH ....EFGH............
C 742 87-016-526-080 0E C-CAP,S 0.47-16 BK ....EFGH............
C 741 87-016-526-080 0E C-CAP,S 0.47-16 BK ....EFGH............
C 743 87-016-526-080 0E C-CAP,S 0.47-16 BK ....EFGH............
C 744 87-016-669-080 0E C-CAP,S 0.1-25 K B ....EFGH............
D 701 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFGH............
D 705 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFGH............
D 707 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFGH............
D 702 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFGH............
D 741 87-A40-830-040 0E DIODE,KDS226-RTK ....EFGH............
IC 701 87-A21-531-030 2M C-IC,UPD178006A-XXX ....EFGH............
L 701 87-003-149-080 0E COIL,47UH ....EFGH............
LED 701 87-027-262-010 0E LEDE,TLR-124(RED) ....EFGH............
Q 701 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
SW 701 87-A91-070-010 0E SW,TACT SKHHLV ....EFGH............
SW 702 87-A91-152-010 1A SW,SL 1-1-2 SSSS212-11-A ....EFGH............
X 701 87-A70-175-010 1B VIB,XTAL 4.5MHZ AT-49 ....EFGH............
C 202 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 201 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 207 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 208 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 209 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 204 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 203 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 205 87-010-555-040 0E CAP,E 100-10 GAS ....EFGH............
C 206 87-010-555-040 0E CAP,E 100-10 GAS ....EFGH............
C 212 87-010-380-080 0E CAP, ELECT 47-16V ....EFGH............
C 214 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............

ELECTRICAL MAIN PARTS LIST - 7
C 210 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 213 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 211 87-010-555-040 0E CAP,E 100-10 GAS ....EFGH............
C 215 87-010-555-040 0E CAP,E 100-10 GAS ....EFGH............
CN 201 87-009-031-010 0E CONNECTOR, 3P ....EFGH............
CN 202 87-099-408-010 0E CONN,8P EH V WHT ....EFGH............
CNA 201 8Z-KTA-607-010 CONN ASSY,3P DECK-1 ....EFGH............
CNA 202 8Z-KTG-652-010 CONN ASSY,8P MOTOR ....EFGH............
IC 201 87-A21-191-010 IC,KIA6225S ....EFGH............
Q 201 87-A30-295-010 TR,KRA226M ....EFGH............
Q 203 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
Q 204 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
Q 202 87-A30-487-080 TR,KRC111M-AT ....EFGH............
C 401 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 402 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
D 401 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 404 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 403 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 406 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 405 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 402 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
J 401 8A-KC7-620-010 1B JACK,DIN 13 P SKDS1302 ....EFGH............
Q 401 87-A30-295-010 TR,KRA226M ....EFGH............
Q 402 87-A30-473-080 TR,KRC102M-AT ....EFGH............
C 102 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 101 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 103 87-010-186-080 0E CAP,CHIP 4700P ....EFGH............
C 109 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 108 87-010-197-080 0E CAP, CHIP 0.01 DM ....EFGH............
C 106 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 104 87-010-490-040 0E CAP, ELECT 0.1-50 ....EFGH............
C 107 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 105 87-010-553-040 0E CAP,E 47-16 GAS ....EFGH............
C 118 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 111 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 117 87-010-197-080 0E CAP, CHIP 0.01 DM ....EFGH............
C 116 87-010-197-080 0E CAP, CHIP 0.01 DM ....EFGH............
C 112 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 113 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 115 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 114 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 119 87-010-553-040 0E CAP,E 47-16 GAS ....EFGH............
C 110 87-010-553-040 0E CAP,E 47-16 GAS ....EFGH............
C 120 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 121 87-010-197-080 0E CAP, CHIP 0.01 DM ....EFGH............
D 101 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFGH............
D 102 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFGH............
J 101 8Z-KT1-614-010 1A ANT,AW-002 ....EFGH............
L 101 87-003-143-080 0E COIL 4.7 UH ....EFGH............
L 102 8Z-KT1-619-010 1A COIL,68MH K7-D ....EFGH............
Q 109 87-A30-295-010 TR,KRA226M ....EFGH............
Q 106 87-A30-467-040 C-TR,KRA111S-RTK ....EFGH............
Q 101 87-A30-467-040 C-TR,KRA111S-RTK ....EFGH............
Q 102 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
Q 103 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
Q 108 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
Q 105 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
Q 107 87-A30-470-040 C-TR,KTC3875SY-RTK ....EFGH............
Q 104 87-A30-471-040 C-TR,KTA1504SY-RTK ....EFGH............
Q 110 87-A30-473-080 TR,KRC102M-AT ....EFGH............
TU 101 8A-KC8-620-010 2B TU UNIT, FAE347-A11 .....F..............
TU 101 8A-KC8-621-010 2B TU UNIT, FAE347-A12 ....E.GH............
C 506 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ....EFGH............
C 505 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ....EFGH............
C 507 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 508 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 503 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 501 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 502 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 504 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 509 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 519 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 516 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 518 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 510 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 515 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 517 87-010-553-040 0E CAP,E 47-16 GAS ....EFGH............
C 514 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 511 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 513 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 512 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 527 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ....EFGH............
C 525 87-010-491-040 0E CAP,E 0.22-50 GAS ....EFGH............
C 526 87-010-491-040 0E CAP,E 0.22-50 GAS ....EFGH............
C 521 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 523 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 520 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 522 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 524 87-010-553-040 0E CAP,E 47-16 GAS ....EFGH............
D 501 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFGH............
IC 501 8Z-KT1-622-010 2A C-IC,LC75374E ....EFGH............
Q 501 87-026-576-080 0E C-TR,DTC343TK ....EFGH............
Q 504 87-026-576-080 0E C-TR,DTC343TK ....EFGH............

ELECTRICAL MAIN PARTS LIST - 8
Q 502 87-026-576-080 0E C-TR,DTC343TK ....EFGH............
Q 503 87-026-576-080 0E C-TR,DTC343TK ....EFGH............
Q 507 87-A30-467-040 C-TR,KRA111S-RTK ....EFGH............
Q 508 87-A30-467-040 C-TR,KRA111S-RTK ....EFGH............
Q 506 87-A30-467-040 C-TR,KRA111S-RTK ....EFGH............
Q 505 87-A30-484-040 0E C-TR,KRA102S ....EFGH............
C 607 87-010-180-080 0E C-CER 1500P ....EFGH............
C 608 87-010-180-080 0E C-CER 1500P ....EFGH............
C 606 87-010-180-080 0E C-CER 1500P ....EFGH............
C 605 87-010-180-080 0E C-CER 1500P ....EFGH............
C 609 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 602 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 603 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 604 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 601 87-016-083-080 0E C-CAP,S 0.15-16 RK ....EFGH............
C 611 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 613 87-010-490-040 0E CAP, ELECT 0.1-50 ....EFGH............
C 612 87-010-552-040 0E CAP,E 22-16 GAS ....EFGH............
C 610 8Z-KT1-633-090 1B CAP,E 3300U-16 PW ....EFGH............
D 601 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 607 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 604 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 605 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 608 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 603 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 606 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 602 87-001-783-080 0E DIODE,1N4002 ....EFGH............
IC 601 8Z-KTG-622-010 2A IC,TA8259H ....EFGH............
C 802 87-010-182-080 0E C-CAP,S 2200P-50 B ....EFGH............
C 804 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 801 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
C 808 87-010-198-080 0E CAP, CHIP 0.022 ....EFGH............
C 807 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 806 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 805 87-010-498-040 0E CAP,E 10-16 GAS ....EFGH............
C 811 87-010-553-040 0E CAP,E 47-16 GAS ....EFGH............
CN 801 8A-KT1-631-010 1E CONN ASSY,8P ISO-BLACK-A .....F..............
CN 801 8Z-KT1-624-010 CONN,16P SOC017 ....E.GH............
CNA 801 8A-KT1-632-010 1D CONN ASSY,8P ISO-WHITE-A .....F..............
D 802 87-001-783-080 0E DIODE,1N4002 ....EFGH............
D 804 87-017-931-080 0E ZENER,MTZJ5.6B ....EFGH............
D 808 87-017-932-080 0E ZENER,MTJ6.2B .....FGH............
D 801 87-070-022-010 0E DIODE,IN5402 (RECT) ....EFGH............
D 803 87-070-334-080 0E ZENER,MTZJ10B ....EFGH............
D 805 87-A40-337-080 0E ZENER,MTZJ 6.8B ....EFGH............
D 807 87-A40-509-080 0E ZENER,MTZJ6.8C ....EFGH............
D 806 87-A40-523-080 0E ZENER,MTZJ9.1B ....EFGH............
D 809 87-A40-650-080 0E ZENER,MTZJ6.8A .....FGH............
D 810 87-017-931-080 0E ZENER,MTZJ5.6B ....EFGH............
F 801 8Z-KC1-621-010 1B FUSE,15A 32V ....EFGH............
L 801 8Z-KT1-615-010 1C FLTR,AMORPHOUS -CHOKE ....EFGH............
Q 806 87-A30-473-080 TR,KRC102M-AT ....EFGH............
Q 804 87-A30-473-080 TR,KRC102M-AT ....EFGH............
Q 803 87-A30-473-080 TR,KRC102M-AT ....EFGH............
Q 805 87-A30-475-080 TR,KRA104M-AT ....EFGH............
Q 802 87-A30-476-010 TR,KTA1046Y ....EFGH............
Q 808 89-423-953-010 1A TR,2SD2395F ....EFGH............
Q 807 89-423-953-010 1A TR,2SD2395F ....EFGH............
Q 809 8Z-KTH-626-080 TR,KTC3203Y ....EFGH............
Q 801 8Z-KTH-627-080 TR,KTA1273Y ....EFGH............
Q 810 8Z-KTH-626-080 TR,KTC3203Y ....EFGH............
Q 814 8Z-KTH-626-080 TR,KTC3203Y ....EFGH............
C 303 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 304 87-010-178-080 0E CHIP CAP 1000P ....EFGH............
C 302 87-010-401-080 0E CAP, ELECT 1-50V ....EFGH............
C 301 87-010-401-080 0E CAP, ELECT 1-50V ....EFGH............
C 713 87-010-197-080 0E CAP, CHIP 0.01 DM ....EFGH............
C 714 87-010-197-080 0E CAP, CHIP 0.01 DM ....EFGH............
CN 701 88-KTA-603-010 1C CONN,15P CAM-B68 ....EFGH............
D 716 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 718 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 719 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
D 720 87-017-932-080 0E ZENER,MTJ6.2B ....EFGH............
C 903 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 904 87-010-494-040 0E CAP,E 1-50 GAS ....EFGH............
C 908 87-012-140-080 0E CAP 470P ....EFGH............
C 907 87-012-140-080 0E CAP 470P ....EFGH............
J 901 87-A61-224-010 1A JACK,PIN 4P XR-401 ......GH............
J 901 87-A61-225-010 1A JACK,PIN 2P XR-401 ....EF..............
C 1001 87-010-176-080 0E C-CAP,S 680P-50 SL ....EFGH............
C 1002 87-010-194-080 0E CAP, CHIP 0.047 ....EFGH............
C 1003 87-010-194-080 0E CAP, CHIP 0.047 ....EFGH............
C 1004 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....EFGH............
CN 1001 88-KTA-602-010 1A CONN,15P CAM-B67 ....EFGH............
D 1003 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y ....EFGH............
D 1002 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y ....EFGH............
D 1001 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y ....EFGH............
D 1004 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y ....EFGH............
IC 1001 88-KT1-608-010 1H C-IC,LC75854W ....EFGH............
J 1001 87-A61-229-010 1B JACK,3.5 BLK ST W/SW ....EFGH............
LCD1001 8A-KTF-610-010 LCD,AKT-10/11/15 (2COLOR) .....FGH............
LCD1001 8A-KTF-611-010 LCD,AKT-15(1 COLOR) ....E...............
LED1002 87-017-827-070 0E C-LED,SEC 1201C RED ....EFGH............

ELECTRICAL MAIN PARTS LIST - 9
LED1003 87-017-827-070 0E C-LED,SEC 1201C RED ....EFGH............
LED1001 87-017-827-070 0E C-LED,SEC 1201C RED ....EFGH............
LED1005 87-A40-813-040 1E C-LED,SEC1E01C BLUE ....EFGH............
LED1006 87-A40-813-040 1E C-LED,SEC1E01C BLUE ....EFGH............
LED1004 87-A40-813-040 1E C-LED,SEC1E01C BLUE ....EFGH............
PL 1002 8A-KT7-655-010 LAMP,9V-50MA ....EFGH............
PL 1001 8A-KT7-655-010 LAMP,9V-50MA ....EFGH............
Q 1001 87-A30-469-040 C-TR,KRC111S-RTK ....EFGH............
Q 1003 87-A30-472-040 C-TR,KRA226S-RTK ....EFGH............
Q 1004 87-A30-472-040 C-TR,KRA226S-RTK ....EFGH............
Q 1002 87-A30-472-040 C-TR,KRA226S-RTK ....EFGH............
S 1005 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1003 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1002 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1006 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1008 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1009 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1001 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1004 87-A90-001-080 1A C-SW,TACT SKQMAL ....EFGH............
S 1007 87-A90-001-080 1A C-SW,TACT SKQMAL ....EFGH............
S 1013 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1014 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1010 87-036-251-080 0E SW,T CT 6X3.5 160 ....EFGH............
S 1015 87-A90-001-080 1A C-SW,TACT SKQMAL ....EFGH............
S 1012 87-A90-001-080 1A C-SW,TACT SKQMAL ....EFGH............
S 1011 87-A90-001-080 1A C-SW,TACT SKQMAL ....EFGH............
VR 1001 87-A91-597-010 1B SW,RTRY SIM-026MT ....EFGH............
W 1001 8A-KT9-611-010 F-CABLE,3P 50MM ....EFGH............

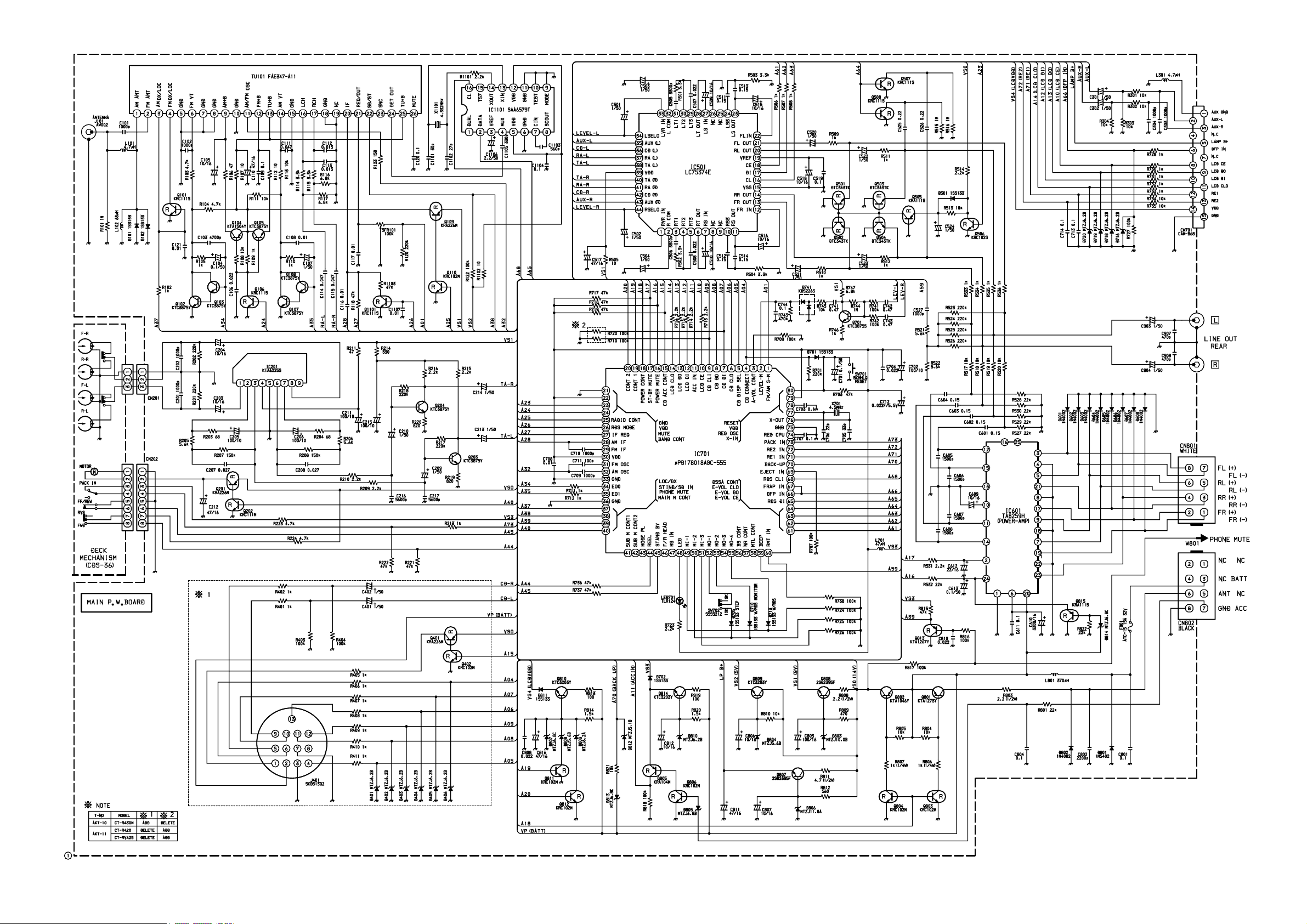

SCHEMATIC DIAGRAM-1 <R430M/R410/R420/RV425>

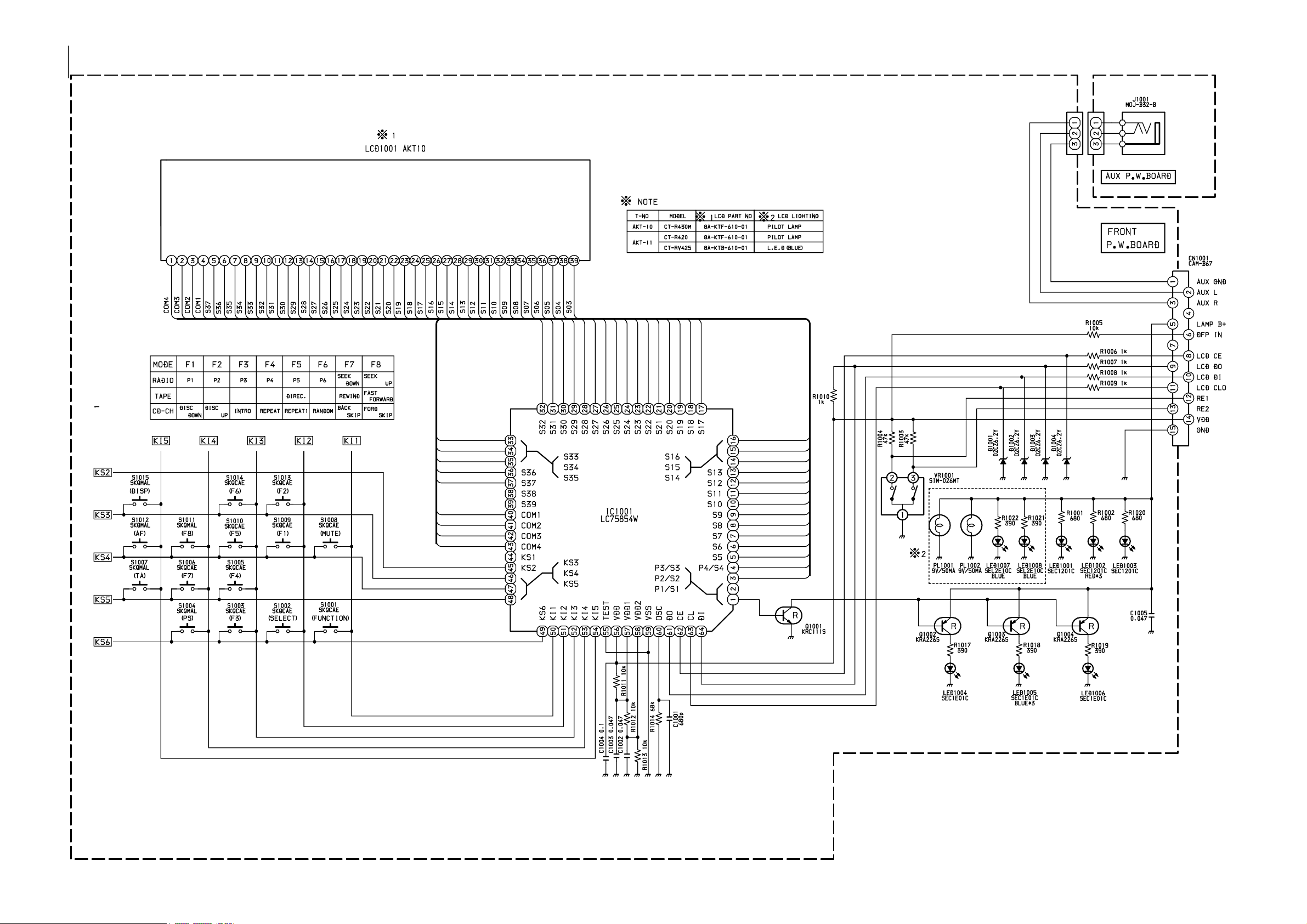

SCHEMATIC DIAGRAM-2 <R430M/R410/R420/RV425>

SCHEMATIC DIAGRAM-3 <X430M/X4300M>

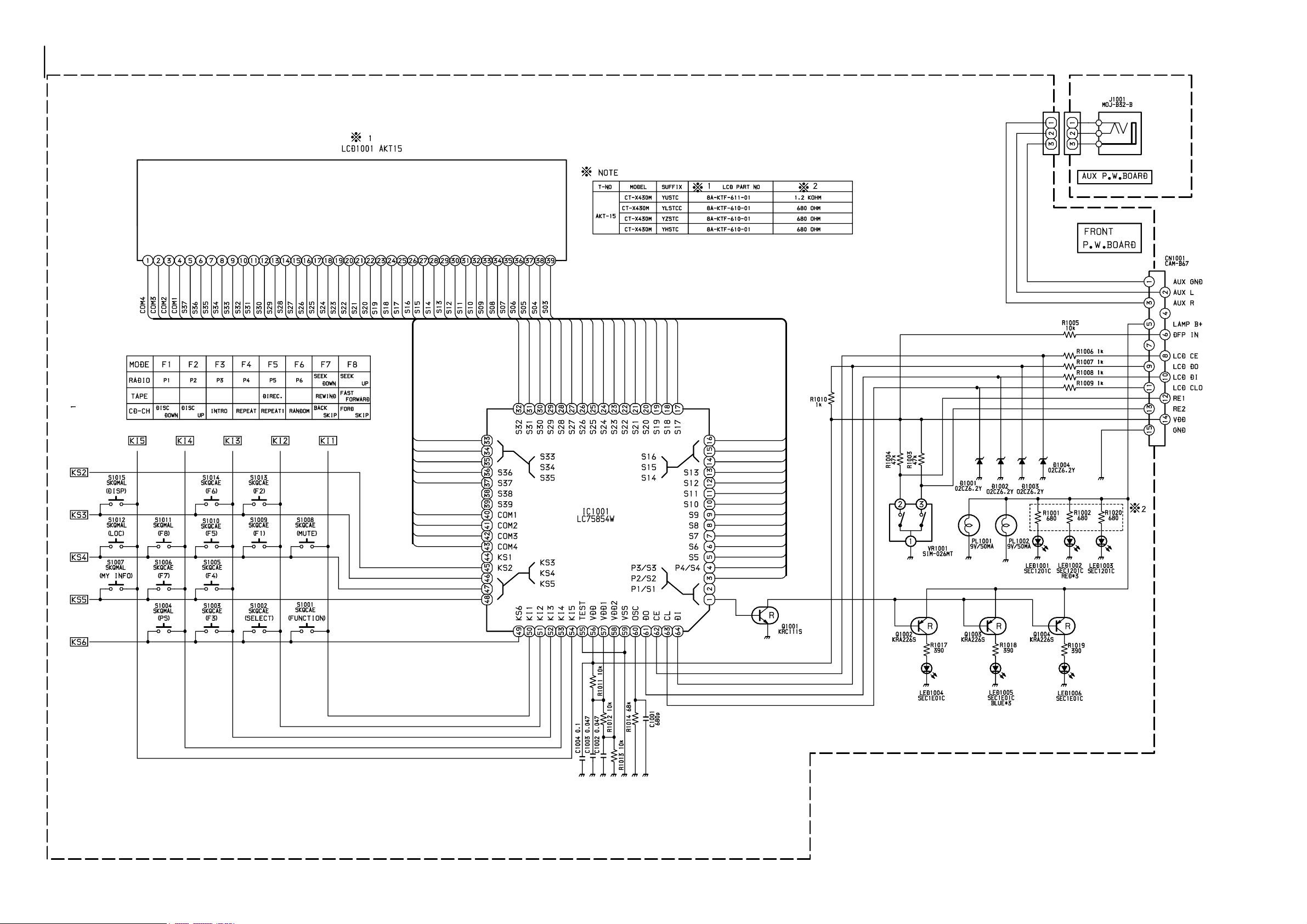

SCHEMATIC DIAGRAM-4 <X430M/X4300M>

MECHANICAL PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
R430M YZ ...............XX..................................A...................
R410 YZ ................XX...................................B..................
R420 YZ ................XX....................................C.................
RV425 YZ ...............XX.....................................D................
X430M YZ ...............XX.......................................F..............
X430M YH ...............XX........................................G.............
X4300M YL ..............XX.........................................H............
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-KT5-021-010 RING,RTRY A A...................
8A-KTA-001-010 WINDOW,LCD R430M A...................
8A-KTF-001-010 CABI,FRONT F A...................
8A-KTF-002-010 CABI,REAR F A...................
8A-KTF-003-010 CABI,TRIM F A...................
8A-KTF-004-010 WINDOW,L F A...................
8A-KTF-005-010 WINDOW,R F A...................
8A-KTF-014-010 CABI,BASE F A...................
8Z-KT1-023-110 DOOR,CASS A...................
8A-KT1-003-010 BTN,TA A...................
8A-KT1-004-010 BTN,AF A...................
8A-KT5-012-010 BTN,PWR A...................
8A-KT5-013-010 BTN,DISP A...................
8A-KT5-014-010 BTN,A/M A...................
8A-KTF-010-010 BTN,EJECT F A...................
8A-KTF-011-010 BTN,FF F A...................
8A-KTF-012-010 BTN,REW F A...................
8A-KTF-013-010 BTN,FNC F A...................
8A-KTF-015-010 BTN,DETACH A...................
8A-KTF-020-010 KNOB,RTRY NON RUBBER A...................
8A-KTG-003-010 BTN,UP/DN G A...................
8A-KTG-004-010 BTN,P.SET G A...................
87-KTE-205-010 SPR-C,EJ/FF/REW A...................
8A-KT5-204-010 HLDR,TR A...................
8A-KT5-210-010 HLDR,BTN MU A...................
8A-KT5-211-010 HLDR,BTN DISP A...................
8A-KTF-201-010 HLDR,IC F A...................
8A-KTF-202-010 HLDR,DECK F A...................
8A-KTF-204-010 HLDR,LCD F A...................
8A-KTF-205-010 LENS,ENCO F A...................
8A-KTF-206-010 LENS,R F A...................
8A-KTF-207-010 CASE,LCD F A...................
8A-KTF-208-010 LENS,LCD F A...................
8Z-KT1-211-010 COVER, TOP -T A...................
8Z-KT1-212-010 COVER, BOTTOM -T A...................
8Z-KT1-244-010 SPR-T,DOOR Z A...................
8Z-KT1-257-010 HLDR,ISO-WIRE -T A...................
8Z-KTA-203-010 LEVER,DFP LOCK -T10 A...................
8Z-KTA-204-110 LEVER,DEF HOOK -T10 A...................
8Z-KTA-221-010 SPR-C,DETACH LOCK-T10 A...................
8Z-KTA-222-010 SPR-T,DETACH LOCK-T10 A...................
8Z-KTA-223-010 SPR-C,RELEASE -T10 A...................
8Z-KTG-207-010 CAP,LAMP BLU B2*4 ALC A...................
87-251-073-410 0E SCREW,U+2.6-6 A...................
87-251-097-410 0E U+3-12 A...................
87-432-903-010 0E WASHER,WTE 2.6 A...................
87-B10-259-010 0E UT2+3.0-10.0 W/O SLOT (BH TAP) A...................
88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK A...................
8Z-KT1-253-010 S-SCREW,PT 2*8 BH+ BLK A...................
87-A61-225-010 1A JACK,PIN 2P XR-401 A...................
W 1001 8A-KT9-611-010 F-CABLE,3P 50MM A...................
8A-KT5-021-010 RING,RTRY A .BCD................
8A-KTB-001-010 WINDOW,LCD R420 ..C.................
8A-KTB-002-010 WINDOW,LCD RV425 ...D................
8A-KTB-005-010 WINDOW,R B .B..................
8A-KTB-006-010 WINDOW,L B .B..................
8A-KTB-007-010 WINDOW,LCD R410 .B..................
8A-KTF-001-010 CABI,FRONT F .BCD................
8A-KTF-002-010 CABI,REAR F .BCD................
8A-KTF-003-010 CABI,TRIM F .BCD................
8A-KTF-004-010 WINDOW,L F ..CD................
8A-KTF-005-010 WINDOW,R F ..CD................
8A-KTF-014-010 CABI,BASE F .BCD................
8Z-KT1-023-110 DOOR,CASS .BCD................
8A-KT1-003-010 BTN,TA ..CD................
8A-KT1-004-010 BTN,AF .BCD................
8A-KT5-012-010 BTN,PWR ..CD................
8A-KT5-013-010 BTN,DISP ..CD................
8A-KT5-014-010 BTN,A/M ..CD................
8A-KTF-010-010 BTN,EJECT F .BCD................
8A-KTF-011-010 BTN,FF F .BCD................
8A-KTF-012-010 BTN,REW F .BCD................
8A-KTF-013-010 BTN,FNC F .BCD................
8A-KTF-015-010 BTN,DETACH .BCD................
8A-KTF-020-010 KNOB,RTRY NON RUBBER .BCD................
8A-KTG-003-010 BTN,UP/DN G .BCD................
8A-KTG-004-010 BTN,P.SET G .BCD................
87-KTE-205-010 SPR-C,EJ/FF/REW .BCD................
8A-KT5-204-010 HLDR,TR .BCD................
8A-KT5-210-010 HLDR,BTN MU .BCD................
8A-KT5-211-010 HLDR,BTN DISP .BCD................

MECHANICAL PARTS LIST - 2
8A-KT5-219-010 HLDR,ISO-WIRE 5 .BCD................
8A-KTB-201-010 CASE,LCD B ...D................
8A-KTB-202-010 LENS,LCD B ...D................
8A-KTB-205-010 LENS,ENCO B .B..................
8A-KTF-201-010 HLDR,IC F .BCD................
8A-KTF-202-010 HLDR,DECK F .BCD................
8A-KTF-204-010 HLDR,LCD F .BC.................
8A-KTF-205-010 LENS,ENCO F ..CD................
8A-KTF-206-010 LENS,R F .BCD................
8A-KTF-207-010 CASE,LCD F .BC.................
8A-KTF-208-010 LENS,LCD F .BC.................
8Z-KT1-211-010 COVER, TOP -T .BCD................
8Z-KT1-212-010 COVER, BOTTOM -T .BCD................
8Z-KT1-244-010 SPR-T,DOOR Z .BCD................
8Z-KT4-201-010 COVER, CD BLIND -T .BCD................
8Z-KTA-203-010 LEVER,DFP LOCK -T10 .BCD................
8Z-KTA-204-110 LEVER,DEF HOOK -T10 .BCD................
8Z-KTA-221-010 SPR-C,DETACH LOCK-T10 .BCD................
8Z-KTA-222-010 SPR-T,DETACH LOCK-T10 .BCD................
8Z-KTA-223-010 SPR-C,RELEASE -T10 .BCD................
8Z-KTG-207-010 CAP,LAMP BLU B2*4 ALC ..C.................
8Z-KTG-209-010 CAP,LAMP ORN .B..................
* 8A-KTB-203-010 HLDR,LCD B ...D................
87-251-073-410 0E SCREW,U+2.6-6 .BCD................
87-251-097-410 0E U+3-12 .BCD................
87-432-903-010 0E WASHER,WTE 2.6 .BCD................
87-B10-259-010 0E UT2+3.0-10.0 W/O SLOT (BH TAP) .BCD................
88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK .BCD................
8Z-KT1-253-010 S-SCREW,PT 2*8 BH+ BLK .BCD................
W 1001 8A-KT9-611-010 F-CABLE,3P 50MM .BCD................
8A-KT5-021-010 RING,RTRY A ....EFGH............
8A-KTF-001-010 CABI,FRONT F ....EFGH............
8A-KTF-002-010 CABI,REAR F ....EFGH............
8A-KTF-003-010 CABI,TRIM F ....EFGH............
8A-KTF-004-010 WINDOW,L F ....EFGH............
8A-KTF-005-010 WINDOW,R F ....EFGH............
8A-KTF-007-010 WINDOW,LCD F ....E...............
8A-KTF-008-010 WINDOW,LCD X4300M .......H............
8A-KTF-009-010 WINDOW,LCD X430M 40W .....FG.............
8A-KTF-014-010 CABI,BASE F ....EFGH............
8Z-KT1-023-110 DOOR,CASS ....EFGH............
8A-KT5-012-010 BTN,PWR ....EFGH............
8A-KT5-013-010 BTN,DISP ....EFGH............
8A-KT5-014-010 BTN,A/M ....EFGH............
8A-KT5-015-010 BTN,LO ....EFGH............
8A-KT5-016-010 BTN,INFO ....EFGH............
8A-KT5-017-010 BTN,UP/DN ....EFGH............
8A-KTF-010-010 BTN,EJECT F ....EFGH............
8A-KTF-011-010 BTN,FF F ....EFGH............
8A-KTF-012-010 BTN,REW F ....EFGH............
8A-KTF-013-010 BTN,FNC F ....EFGH............
8A-KTF-015-010 BTN,DETACH ....EFGH............
8A-KTF-020-010 KNOB,RTRY NON RUBBER ....EFGH............
8A-KTG-004-010 BTN,P.SET G ....EFGH............
87-KTE-205-010 SPR-C,EJ/FF/REW ....EFGH............
8A-KT5-204-010 HLDR,TR ....EFGH............
8A-KT5-210-010 HLDR,BTN MU ....EFGH............
8A-KT5-211-010 HLDR,BTN DISP ....EFGH............
8A-KT5-216-010 HLDR,DIN 13P ....EFGH............
8A-KTF-201-010 HLDR,IC F ....EFGH............
8A-KTF-202-010 HLDR,DECK F ....EFGH............
8A-KTF-204-010 HLDR,LCD F ....EFGH............
8A-KTF-205-010 LENS,ENCO F ....EFGH............
8A-KTF-206-010 LENS,R F ....EFGH............
8A-KTF-207-010 CASE,LCD F ....EFGH............
8A-KTF-208-010 LENS,LCD F ....EFGH............
8Z-KT1-211-010 COVER, TOP -T ....EFGH............
8Z-KT1-212-010 COVER, BOTTOM -T ....EFGH............
8Z-KT1-244-010 SPR-T,DOOR Z ....EFGH............
8Z-KT1-257-010 HLDR,ISO-WIRE -T .....F..............
8Z-KT5-201-010 COVER, ISO BLIND -T ....E.GH............
8Z-KTA-203-010 LEVER,DFP LOCK -T10 ....EFGH............
8Z-KTA-204-110 LEVER,DEF HOOK -T10 ....EFGH............
8Z-KTA-221-010 SPR-C,DETACH LOCK-T10 ....EFGH............
8Z-KTA-222-010 SPR-T,DETACH LOCK-T10 ....EFGH............
8Z-KTA-223-010 SPR-C,RELEASE -T10 ....EFGH............
8Z-KTG-207-010 CAP,LAMP BLU B2*4 ALC ....EFGH............
87-251-073-410 0E SCREW,U+2.6-6 ....EFGH............
87-251-097-410 0E U+3-12 ....EFGH............
87-432-903-010 0E WASHER,WTE 2.6 ....EFGH............
87-B10-259-010 0E UT2+3.0-10.0 W/O SLOT (BH TAP) ....EFGH............
88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK ....EFGH............
8Z-KT1-253-010 S-SCREW,PT 2*8 BH+ BLK ....EFGH............
W 1001 8A-KT9-611-010 F-CABLE,3P 50MM ....EFGH............

ACCESSORIES LIST
NOTE: The characters in the suffix column indicate the part usage.
R430M YZ ...............XX..................................A...................
R410 YZ ................XX...................................B..................
R420 YZ ................XX....................................C.................
RV425 YZ ...............XX.....................................D................
X430M YZ ...............XX.......................................F..............
X430M YH ...............XX........................................G.............
X4300M YL ..............XX.........................................H............
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-KT3-902-010 IB,INST,YZ (9L)-A .....F..............
8A-KT5-902-010 IB,INST,YU,YL (3L,P) ....E..H............
8A-KT5-908-010 IB,INST,YH,Y (E CK CH A)-A ......G.............
8A-KTF-901-010 IB,YU(3L) 430M ....E...............
8A-KTF-902-010 IB,YL(3L) 4300M .......H............
8A-KTF-903-010 IB,YZ(9L) 430M .....F..............
8A-KTF-904-010 IB,YH(E CK CH) 430M ......G.............
8A-KT3-902-010 IB,INST,YZ (9L)-A .BCD................
8A-KTA-901-010 IB,YZ(9L) R430M,420,RV425 .BCD................
8A-KT3-902-010 IB,INST,YZ (9L)-A A...................
8A-KTA-901-010 IB,YZ(9L) R430M,420,RV425 A...................
86-KT1-237-010 HLDR,REAR MTG ....EFGH............
87-B10-141-010 0E NUT,5 TYPE-2 ....EFGH............
* 87-B10-143-010 0E UT1+5-15 W/O SLOT ....EFGH............
87-B10-144-010 0E W,5.2-10-0.5 ....EFGH............
87-B10-145-010 0E W-SPR,5.3-8.5-1.5 ....EFGH............
* 88-KT1-247-010 S-SCREW,HEXAGON ....EFGH............
88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK ....EFGH............
8Z-KT1-030-010 CASE,DFP -T ....EFGH............
8Z-KT1-231-010 HLDR,HALF -T ....EFGH............
8Z-KT1-232-010 KEY,REMOVE -T ....EFGH............
* 8Z-KT1-251-010 S-SCREW,5*6 TH+ TAPPING ST ....EFGH............
* 8Z-KT1-625-010 CONN ASSY,16P SOC016 ....E.GH............
86-KT1-237-010 HLDR,REAR MTG .BCD................
87-B10-141-010 0E NUT,5 TYPE-2 .BCD................
* 87-B10-143-010 0E UT1+5-15 W/O SLOT .BCD................
87-B10-144-010 0E W,5.2-10-0.5 .BCD................
87-B10-145-010 0E W-SPR,5.3-8.5-1.5 .BCD................
* 88-KT1-247-010 S-SCREW,HEXAGON .BCD................
88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK .BCD................
8Z-KT1-030-010 CASE,DFP -T .BCD................
8Z-KT1-231-010 HLDR,HALF -T .BCD................
8Z-KT1-232-010 KEY,REMOVE -T .BCD................
* 8Z-KT1-251-010 S-SCREW,5*6 TH+ TAPPING ST .BCD................
86-KT1-237-010 HLDR,REAR MTG A...................
87-B10-141-010 0E NUT,5 TYPE-2 A...................
* 87-B10-143-010 0E UT1+5-15 W/O SLOT A...................
87-B10-144-010 0E W,5.2-10-0.5 A...................
87-B10-145-010 0E W-SPR,5.3-8.5-1.5 A...................
* 88-KT1-247-010 S-SCREW,HEXAGON A...................
88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK A...................
8Z-KT1-030-010 CASE,DFP -T A...................
8Z-KT1-231-010 HLDR,HALF -T A...................
8Z-KT1-232-010 KEY,REMOVE -T A...................
* 8Z-KT1-251-010 S-SCREW,5*6 TH+ TAPPING ST A...................

2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]
931196 Printed in Singapore
