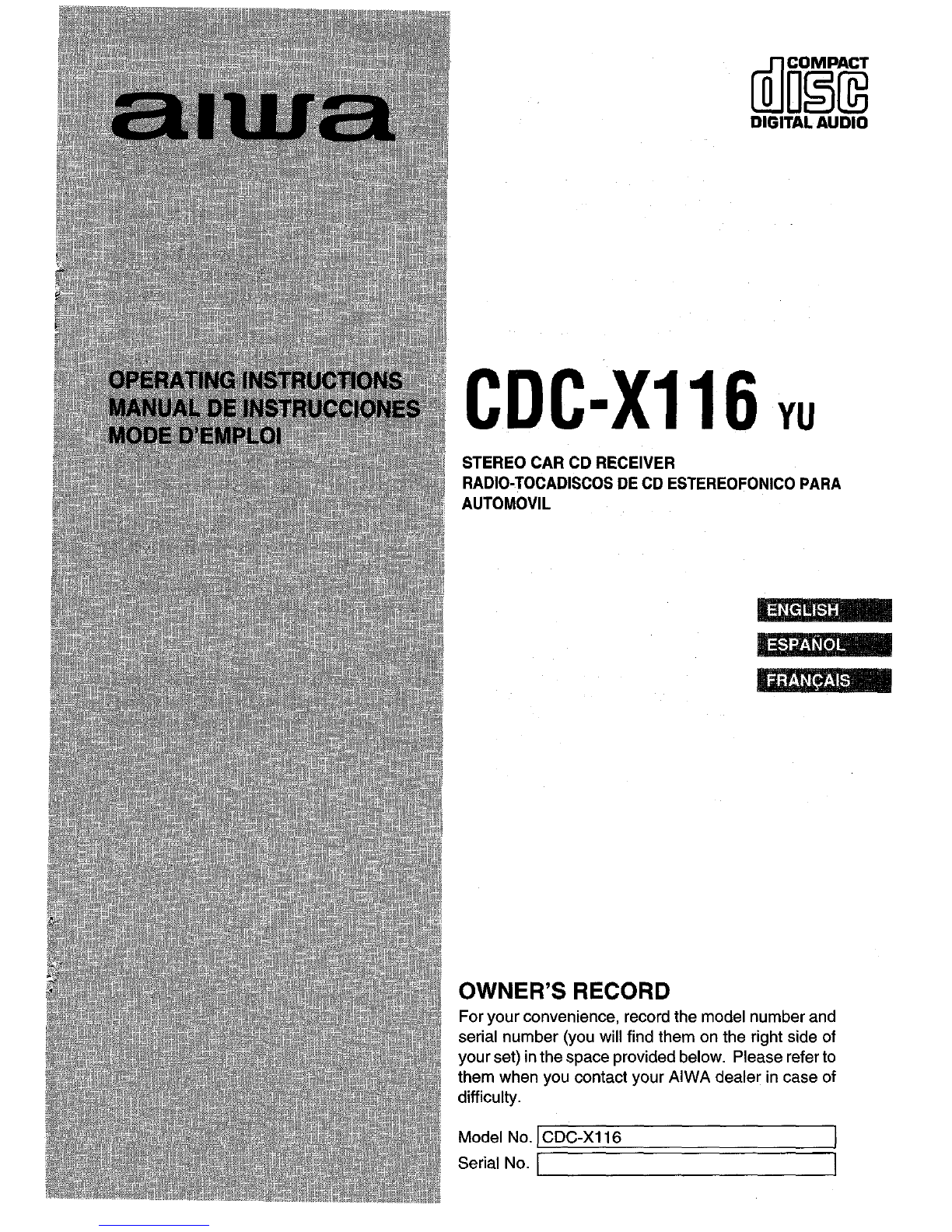

Aiwa CDC-X116 YU User manual

~~gAA
DIGITAL AUDIO
CDC”XI16Y“
STEREO CAR CD RECEIVER
RADIO-TOCADISCOS DE CD ESTEREOFONICO PARA
AUTOMOVIL
OWNER’S RECORD
For your convenience, record the model number and
serial number (you will find them on the right side of
your set) in the space provided below. Please refer to
them when you contact your AIWA dealer in case of
difficulty.
Model No. ]CDC-X116 1
Serial No. ~
II

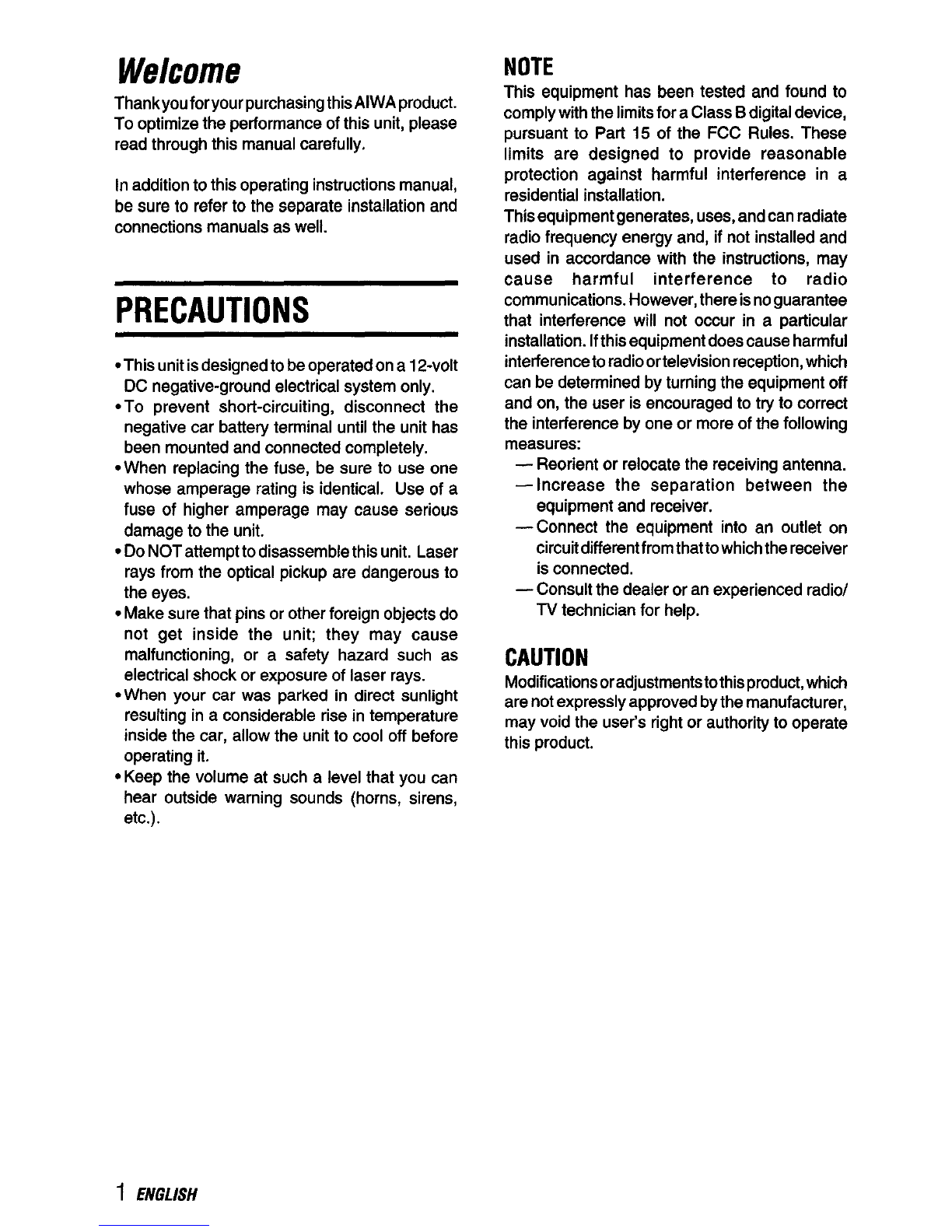

Welcome
Thank you for your purchasing thisAIWA product.
To optimize the performance of this unit, please
read through this manual carefully.
In addition to this operating instructions manual,
be sure to refer to the separate installation and
connections manuals as well.
PRECAUTIONS
●This unit is designed to be operated on a 12-volt
DC negative-ground electrical system only.
●To prevent short-circuiting, disconnect the
negative car battery terminal until the unit has
been mounted and connected completely.
●When replacing the fuse, be sure to use one
whose amperage rating is identical. Use of a
fuse of higher amperage may cause serious
damage to the unit.
●Do NOT attempt to disassemble this unit. Laser
rays from the optical pickup are dangerous to
the eyes.
●Make sure that pins or other foreign objects do
not get inside the unit; they may cause
malfunctioning, or asafety hazard such as
electrical shock or exposure of laser rays.
.When your car was parked in direct sunlight
resulting in aconsiderable rise in temperature
inside the car, allow the unit to cool off before
operating it.
●Keep the volume at such alevel that you can
hear outside warning sounds (horns, sirens,
etc.).
NOTE
This equipment has been tested and found to
comply with the limits for aClass Bdigital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in aparticular
installation. Ifthis equipment does cause harmful
interference to radio ortelevision reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
—Connect the equipment into an outlet on
circuit different from that to which the receiver
is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modifications oradjustmentstothis product, which
are not expressly approved by the manufacturer,
may void the user’s right or authority to operate
this product.
1ENGLISH

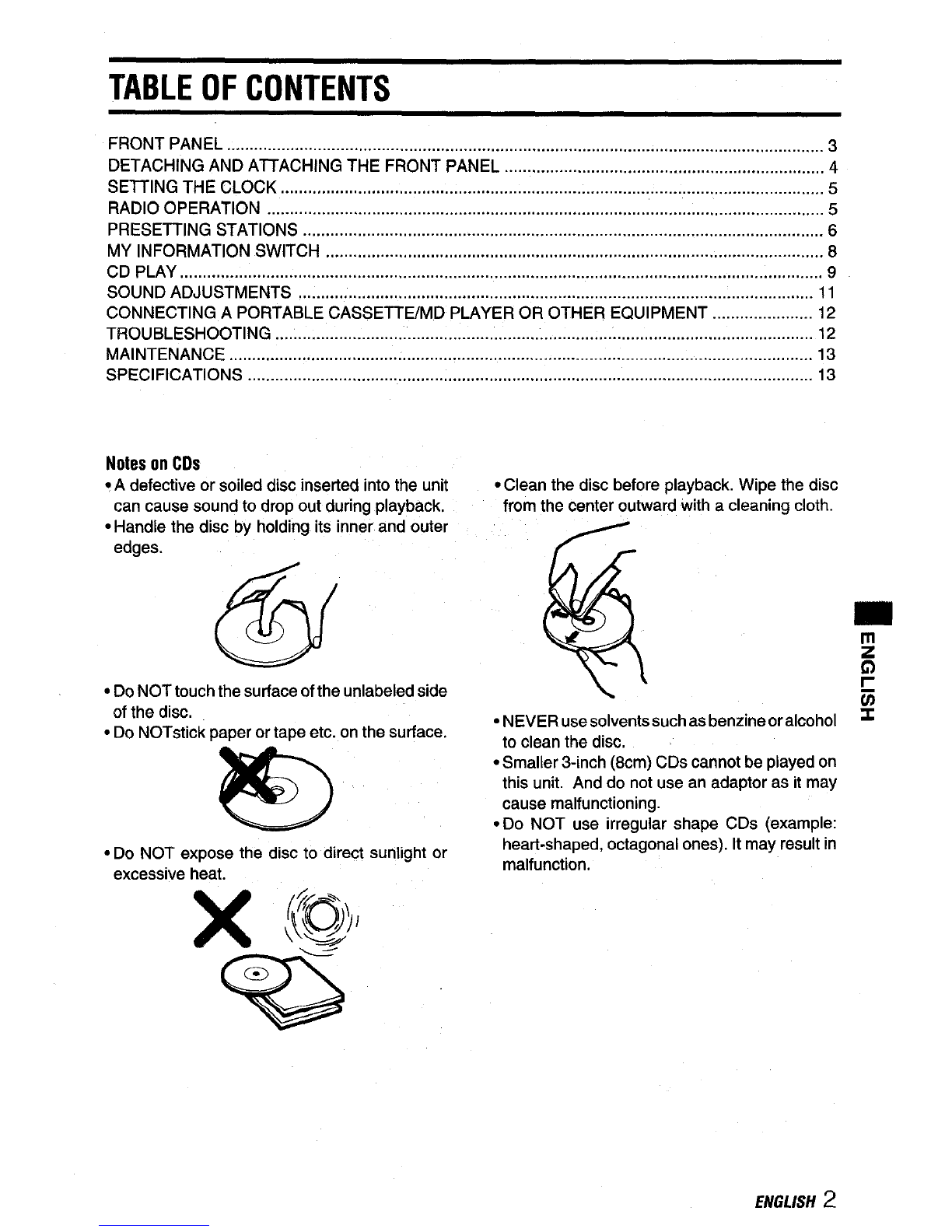

TABLE OF CONTENTS
FRONT PANEL ................................................................................................................................... 3
DETACHING AND AITACHING THE FRONT PANEL ...................................................................... 4
SETTING THE CLOCK ....................................................................................................................... 5
RADIO OPERATION .......................................................................................................................... 5
PRESETTING STATIONS .................................................................................................................. 6
MY INFORMATION SWITCH ............................................................................................................. 8
CD PLAY ............................................................................................................................................. 9
SOUND ADJUSTMENTS ................................................................................................................. 11
CONNECTING APORTABLE CASSETTE/MD PLAYER OR OTHER EQUIPMENT ...................... 12
TROUBLESHOOTING ...................................................................................................................... 12
MAINTENANCE ................................................................................................................................ 13
SPECIFICATIONS ............................................................................................................................ 13
Noteson CDs
●
Adefective orsoiled disc inserted into the unit
can cause sound to drop out during playback.
●Handle the disc by holding its inner and outer
edges.
●Do NOT touch the surface of the unlabeled side
of the disc.
●Do NOTstick paper or tape etc. on the surface.
●Do NOT expose the disc to dkect sunlight or
excessive heat.
●Clean the disc before playback. Wipe the disc
from the center outward with acleaning cloth.
.
●NEVER usesolvents suchasbenzine oralcohol =
to clean the disc.
●Smaller 3-inch (8cm) CDs cannot be played on
this unit. And do not use an adaptor as it may
cause malfunctioning.
●Do NOT use irregular shape CDs (example:
heart-shaped, octagonal ones). It may result in
malfunction,
ENGLISH 2

FRONTPANEL
Eii9isi
1234 56
??
78910
.
Displaywindow
@+/– (audio control) button
@PWR (power otioff) button
@SEL (select) button
@H.BASS button
@Disc compsrtmsnt
@BAND bunon
@A(eject) button
@~(release) button
@A.ME (auto memory/preset SCWt) fXtttOtI
@TUNE 71Abuttons
@TAPE/MD IN jack (3.5-mm dia.)
@MUTE button
@Preset station buttons 1-6
@W(back skip) button
@bPf (forward skip) button
@IINT (intro) button
@REP1 (repeat 1) button
@RANDOM button
@CD (CD play/pause) button
@DISP (display) button
@MY INFO (my information) button
@TAPEhID IN button
o
39
@SCAN indicator
@RANDOM indicator
@JTAPE indicator
@REPEAT indicator
@VOL (volume) indicator
@lBAS (bass) indicator
@TRE (treble) indicator
@BAL (balance) indicator
@FAD (fader) indicator
@MY INFO (my information) indicator
@Audio control indications
@H BASS indicator
@CD indicator
(?$Band indicator
@TracWPreset number indication
@AWPM indicator
@Main display section
@LO (local) indicator
@ST (stereo) indicator
3ENGLISH

DETACHING AND
ATTACHING THE FRONT
PANEL
kd
You can detach the front panel from the unit and
carry it with you when you leave your car
unattended.
When you carty the front panel out of your car,
use the supplied carrying case.
Before detaching the front panel, remove the disc
to prevent possible damage to thle unit.
1
2
3
Press PWR to turn the unit off.
While supporting the front panel-with
one hand, press I?Ito rele!aseone side
of the panel. Care must be taken not to
drop the panel. It may sudldenlyeject at
this point.
When the front panel is Wted from the
unit, remove it by pulling away from the
unit.
Attaching the front panel
/
Security Lamp
When the front panel is detached, you can find an
LED lamp on the front side of the unit. This lamp
is designed to deter theft, and continues to flash
when the front panel is detached. This unit is not
equipped with any other security systems such
as asecuriw alarm, so there are limitations to its
effectiveness.
LED’lamp
Do NOT touch the connector on the reverse
side of the front panel, as doing so may
contaminate the connector and cause apoor
connection resulting in amalfunction.
ENGLISH 4

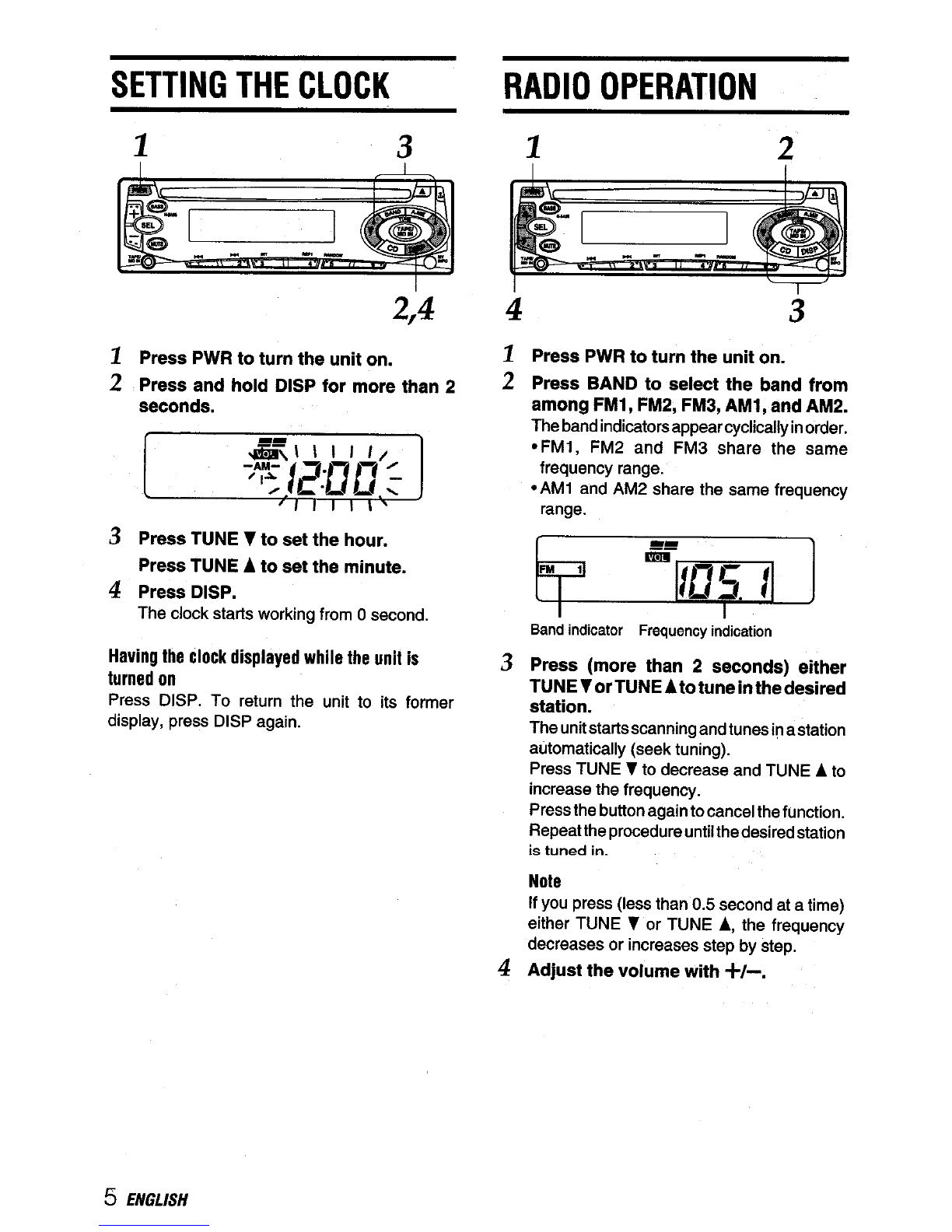

SETTING THE CLOCK RADIO OPERATION
13
2,4
IPress PWR to turn the unit on.
zPress and hold DISP for more than 2
seconds.
sPress TUNE 7to set the hour.
Press TUNE Ato eet the minute.
4Press DISP.
The clock starts working from Osecond.
Having the clock displayed while the unit is
turned on
Press DISP. To return the unit to its former
display, press DISP again,
12
4
1
2
3
4
3
Press PWR to turn the unit on.
Press BAND to select the band from
among FM1, FM2, FM3, AM1, and AM2.
The band indicators appear cyclically inorder.
●FM1, FM2 and FM3 share the same
frequency range.
●AM1 and AM2 share the same frequency
range.
Bandindicator Frequencyindication
Press (more than 2seconds) either
TUNE YorTUNE Atotune inthedesired
station.
The unit starts scanning and tunes in astation
automatically (seek tuning).
Press TUNE Yto decrease and TUNE Ato
increase the frequency.
Press the button again to cancel the function.
Repeat the procedure until the desired station
is tuned in.
Note
If you press (less than 0.5 second at atime)
either TUNE Vor TUNE A, the frequency
decreases or increases step by step.
Adjust the volume with +/-.
5ENGLISH

To turn the unit off
Press PWR.
Note
The “ST” indicator lights up when the tuned-in
station is broadcasting in stereo and the reception
is good.
PRESETTING STATIONS
1
2
123
3
Press PWR to turn the unit on.
Press BAND to select adesired bsnd
from among FM1, FM2, FM3, AM1, and
AM2.
Press and hold A.ME for more than 2
seconds to activate the automatic
presetting function.
This unit can store up to 6stations in memory
for the preset station buttons 1to 6with “LO
(local) indicator lighting up.
Ifthe unit could not search for all of 6stations,
“LO (local) indicator goes off and starts
searching for weaker stations again.
Use this function to automatically preset up to 6
stations each for FM1, FM2, FM3, AM1, and AM2
(up to atotal of 30 stations).
●When auto memory is completed, the station
stored in the preset station button 1is tuned in.
●To stop auto memory, press A.ME again.
To checkthepresetstations(presetscan)
●If you wish to check the preset stations, press
A.ME forlessthan 2seconds. The preset stations
stored in memory will be tuned in for 5seconds
each in order.
●To stop this function, press A.ME again or press
any of the preset station buttons 1to 6.
mm
ENGLISH 6

PRESETTINGSTATIONS
You can manually preset stations that have not
been selected by auto memory.
1 3
1
2
3
4
42
Press PWR to turn the unit on.
Prees BAND to select the band from
among FM1, FM2, FM3, AM1, snd AM2.
Tune in the station that you wish to
preset with TUNE Yor TUNE A.
Prees one of the preset station buttons
1to 6for appro~mately 2seconds.
While the station you are presetting is being
registered in memory, the sound is
momentarily muted.
The number of the pressed preset station
button appears next to the frequency
indication.
Presetlnumber
12
3
1
2
3
Prees PWR to turn the unit on,
Press BAND to select adesired band
from among FMI, FM2, FM3, AM1, and
AM2.
Press the desired preset station button.
The number of the-pressed preset station
button appears next to the frequency
indication.
Active tuning reception control (ATRC)
This unit automatically suppresses FM noise
caused by varying signal strength resulting from
movement of the car.
●The built-in automatic blending circuit mixes the
left and right channel signals according to the
strength of the reception. At the same time, the
high-cut circuit activates to maintain the sound
quality.
●If the reception becomes even weaker, the unit
automatically switches to Monaural mode, to
reduce noise.
Repeat these procedures to preset up to 6stations
each for FM1, FM2, FM3, AM1, and AM2.
●If you try to preset astation on a preset station
button on which another station of the same
band has already been preset, the previously
preset station will be erased.
7ENGLISH

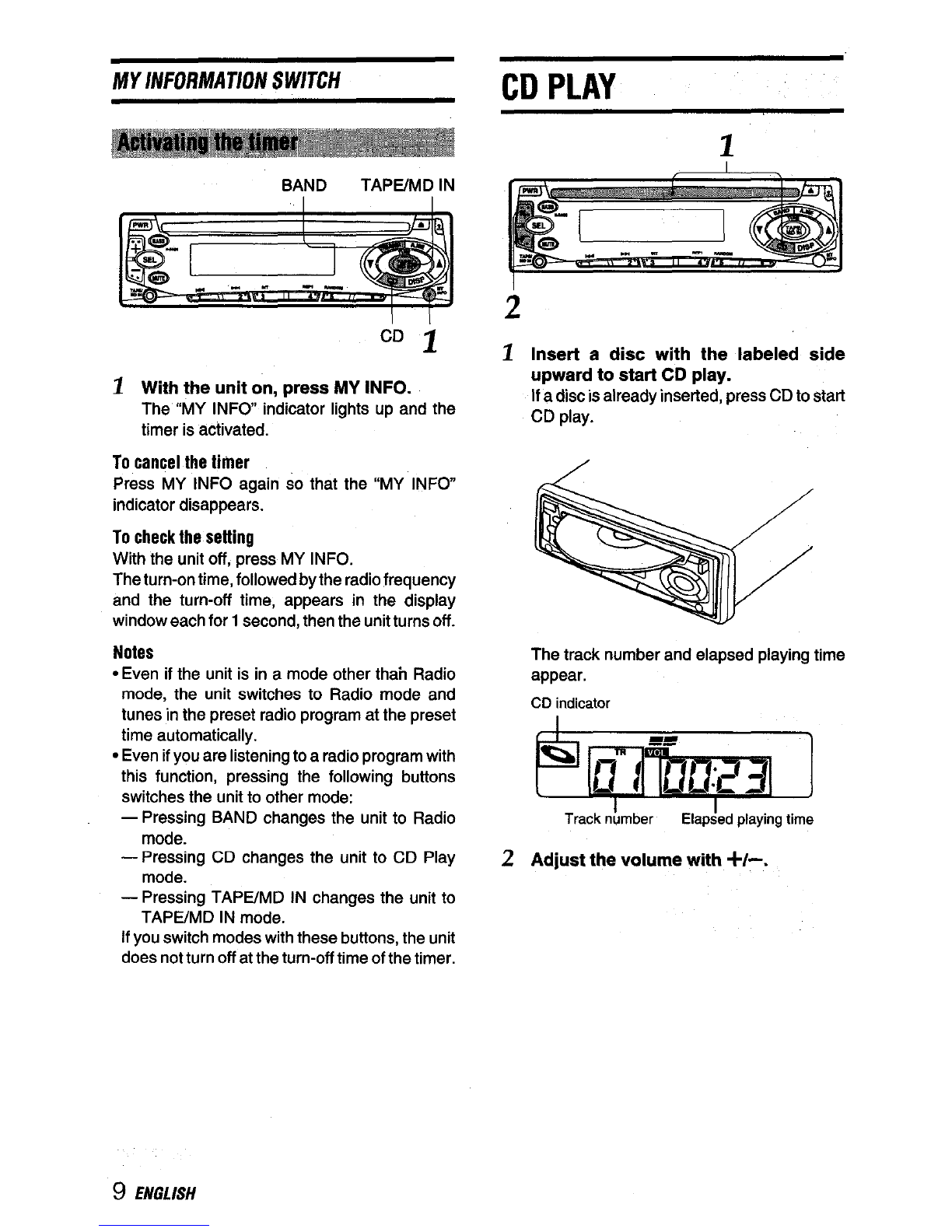

MY INFORMATION
SWITCH
You can timer-activate the radio for adaily radio
program. The unit turnson and off in Radio mode
at the preset time automatically.
2,4,7 3,6,8
51;9
1
2
3
With the unit off, press snd hold MY
INFO for more than 2seconds.
The “PO indication flashes in the display
window.
Press SEL.
Timer indication flashes.
Set the time you wish the unit to turn on
in Radio mode.
Press TUNE Yto set the hour.
Press TUNE Ato set the minute.
4
5
6
7
8
9
Press SEL.
Radio indication flashes.
Band indicator
Press BAND to select the bsnd.
Tune in the station that you wish to
preset with TUNE Vor TUNE A.
Press SEL.
Timer indication flashes.
Set the time you wish the unit to turn
off.
Press TUNE Vto set the hour.
Press TUNE Ato set the minute.
Press snd hold MY INFO for more than
2seconds.
Your sefting is stored in memory and the unit
turns off.
ENGLISH 8

MY lltlF&’MlwlT/mSWITCH
BAND TAPE/MD IN
(d,~,q )
*-
D_
CD 1
~With the unit on, press MY INFO.
The “MY INFO indicator lights up and the
timer is activated.
To cancel the timer
Press MY INFO again so that the “MY INFO
indicator disappears.
To check the setting
With the unit off, press MY INFO.
The turn-on time, followed by the radio frequency
and the turn-off time, appears in the display
window each for 1second, then the unit turns off.
Notes
●Even if the unit is in amode other thah Radio
mode, the unit switches to Radio mode and
tunes in the preset radio program at the preset
time automatically.
●Even if you are listening to aradio program with
this function, pressing the following buttons
switches the unit to other mode:
—Pressing BAND changes the unit to Radio
mode.
—Pressing CD changes the unit to CD Play
mode.
—Pressing TAPE/MD IN changes the unit to
TAPE/MD IN mode.
If you switch modes with these buttons, the unit
does not turn off at the turn-off time of the timer.

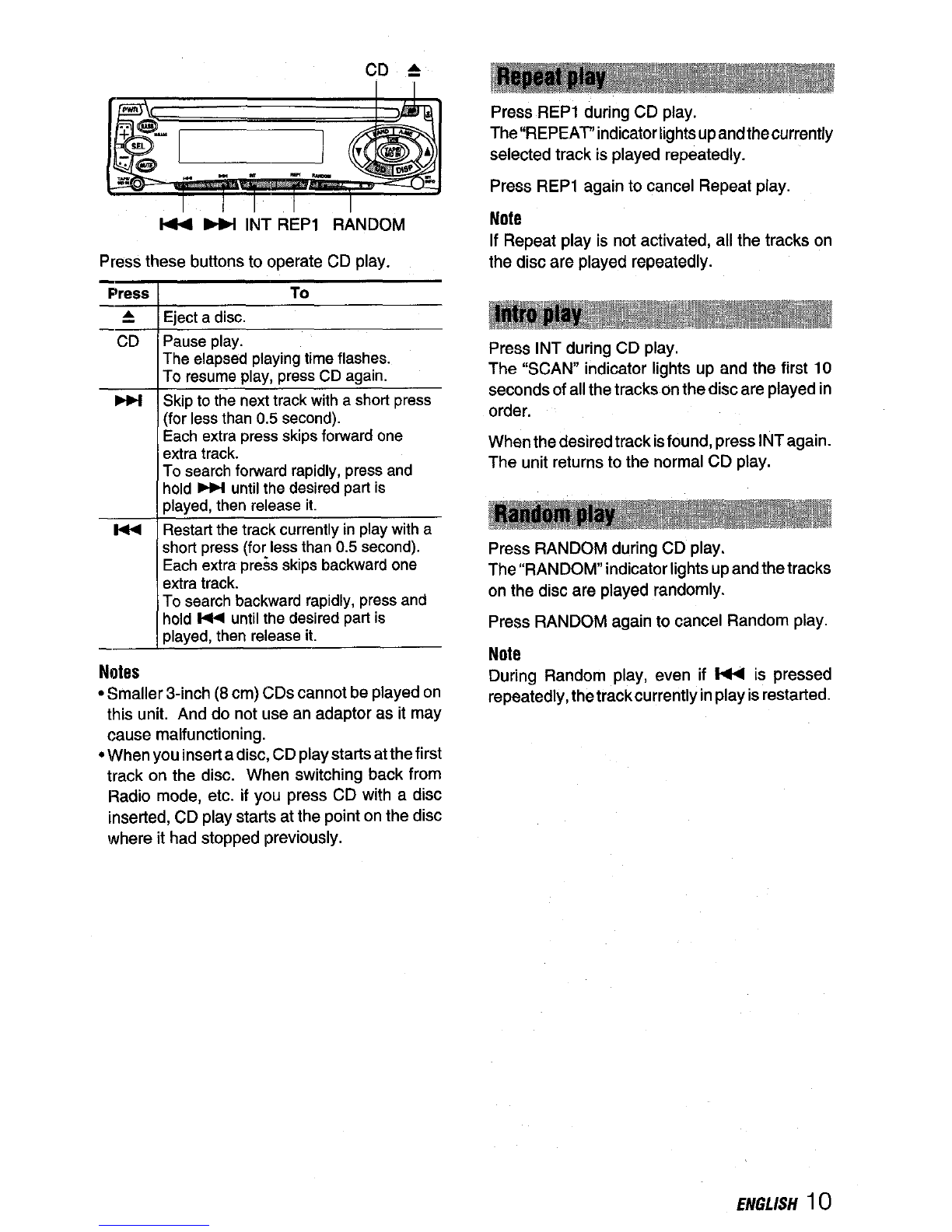

CD PLAY
2
1
2
Insert adisc with the labeled side
upward to start CD play.
If adisc is already inserted, press CD to start
CD play.
The track number and elapsed playing time
appear.
CD indicator
Track n~mber Elap~edplayingtime
Adjust the volume with +/-.
9ENGLISH

CQ &
W~INTREP1 RANDOM
Press these buttons to operate CD play.
Press To
&Eject adisc.
—CD Pause play.
The elapsed playing time flashes.
To resume play, press CD again.
*Skip to the next track with ashort press
(for less than 0.5 second).
Each extra press skips forward one
extra track.
To search forward rapidly, press and
hold -until the desired part is
Dlaved. then release it.
144 Restart the track currently in play with a
short press (fo[ less than 0.5 second).
Each extra press skips backward one
extra track.
To search backward rapidly, press and
hold Muntil the desired part is
played, then release it.
—
Notes
●Smaller 3-inch (8 cm) CDs cannot be played on
this unit. Anddonot useanadaptor as it may
cause malfunctioning.
●When you inserla disc, CD play starts at the first
track on the disc. When switching back from
Radio mode, etc. if you press CD with adisc
inserted, CD play starts at the point on the disc
where it had stopped previously.
Press REP1 during CD play.
The’’REPEAT” indicator lights upandthecurrently
selected track is played repeatedly.
Press REP1 again to cancel Repeat play.
Note
If Repeat play is not activated, all the tracks on
the disc are played repeatedly.
Press INT during CD play.
The “SCAN indicator lights up and the first 10
seconds of all the tracks on the disc are played in
order.
When the desired track isfound, press INT again.
The unit returns to the normal CD play.
Press RANDOM during CD play.
The “RANDOM indicator lights up and the tracks
on the disc are played randomly.
Press RANDOM again to cancel Random play.
Note
During Random play, even if ~is pressed
repeatedly, the track currently in play is restarted.
ENGLISH 10

SOUNDADJUSTMENTS
~H-BASS 2
3
1
2
3
MUTE
Press PWR to turn the unit on,
Press SEL to select the mode that you
wish to adjust from: VOL (volume), BAS
(bass), TRE(trebie), BAL(balance), FAD
(fader).
The following indicators appear incyclic order.
pm+m”m”m”ml
The selected mode switches to Volume mode
if you do not proceed with step 3within 5
seconds.
Press +/– to adjust the Iaval.
Press and hold eit~er botton to change the
level rapidly.
Adjust each mode referring to the audio
control indications in the display window.
1-
~level of the right
speaker(s)
Decreases the
~level of the front
soeakers
+
Increases the
volume level
Increases the
bass level
You can enjoy music with strong bass sound,
H-BASS
I
Press H-BASS to obtain powerful bass.
The” figASS” indicator lights up.
Press H-BASS again to cancel H-BASS.
Increases the
treble level
Decreases the
level of the left
spaaker(s)
Decreases the
level of the rear
soeakers
Without selecting any mode with SEL, only
the volume level can be adjusted by pressing
+/-.
MUTE button
Press this button to temporarily lower the volume.
Press it again to restore the previous volume.
The audio control indications inthe display window
flash while the mute function is activated.
1IENGL/SH

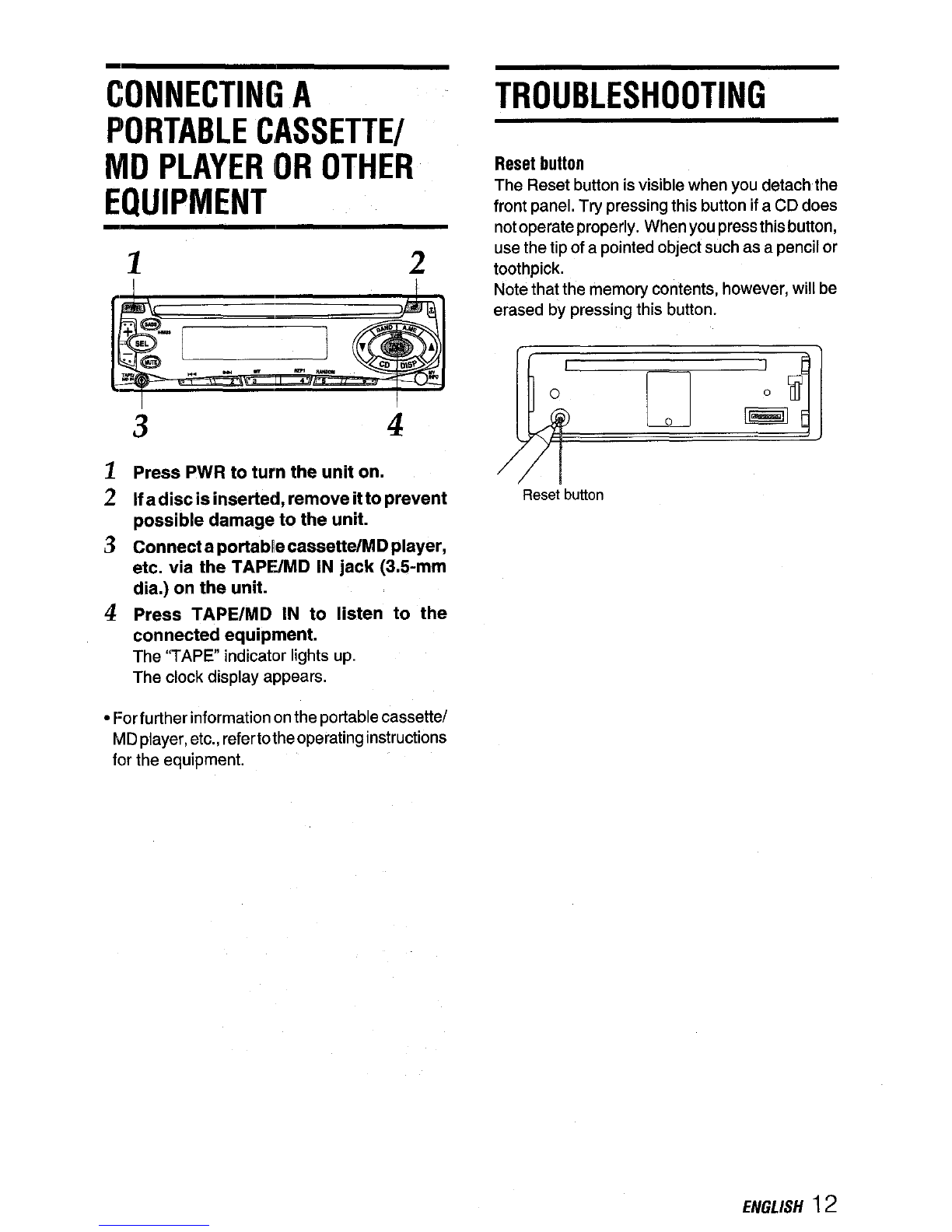

CONNECTING A
PORTABLE CASSETTE/
MD PLAYER OR OTHER
EQUIPMENT
1 2
1
2
3
4
34
Press PWR to turn the unit on.
Ifadisc is inserted, remove itto prevent
possible damage to the unit.
Connect apotiab!e cassette/MD player,
etc. via the TAPE/MD IN jack (3.5-mm
dia.) on the unit.
Press TAPE/MD IN to listen to the
connected equipment.
The “TAPE indicator lights up.
The clock display appears.
TROUBLESHOOTING
Reset button
The Reset button is visible when you detach the
front panel. Try pressing this button if aCD does
not operate properly. When you press this burton,
use the tip of apointed object such as apencil or
toothpick.
Note that the memory contents, however, will be
erased by pressing this button.
Reset button
cFor further information on the portable cassette/
MD player, etc., refertothe operating instructions
for the equipment.
ENGLISH 12

MAINTENANCE SPECIFICATIONS
Cleaning the front panel
When the front panel is soiled, wipe the surface
of the panel with adry and soft cloth.
Cleaning the connector
The connector on the reverse side of the front
panel needs to be cleaned occasionally. Wipe
the surface of the connector with acotton swab
slightly moistened with alcohol.
RADIO SECTION
(FM)
FrequencyRange S7.5MHz–1OSMHz
(100-kHzsteps)
87.5 MHz-IOS MHz
(50-kHzsteps)
Usable Sensitivity: 12.7dBf
50 dB Quieting Sensitivity
17.2dBf
IF Rejection: 80 dB
FrequencyResponse 30 Hz-15,000 Hz
SIN Ratio: 63 dB
Stereo Separation: 35 dB at 1kHz
Alternate ChannelSelectivity
70 dB
Capture Ratio 3dB
(AM)
FrequencyRange: 530 kHz-1,710 kHz
(10-kHzsteps)
522 kHz-1,620 kHz
(9-kHzsteps)
UsableSensitivity 30 PV(30 dB)
CD SECTION
FraquencyResponse: 17Hz-2o kHz +0/-3 dB
DynamicRange: Morethan 80 dB
Channel Separation: Morethan 65 dB
S/N Ratio: Morethan S5dB
Wow/Flutter Unmeasurable
AUDIO SECTION
Max. PowerOutput 30 Wx4channels
TAPE/MD IN input
Inputsensitivity (load impedance)
TAPEiMD IN: 500 mV (10 I@
GENERAL
Power-SupplyVoltage:14.4V(11to 16Vallowable),
DC, nagativeground
Load Impedance 4Q
Tone Control: Baes*l OdBat100Hz
Treble *10dB at 10kHz
PreampOutput Voltaga (load impedance):
2.2 V(10 kf2)
Installationsize: 182 (W)x53 (H)x155 (D) mm
(7’/4 (W)X2’/8 (H) X
61/s(D) inches)
Accessory supplied: Carryingcase (1)
●Specifications and external appearance are
subject to change without notice due to product
improvement.
13 ENGLISH

condiciones posibles, lea cuidadosamente
instrucciones de este manual.
Adem& de este manual de instrucciones,
tambien Ios manuales de instalaci6n y
conexiones que vienen por separado.

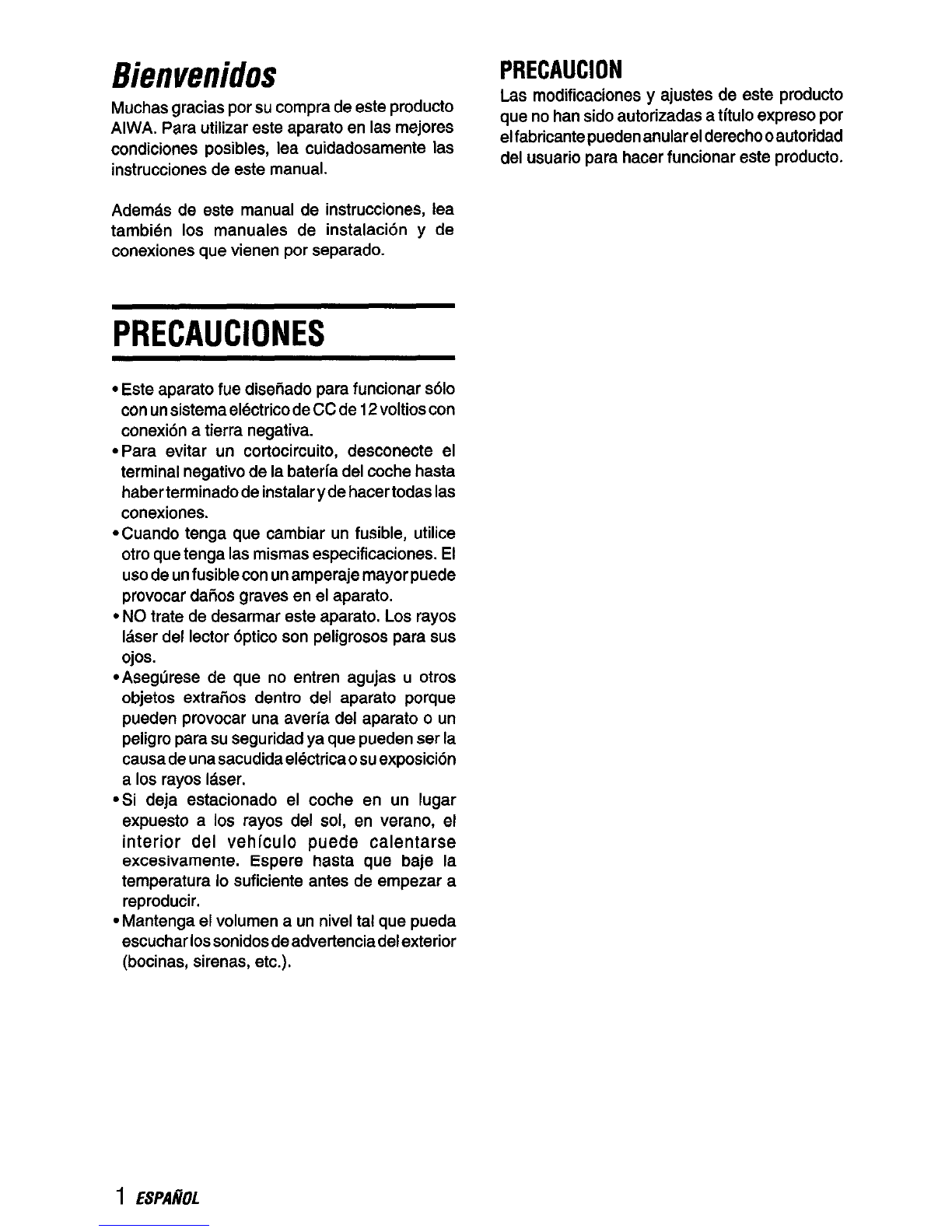

Bienvenidos PRECAUTION
Muchas gracias por su compra de este producto Las modificaciones yajustes de este producto
AlWA. Para utilizar este aparato en Ias mejores que no han sido autorizadas atitulo expreso por
,-- elfabricante pueden anularel derechooautoridad
Ids del usuario para hater funcionar este producto.
lea
de
PRECAUCIONES
●Este aparato fue diseriado para funcionar s610
con un sistemaelectrico de CC de 12voltios con
conexi6n atierra negativa.
●Para evitar un cortocircuito, desconecte el
terminal negativo de la bateria del coche hasta
haberterminado de instalar yde hacertodas Ias
conexiones.
●Cuando tenga que cambiar un fusible, utilice
otro que tenga Ias mismas especificaciones. El
uso de un fusible con un amperaje mayor puede
provocar dailos graves en el aparato.
●NO trate de desarmar este aparato. Los rayos
kker del Iector 6ptico son peligrosos para sus
ojos.
●Asegurese de que no entren agujas uotros
objetos extraiios dentro del aparato porque
pueden provocar una aver[a del aparato o un
peiigro para su seguridad ya que pueden ser la
causa de una sacudida electrical su exposition
a10srayos l&ser.
●Si deja estacionado el coche en un Iugar
expuesto aIos rayos del sol, en verano, el
interior del vehiculo puede calentarse
excesivamente. Espere hasta que baje la
temperature 10suficiente antes de empazar a
reproducer.
●Mantenga el volumen a un nivel tal que pueda
escucharlos sonidos de advertenciadel exterior
(bocinas, sirenas, etc.).
iESPAiiOL

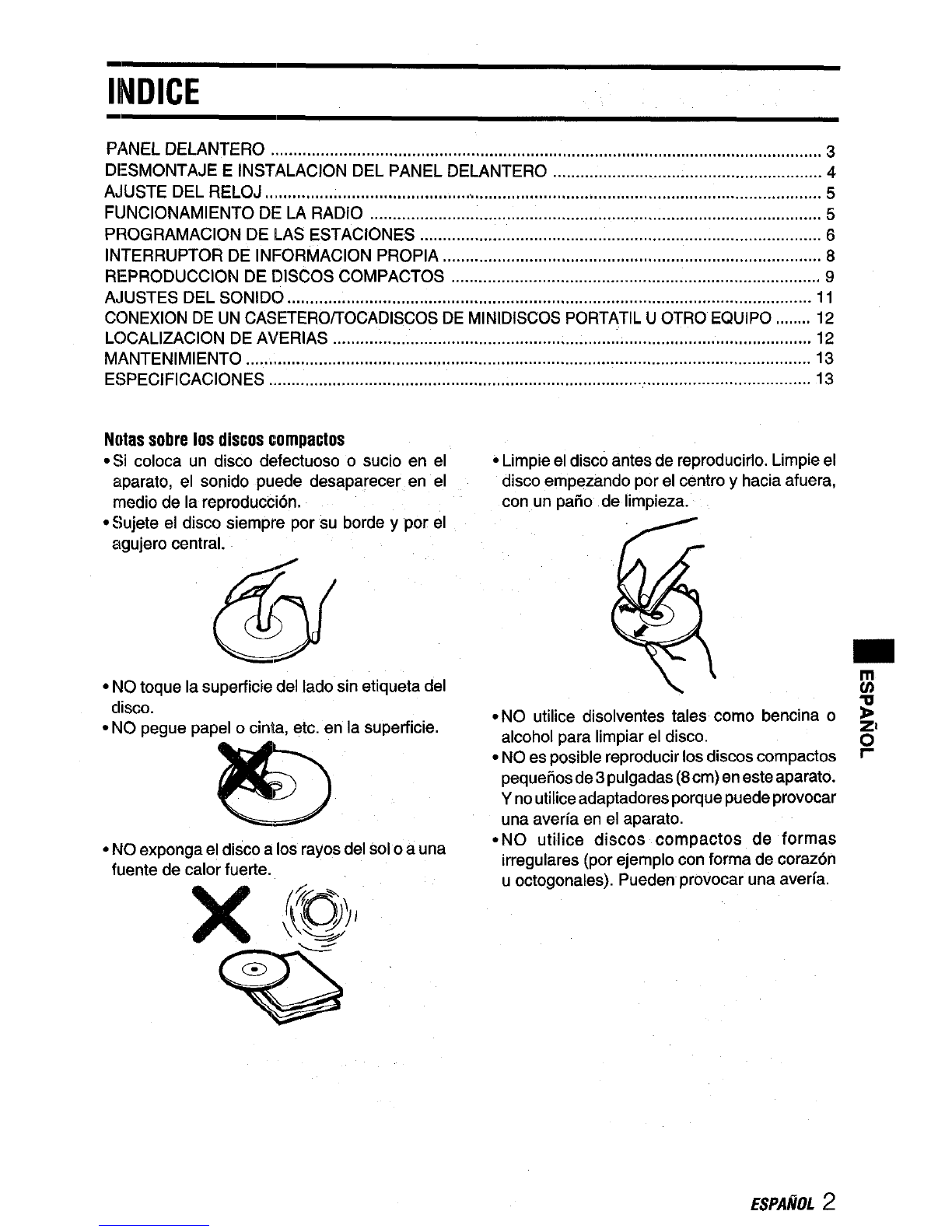

INDICE
PANEL DELANTERO ......................................................................................................................... 3
DESMONTAJE EINSTALACION DEL PANEL DELANTERO ........................................................... 4
AJUSTE DEL RELOJ ............................................................................................................................ 5
FIJNCIONAMIENTO DE LA RADIO ................................................................................................... 5
PROGRAMAC1ON DE LAS ESTACIONES ........................................................................................ 6
INTERRUPTOR DE INFORMATION PROPIA ................................................................................... 8
REPRODUCTION DE DISCOS COMPACTOS ................................................................................. 9
AJLISTES DEL SONIDO ................................................................................................................... 11
CONEXION DE UN CASETEROiTOCADISCOS DE MINIDISCOS PORTATIL UOTRO EQUIPO ,.......12
LOCALIZATION DE AVERIAS ......................................................................................................... 12
MANTENIMIENTO ............................................................................................................................ 13
ESPECIFICACIONES ....................................................................................................................... 13
Notas sobre Ios discos compactos
.~~~l~~a un ijiSCO defectuoso osucio en el
aparato, el sonido puede desaparecer en el
rnedio de la reproduction.
●Sujete el disco siempre por su horde ypor el
agujero central.
●NO toque la superficie del Iado sin etiqueta del
clisco.
●NO pegue papel ocinta, etc. en la superficie.
●NO exponga el disco aIos rayos del sol o a una
fuente de calor fuerte.
●Limpie el disco antes de reproducirlo. Limpie el
disco empezando por el centro yhacia afuera,
con un pa?ro de Iimpieza.
.NO utilice disolventes tales como bencina o~1
alcohol para Iimpiar el disco. g
●NO es posible reproducer Ios discos compactos
pequeiios de 3 pulgadas (8cm) en este aparato.
Yno utilice adaptadores porque puede provocar
una averia en el aparato.
●NO utilice discos compactos de formas
irregulars (per ejemplo con forma de corazon
uoctogonales). Pueden provocar una averia.
ESPANOL 2

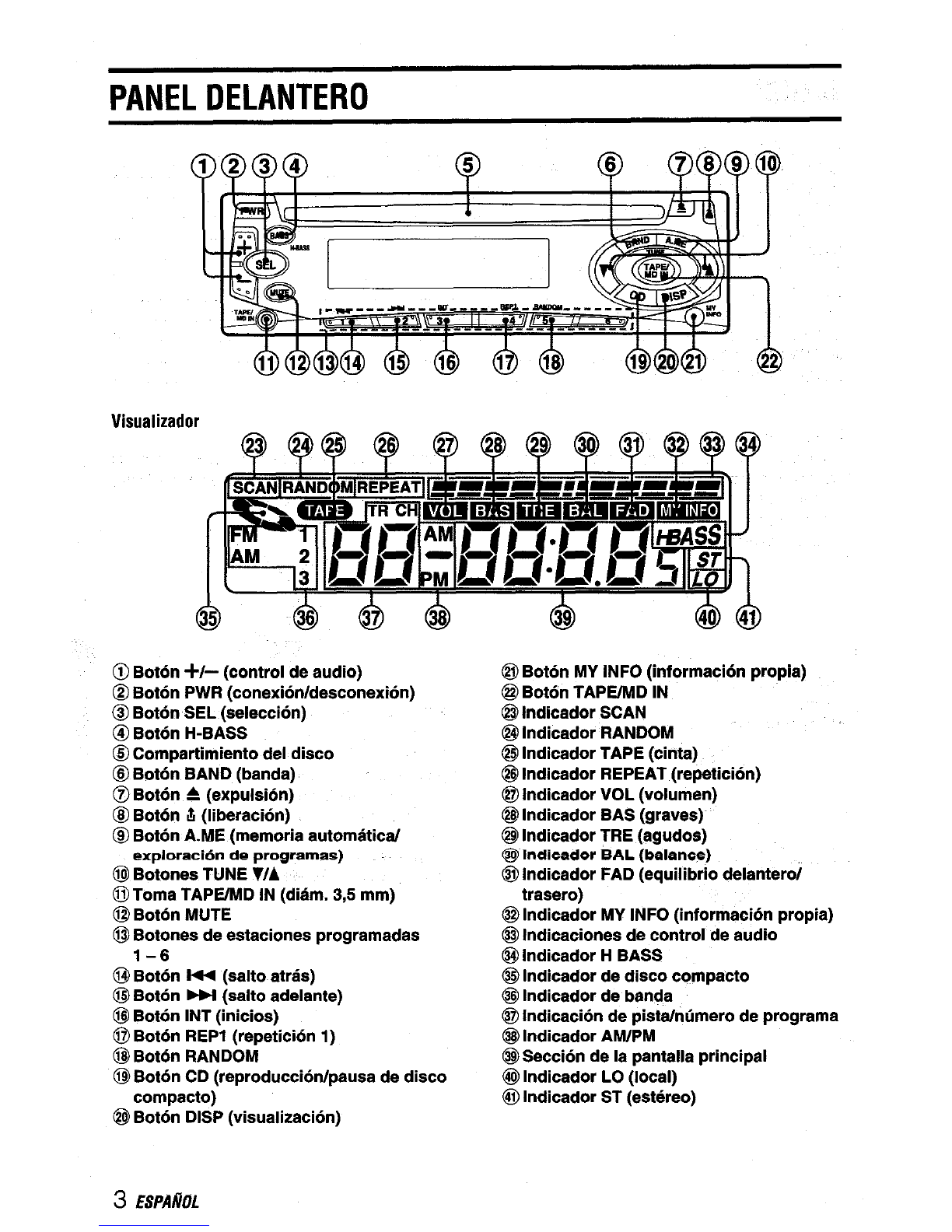

PANELDELANTERO
@@@@ @ @ (j) @(@g@) @
Visualizador
,,
oBoton +/- (control de audio)
@Boton PWR (conexionldesconexion)
@Bot6n SEL (seleccion)
@Boton H-BASS
@Compartimiento del disco
@Bot6n BAND (banda)
@Boton A(expulsion)
@Boton &(Iiberecion)
@Boton A.ME (memoria automatic/
exploraci6n de programaa)
@Botones TUNE V/A
@Toma TAPE/MD IN (diam. 3,5 mm)
@Boton MUTE
@Botones de estaciones programadas
1-6
@Bot6n M(salto atras)
@Boton -(sslto adelante)
@Boton INT (inicioa)
@IBoton REP1 (repetition 1)
@Bot6n RANDOM
@Boton CD (reproduction/pausa de disco
compacto)
@Boton DISP (visualization)
@@@
@Boton MY INFO (information propia)
@Bot6n TAPE/MD IN
@Indicador SCAN
@Indicador RANDOM
@Indicador TAPE (cinta)
@Indicedor REPEAT (repetition)
@Indicador VOL (volumen)
@Indicador BAS (graves)
@Indicedor TRE (agudoe)
@IncnesderBAL (balance)
@Indicador FAD (equilibria delantero/
trasero)
@Indicador MY INFO (fnformacion propia)
@Indicaciones de control de audio
@Indicador HBASS
@Indicador de disco compacto
@Indicador de banda
@Jlndicacion de pistehumero de programa
@Indicador AM/PM
@Seccion de la pantalla principal
@Indicador LO (local)
@Indicador ST (estereo)
3ESPAI@L

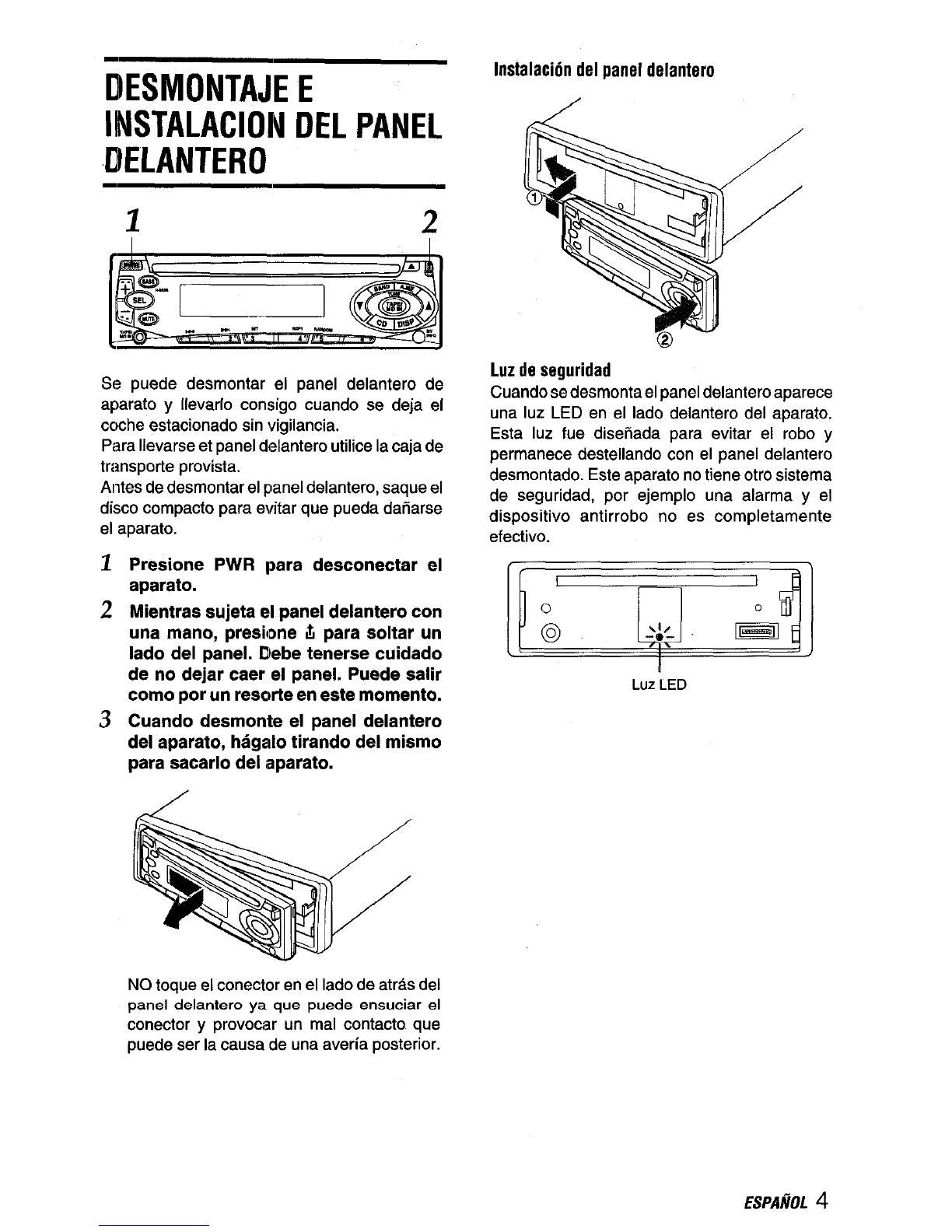

DESMONTAJE E
INSTALACION DEL PANEL
IIELANTERO
12
Se puede desmontar el panel delantero de
aparato y[Ievarlo consigo cuando se deja el
cc}che estacionado sin vigiiancia.
Para Ilevarse et panel delantero utilice la caja de
transport provista.
Antes de desmontar el panel delantero, saque el
disco compacto para evitar que pueda darlarse
el aparato.
1
2
3
Presione PWR para desconectar el
aparato.
Mientrae aujeta el panel delantero con
una mane, presicme ~para soltar un
Iado del panel. Debe tenerse cuidado
de no dejar caer el panel. Puede salir
como por un rescwteen este memento.
Cuando desmonte el panel delantero
del aparato, hagalo tirando del mismo
para sacarlo del aparato.
hrstalacion del panal dalantero
/
Luz de seguridad
Cuando se desmonta el panel delantero aparece
una Iuz LED en el Iado delantero del aparato.
Esta Iuz fue diseilada para evitar el robo y
permanece destellando con el panel delantero
desmontado. Este aparato no tiene otro sistema
de seguridad, por ejemplo una alarma yel
dispositivo antirrobo no es completamente
efectivo.
wLUZ LED
NO toque el conector en el Iado de atras del
panel delantero ya que puede ensuciar el
conector yprovocar un mal contacto que
puede ser la causa de una averia posterior.
ESPAfiOL 4

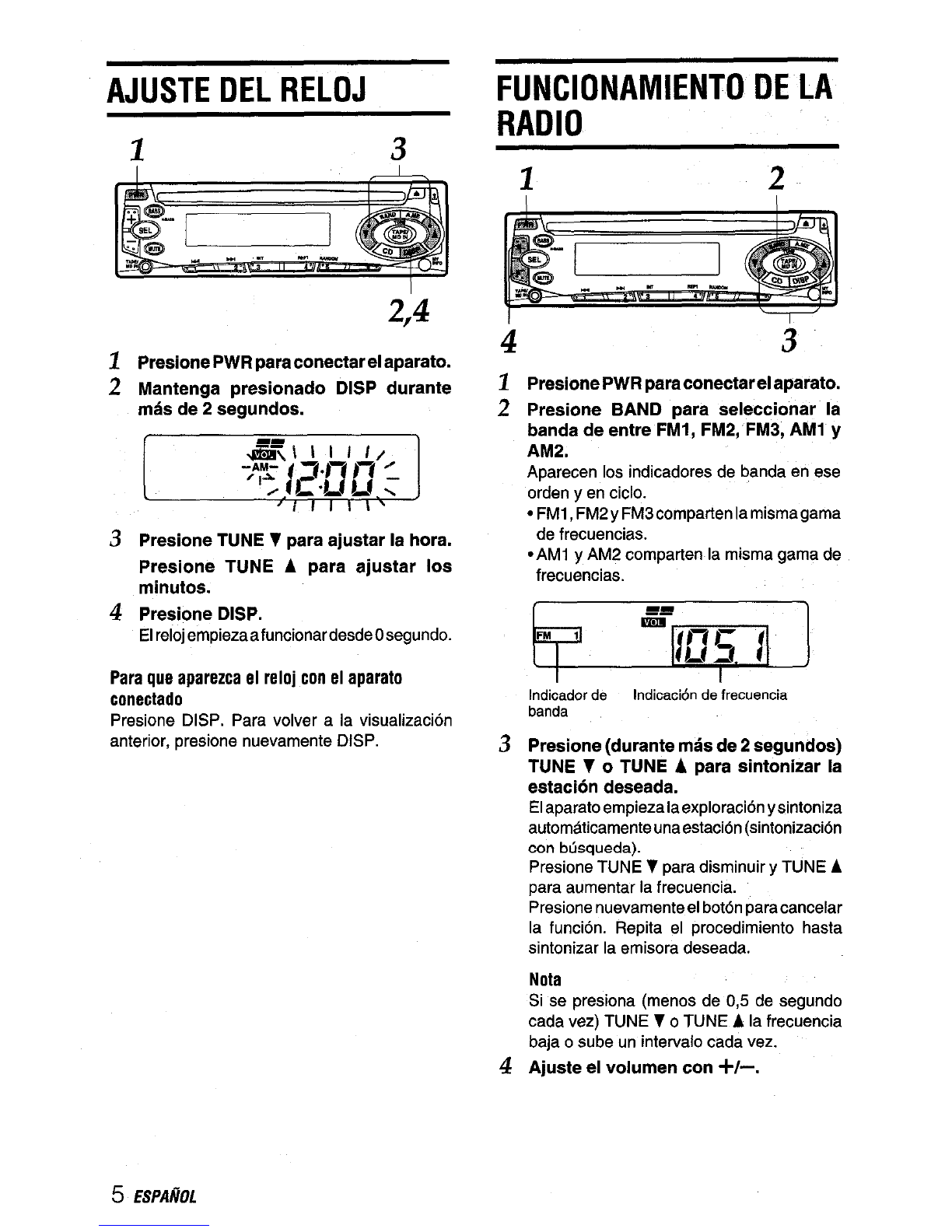

AJUSTE DEL RELOJ
13
1
2
3
4
2;4
Presione PWR paraconectarel aparato.
Mantenga presionado DISP durante
mas de 2aegundos.
Presione TUNE Vpara ajustar la hors.
Presione TUNE Apara ajuatar Ios
minutes.
Presione DISP.
El reloj empiezaafuncionardesde Osegundo.
Para que aparezca el reloj con el aparato
conectado
Presione DISP. Para volver ala visualization
anterior, presione nuevamente DISP.
FUNCIONAMIENTO DE LA
RADIO
12
4
1
2
3
T
Presione PWR para conectarel aparato.
Presione BAND para seleccionar la
banda de entre FM1, FM2, FM3, AM1 y
AM2.
Aparecen Ios indicadores de banda en ese
orden yen ciclo.
●FM1, FM2 yFM3comparten la mismagama
de frecuencias.
●AM 1yAM2 comparten la misma gama de
frecuencias.
Indicadorde lndicaci6n de frecuencia
banda
Presione (durante mas de 2segundos)
TUNE 70 TUNE Apara sintonizar la
estacion deseada.
El aparato empiezalaexploracion ysintoniza
autom~ticamente unaestacion (sintonizacion
con bk.queda).
Presione TUNE Vpara disminuir yTUNE A
para aumentar la frecuencia.
Presione nuevamente el boton para cancelar
la funcion. Repita el procedimiento hasta
sintonizar la emisora deseada.
Nota
Si se presiona (menos de 0,5 de segundo
cada vez) TUNE 70 TUNE Ala frecuencia
baja osube un intervalo cada vez.
4Ajuste el volumen con +/-.
5ESPANOL
