Aiwa CDC-MA01 User manual
SERVICE MANUAL
DATA
STEREO CAR CD RECEIVER
CDC-MA01
S/M Code No. 09-022-448-2N1
YU(ST),YH(ST)
BASIC CD MECHANISM : CDC02AW1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
TABLE OF CONTENT
SPECIFICATIONS ...............................................................................................................................................................3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING........................................................................4
PRECAUTION TO REPLACE OPTICAL BLOCK .............................................................................................................4
ELECTRICAL PARTS LIST (CDC – MA01) ............................................................................................................. 5 ~ 10
ELECTRICAL PARTS LIST (BZA – W) .................................................................................................................. 11 ~ 14

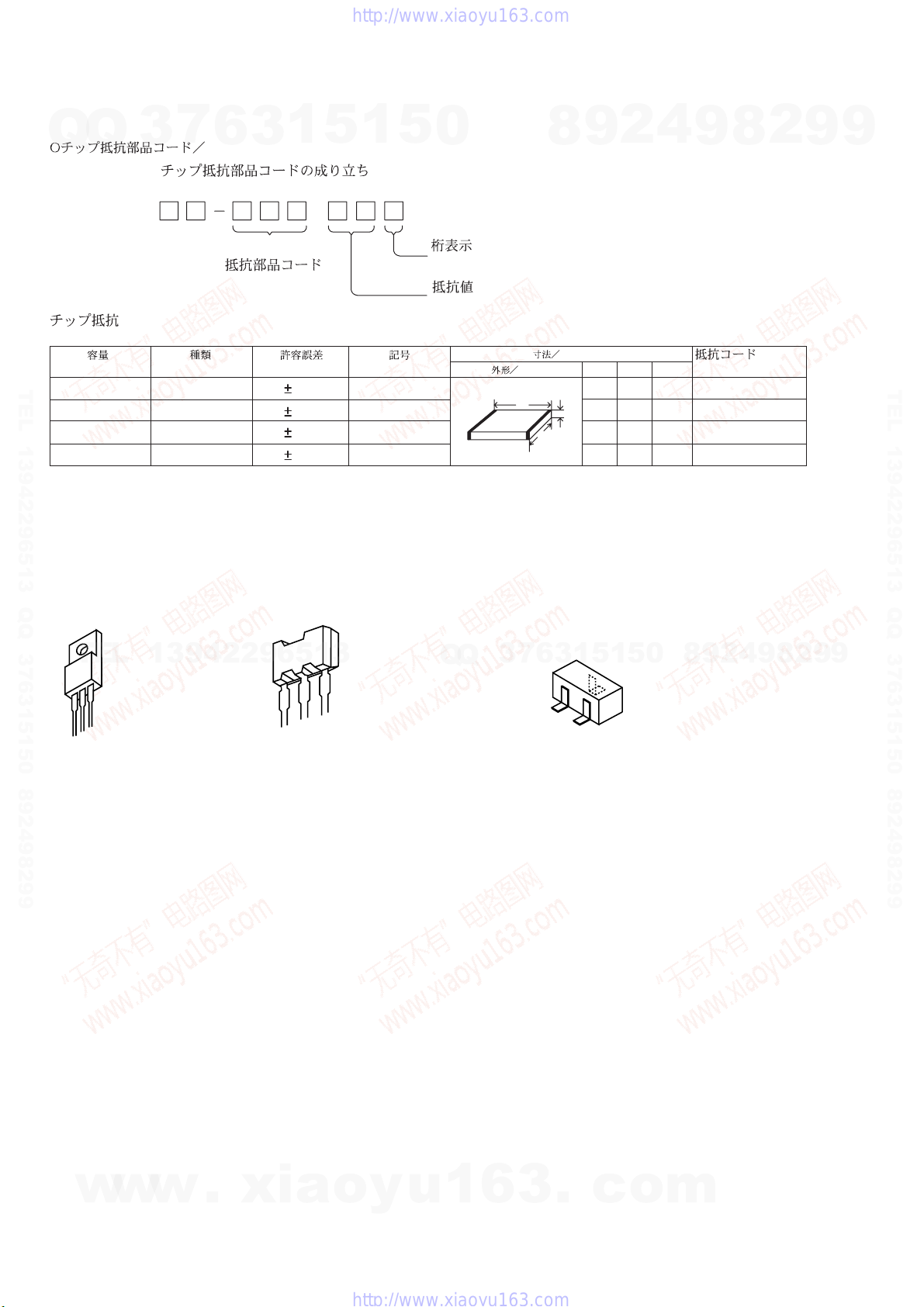

CHIP RESISTOR PART CODE.......................................................................................................................................15
TRANSISTOR ILLUSTRATION.........................................................................................................................................15
WIRING – 1 (MAIN / LED / FLEX DISP (2 / 2) / FLEX KEY (2 / 2)) <1 / 2> ..................................................................16
WIRING – 1 (MAIN / LED) <2 / 2>....................................................................................................................................17
SCHEMATIC DIAGRAM – 1 (MAIN / LED) ......................................................................................................................18
WIRING – 2 (DISP / KEY / AUX / SENS / LED L / LED R / FLEX DISP (1 / 2) / FLEX KEY (1 / 2)) <1 / 2> ...............19
WIRING – 2 (DISP / KEY / AUX) <2 / 2> ..........................................................................................................................20
SCHEMATIC DIAGRAM – 2 (DISP / KEY / AUX / SENS / LED L / LED R)....................................................................21
WIRING – 3 (CD / SENSOR) ............................................................................................................................................22
SCHEMATIC DIAGRAM – 3 (CD : 1 / 2 / SENSOR) ........................................................................................................23
SCHEMATIC DIAGRAM – 4 (CD : 2 / 2) ..........................................................................................................................24
LCD DIAGRAM (LCD , BKC – 8 / 9).................................................................................................................................25
IC BLOCK DIAGRAM .............................................................................................................................................. 26 ~ 28
IC DESCRIPTION .................................................................................................................................................... 29 ~ 41
VOLTAGE CHART ................................................................................................................................................... 42 ~ 47
CD TEST MODE ..................................................................................................................................................... 48 ~ 49
MECHANICAL EXPLODED VIEW ...................................................................................................................................50
MECHANICAL PARTS LIST ................................................................................................................................... 51 ~ 52
COLOR NAME TABLE .....................................................................................................................................................53
CD MECHANISM EXPLODED VIEW..............................................................................................................................54
CD MECHANISM PARTS LIST .......................................................................................................................................55
ACCESSORIES PARTS LIST ..........................................................................................................................................56
OTHER PARTS LIST (CDC – MA01) ..............................................................................................................................57
OTHER PARTS LIST (BZA – W).....................................................................................................................................58
OTHER PARTS LIST (CDC02AW1)................................................................................................................................59
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –
SPECIFICATIONS
RADIO SECTION
(FM)
Frequency Range YU: 87.5 MHz – 108 MHz (100 kHz steps)* or
87.5 MHz – 108 MHz (50 kHz steps)*
YH: 87.5 MHz – 108 MHz (50 kHz steps)** or
87.5 MHz – 108 MHz (100 kHz steps)**
Usable Sensitivity 12.7 dBf
50 dB Quieting Sensitivity 17.2 dBf
IF Rejection 80 dB
Frequency Response 30 Hz – 15,000 Hz
S/N Ratio 63 dB
Stereo Separation 35 dB at 1 kHz
Alternate Channel Selectivity
70 dB
Capture Ratio 3 dB
(AM)
Frequency Range YU: 530 kHz – 1,710 kHz (10 kHz steps)* or
531 kHz – 1,602 kHz (9 kHz steps)*
YH: 531 kHz – 1,602 kHz (9 kHz steps)** or
530 kHz – 1,710 kHz (10 kHz steps)**
Usable Sensitivity 30 µV (30 dB)
9k 10k
*Set the frequency increment for your area using the switch on the
bottom of the unit. (The switch is factory-set to the 10k position [for the
U.S.A.])
9k 10k
** Set the frequency increment for your area using the switch on the
bottom of the unit. (The switch is factory-set to the 9k position)
CD SECTION
Frequency Response 17 Hz – 20 kHz +0/–3 dB
Dynamic Range More than 80 dB
Channel Separation More than 65 dB
S/N Ratio More than 85 dB
Wow/Flutter Unmeasurable
MP3 Decoding MPEG 1 Audio Layer 3
WMA Decoding Windows Media Technologies
AUDIO SECTION
Max. Power Output 50 W x 4 channels
AUX IN input
Input Sensitivity (Load Impedance)
AUX IN 300 mV (10 kW)
GENERAL
Power-Supply Voltage 14.4 V (11 to 16 V allowable), DC,
negative ground
Load Impedance 4 W
Tone Control Bass ± 10 dB at 100 Hz
Treble ± 10 dB at 10 kHz
Preamp Output Voltage (Load Impedance)
2.2 V (10 kW)
Installed Size 182 (W) x 53 (H) x 155 (D) mm
(71/4(W) x 21/8(H) x 61/8(D) inches)
STEERING WHEEL REMOTE CONTROL
Dimensions Approx. 67 (W) x 26 (H) x 27 (D) mm
(23/4(W) x 11/16 (H) x 11/8(D) inches)
(excluding holder)
Weight Approx. 38 g (1.33 oz.)
(including holder, battery)
• Design and specifications are subject to change without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 4–
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingvedåbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresque ceuxspécifiés peutentraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-710A)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP ASSY PWB
SOLDER
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
5
ELECTRICAL PARTS LIST (CDC MA01)
CDC-MA01 CDC-MA01
YUSTF YHSTF
AUX O J 0601 87-A60-925-010 JACK,3.6 BLK ST W/SW b
DISP O C 0602 87-010-831-080 C-CAP,U 0.1-16 Z F b
DISP O C 0603 87-010-831-080 C-CAP,U 0.1-16 Z F b
DISP O C 0604 87-A10-504-080 C-CAP,U 0.047-16 K B b
DISP O C 0605 87-012-199-080 C-CAP,U 220P-50 J CH b
DISP O C 0606 87-A10-504-080 C-CAP,U 0.047-16 K B b
DISP O C 0607 87-A10-504-080 C-CAP,U 0.047-16 K B b
DISP O C 0608 87-A10-504-080 C-CAP,U 0.047-16 K B b
DISP O C 0609 87-A10-504-080 C-CAP,U 0.047-16 K B b
DISP O C 0610 87-010-805-080 C-CAP,S 1-16 Z F b
DISP O C 0611 87-010-831-080 C-CAP,U 0.1-16 Z F b
DISP O C 0612 87-010-831-080 C-CAP,U 0.1-16 Z F b
DISP O C 0613 87-012-286-080 C-CAP,U 0.01-25 K B b
DISP O CON0601 87-A61-585-080 C-CONN,24P H 54548-2490 b
DISP S D 0601 87-A40-250-040 C-DIODE,DAN217 b
DISP S D 0602 87-A40-817-040 C-ZENER,STZ6.8N b
DISP S D 0603 87-A40-817-040 C-ZENER,STZ6.8N b
DISP S IC 0601 87-A21-532-030 C-IC,LC75817W-8720 b
DISP O IC 0602 87-A90-951-010 RCR UNIT,SBX1971-52 b
DISP O LCD0701 8B-KC8-610-010 LCD,BKC-8/9 b
CDC-MA01 CDC-MA01
YUSTF YHSTF
DISP O LED0601 87-A91-355-040 C-LED,BR1112H-TR-RED b
DISP O LED0602 87-A91-355-040 C-LED,BR1112H-TR-RED b
DISP O LED0603 87-A91-355-040 C-LED,BR1112H-TR-RED b
DISP O LED0604 87-A91-355-040 C-LED,BR1112H-TR-RED b
DISP X R 0601 88-108-102-080 C-RES,U 1K-1/16W J b
DISP X R 0602 88-108-102-080 C-RES,U 1K-1/16W J b
DISP X R 0603 88-108-102-080 C-RES,U 1K-1/16W J b
DISP X R 0604 88-108-102-080 C-RES,U 1K-1/16W J b
DISP X R 0605 88-108-333-080 C-RES,U 33K-1/16W J b
DISP X R 0606 88-108-103-080 C-RES,U 10K-1/16W J b
DISP X R 0607 88-108-103-080 C-RES,U 10K-1/16W J b
DISP X R 0608 88-108-103-080 C-RES,U 10K-1/16W J b
DISP X R 0609 88-108-103-080 C-RES,U 10K-1/16W J b
DISP X R 0612 88-118-471-080 C-RES,S 470-1/10W J b
DISP X R 0613 88-118-471-080 C-RES,S 470-1/10W J b
DISP X R 0615 88-108-331-080 C-RES,U 330-1/16W J b
DISP X R 0616 88-108-102-080 C-RES,U 1K-1/16W J b
DISP X R 0617 88-108-180-080 C-RES,U 18-1/16W J b
DISP X R 0618 88-108-102-080 C-RES,U 1K-1/16W J b
DISP X R 0619 88-108-332-080 C-RES,U 3.3K-1/16W J b
CDC-MA01 CDC-MA01
YUSTF YHSTF
DISP X R 0620 88-118-331-080 C-RES,S 330-1/10W J b
DISP X R 0621 88-118-331-080 C-RES,S 330-1/10W J b
DISP O SW 0601 87-A90-001-080 C-SW,TACT SKQMAL b
DISP O SW 0602 87-A90-001-080 C-SW,TACT SKQMAL b
DISP O SW 0603 87-A90-001-080 C-SW,TACT SKQMAL b
DISP O SW 0604 87-A90-001-080 C-SW,TACT SKQMAL b
DISP O SW 0605 87-A90-001-080 C-SW,TACT SKQMAL b
DISP O SW 0620 87-A90-001-080 C-SW,TACT SKQMAL b
FLEX DISP O 8B-KC7-611-010 PWB,FLEX DISP b
FLEX KEY O 8B-KC7-612-010 PWB,FLEX KEY b
KEY O C 0621 87-010-831-080 C-CAP,U 0.1-16 Z F b
KEY O CON0603 87-A61-586-080 C-CONN,16P V FLZT-SM1 b
KEY O FFC0601 8B-KC1-602-010 F-CABLE,4P (AUX-W/S) b
KEY O L 0601 88-118-000-080 C-JUMPER,S b
KEY O L 0602 87-005-906-080 C-COIL,S 10UH K LK2125 b
KEY O L 0603 87-005-906-080 C-COIL,S 10UH K LK2125 b
KEY O LED0611 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY O LED0612 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY O LED0613 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY O LED0614 87-A91-355-040 C-LED,BR1112H-TR-RED b
CDC-MA01 CDC-MA01
YUSTF YHSTF
KEY O LED0615 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY O LED0616 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY O LED0617 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY O LED0618 87-A41-096-010 LED,E1L31-3B0A2 BLU b
KEY O LED0619 87-A41-118-040 C-LED,SEC1E01C-1 BLU b
KEY O LED0620 87-A41-118-040 C-LED,SEC1E01C-1 BLU b
KEY O LED0621 87-A41-118-040 C-LED,SEC1E01C-1 BLU b
KEY O LED0622 87-A41-118-040 C-LED,SEC1E01C-1 BLU b
KEY O LED0625 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY O LED0626 87-A91-355-040 C-LED,BR1112H-TR-RED b
KEY S Q 0611 89-324-122-040 C-TR,2SC2412KR b
KEY S Q 0612 87-A30-287-040 C-TR,DTC114TKA b
KEY S Q 0613 87-A30-287-040 C-TR,DTC114TKA b
KEY S Q 0614 89-324-122-040 C-TR,2SC2412KR b
KEY S Q 0615 89-324-122-040 C-TR,2SC2412KR b
KEY X R 0651 88-118-471-080 C-RES,S 470-1/10W J b
KEY X R 0652 88-118-471-080 C-RES,S 470-1/10W J b
KEY X R 0653 88-118-471-080 C-RES,S 470-1/10W J b
KEY X R 0654 88-118-331-080 C-RES,S 330-1/10W J b
KEY X R 0655 88-108-152-080 C-RES,U 1.5K-1/16W J b
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
6
CDC-MA01 CDC-MA01
YUSTF YHSTF
KEY X R 0656 88-108-152-080 C-RES,U 1.5K-1/16W J b
KEY X R 0657 88-118-331-080 C-RES,S 330-1/10W J b
KEY X R 0658 88-118-331-080 C-RES,S 330-1/10W J b
KEY X R 0659 88-118-331-080 C-RES,S 330-1/10W J b
KEY X R 0660 88-118-331-080 C-RES,S 330-1/10W J b
KEY X R 0661 88-118-331-080 C-RES,S 330-1/10W J b
KEY O SW 0606 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0607 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0608 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0609 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0610 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0611 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0612 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0613 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0614 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0615 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0616 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0617 87-036-220-080 C-SW,TACT SKQDAA b
KEY O SW 0618 87-036-220-080 C-SW,TACT SKQDAA b
LED O FFC0951 8B-KC1-603-010 F-CABLE,2P (PWB LED) b
CDC-MA01 CDC-MA01
YUSTF YHSTF
LED O LED0951 87-A40-228-010 LED,SLR-342MG T31 GREEN b
LED L O LED0605 87-A41-085-010 LED,NSPW315BS WHT b
LED R O LED0606 87-A41-085-010 LED,NSPW315BS WHT b
MAIN O ANT0101 8Z-KT1-614-010 ANT,AW-002 b
MAIN O C 0001 87-010-555-080 CAP,E 100-10 M 5L MA b
MAIN O C 0101 87-012-274-080 C-CAP,U 1000P-50 K B b
MAIN O C 0102 87-012-286-080 C-CAP,U 0.01-25 K B b
MAIN O C 0103 87-012-282-080 C-CAP,U 4700P-50 K B b
MAIN O C 0104 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0105 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0106 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0107 87-012-274-080 C-CAP,U 1000P-50 K B b
MAIN O C 0108 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0109 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0110 87-012-281-080 C-CAP,U 3900P-50 K B GRM b
MAIN O C 0111 87-012-286-080 C-CAP,U 0.01-25 K B b
MAIN O C 0112 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0114 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0115 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0116 87-010-495-040 CAP,E 2.2-50 M 5L SRE b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN O C 0117 87-012-286-080 C-CAP,U 0.01-25 K B b
MAIN O C 0118 87-012-278-080 C-CAP,U 2200P-50 K B b
MAIN O C 0123 87-012-286-080 C-CAP,U 0.01-25 K B b
MAIN O C 0125 87-A11-228-080 C-CAP,U 0.027-25 K B b
MAIN O C 0126 87-A11-228-080 C-CAP,U 0.027-25 K B b
MAIN O C 0127 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB b
MAIN O C 0128 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB b
MAIN O C 0301 87-010-497-040 CAP,E 4.7-35 M 5L SRE b
MAIN O C 0302 87-010-497-040 CAP,E 4.7-35 M 5L SRE b
MAIN O C 0303 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0304 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0305 87-012-280-080 C-CAP,U 3300P-50 K B b
MAIN O C 0306 87-012-280-080 C-CAP,U 3300P-50 K B b
MAIN O C 0307 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0308 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0309 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0310 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0311 87-A12-308-080 C-CAP,S 0.15-25 K B b
MAIN O C 0312 87-A12-308-080 C-CAP,S 0.15-25 K B b
MAIN O C 0313 87-A12-308-080 C-CAP,S 0.15-25 K B b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN O C 0314 87-A12-308-080 C-CAP,S 0.15-25 K B b
MAIN O C 0315 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0316 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0317 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0318 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0322 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0323 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0324 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0325 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0326 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0341 87-010-491-040 CAP,E 0.22-50 M 5L SRE b
MAIN O C 0342 87-010-491-040 CAP,E 0.22-50 M 5L SRE b
MAIN O C 0401 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0402 87-A10-369-080 C-CAP,S 0.47-16 K B b
MAIN O C 0403 87-A10-369-080 C-CAP,S 0.47-16 K B b
MAIN O C 0406 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0407 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0408 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0409 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0410 87-010-494-040 CAP,E 1-50 M 5L SRE b
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
7
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN O C 0423 87-010-497-040 CAP,E 4.7-35 M 5L SRE b
MAIN O C 0424 87-010-497-040 CAP,E 4.7-35 M 5L SRE b
MAIN O C 0425 87-010-497-040 CAP,E 4.7-35 M 5L SRE b
MAIN O C 0426 87-010-497-040 CAP,E 4.7-35 M 5L SRE b
MAIN O C 0427 87-012-270-080 C-CAP,U 470P-50 K B b
MAIN O C 0428 87-012-270-080 C-CAP,U 470P-50 K B b
MAIN O C 0429 87-012-270-080 C-CAP,U 470P-50 K B b
MAIN O C 0430 87-012-270-080 C-CAP,U 470P-50 K B b
MAIN O C 0451 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0452 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0453 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0454 87-012-286-080 C-CAP,U 0.01-25 K B b
MAIN O C 0461 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0501 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB b
MAIN O C 0502 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB b
MAIN O C 0503 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB b
MAIN O C 0504 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB b
MAIN O C 0505 87-012-270-080 C-CAP,U 470P-50 K B b
MAIN O C 0506 87-012-270-080 C-CAP,U 470P-50 K B b
MAIN O C 0507 87-012-270-080 C-CAP,U 470P-50 K B b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN O C 0508 87-012-270-080 C-CAP,U 470P-50 K B b
MAIN O C 0510 87-010-498-040 CAP,E 10-16 M 5L SRE b
MAIN O C 0515 8A-KC7-623-000 CAP,E 2200-16 125 BT b
MAIN O C 0516 87-012-368-080 C-CAP,S 0.1-50 Z F b
MAIN O C 0517 87-012-368-080 C-CAP,S 0.1-50 Z F b
MAIN O C 0519 87-010-494-040 CAP,E 1-50 M 5L SRE b
MAIN O C 0522 87-012-368-080 C-CAP,S 0.1-50 Z F b
MAIN O C 0523 87-012-195-080 C-CAP,U 100P-50 J CH b
MAIN O C 0524 87-012-195-080 C-CAP,U 100P-50 J CH b
MAIN O C 0701 87-012-278-080 C-CAP,U 2200P-50 K B b
MAIN O C 0704 87-012-368-080 C-CAP,S 0.1-50 Z F b
MAIN O C 0705 87-012-278-080 C-CAP,U 2200P-50 K B b
MAIN O C 0706 87-010-553-040 CAP,E 47-16 M 5L SRE b
MAIN O C 0707 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0708 87-010-553-040 CAP,E 47-16 M 5L SRE b
MAIN O C 0709 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0713 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0714 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0715 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0716 87-010-759-080 C-CAP,U 0.1-25 Z F b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN O C 0717 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0718 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0719 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0720 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0723 87-010-759-080 C-CAP,U 0.1-25 Z F b
MAIN O C 0725 87-010-553-040 CAP,E 47-16 M 5L SRE b
MAIN O C 0727 87-010-552-040 CAP,E 22-16 M 5L SRE b
MAIN O C 0728 87-010-553-040 CAP,E 47-16 M 5L SRE b
MAIN O C 0751 87-012-368-080 C-CAP,S 0.1-50 Z F b
MAIN O C 0752 87-012-368-080 C-CAP,S 0.1-50 Z F b
MAIN O C 0753 87-012-368-080 C-CAP,S 0.1-50 Z F b
MAIN O C 0754 87-010-553-040 CAP,E 47-16 M 5L SRE b
MAIN O C 0755 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0756 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0901 87-016-039-090 CAP,DL 0.022F-5.5 Z 70 FM b
MAIN O C 0902 87-012-358-080 C-CAP,S 0.47-10 Z F CM/CB b
MAIN O C 0903 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0904 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0905 87-012-180-080 C-CAP,U 22P-50 J CH b
MAIN O C 0906 87-012-182-080 C-CAP,U 27P-50 J CH b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN O C 0907 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0908 87-012-282-080 C-CAP,U 4700P-50 K B b
MAIN O C 0909 87-012-274-080 C-CAP,U 1000P-50 K B b
MAIN O C 0910 87-012-195-080 C-CAP,U 100P-50 J CH b
MAIN O C 0911 87-012-195-080 C-CAP,U 100P-50 J CH b
MAIN O C 0912 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0913 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O C 0914 87-010-831-080 C-CAP,U 0.1-16 Z F b
MAIN O C 0915 87-012-274-080 C-CAP,U 1000P-50 K B b
MAIN O C 0916 87-010-787-080 C-CAP,U 0.022-25 K B b
MAIN O CON0401 87-A61-219-010 CONN,20P H 52089-2020 b
MAIN O CON0402 87-A61-584-010 CONN,24P H 52089-2420 b
MAIN O CON0403 87-A61-583-010 CONN,16P H 52089-1620 b
MAIN O CON0701 8Z-KT1-611-010 CONN,16P CAM-B51 b
MAIN O CON0751 87-A60-670-010 CONN,6P H 2MM JMT b
MAIN S D 0101 87-A40-250-040 C-DIODE,DAN217 b
MAIN S D 0301 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0401 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0451 87-A40-250-040 C-DIODE,DAN217 b
MAIN S D 0461 87-A40-817-040 C-ZENER,STZ6.8N b
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
8
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN S D 0462 87-A40-817-040 C-ZENER,STZ6.8N b
MAIN S D 0463 87-A40-817-040 C-ZENER,STZ6.8N b
MAIN S D 0501 87-001-783-080 DIODE,1N4002 b
MAIN S D 0502 87-001-783-080 DIODE,1N4002 b
MAIN S D 0503 87-001-783-080 DIODE,1N4002 b
MAIN S D 0504 87-001-783-080 DIODE,1N4002 b
MAIN S D 0505 87-001-783-080 DIODE,1N4002 b
MAIN S D 0506 87-001-783-080 DIODE,1N4002 b
MAIN S D 0507 87-001-783-080 DIODE,1N4002 b
MAIN S D 0508 87-001-783-080 DIODE,1N4002 b
MAIN S D 0513 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0701 87-A40-798-010 DIODE,1N5402 (3A/200V) b
MAIN S D 0706 87-A40-624-080 ZENER,MTZJ10A b
MAIN S D 0707 87-A40-344-080 ZENER,MTZJ6.2C b
MAIN S D 0708 87-020-330-040 C-DIODE,DAP202K b
MAIN S D 0709 87-070-136-080 ZENER,MTZJ5.1B b
MAIN S D 0710 87-A40-624-080 ZENER,MTZJ10A b
MAIN S D 0711 87-017-931-080 ZENER,MTZJ5.6B b
MAIN S D 0712 87-070-136-080 ZENER,MTZJ5.1B b
MAIN S D 0716 87-A40-620-080 ZENER,MTZJ6.2A b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN S D 0717 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0901 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0902 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0904 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0908 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0909 87-020-331-040 C-DIODE,DAN202K b
MAIN S D 0911 87-020-331-040 C-DIODE,DAN202K b
MAIN ! S F 0701 8B-KC1-621-010 FUSE,15A 32V b
MAIN S IC 0301 8Z-KT1-622-010 C-IC,LC75374E b
MAIN S IC 0501 8B-KCF-616-010 IC,TA8273H b
MAIN S IC 0701 88-KT1-606-080 IC,PST994D b
MAIN S IC 0751 87-A20-712-040 C-IC,BA6417F b
MAIN S IC 0901 87-A22-128-030 C-IC,UPD178P018AGC(BKC-8) b
MAIN S IC 0903 87-020-784-040 C-IC,TC4053BF b
MAIN O J 0401 87-A61-224-110 JACK,PIN 4P XR-401 b
MAIN O J 0402 8A-KC7-620-010 JACK,DIN 13 P SKDS1302 b
MAIN O L 0101 87-003-143-080 COIL,4.7UH K LAL02 b
MAIN O L 0102 8Z-KT1-619-010 COIL,68MH K7-D b
MAIN O L 0401 87-003-102-080 COIL,10UH J LAL02 b
MAIN O L 0402 87-003-102-080 COIL,10UH J LAL02 b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN O L 0403 87-003-102-080 COIL,10UH J LAL02 b
MAIN O L 0701 8B-KCF-615-010 FLTR,AMORPHOUS -CHOKE b
MAIN O L 0702 87-003-149-080 COIL,47UH J LAL02 b
MAIN S Q 0101 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0102 87-A30-289-040 C-TR,2SA1037AK(Q) b
MAIN S Q 0103 89-324-122-040 C-TR,2SC2412KR b
MAIN S Q 0104 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0105 89-324-122-040 C-TR,2SC2412KR b
MAIN S Q 0106 89-324-122-040 C-TR,2SC2412KR b
MAIN S Q 0341 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0342 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0401 87-A30-283-040 C-TR,DTA114YKA b
MAIN S Q 0402 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0403 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0404 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0405 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0406 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0451 89-324-122-040 C-TR,2SC2412KR b
MAIN S Q 0461 87-A30-283-040 C-TR,DTA114YKA b
MAIN S Q 0462 87-A30-288-040 C-TR,DTC114YKA b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN S Q 0701 89-213-750-010 TR,2SB1375 b
MAIN S Q 0702 86-NFZ-664-040 C-TR,DTC143TKA b
MAIN S Q 0704 89-420-120-010 TR,2SD2012 b
MAIN O Q 0708 89-418-580-080 TR,2SD1858TV2 b
MAIN S Q 0709 89-420-120-010 TR,2SD2012 b
MAIN S Q 0710 89-324-122-040 C-TR,2SC2412KR b
MAIN S Q 0711 87-A30-289-040 C-TR,2SA1037AK(Q) b
MAIN S Q 0712 86-NFZ-664-040 C-TR,DTC143TKA b
MAIN S Q 0713 89-420-120-010 TR,2SD2012 b
MAIN S Q 0715 87-A30-287-040 C-TR,DTC114TKA b
MAIN S Q 0716 87-A30-283-040 C-TR,DTA114YKA b
MAIN X R 0101 88-108-105-080 C-RES,U 1M-1/16W J b
MAIN X R 0102 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0103 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0104 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0105 88-108-222-080 C-RES,U 2.2K-1/16W J b
MAIN X R 0106 88-108-271-080 C-RES,U 270-1/16W J b
MAIN X R 0107 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0108 88-108-821-080 C-RES,U 820-1/16W J b
MAIN X R 0109 88-108-103-080 C-RES,U 10K-1/16W J b
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
9
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0110 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0111 88-108-333-080 C-RES,U 33K-1/16W J b
MAIN X R 0112 88-108-473-080 C-RES,U 47K-1/16W J b
MAIN X R 0114 88-118-100-080 C-RES,S 10-1/10W J b
MAIN X R 0121 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0122 88-108-473-080 C-RES,U 47K-1/16W J b
MAIN X R 0123 88-108-393-080 C-RES,U 39K-1/16W J b
MAIN X R 0124 88-108-393-080 C-RES,U 39K-1/16W J b
MAIN X R 0127 88-108-334-080 C-RES,U 330K-1/16W J b
MAIN X R 0153 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0154 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0301 88-108-332-080 C-RES,U 3.3K-1/16W J b
MAIN X R 0302 88-108-332-080 C-RES,U 3.3K-1/16W J b
MAIN X R 0303 88-108-332-080 C-RES,U 3.3K-1/16W J b
MAIN X R 0304 88-108-332-080 C-RES,U 3.3K-1/16W J b
MAIN X R 0305 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0306 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0307 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0308 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0311 88-108-223-080 C-RES,U 22K-1/16W J b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0312 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0313 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0314 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0315 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0316 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0317 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0318 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0321 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0322 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0323 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0341 88-108-335-080 C-RES,U 3.3M-1/16W J b
MAIN X R 0342 88-108-335-080 C-RES,U 3.3M-1/16W J b
MAIN X R 0343 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0344 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0345 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0346 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0401 88-108-562-080 C-RES,U 5.6K-1/16W J b
MAIN X R 0402 88-108-222-080 C-RES,U 2.2K-1/16W J b
MAIN X R 0403 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0405 88-108-272-080 C-RES,U 2.7K-1/16W J b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0406 88-108-272-080 C-RES,U 2.7K-1/16W J b
MAIN X R 0407 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0408 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0435 88-108-000-080 C-JUMPER,U b
MAIN X R 0436 88-108-000-080 C-JUMPER,U b
MAIN X R 0437 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0438 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0439 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0440 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0451 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0452 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0453 88-108-105-080 C-RES,U 1M-1/16W J b
MAIN X R 0454 88-108-472-080 C-RES,U 4.7K-1/16W J b
MAIN X R 0455 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0456 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0457 88-108-105-080 C-RES,U 1M-1/16W J b
MAIN X R 0461 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0462 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0463 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0464 88-108-102-080 C-RES,U 1K-1/16W J b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0465 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0466 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0467 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0468 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0469 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0470 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0471 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0475 88-108-224-080 C-RES,U 220K-1/16W J b
MAIN X R 0476 88-108-224-080 C-RES,U 220K-1/16W J b
MAIN X R 0477 88-108-472-080 C-RES,U 4.7K-1/16W J b
MAIN X R 0478 88-108-472-080 C-RES,U 4.7K-1/16W J b
MAIN X R 0479 88-108-183-080 C-RES,U 18K-1/16W J b
MAIN X R 0480 88-108-183-080 C-RES,U 18K-1/16W J b
MAIN X R 0501 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0502 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0503 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0504 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0505 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0506 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0507 88-108-223-080 C-RES,U 22K-1/16W J b
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
10
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0508 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0509 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0701 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0702 88-148-681-080 C-RES, 680-1/2W J b
MAIN X R 0703 88-118-391-080 C-RES,S 390-1/10W J b
MAIN X R 0706 88-118-391-080 C-RES,S 390-1/10W J b
MAIN X R 0707 88-108-680-080 C-RES,U 68-1/16W J b
MAIN X R 0708 88-108-682-080 C-RES,U 6.8K-1/16W J b
MAIN X R 0709 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0710 88-118-471-080 C-RES,S 470-1/10W J b
MAIN X R 0711 88-108-273-080 C-RES,U 27K-1/16W J b
MAIN X R 0712 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0713 88-108-123-080 C-RES,U 12K-1/16W J b
MAIN X R 0714 88-108-563-080 C-RES,U 56K-1/16W J b
MAIN X R 0715 88-108-473-080 C-RES,U 47K-1/16W J b
MAIN X R 0716 88-108-473-080 C-RES,U 47K-1/16W J b
MAIN X R 0718 88-118-222-080 C-RES,S 2.2K-1/10W J b
MAIN X R 0720 88-148-229-080 C-RES, 2.2-1/2W J b
MAIN X R 0721 88-108-152-080 C-RES,U 1.5K-1/16W J b
MAIN X R 0722 88-108-563-080 C-RES,U 56K-1/16W J b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0725 88-118-222-080 C-RES,S 2.2K-1/10W J b
MAIN X R 0726 88-118-330-080 C-RES,S 33-1/10W J b
MAIN X R 0751 88-108-123-080 C-RES,U 12K-1/16W J b
MAIN X R 0752 88-108-153-080 C-RES,U 15K-1/16W J b
MAIN X R 0753 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0754 88-108-103-080 C-RES,U 10K-1/16W J b
MAIN X R 0755 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0757 88-108-224-080 C-RES,U 220K-1/16W J b
MAIN X R 0758 88-108-683-080 C-RES,U 68K-1/16W J b
MAIN X R 0759 88-118-279-080 C-RES,S 2.7-1/10W J b
MAIN X R 0901 88-108-473-080 C-RES,U 47K-1/16W J b
MAIN X R 0902 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0904 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0905 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0906 88-108-224-080 C-RES,U 220K-1/16W J b
MAIN X R 0907 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0908 88-108-152-080 C-RES,U 1.5K-1/16W J b
MAIN X R 0909 88-108-473-080 C-RES,U 47K-1/16W J b
MAIN X R 0910 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0911 88-108-222-080 C-RES,U 2.2K-1/16W J b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0912 88-108-222-080 C-RES,U 2.2K-1/16W J b
MAIN X R 0913 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0914 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0915 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0916 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0917 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0918 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0919 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0920 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0921 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0922 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0923 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0924 88-108-224-080 C-RES,U 220K-1/16W J b
MAIN X R 0929 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0931 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0932 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0933 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0934 88-108-223-080 C-RES,U 22K-1/16W J b
MAIN X R 0935 88-108-104-080 C-RES,U 100K-1/16W J b
MAIN X R 0936 88-108-683-080 C-RES,U 68K-1/16W J b
CDC-MA01 CDC-MA01
YUSTF YHSTF
MAIN X R 0937 88-108-102-080 C-RES,U 1K-1/16W J b
MAIN X R 0938 88-108-563-080 C-RES,U 56K-1/16W J b
MAIN X R 0951 88-118-391-080 C-RES,S 390-1/10W J b
MAIN O SW 0903 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A b
MAIN O TU 0101 8B-KCF-621-110 TU UNIT, FAE347-A26 b
MAIN O X 0901 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49 b
SENS O CNA0751 8B-KC7-617-010 CONN ASSY,6P EMP b
SENS O FFC0061 8B-KC7-618-010 F-CABLE,2P MOT b
SENS O PS 0671 87-A92-061-080 C-SNSR,GP1S092 HCPI b
SENS X R 0671 88-118-331-080 C-RES,S 330-1/10W J b
SENS O SW 0671 87-A92-039-080 C-SW,PUSH ESE22MH24XQ b
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
11
BZA-W
NA01NF
CD O C 0101 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0102 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0103 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0104 87-A10-711-080 C-CAP,E 100-6.3 M MF
CD O C 0105 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0107 87-012-282-080 C-CAP,U 4700P-50 K B
CD O C 0108 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0109 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0110 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0113 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0114 87-012-165-080 C-CAP,U 3P-50 C CH
CD O C 0116 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
CD O C 0117 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0131 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0132 87-012-270-080 C-CAP,U 470P-50 K B
CD O C 0133 87-012-267-080 C-CAP,U 270P-50 K B GRM
CD O C 0134 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0135 87-012-270-080 C-CAP,U 470P-50 K B
CD O C 0136 87-012-267-080 C-CAP,U 270P-50 K B GRM
CD O C 0139 87-016-526-080 C-CAP,S 0.47-16 BK
BZA-W
NA01NF
CD O C 0140 87-012-281-080 C-CAP,U 3900P-50 K B GRM
CD O C 0141 87-A10-504-080 C-CAP,U 0.047-16 K B
CD O C 0142 87-012-199-080 C-CAP,U 220P-50 J CH
CD O C 0144 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0151 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0152 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0153 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0154 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0155 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0156 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0157 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0161 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0162 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0163 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
CD O C 0164 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0165 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0166 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0167 87-A10-473-080 C-CAP,E 47-10 MF10FC(M)
CD O C 0168 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0203 87-A12-319-080 C-CAP,U 0.1-25 K B
BZA-W
NA01NF
CD O C 0204 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0205 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0206 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0208 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0211 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0301 87-012-178-080 C-CAP,U 18P-50 J CH
CD O C 0302 87-012-174-080 C-CAP,U 12P-50 J CH
CD O C 0303 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0311 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0312 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0313 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0314 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0315 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0316 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0321 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0322 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0323 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0324 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0325 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0326 87-012-274-080 C-CAP,U 1000P-50 K B
BZA-W
NA01NF
CD O C 0327 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
CD O C 0331 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0332 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0333 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0334 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0335 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
CD O C 0336 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0337 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0338 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0339 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0340 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0381 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0382 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0383 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0384 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0385 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0386 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0401 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0402 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0405 87-010-730-080 C-CAP,E 10-6.3 MF
ELECTRICAL PARTS LIST (BZA W)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
12
BZA-W
NA01NF
CD O C 0406 87-010-730-080 C-CAP,E 10-6.3 MF
CD O C 0407 87-012-195-080 C-CAP,U 100P-50 J CH
CD O C 0408 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0409 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0410 87-010-730-080 C-CAP,E 10-6.3 MF
CD O C 0413 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0414 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0501 87-016-526-080 C-CAP,S 0.47-16 BK
CD O C 0502 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0503 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0504 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0505 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0506 87-016-526-080 C-CAP,S 0.47-16 BK
CD O C 0507 87-A12-970-080 C-CAP,E 470-4 M 4B SE1A471
CD O C 0508 87-A12-319-080 C-CAP,U 0.1-25 K B
CD O C 0509 87-A12-424-080 C-CAP,E 220-10 M 4B SE1A221
CD O C 0510 87-010-880-080 C-CAP,E 47-6.3 M MF
CD O C 0511 87-012-274-080 C-CAP,U 1000P-50 K B
CD O C 0512 87-010-729-080 C-CAP,E 4.7-16 MF
CD O C 0601 87-018-123-080 CAP,TC U 220P-50 K B UP050
BZA-W
NA01NF
CD O C 0602 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
CD O C 0603 87-010-497-040 CAP,E 4.7-35 M 5L SRE
CD O CN 0801 87-A61-125-080 C-CONN,16P H FLZ-SM1-TB
CD O CN 0802 87-A61-220-080 C-CONN,20P H 52271-2090
CD S D 0101 87-020-331-040 C-DIODE,DAN202K
CD S D 0501 87-020-331-040 C-DIODE,DAN202K
CD S IC 0101 87-A21-467-040 C-IC,CXA2581N
CD S IC 0102 87-A21-323-010 C-IC,CXD2585Q
CD S IC 0103 87-A21-161-040 C-IC,BA6392FP
CD S IC 0104 87-A20-712-040 C-IC,BA6417F
CD S IC 0201 87-A22-127-130 C-IC,UPD784214AYGC-116-8EU
CD S IC 0203 87-A21-728-040 C-IC,SN74LVC07A
CD S IC 0301 87-A21-955-040 C-IC,TMS320DA150PGE160
CD S IC 0302 87-A22-121-040 C-IC,SN74LVC14A
CD S IC 0303 87-A22-124-040 C-IC,IS41LV16100S-50
CD S IC 0304 87-A22-125-130 C-IC,MBM29LV800TA-90PFTN-BZAW
CD S IC 0305 87-A22-122-040 C-IC,SN74LVC139
CD S IC 0306 87-A22-123-040 C-IC,SN74LVC74A
CD S IC 0401 87-A21-357-040 C-IC,AK4352VT
CD S IC 0501 87-A20-905-040 C-IC,BA033FP
BZA-W
NA01NF
CD S IC 0502 87-A21-190-040 C-IC,PQ20WZ1U
CD S IC 0503 87-A22-140-080 C-IC,BA00BC0_WFP-E2
CD O JR 0101 88-108-103-080 C-RES,U 10K-1/16W J
CD O JR 0103 88-108-103-080 C-RES,U 10K-1/16W J
CD O JR 0104 88-108-272-080 C-RES,U 2.7K-1/16W J
CD X JR 0501 88-118-000-080 C-JUMPER,S
CD X JR 0502 88-108-000-080 C-JUMPER,U
CD O L 0101 87-A50-536-080 C-COIL,10UH K LQH3C24
CD O L 0102 87-A50-536-080 C-COIL,10UH K LQH3C24
CD O L 0131 87-A50-367-080 C-COIL, 10UH LQG21F
CD O L 0132 87-A50-367-080 C-COIL, 10UH LQG21F
CD O L 0161 87-A50-536-080 C-COIL,10UH K LQH3C24
CD O L 0201 87-A50-367-080 C-COIL, 10UH LQG21F
CD O L 0401 87-A50-367-080 C-COIL, 10UH LQG21F
CD S Q 0101 87-A30-248-040 C-TR,2SB1197KQ
CD S Q 0102 87-A30-248-040 C-TR,2SB1197KQ
CD S Q 0103 87-A30-289-040 C-TR,2SA1037AK(Q)
CD S Q 0201 87-A30-273-040 C-TR,DTC124EKA
CD S Q 0202 87-A30-455-040 C-TR,DTA144EKA
CD S Q 0203 87-A30-273-040 C-TR,DTC124EKA
BZA-W
NA01NF
CD S Q 0204 87-A30-455-040 C-TR,DTA144EKA
CD S Q 0503 87-A30-011-040 C-TR,DTB113ZK
CD S Q 0504 87-A30-273-040 C-TR,DTC124EKA
CD O R 0101 88-108-101-080 C-RES,U 100-1/16W J
CD X R 0102 88-108-472-080 C-RES,U 4.7K-1/16W J
CD X R 0103 88-108-180-080 C-RES,U 18-1/16W J
CD X R 0105 88-108-000-080 C-JUMPER,U
CD X R 0106 88-108-000-080 C-JUMPER,U
CD X R 0108 88-108-183-080 C-RES,U 18K-1/16W J
CD X R 0109 88-108-183-080 C-RES,U 18K-1/16W J
CD O R 0111 88-108-823-080 C-RES,U 82K-1/16W J
CD X R 0114 88-108-682-080 C-RES,U 6.8K-1/16W J
CD X R 0115 88-108-392-080 C-RES,U 3.9K-1/16W J
CD O R 0119 88-108-822-080 C-RES,U 8.2K-1/16W J
CD X R 0121 88-108-124-080 C-RES,U 120K-1/16W J
CD O R 0122 88-108-562-080 C-RES,U 5.6K-1/16W J
CD O R 0124 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0125 88-108-123-080 C-RES,U 12K-1/16W J
CD O R 0126 88-108-332-080 C-RES,U 3.3K-1/16W J
CD O R 0131 88-108-153-080 C-RES,U 15K-1/16W J
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
13
BZA-W
NA01NF
CD O R 0132 88-108-153-080 C-RES,U 15K-1/16W J
CD X R 0133 88-108-154-080 C-RES,U 150K-1/16W J
CD O R 0134 88-108-153-080 C-RES,U 15K-1/16W J
CD O R 0135 88-108-153-080 C-RES,U 15K-1/16W J
CD O R 0137 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0138 88-108-563-080 C-RES,U 56K-1/16W J
CD X R 0139 88-108-000-080 C-JUMPER,U
CD O R 0140 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0141 88-108-332-080 C-RES,U 3.3K-1/16W J
CD O R 0142 88-108-332-080 C-RES,U 3.3K-1/16W J
CD X R 0143 88-108-105-080 C-RES,U 1M-1/16W J
CD X R 0148 88-108-000-080 C-JUMPER,U
CD X R 0151 88-108-000-080 C-JUMPER,U
CD X R 0152 88-108-000-080 C-JUMPER,U
CD O R 0161 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0162 88-108-223-080 C-RES,U 22K-1/16W J
CD O R 0165 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0166 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0167 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0168 88-108-123-080 C-RES,U 12K-1/16W J
BZA-W
NA01NF
CD O R 0201 88-108-563-080 C-RES,U 56K-1/16W J
CD O R 0202 88-108-563-080 C-RES,U 56K-1/16W J
CD O R 0203 88-108-563-080 C-RES,U 56K-1/16W J
CD X R 0204 88-108-564-080 C-RES,U 560K-1/16W J
CD O R 0205 88-108-224-080 C-RES,U 220K-1/16W J
CD O R 0206 88-108-563-080 C-RES,U 56K-1/16W J
CD X R 0207 88-108-472-080 C-RES,U 4.7K-1/16W J
CD O R 0208 88-108-563-080 C-RES,U 56K-1/16W J
CD X R 0209 88-108-000-080 C-JUMPER,U
CD X R 0210 88-108-104-080 C-RES,U 100K-1/16W J
CD O R 0211 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0212 88-108-102-080 C-RES,U 1K-1/16W J
CD X R 0213 88-108-104-080 C-RES,U 100K-1/16W J
CD O R 0216 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0217 88-108-101-080 C-RES,U 100-1/16W J
CD X R 0218 88-108-000-080 C-JUMPER,U
CD X R 0219 88-108-000-080 C-JUMPER,U
CD X R 0303 88-108-000-080 C-JUMPER,U
CD O R 0304 88-108-101-080 C-RES,U 100-1/16W J
CD X R 0305 88-108-330-080 C-RES,U 33-1/16W J
BZA-W
NA01NF
CD O R 0306 88-108-101-080 C-RES,U 100-1/16W J
CD X R 0307 88-108-104-080 C-RES,U 100K-1/16W J
CD X R 0308 88-108-104-080 C-RES,U 100K-1/16W J
CD X R 0309 88-108-104-080 C-RES,U 100K-1/16W J
CD X R 0311 88-108-330-080 C-RES,U 33-1/16W J
CD O R 0312 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0313 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0314 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0315 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0316 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0317 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0318 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0319 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0320 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0321 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0322 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0323 88-108-103-080 C-RES,U 10K-1/16W J
CD X R 0324 88-108-104-080 C-RES,U 100K-1/16W J
CD X R 0325 88-108-104-080 C-RES,U 100K-1/16W J
CD X R 0326 88-108-104-080 C-RES,U 100K-1/16W J
BZA-W
NA01NF
CD X R 0327 88-108-472-080 C-RES,U 4.7K-1/16W J
CD X R 0328 88-108-472-080 C-RES,U 4.7K-1/16W J
CD X R 0329 88-108-000-080 C-JUMPER,U
CD X R 0330 88-108-472-080 C-RES,U 4.7K-1/16W J
CD O R 0331 88-108-103-080 C-RES,U 10K-1/16W J
CD O R 0332 88-108-103-080 C-RES,U 10K-1/16W J
CD X R 0333 88-108-472-080 C-RES,U 4.7K-1/16W J
CD O R 0334 88-108-103-080 C-RES,U 10K-1/16W J
CD X R 0339 88-108-330-080 C-RES,U 33-1/16W J
CD X R 0340 88-108-330-080 C-RES,U 33-1/16W J
CD O R 0341 88-108-563-080 C-RES,U 56K-1/16W J
CD O R 0342 88-108-563-080 C-RES,U 56K-1/16W J
CD O R 0343 88-108-101-080 C-RES,U 100-1/16W J
CD O R 0344 88-108-101-080 C-RES,U 100-1/16W J
CD X R 0345 88-108-000-080 C-JUMPER,U
CD X R 0351 88-108-100-080 C-RES,U 10-1/16W J
CD X R 0352 88-108-000-080 C-JUMPER,U
CD X R 0353 88-108-105-080 C-RES,U 1M-1/16W J
CD X R 0354 88-108-470-080 C-RES,U 47-1/16W J
CD O R 0361 88-108-102-080 C-RES,U 1K-1/16W J
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
14
BZA-W
NA01NF
CD O R 0362 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0363 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0364 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0365 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0366 88-108-102-080 C-RES,U 1K-1/16W J
CD O R 0401 88-108-153-080 C-RES,U 15K-1/16W J
CD O R 0402 88-108-153-080 C-RES,U 15K-1/16W J
CD X R 0403 88-108-100-080 C-RES,U 10-1/16W J
CD X R 0404 88-108-100-080 C-RES,U 10-1/16W J
CD X R 0405 88-108-330-080 C-RES,U 33-1/16W J
CD X R 0406 88-108-330-080 C-RES,U 33-1/16W J
CD X R 0407 88-108-330-080 C-RES,U 33-1/16W J
CD X R 0409 88-108-000-080 C-JUMPER,U
CD X R 0411 88-108-000-080 C-JUMPER,U
CD X R 0412 88-108-000-080 C-JUMPER,U
CD O R 0501 88-108-102-080 C-RES,U 1K-1/16W J
CD X R 0502 88-108-392-080 C-RES,U 3.9K-1/16W J
CD O R 0503 88-108-473-080 C-RES,U 47K-1/16W J
CD O R 0504 88-108-823-080 C-RES,U 82K-1/16W J
CD O R 0510 88-108-563-080 C-RES,U 56K-1/16W J
BZA-W
NA01NF
CD O R 0511 88-118-223-080 C-RES,S 22K-1/10W J
CD X R 0601 88-121-151-080 RES,150-1/8W J
CD O R 0801 88-108-101-080 C-RES,U 100-1/16W J
CD O R 0802 88-108-101-080 C-RES,U 100-1/16W J
CD O R 0803 88-108-101-080 C-RES,U 100-1/16W J
CD O SW 0801 87-A90-117-010 SW,PUSH 1-1-1 MPU10371MLB0 MIC
CD O X 0201 87-A70-266-080 C-VIB,CER 6.25MHZ CSTRC-MG05
CD O X 0301 87-A70-221-080 C-VIB,XTAL 16.9344MHZ CX-53F
SENSOR O SW 0001 S1-100-570-760 SW,LOAD MPU10853MLB2
SENSOR O SW 0002 S1-100-570-760 SW,LOAD MPU10853MLB2
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 15 –
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
B C E
2SB1375
2SD2012 2SA1037AK(Q)
2SB1197KQ
2SC2412KR
DTA114YKA
DTA144EKA
DTB113ZK
DTC114TKA
DTC114YKA
DTC124EKA
DTC143TKA
2SD1858 TV2
E C B
C
E
B
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
16
WIRING 1 (MAIN / LED / FLEX DISP (2 / 2) / FLEX KEY (2 / 2)) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 17–
WIRING – 1 (MAIN / LED) <2 / 2>
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
