SERVICE MANUAL

DATA

CDC-X2670

CDC-X4670

STEREO CAR CD RECEIVER

SIMPLE

S/M Code No. 09-004-422-3T5

• Replace this Service manual with “Revision Publishing” when it is issued.

BASIC CD MECHANISM: TN-CCD1001-13J

ELECTRICAL MAIN PARTS LIST - 1/4

NOTE: The characters in the suffix column indicate the part usage.

4670YL .................XX..................................A...................

2670YL .................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 642 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 702 87-010-314-080 C-CAP,S 22P-50V ....................

C 701 87-010-315-080 C-CAP,S 27P-50 CH ....................

C 706 87-010-497-040 CAP,E 4.7-35 GAS ....................

C 711 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 712 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 763 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 761 87-010-555-040 CAP,E 100-10 GAS ....................

C 771 87-012-156-080 C-CAP,S 220P-50 CH ....................

D 641 87-070-136-080 ZENER,MTZJ5.1B ....................

D 701 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 703 87-070-136-080 ZENER,MTZJ5.1B ....................

D 712 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 713 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 714 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 716 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 852 87-017-932-080 ZENER,MTJ6.2B ....................

D 858 87-017-932-080 ZENER,MTJ6.2B ....................

D 853 87-017-932-080 ZENER,MTJ6.2B ....................

D 859 87-017-932-080 ZENER,MTJ6.2B ....................

D 855 87-017-932-080 ZENER,MTJ6.2B ....................

D 857 87-017-932-080 ZENER,MTJ6.2B ....................

D 854 87-017-932-080 ZENER,MTJ6.2B ....................

D 856 87-017-932-080 ZENER,MTJ6.2B ....................

IC 641 88-KT1-606-080 IC,PST994D ....................

IC 701 87-A21-645-030 C-IC,LC72358N-9935 ....................

LED 702 87-027-262-010 LEDE,TLR-124(RED) AB..................

SW 701 87-A91-070-010 SW,TACT SKHHLV ....................

SW 702 87-A91-152-010 SW,SL 1-1-2 SSSS212-11-A ....................

X 701 87-A70-175-010 VIB,XTAL 4.5MHZ AT-49 ....................

C 208 87-010-176-080 C-CAP,S 680P-50 SL ....................

C 203 87-010-178-080 CHIP CAP 1000P ....................

C 207 87-010-195-080 C-CAP,S 0.068-25 F ....................

C 206 87-010-492-040 CAP,E 0.33-50 GAS ....................

C 202 87-010-553-040 CAP,E 47-16 GAS ....................

C 201 87-010-553-040 CAP,E 47-16 GAS ....................

C 209 87-010-992-080 C-CAP,S 0.047-25 B ....................

C 205 87-016-460-080 C-CAP,S 0.22-16 B ....................

C 204 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 212 87-010-180-080 C-CER 1500P ....................

C 215 87-010-182-080 C-CAP,S 2200P-50 B ....................

C 218 87-010-198-080 CAP, CHIP 0.022 ....................

C 211 87-010-498-040 CAP,E 10-16 GAS ....................

C 213 87-010-992-080 C-CAP,S 0.047-25 B ....................

C 219 87-012-157-080 C-CAP,S 330P-50 CH ....................

C 216 87-016-460-080 C-CAP,S 0.22-16 B ....................

C 210 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 214 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 217 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 223 87-010-067-040 CAP,E 0.1-50 5L ....................

C 220 87-010-184-080 CHIP CAPACITOR 3300P(K) ....................

C 225 87-010-184-080 CHIP CAPACITOR 3300P(K) ....................

C 221 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 222 87-010-492-040 CAP,E 0.33-50 GAS ....................

C 226 87-010-497-040 CAP,E 4.7-35 GAS ....................

C 229 87-010-498-040 CAP,E 10-16 GAS ....................

C 224 87-010-553-040 CAP,E 47-16 GAS ....................

C 227 87-010-555-040 CAP,E 100-10 GAS ....................

C 228 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 236 87-010-067-040 CAP,E 0.1-50 5L ....................

C 234 87-010-193-080 CHIP CAPACITOR,0.033 ....................

C 238 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 237 87-010-553-040 CAP,E 47-16 GAS ....................

C 231 87-010-555-040 CAP,E 100-10 GAS ....................

C 233 87-010-555-040 CAP,E 100-10 GAS ....................

C 235 87-010-992-080 C-CAP,S 0.047-25 B ....................

C 232 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 230 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 240 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 258 87-010-150-080 C-CAP,S 6P-50 CH ....................

C 256 87-010-186-080 CAP,CHIP 4700P ....................

C 259 87-010-316-080 C-CAP,S 33P-50 CH ....................

C 251 87-010-555-040 CAP,E 100-10 GAS ....................

C 250 87-010-805-080 CAP, S 1-16 ....................

C 252 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 254 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 253 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 269 87-010-180-080 C-CER 1500P ....................

C 267 87-010-498-040 CAP,E 10-16 GAS ....................

ELECTRICAL MAIN PARTS LIST - 2/4

C 268 87-010-498-040 CAP,E 10-16 GAS ....................

C 263 87-010-555-040 CAP,E 100-10 GAS ....................

C 264 87-010-555-040 CAP,E 100-10 GAS ....................

C 261 87-012-156-080 C-CAP,S 220P-50 CH ....................

C 262 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 265 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 266 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 272 87-010-154-080 CAP CHIP 10P ....................

C 271 87-010-154-080 CAP CHIP 10P ....................

C 270 87-010-180-080 C-CER 1500P ....................

C 281 87-010-555-040 CAP,E 100-10 GAS ....................

C 282 87-016-669-080 C-CAP,S 0.1-25 K B ....................

C 280 87-A10-189-040 CAP,E 220-10 ....................

CON 201 87-A60-859-010 CONN,12P TKC-F12X-K1 ....................

CON 202 87-A60-860-010 CONN,14P TKC-F14X-K1 ....................

IC 201 87-A20-446-010 C-IC,LA9241ML ....................

IC 202 87-A21-319-010 C-IC,LC78622NE ....................

IC 203 87-A21-488-040 C-IC,LA6556 ....................

Q 202 87-026-210-080 CHIP-TR,DTC144EK ....................

Q 205 87-026-210-080 CHIP-TR,DTC144EK ....................

Q 203 87-026-210-080 CHIP-TR,DTC144EK ....................

Q 204 87-026-210-080 CHIP-TR,DTC144EK ....................

Q 201 87-A30-289-040 C-TR,2SA1037AK(R) ....................

Q 207 87-A30-299-080 TR,2SB1326 ....................

Q 206 89-324-122-080 TR,2SC2412K ....................

R 242 87-022-371-080 C-RES,S 330K-1/10W F ....................

R 241 87-022-371-080 C-RES,S 330K-1/10W F ....................

X 201 81-592-641-010 VIB,CER 16.93MHZ ....................

C 101 87-010-178-080 CHIP CAP 1000P ....................

C 102 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 106 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 108 87-010-322-080 C-CAP,S 100P-50 CH ....................

C 103 87-010-495-040 CAP,E 2.2-50 GAS ....................

C 107 87-010-552-040 CAP,E 22-16 GAS ....................

C 109 87-010-553-040 CAP,E 47-16 GAS ....................

C 112 87-010-185-080 C-CAP,S 3900P-50 B ....................

C 115 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 116 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 113 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 114 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 110 87-010-198-080 CAP, CHIP 0.022 ....................

C 111 87-010-553-040 CAP,E 47-16 GAS ....................

C 131 87-010-220-080 C-CAP,S 0.018-25 B ....................

C 132 87-010-220-080 C-CAP,S 0.018-25 B ....................

C 133 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 134 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 132 87-012-365-080 C-CAP,S 0.027-25VBK ....................

C 131 87-012-365-080 C-CAP,S 0.027-25VBK ....................

C 161 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 176 87-010-197-080 CAP, CHIP 0.01 DM ....................

C 173 87-010-322-080 C-CAP,S 100P-50 CH ....................

D 101 87-A40-250-080 C-DIODE,DAN217 ....................

L 101 87-003-143-080 COIL 4.7 UH ....................

L 102 8Z-KT1-619-010 COIL,68MH K7-D ....................

Q 109 87-A30-287-040 C-TR,DTC114TKA ....................

Q 107 87-A30-288-040 C-TR,DTC114YKA ....................

Q 105 87-A30-289-040 C-TR,2SA1037AK(R) ....................

Q 102 89-324-122-080 TR,2SC2412K ....................

Q 101 89-324-122-080 TR,2SC2412K ....................

Q 106 89-324-122-080 TR,2SC2412K ....................

Q 111 87-026-235-080 CHIP-TR,DTC114EK ....................

Q 161 87-A30-289-040 C-TR,2SA1037AK(R) ....................

TU 101 8A-KC8-620-010 TU UNIT, FAE347-A11 ....................

TU 101 8A-KC8-621-010 TU UNIT, FAE347-A12 AB..................

C 273 87-010-494-040 CAP,E 1-50 GAS ....................

C 274 87-010-494-040 CAP,E 1-50 GAS ....................

C 306 87-010-184-080 CHIP CAPACITOR 3300P(K) ....................

C 305 87-010-184-080 CHIP CAPACITOR 3300P(K) ....................

C 308 87-010-198-080 CAP, CHIP 0.022 ....................

C 307 87-010-198-080 CAP, CHIP 0.022 ....................

C 304 87-010-494-040 CAP,E 1-50 GAS ....................

C 303 87-010-494-040 CAP,E 1-50 GAS ....................

C 302 87-010-498-040 CAP,E 10-16 GAS ....................

C 301 87-010-498-040 CAP,E 10-16 GAS ....................

C 309 87-010-498-040 CAP,E 10-16 GAS ....................

C 310 87-010-498-040 CAP,E 10-16 GAS ....................

C 316 87-010-498-040 CAP,E 10-16 GAS ....................

C 315 87-010-498-040 CAP,E 10-16 GAS ....................

C 312 87-A11-177-080 C-CAP,S 0.15-16 K B ....................

C 314 87-A11-177-080 C-CAP,S 0.15-16 K B ....................

C 313 87-A11-177-080 C-CAP,S 0.15-16 K B ....................

C 311 87-A11-177-080 C-CAP,S 0.15-16 K B ....................

C 321 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 323 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 324 87-010-498-040 CAP,E 10-16 GAS ....................

C 322 87-010-555-040 CAP,E 100-10 GAS ....................

C 333 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

ELECTRICAL MAIN PARTS LIST - 3/4

C 334 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 332 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 331 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 354 87-010-494-040 CAP,E 1-50 GAS ....................

C 352 87-010-494-040 CAP,E 1-50 GAS ....................

C 353 87-010-494-040 CAP,E 1-50 GAS ....................

C 351 87-010-494-040 CAP,E 1-50 GAS ....................

C 452 87-010-498-040 CAP,E 10-16 GAS ....................

C 451 87-010-498-040 CAP,E 10-16 GAS ....................

C 453 87-010-498-040 CAP,E 10-16 GAS ....................

C 454 87-010-498-040 CAP,E 10-16 GAS ....................

C 457 87-012-140-080 CAP 470P ....................

C 458 87-012-140-080 CAP 470P ....................

C 455 87-012-140-080 CAP 470P ....................

C 456 87-012-140-080 CAP 470P ....................

C 551 87-010-553-040 CAP,E 47-16 GAS ....................

C 590 87-010-178-080 CHIP CAP 1000P ....................

C 835 87-010-182-080 C-CAP,S 2200P-50 B ....................

C 836 87-010-182-080 C-CAP,S 2200P-50 B ....................

C 831 87-010-494-040 CAP,E 1-50 GAS ....................

C 832 87-010-494-040 CAP,E 1-50 GAS ....................

D 331 87-A40-250-080 C-DIODE,DAN217 ....................

D 551 87-020-331-080 CHIP-DIODE,DAN202K ....................

IC 301 8Z-KT1-622-010 C-IC,LC75374E ....................

L 461 87-003-143-080 COIL 4.7 UH ....................

L 831 87-003-143-080 COIL 4.7 UH ....................

Q 331 89-324-122-080 TR,2SC2412K ....................

Q 559 87-A30-282-040 C-TR,DTA114TKA ....................

Q 552 87-A30-287-040 C-TR,DTC114TKA ....................

Q 553 87-A30-287-040 C-TR,DTC114TKA ....................

Q 554 87-A30-287-040 C-TR,DTC114TKA ....................

Q 551 87-A30-287-040 C-TR,DTC114TKA ....................

Q 560 87-A30-287-040 C-TR,DTC114TKA ....................

C 365 87-010-175-080 CAP 560P ....................

C 368 87-010-175-080 CAP 560P ....................

C 367 87-010-175-080 CAP 560P ....................

C 366 87-010-175-080 CAP 560P ....................

C 361 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 364 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 363 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 362 87-012-358-080 C-CAP,S 0.47-10 F Z ....................

C 516 87-010-178-080 CHIP CAP 1000P ....................

C 517 87-010-178-080 CHIP CAP 1000P ....................

C 513 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 512 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 515 87-010-494-040 CAP,E 1-50 GAS ....................

C 519 87-010-494-040 CAP,E 1-50 GAS ....................

C 514 87-010-553-040 CAP,E 47-16 GAS ....................

C 511 8A-KC7-623-000 CAP,E 2200U-16 BT(125C) ....................

C 534 87-012-368-080 C-CAP,S 0.1-50 F ....................

C 532 87-012-368-080 C-CAP,S 0.1-50 F ....................

C 533 87-012-368-080 C-CAP,S 0.1-50 F ....................

C 531 87-012-368-080 C-CAP,S 0.1-50 F ....................

D 506 87-001-783-080 DIODE,1N4002 ....................

D 508 87-001-783-080 DIODE,1N4002 ....................

D 502 87-001-783-080 DIODE,1N4002 ....................

D 507 87-001-783-080 DIODE,1N4002 ....................

D 504 87-001-783-080 DIODE,1N4002 ....................

D 501 87-001-783-080 DIODE,1N4002 ....................

D 505 87-001-783-080 DIODE,1N4002 ....................

D 503 87-001-783-080 DIODE,1N4002 ....................

D 571 87-A40-250-080 C-DIODE,DAN217 ....................

D 572 87-A40-250-080 C-DIODE,DAN217 ....................

D 573 87-A40-250-080 C-DIODE,DAN217 ....................

D 574 87-A40-250-080 C-DIODE,DAN217 ....................

IC 501 87-A21-562-010 IC,LA4743B A...................

IC 501 87-A21-647-010 IC,LA4735B .B..................

C 612 87-010-198-080 CAP, CHIP 0.022 ....................

C 611 87-010-553-040 CAP,E 47-16 GAS ....................

C 613 87-016-044-040 CAP,E 100-16 GAS ....................

C 621 87-010-553-040 CAP,E 47-16 GAS ....................

C 622 87-010-553-040 CAP,E 47-16 GAS ....................

C 671 87-010-198-080 CAP, CHIP 0.022 ....................

C 674 87-010-198-080 CAP, CHIP 0.022 ....................

C 673 87-010-553-040 CAP,E 47-16 GAS ....................

C 672 87-010-555-040 CAP,E 100-10 GAS ....................

C 682 87-010-198-080 CAP, CHIP 0.022 ....................

C 681 87-010-553-040 CAP,E 47-16 GAS ....................

C 884 87-010-182-080 C-CAP,S 2200P-50 B ....................

C 882 87-010-182-080 C-CAP,S 2200P-50 B ....................

C 883 87-010-182-080 C-CAP,S 2200P-50 B ....................

C 881 87-010-182-080 C-CAP,S 2200P-50 B ....................

D 611 87-A40-624-080 ZENER,MTZJ10A ....................

D 621 87-A40-523-080 ZENER,MTZJ9.1B ....................

D 675 87-001-783-080 DIODE,1N4002 ....................

D 674 87-001-783-080 DIODE,1N4002 ....................

D 673 87-017-932-080 ZENER,MTJ6.2B ....................

ELECTRICAL MAIN PARTS LIST - 4/4

D 671 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 672 87-020-331-080 CHIP-DIODE,DAN202K ....................

D 681 87-A40-624-080 ZENER,MTZJ10A ....................

D 881 87-A40-798-010 DIODE,1N5402 (3A/200V) ....................

F 881 8Z-KC1-621-010 FUSE,15A 32V AB..................

L 671 87-003-149-080 COIL,47UH ....................

L 881 8Z-KT1-615-010 FLTR,AMORPHOUS -CHOKE ....................

Q 601 87-A30-168-010 TR,2SB1566F ....................

Q 602 87-A30-287-040 C-TR,DTC114TKA ....................

Q 612 89-324-122-080 TR,2SC2412K ....................

Q 623 87-026-235-080 CHIP-TR,DTC114EK ....................

Q 622 87-A30-289-040 C-TR,2SA1037AK(R) ....................

Q 621 89-423-953-010 TR,2SD2395F AB..................

Q 671 87-A30-301-080 TR,2SD1862 ....................

Q 681 89-423-953-010 TR,2SD2395F AB..................

CNA 1 8A-KT1-631-010 CONN ASSY,8P ISO-BLACK-A ....................

CNA 2 8A-KT1-632-010 CONN ASSY,8P ISO-WHITE-A ....................

CON 851 88-KTA-603-010 CONN,15P CAM-B68 ....................

CON 881 8Z-KT1-611-010 CONN,16P CAM-B51 ....................

J 101 8Z-KT1-614-010 ANT,AW-002 ....................

J 451 87-A61-224-010 JACK,PIN 4P XR-401 ....................

J 451 87-A61-225-010 JACK,PIN 2P XR-401 AB..................

8A-KC7-611-010 F-CABLE,3P (AUX) ....................

C 904 87-010-177-080 C-CAP,S 820P-50 SL ....................

C 902 87-010-194-080 CAP, CHIP 0.047 ....................

C 903 87-010-194-080 CAP, CHIP 0.047 ....................

C 905 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

C 901 87-010-805-080 CAP, S 1-16 ....................

C 971 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

CON 901 88-KTA-602-010 CONN,15P CAM-B67 ....................

D 901 87-A40-817-040 C-ZENER,STZ6.8N ....................

D 902 87-A40-817-040 C-ZENER,STZ6.8N ....................

D 971 87-A40-817-040 C-ZENER,STZ6.8N ....................

IC 901 87-A21-489-030 C-IC,LC75853NW ....................

IC 971 87-A90-951-010 RCR UNIT,SBX1971-52 ....................

J 901 85-HRL-623-010 JACK,3.5 ST BLK ....................

LCD 901 8A-KCG-610-010 LCD,AKC-16-17 ....................

LCD 901 8A-KCG-612-010 LCD,AKC-16-17AUX ....................

LED 952 87-017-827-070 C-LED,SEC 1201C RED ....................

LED 951 87-017-827-070 C-LED,SEC 1201C RED ....................

LED 953 87-017-827-070 C-LED,SEC 1201C RED ....................

LED 961 87-A40-813-040 C-LED,SEC1E01C BLUE ....................

LED 962 87-A40-813-040 C-LED,SEC1E01C BLUE ....................

LED 963 87-A40-813-040 C-LED,SEC1E01C BLUE ....................

PL 901 8Z-KT1-641-010 LAMP,T-3 ....................

PL 902 8Z-KT1-641-010 LAMP,T-3 ....................

Q 964 87-A30-287-040 C-TR,DTC114TKA ....................

Q 963 87-A30-449-040 C-TR,DTA123YKA ....................

Q 962 87-A30-449-040 C-TR,DTA123YKA ....................

Q 961 87-A30-449-040 C-TR,DTA123YKA ....................

SW 902 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 908 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 903 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 901 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 907 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 906 87-A90-001-080 C-SW,TACT SKQMAL ....................

SW 905 87-A90-001-080 C-SW,TACT SKQMAL ....................

SW 904 87-A90-001-080 C-SW,TACT SKQMAL ....................

SW 914 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 918 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 911 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 917 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 913 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 916 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 915 87-036-251-080 SW,T CT 6X3.5 160 ....................

SW 910 87-A90-001-080 C-SW,TACT SKQMAL ....................

SW 921 87-A91-597-010 SW,RTRY SIM-026MT ....................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

4670YL .................XX..................................A...................

2670YL .................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-KCF-001-010 CABI,FRONT -AC15 ....................

8A-KCF-002-010 CABI,REAR -AC15 ....................

8A-KCF-020-010 CABI,TRIM -AC15 AB..................

8A-KCF-021-010 WINDOW,SIDE L -AC15 ....................

8A-KCF-022-010 WINDOW,SIDE R -AC15 ....................

8A-KCG-003-110 WINDOW,LCD X307 ....................

8A-KCG-004-110 WINDOW,LCD X207 ....................

8A-KCG-005-110 WINDOW,LCD X3070 ....................

8A-KCG-006-110 WINDOW,LCD X4010 ....................

8A-KCG-007-110 WINDOW,LCD X2070 ....................

8A-KCG-008-110 WINDOW,LCD X407 ....................

8Z-KC2-011-210 CABI,BASE -C2 AB..................

8A-KC7-005-010 KNOB,RTRY -AC ....................

8A-KC7-006-010 BTN,PRE.-AC ....................

8A-KC7-007-010 BTN,SEESAW R -AC ....................

8A-KC7-011-010 BTN,CLEAR L -AC ....................

8A-KC7-013-010 BTN,CLEAR ML -AC ....................

8A-KC7-014-010 BTN,CLEAR S -AC ....................

8A-KC7-020-010 RING,RTRY -AC ....................

8A-KCF-007-010 BTN,SEESAW L -AC15 ....................

8A-KCF-008-010 BTN,MONO -AC15 ....................

8A-KCF-010-010 BTN,CLEAR S2 -AC15 ....................

8A-KCF-011-010 BTN,DETACH -AC15 ....................

8A-KCF-012-010 BTN,CLEAR EJ -AC15 ....................

8A-KC7-208-010 HLDR,BTN L-AC ....................

8A-KC7-220-010 SPR-C,ROTARY -AC ....................

8A-KC7-224-010 HLDR,P-IC -AC AB..................

8A-KC7-230-010 HLDR,TR2 -AC AB..................

8A-KC7-231-010 HLDR,ISO-WIRE 2 -AC ....................

8A-KCF-208-010 HLDR,BTN R1 -AC15 ....................

8A-KCF-210-010 HLDR,BTN R3 -AC15 ....................

8A-KCF-211-010 LENS,ENCO -AC15 ....................

8A-KCF-212-010 LENS,R -AC15 ....................

8A-KCF-213-010 LENS,LCD -AC15 ....................

8A-KCF-214-010 CASE,LCD LENS -AC15 ....................

8A-KCF-215-110 HLDR,LCD -AC15 ....................

8A-KCF-230-010 COVER, DUST DFP LOWRAL AB..................

8Z-KC1-211-010 COVER, TOP -C AB..................

8Z-KC1-212-010 COVER, BOTTOM -C AB..................

8Z-KC1-213-010 CHAS,SIDE L -C AB..................

8Z-KC1-214-010 CHAS,SIDE R -C AB..................

8Z-KC1-236-010 COVER, CONN.BLIND -C ....................

8Z-KC2-203-210 LEVER,DFP HOOK -C2 AB..................

8Z-KC2-204-210 LEVER,DFP LOCK -C2 AB..................

8Z-KC2-221-110 SPR-C,DETACH HOOK-C2 AB..................

8Z-KC2-222-010 SPR-T,DETACH LOCK-C2 AB..................

8Z-KC2-223-010 SPR-C,DETACH -C2 ....................

8Z-KC3-201-010 COVER, CD BLIND -C AB..................

8Z-KC7-201-010 COVER, ISO BLIND -C AB..................

8Z-KCG-201-210 CHAS,FRONT -C16 AB..................

8Z-KT1-239-010 CAP,LAMP BLU B ....................

87-251-073-410 SCREW,U+2.6-6 AB..................

87-251-100-410 U+3-16 AB..................

87-432-903-010 WASHER,WTE 2.6 AB..................

87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6) AB..................

87-B10-259-010 UT2+3.0-10.0 W/O SLOT (BH TAP) AB..................

8Z-KC1-251-010 S-SCREW,TH2.6-4.0-0.8 AB..................

8Z-KC1-253-010 S-SCREW,PT 2*8 BH+ BLK ....................

8Z-KY1-003-010 HLDR,BELT SW1 A...................

8Z-KY1-007-010 BELT, SW1 A...................

8Z-KY1-203-010 PLATE,BELT-HLDR -F A...................

8Z-KY1-204-010 PLATE,NUT M3 -F A...................

8Z-KY1-205-010 S-SCREW,HEX-SOC. M3-3.5 BLK A...................

8Z-KY1-207-010 KEY,HEXAGON WRENCH-F A...................

8A-KC7-611-010 F-CABLE,3P (AUX) ....................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

4670YL .................XX..................................A...................

2670YL .................XX...................................B..................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-KC7-902-010 IB,INST,YU,YL (3L,P) ....................

8A-KCG-901-110 IB,YU(3L) 307,407 ....................

8A-KCG-902-110 IB,YU(3L) 207 ....................

8A-KCG-903-110 IB,YL(3L) 4010,3070,2070 ....................

8A-KCG-904-110 IB,YZ(9L) 207 ....................

8A-KCG-905-010 IB,INST,YZ (9L)-I ....................

8A-KCG-907-010 IB,YH(E CK CH) 207 ....................

8A-KCG-908-010 IB,INST,YH (E CK CH)-I ....................

8A-KCG-909-010 IB,YL(P)C 4670,2670 AB..................

8A-KCG-910-010 IB,INST,YL (P)C 4670,2670 AB..................

87-B10-141-010 NUT,5 TYPE-2 AB..................

87-B10-143-010 UT1+5-15 W/O SLOT AB..................

87-B10-144-010 W,5.2-10-0.5 AB..................

87-B10-145-010 W-SPR,5.3-8.5-1.5 AB..................

87-B10-216-010 U+2.6-4.0 ZINC BLK (BH M2.6) AB..................

8Z-KC1-030-010 CASE,DFP -C ....................

8Z-KC1-231-110 HLDR,HALF -C AB..................

8Z-KC1-232-010 KEY,REMOVE -C AB..................

8Z-KC1-235-010 HLDR,REAR MTG AB..................

8Z-KC1-244-010 S-SCREW,5*6 TH+ TAPPING ST AB..................

8Z-KC1-250-010 S-SCREW,HEXAGON AB..................

8Z-KT1-616-010 CONN ASSY,16P B52 AB..................

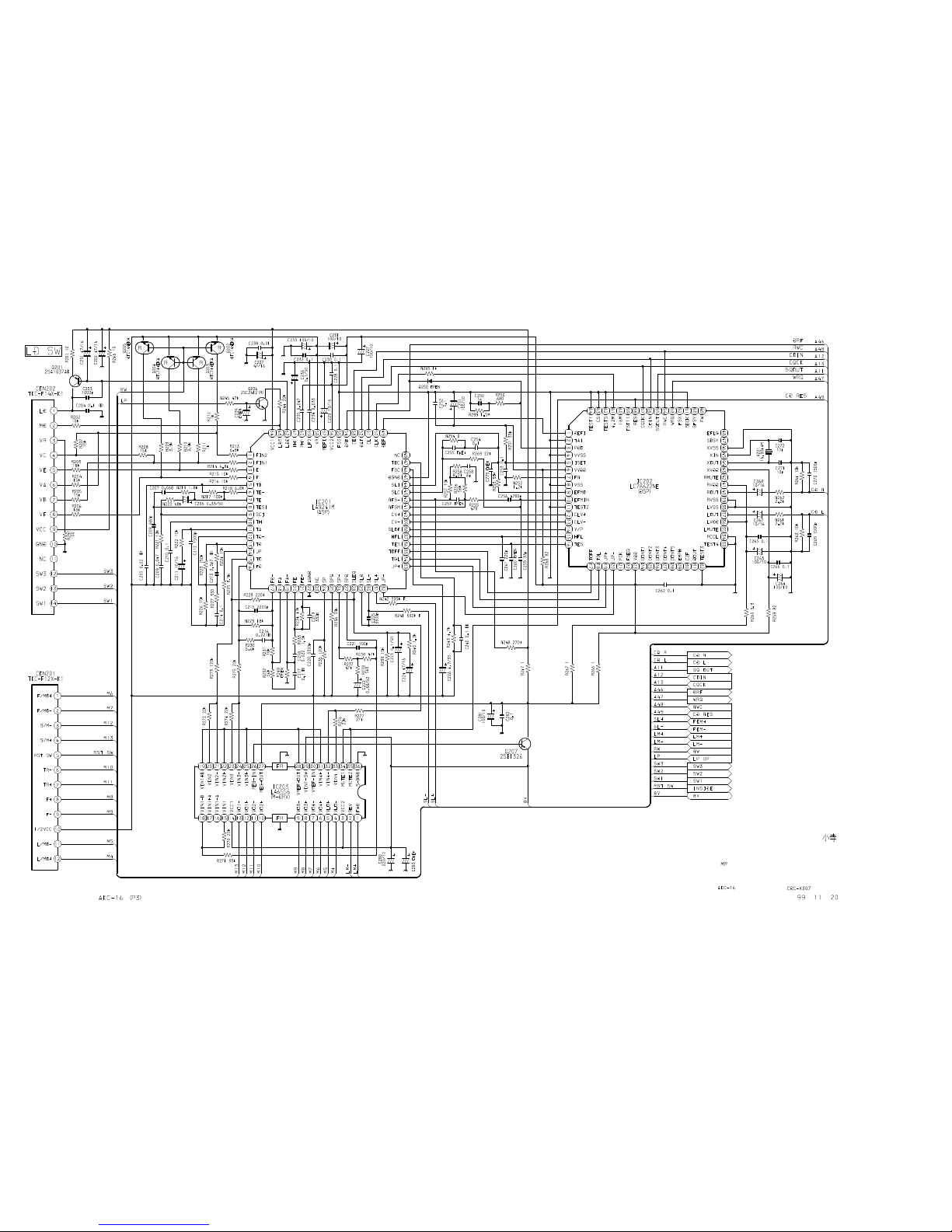

SCHEMATIC DIAGRAM - 1 (MAIN: 1 / 2)

SCHEMATIC DIAGRAM - 2 (MAIN: 2 / 2 CD)

SCHEMATIC DIAGRAM - 3 (FRONT)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore9820572

Other manuals for CDC-X2670

This manual suits for next models

Table of contents

Popular Car Receiver manuals by other brands

Sony

Sony CDX-GT28 Installation/connections

PURE

PURE HIGHWAY 300DI owner's manual

VDO

VDO TR 7311U-OR - datasheet

Hyundai

Hyundai H-CMMD4048 instruction manual

Kenwood

Kenwood DPX-7000DAB instruction manual

Sony

Sony CDX-GT350MP - Fm/am Compact Disc Player Specifications

VDO

VDO CD 5206 X Specification sheet

Pyle

Pyle PLCD70MUBT user guide

Philips

Philips CEM5000/51 user manual

Kenwood

Kenwood RD-VH7 Service manual

Sony

Sony DSX-S200X - Fm/am Digital Media Player Installation/connections

Sony

Sony MEX-BT2707E Service manual

Vauxhall

Vauxhall Antara Infotainment manual

Blaupunkt

Blaupunkt London MP48 OPERATING AND INSTALLATION Manual

JVC

JVC CD Receiver KD-SHX701 Service manual

Clarion

Clarion CZ202E owner's manual

Audiovox

Audiovox Rampage AV-2000 owner's manual

Blaupunkt

Blaupunkt MNCHEN RDM 169 US RDM 169 US operating instructions

Aiwa CDC-X2670 User manual

Popular Car Receiver manuals by other brands
