SERVICE MANUAL

DATA

BASIC TAPE MECHANISM : CDS-363AG1-A

STEREO CAR CASSETTE RECEIVER

CT-X310

CT-X325

CT-X320

CT-X4100

CT-X4150

S/M Code No. 09-003-339-1T2

YZ(ST)

YVJ(ST)

YZ(ST),YVJ(ST)

YL(ST)

SIMPLE

• Replace this Service Manual with ”Revision Publishing” when it is issued.

ELECTRICAL MAIN PARTS LIST - 1

NOTE: The characters in the suffix column indicate the part usage.

X310YZ .................XX....................................C.................

X325YVJ ................XX.....................................D................

X320YZ .................XX......................................E...............

X320YVJ ................XX.......................................F..............

X4100YL ................XX........................................G.............

X4150YL ................XX.........................................H............

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 607 87-A11-179-010 CAP,E 10-16-105 D5*L11 KMF ABCDEFGH............

IC 301 87-A21-191-010 IC,KIA6225S ABCDEFGH............

IC 901 87-A21-441-010 C-IC,TC9297FB ABCDEFGH............

Q 208 87-A30-295-010 TR,KRA226M ABCDEFGH............

Q 702 87-A30-467-040 C-TR,KRA111S-RTK ABCDEFGH............

Q 601 87-A30-467-040 C-TR,KRA111S-RTK ABCDEFGH............

Q 801 87-A30-469-040 C-TR,KRC111S-RTK ABCDEFGH............

Q 904 87-A30-469-040 C-TR,KRC111S-RTK ABCDEFGH............

Q 703 87-A30-470-040 C-TR,KTC3875SY-RTK ABCDEFGH............

Q 301 87-A30-470-040 C-TR,KTC3875SY-RTK ABCDEFGH............

Q 302 87-A30-470-040 C-TR,KTC3875SY-RTK ABCDEFGH............

Q 102 87-A30-470-040 C-TR,KTC3875SY-RTK ABCDEFGH............

Q 107 87-A30-470-040 C-TR,KTC3875SY-RTK ABCDEFGH............

Q 108 87-A30-470-040 C-TR,KTC3875SY-RTK ABCDEFGH............

Q 103 87-A30-471-040 C-TR,KTA1504SY-RTK ABCDEFGH............

Q 109 87-A30-471-040 C-TR,KTA1504SY-RTK ABCDEFGH............

Q 901 87-A30-472-040 C-TR,KRA226S-RTK ABCDEFGH............

Q 902 87-A30-472-040 C-TR,KRA226S-RTK ABCDEFGH............

Q 903 87-A30-472-040 C-TR,KRA226S-RTK ABCDEFGH............

Q 209 87-A30-473-080 TR,KRC102M-AT ABCDEFGH............

Q 210 87-A30-475-080 TR,KRA104M-AT ABCDEFGH............

Q 203 87-A30-476-010 TR,KTA1046Y ABCDEFGH............

Q 204 87-A30-487-080 TR,KRC111M-AT ABCDEFGH............

Q 205 87-A30-487-080 TR,KRC111M-AT ABCDEFGH............

Q 207 87-A30-487-080 TR,KRC111M-AT ABCDEFGH............

D 609 87-A40-819-040 C-ZENER,STZ6.8T ABCDEFGH............

PL 901 8A-KT7-655-010 LAMP,9V-50MA ABCDEFGH............

PL 902 8A-KT7-655-010 LAMP,9V-50MA ABCDEFGH............

W 901 8A-KT9-611-010 F-CABLE,3P 50MM ABCDEFGH............

TU 101 8A-KTG-607-010 TU UNIT,FAE347-P10 ...D.F..............

LCD 901 8A-KTG-610-010 LCD,AKT-16-17 ABCDEFGH............

CN 201 8Z-KT1-624-010 CONN,16P SOC017 AB....GH............

CNA 301 8Z-KTG-651-010 CONN ASSY,3P HEAD ABCDEFGH............

CNA 302 8Z-KTG-652-010 CONN ASSY,8P MOTOR ABCDEFGH............

Q 212 8Z-KTH-623-080 TR,KTA1267Y ..CDEF..............

Q 201 8Z-KTH-626-080 TR,KTC3203Y ABCDEFGH............

Q 202 8Z-KTH-627-080 TR,KTA1273Y ABCDEFGH............

L 702 87-003-097-080 0E COIL,1UH ABCDEFGH............

L 101 87-003-143-080 0E COIL 4.7 UH ABCDEFGH............

L 451 87-003-143-080 0E COIL 4.7 UH ABCDEFGH............

L 701 87-003-149-080 0E COIL,47UH ABCDEFGH............

L 801 87-003-149-080 0E COIL,47UH ABCDEFGH............

CN 301 87-009-031-010 0E CONNECTOR, 3P ABCDEFGH............

C 208 87-010-112-010 0E CAP,ELECT 100-16V ABCDEFGH............

C 507 87-010-175-080 0E CAP 560P ABCDEFGH............

C 508 87-010-175-080 0E CAP 560P ABCDEFGH............

C 505 87-010-175-080 0E CAP 560P A...................

C 506 87-010-175-080 0E CAP 560P A...................

C 609 87-010-180-080 0E C-CER 1500P ABCDEFGH............

C 610 87-010-180-080 0E C-CER 1500P ABCDEFGH............

C 611 87-010-180-080 0E C-CER 1500P ABCDEFGH............

C 612 87-010-180-080 0E C-CER 1500P ABCDEFGH............

C 407 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ABCDEFGH............

C 408 87-010-184-080 0E CHIP CAPACITOR 3300P(K) ABCDEFGH............

C 119 87-010-194-080 0E CAP, CHIP 0.047 ABCDEFGH............

C 120 87-010-194-080 0E CAP, CHIP 0.047 ABCDEFGH............

C 402 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............

C 425 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............

C 426 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............

C 706 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGH............

C 902 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGH............

C 703 87-010-198-080 0E CAP, CHIP 0.022 ABCDEFGH............

C 409 87-010-198-080 0E CAP, CHIP 0.022 ABCDEFGH............

C 410 87-010-198-080 0E CAP, CHIP 0.022 ABCDEFGH............

C 702 87-010-248-010 0E CAP, ELECT 220-10V ABCDEFGH............

C 305 87-010-263-010 0E CAP, ELECT 100-10V ABCDEFGH............

C 306 87-010-263-010 0E CAP, ELECT 100-10V ABCDEFGH............

C 311 87-010-263-010 0E CAP, ELECT 100-10V ABCDEFGH............

C 205 87-010-263-010 0E CAP, ELECT 100-10V ABCDEFGH............

C 705 87-010-314-080 0E C-CAP,S 22P-50V ABCDEFGH............

C 708 87-010-314-080 0E C-CAP,S 22P-50V ABCDEFGH............

C 707 87-010-315-080 0E C-CAP,S 27P-50 CH ABCDEFGH............

C 303 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 304 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 411 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 412 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 417 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 418 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 424 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 211 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 503 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

C 504 87-010-378-010 0E CAP, ELECT 10-16SME ABCDEFGH............

ELECTRICAL MAIN PARTS LIST - 2

C 501 87-010-378-010 0E CAP, ELECT 10-16SME A...................

C 502 87-010-378-010 0E CAP, ELECT 10-16SME A...................

C 701 87-010-380-010 0E CAP,E 47-16 SME ABCDEFGH............

C 314 87-010-380-010 0E CAP,E 47-16 SME ABCDEFGH............

C 103 87-010-380-010 0E CAP,E 47-16 SME ABCDEFGH............

C 104 87-010-380-010 0E CAP,E 47-16 SME ABCDEFGH............

C 123 87-010-380-010 0E CAP,E 47-16 SME ABCDEFGH............

C 401 87-010-380-010 0E CAP,E 47-16 SME ABCDEFGH............

C 213 87-010-380-010 0E CAP,E 47-16 SME ABCDEFGH............

C 710 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 309 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 310 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 312 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 313 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 403 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 404 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 405 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 406 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 419 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 420 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 421 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 422 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 451 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 452 87-010-401-010 0E CAP, ELECT 1-50V ABCDEFGH............

C 111 87-010-402-080 0E CAP, ELECT 2.2-50V ABCDEFGH............

C 711 87-010-404-010 0E CONDENSER 4.7-50 ABCDEFGH............

C 712 87-012-349-080 0E C-CAP,S 1000P-50 CH ABCDEFGH............

C 804 87-012-349-080 0E C-CAP,S 1000P-50 CH ABCDEFGH............

C 805 87-012-349-080 0E C-CAP,S 1000P-50 CH ABCDEFGH............

C 901 87-012-358-080 0E C-CAP,S 0.47-10 F Z ABCDEFGH............

C 307 87-012-365-080 0E C-CAP,S 0.027-25VBK ABCDEFGH............

C 308 87-012-365-080 0E C-CAP,S 0.027-25VBK ABCDEFGH............

C 601 87-016-083-080 0E C-CAP,S 0.15-16 RK ABCDEFGH............

C 602 87-016-083-080 0E C-CAP,S 0.15-16 RK ABCDEFGH............

C 603 87-016-083-080 0E C-CAP,S 0.15-16 RK ABCDEFGH............

C 604 87-016-083-080 0E C-CAP,S 0.15-16 RK ABCDEFGH............

C 709 87-016-526-080 0E C-CAP,S 0.47-16 BK ABCDEFGH............

C 713 87-016-526-080 0E C-CAP,S 0.47-16 BK ABCDEFGH............

C 714 87-016-526-080 0E C-CAP,S 0.47-16 BK ABCDEFGH............

C 715 87-016-669-080 0E C-CAP,S 0.1-25 K B ABCDEFGH............

C 716 87-016-669-080 0E C-CAP,S 0.1-25 K B ABCDEFGH............

D 907 87-017-827-070 0E C-LED,SEC 1201C RED ABCDEFGH............

D 908 87-017-827-070 0E C-LED,SEC 1201C RED ABCDEFGH............

D 909 87-017-827-070 0E C-LED,SEC 1201C RED ABCDEFGH............

C 101 87-018-119-080 0E CAP, CER 100P-50V ABCDEFGH............

C 301 87-018-131-080 0E CAP, CER 1000P-50V ABCDEFGH............

C 302 87-018-131-080 0E CAP, CER 1000P-50V ABCDEFGH............

C 203 87-018-132-010 0E CAP CER CYL SS 2200P ABCDEFGH............

C 102 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 105 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 106 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 109 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 110 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 121 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 122 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 214 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ..CDEF..............

C 801 87-018-134-080 0E CAPACITOR,TC-U 0.01-16 ABCDEFGH............

C 112 87-018-205-080 0E CAP, CERA-SOL 0.022 ABCDEFGH............

C 204 87-018-205-080 0E CAP, CERA-SOL 0.022 ABCDEFGH............

C 124 87-018-209-080 0E CAP, CER 0.1-50V ABCDEFGH............

C 605 87-018-209-080 0E CAP, CER 0.1-50V ABCDEFGH............

C 201 87-018-209-080 0E CAP, CER 0.1-50V ABCDEFGH............

C 215 87-018-209-080 0E CAP, CER 0.1-50V ABCDEFGH............

C 802 87-018-209-080 0E CAP, CER 0.1-50V ABCDEFGH............

C 803 87-018-209-080 0E CAP, CER 0.1-50V ABCDEFGH............

D 806 87-027-262-010 0E LEDE,TLR-124(RED) ABCDEFGH............

S 901 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 902 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 903 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 904 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 906 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 907 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 908 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 909 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 910 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

S 913 87-036-251-080 0E SW,T CT 6X3.5 160 ABCDEFGH............

CN 302 87-099-408-010 0E CONN,8P EH V WHT ABCDEFGH............

C 413 87-A11-177-080 0E C-CAP,S 0.15-16 K B ABCDEFGH............

C 414 87-A11-177-080 0E C-CAP,S 0.15-16 K B ABCDEFGH............

C 415 87-A11-177-080 0E C-CAP,S 0.15-16 K B ABCDEFGH............

C 416 87-A11-177-080 0E C-CAP,S 0.15-16 K B ABCDEFGH............

J 501 87-A61-224-010 1A JACK,PIN 4P XR-401 A...................

J 501 87-A61-225-010 1A JACK,PIN 2P XR-401 .BCDEFGH............

S 905 87-A90-001-080 1A C-SW,TACT SKQMAL ABCDEFGH............

S 911 87-A90-001-080 1A C-SW,TACT SKQMAL ABCDEFGH............

S 912 87-A90-001-080 1A C-SW,TACT SKQMAL ABCDEFGH............

S 915 87-A90-001-080 1A C-SW,TACT SKQMAL ABCDEFGH............

S 916 87-A90-001-080 1A C-SW,TACT SKQMAL ABCDEFGH............

S 751 87-A91-152-010 1A SW,SL 1-1-2 SSSS212-11-A ABCDEFGH............

CN 901 88-KTA-602-010 1A CONN,15P CAM-B67 ABCDEFGH............

ANT 101 8Z-KT1-614-010 1A ANT,AW-002 ABCDEFGH............

L 102 8Z-KT1-619-010 1A COIL,68MH K7-D ABCDEFGH............

J 901 87-A61-229-010 1B JACK,3.5 BLK ST W/SW ABCDEFGH............

ELECTRICAL MAIN PARTS LIST - 3

X 701 87-A70-175-010 1B VIB,XTAL 4.5MHZ AT-49 ABCDEFGH............

VR 901 87-A91-597-010 1B SW,RTRY SIM-026MT ABCDEFGH............

C 608 8Z-KT1-633-090 1B CAP,E 3300U-16 PW ABCDEFGH............

CN 801 88-KTA-603-010 1C CONN,15P CAM-B68 ABCDEFGH............

L 201 8Z-KT1-615-010 1C FLTR,AMORPHOUS -CHOKE ABCDEFGH............

CNA 202 8A-KT1-632-010 1D CONN ASSY,8P ISO-WHITE-A ..CDEF..............

D 910 87-A40-813-040 1E C-LED,SEC1E01C BLUE ABCDEFGH............

D 911 87-A40-813-040 1E C-LED,SEC1E01C BLUE ABCDEFGH............

D 912 87-A40-813-040 1E C-LED,SEC1E01C BLUE ABCDEFGH............

CN 201 8A-KT1-631-010 1E CONN ASSY,8P ISO-BLACK-A ..CDEF..............

TU 101 8A-KC8-620-010 2B TU UNIT, FAE347-A11 ..C.E...............

TU 101 8A-KC8-621-010 2B TU UNIT, FAE347-A12 AB....GH............

D 601 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 602 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 603 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 604 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 605 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 606 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 607 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 608 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 203 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 208 87-001-783-080 0E DIODE,1N4002 ABCDEFGH............

D 205 87-017-932-080 0E ZENER,MTJ6.2B ABCDEFGH............

D 801 87-017-932-080 0E ZENER,MTJ6.2B ABCDEFGH............

D 802 87-017-932-080 0E ZENER,MTJ6.2B ABCDEFGH............

D 803 87-017-932-080 0E ZENER,MTJ6.2B ABCDEFGH............

D 804 87-017-932-080 0E ZENER,MTJ6.2B ABCDEFGH............

D 754 87-020-465-080 0E DIODE,1SS133 (110MA) AB....GH............

D 760 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............

D 757 87-020-465-080 0E DIODE,1SS133 (110MA) ..CDEF..............

D 701 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............

D 751 87-020-465-080 0E DIODE,1SS133 (110MA) ...D.F..............

D 101 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............

D 102 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............

D 901 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y ABCDEFGH............

D 902 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y ABCDEFGH............

D 903 87-020-585-080 0E CHIP-ZENER,02CZ6.2Y ABCDEFGH............

Q 501 87-026-576-080 0E C-TR,DTC343TK ABCDEFGH............

Q 502 87-026-576-080 0E C-TR,DTC343TK ABCDEFGH............

Q 503 87-026-576-080 0E C-TR,DTC343TK ABCDEFGH............

Q 504 87-026-576-080 0E C-TR,DTC343TK ABCDEFGH............

D 206 87-070-334-080 0E ZENER,MTZJ10B ABCDEFGH............

Q 701 87-A30-468-040 0E C-TR,KRC102S-RTK ABCDEFGH............

Q 101 87-A30-468-040 0E C-TR,KRC102S-RTK ABCDEFGH............

Q 104 87-A30-468-040 0E C-TR,KRC102S-RTK ABCDEFGH............

Q 110 87-A30-468-040 0E C-TR,KRC102S-RTK ABCDEFGH............

D 207 87-A40-337-080 0E ZENER,MTZJ 6.8B ABCDEFGH............

D 209 87-A40-523-080 0E ZENER,MTZJ9.1B ABCDEFGH............

D 201 87-A40-798-010 0E DIODE,1N5402 (3A/200V) ABCDEFGH............

D 703 87-A40-830-040 0E DIODE,KDS226-RTK ABCDEFGH............

Q 206 89-423-953-010 1A TR,2SD2395F ABCDEFGH............

Q 211 89-423-953-010 1A TR,2SD2395F ABCDEFGH............

F 201 8Z-KC1-621-010 1B FUSE,15A 32V ABCDEFGH............

IC 701 87-A21-539-030 2A C-IC,TC9323F-XXX ABCDEFGH............

IC 401 8Z-KT1-622-010 2A C-IC,LC75374E ABCDEFGH............

IC 601 8Z-KTG-622-010 2A IC,TA8259H ABCDEFGH............

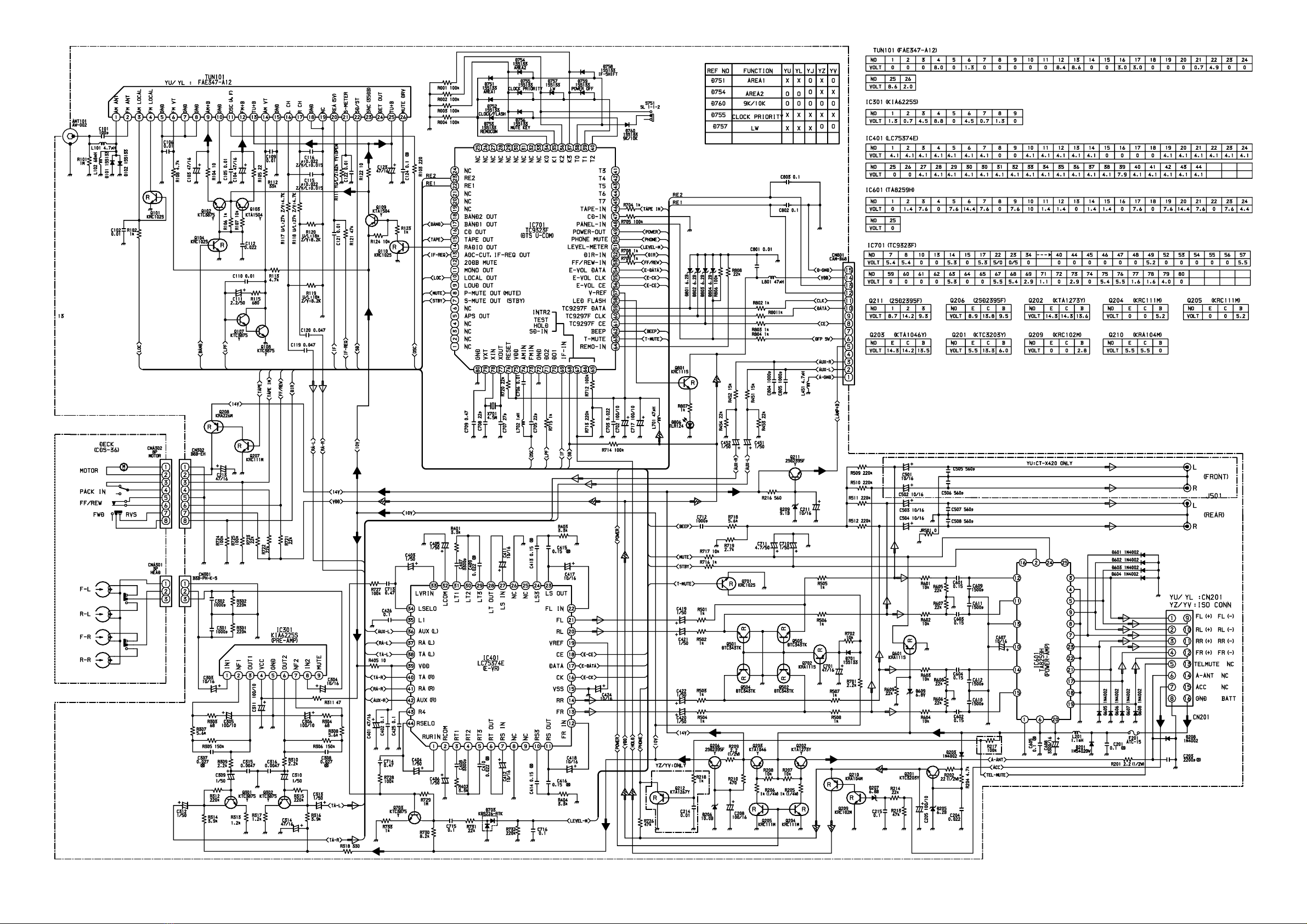

SCHEMATIC DIAGRAM-1

SCHEMATIC DIAGRAM-2

MECHANICAL PARTS LIST - 1

NOTE: The characters in the suffix column indicate the part usage.

X310YZ .................XX....................................C.................

X325YVJ ................XX.....................................D................

X320YZ .................XX......................................E...............

X320YVJ ................XX.......................................F..............

X4100YL ................XX........................................G.............

X4150YL ................XX.........................................H............

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

87-KTE-205-010 SPR-C,EJ/FF/REW ABCDEFGH............

88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK ABCDEFGH............

8A-KT4-005-010 BTN,PWR 4 ..C.................

8A-KT4-007-010 BTN,SEL 4 ..C.................

8A-KT4-009-010 BTN,PS 4 ..C.................

8A-KT4-010-010 WINDOW,R 4 ..C.................

8A-KT4-011-010 WINDOW,L 4 ..C.................

8A-KT5-012-010 BTN,PWR AB.DEFGH............

8A-KT5-013-010 BTN,DISP AB.DEFGH............

8A-KT5-014-010 BTN,A/M AB.DEFGH............

8A-KT5-015-010 BTN,LO ABCDEFGH............

8A-KT5-016-010 BTN,INFO AB.DEFGH............

8A-KT5-021-010 RING,RTRY A ABCDEFGH............

8A-KT5-204-010 HLDR,TR ABCDEFGH............

8A-KT5-210-010 HLDR,BTN MU ABCDEFGH............

8A-KT5-211-010 HLDR,BTN DISP ABCDEFGH............

8A-KT5-219-010 HLDR,ISO-WIRE 5 ..CDEF..............

W 901 8A-KT9-611-010 F-CABLE,3P 50MM ABCDEFGH............

8A-KTF-002-010 CABI,REAR F ABCDEFGH............

8A-KTF-003-010 CABI,TRIM F ABCDEFGH............

8A-KTF-004-010 WINDOW,L F AB.DEFGH............

8A-KTF-005-010 WINDOW,R F AB.DEFGH............

8A-KTF-010-010 BTN,EJECT F ABCDEFGH............

8A-KTF-011-010 BTN,FF F ABCDEFGH............

8A-KTF-012-010 BTN,REW F ABCDEFGH............

8A-KTF-013-010 BTN,FNC F ABCDEFGH............

8A-KTF-014-010 CABI,BASE F ABCDEFGH............

8A-KTF-015-010 BTN,DETACH ABCDEFGH............

8A-KTF-020-010 KNOB,RTRY NON RUBBER ABCDEFGH............

8A-KTF-201-010 HLDR,IC F ABCDEFGH............

8A-KTF-202-010 HLDR,DECK F ABCDEFGH............

8A-KTF-205-010 LENS,ENCO F ABCDEFGH............

8A-KTF-206-010 LENS,R F ABCDEFGH............

8A-KTG-001-010 CABI,FRONT G ABCDEFGH............

8A-KTG-002-010 WINDOW,LCD X420 A...................

8A-KTG-003-010 BTN,UP/DN G ABCDEFGH............

8A-KTG-004-010 BTN,P.SET G ABCDEFGH............

8A-KTG-005-010 WINDOW,LCD X410 .B..................

8A-KTG-006-010 WINDOW,LCD X4100 ......G.............

8A-KTG-007-010 WINDOW,LCD X4150 .......H............

8A-KTG-010-010 WINDOW,LCD X320 ....EF..............

8A-KTG-015-010 BTN,INFO G ..C.................

8A-KTG-016-010 WINDOW,LCD X325 ...D................

8A-KTG-017-010 WINDOW,LCD X310 ..C.................

8A-KTG-201-010 HLDR,LCD G ABCDEFGH............

8A-KTG-202-010 CASE,LCD G ABCDEFGH............

8A-KTG-203-010 LENS,LCD G ABCDEFGH............

8Z-KT1-023-110 DOOR,CASS ABCDEFGH............

8Z-KT1-211-010 COVER, TOP -T ABCDEFGH............

8Z-KT1-212-010 COVER, BOTTOM -T ABCDEFGH............

8Z-KT1-244-010 SPR-T,DOOR Z ABCDEFGH............

8Z-KT1-253-010 S-SCREW,PT 2*8 BH+ BLK ABCDEFGH............

8Z-KT4-201-010 COVER, CD BLIND -T ABCDEFGH............

8Z-KT5-201-010 COVER, ISO BLIND -T AB....GH............

8Z-KTA-203-010 LEVER,DFP LOCK -T10 ABCDEFGH............

8Z-KTA-204-110 LEVER,DEF HOOK -T10 ABCDEFGH............

8Z-KTA-221-010 SPR-C,DETACH LOCK-T10 ABCDEFGH............

8Z-KTA-222-010 SPR-T,DETACH LOCK-T10 ABCDEFGH............

8Z-KTA-223-010 SPR-C,RELEASE -T10 ABCDEFGH............

8Z-KTG-209-010 CAP,LAMP ORN ..C.................

87-251-073-410 0E SCREW,U+2.6-6 ABCDEFGH............

87-251-097-410 0E U+3-12 ABCDEFGH............

87-432-903-010 0E WASHER,WTE 2.6 ABCDEFGH............

87-B10-259-010 0E UT2+3.0-10.0 W/O SLOT (BH TAP) ABCDEFGH............

8Z-KT1-239-010 0E CAP,LAMP BLU B AB.DEFGH............

ACCESSORIES LIST

NOTE: The characters in the suffix column indicate the part usage.

X310YZ .................XX....................................C.................

X325YVJ ................XX.....................................D................

X320YZ .................XX......................................E...............

X320YVJ ................XX.......................................F..............

X4100YL ................XX........................................G.............

X4150YL ................XX.........................................H............

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

86-KT1-237-010 HLDR,REAR MTG ABCDEFGH............

* 88-KT1-247-010 S-SCREW,HEXAGON ABCDEFGH............

88-KT1-250-010 S-SCREW,THIN HEAD+2.6-4 BLK ABCDEFGH............

8A-KT3-902-010 IB,INST,YZ (9L)-A ..CDEF..............

8A-KT5-902-010 IB,INST,YU,YL (3L,P) AB....GH............

8A-KTG-901-010 IB,YU(3L) 420 A...................

8A-KTG-902-010 IB,YU(3L) 410 .B..................

8A-KTG-903-010 IB,YL(3L) 4100,4150 ......GH............

8A-KTG-904-010 IB,INST,SP (3L,P)-A .......H............

8A-KTG-905-010 IB,YZ(9L) 320 ..C.E...............

8A-KTG-906-010 IB,YV(ER) 320 ...D.F..............

8A-KTG-907-010 IB,INST,SP (ER)-A ...D................

8A-KTG-951-010 SPKR,13CM ASSY ...D................

8Z-KT1-030-010 CASE,DFP -T ABCDEFGH............

8Z-KT1-231-010 HLDR,HALF -T ABCDEFGH............

8Z-KT1-232-010 KEY,REMOVE -T ABCDEFGH............

* 8Z-KT1-251-010 S-SCREW,5*6 TH+ TAPPING ST ABCDEFGH............

* 8Z-KT1-625-010 CONN ASSY,16P SOC016 AB....GH............

8Z-KTG-951-010 SPKR,16CM ASSY .......H............

87-B10-141-010 0E NUT,5 TYPE-2 ABCDEFGH............

* 87-B10-143-010 0E UT1+5-15 W/O SLOT ABCDEFGH............

87-B10-144-010 0E W,5.2-10-0.5 ABCDEFGH............

87-B10-145-010 0E W-SPR,5.3-8.5-1.5 ABCDEFGH............

2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111

931196 Printed in Singapore

This manual suits for next models

Table of contents

Popular Car Receiver manuals by other brands

Linear Series

Linear Series LS5050 Operation and installation manual

Kenwood

Kenwood KRC-160 instruction manual

Sony

Sony XR-CA430X Service manual

T+A Elektroakustik

T+A Elektroakustik K1 CD-RECEIVER operating instructions

SoundMax

SoundMax SM-CDM1052 instruction manual

Xtrons

Xtrons HD107HD user manual

Mopar

Mopar RB3 manual

Clarion

Clarion ADDZEST DMZ615 owner's manual

Sony

Sony XAV-601BT Specifications

PIE

PIE GM12-POD/S Operation manual

Hyundai

Hyundai H-910H instruction manual

Sony

Sony XR-C6100 Service manual

Sony

Sony CDX-L600X - Fm/am Compact Disc Player Installation/connections

Motorola

Motorola VWA63 Service manual

Sound Storm

Sound Storm STM93R user manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Kenwood

Kenwood KDC-X303 quick start guide

Aiwa CT-X310 User manual

Popular Car Receiver manuals by other brands
