Aiwa HS-JXM2000 User manual

DATA
HS-JXM2000 D,AH,YH
SIMPLE
S/M Code No. 09-005-434-6T1
•Replace this Service manual with “Revision Publishing” when it is issued.
STEREORADIO
CASSETTE RECORDER BASICTAPEMECHANISM:7ZM-1R1NF

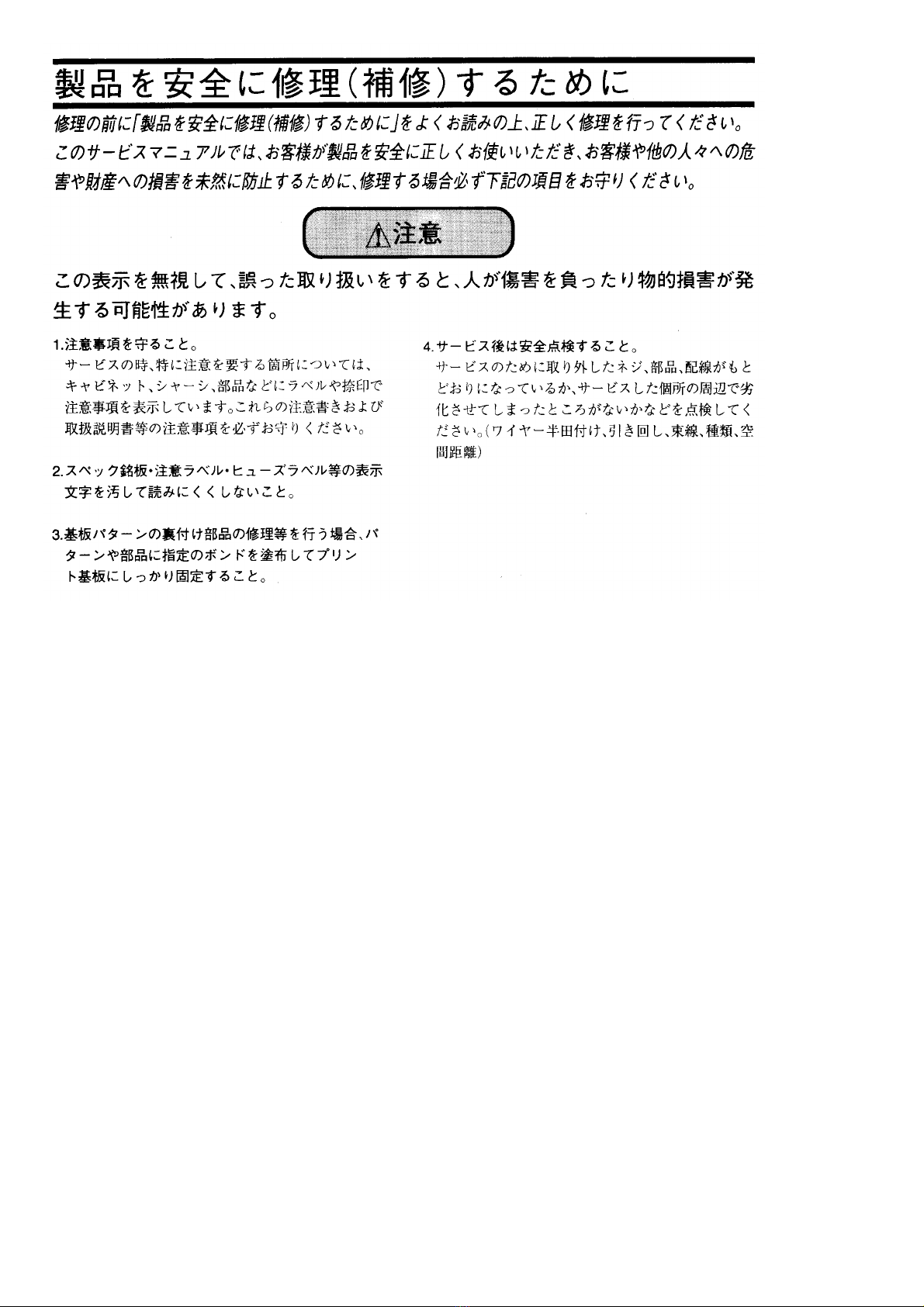

– 2 –

PARTS LIST
-1-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O ACCESSORY 82-HK3-951-010 1C CARRYING,CASE S HS-JXM2000
O ACCESSORY 87-B30-138-010 1H MIC,CM-MS001 AH1SF HS-JXM2000
O ACCESSORY 87-B30-138-010 1H MIC,CM-MS001 S HS-JXM2000
O ACCESSORY 87-B30-138-010 1H MIC,CM-MS001 YHSSF HS-JXM2000
O ACCESSORY 87-B30-298-010 2A BAT,NB-5G(S) AH1SF HS-JXM2000
O ACCESSORY 87-B30-298-010 2A BAT,NB-5G(S) S HS-JXM2000
O ACCESSORY 87-B30-298-010 2A BAT,NB-5G(S) YHSSF HS-JXM2000
O ACCESSORY 87-B30-337-010 -- HEADPHONE,HP-M054 AH1SF HS-JXM2000
O ACCESSORY 87-B30-337-010 -- HEADPHONE,HP-M054 S HS-JXM2000
O ACCESSORY 87-B30-337-010 -- HEADPHONE,HP-M054 YHSSF HS-JXM2000
! O ACCESSORY 87-B30-340-010 1F CHARGER,RB-107 D (L) S HS-JXM2000
! O ACCESSORY 87-B30-341-110 1F CHARGER,RB-107 H (L) AH1SF HS-JXM2000
O ACCESSORY 8A-HJ2-951-010 2Y RC UNIT,RC2000 AH1SF HS-JXM2000
O ACCESSORY 8A-HJ2-951-010 2Y RC UNIT,RC2000 S HS-JXM2000
O ACCESSORY 8A-HJ2-951-010 2Y RC UNIT,RC2000 YHSSF HS-JXM2000
O ACCESSORY 8A-HJ2-952-010 1C CASE,CARRYING BLK AH1SF HS-JXM2000
O ACCESSORY 8A-HJ2-952-010 1C CASE,CARRYING BLK YHSSF HS-JXM2000
X ACCESSORY 8Z-HK4-080-010 0E LBL,BAT D S HS-JXM2000
X ACCESSORY 8Z-HK4-081-010 0E LBL,BAT EX AH1SF HS-JXM2000
X ACCESSORY 8Z-HK4-081-010 0E LBL,BAT EX YHSSF HS-JXM2000
O ACCESSORY 8Z-HK4-090-010 1E BOX,BAT ASSY SIL AH1SF HS-JXM2000
O ACCESSORY 8Z-HK4-090-010 1E BOX,BAT ASSY SIL S HS-JXM2000
O ACCESSORY 8Z-HK4-090-010 1E BOX,BAT ASSY SIL YHSSF HS-JXM2000
X AF DD CONV 87-600-042-210 0E WIRE,P0-4-2 AH1SF HS-JXM2000
X AF DD CONV 87-600-042-210 0E WIRE,P0-4-2 S HS-JXM2000
X AF DD CONV 87-600-042-210 0E WIRE,P0-4-2 YHSSF HS-JXM2000
X AF DD CONV 87-601-042-210 0E WIRE,P1-4-2 AH1SF HS-JXM2000
X AF DD CONV 87-601-042-210 0E WIRE,P1-4-2 S HS-JXM2000
X AF DD CONV 87-601-042-210 0E WIRE,P1-4-2 YHSSF HS-JXM2000
X AF DD CONV 87-602-042-210 0E WIRE,P2-4-2 AH1SF HS-JXM2000
X AF DD CONV 87-602-042-210 0E WIRE,P2-4-2 S HS-JXM2000
X AF DD CONV 87-602-042-210 0E WIRE,P2-4-2 YHSSF HS-JXM2000
O AF DD CONV C 0551 87-016-444-080 1B C-CAP,TN 47-10 M AH1SF HS-JXM2000
O AF DD CONV C 0551 87-016-444-080 1B C-CAP,TN 47-10 M S HS-JXM2000
O AF DD CONV C 0551 87-016-444-080 1B C-CAP,TN 47-10 M YHSSF HS-JXM2000
O AF DD CONV C 0552 87-A10-955-080 1A C-CAP,TN 47-6.3 MCR AH1SF HS-JXM2000
O AF DD CONV C 0552 87-A10-955-080 1A C-CAP,TN 47-6.3 MCR S HS-JXM2000
O AF DD CONV C 0552 87-A10-955-080 1A C-CAP,TN 47-6.3 MCR YHSSF HS-JXM2000
O AF DD CONV C 0553 87-016-444-080 1B C-CAP,TN 47-10 M AH1SF HS-JXM2000
O AF DD CONV C 0553 87-016-444-080 1B C-CAP,TN 47-10 M S HS-JXM2000
O AF DD CONV C 0553 87-016-444-080 1B C-CAP,TN 47-10 M YHSSF HS-JXM2000
S AF DD CONV D 0551 87-001-553-080 0E C-DIODE,1SS322 AH1SF HS-JXM2000
S AF DD CONV D 0551 87-001-553-080 0E C-DIODE,1SS322 S HS-JXM2000
S AF DD CONV D 0551 87-001-553-080 0E C-DIODE,1SS322 YHSSF HS-JXM2000
S AF DD CONV IC 0551 87-A20-603-140 1C C-IC,RN5RK241A AH1SF HS-JXM2000
S AF DD CONV IC 0551 87-A20-603-140 1C C-IC,RN5RK241A S HS-JXM2000
S AF DD CONV IC 0551 87-A20-603-140 1C C-IC,RN5RK241A YHSSF HS-JXM2000
O AF DD CONV L 0551 87-A50-174-080 1B C-COIL, 82UH 7004-2 AH1SF HS-JXM2000
O AF DD CONV L 0551 87-A50-174-080 1B C-COIL, 82UH 7004-2 S HS-JXM2000
O AF DD CONV L 0551 87-A50-174-080 1B C-COIL, 82UH 7004-2 YHSSF HS-JXM2000
O AF DD CONV L 0552 87-A50-012-080 0E C-COIL, 100UH LQH3C AH1SF HS-JXM2000
O AF DD CONV L 0552 87-A50-012-080 0E C-COIL, 100UH LQH3C S HS-JXM2000
O AF DD CONV L 0552 87-A50-012-080 0E C-COIL, 100UH LQH3C YHSSF HS-JXM2000
O AF DD CONV L 0553 87-A50-010-080 0E C-COIL, 22UH LQH3C AH1SF HS-JXM2000
O AF DD CONV L 0553 87-A50-010-080 0E C-COIL, 22UH LQH3C S HS-JXM2000
O AF DD CONV L 0553 87-A50-010-080 0E C-COIL, 22UH LQH3C YHSSF HS-JXM2000
X AF DD CONV R 0551 88-104-109-080 0E C-RES,V 1-1/16W J AH1SF HS-JXM2000
X AF DD CONV R 0551 88-104-109-080 0E C-RES,V 1-1/16W J S HS-JXM2000
X AF DD CONV R 0551 88-104-109-080 0E C-RES,V 1-1/16W J YHSSF HS-JXM2000
O BIAS OSC C 0601 87-012-286-080 0E C-CAP,U 0.01-25 K B AH1SF HS-JXM2000
O BIAS OSC C 0601 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O BIAS OSC C 0601 87-012-286-080 0E C-CAP,U 0.01-25 K B YHSSF HS-JXM2000
O BIAS OSC C 0602 87-012-282-080 0E C-CAP,U 4700P-50 K B AH1SF HS-JXM2000
O BIAS OSC C 0602 87-012-282-080 0E C-CAP,U 4700P-50 K B S HS-JXM2000
O BIAS OSC C 0602 87-012-282-080 0E C-CAP,U 4700P-50 K B YHSSF HS-JXM2000
O BIAS OSC C 0603 87-012-286-080 0E C-CAP,U 0.01-25 K B AH1SF HS-JXM2000
O BIAS OSC C 0603 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O BIAS OSC C 0603 87-012-286-080 0E C-CAP,U 0.01-25 K B YHSSF HS-JXM2000
O BIAS OSC C 0604 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM AH1SF HS-JXM2000
O BIAS OSC C 0604 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM S HS-JXM2000

PARTS LIST
-2-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O BIAS OSC C 0604 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM YHSSF HS-JXM2000
O BIAS OSC C 0605 87-012-278-080 0E C-CAP,U 2200P-50 K B AH1SF HS-JXM2000
O BIAS OSC C 0605 87-012-278-080 0E C-CAP,U 2200P-50 K B S HS-JXM2000
O BIAS OSC C 0605 87-012-278-080 0E C-CAP,U 2200P-50 K B YHSSF HS-JXM2000
O BIAS OSC C 0606 87-012-267-080 0E C-CAP,U 270P-50 K B GRM AH1SF HS-JXM2000
O BIAS OSC C 0606 87-012-267-080 0E C-CAP,U 270P-50 K B GRM S HS-JXM2000
O BIAS OSC C 0606 87-012-267-080 0E C-CAP,U 270P-50 K B GRM YHSSF HS-JXM2000
O BIAS OSC C 0607 87-012-267-080 0E C-CAP,U 270P-50 K B GRM AH1SF HS-JXM2000
O BIAS OSC C 0607 87-012-267-080 0E C-CAP,U 270P-50 K B GRM S HS-JXM2000
O BIAS OSC C 0607 87-012-267-080 0E C-CAP,U 270P-50 K B GRM YHSSF HS-JXM2000
O BIAS OSC C 0608 87-012-270-080 0E C-CAP,U 470P-50 K B AH1SF HS-JXM2000
O BIAS OSC C 0608 87-012-270-080 0E C-CAP,U 470P-50 K B S HS-JXM2000
O BIAS OSC C 0608 87-012-270-080 0E C-CAP,U 470P-50 K B YHSSF HS-JXM2000
O BIAS OSC C 0609 87-012-270-080 0E C-CAP,U 470P-50 K B AH1SF HS-JXM2000
O BIAS OSC C 0609 87-012-270-080 0E C-CAP,U 470P-50 K B S HS-JXM2000
O BIAS OSC C 0609 87-012-270-080 0E C-CAP,U 470P-50 K B YHSSF HS-JXM2000
O BIAS OSC L 0601 8A-HJ2-605-080 1B C-COIL,OSC BIAS AH1SF HS-JXM2000
O BIAS OSC L 0601 8A-HJ2-605-080 1B C-COIL,OSC BIAS S HS-JXM2000
O BIAS OSC L 0601 8A-HJ2-605-080 1B C-COIL,OSC BIAS YHSSF HS-JXM2000
O BIAS OSC L 0602 87-A50-012-080 0E C-COIL, 100UH LQH3C AH1SF HS-JXM2000
O BIAS OSC L 0602 87-A50-012-080 0E C-COIL, 100UH LQH3C S HS-JXM2000
O BIAS OSC L 0602 87-A50-012-080 0E C-COIL, 100UH LQH3C YHSSF HS-JXM2000
S BIAS OSC Q 0601 89-413-284-080 0E C-TR,2SD1328T AH1SF HS-JXM2000
S BIAS OSC Q 0601 89-413-284-080 0E C-TR,2SD1328T S HS-JXM2000
S BIAS OSC Q 0601 89-413-284-080 0E C-TR,2SD1328T YHSSF HS-JXM2000
S BIAS OSC Q 0602 87-026-596-080 0E C-TR,UMH9 AH1SF HS-JXM2000
S BIAS OSC Q 0602 87-026-596-080 0E C-TR,UMH9 S HS-JXM2000
S BIAS OSC Q 0602 87-026-596-080 0E C-TR,UMH9 YHSSF HS-JXM2000
S BIAS OSC Q 0603 87-026-596-080 0E C-TR,UMH9 AH1SF HS-JXM2000
S BIAS OSC Q 0603 87-026-596-080 0E C-TR,UMH9 S HS-JXM2000
S BIAS OSC Q 0603 87-026-596-080 0E C-TR,UMH9 YHSSF HS-JXM2000
X BIAS OSC R 0601 88-108-229-080 0E C-RES,U 2.2-1/16W J AH1SF HS-JXM2000
X BIAS OSC R 0601 88-108-229-080 0E C-RES,U 2.2-1/16W J S HS-JXM2000
X BIAS OSC R 0601 88-108-229-080 0E C-RES,U 2.2-1/16W J YHSSF HS-JXM2000
X BIAS OSC R 0602 88-108-332-080 0E C-RES,U 3.3K-1/16W J AH1SF HS-JXM2000
X BIAS OSC R 0602 88-108-332-080 0E C-RES,U 3.3K-1/16W J S HS-JXM2000
X BIAS OSC R 0602 88-108-332-080 0E C-RES,U 3.3K-1/16W J YHSSF HS-JXM2000
O BIAS OSC S 0601 87-A90-419-080 0E C-SW,SL 1-1-3 SS-350-B13B-C-T AH1SF HS-JXM2000
O BIAS OSC S 0601 87-A90-419-080 0E C-SW,SL 1-1-3 SS-350-B13B-C-T S HS-JXM2000
O BIAS OSC S 0601 87-A90-419-080 0E C-SW,SL 1-1-3 SS-350-B13B-C-T YHSSF HS-JXM2000
O CABITY 8A-HJ2-001-010 2A LID,CASS ASSY AH1SF HS-JXM2000
O CABITY 8A-HJ2-001-010 2A LID,CASS ASSY S HS-JXM2000
O CABITY 8A-HJ2-001-010 2A LID,CASS ASSY YHSSF HS-JXM2000
X CABITY 8A-HJ2-002-010 -- LID,CASS AH1SF HS-JXM2000
X CABITY 8A-HJ2-002-010 -- LID,CASS S HS-JXM2000
X CABITY 8A-HJ2-002-010 -- LID,CASS YHSSF HS-JXM2000
O CABITY 8A-HJ2-003-010 -- WINDOW,CASS AH1SF HS-JXM2000
O CABITY 8A-HJ2-003-010 -- WINDOW,CASS S HS-JXM2000
O CABITY 8A-HJ2-003-010 -- WINDOW,CASS YHSSF HS-JXM2000
O CABITY 8A-HJ2-004-010 2M CABI,REAR M2K AH1SF HS-JXM2000
O CABITY 8A-HJ2-004-010 2M CABI,REAR M2K YHSSF HS-JXM2000
O CABITY 8A-HJ2-005-010 -- FRAME,CENTER AH1SF HS-JXM2000
O CABITY 8A-HJ2-005-010 -- FRAME,CENTER S HS-JXM2000
O CABITY 8A-HJ2-005-010 -- FRAME,CENTER YHSSF HS-JXM2000
O CABITY 8A-HJ2-006-010 -- FRAME,R AH1SF HS-JXM2000
O CABITY 8A-HJ2-006-010 -- FRAME,R S HS-JXM2000
O CABITY 8A-HJ2-006-010 -- FRAME,R YHSSF HS-JXM2000
O CABITY 8A-HJ2-007-010 -- FRAME,L AH1SF HS-JXM2000
O CABITY 8A-HJ2-007-010 -- FRAME,L S HS-JXM2000
O CABITY 8A-HJ2-007-010 -- FRAME,L YHSSF HS-JXM2000
O CABITY 8A-HJ2-008-010 -- LID,BAT AH1SF HS-JXM2000
O CABITY 8A-HJ2-008-010 -- LID,BAT S HS-JXM2000
O CABITY 8A-HJ2-008-010 -- LID,BAT YHSSF HS-JXM2000
O CABITY 8A-HJ2-009-010 -- PANEL,CONT AH1SF HS-JXM2000
O CABITY 8A-HJ2-009-010 -- PANEL,CONT S HS-JXM2000
O CABITY 8A-HJ2-009-010 -- PANEL,CONT YHSSF HS-JXM2000
O CABITY 8A-HJ2-010-010 -- WINDOW,LCD AH1SF HS-JXM2000
O CABITY 8A-HJ2-010-010 -- WINDOW,LCD YHSSF HS-JXM2000
O CABITY 8A-HJ2-021-010 2M CABI,REAR 990 S HS-JXM2000
O CABITY 8A-HJ2-023-010 -- WINDOW,LCD 20 S HS-JXM2000

PARTS LIST
-3-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
X CABITY 8A-HJ2-201-010 -- STOPPER,OPEN AH1SF HS-JXM2000
X CABITY 8A-HJ2-201-010 -- STOPPER,OPEN S HS-JXM2000
X CABITY 8A-HJ2-201-010 -- STOPPER,OPEN YHSSF HS-JXM2000
O DOLBY C 0301 87-A10-262-080 0E C-CAP,U 1-10 Z F AH1SF HS-JXM2000
O DOLBY C 0301 87-A10-262-080 0E C-CAP,U 1-10 Z F S HS-JXM2000
O DOLBY C 0301 87-A10-262-080 0E C-CAP,U 1-10 Z F YHSSF HS-JXM2000
O DOLBY C 0302 87-A10-262-080 0E C-CAP,U 1-10 Z F AH1SF HS-JXM2000
O DOLBY C 0302 87-A10-262-080 0E C-CAP,U 1-10 Z F S HS-JXM2000
O DOLBY C 0302 87-A10-262-080 0E C-CAP,U 1-10 Z F YHSSF HS-JXM2000
O DOLBY C 0303 87-012-274-080 0E C-CAP,U 1000P-50 K B AH1SF HS-JXM2000
O DOLBY C 0303 87-012-274-080 0E C-CAP,U 1000P-50 K B S HS-JXM2000
O DOLBY C 0303 87-012-274-080 0E C-CAP,U 1000P-50 K B YHSSF HS-JXM2000
O DOLBY C 0304 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM AH1SF HS-JXM2000
O DOLBY C 0304 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM S HS-JXM2000
O DOLBY C 0304 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM YHSSF HS-JXM2000
O DOLBY C 0305 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B AH1SF HS-JXM2000
O DOLBY C 0305 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B S HS-JXM2000
O DOLBY C 0305 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B YHSSF HS-JXM2000
O DOLBY C 0306 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B AH1SF HS-JXM2000
O DOLBY C 0306 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B S HS-JXM2000
O DOLBY C 0306 87-A10-827-080 0E C-CAP,U 0.47-6.3 K B YHSSF HS-JXM2000
O DOLBY C 0307 87-A11-058-080 0E C-CAP,U 0.22-10 K B AH1SF HS-JXM2000
O DOLBY C 0307 87-A11-058-080 0E C-CAP,U 0.22-10 K B S HS-JXM2000
O DOLBY C 0307 87-A11-058-080 0E C-CAP,U 0.22-10 K B YHSSF HS-JXM2000
O DOLBY C 0308 87-A11-058-080 0E C-CAP,U 0.22-10 K B AH1SF HS-JXM2000
O DOLBY C 0308 87-A11-058-080 0E C-CAP,U 0.22-10 K B S HS-JXM2000
O DOLBY C 0308 87-A11-058-080 0E C-CAP,U 0.22-10 K B YHSSF HS-JXM2000
O DOLBY C 0309 87-010-746-080 1A C-CAP,TN 10-4 M 125 AH1SF HS-JXM2000
O DOLBY C 0309 87-010-746-080 1A C-CAP,TN 10-4 M 125 S HS-JXM2000
O DOLBY C 0309 87-010-746-080 1A C-CAP,TN 10-4 M 125 YHSSF HS-JXM2000
S DOLBY IC 0301 87-A20-818-040 1D C-IC,NJM2185AV AH1SF HS-JXM2000
S DOLBY IC 0301 87-A20-818-040 1D C-IC,NJM2185AV S HS-JXM2000
S DOLBY IC 0301 87-A20-818-040 1D C-IC,NJM2185AV YHSSF HS-JXM2000
S DOLBY Q 0301 87-026-429-080 0E C-TR,RN2311 AH1SF HS-JXM2000
S DOLBY Q 0301 87-026-429-080 0E C-TR,RN2311 S HS-JXM2000
S DOLBY Q 0301 87-026-429-080 0E C-TR,RN2311 YHSSF HS-JXM2000
O DOLBY R 0301 87-022-252-080 0E C-RES,U 36K-1/16W F AH1SF HS-JXM2000
O DOLBY R 0301 87-022-252-080 0E C-RES,U 36K-1/16W F S HS-JXM2000
O DOLBY R 0301 87-022-252-080 0E C-RES,U 36K-1/16W F YHSSF HS-JXM2000
O DTS C 0951 87-A10-565-080 0E C-CAP,V 0.1-16 Z F AH1SF HS-JXM2000
O DTS C 0951 87-A10-565-080 0E C-CAP,V 0.1-16 Z F S HS-JXM2000
O DTS C 0951 87-A10-565-080 0E C-CAP,V 0.1-16 Z F YHSSF HS-JXM2000
O DTS C 0952 87-A10-565-080 0E C-CAP,V 0.1-16 Z F AH1SF HS-JXM2000
O DTS C 0952 87-A10-565-080 0E C-CAP,V 0.1-16 Z F S HS-JXM2000
O DTS C 0952 87-A10-565-080 0E C-CAP,V 0.1-16 Z F YHSSF HS-JXM2000
O DTS C 0953 87-A10-565-080 0E C-CAP,V 0.1-16 Z F AH1SF HS-JXM2000
O DTS C 0953 87-A10-565-080 0E C-CAP,V 0.1-16 Z F S HS-JXM2000
O DTS C 0953 87-A10-565-080 0E C-CAP,V 0.1-16 Z F YHSSF HS-JXM2000
O DTS C 0954 87-A10-025-080 0E C-CAP,U 0.22-16 Z F AH1SF HS-JXM2000
O DTS C 0954 87-A10-025-080 0E C-CAP,U 0.22-16 Z F S HS-JXM2000
O DTS C 0954 87-A10-025-080 0E C-CAP,U 0.22-16 Z F YHSSF HS-JXM2000
O DTS C 0955 87-A10-535-080 0E C-CAP,V 22P-50 J CH AH1SF HS-JXM2000
O DTS C 0955 87-A10-535-080 0E C-CAP,V 22P-50 J CH S HS-JXM2000
O DTS C 0955 87-A10-535-080 0E C-CAP,V 22P-50 J CH YHSSF HS-JXM2000
O DTS C 0956 87-A10-534-080 0E C-CAP,V 18P-50 J CH AH1SF HS-JXM2000
O DTS C 0956 87-A10-534-080 0E C-CAP,V 18P-50 J CH S HS-JXM2000
O DTS C 0956 87-A10-534-080 0E C-CAP,V 18P-50 J CH YHSSF HS-JXM2000
O DTS C 0957 87-A10-565-080 0E C-CAP,V 0.1-16 Z F AH1SF HS-JXM2000
O DTS C 0957 87-A10-565-080 0E C-CAP,V 0.1-16 Z F S HS-JXM2000
O DTS C 0957 87-A10-565-080 0E C-CAP,V 0.1-16 Z F YHSSF HS-JXM2000
O DTS C 0958 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O DTS C 0958 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O DTS C 0958 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O DTS C 0959 87-016-296-080 1A C-CAP,TN 22-4 M AH1SF HS-JXM2000
O DTS C 0959 87-016-296-080 1A C-CAP,TN 22-4 M S HS-JXM2000
O DTS C 0959 87-016-296-080 1A C-CAP,TN 22-4 M YHSSF HS-JXM2000
O DTS C 0960 87-A10-565-080 0E C-CAP,V 0.1-16 Z F AH1SF HS-JXM2000
O DTS C 0960 87-A10-565-080 0E C-CAP,V 0.1-16 Z F S HS-JXM2000
O DTS C 0960 87-A10-565-080 0E C-CAP,V 0.1-16 Z F YHSSF HS-JXM2000
O DTS C 0962 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000

PARTS LIST
-4-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O DTS C 0963 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O DTS C 0969 87-012-199-080 0E C-CAP,U 220P-50 J CH S HS-JXM2000
O DTS C 0970 87-A10-262-080 0E C-CAP,U 1-10 Z F AH1SF HS-JXM2000
O DTS C 0970 87-A10-262-080 0E C-CAP,U 1-10 Z F S HS-JXM2000
O DTS C 0970 87-A10-262-080 0E C-CAP,U 1-10 Z F YHSSF HS-JXM2000
S DTS IC 0951 87-A21-675-030 2M C-IC,TC9327AF-506 AH1SF HS-JXM2000
S DTS IC 0951 87-A21-675-030 2M C-IC,TC9327AF-506 S HS-JXM2000
S DTS IC 0951 87-A21-675-030 2M C-IC,TC9327AF-506 YHSSF HS-JXM2000
S DTS IC 0952 87-A20-755-080 1B C-IC,AK93C45AF AH1SF HS-JXM2000
S DTS IC 0952 87-A20-755-080 1B C-IC,AK93C45AF S HS-JXM2000
S DTS IC 0952 87-A20-755-080 1B C-IC,AK93C45AF YHSSF HS-JXM2000
S DTS IC 0953 87-A20-757-040 1A C-IC,S-80815ANNP-EDC-T2 AH1SF HS-JXM2000
S DTS IC 0953 87-A20-757-040 1A C-IC,S-80815ANNP-EDC-T2 S HS-JXM2000
S DTS IC 0953 87-A20-757-040 1A C-IC,S-80815ANNP-EDC-T2 YHSSF HS-JXM2000
S DTS IC 0954 87-A20-902-040 1A C-IC,S-80809ANNP-E7Z-T2 AH1SF HS-JXM2000
S DTS IC 0954 87-A20-902-040 1A C-IC,S-80809ANNP-E7Z-T2 S HS-JXM2000
S DTS IC 0954 87-A20-902-040 1A C-IC,S-80809ANNP-E7Z-T2 YHSSF HS-JXM2000
S DTS IC 0955 87-A20-902-040 1A C-IC,S-80809ANNP-E7Z-T2 AH1SF HS-JXM2000
S DTS IC 0955 87-A20-902-040 1A C-IC,S-80809ANNP-E7Z-T2 S HS-JXM2000
S DTS IC 0955 87-A20-902-040 1A C-IC,S-80809ANNP-E7Z-T2 YHSSF HS-JXM2000
O DTS LCD0951 8A-HJ2-606-010 1C LCD,AIW4223 AH1SF HS-JXM2000
O DTS LCD0951 8A-HJ2-606-010 1C LCD,AIW4223 S HS-JXM2000
O DTS LCD0951 8A-HJ2-606-010 1C LCD,AIW4223 YHSSF HS-JXM2000
S DTS Q 0951 87-026-467-080 0E C-TR,HN1C01FGR AH1SF HS-JXM2000
S DTS Q 0951 87-026-467-080 0E C-TR,HN1C01FGR S HS-JXM2000
S DTS Q 0951 87-026-467-080 0E C-TR,HN1C01FGR YHSSF HS-JXM2000
X DTS R 0951 88-104-104-080 0E C-RES,V 100K-1/16W J AH1SF HS-JXM2000
X DTS R 0951 88-104-104-080 0E C-RES,V 100K-1/16W J S HS-JXM2000
X DTS R 0951 88-104-104-080 0E C-RES,V 100K-1/16W J YHSSF HS-JXM2000
X DTS R 0952 88-104-223-080 0E C-RES,V 22K-1/16W J AH1SF HS-JXM2000
X DTS R 0952 88-104-223-080 0E C-RES,V 22K-1/16W J S HS-JXM2000
X DTS R 0952 88-104-223-080 0E C-RES,V 22K-1/16W J YHSSF HS-JXM2000
X DTS R 0953 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0953 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0953 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
X DTS R 0954 88-104-105-080 0E C-RES,V 1M-1/16W J AH1SF HS-JXM2000
X DTS R 0954 88-104-105-080 0E C-RES,V 1M-1/16W J S HS-JXM2000
X DTS R 0954 88-104-105-080 0E C-RES,V 1M-1/16W J YHSSF HS-JXM2000
X DTS R 0955 88-104-104-080 0E C-RES,V 100K-1/16W J AH1SF HS-JXM2000
X DTS R 0955 88-104-104-080 0E C-RES,V 100K-1/16W J S HS-JXM2000
X DTS R 0955 88-104-104-080 0E C-RES,V 100K-1/16W J YHSSF HS-JXM2000
X DTS R 0956 88-104-105-080 0E C-RES,V 1M-1/16W J AH1SF HS-JXM2000
X DTS R 0956 88-104-105-080 0E C-RES,V 1M-1/16W J S HS-JXM2000
X DTS R 0956 88-104-105-080 0E C-RES,V 1M-1/16W J YHSSF HS-JXM2000
X DTS R 0957 88-108-000-080 0E C-JUMPER,U AH1SF HS-JXM2000
X DTS R 0957 88-108-000-080 0E C-JUMPER,U S HS-JXM2000
X DTS R 0957 88-108-000-080 0E C-JUMPER,U YHSSF HS-JXM2000
X DTS R 0958 88-104-103-080 0E C-RES,V 10K-1/16W J AH1SF HS-JXM2000
X DTS R 0958 88-104-103-080 0E C-RES,V 10K-1/16W J S HS-JXM2000
X DTS R 0958 88-104-103-080 0E C-RES,V 10K-1/16W J YHSSF HS-JXM2000
X DTS R 0959 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0959 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0959 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
X DTS R 0960 88-104-103-080 0E C-RES,V 10K-1/16W J AH1SF HS-JXM2000
X DTS R 0960 88-104-103-080 0E C-RES,V 10K-1/16W J S HS-JXM2000
X DTS R 0960 88-104-103-080 0E C-RES,V 10K-1/16W J YHSSF HS-JXM2000
X DTS R 0961 88-104-683-080 0E C-RES,V 68K-1/16W J AH1SF HS-JXM2000
X DTS R 0961 88-104-683-080 0E C-RES,V 68K-1/16W J S HS-JXM2000
X DTS R 0961 88-104-683-080 0E C-RES,V 68K-1/16W J YHSSF HS-JXM2000
X DTS R 0962 88-108-102-080 0E C-RES,U 1K-1/16W J AH1SF HS-JXM2000
X DTS R 0962 88-108-102-080 0E C-RES,U 1K-1/16W J S HS-JXM2000
X DTS R 0962 88-108-102-080 0E C-RES,U 1K-1/16W J YHSSF HS-JXM2000
X DTS R 0963 88-108-102-080 0E C-RES,U 1K-1/16W J AH1SF HS-JXM2000
X DTS R 0963 88-108-102-080 0E C-RES,U 1K-1/16W J S HS-JXM2000
X DTS R 0963 88-108-102-080 0E C-RES,U 1K-1/16W J YHSSF HS-JXM2000
X DTS R 0964 88-108-102-080 0E C-RES,U 1K-1/16W J AH1SF HS-JXM2000
X DTS R 0964 88-108-102-080 0E C-RES,U 1K-1/16W J S HS-JXM2000
X DTS R 0964 88-108-102-080 0E C-RES,U 1K-1/16W J YHSSF HS-JXM2000
X DTS R 0965 88-108-152-080 0E C-RES,U 1.5K-1/16W J AH1SF HS-JXM2000
X DTS R 0965 88-108-152-080 0E C-RES,U 1.5K-1/16W J S HS-JXM2000

PARTS LIST
-5-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
X DTS R 0965 88-108-152-080 0E C-RES,U 1.5K-1/16W J YHSSF HS-JXM2000
X DTS R 0966 88-108-152-080 0E C-RES,U 1.5K-1/16W J AH1SF HS-JXM2000
X DTS R 0966 88-108-152-080 0E C-RES,U 1.5K-1/16W J S HS-JXM2000
X DTS R 0966 88-108-152-080 0E C-RES,U 1.5K-1/16W J YHSSF HS-JXM2000
X DTS R 0967 88-108-182-080 0E C-RES,U 1.8K-1/16W J AH1SF HS-JXM2000
X DTS R 0967 88-108-182-080 0E C-RES,U 1.8K-1/16W J S HS-JXM2000
X DTS R 0967 88-108-182-080 0E C-RES,U 1.8K-1/16W J YHSSF HS-JXM2000
X DTS R 0968 88-108-222-080 0E C-RES,U 2.2K-1/16W J AH1SF HS-JXM2000
X DTS R 0968 88-108-222-080 0E C-RES,U 2.2K-1/16W J S HS-JXM2000
X DTS R 0968 88-108-222-080 0E C-RES,U 2.2K-1/16W J YHSSF HS-JXM2000
X DTS R 0969 88-108-332-080 0E C-RES,U 3.3K-1/16W J AH1SF HS-JXM2000
X DTS R 0969 88-108-332-080 0E C-RES,U 3.3K-1/16W J S HS-JXM2000
X DTS R 0969 88-108-332-080 0E C-RES,U 3.3K-1/16W J YHSSF HS-JXM2000
O DTS R 0970 87-022-237-080 0E C-RES,U 8.2K-1/16W F AH1SF HS-JXM2000
O DTS R 0970 87-022-237-080 0E C-RES,U 8.2K-1/16W F S HS-JXM2000
O DTS R 0970 87-022-237-080 0E C-RES,U 8.2K-1/16W F YHSSF HS-JXM2000
O DTS R 0971 87-022-292-080 0E C-RES,U 330K-1/16W F AH1SF HS-JXM2000
O DTS R 0971 87-022-292-080 0E C-RES,U 330K-1/16W F S HS-JXM2000
O DTS R 0971 87-022-292-080 0E C-RES,U 330K-1/16W F YHSSF HS-JXM2000
X DTS R 0972 88-108-824-080 0E C-RES,U 820K-1/16W J AH1SF HS-JXM2000
X DTS R 0972 88-108-824-080 0E C-RES,U 820K-1/16W J S HS-JXM2000
X DTS R 0972 88-108-824-080 0E C-RES,U 820K-1/16W J YHSSF HS-JXM2000
X DTS R 0973 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0973 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0973 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
X DTS R 0974 88-104-824-080 0E C-RES,V 820K-1/16W J AH1SF HS-JXM2000
X DTS R 0974 88-104-824-080 0E C-RES,V 820K-1/16W J S HS-JXM2000
X DTS R 0974 88-104-824-080 0E C-RES,V 820K-1/16W J YHSSF HS-JXM2000
X DTS R 0976 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0976 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
X DTS R 0977 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0978 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0978 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0978 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
X DTS R 0980 88-104-105-080 0E C-RES,V 1M-1/16W J AH1SF HS-JXM2000
X DTS R 0980 88-104-105-080 0E C-RES,V 1M-1/16W J S HS-JXM2000
X DTS R 0980 88-104-105-080 0E C-RES,V 1M-1/16W J YHSSF HS-JXM2000
X DTS R 0981 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0981 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0981 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
O DTS R 0982 87-022-237-080 0E C-RES,U 8.2K-1/16W F AH1SF HS-JXM2000
O DTS R 0982 87-022-237-080 0E C-RES,U 8.2K-1/16W F S HS-JXM2000
O DTS R 0982 87-022-237-080 0E C-RES,U 8.2K-1/16W F YHSSF HS-JXM2000
X DTS R 0983 88-104-103-080 0E C-RES,V 10K-1/16W J AH1SF HS-JXM2000
X DTS R 0983 88-104-103-080 0E C-RES,V 10K-1/16W J S HS-JXM2000
X DTS R 0983 88-104-103-080 0E C-RES,V 10K-1/16W J YHSSF HS-JXM2000
X DTS R 0984 88-104-103-080 0E C-RES,V 10K-1/16W J AH1SF HS-JXM2000
X DTS R 0984 88-104-103-080 0E C-RES,V 10K-1/16W J S HS-JXM2000
X DTS R 0984 88-104-103-080 0E C-RES,V 10K-1/16W J YHSSF HS-JXM2000
X DTS R 0985 88-104-393-080 0E C-RES,V 39K-1/16W J AH1SF HS-JXM2000
X DTS R 0985 88-104-393-080 0E C-RES,V 39K-1/16W J S HS-JXM2000
X DTS R 0985 88-104-393-080 0E C-RES,V 39K-1/16W J YHSSF HS-JXM2000
X DTS R 0986 88-104-434-080 0E C-RES,V 430K-1/16W J AH1SF HS-JXM2000
X DTS R 0986 88-104-434-080 0E C-RES,V 430K-1/16W J S HS-JXM2000
X DTS R 0986 88-104-434-080 0E C-RES,V 430K-1/16W J YHSSF HS-JXM2000
X DTS R 0987 88-104-103-080 0E C-RES,V 10K-1/16W J AH1SF HS-JXM2000
X DTS R 0987 88-104-103-080 0E C-RES,V 10K-1/16W J S HS-JXM2000
X DTS R 0987 88-104-103-080 0E C-RES,V 10K-1/16W J YHSSF HS-JXM2000
X DTS R 0988 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0988 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0988 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
X DTS R 0989 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0989 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0989 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000
X DTS R 0990 88-104-103-080 0E C-RES,V 10K-1/16W J AH1SF HS-JXM2000
X DTS R 0990 88-104-103-080 0E C-RES,V 10K-1/16W J S HS-JXM2000
X DTS R 0990 88-104-103-080 0E C-RES,V 10K-1/16W J YHSSF HS-JXM2000
X DTS R 0991 88-104-474-080 0E C-RES,V 470K-1/16W J AH1SF HS-JXM2000
X DTS R 0991 88-104-474-080 0E C-RES,V 470K-1/16W J S HS-JXM2000
X DTS R 0991 88-104-474-080 0E C-RES,V 470K-1/16W J YHSSF HS-JXM2000

PARTS LIST
-6-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
X DTS R 0992 88-104-105-080 0E C-RES,V 1M-1/16W J AH1SF HS-JXM2000
X DTS R 0992 88-104-105-080 0E C-RES,V 1M-1/16W J S HS-JXM2000
X DTS R 0992 88-104-105-080 0E C-RES,V 1M-1/16W J YHSSF HS-JXM2000
X DTS R 0995 88-104-335-080 0E C-RES,V 3.3M-1/16W J AH1SF HS-JXM2000
X DTS R 0995 88-104-335-080 0E C-RES,V 3.3M-1/16W J S HS-JXM2000
X DTS R 0995 88-104-335-080 0E C-RES,V 3.3M-1/16W J YHSSF HS-JXM2000
O DTS S 0951 8A-HJ2-608-010 -- SW,LEAF 7ZM-1R1 AH1SF HS-JXM2000
O DTS S 0951 8A-HJ2-608-010 -- SW,LEAF 7ZM-1R1 S HS-JXM2000
O DTS S 0951 8A-HJ2-608-010 -- SW,LEAF 7ZM-1R1 YHSSF HS-JXM2000
O DTS S 0952 8A-HJ2-607-010 1B SW,LEAF 7ZM-1REC AH1SF HS-JXM2000
O DTS S 0952 8A-HJ2-607-010 1B SW,LEAF 7ZM-1REC S HS-JXM2000
O DTS S 0952 8A-HJ2-607-010 1B SW,LEAF 7ZM-1REC YHSSF HS-JXM2000
O DTS S 0953 87-036-379-180 0E C-SW,SL 1-1-2 SS-350-A12B-C-T AH1SF HS-JXM2000
O DTS S 0953 87-036-379-180 0E C-SW,SL 1-1-2 SS-350-A12B-C-T S HS-JXM2000
O DTS S 0953 87-036-379-180 0E C-SW,SL 1-1-2 SS-350-A12B-C-T YHSSF HS-JXM2000
O DTS S 0954 87-A90-665-280 0E C-SW,TACT LS7A2M AH1SF HS-JXM2000
O DTS S 0954 87-A90-665-280 0E C-SW,TACT LS7A2M S HS-JXM2000
O DTS S 0954 87-A90-665-280 0E C-SW,TACT LS7A2M YHSSF HS-JXM2000
O DTS S 0955 87-A91-758-080 1C C-SW,LVR 1-1-3 SLLB310300 AH1SF HS-JXM2000
O DTS S 0955 87-A91-758-080 1C C-SW,LVR 1-1-3 SLLB310300 S HS-JXM2000
O DTS S 0955 87-A91-758-080 1C C-SW,LVR 1-1-3 SLLB310300 YHSSF HS-JXM2000
O DTS S 0956 87-A90-665-280 0E C-SW,TACT LS7A2M AH1SF HS-JXM2000
O DTS S 0956 87-A90-665-280 0E C-SW,TACT LS7A2M S HS-JXM2000
O DTS S 0956 87-A90-665-280 0E C-SW,TACT LS7A2M YHSSF HS-JXM2000
O DTS S 0957 87-A90-665-280 0E C-SW,TACT LS7A2M AH1SF HS-JXM2000
O DTS S 0957 87-A90-665-280 0E C-SW,TACT LS7A2M S HS-JXM2000
O DTS S 0957 87-A90-665-280 0E C-SW,TACT LS7A2M YHSSF HS-JXM2000
O DTS S 0958 87-A90-665-280 0E C-SW,TACT LS7A2M AH1SF HS-JXM2000
O DTS S 0958 87-A90-665-280 0E C-SW,TACT LS7A2M S HS-JXM2000
O DTS S 0958 87-A90-665-280 0E C-SW,TACT LS7A2M YHSSF HS-JXM2000
O DTS S 0959 87-036-237-080 0E C-SW,PUSH SPVC21005A AH1SF HS-JXM2000
O DTS S 0959 87-036-237-080 0E C-SW,PUSH SPVC21005A S HS-JXM2000
O DTS S 0959 87-036-237-080 0E C-SW,PUSH SPVC21005A YHSSF HS-JXM2000
O DTS S 0960 87-036-237-080 0E C-SW,PUSH SPVC21005A AH1SF HS-JXM2000
O DTS S 0960 87-036-237-080 0E C-SW,PUSH SPVC21005A S HS-JXM2000
O DTS S 0960 87-036-237-080 0E C-SW,PUSH SPVC21005A YHSSF HS-JXM2000
O DTS X 0951 87-A70-187-010 1B VIB,XTAL 75KHZ CFV206 AH1SF HS-JXM2000
O DTS X 0951 87-A70-187-010 1B VIB,XTAL 75KHZ CFV206 S HS-JXM2000
O DTS X 0951 87-A70-187-010 1B VIB,XTAL 75KHZ CFV206 YHSSF HS-JXM2000
O FRONT END BPF0701 87-A90-601-010 0E FLTR,BPF GFWB7 AH1SF HS-JXM2000
O FRONT END BPF0701 87-A90-601-010 0E FLTR,BPF GFWB7 S HS-JXM2000
O FRONT END BPF0701 87-A90-601-010 0E FLTR,BPF GFWB7 YHSSF HS-JXM2000
O FRONT END C 0701 87-012-195-080 0E C-CAP,U 100P-50 J CH AH1SF HS-JXM2000
O FRONT END C 0701 87-012-195-080 0E C-CAP,U 100P-50 J CH S HS-JXM2000
O FRONT END C 0701 87-012-195-080 0E C-CAP,U 100P-50 J CH YHSSF HS-JXM2000
O FRONT END C 0702 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O FRONT END C 0702 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0702 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0703 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O FRONT END C 0703 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0703 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0704 87-012-268-080 0E C-CAP,U 330P-50 K B S HS-JXM2000
O FRONT END C 0704 87-012-273-080 0E C-CAP,U 820P-50 K B AH1SF HS-JXM2000
O FRONT END C 0704 87-012-273-080 0E C-CAP,U 820P-50 K B YHSSF HS-JXM2000
O FRONT END C 0705 87-012-191-080 0E C-CAP,U 68P-50 J CH AH1SF HS-JXM2000
O FRONT END C 0705 87-012-191-080 0E C-CAP,U 68P-50 J CH S HS-JXM2000
O FRONT END C 0705 87-012-191-080 0E C-CAP,U 68P-50 J CH YHSSF HS-JXM2000
O FRONT END C 0706 87-012-268-080 0E C-CAP,U 330P-50 K B AH1SF HS-JXM2000
O FRONT END C 0706 87-012-268-080 0E C-CAP,U 330P-50 K B YHSSF HS-JXM2000
O FRONT END C 0706 87-012-278-080 0E C-CAP,U 2200P-50 K B S HS-JXM2000
O FRONT END C 0707 87-012-164-080 0E C-CAP,U 2P-50 C CH S HS-JXM2000
O FRONT END C 0707 87-012-165-080 0E C-CAP,U 3P-50 C CH AH1SF HS-JXM2000
O FRONT END C 0707 87-012-165-080 0E C-CAP,U 3P-50 C CH YHSSF HS-JXM2000
O FRONT END C 0708 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O FRONT END C 0708 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0708 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0710 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM AH1SF HS-JXM2000
O FRONT END C 0710 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM S HS-JXM2000
O FRONT END C 0710 87-A10-952-080 0E C-CAP,TN 22-4 M A MCM YHSSF HS-JXM2000
O FRONT END C 0711 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000

PARTS LIST
-7-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O FRONT END C 0711 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0711 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0712 87-012-163-080 0E C-CAP,U 1.5P-50 C CH S HS-JXM2000
O FRONT END C 0712 87-012-165-080 0E C-CAP,U 3P-50 C CH AH1SF HS-JXM2000
O FRONT END C 0712 87-012-165-080 0E C-CAP,U 3P-50 C CH YHSSF HS-JXM2000
O FRONT END C 0713 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O FRONT END C 0713 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0713 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0714 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O FRONT END C 0714 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0714 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0715 87-012-286-080 0E C-CAP,U 0.01-25 K B AH1SF HS-JXM2000
O FRONT END C 0715 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O FRONT END C 0715 87-012-286-080 0E C-CAP,U 0.01-25 K B YHSSF HS-JXM2000
O FRONT END C 0716 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O FRONT END C 0716 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0716 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0717 87-A10-561-080 0E C-CAP,V 0.01-16 K B AH1SF HS-JXM2000
O FRONT END C 0717 87-A10-561-080 0E C-CAP,V 0.01-16 K B S HS-JXM2000
O FRONT END C 0717 87-A10-561-080 0E C-CAP,V 0.01-16 K B YHSSF HS-JXM2000
O FRONT END C 0720 87-012-199-080 0E C-CAP,U 220P-50 J CH AH1SF HS-JXM2000
O FRONT END C 0720 87-012-199-080 0E C-CAP,U 220P-50 J CH S HS-JXM2000
O FRONT END C 0720 87-012-199-080 0E C-CAP,U 220P-50 J CH YHSSF HS-JXM2000
O FRONT END C 0721 87-012-274-080 0E C-CAP,U 1000P-50 K B AH1SF HS-JXM2000
O FRONT END C 0721 87-012-274-080 0E C-CAP,U 1000P-50 K B YHSSF HS-JXM2000
O FRONT END C 0723 87-A10-565-080 0E C-CAP,V 0.1-16 Z F AH1SF HS-JXM2000
O FRONT END C 0723 87-A10-565-080 0E C-CAP,V 0.1-16 Z F YHSSF HS-JXM2000
O FRONT END D 0701 87-A40-655-080 0E C-VARI-CAP,HVU200A AH1SF HS-JXM2000
O FRONT END D 0701 87-A40-655-080 0E C-VARI-CAP,HVU200A S HS-JXM2000
O FRONT END D 0701 87-A40-655-080 0E C-VARI-CAP,HVU200A YHSSF HS-JXM2000
O FRONT END D 0702 87-A40-655-080 0E C-VARI-CAP,HVU200A AH1SF HS-JXM2000
O FRONT END D 0702 87-A40-655-080 0E C-VARI-CAP,HVU200A S HS-JXM2000
O FRONT END D 0702 87-A40-655-080 0E C-VARI-CAP,HVU200A YHSSF HS-JXM2000
S FRONT END IC 0701 87-001-815-040 1C C-IC,TA7371AF AH1SF HS-JXM2000
S FRONT END IC 0701 87-001-815-040 1C C-IC,TA7371AF S HS-JXM2000
S FRONT END IC 0701 87-001-815-040 1C C-IC,TA7371AF YHSSF HS-JXM2000
O FRONT END L 0701 87-A50-511-080 0E C-COIL,82NH G LQN21A AH1SF HS-JXM2000
O FRONT END L 0701 87-A50-511-080 0E C-COIL,82NH G LQN21A S HS-JXM2000
O FRONT END L 0701 87-A50-511-080 0E C-COIL,82NH G LQN21A YHSSF HS-JXM2000
O FRONT END L 0702 87-A50-583-080 0E C-COIL,S 2.2UH K FCI2012H AH1SF HS-JXM2000
O FRONT END L 0702 87-A50-583-080 0E C-COIL,S 2.2UH K FCI2012H S HS-JXM2000
O FRONT END L 0702 87-A50-583-080 0E C-COIL,S 2.2UH K FCI2012H YHSSF HS-JXM2000
O FRONT END L 0703 87-A50-510-080 0E C-COIL,68NH G LQN21A AH1SF HS-JXM2000
O FRONT END L 0703 87-A50-510-080 0E C-COIL,68NH G LQN21A YHSSF HS-JXM2000
O FRONT END L 0703 87-A50-513-080 0E C-COIL,120NH G LQN21A S HS-JXM2000
S FRONT END Q 0701 87-A30-503-040 0E C-TR,2SC4649P AH1SF HS-JXM2000
S FRONT END Q 0701 87-A30-503-040 0E C-TR,2SC4649P S HS-JXM2000
S FRONT END Q 0701 87-A30-503-040 0E C-TR,2SC4649P YHSSF HS-JXM2000
S FRONT END Q 0702 87-A30-503-040 0E C-TR,2SC4649P AH1SF HS-JXM2000
S FRONT END Q 0702 87-A30-503-040 0E C-TR,2SC4649P S HS-JXM2000
S FRONT END Q 0702 87-A30-503-040 0E C-TR,2SC4649P YHSSF HS-JXM2000
S FRONT END Q 0703 87-A30-502-040 0E C-TR,2SA1745-7 AH1SF HS-JXM2000
S FRONT END Q 0703 87-A30-502-040 0E C-TR,2SA1745-7 S HS-JXM2000
S FRONT END Q 0703 87-A30-502-040 0E C-TR,2SA1745-7 YHSSF HS-JXM2000
S FRONT END Q 0704 89-115-865-080 0E C-TR,2SA1586G AH1SF HS-JXM2000
S FRONT END Q 0704 89-115-865-080 0E C-TR,2SA1586G S HS-JXM2000
S FRONT END Q 0704 89-115-865-080 0E C-TR,2SA1586G YHSSF HS-JXM2000
X FRONT END R 0701 88-108-153-080 0E C-RES,U 15K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0701 88-108-153-080 0E C-RES,U 15K-1/16W J S HS-JXM2000
X FRONT END R 0701 88-108-153-080 0E C-RES,U 15K-1/16W J YHSSF HS-JXM2000
X FRONT END R 0702 88-108-100-080 0E C-RES,U 10-1/16W J AH1SF HS-JXM2000
X FRONT END R 0702 88-108-100-080 0E C-RES,U 10-1/16W J S HS-JXM2000
X FRONT END R 0702 88-108-100-080 0E C-RES,U 10-1/16W J YHSSF HS-JXM2000
X FRONT END R 0703 88-108-473-080 0E C-RES,U 47K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0703 88-108-473-080 0E C-RES,U 47K-1/16W J S HS-JXM2000
X FRONT END R 0703 88-108-473-080 0E C-RES,U 47K-1/16W J YHSSF HS-JXM2000
X FRONT END R 0704 88-108-473-080 0E C-RES,U 47K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0704 88-108-473-080 0E C-RES,U 47K-1/16W J S HS-JXM2000
X FRONT END R 0704 88-108-473-080 0E C-RES,U 47K-1/16W J YHSSF HS-JXM2000
X FRONT END R 0705 88-108-479-080 0E C-RES,U 4.7-1/16W J AH1SF HS-JXM2000

PARTS LIST
-8-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
X FRONT END R 0705 88-108-479-080 0E C-RES,U 4.7-1/16W J S HS-JXM2000
X FRONT END R 0705 88-108-479-080 0E C-RES,U 4.7-1/16W J YHSSF HS-JXM2000
X FRONT END R 0706 88-108-222-080 0E C-RES,U 2.2K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0706 88-108-222-080 0E C-RES,U 2.2K-1/16W J S HS-JXM2000
X FRONT END R 0706 88-108-222-080 0E C-RES,U 2.2K-1/16W J YHSSF HS-JXM2000
X FRONT END R 0707 88-104-473-080 0E C-RES,V 47K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0707 88-104-473-080 0E C-RES,V 47K-1/16W J S HS-JXM2000
X FRONT END R 0707 88-104-473-080 0E C-RES,V 47K-1/16W J YHSSF HS-JXM2000
X FRONT END R 0708 88-108-471-080 0E C-RES,U 470-1/16W J AH1SF HS-JXM2000
X FRONT END R 0708 88-108-471-080 0E C-RES,U 470-1/16W J S HS-JXM2000
X FRONT END R 0708 88-108-471-080 0E C-RES,U 470-1/16W J YHSSF HS-JXM2000
X FRONT END R 0709 88-104-479-080 0E C-RES,V 4.7-1/16W J AH1SF HS-JXM2000
X FRONT END R 0709 88-104-479-080 0E C-RES,V 4.7-1/16W J S HS-JXM2000
X FRONT END R 0709 88-104-479-080 0E C-RES,V 4.7-1/16W J YHSSF HS-JXM2000
X FRONT END R 0711 88-104-332-080 0E C-RES,V 3.3K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0711 88-104-332-080 0E C-RES,V 3.3K-1/16W J S HS-JXM2000
X FRONT END R 0711 88-104-332-080 0E C-RES,V 3.3K-1/16W J YHSSF HS-JXM2000
X FRONT END R 0712 88-104-102-080 0E C-RES,V 1K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0712 88-104-102-080 0E C-RES,V 1K-1/16W J S HS-JXM2000
X FRONT END R 0712 88-104-102-080 0E C-RES,V 1K-1/16W J YHSSF HS-JXM2000
X FRONT END R 0713 88-108-101-080 0E C-RES,U 100-1/16W J AH1SF HS-JXM2000
X FRONT END R 0713 88-108-101-080 0E C-RES,U 100-1/16W J S HS-JXM2000
X FRONT END R 0713 88-108-101-080 0E C-RES,U 100-1/16W J YHSSF HS-JXM2000
X FRONT END R 0714 88-108-222-080 0E C-RES,U 2.2K-1/16W J AH1SF HS-JXM2000
X FRONT END R 0714 88-108-222-080 0E C-RES,U 2.2K-1/16W J S HS-JXM2000
X FRONT END R 0714 88-108-222-080 0E C-RES,U 2.2K-1/16W J YHSSF HS-JXM2000
O FRONT END TC 0701 87-A91-762-080 1A C-TRIMMER,10P TZVY2Z100A AH1SF HS-JXM2000
O FRONT END TC 0701 87-A91-762-080 1A C-TRIMMER,10P TZVY2Z100A S HS-JXM2000
O FRONT END TC 0701 87-A91-762-080 1A C-TRIMMER,10P TZVY2Z100A YHSSF HS-JXM2000
O FRONT END TC 0702 87-A91-761-080 1A C-TRIMMER,25P TZVY2R250A AH1SF HS-JXM2000
O FRONT END TC 0702 87-A91-761-080 1A C-TRIMMER,25P TZVY2R250A S HS-JXM2000
O FRONT END TC 0702 87-A91-761-080 1A C-TRIMMER,25P TZVY2R250A YHSSF HS-JXM2000
O GOV C 0401 87-012-286-080 0E C-CAP,U 0.01-25 K B AH1SF HS-JXM2000
O GOV C 0401 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O GOV C 0401 87-012-286-080 0E C-CAP,U 0.01-25 K B YHSSF HS-JXM2000
O GOV C 0402 87-A10-260-080 0E C-CAP,U 0.1-16 K B AH1SF HS-JXM2000
O GOV C 0402 87-A10-260-080 0E C-CAP,U 0.1-16 K B S HS-JXM2000
O GOV C 0402 87-A10-260-080 0E C-CAP,U 0.1-16 K B YHSSF HS-JXM2000
O GOV C 0403 87-A11-796-080 0E C-CAP,S 4.7-10 Z F AH1SF HS-JXM2000
O GOV C 0403 87-A11-796-080 0E C-CAP,S 4.7-10 Z F S HS-JXM2000
O GOV C 0403 87-A11-796-080 0E C-CAP,S 4.7-10 Z F YHSSF HS-JXM2000
O GOV C 0404 87-010-831-080 0E C-CAP,U 0.1-16 Z F AH1SF HS-JXM2000
O GOV C 0404 87-010-831-080 0E C-CAP,U 0.1-16 Z F S HS-JXM2000
O GOV C 0404 87-010-831-080 0E C-CAP,U 0.1-16 Z F YHSSF HS-JXM2000
O GOV C 0405 87-A10-707-080 0E C-CAP,U 0.47-10 Z F AH1SF HS-JXM2000
O GOV C 0405 87-A10-707-080 0E C-CAP,U 0.47-10 Z F S HS-JXM2000
O GOV C 0405 87-A10-707-080 0E C-CAP,U 0.47-10 Z F YHSSF HS-JXM2000
O GOV C 0406 87-A10-707-080 0E C-CAP,U 0.47-10 Z F AH1SF HS-JXM2000
O GOV C 0406 87-A10-707-080 0E C-CAP,U 0.47-10 Z F S HS-JXM2000
O GOV C 0406 87-A10-707-080 0E C-CAP,U 0.47-10 Z F YHSSF HS-JXM2000
O GOV C 0407 87-012-286-080 0E C-CAP,U 0.01-25 K B AH1SF HS-JXM2000
O GOV C 0407 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O GOV C 0407 87-012-286-080 0E C-CAP,U 0.01-25 K B YHSSF HS-JXM2000
O GOV C 0408 87-012-286-080 0E C-CAP,U 0.01-25 K B AH1SF HS-JXM2000
O GOV C 0408 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O GOV C 0408 87-012-286-080 0E C-CAP,U 0.01-25 K B YHSSF HS-JXM2000
O GOV C 0409 87-012-286-080 0E C-CAP,U 0.01-25 K B AH1SF HS-JXM2000
O GOV C 0409 87-012-286-080 0E C-CAP,U 0.01-25 K B S HS-JXM2000
O GOV C 0409 87-012-286-080 0E C-CAP,U 0.01-25 K B YHSSF HS-JXM2000
S GOV IC 0401 87-A20-961-040 1E C-IC,MM1279XV AH1SF HS-JXM2000
S GOV IC 0401 87-A20-961-040 1E C-IC,MM1279XV S HS-JXM2000
S GOV IC 0401 87-A20-961-040 1E C-IC,MM1279XV YHSSF HS-JXM2000
S GOV Q 0401 87-A30-085-040 0E C-TR,CSA1362GR AH1SF HS-JXM2000
S GOV Q 0401 87-A30-085-040 0E C-TR,CSA1362GR S HS-JXM2000
S GOV Q 0401 87-A30-085-040 0E C-TR,CSA1362GR YHSSF HS-JXM2000
S GOV Q 0402 87-A30-085-040 0E C-TR,CSA1362GR AH1SF HS-JXM2000
S GOV Q 0402 87-A30-085-040 0E C-TR,CSA1362GR S HS-JXM2000
S GOV Q 0402 87-A30-085-040 0E C-TR,CSA1362GR YHSSF HS-JXM2000
S GOV Q 0403 87-A30-085-040 0E C-TR,CSA1362GR AH1SF HS-JXM2000
S GOV Q 0403 87-A30-085-040 0E C-TR,CSA1362GR S HS-JXM2000
