S E R V I C E M A N U A L

SIMPLE MANUAL

•Replace this Service Manual with ”Revision Publishing” when it is issued.

HS-PX590

• TYPE: AH,S,L

S/M Code No. 09–991–405–2T1

STEREO CASSETTE PLAYER

ELECTRICAL MAIN PARTS LIST - 1/2

NOTE: The characters in the suffix column indicate the part usage.

S ......................XX..................................A...................

L ......................XX...................................B..................

AH .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

C 109 87-010-828-080 CHIP CAPACITOR,U 0.033-25F ABC.................

C 104 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 103 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 102 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 101 87-012-273-080 C-CAP,U 820P-50 B ABC.................

C 107 87-016-114-080 C-CAP,U0.01-25B ABC.................

C 108 87-016-114-080 C-CAP,U0.01-25B ABC.................

C 106 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 105 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 110 87-010-828-080 CHIP CAPACITOR,U 0.033-25F ABC.................

C 111 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 112 87-A10-031-080 C-CAP,U 0.01-25 KB ABC.................

C 113 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 117 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 119 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 118 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 115 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 114 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 116 87-A11-244-080 C-CAP,TN 47-4 A MCM ABC.................

C 122 87-010-424-080 CAPACTOR,TANTAL 4.7-4 ABC.................

C 129 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 128 87-A10-031-080 C-CAP,U 0.01-25 KB ABC.................

C 127 87-A10-031-080 C-CAP,U 0.01-25 KB ABC.................

C 126 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 125 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 120 87-A10-704-080 C-CAP,TN 100-2.5 M B2 ABC.................

C 121 87-A10-704-080 C-CAP,TN 100-2.5 M B2 ABC.................

C 124 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 123 87-A11-063-080 C-CAP,S 4.7-10 Z F ABC.................

C 132 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 131 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 130 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 133 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 139 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 134 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 136 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 137 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 135 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 138 87-A11-063-080 C-CAP,S 4.7-10 Z F ABC.................

C 142 87-016-317-080 C-CAP,TN 2.2-6.3 ABC.................

C 143 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 140 87-A11-062-080 C-CAP,S 2.2-16 Z F ABC.................

C 141 87-A11-063-080 C-CAP,S 4.7-10 Z F ABC.................

IC 101 87-A21-179-010 C-IC,TA2123AF ABC.................

J 101 85-HK3-605-010 JACK,DIA3.5 ST 5P ABC.................

Q 103 87-026-418-080 TR,RN1311 (0.1W) ABC.................

Q 102 87-026-535-080 C-TR,RN4907 ABC.................

Q 101 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

R 108 87-022-243-080 CHIP RES,U 15K-1/16W F ABC.................

R 107 87-022-243-080 CHIP RES,U 15K-1/16W F ABC.................

R 109 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

R 110 87-022-292-080 CHIP RES U 330K-1/16W F ABC.................

S 101 8Z-HK4-606-010 SW,LEAF 7ZM-1 ABC.................

VR 101 87-024-686-080 C-VR,20KAX2 DIA14 ABC.................

C 160 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 161 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 305 87-A10-025-080 C-CAP,U 0.22-16Z F ABC.................

C 308 87-A10-031-080 C-CAP,U 0.01-25 KB ABC.................

C 301 87-A10-031-080 C-CAP,U 0.01-25 KB ABC.................

C 307 87-A10-031-080 C-CAP,U 0.01-25 KB ABC.................

C 309 87-A10-031-080 C-CAP,U 0.01-25 KB ABC.................

C 302 87-A10-260-080 C-CAP,U 0.1-16 K B ABC.................

C 304 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 306 87-A10-707-080 C-CAP,U 0.47U-16 F Z ABC.................

C 303 87-A11-063-080 C-CAP,S 4.7-10 Z F ABC.................

C 310 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 311 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

IC 301 87-A20-961-040 C-IC,MM1279XV ABC.................

Q 303 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 304 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 302 89-113-625-080 TR,2SA1362GR(120MHZ,0. ABC.................

Q 305 89-342-132-080 TR,2SC4213 ABC.................

Q 301 89-342-132-080 TR,2SC4213 ABC.................

SFR 301 87-A91-092-080 C-SFR,68K RH03APA ABC.................

TH 301 87-A91-190-080 C-THMS,10K(2125)NSF2103J 385J ABC.................

C 261 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 271 87-016-462-080 C-CAP,S 1-16 F ABC.................

PS 261 87-A90-715-080 C-SNSR,NJL5194K ABC.................

PS 271 87-A90-715-080 C-SNSR,NJL5194K ABC.................

Q 261 89-341-165-080 CHIP TRANSISTOR 2SC4116GR ABC.................

Q 271 89-341-165-080 CHIP TRANSISTOR 2SC4116GR ABC.................

C 253 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 251 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 255 87-A10-034-080 C-CAP,TN 33-10(B2) ABC.................

ELECTRICAL MAIN PARTS LIST - 2/2

C 256 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 257 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 252 87-A10-952-080 C-CAP,TN 22-4 M A MCM ABC.................

C 254 87-A10-953-080 C-CAP,TN 47-4 M B2 MCM ABC.................

D 251 87-001-553-080 C-DIODE 1SS322 ABC.................

IC 251 87-A20-603-140 C-IC,RN5RK241A ABC.................

L 251 87-A50-352-080 C-COIL, 100UH NP 05DB101M ABC.................

C 202 87-010-505-080 CA, CHIP TANTALUM 1-16 ABC.................

C 209 87-010-787-080 CAP, U 0.022-25 ABC.................

C 208 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 207 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 203 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 204 87-A10-263-080 C-CAP,U 0.1-16ZF ABC.................

C 205 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 206 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 201 87-A11-062-080 C-CAP,S 2.2-16 Z F ABC.................

C 212 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 214 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 211 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 213 87-012-274-080 CHIP CAP,U 1000P-50B ABC.................

C 216 87-016-462-080 C-CAP,S 1-16 F ABC.................

C 215 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

C 210 87-A11-056-080 C-CAP,U 1-10 Z F ABC.................

D 201 87-A90-278-080 C-LED,SML-210VT RED ABC.................

IC 202 87-A21-050-040 C-IC,S-80810ANNP-E70-T2 ABC.................

IC 201 87-A21-061-010 C-IC,ML63512-120 ABC.................

Q 202 87-026-417-080 TR,RN1310 ABC.................

Q 204 87-026-418-080 TR,RN1311 (0.1W) ABC.................

Q 203 87-026-535-080 C-TR,RN4907 ABC.................

Q 201 89-342-132-080 TR,2SC4213 ABC.................

R 214 87-022-243-080 CHIP RES,U 15K-1/16W F ABC.................

R 215 87-022-243-080 CHIP RES,U 15K-1/16W F ABC.................

S 207 87-036-237-080 CHIP SWICH PUSH ABC.................

S 208 87-036-237-080 CHIP SWICH PUSH ABC.................

S 202 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABC.................

S 201 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 ABC.................

S 205 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 203 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 204 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 206 87-A90-665-180 C-SW,TACT LS7A2M ABC.................

S 209 8Z-HK4-607-010 SW,LID 7ZM-1 ABC.................

X 201 87-A70-151-110 VIB,XTAL 32.768KHZ VT-200(6PF) ABC.................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

S ......................XX..................................A...................

L ......................XX...................................B..................

AH .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HK4-001-010 LID,CASS ASSY A.C.................

8Z-HK4-006-010 WINDOW,CASS A.C.................

8Z-HK4-018-010 WINDOW,CASS BLU .B..................

8Z-HK4-023-010 LID,CASS BLU ASSY .B..................

87-HK5-237-010 S-SCREW,1.4-2 CR NL ABC.................

8Z-HK4-205-010 HLDR,LID ABC.................

8Z-HK4-206-010 HLDR,ARM ASSY ABC.................

8Z-HK4-228-010 SPR-P,LID ABC.................

8Z-HK4-003-010 CABI,REAR A.C.................

8Z-HK4-004-010 FRAME,CONT A.C.................

8Z-HK4-005-010 FRAME,CTR A.C.................

8Z-HK4-007-010 LID,BAT A.C.................

8Z-HK4-012-010 LENS,LED ABC.................

8Z-HK4-014-010 FRAME,CONT BLU .B..................

8Z-HK4-015-010 FRAME,CTR BLU .B..................

8Z-HK4-025-010 CABI,REAR BLU .B..................

8Z-HK4-026-010 LID,BAT BLU .B..................

8Z-HK4-008-010 KEY,CONT ABC.................

8Z-HK4-009-010 KNOB,SL HOLD A.C.................

8Z-HK4-010-010 KNOB,SL BLS A.C.................

8Z-HK4-011-010 KNOB,SL OPEN ABC.................

8Z-HK4-016-010 KNOB,SL HOLD BLU .B..................

8Z-HK4-017-010 KNOB,SL BLS BLU .B..................

85-HK3-241-010 SCRW-SR,1.4-3CR L ABC.................

87-067-429-010 SCREW1.4-2.5 ABC.................

87-067-480-010 SPECIAL SCREW +1.4-3 ABC.................

87-067-511-010 SCREW,V+1.4-2 BK ABC.................

87-067-732-010 TAPPING SCREW, VT1.4-3 ABC.................

87-078-183-010 SCRW-SR,1.4-1.4 BL ABC.................

87-078-206-010 S-SCRW,1.4-0.6 B NL ABC.................

8Z-HK4-227-010 S-SCREW,SERR+1.4-4.8 SWCH/CR E ABC.................

8Z-HK4-231-010 S-SCREW,SERR+1.4-5.0 SWCH/CR ABC.................

8Z-HK4-201-010 HLDR,BAT ABC.................

8Z-HK4-203-010 HLDR,PWB ABC.................

8Z-HK4-204-010 HLDR,CONT ABC.................

8Z-HK4-210-010 NUT, B-BOX ABC.................

8Z-HK4-211-010 BAT-CONTACT,(-) ABC.................

8Z-HK4-212-010 BAT-CONTACT,(+) ABC.................

8Z-HK4-213-010 BAT-CONTACT,BOX(-) ABC.................

8Z-HK4-215-010 LEVER,EJECT ABC.................

8Z-HK4-216-010 BASE,LOCK ABC.................

8Z-HK4-217-010 PLATE,OPEN ABC.................

8Z-HK4-218-010 PLATE,LOCK ABC.................

8Z-HK4-219-010 SPR-T,LOCK ABC.................

8Z-HK4-221-010 SPR-P,CASS ABC.................

8Z-HK4-225-010 PLATE,KNOB ABC.................

8Z-HK4-229-010 SHAFT,ASSY ABC.................

8Z-HK4-230-010 SPR-C,OPEN ABC.................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

S ......................XX..................................A...................

L ......................XX...................................B..................

AH .....................XX....................................C.................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8Z-HK4-901-010 IB,D AB..................

8Z-HK4-905-010 IB,H(ECH) ..C.................

87-B30-038-010 BAT,NB-5G ABC.................

87-B30-039-010 CHARGER,RB-107 D AB..................

87-B30-137-110 CHARGER,RB-107 H ..C.................

87-B30-252-010 HEADPHONE,HP-M040D (S) ABC.................

8Z-HK4-090-010 BOX,BAT ASSY SIL A.C.................

8Z-HK4-091-010 BOX,BAT ASSY BLU .B..................

8Z-HK4-951-010 RC UNIT,RC590 ABC.................

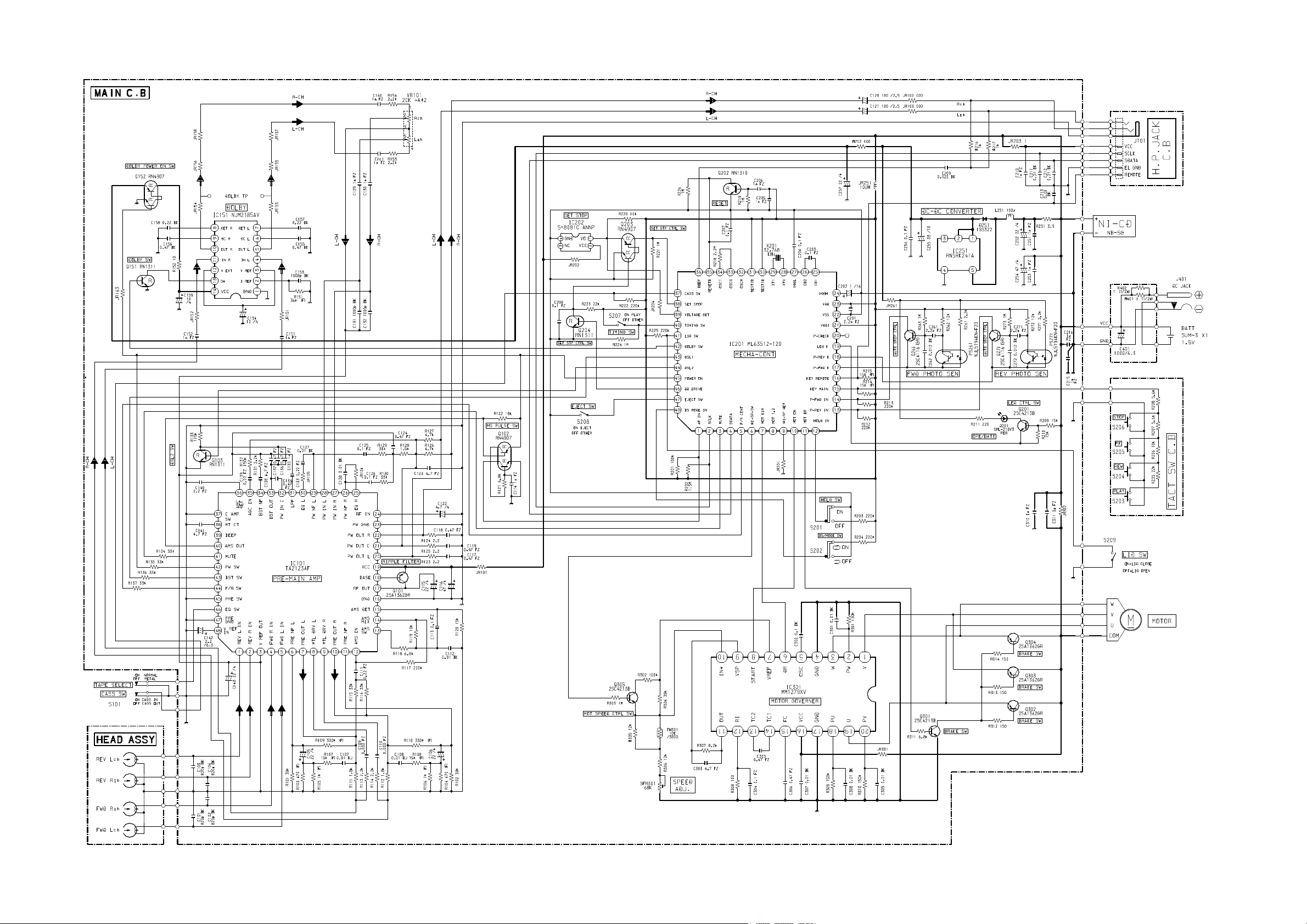

SCHEMATIC DIAGRAM - 1 (MAIN)

PrintedinSingapore

Tokyo Japan

9630469

Other manuals for HS-PX590

Table of contents

Popular Cassette Player manuals by other brands

Ahuja

Ahuja CPA-360 Operation manual

Sony

Sony Pressman TCS-60DV Specifications

Philips

Philips AQ6485/14 Product information

Sony

Sony TCM-200DV - Cassette Recorder operating instructions

Nakamichi

Nakamichi BX-300 Service manual

Panasonic

Panasonic RQ-E25V operating instructions

Yamaha

Yamaha MT8X Operation manual

Sherwood

Sherwood Newcastle D-480 operating instructions

Manta

Manta MA408 user manual

GPO

GPO W0162B user guide

Marantz

Marantz CP230 Service manual

Sony

Sony HST-471 Service manual

Sharp

Sharp JC-AV1 Operation manual

Pioneer

Pioneer CT-W103 Service manual

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder operating instructions

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... operating instructions

Sanyo

Sanyo MCD-ZX700F Service manual

Sony

Sony Pressman TCM-465V operating instructions

Aiwa HS-PX590 User manual

Popular Cassette Player manuals by other brands
