Aiwa HS-TA303 User manual
SERVICE MANUAL
HS-TA303
YJ,YL,YZ
STEREO RADIO
CASSETTE PLAYER BASIC TAPE MECHANISM : 4ZM-2 P3N
S/M Code No. 09-99C-423-2R1
REVISION
AHRJ.A4.p65 13-Dec-99, 5:17 PM1
• Design and specifications are subject to change without notice.
SPECIFICATIONS
Frequency range: FM: 87.5 – 108MHz
AM: 530 – 1710kHz <YL>
AM: 530 – 1605kHz <YZ, YJ>
Maximum output: 15 mW + 15 mW (EIAJ/32 ohm) <YL>
4 mW + 4 mW (EIAJ/16 ohm) <YZ, YJ>
Power source: DC 3V using two R6 (size AA) batteries
Maximum dimensions: 92.0 (W) x 116.4 (H) x 37.6 (D) mm
(35/8 x 45/8 x 11/2 in.)
Weight: Approx.138 g (5 oz) (excluding batteries)
2
ACCESSORIES / PACKAGE LIST
DESCRIPTION
REF.
NO.
KANRI
NO.
PART NO.
1 8A-HRJ-907-010 IB,Y (EDPOHCZ)-IN<YZ>
1 8A-HRJ-906-010 IB,Y (EGFSI)-IN<YZ>
1 8A-HRJ-908-010 IB,YJ (ESC) IN<YJ>
1 8A-HRJ-905-010 IB,YL (3L)IN<YL>
2 84-447-019-310 CLIP,BELT
3 87-B30-080-110 HEADPHONE,HP-M009(F)<YLBS>
3 87-B30-255-010 HEADPHONE,HP-M007B(S)<EXCEPT YLBS>
AHRJ.A4.p65 13-Dec-99, 5:17 PM2
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
3

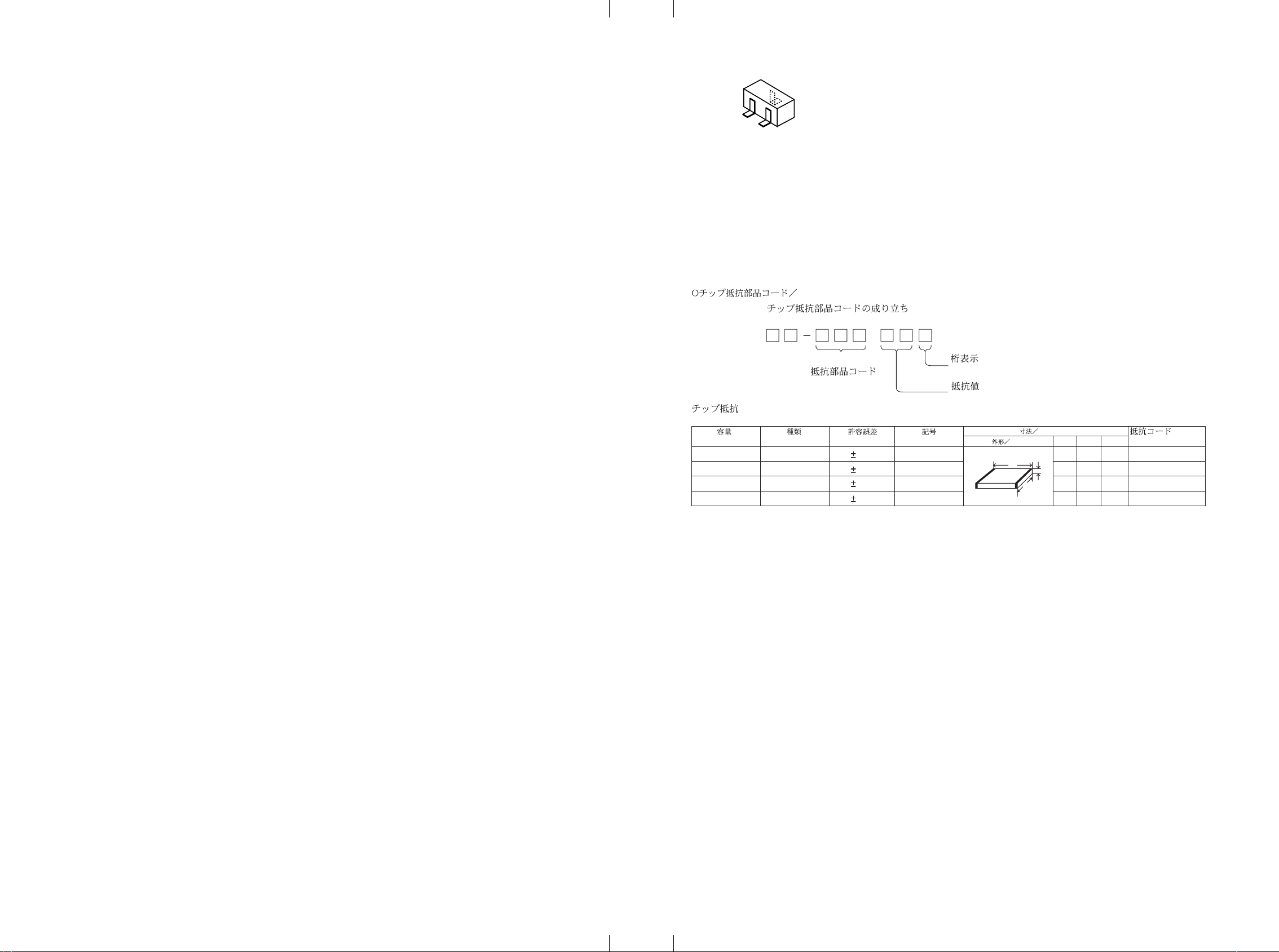

ELECTRICAL MAIN PARTS LIST
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
4
TRANSISTOR ILLUSTRATION
RN1404
RN1407
RN1411
KTA1298
2SC2712
IC
87-A21-387-040 C-IC,TA2145F
87-A20-851-040 C-IC,TA2111F
TRANSISTOR
87-A30-159-080 C-TR,KTA1298Y
87-026-261-080 C-TR,RN1404
87-026-264-080 C-TR,RN1411
87-026-262-080 C-TR,RN1407
89-327-125-080 C-TR,2SC2712GR
DIODE
87-A40-630-040 C-DIODE,RB411D
87-020-027-080 C-DIODE,1SS184
MAIN C.B
BPF101 87-A91-680-010 FLTR,GFMB5-C3
C 1 87-A11-556-080 C-CAP,S 2200P-50 K B
C 2 87-A11-556-080 C-CAP,S 2200P-50 K B
C 3 87-A11-551-080 C-CAP,S 1000P-50 K B
C 4 87-A11-551-080 C-CAP,S 1000P-50 K B
C 5 87-010-501-040 CAP,E 47-4 M 5L SRE
C 6 87-015-676-040 CAP,E 47-6.3 7L SRA
C 7 87-A11-565-080 C-CAP,S 8200P-50 K B
C 8 87-A11-565-080 C-CAP,S 8200P-50 K B
C 9 87-A11-584-080 C-CAP,S 0.033-16 K B
C10 87-A11-584-080 C-CAP,S 0.033-16 K B
C13 87-A11-551-080 C-CAP,S 1000P-50 K B
C14 87-A11-551-080 C-CAP,S 1000P-50 K B
C15 87-015-676-040 CAP,E 47-6.3 7L SRA
C16 87-A11-718-080 C-CAP,S 0.1-25 Z F
C17 87-A11-733-080 C-CAP,S 1-16 Z F
C21 87-A10-489-040 CAP,E 220-4 7L SR
C22 87-A10-489-040 CAP,E 220-4 7L SR
C23 87-A10-489-040 CAP,E 220-4 7L SR
C24 87-A11-726-080 C-CAP,S 0.33-16 Z F
C25 87-A11-726-080 C-CAP,S 0.33-16 Z F
C51 87-A11-733-080 C-CAP,S 1-16 Z F
C101 87-010-147-080 C-CAP,S 3P-50 CH<YZ,YJ>
C101 87-010-146-080 C-CAP,S 2P-50 C CH<YL>
C102 87-012-150-080 C-CAP,S 20P-50 CH
C103 87-010-315-080 C-CAP,S 27P-50 CH<YL,YJ>
C103 87-012-149-080 C-CAP,S 30P-50 CH<YZ>
C104 87-010-145-080 C-CAP,S 1P-50 CH<YL>
C104 87-010-147-080 C-CAP,S 3P-50 CH<YZ,YJ>
C105 87-A11-566-080 C-CAP,S 0.01-25 K B
C106 87-A11-729-080 C-CAP,S 0.47-25 Z F
C107 87-A11-733-080 C-CAP,S 1-16 Z F
C108 87-A11-551-080 C-CAP,S 1000P-50 K B
C109 87-016-462-080 C-CAP,S 1-16 F
C110 87-010-196-080 C-CAP,0.1-25 Z F C2012
C111 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C112 87-A11-564-080 C-CAP,S 6800P-50 K B
C113 87-A11-564-080 C-CAP,S 6800P-50 K B
C114 87-A11-584-080 C-CAP,S 0.033-16 K B
C115 87-A11-584-080 C-CAP,S 0.033-16 K B
C116 87-015-688-040 CAP,E 4.7-35 M 7L SRA
C117 87-010-452-080 C-CAP,1-16 Z F GRM42-6
C118 87-A11-551-080 C-CAP,S 1000P-50 K B
C119 87-010-503-040 CAP,E 220-4 GAS
C130 87-012-140-080 C-CAP,S 470P-50 J CH
C131 87-012-153-080 C-CAP,S 120P-50 CH
C132 87-010-150-080 C-CAP,S 6P-50 CH
C301 87-A11-559-080 C-CAP,S 3300P-50 K B
C302 87-A11-559-080 C-CAP,S 3300P-50 K B
C303 87-A11-720-080 C-CAP,S 0.15-50 Z F
C304 87-A11-720-080 C-CAP,S 0.15-50 Z F
C305 87-A11-733-080 C-CAP,S 1-16 Z F
C306 87-A11-733-080 C-CAP,S 1-16 Z F
C307 87-A11-596-080 C-CAP,S 0.068-16 K B
C308 87-A11-596-080 C-CAP,S 0.068-16 K B
C309 87-A11-565-080 C-CAP,S 8200P-50 K B
C310 87-A11-565-080 C-CAP,S 8200P-50 K B
C311 87-A11-564-080 C-CAP,S 6800P-50 K B
C312 87-A11-564-080 C-CAP,S 6800P-50 K B
C313 87-015-676-040 CAP,E 47-6.3 7L SRA
C314 87-A10-489-040 CAP,E 220-4 7L SR
C315 87-A11-581-080 C-CAP,S 0.027-16 K B
C316 87-A11-581-080 C-CAP,S 0.027-16 K B
C317 87-A11-733-080 C-CAP,S 1-16 Z F
C318 87-A11-733-080 C-CAP,S 1-16 Z F
C319 87-A11-733-080 C-CAP,S 1-16 Z F
C320 87-A11-733-080 C-CAP,S 1-16 Z F
CF101 87-A91-087-010 FLTR,PFS 450A6 B
CF102 87-A90-577-010 FLTR,KIT SN
J 1 85-HRL-623-010 JACK,3.5 ST BLK
J 2 87-A61-124-010 JACK,DC DIA2.75 BLK TC
L 1 87-A50-538-010 COIL,1UH RF CHOKE
L 2 87-005-849-080 COIL,10UH(CECS)
L101 8A-HRJ-607-010 BAR-ANT,MW (KTR)
L102 8A-HRJ-606-010 COIL,FM RF
L103 8A-HRJ-605-010 COIL,FM OSC
L104 87-A50-534-010 COIL,270UH AMOSC
L105 87-A90-663-010 IFT,MW 5L H6.4
R51 87-022-335-080 C-RES,S 180-1/10W F
SFR51 87-024-197-010 SFR,1K H VZ066L3
SW1 87-A90-133-110 SW,LEAF LSA1120JAU
SW2 87-A90-216-010 SW SL 2-2-3 SK230
SW3 87-A90-050-010 SW, SL 2-2-2 NS (BLK)
PVC101 87-A91-507-010 TUN-CAP,20P-165P
VR1 87-A90-981-010 VR,RTRY 20KBX1
FRONT C.B
LED101 87-A91-715-080 C-LED,17-21VRC/TR8(HT) RED
LED451 87-A91-715-080 C-LED,17-21VRC/TR8(HT) RED
SW301 87-036-146-080 C-SLIDE SWITCH 1-1-4
B
E
C
AHRJ.A3.p65 13-Dec-99, 5:02 PM1

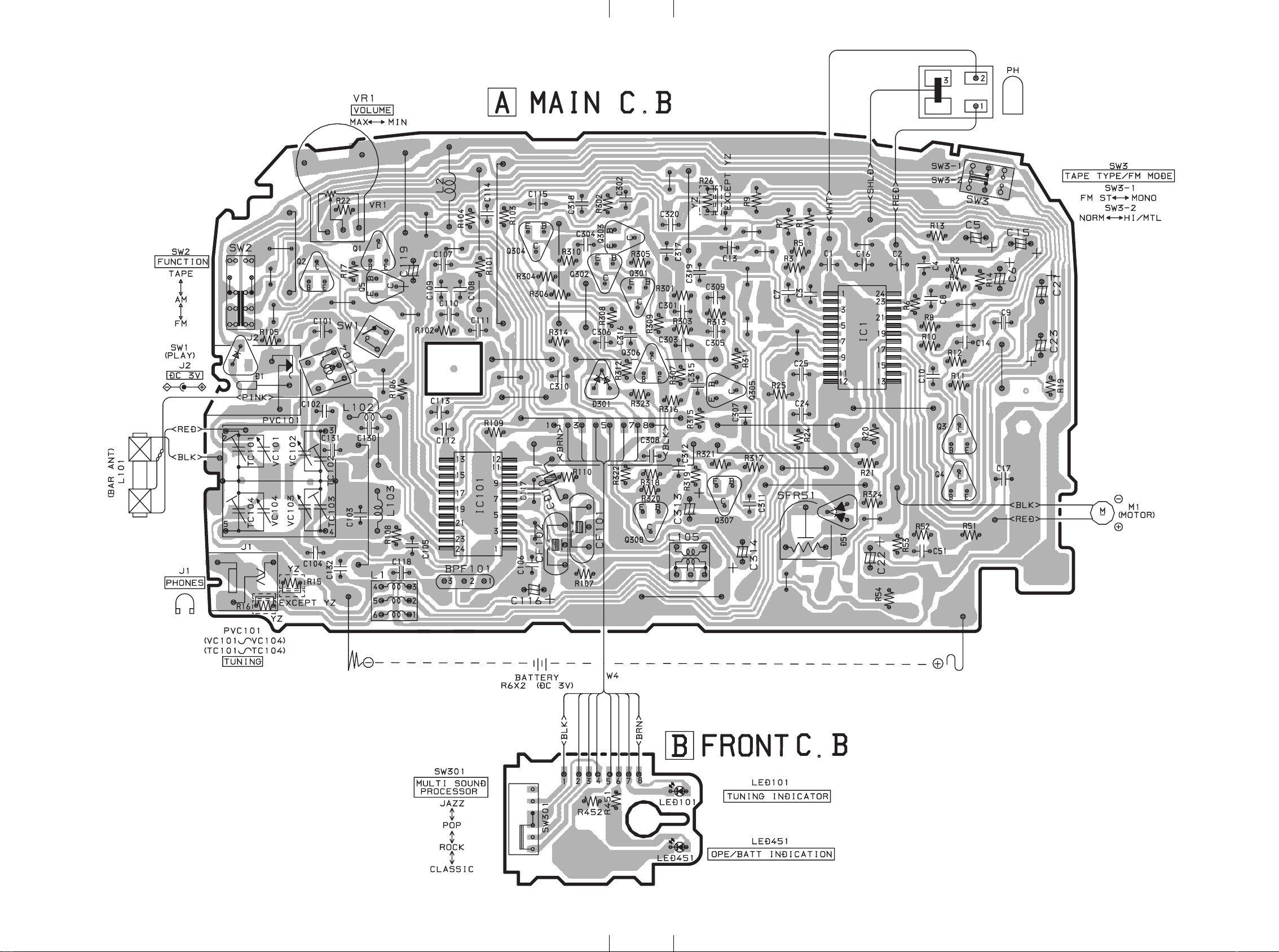

WIRING
65
AHRJ.A3.p65 13-Dec-99, 5:03 PM2
SCHEMATIC DIAGRAM
87
910

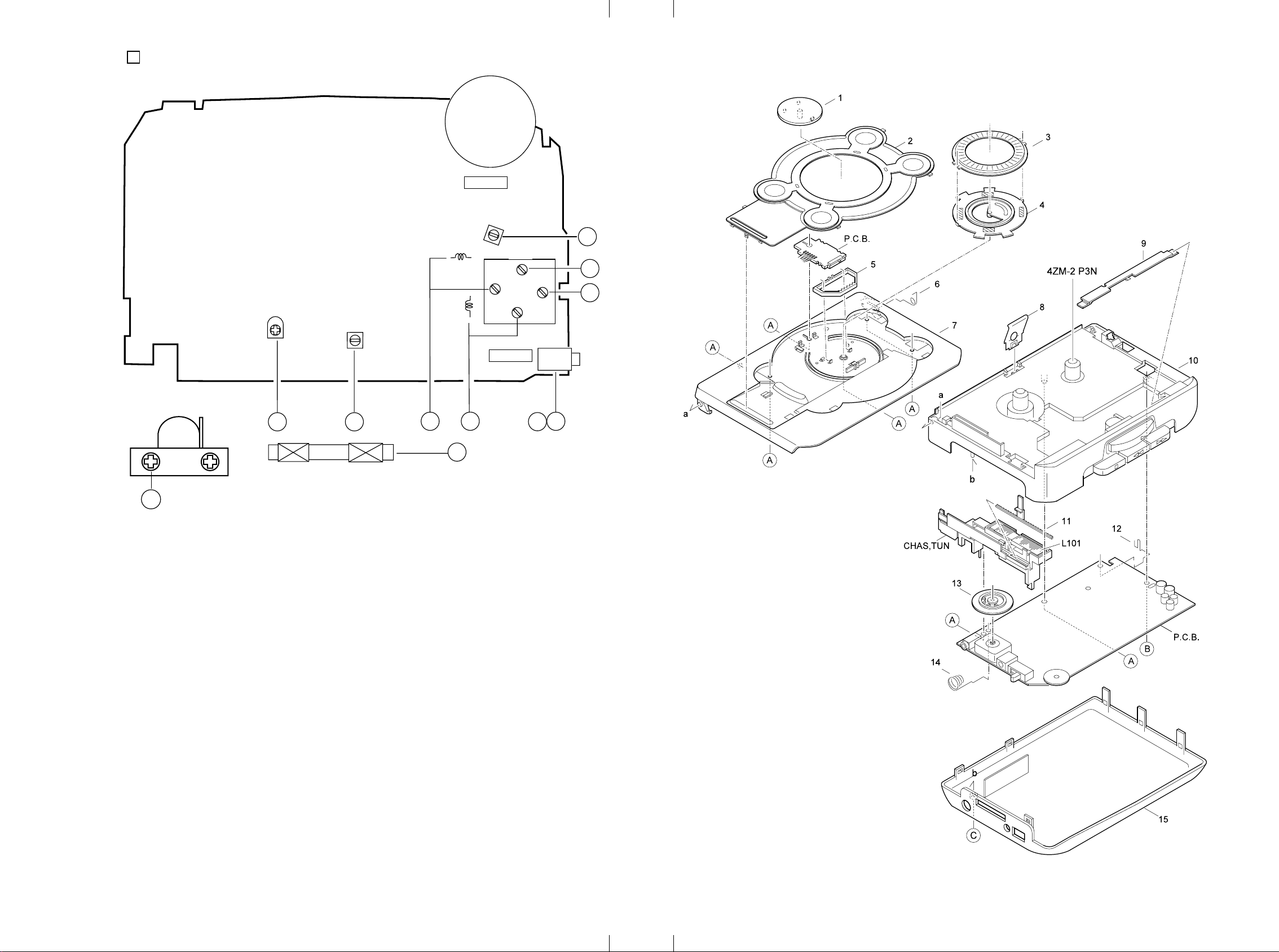

MECHANICAL EXPLODED VEW 1/1
ADJUSTMENT
<TUNER SECTION>
1. AM IF Adjustment
L105 ................................................................... 455kHz
2. AM Frequency range Adjustment
L104 ............................................ 515 ± 5kHz <YJ, YZ>
L104 .................................................. 517 ± 5kHz <YL>
TC104 ..................................... 1670 ± 10kHz <YJ, YZ>
TC104 ........................................... 1775 ± 10kHz <YL>
3. AM Tracking Adjustment
L101 ................................................................... 600kHz
TC101 .............................................................. 1400kHz
4. FM Frequency range Adjustment
L103 ............................................ 87.0 ± 0.2MHz <YL>
L103 ............................................ 87.4 ± 0.1MHz <YZ>
L103 ............................................. 87.0 ± 0.2MHz <YJ>
TC103 ....................................... 109.0 ± 0.2MHz <YL>
TC103 ....................................... 108.3 ± 0.1MHz <YZ>
TC103 ........................................ 109.0 ± 0.2MHz <YJ>
5. FM Tracking Adjustment
L102 ................................................................ 88.0MHz
TC102 ........................................................... 108.0MHz
SFR 1
AMAIN C.B
PHONES J1
L104
L102
PVC1
TC101
TC103
TC104
TC102
BAR ANT
L105
L103
14
2
2
3
3
L101
VR1
67
6
VOLUME
5
IC1
SFR51
<TAPE PLAYER SECTION>
6. Tape Speed Adjustment
Settings : • Test tape : TTA–100 (Tape center)
• Test point : PHONES JACK (J1)
• Volume : NON-CLIP (MAX - 10dB)
• Tape/Radio : TAPE
• Tape select : NORM
• MSP : CLASSIC
• Adjustment location : SFR51
Method : Play back the test tape and adjust SFR51 so that
the frequency becomes 3000Hz ± 10Hz (FWD).
Then confirm WOW is less than 0.50%.
7. Azimuth Adjustment
settings : • Test tape : TTA–330/TTA-420
• Test point : PHONES JACK (J1)
• Volume : MAX
• Tape select : NORM
• MSP : CLASSIC
• Adjustment location : Head azimuth
adjustment screw
Method : Play back the 8kHz signal of the test tape and
adjust the screw so that the output becomes maxi
mum.
PVC 101
P HEAD
FWD
2
7
AHRJ.A3.p65 13-Dec-99, 5:03 PM3
DESCRIPTIONREF.NO. KANRI
NO.
PART NO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.
MECHANICAL PARTS LIST 1/1
11
Basic color Color Basic color Color Basic color Color
symbol symbol symbol
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow
COLOR NAME TABLE
1 8A-HG8-005-010 CAP, MSP
2 8A-HRJ-002-010 PANEL,MSP<[S]YL1,[S]YL>
2 8A-HRJ-012-010 PANEL,MSP YZ<EXCEPT [S]YL1,[S]YL>
3 8A-HRJ-003-010 KNOB,RTRY MSP
4 8A-HRJ-005-010 RING,MSP
5 8A-HRJ-201-010 RACK,MSP
6 86-HRM-205-010 SPR-T,CLICK
7 8A-HRJ-001-010 LID,CASS<[S]YL1,[S]YL,YJ>
7 8A-HRJ-011-010 LID,CASS YZ<[S]YZ>
7 8A-HRJ-015-010 LID,CASS YZ J-248B<[LM]YZ>
7 8A-HRJ-016-010 LID,CASS YZ J-B140<[LD]YZ>
8 8A-HRL-202-010 SPR-P,CASS
9 87-HRR-206-010 PLATE,HEAD J034<EXCEPT [LM]YZ,[LD]YZ>
9 88-HKB-205-010 PLATE,HEAD J240B<[LM]YZ,[LD]YZ>
10 88-HRJ-038-010 FRAME,CENTER J034<EXCEPT [LM]YZ,[LD]YZ>
10 88-HKA-027-010 FRAME,CENTER VIO<[LM]YZ,[LD]YZ>
11 86-HRM-009-210 POINTER,TUN
12 86-HRM-202-010 BAT-CONTACT,(+)
13 86-HRM-006-010 KNOB,RTRY TUN
14 8Z-HRM-205-010 BAT,CONTACT(-)
15 8Z-HRL-032-110 CABI,REAR ASSY<[S]YL1,[S]YL,YJ>
15 8A-HRJ-020-010 CABI,REAR ASSY YZ J-049N<[S]YZ>
15 8A-HRJ-021-010 CABI,REAR ASSY YZ J-248B<[LM]YZ>
15 8A-HRJ-022-010 CABI,REAR ASSY YZ J-B140<[LD]YZ>
A 87-067-732-010 TAPPING SCREW, VT1.4-3
B 87-B10-044-010 V+1.7-6.5
C 87-067-691-010 SCREW VT+1.7-6
AHRJ.A4.p65 13-Dec-99, 5:17 PM3
TAPE MECHANISM EXPLODED VIEW 1/1
12
30
29
1
28
26
27
25
24
23
22
21
20
19
18
16
2
3
4
17
5
6
15
11
10
7
9
8
12
13
14
FRAME,CENTER
A
AHRJ.A4.p65 13-Dec-99, 5:17 PM4
DESCRIPTIONREF.NO. KANRI
NO.
PART NO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.
TAPE MECHANISM PARTS LIST 1/1
13
1 84-ZM2-012-010 LEVER,PLAY G
2 84-ZM2-211-01K GEAR,CONNECT
3 84-ZM2-222-010 SPR-T,PLAY
4 84-ZM2-015-010 LEVER,STOP G
5 84-ZM2-014-010 LEVER,REW G
6 84-ZM2-013-010 LEVER,FF G
7 84-ZM2-223-010 SPR-T,REW STOP
8 84-ZM2-232-010 BELT,MAIN
9 84-ZM2-221-010 FLY-WHL,P2
1 0 84-ZM2-230-010 CAPSTAN,P 1.8-25
1 1 84-ZM2-220-01K BRG,P
1 2 84-ZM2-210-01K GEAR,AUTO
1 3 84-ZM2-218-01K CAP,GEAR AUTO
1 4 84-ZM2-208-01K LEVER,SHIFT
1 5 84-ZM2-224-010 SPR-T,FF LOCK
1 6 84-ZM2-207-01K LEVER,AUTO
1 7 84-ZM2-206-01K LEVER,LOCK
1 8 84-ZM2-219-01K PULLEY,MOTOR
1 9 87-045-385-019 MOT (BCY3B11)
2 0 84-ZM2-226-010 SPR-C,CLUTCH
2 1 84-ZM2-212-01K GEAR,CLUTCH
2 2 84-ZM2-231-019 FELT,CLUTCH
2 3 84-ZM2-217-01K SHAFT,REEL
2 4 84-ZM2-225-010 SPR-T,AUTO FIND
2 5 84-ZM2-216-01K REEL TABLE,R
2 6 84-ZM2-215-01K REEL TABLE,L
2 7 84-ZM2-228-010 SPR-C,BT
2 8 84-ZM2-233-110 PINCH ROL ASSY
2 9 84-ZM2-227-010 SPR-C,AZIMUTH
3 0 87-A90-272-010 HEAD,PH MS25P ETH
A 84-ZM2-242-019 S-SCREW,AZIMUTH-2-5.9
AHRJ.A4.p65 13-Dec-99, 5:17 PM5
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827)
3111
L
Printed in Singapore
A4
2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
9920594 0251431 9630472
AHRJ.A4.p65 13-Dec-99, 5:17 PM6
Other manuals for HS-TA303
1
This manual suits for next models
3
Table of contents
Other Aiwa Cassette Player manuals
