Aiwa HS-RX128 User manual

SERVICE MANUAL
DATA
STEREORADIO
CASSETTE PLAYER BASIC TAPE MECHANISM : CL-840 M1 D-GRY
S/M Code No. 09-024-359-8R1
REVISION
This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
HS-RX128/HS-RX228 (S/MCode 09-024-359-8T1).
HS-RX128
HS-RX228
YL(S),YJ(S),YZ(S)
YL(S),YJ(S),YH(S)
d u
p a
t o
r

-2-
SPECIFICATIONS-1/1
•
Design and specifications are subject to change without
notice.
Frequency range:
Reception area EU: AM 531 – 1,602 kHz (9 kHz steps)
FM1, FM2 87.5 – 108 MHz (50 kHz steps)
Reception area USA: AM 530 – 1,710 kHz (10 kHz steps)
FM1, FM2 87.5 – 108.1 MHz (200 kHz steps)
Maximum output: 2 mW + 2 mW (16 ohms) <RX128 YZ>
Load impedance: 16 – 80 ohms <RX128 YZ>
Power sources: DC 3 V using two R6 (size AA) dry cell batteries
AC house current using the optional AC adaptor Aiwa
AC-D302
Maximum outside dimensions:
110.8 (W) × 80.8 (H) × 27.1 (D) mm (excluding projecting
parts and controls)
Weight: Approx. 120 g (excluding batteries)
d u
p a
t o
r

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-3-
ACCESSORIES PARTS LIST -1/1
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
O AS1001 87-B30-482-010 HEADPHONE,HP-M041(T2)SP a . . . . .
O AS1001 87-B30-483-010 HEADPHONE,HP-M007(T2)SP . b . d . f
O AS1001 87-B30-482-110 HEADPHONE,HP-M041(T2)SP . . c . e .
O AS1002 8C-HR9-951-010 RC UNIT,RC228 a . c . e .
X AS1003 8C-HKG-851-010 COVER,TOP Y1BSC . . . . . f
X AS1004 8C-HKG-852-010 COVER,BTM Y1BSC . . . . . f
X AS1005 8C-HR9-851-010 BD,PRINTED 128 YZ1BSC . . . . . f
X AS1006 87-B50-078-010 LIST,FACILITY(S)-0007 a b c d e f
X AS1007 87-B50-080-010 WARR-CARD,CHINA-0009 . . . . e .
O AS1008 8C-HR9-914-010 IB,YL(ESP)AL RX228 a . . . . .
O AS1008 8C-HR9-904-010 IB,YL(ESP)AL RX128 . b . . . .
O AS1008 8C-HR9-912-010 IB,YJ(ECCA)AL RX228 . . c . e .
O AS1008 8C-HR9-902-010 IB,YJ(ECCA)AL RX128 . . . d . .
O AS1008 8C-HR9-905-010 IB,YZ(EGF)AL RX128 . . . . . f
O AS1008 8C-HR9-907-010 IB,YZ(PHC)AL RX128 . . . . . f
O AS1008 8C-HR9-906-010 IB,YZ(SID)AL RX128 . . . . . f
d u p a t o r

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-4-
ELECTRICAL PARTS LIST -1/5
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O BPF0201 87-A90-601-010 FLTR,BPF GFWB7 a b c d e f
MAIN O C 0101 87-012-272-080 C-CAP,U 680P-50 K B GRM a b c d e f
MAIN O C 0102 87-012-272-080 C-CAP,U 680P-50 K B GRM a b c d e f
MAIN O C 0105 87-010-501-010 CAP,E 47-4 M KS a b c d e f
MAIN O C 0106 87-010-501-010 CAP,E 47-4 M KS a b c d e f
MAIN O C 0107 87-012-277-080 C-CAP,U 1800P-50 K B GRM a b c d e f
MAIN O C 0108 87-012-277-080 C-CAP,U 1800P-50 K B GRM a b c d e f
MAIN O C 0109 87-012-271-080 C-CAP,U 560P-50 K B GRM a b c d e f
MAIN O C 0110 87-012-271-080 C-CAP,U 560P-50 K B GRM a b c d e f
MAIN O C 0111 87-A10-025-080 C-CAP,U 0.22-16 Z F a b c d e f
MAIN O C 0112 87-A10-025-080 C-CAP,U 0.22-16 Z F a b c d e f
MAIN O C 0113 87-010-502-010 CAP,E 100-4 M KS a . c . e .
MAIN O C 0114 87-010-502-010 CAP,E 100-4 M KS a . c . e .
MAIN O C 0115 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0116 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0121 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0122 87-010-501-010 CAP,E 47-4 M KS a b c d e f
MAIN O C 0123 87-010-503-010 CAP,E 220-4 M 5L a b c d e f
MAIN O C 0124 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0126 87-010-503-010 CAP,E 220-4 M 5L a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O C 0127 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0128 87-A11-056-080 C-CAP,U 1-10 Z F a b c d e f
MAIN O C 0129 87-010-805-080 C-CAP,S 1-16 Z F GRM a b c d e f
MAIN O C 0130 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0151 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0152 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0153 87-A11-056-080 C-CAP,U 1-10 Z F a b c d e f
MAIN O C 0154 87-A11-056-080 C-CAP,U 1-10 Z F a b c d e f
MAIN O C 0201 87-012-199-080 C-CAP,U 220P-50 J CH GRM a b c d e f
MAIN O C 0202 87-012-156-080 C-CAP,S 220P-50 J CH GRM a b c d e f
MAIN O C 0203 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b c d e f
MAIN O C 0204 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0205 87-010-787-080 C-CAP,U 0.022-25 K B GRM a b c d e f
MAIN O C 0206 87-012-197-080 C-CAP,U 150P-50 J CH GRM a b c d e f
MAIN O C 0208 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0209 87-010-805-080 C-CAP,S 1-16 Z F GRM a b c d e f
MAIN O C 0210 87-012-191-080 C-CAP,U 68P-50 J CH GRM a b c d e f
MAIN O C 0212 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0213 87-012-160-080 C-CAP,U 0.5P-50 C CK a b c d e f
MAIN O C 0215 87-010-198-080 C-CAP,S 0.022-25 K B C2012 a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O C 0216 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0217 87-A10-039-080 C-CAP,U 470P-50 J CH a b c d e f
MAIN O C 0218 87-012-197-080 C-CAP,U 150P-50 J CH GRM a b c d e f
MAIN O C 0219 87-012-247-080 C-CAP,U 18P-50 J UJ C1608 a b c d e f
MAIN O C 0220 87-012-172-080 C-CAP,U 10P-50 D CH GRM a b c d e f
MAIN O C 0221 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0222 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d e f
MAIN O C 0223 87-012-199-080 C-CAP,U 220P-50 J CH GRM a b c d e f
MAIN O C 0224 87-010-178-080 C-CAP,S 1000P-50 K B C2012 a b c d e f
MAIN O C 0225 87-010-805-080 C-CAP,S 1-16 Z F GRM a b c d e f
MAIN O C 0226 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0227 87-010-805-080 C-CAP,S 1-16 Z F GRM a b c d e f
MAIN O C 0228 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0229 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0230 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0231 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0232 87-010-497-010 CAP,E 4.7-35 M KS a b c d e f
MAIN O C 0233 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0234 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0235 87-010-501-010 CAP,E 47-4 M KS a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O C 0236 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0237 87-010-959-080 C-CAP,U 0.056-16 Z F a b c d e f
MAIN O C 0238 87-010-959-080 C-CAP,U 0.056-16 Z F a b c d e f
MAIN O C 0239 87-012-286-080 C-CAP,U 0.01-25 K B GRM a b c d e f
MAIN O C 0240 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0243 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d e f
MAIN O C 0301 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b c d e f
MAIN O C 0302 87-010-197-080 C-CAP,S 0.01-25 K B C2012 a b c d e f
MAIN O C 0303 87-A11-282-080 C-CAP,S 1-16 K B a b c d e f
MAIN O C 0304 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0305 87-012-167-080 C-CAP,U 5P-50 C CH GRM a b c d e f
MAIN O C 0306 87-012-170-080 C-CAP,U 8P-50 D CH GRM a b c d e f
MAIN O C 0307 87-012-191-080 C-CAP,U 68P-50 J CH GRM a b c d e f
MAIN O C 0309 87-010-805-080 C-CAP,S 1-16 Z F GRM a b c d e f
MAIN O C 0310 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0351 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0352 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0353 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0355 87-010-503-010 CAP,E 220-4 M 5L a b c d e f
MAIN O C 0356 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
d u p a t o r

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-5-
ELECTRICAL PARTS LIST -2/5
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O C 0358 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0401 87-A10-201-080 C-CAP,S 0.33-16 K B a b c d e f
MAIN O C 0402 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0403 87-016-526-080 C-CAP,S 0.47-16 BK a b c d e f
MAIN O C 0404 87-010-992-080 C-CAP,S 0.047-25 K B MK212 a b c d e f
MAIN O C 0405 87-010-992-080 C-CAP,S 0.047-25 K B MK212 a b c d e f
MAIN O C 0406 87-010-992-080 C-CAP,S 0.047-25 K B MK212 a b c d e f
MAIN O C 0407 87-010-992-080 C-CAP,S 0.047-25 K B MK212 a b c d e f
MAIN O C 0408 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0409 87-010-196-080 C-CAP,S 0.1-25 Z F C2012 a b c d e f
MAIN O C 0410 87-A11-062-080 C-CAP,S 2.2-16 Z F a b c d e f
MAIN O C 0501 87-012-274-080 C-CAP,U 1000P-50 K B GRM a b c d e f
MAIN O C 0502 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0503 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0504 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0505 87-012-176-080 C-CAP,U 15P-50 J CH GRM a b . d . .
MAIN O C 0505 87-012-180-080 C-CAP,U 22P-50 J CH GRM . . c . e f
MAIN O C 0506 87-012-178-080 C-CAP,U 18P-50 J CH GRM a b . d . .
MAIN O C 0506 87-012-180-080 C-CAP,U 22P-50 J CH GRM . . c . e f
MAIN O C 0507 87-A11-056-080 C-CAP,U 1-10 Z F a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O C 0508 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0509 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0510 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0513 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O C 0514 87-A10-262-080 C-CAP,U 1-10 Z F a b c d e f
MAIN O C 0515 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d e f
MAIN O C 0516 87-012-195-080 C-CAP,U 100P-50 J CH GRM a b c d e f
MAIN O C 0551 87-010-831-080 C-CAP,U 0.1-16 Z F GRM a b c d e f
MAIN O CF 0201 87-A91-162-010 FLTR,PFS450A7 a b c d e f
MAIN X CF 0202 87-A91-770-010 FLTR,SFE10.7 MS239T6-A a b c d e f
MAIN X CF 0203 87-A92-455-010 FLTR,CDALA10M7 GA080T-B0 a b c d e f
MAIN O D 0201 87-A40-957-040 C-VARI-CAP,HVC200A a b c d e f
MAIN O D 0202 87-A40-957-040 C-VARI-CAP,HVC200A a b c d e f
MAIN O D 0203 87-A40-799-040 C-VARI-CAP,KV1610S a b c d e f
MAIN S D 0351 87-A40-630-040 C-DIODE,RB411D a b c d e f
MAIN S D 0352 87-A40-360-080 C-DIODE,MA786 a b c d e f
MAIN S D 0502 87-017-779-080 C-DIODE,1SS355 a b c d e f
MAIN S D 0503 87-017-779-080 C-DIODE,1SS355 a b c d e f
MAIN S D 0504 87-017-779-080 C-DIODE,1SS355 a b . . . .
MAIN S IC 0101 87-A21-684-040 C-IC,TA2145AF a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN S IC 0201 87-A21-407-040 C-IC,TA2104BFN a b c d e f
MAIN S IC 0301 87-A20-904-080 C-IC,TK11823MTL a b c d e f
MAIN S IC 0401 87-A20-532-140 C-IC,LB1977M-TLM a b c d e f
MAIN S IC 0501 8C-HR9-602-030 C-IC,TC9318FA-075 a b c d e f
MAIN S IC 0502 87-A22-183-040 C-IC,PST3820UL a b c d e f
MAIN O J 0101 87-A60-437-010 JACK,3.5 BLK ST W/O SW 4P(1637 a . c . e .
MAIN O J 0101 87-A60-438-010 JACK,3.5 BLK ST W/O SW (1537) . b . d . f
MAIN O J 0351 87-A61-124-010 JACK,DC DIA2.75 BLK TC a b c d e f
MAIN X JR 0101 88-108-000-080 C-JUMPER,U a . c . e .
MAIN X JR 0128 88-108-000-080 C-JUMPER,U a b c d e f
MAIN X JR 0501 88-108-000-080 C-JUMPER,U . . c d e .
MAIN X JR 0601 88-108-000-080 C-JUMPER,U . b . d . f
MAIN X JR 0602 88-108-000-080 C-JUMPER,U . b . d . f
MAIN X JR 0603 88-108-000-080 C-JUMPER,U . b . d . f
MAIN X JR 0604 88-108-000-080 C-JUMPER,U . b . d . f
MAIN O L 0101 87-A50-581-080 C-COIL,S FCM2012H 252705 a b c d e f
MAIN O L 0102 87-A50-581-080 C-COIL,S FCM2012H 252705 a b c d e f
MAIN O L 0103 87-A50-581-080 C-COIL,S FCM2012H 252705 a b c d e f
MAIN O L 0104 87-A50-582-080 C-COIL,S 0.22UH K FCI2012C a b c d e f
MAIN O L 0105 87-A50-581-080 C-COIL,S FCM2012H 252705 a . c . e .
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O L 0201 8B-HRC-604-010 COIL, FM RF a b c d e f
MAIN O L 0202 8B-HRC-603-010 COIL, FM OSC a b c d e f
MAIN O L 0203 8C-HR9-603-010 BAR-ANT,MW a b c d e f
MAIN O L 0204 87-003-152-080 COIL,100UH J LAL02 a b . d . .
MAIN O L 0204 87-005-742-080 COIL,100UH J SP02 . . c . e f
MAIN O L 0205 87-A90-663-010 IFT,MW 5L H6.4 a b c d e f
MAIN O L 0302 87-A50-443-080 C-COIL,D-D(C5-S) a b c d e f
MAIN O LCD0501 8A-HR8-605-110 LCD,AHR-8 a b c d e f
MAIN O LED0181 87-A90-278-080 C-LED,SML-210VT RED a b c d e f
MAIN O PS 0551 87-A92-280-010 SNSR,PHOTO NJL5193K-F1 a b c d e f
MAIN S Q 0101 89-115-865-080 C-TR,2SA1586G a b c d e f
MAIN S Q 0102 89-327-125-080 C-TR,2SC2712GR a b c d e f
MAIN S Q 0151 87-026-262-080 C-TR,RN1407 a b c d e f
MAIN S Q 0152 87-026-262-080 C-TR,RN1407 a b c d e f
MAIN S Q 0201 89-327-143-080 C-TR,2SC2714O a b c d e f
MAIN S Q 0202 87-026-262-080 C-TR,RN1407 a b c d e f
MAIN S Q 0203 87-026-262-080 C-TR,RN1407 a b c d e f
MAIN S Q 0204 89-327-143-080 C-TR,2SC2714O a b c d e f
MAIN S Q 0301 89-327-125-080 C-TR,2SC2712GR a b c d e f
MAIN S Q 0302 89-327-125-080 C-TR,2SC2712GR a b c d e f
d u p a t o r

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-6-
ELECTRICAL PARTS LIST -3/5
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN S Q 0351 89-115-884-080 C-TR,2SA1588Y a b c d e f
MAIN S Q 0352 89-115-884-080 C-TR,2SA1588Y a b c d e f
MAIN S Q 0353 89-113-625-080 C-TR,2SA1362GR a b c d e f
MAIN S Q 0354 89-327-125-080 C-TR,2SC2712GR a b c d e f
MAIN S Q 0401 89-113-625-080 C-TR,2SA1362GR a b c d e f
MAIN S Q 0402 89-327-125-080 C-TR,2SC2712GR a b c d e f
MAIN S Q 0403 89-327-125-080 C-TR,2SC2712GR a b c d e f
MAIN S Q 0501 89-327-125-080 C-TR,2SC2712GR a b c d e f
MAIN S Q 0502 87-026-268-080 C-TR,RN2411 a b c d e f
MAIN S Q 0551 89-327-125-080 C-TR,2SC2712GR a b c d e f
MAIN S Q 0552 87-026-262-080 C-TR,RN1407 a b c d e f
MAIN O R 0101 88-108-153-080 C-RES,U 15K-1/16W J a b c d e f
MAIN O R 0102 88-108-153-080 C-RES,U 15K-1/16W J a b c d e f
MAIN X R 0103 88-108-471-080 C-RES,U 470-1/16W J a b c d e f
MAIN X R 0104 88-108-471-080 C-RES,U 470-1/16W J a b c d e f
MAIN X R 0105 88-108-225-080 C-RES,U 2.2M-1/16W J a b c d e f
MAIN X R 0106 88-108-225-080 C-RES,U 2.2M-1/16W J a b c d e f
MAIN X R 0107 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0108 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0109 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN X R 0110 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN O R 0111 88-108-103-080 C-RES,U 10K-1/16W J a b c d e f
MAIN O R 0112 88-108-103-080 C-RES,U 10K-1/16W J a b c d e f
MAIN X R 0113 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN X R 0114 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN X R 0115 88-108-109-080 C-RES,U 1-1/16W J a b c d e f
MAIN X R 0116 88-108-109-080 C-RES,U 1-1/16W J a b c d e f
MAIN X R 0117 88-108-330-080 C-RES,U 33-1/16W J a b c d e f
MAIN X R 0118 88-108-330-080 C-RES,U 33-1/16W J a b c d e f
MAIN X R 0119 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d e f
MAIN X R 0120 88-108-472-080 C-RES,U 4.7K-1/16W J a b c d e f
MAIN O R 0121 88-108-102-080 C-RES,U 1K-1/16W J a . c . e .
MAIN O R 0122 88-108-102-080 C-RES,U 1K-1/16W J a . c . e .
MAIN O R 0131 88-108-102-080 C-RES,U 1K-1/16W J a b c d e f
MAIN X R 0132 88-108-152-080 C-RES,U 1.5K-1/16W J a b c d e f
MAIN X R 0134 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN O R 0135 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d e f
MAIN O R 0136 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d e f
MAIN X R 0151 88-108-334-080 C-RES,U 330K-1/16W J a b c d e f
MAIN X R 0152 88-108-334-080 C-RES,U 330K-1/16W J a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O R 0153 88-108-272-080 C-RES,U 2.7K-1/16W J a b c d e f
MAIN O R 0154 88-108-272-080 C-RES,U 2.7K-1/16W J a b c d e f
MAIN X R 0181 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN O R 0182 88-108-822-080 C-RES,U 8.2K-1/16W J a b c d e f
MAIN O R 0201 88-108-153-080 C-RES,U 15K-1/16W J a b c d e f
MAIN X R 0202 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0203 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0204 88-108-479-080 C-RES,U 4.7-1/16W J a b c d e f
MAIN X R 0205 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0206 88-108-330-080 C-RES,U 33-1/16W J a b c d e f
MAIN O R 0207 88-108-102-080 C-RES,U 1K-1/16W J a b c d e f
MAIN X R 0208 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0209 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN O R 0210 88-108-101-080 C-RES,U 100-1/16W J a b c d e f
MAIN X R 0211 88-108-683-080 C-RES,U 68K-1/16W J a b c d e f
MAIN X R 0212 88-108-471-080 C-RES,U 470-1/16W J a b c d e f
MAIN X R 0213 88-108-820-080 C-RES,U 82-1/16W J a b c d e f
MAIN O R 0214 88-108-103-080 C-RES,U 10K-1/16W J a b c d e f
MAIN O R 0215 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d e f
MAIN X R 0216 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN X R 0217 88-108-331-080 C-RES,U 330-1/16W J a b c d e f
MAIN X R 0218 88-118-100-080 C-RES,S 10-1/10W J a b c d e f
MAIN O R 0219 88-108-123-080 C-RES,U 12K-1/16W J a b c d e f
MAIN O R 0220 88-108-123-080 C-RES,U 12K-1/16W J a b c d e f
MAIN O R 0221 88-108-224-080 C-RES,U 220K-1/16W J a b c d e f
MAIN O R 0222 88-108-102-080 C-RES,U 1K-1/16W J a b c d e f
MAIN O R 0223 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d e f
MAIN X R 0224 88-118-000-080 C-JUMPER,S a b c d e f
MAIN O R 0301 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d e f
MAIN X R 0302 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN O R 0303 88-108-153-080 C-RES,U 15K-1/16W J a b c d e f
MAIN X R 0304 88-118-101-080 C-RES,S 100-1/10W J a b c d e f
MAIN X R 0305 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0351 88-108-474-080 C-RES,U 470K-1/16W J a b c d e f
MAIN O R 0352 88-108-102-080 C-RES,U 1K-1/16W J a b c d e f
MAIN O R 0353 88-108-473-080 C-RES,U 47K-1/16W J a b c d e f
MAIN O R 0354 88-108-102-080 C-RES,U 1K-1/16W J a b c d e f
MAIN O R 0355 88-108-473-080 C-RES,U 47K-1/16W J a b c d e f
MAIN O R 0356 88-108-101-080 C-RES,U 100-1/16W J a b c d e f
MAIN O R 0357 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d e f
d u p a t o r

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-
ELECTRICAL PARTS LIST -4/5
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN X R 0358 88-128-270-080 C-RES, 27-1/8W J a b c d e f
MAIN X R 0359 88-128-270-080 C-RES, 27-1/8W J a b c d e f
MAIN X R 0360 88-128-270-080 C-RES, 27-1/8W J a b c d e f
MAIN X R 0361 88-108-569-080 C-RES,U 5.6-1/16W J a b c d e f
MAIN X R 0363 88-118-000-080 C-JUMPER,S a b c d e f
MAIN O R 0401 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d e f
MAIN O R 0402 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d e f
MAIN O R 0403 88-108-822-080 C-RES,U 8.2K-1/16W J a b c d e f
MAIN O R 0404 88-108-123-080 C-RES,U 12K-1/16W J a b c d e f
MAIN O R 0405 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d e f
MAIN X R 0406 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN O R 0407 88-108-562-080 C-RES,U 5.6K-1/16W J a b c d e f
MAIN O R 0409 88-108-103-080 C-RES,U 10K-1/16W J a b c d e f
MAIN X R 0410 88-108-684-080 C-RES,U 680K-1/16W J a b c d e f
MAIN X R 0411 88-108-474-080 C-RES,U 470K-1/16W J a b c d e f
MAIN X R 0412 88-108-681-080 C-RES,U 680-1/16W J a b c d e f
MAIN X R 0502 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0503 88-108-564-080 C-RES,U 560K-1/16W J a b c d e f
MAIN X R 0504 88-108-335-080 C-RES,U 3.3M-1/16W J a b c d e f
MAIN X R 0505 88-108-335-080 C-RES,U 3.3M-1/16W J a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN X R 0506 88-108-183-080 C-RES,U 18K-1/16W J a b c d e f
MAIN O R 0507 88-108-103-080 C-RES,U 10K-1/16W J a b c d e f
MAIN O R 0508 87-022-245-080 C-RES,U 18K-1/16W F a b c d e f
MAIN X R 0509 88-108-474-080 C-RES,U 470K-1/16W J a b c d e f
MAIN X R 0510 88-108-474-080 C-RES,U 470K-1/16W J a b c d e f
MAIN X R 0511 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN X R 0512 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN X R 0513 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN X R 0514 88-108-222-080 C-RES,U 2.2K-1/16W J a b c d e f
MAIN O R 0515 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d e f
MAIN O R 0516 88-108-332-080 C-RES,U 3.3K-1/16W J a b c d e f
MAIN O R 0517 88-108-473-080 C-RES,U 47K-1/16W J a b c d e f
MAIN X R 0519 88-108-105-080 C-RES,U 1M-1/16W J a b c d e f
MAIN X R 0520 88-108-335-080 C-RES,U 3.3M-1/16W J a b c d e f
MAIN X R 0521 88-108-105-080 C-RES,U 1M-1/16W J a b c d e f
MAIN X R 0522 88-108-104-080 C-RES,U 100K-1/16W J a b c d e f
MAIN O R 0551 88-108-101-080 C-RES,U 100-1/16W J a b c d e f
MAIN X R 0552 88-108-561-080 C-RES,U 560-1/16W J a b c d e f
MAIN X R 0553 88-108-824-080 C-RES,U 820K-1/16W J a b c d e f
MAIN O S 0151 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 T1.4 a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
MAIN O S 0501 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 T1.4 a b c d e f
MAIN O S 0502 87-A91-365-080 C-SW,PUSH 1-1-1 SPVG21 a b c d e f
MAIN O S 0503 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0504 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0505 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0506 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0507 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0508 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0509 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0510 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O S 0511 87-A91-780-180 C-SW,TACT LS15B3T a b c d e f
MAIN O SFR0401 87-024-597-040 C-SFR,K 33K H TMC3K a b c d e f
MAIN O TC 0201 87-011-252-080 TRIMMER,10P 4.0X4.5 ECR-1 a b c d e f
MAIN O TH 0401 87-A91-675-080 C-THMS,NTH5G16P39B472K 07TH a b c d e f
MAIN O VR 0101 87-A90-981-110 VR,RTRY 20KBX1 a b c d e f
MAIN O X 0501 87-A70-082-110 VIB,XTAL 75KHZ a b c d e f
d u p a t o r

-8-
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
ELECTRICAL PARTS LIST -5/5
d u
p a
t o
r

-9-
TRANSISTORILLUSTRATION-1/1
2SA1362
2SA1586
2SA1588Y
E
B
C
2SC2712
2SC2714
RN1407
d u
p a
t o
r

-10-
LCD DISPLAY (AHR-8)-1/1
d u
p a
t o
r

-11-
SCHEMATICDIAGRAM-1/1
OPE/BATT
PHOTO SENSOR
VR101
VOLUME
BATT CHECK
P-SENSOR
DRIVER
YTLPF
YTLPF
FM TRACKING ADJ.
L202
FM VT ADJ.
200p
BATTERY
SUM3 2
(DC 3V)
GOV
DRIVER
RADIO ON/BAND
MODE
/SET
HOLD
L203,TC201
AM TRACKING
ADJ.
AM IF ADJ.
HI SPEED SW
MOT-CH SW
8.8k 2.2K
DISPLAY
SFR401
TAPE SPEED ADJ.
J351
DC 3V
J101
PHONES
M1
(MOTOR)
PH
POWER SW
RX228 ONLY
RX228 ONLY
RX228
ONLY
RX128
ONLY
POWER
SW
YL ONLY
YJ,YH ONLY
P-SENSOR SW
RX128
ONLY
RX128
ONLY
RX228
ONLY
YL,R128YJ
15P
18P
YZ, RX228 YJ,YH
22P
22P
C505
C506
1
23
4
SIGNAL
:FM/PB
:AM
SYSTEM CONTROL
LCD DRIVER
FM RF OUT
RF VC
AM RF IN
FM OSC
AM OSC
OSC OUT
ST LED
IF REQ
DET OUT
MPX IN
LPF1
LPF2
L-OUT
PRE GRAND
INA
VREF
INB
NFB
PRE OUT B
PW INB
RF IN
PRE MUTE
GVN VCC
RT
GVN CTL
GVN OUT
PW VCC
NFA
PRE OUT A PW INA
VCTL
OUT B
OUT A
OUT C
PW INC
PW GND
GVN GND
R-OUT
QUAD
AGC
GND
FM IF IN
AM IF IN
VCC
MIX OUT
AM LOW CUT
FM RF IN
RF GND
AM/FM RF IF AMP
L202
L205
L.V. STOP
F.B CONTROL
REF. VOL
,
d u p a t o r

-12-
WIRING-1/1
876543211345678
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
9 10111213141516910111213141516
3333
C255
J101
PHONES VR101
VOLUME
VR101
L202
L204
TP2
(DET)
L201
TC201
TP1(VT)
RX228 ONLY
RX228 ONLY
S508
RAD100N/BAND
S501
HDLD
RX128 ONLY
RX128 ONLY
(FM ANT N)
(GND)
CF203
CF202
CF201
1
2
3
4
LCD501
1
3
5
7
9
11
13
15
17
19
20
LCD501
D SPLAY
S503
RESET
S509
MODE/SET
PHRASE
S507
S510
DOWN
S504
RAD O
OFF
S511
UP
TUN NG
M
GND
W
V
U
COM
M1
(MOTOR)
BLK
BRN
BLU
GRE
GLY
_
+
BATTERY
SUM3x2(DC 3V)
LED181
OPE/BATT
S506
S505
J351
DC 3V
PH
WHT
BLK
WHT
L203
(BAR-AUT)
L205
(thin)
MAIN C.B (CONDUCTOR SIDE)
MAIN C.B (COMPONENT SIDE)
S151
S-BASS
RX228 ONLY
RX228 ONLY
RX228 ONLY
YJ,YH ONLY
YL ONLY
RX128
ONLY
RX228 ONLY
S520
OPEN
d u p a t o r

-13-
<RADIO SECTION>
ELECTRICALADJUSTMENT-1/1
<TAPEPLAYERSECTION>
PHONES
J101
VR101
VOLUME
L203
(BAR-ANT)
IC501
4
7
3
TP1 (VT)
TC201
TC201
L202
L201
TP2
(DET)
TP2
(DET)
GND
FM ANT IN
26 5
7
SFR 401
On the other soldering pattern side.
L205
1 5
d u
p a
t o
r

-14-
IC BLOCK DIAGRAM -1/1
IC,LB1977M-TLM
IC,TA2104BFN
IC,TA2145F
d u
p a
t o
r

-15-
1–3
4–18
19, 20
21–23
24–26
27–30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Pin No. Pin Name I/O Description
IC DESCRIPTION -1/1 TC9318FA-075
COM1–COM3
SEG1–SEG15
SEG16/KR7, SEG17/KR6
SEG18/KR5–SEG20/KR3
KR2–KR0
K0–K3
MOT ON
MOT HI
MOT DIR
BRAKE
N.C
AM OUT
POWER ON
MOT CH
LOAD CTL
P-SNSR
L.V. STOP
MAIN
REMOTE
EJECT SW
HOLD
BUZR
POWER MUTE
TEST
WAKE
IF IN
TU OUT
PLL OUT
GND
FM IN
AM IN
VDD
RESET
X OUT
X IN
VXT
VLCD
C1
C2
O
O
O
O
I
O
O
O
O
O
O
O
I
O
I
I
I
I
I
I
O
O
I
I
I
O
O
–
I
I
–
–
–
–
–
–
–
LCD driver common output.
LCD driver output.
LCD driver/Key matrix timing output.
Not used.
Key matrix input.
Motor control terminal. H : ON, L : OFF.
Motor speed control terminal. H : HI, L : LO.
Motor rotatoin control terminal. H : CCW, L : CW.
Motor brake control terminal. H : ON, L : OFF.
Not used, L level output.
FM/AM control signal. H : AM, L : FM.
Amplifier system power control terminal. H : OFF, L : ON.
Motor rotate detection terminal.
Output battery level checking signal. H : ON.
Input photo sensor signal.
Input low voltage detection signal. L : Low voltage.
Input terminal from main unit key.
Input terminal from remote controller key.
Input cassette eject switch. L : Eject.
Input hold switch from main unit key. H : ON.
Output buzzer.
Output mure signal. H : ON, L : OFF.
Input test mode control. (Connected to ground).
Input backup detection signal.
Input IF counter.
Tuner operation control terminal. H : TU OFF, L : TU ON.
Phase comparator output.
Connected to ground.
Input FM programmable counter.
Input AM programmable counter.
Power supply.
Input system reset signal.
Connected to crystal oscillator.
Power supply for crystal oscillation.
Reference voltage for LCD drive.
Double voltage booster for LCD drive.
1.5V voltage supply for LCD drive.
d u
p a
t o
r

-16-

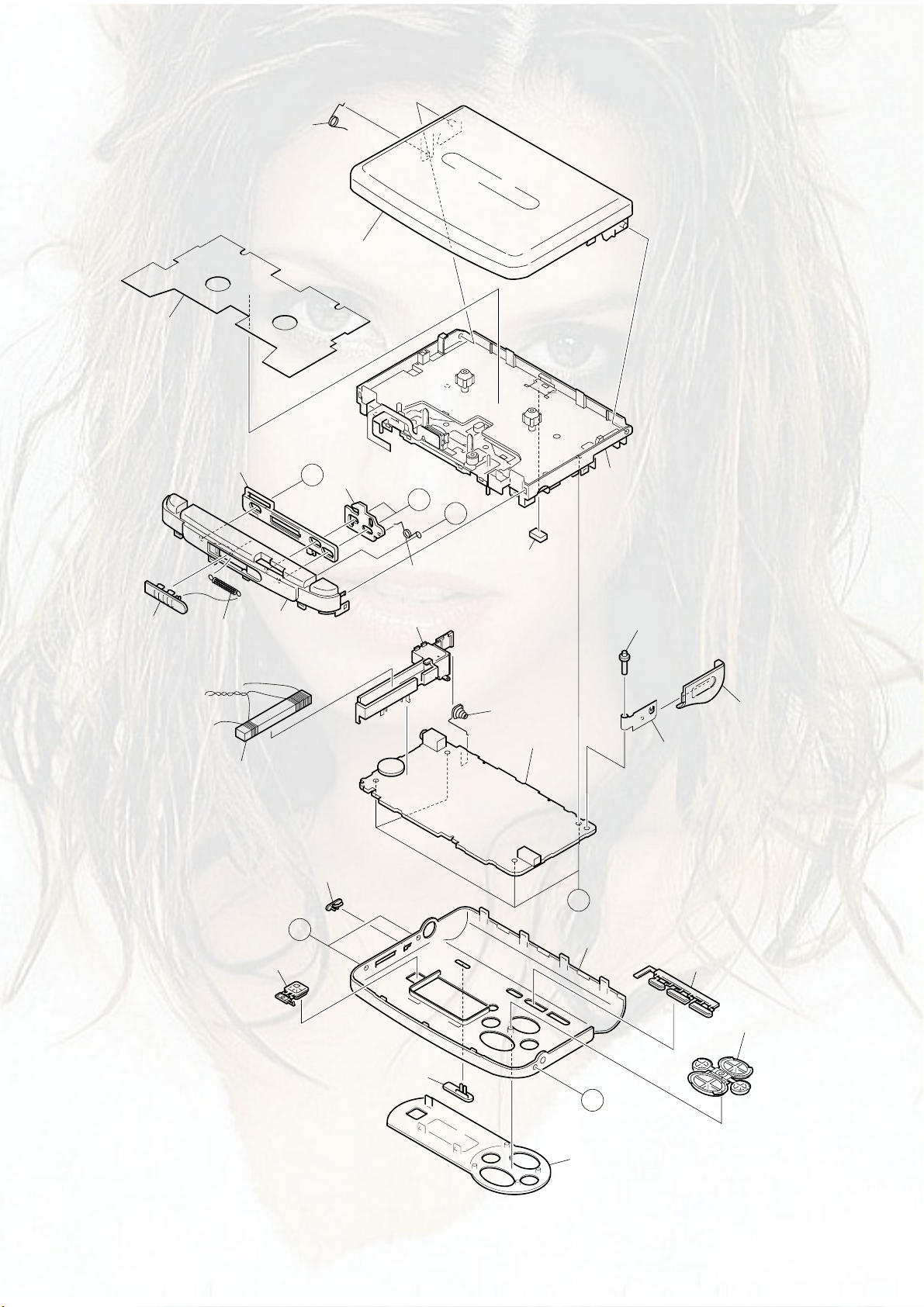

MECHANICAL EXPLODED VIEW -1/1
A
A
A
1
CD
B
2
3
4
25
5
6
7
8
9
10
11
12
13
14
15
16
17
18 19
20
21
22
23
24
d u
p a
t o
r

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-17-
MECHANICAL PARTS LIST -1/1
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
O MC1001 8C-HR9-205-010 SPR-T,CASS a b c d e f
O MC1002 8C-HR9-003-010 LID,CASS R9 SIL a b c d e f
X MC1003 8C-HR9-015-010 LBL,SPEC 228 YL a . . . e .
X MC1003 8C-HR9-018-010 LBL,SPEC 128 YL . b . . . .
X MC1003 8C-HR9-013-010 LBL,SPEC 228 YJ . . c . . .
X MC1003 8C-HR9-016-010 LBL,SPEC 128 YJ . . . d . .
X MC1003 8C-HR9-017-010 LBL,SPEC 128 YZ . . . . . f
X MC1004 8B-HR7-224-010 CUSH,BATT a b c d e f
O MC1005 8C-HR9-201-010 PLATE,LOCK a b c d e f
O MC1006 8C-HR9-204-010 SPR-T,LOCK a b c d e f
O MC1007 8C-HR9-002-010 FRAME,OPEN a b c d e f
O MC1008 8C-HR9-206-010 SPR-E,OPEN a b c d e f
O MC1009 8C-HR9-006-010 KNOB,SL OPEN a b c d e f
O MC1010 8C-HR9-202-010 LEVER,OPEN a b c d e f
O MC1011 8C-HR9-603-010 BAR-ANT,MW a b c d e f
O MC1012 8B-HR7-212-010 HLDR,ANT a b c d e f
O MC1013 8B-HR7-230-010 BAT-CONTACT,M C a b c d e f
X MC1014 8C-HR9-601-010 PWB,MAIN 2M a b c d e f
O MC1015 8B-HR7-240-010 SHAFT,BATT C a b c d e f
O MC1016 8C-HR9-005-010 LID,BAT a b c d e f
HS-RX228 HS-RX128 HS-RX228 HS-RX128 HS-RX228 HS-RX128
YL1SC YL1SC YJ1SC YJ1SC YH1SC YZ1BSC
O MC1017 8B-HR7-214-010 BAT-CONTACT,P a b c d e f
O MC1018 8C-HR9-004-010 CABI,REAR 228 SIL a . c . e .
O MC1018 8C-HR9-020-010 CABI,REAR 128 SIL . b . d . .
O MC1018 8C-HR9-021-010 CABI,REAR 128 SIL EG . . . . . f
O MC1019 8C-HR9-009-010 KEY,PRESET a b c d e f
O MC1020 8C-HR9-007-010 KEY,CONT a b c d e f
O MC1021 8C-HR9-010-010 PANEL,REAR a b c d e f
O MC1022 8C-HR9-012-010 KNOB,SL HOLD a b c d e f
O MC1023 8C-HR9-008-010 KEY,RADIO ON a b c d e f
O MC1024 8C-HR9-011-010 KNOB,SL BASS a b c d e f
X MC1025 M8-CZK-690-070 CL-840 M1 D-GRY a b c d e f
O MC1A 8C-HR9-209-010 S-SCREW,+1.4-4 SIL a b c d e f
O MC1B 8C-HR9-210-010 S-SCREW,+1.4-2.5 BK a b c d e f
O MC1C 8C-HR9-207-010 S-SCREW,+1.4-1-2.5 a b c d e f
O MC1D 8C-HR9-208-010 S-SCREW,+1.4-0.6-2.5 a b c d e f
d u p a t o r

-18-
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green HT Transparent Gray
HM Metallic Gray NH Champagne Gold M Wood Pattern
COLOR NAME TABLE -1/1
d u
p a
t o
r

-19-
TAPE MECHANISM EXPLODED VIEW -1/1 (CL-840)
1
2
34
56
7
8
9
6
11
10
13
14
15 16
16
17 18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
30
32
33
34
34d
34a
34b
34c 37
35
36
12
A
B
d u
p a
t o
r

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-20-
TAPE MECHANISM PARTS LIST -1/1 (CL-840)
CL-840
M1 D-GRY
O ST1001 8B-HR7-606-010 HEAD ASSY CL-860 a
X ST1001a 87-A92-070-010 HEAD,PH AP-5944-A MITSUMI a
X ST1001b 8B-HR7-607-010 PWB,HEAD FLEX CL-860 a
O ST1002 S8-605-490-000 SPR-P,HEAD a
O ST1003 S8-605-290-000 PINCH SP FWD a
O ST1004 S8-605-170-000 PINCH ROLLER a
O ST1005 S8-605-020-000 HEAD BASE ASSY a
O ST1006 S1-2X2-6X0-25L L W CUT a
O ST1007 S1-6X2-5X0-2S0 SOMARAIT W a
O ST1008 S8-605-140-000 SUB CHASSIS ASSY a
O ST1009 S8-605-070-000 GEAR PLATE a
O ST1010 S8-605-230-000 GEAR SHAFT a
O ST1011 S8-605-380-000 CENTER GEAR a
O ST1012 SV-594-000-000 SUB BELT a
O ST1013 S8-605-210-000 GEAR PLATE PIN a
O ST1014 S8-505-220-000 FWD GEAR SP a
O ST1015 S8-605-060-000 FWD GEAR a
O ST1016 S8-000-10B-000 REEL CAP a
O ST1017 M8-AZS-394-040 MOTOR a
O ST1018 S8-605-450-000 LEAD WIRE 5P a
CL-840
M1 D-GRY
X ST1019 S8-605-480-000 FILAMENT TAPE a
O ST1020 8B-HR7-239-010 SPR-P,CASS a
O ST1021 8C-HR9-001-010 FRAME CENTER a
O ST1022 S8-605-100-000 FWD ARM a
O ST1023 S8-605-260-000 BACK TENSION SP a
O ST1024 S8-605-370-000 RELL GEAR T a
O ST1025 S8-605-390-000 FELT a
O ST1026 S8-605-080-000 CLUTCH GEAR a
O ST1027 S8-605-470-000 CLUTCH SP a
O ST1028 S8-605-510-000 REEL GEAR BUSH a
O ST1029 S8-505-290-000 REFLECTING PLATE a
O ST1030 S8-605-330-000 FF GEAR 1 a
O ST1031 S8-605-350-000 FF SP a
O ST1032 S8-605-320-000 STOPPER SP a
O ST1033 S8-605-280-000 HEAD BASE SP a
O ST1034 S8-605-03K-000 FLY WHEEL R ASSY a
X ST1034a S8-605-420-000 CAPSTAN SHAFT a
X ST1034b S8-605-180-000 FW PLATE a
X ST1034c S8-605-030-000 FLY WHEEL R a
O ST1034d S1-6X3-2X0-13P P,W a
CL-840
M1 D-GRY
O ST1035 S8-605-360-000 FF CEAR HOLDER a
O ST1036 SV-610-000-000 MAIN BELT a
O ST1037 S8-605-340-000 FF GEAR 2 a
O ST1A S3-PW1-4X5-000 SCREW a
O ST1B SB-TF1-7X5-0HO SCREW a
d u
p a
t o
r
