SERVICE MANUAL
HS-PX590
HS-PX997
[L] AH
AE
STEREO CASSETTE PLAYER BASIC TAPE MECHANISM : 7ZM-1 P1
S/M Code No. 09-996-405-2R3
REVISION

 Design and specifications are subject to change without
notice.
SPECIFICATIONS
Maximum output: 4 mW + 4 mW (EIAJ/32W)<[L]AH>
4 mW + 4 mW (EIAJ/32W)<AE>
Load impedance: 16  32 ohms
Power sources: DC 1.2 V using supplied rechargeable battery NB-5G,
DC 1.5 V using an R6 (AA) dry cell battery,
AC house current using the optional AC adaptor
Maximum dimensions: 80 (W) x 112.9 (H) x 18.9 (D) mm (31/4 x 41/2 x 3/4in.)
Weight Approx. 158 g, (5.5 oz) (including the rechargeable battery,
excluding the battery case)
 Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
DOLBY and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
2

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
3 4
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
RN1310
RN1311
2SC4213B
2SC4116GR
2SA1362GR
TRANSISTOR ILLUSTRATION
RN4907
RN4607
B
E
C
B1
C1
E2
C2
E1
B2
ELECTRICAL MAIN PARTS LIST
IC
87-A21-179-010 C-IC,TA2123AF
87-A21-061-010 C-IC,ML63512-120
87-A21-050-040 C-IC,S-80810ANNP-E70-T2
87-A20-603-140 C-IC,RN5RK241A
87-A20-961-040 C-IC,MM1279XV
87-A20-818-040 C-IC,NJM2185AV<AE>
TRANSISTOR
89-113-625-080 TR,2SA1362GR
87-026-535-080 C-TR,RN4907
87-026-418-080 TR,RN1311
89-342-132-080 TR,2SC4213B
87-026-417-080 TR,RN1310
89-341-165-080 C-TR,2SC4116GR
87-026-481-080 C-TR,RN4607<AE>
DIODE
87-001-553-080 C-DIODE 1SS322
MAIN C.B
C101 87-012-273-080 C-CAP,U 820P-50 B
C102 87-012-273-080 C-CAP,U 820P-50 B
C103 87-012-273-080 C-CAP,U 820P-50 B
C104 87-012-273-080 C-CAP,U 820P-50 B
C105 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C106 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C107 87-016-114-080 C-CAP,U0.01-25B
C108 87-016-114-080 C-CAP,U0.01-25B
C109 87-010-828-080 CHIP CAPACITOR,U 0.033-
C110 87-010-828-080 CHIP CAPACITOR,U 0.033-
C111 87-A10-025-080 C-CAP,U 0.22-16Z F
C112 87-A10-031-080 C-CAP,U 0.01-25 KB
C113 87-A10-263-080 C-CAP,U 0.1-16ZF
C114 87-A11-056-080 C-CAP,U 1-10 Z F
C115 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C116 87-A11-244-080 C-CAP,TN 47-4 A MCM
C117 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C118 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C119 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C120 87-A10-704-080 C-CAP,TN 100-2.5 M B2
C121 87-A10-704-080 C-CAP,TN 100-2.5 M B2
C122 87-010-424-080 CAPACTOR,TANTAL 4.7-4
C123 87-A11-063-080 C-CAP,S 4.7-10 Z F
C124 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C125 87-A10-263-080 C-CAP,U 0.1-16ZF
C126 87-A10-263-080 C-CAP,U 0.1-16ZF
C127 87-A10-031-080 C-CAP,U 0.01-25 KB
C128 87-A10-031-080 C-CAP,U 0.01-25 KB
C129 87-016-462-080 C-CAP,S 1-16 F
C130 87-016-462-080 C-CAP,S 1-16 F
C131 87-012-274-080 CHIP CAP,U 1000P-50B
C132 87-012-274-080 CHIP CAP,U 1000P-50B
C133 87-A10-025-080 C-CAP,U 0.22-16Z F
C134 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C135 87-A11-056-080 C-CAP,U 1-10 Z F
C136 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C137 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C138 87-A11-063-080 C-CAP,S 4.7-10 Z F
C139 87-A10-025-080 C-CAP,U 0.22-16Z F
C140 87-A11-062-080 C-CAP,S 2.2-16 Z F
C141 87-A11-063-080 C-CAP,S 4.7-10 Z F
C142 87-016-317-080 C-CAP,TN 2.2-6.3
C143 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C151 87-016-462-080 C-CAP,S 1-16 ZF<AE>
C152 87-016-462-080 C-CAP,S 1-16 ZF<AE>
C153 87-012-274-080 C-CAP,U 1000P-50 KB<AE>
C154 87-010-746-080 C-CAP,TN 10-4 M 125<AE>
C155 87-016-526-080 C-CAP,S 0.47-16 BK<AE>
C156 87-016-526-080 C-CAP,S 0.47-16 BK<AE>
C157 87-016-460-080 C-CAP,S 0.22-16 KB<AE>
C158 87-016-460-080 C-CAP,S 0.22-16 KB<AE>
C159 87-010-746-080 C-CAP,TN 10-4 M 125<AE>
C160 87-016-462-080 C-CAP,S 1-16 F<AE>
C161 87-016-462-080 C-CAP,S 1-16 F<AE>
C201 87-016-462-080 C-CAP,S 1-16 Z F
C202 87-010-505-080 CAP,CHIP TANTALUM 1-16
C203 87-A10-263-080 C-CAP,U 0.1-16ZF
C204 87-A10-263-080 C-CAP,U 0.1-16ZF
C205 87-A11-056-080 C-CAP,U 1-10 Z F
C206 87-A11-056-080 C-CAP,U 1-10 Z F
C207 87-A10-263-080 C-CAP,U 0.1-16ZF
C208 87-A10-263-080 C-CAP,U 0.1-16ZF
C209 87-010-787-080 CAP, U 0.022-25
C210 87-A10-263-080 C-CAP,U 0.1-16 Z F
C211 87-012-276-080 CHIP CAP,U 1500P-50B<AH>
C211 87-012-270-080 CHIP CAP,U 470P-50B<AE>
C212 87-012-276-080 CHIP CAP,U 1500P-50B<AH>
C212 87-012-270-080 CHIP CAP,U 470P-50B<AE>
C214 87-012-274-080 CHIP CAP,U 1000P-50B
C215 87-A10-263-080 C-CAP,U 0.1-16 Z F
C216 87-A10-263-080 C-CAP,U 0.1-16 Z F
C251 87-016-462-080 C-CAP,S 1-16 F
C252 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C253 87-A10-263-080 C-CAP,U 0.1-16 Z F
C254 87-A10-953-080 C-CAP,TN 47-4 M B2 MCM
C255 87-A10-034-080 C-CAP,TN 33-10(B2)
C256 87-A10-263-080 C-CAP,U 0.1-16ZF
C257 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C261 87-A11-062-080 C-CAP,S 2.2-16 ZF
C271 87-A11-062-080 C-CAP,S 2.2-16 ZF
C301 87-A10-031-080 C-CAP,U 0.01-25 KB
C302 87-A10-260-080 C-CAP,U 0.1-16 K B
C303 87-A11-063-080 C-CAP,S 4.7-10 Z F
C304 87-A10-263-080 C-CAP,U 0.1-16ZF
C305 87-A10-707-080 C-CAP,U 0.47-10 ZF
C306 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C307 87-A10-031-080 C-CAP,U 0.01-25 KB
C308 87-A10-031-080 C-CAP,U 0.01-25 KB
C309 87-A10-031-080 C-CAP,U 0.01-25 KB
D201 87-A90-278-080 C-LED,SML-210VT RED
J101 85-HK3-605-010 JACK,DIA3.5 ST 5P
JR159 87-016-462-080 C-CAP,S 1-16 F Z<AH>
JR160 87-016-462-080 C-CAP,S 1-16 F Z<AH>
L200 87-003-375-080 C-COIL,1608 10UH K MLF1608
L251 87-A50-352-080 C-COIL, 100UH NP 05DB101M
PS261 87-A91-374-080 C-SNSR,PHOTO, NJL5194KN
PS271 87-A91-374-080 C-SNSR,PHOTO, NJL5194KN
R103 87-022-279-080 CHIP RES,U 470-1/16W F<AE>
R104 87-022-279-080 CHIP RES,U 470-1/16W F<AE>
R105 87-022-215-080 CHIP RES,U 1K-1/16W F<AE>
R106 87-022-215-080 CHIP RES,U 1K-1/16W F<AE>
R107 87-022-243-080 CHIP RES,U 15K-1/16W F
R108 87-022-243-080 CHIP RES,U 15K-1/16W F
R109 87-022-292-080 CHIP RES U 330K-1/16W F
R110 87-022-292-080 CHIP RES U 330K-1/16W F
R151 87-022-252-080 CHIP RES,U 36K-1/16W F<AE>
R214 87-022-243-080 CHIP RES,U 15K-1/16W F
R215 87-022-243-080 CHIP RES,U 15K-1/16W F
S101 8Z-HK4-606-010 SW,LEAF 7ZM-1
S201 87-A90-330-080 C-SW,SL 1-1-2 SSSS81
S202 87-A90-330-080 C-SW,SL 1-1-2 SSSS81
S203 87-A90-665-180 C-SW,TACT LS7A2M
S204 87-A90-665-180 C-SW,TACT LS7A2M
S205 87-A90-665-180 C-SW,TACT LS7A2M
S206 87-A90-665-180 C-SW,TACT LS7A2M
S207 87-036-237-080 CHIP SWICH PUSH
S208 87-036-237-080 CHIP SWICH PUSH
S209 8Z-HK4-607-010 SW,LID 7ZM-1
SFR301 87-A91-092-080 C-SFR,68K RH03APA
TH301 87-A91-190-080 C-THMS,10K(2125)NSF2103J
VR101 87-024-686-080 C-VR,20KAX2 DIA14
X201 87-A70-151-110 VIB,XTAL 32.768KHZ VT-
HEAD FLEX C.B
PH1 87-ZM1-601-010 HEAD ASSY, 7ZM-1

WIRING
65
14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
SS
TT
UU

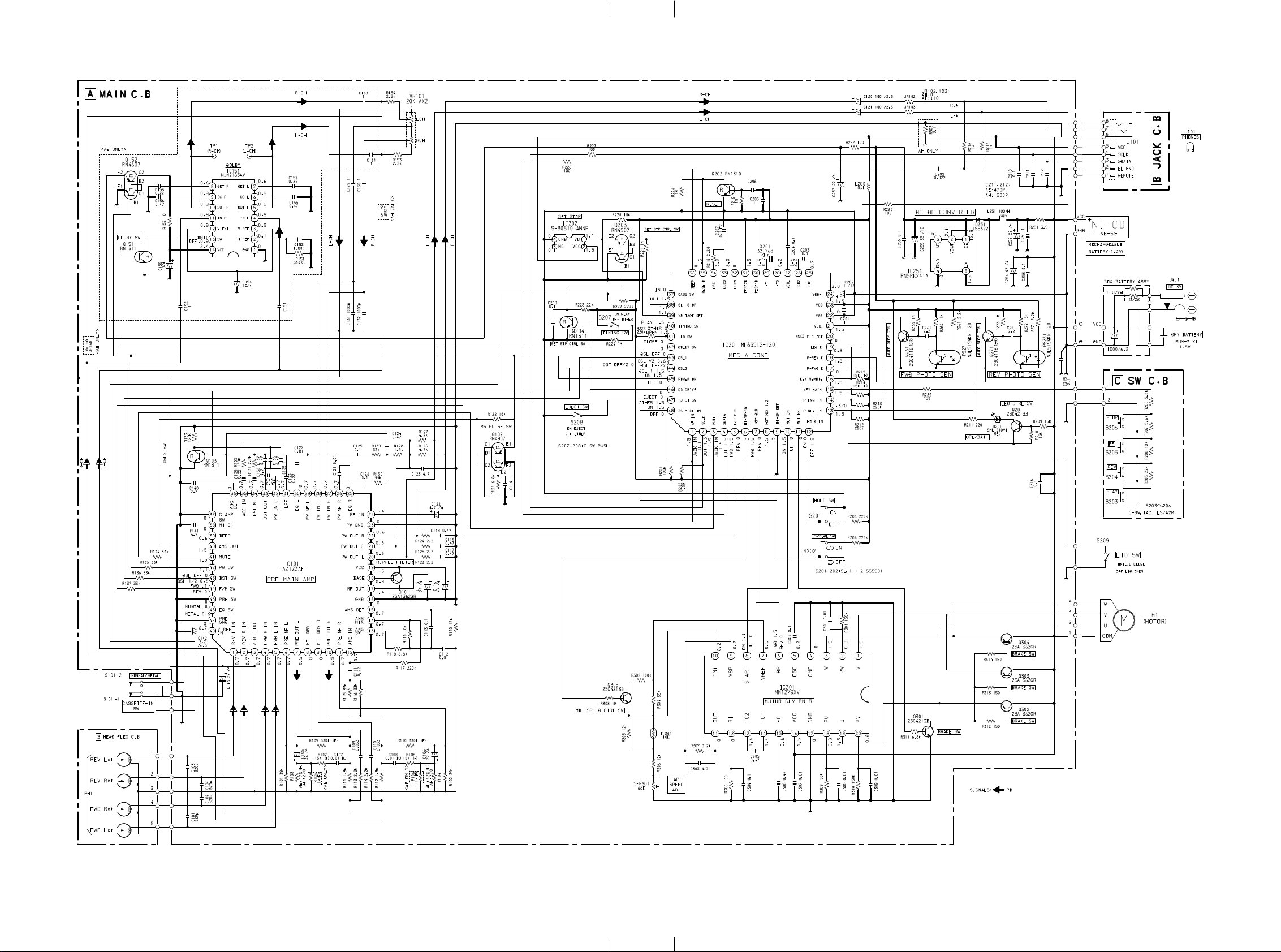

SCHEMATIC DIAGRAM
87

1 AF IN I H: Exist music, L: Not exist music.
2 SCLK I Serial clock input terminal.
3 MUTE O H: MUTE OFF, L: MUTE ON.
4 SDATA O Serial data output terminal.
5 F/R CONT O H: FWD direction, L: REV direction.
6 HI-SP-SW O H: Motor HI speed.
7 MOT DIR O H: Motor counterclockwise (FWD), L: Motor clockwise (REV).
8 MOTOR 1. 2(NC) O Motor normal speed. (Not connected)
9 HI-SP DET I H: No exist DD drive output, L: Exist DD drive output.
10 MOT ON O H: Motor ON, L: Motor OFF.
11 MOT BR O H: Motor brake ON, L: Motor brake OFF.
12 HOLD IN I 'H' : Hold OFF, 'L' : Hold ON.
13 P-REV IN I Photo senser input terminal (REV side).
14 P-FWD IN I Photo senser input terminal (FWD side).
15 KEY MAIN I Key input terminal (Main unit).
16 KEY REMOTE I Key input terminal (Remote controller).
17 P-FWD K O Output for photo senser control (FWD side).
18 P-REV K O Output for photo senser control (REV side).
19 LED K O OPE battery LED control output.
20 P-CHECK (NC) O Photo senser puls checking output. (Not connected)
21 VDDI - Interface power supply terminal for external equipment.
22 VSS - Negative power supply terminal.
23 VDD - Positive power supply terminal.
24 VDDH - Boost power supply for backup.
25 ~ 26 CB1 ~ CB2 - Connected to power supply booster capacitor.
27 VDDL - Positive power supply for internal logic circuit.
28 ~ 29 XT0 ~ XT1 - Clock oscilltor terminals (Low speed side).
Connected to 32.768 kHz crystal oscillator.
30 ~ 31 TEST1B ~ TEST2B - Test terminals.
32 OSCM - Connected to capacitor for high speed clock.
33 ~ 34 OSC0 ~ OSC1 - Clock oscilltor terminals (high speed side).
35 RESETB I Reset input.
36 BEEP O Alarm sound output.
37 CASSSW I H: Exist cassette, L: Not exist cassette.
38 SET STOP I H: Normal operation, L: Mechanism stop.
39 VOLTAGE DET I Input terminal for control motor speed.
40 TIMING SW I Input terminal for detect mechanism operation.
41 LID SW I H: Cassette case OPEN, L: Cassette case CLOSE.
42 DOLBYSW I H: Dolby ON, L: Dolby OFF.
43 DSL1 O Output: DSL1 OFF, Stop: DSL1 ON.
44 DSL2/EGS O H: DSL2/EGS OFF, L: DSL2/EGS ON.
PinNo. PinName I/O Description
IC,ML63512-120
IC DESCRIPTION
910
IC BLOCK DIAGRAM
IC, TA2123AF
PinNo. PinName I/O Description
45 POWER ON O "H" : Power ON, "L" : Power OFF.
46 DD DRIVE O Output terminal for control DC-DC converter.
47 EJECT SW I Input terminal for detect EJECT operation. "L" : Wait.
48 BS / MODE IN I "H" : Continuous playback / BS enable,
"L" : Auto reverse playback / BS disable.

IC, MM1279XV
IC, NJM2185AV
11

12
ADJUSTMENT
<TAPE PLAYER SECTION>
1. Tape Speed Adjustment
Settings :  Test tape : TTA100
(Tape center)
 Test point : PHONES (J101)
 Adjustment location : SFR301
 MSP : CLASSIC
 TAPE SELECTOR : NORM
 VOLUME : MAX
Method : Play back (FWD) the test tape and adjust
SFR301 so that the frequency becomes
3015Hz±10Hz. Then confirm WOW is less
than 0.50%.
2. Dolby level check
Settings :  Test tape : TTA200
 Test point : Dolby test point
TP1(L-CH)
TP2(R-CH)
 DOLBY SW : OFF
 DSL : OFF
 TAPE SELECTOR : NORM(auto)
 VOLUME : MIN
Method : Connected an electroytic capacitor (10uF/16V)
to measured equipment and TP1, check the
voltage for 32± 1.0dB.
PRACTICAL SERVICE FIGURE
<TAPE SECTION>
Tape speed : 3015Hz ± 50Hz
Wow : Less than 0.5% (RMS)
Take-up torque : 13 ~ 22g-cm (FWD)
F.F torque : 45 ~ 80g-cm
REW torque : 45 ~ 80g-cm
Back tension : 1.0 ~ 2.5g-cm (FWD)
S/N ratio : More than 45dB (PB, DC)
Distortion : Less than 3.0% (PB, DC)
Noise level : Less than 3.0mV
(Vol MAX, PB, DC)
Less than 0.3mV
(Vol MIN, PB, DC)
Frequency response : 63Hz + 4 /  4dB ~ 8kHz + 4 /  4dB
(NORMAL)
63Hz + 4 /  4dB ~10kHz + 4 /  6dB
(CrO2)
Test tape : TTA  100
TTA  200
TTA  320(NORMAL)
TTA  310(CrO2)
SFR301
MAIN C.B
A
PHONES
1
1
VR1 VOLUME
IC201
J1
IC301
TP1
(R-CH)
(L-CH)
TP2
2

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
MECHANICAL PARTS LIST 1/1MECHANICAL EXPLODED VIEW 1/1
1413
1
A
4
CONT C.B
32
3
31
30
F
1
A
2
6
5
7ZM-1 P1
7
8
9
B
10
MAIN C.B
14
33
F
15
B
JB
16
19
G
F
18
13
17
11
C
12
27
29
26
25
23
H
28
D
21 20
22
E
D24
1 8Z-HK4-023-010 LID,CASS BLU ASSY<[L]AH>
1 8Z-HK4-027-010 LID,CASS SIL ASSY 997<AE>
2 8Z-HK4-006-010 WINDOW,CASS
3 8Z-HK4-228-010 SPR-P,LID
4 8Z-HK4-205-010 HLDR,LID
5 8Z-HK4-206-010 HLDR,ARM ASSY
6 8Z-HK4-210-010 NUT, B-BOX
7 8Z-HK4-204-110 HLDR,CONT
8 8Z-HK4-212-010 BAT-CONTACT,(+)
9 8Z-HK4-229-010 SHAFT,ASSY
10 8Z-HK4-007-110 LID,BAT<AE>
10 8Z-HK4-026-110 LID,BAT BLU<[L]AH>
11 8Z-HK4-201-010 HLDR,BAT
12 8Z-HK4-215-010 LEVER,EJECT
13 8Z-HK4-211-010 BAT-CONTACT,(-)
14 8Z-HK4-015-010 FRAME,CTR BLU<[L]AH>
14 8Z-HK4-032-010 FRAME,CTR D-BLU<AE>
15 8Z-HK4-225-010 PLATE,KNOB
16 8Z-HK4-011-010 KNOB,SL OPEN
17 8Z-HK4-017-010 KNOB,SL BLS BLU
18 8Z-HK4-025-010 CABI,REAR BLU<[L]AH>
18 8Z-HK4-029-010 CABI,REAR SIL DOLBY<AE>
19 8Z-HK4-012-010 LENS,LED
20 8Z-HK4-230-010 SPR-C,OPEN
21 8Z-HK4-217-010 PLATE,OPEN
22 8Z-HK4-218-010 PLATE,LOCK
23 8Z-HK4-219-010 SPR-T,LOCK
24 8Z-HK4-216-010 BASE,LOCK
25 8Z-HK4-221-010 SPR-P,CASS
26 8Z-HK4-016-010 KNOB,SL HOLD BLU
27 8Z-HK4-008-010 KEY,CONT
28 8Z-HK4-014-010 FRAME,CONT BLU<[L]AH>
28 8Z-HK4-031-010 FRAME,CONT D-BLU<AE>
29 8Z-HK4-606-010 SW,LEAF 7ZM-1
30 8Z-HK4-607-010 SW,LID 7ZM-1
31 85-HK3-605-010 JACK,DIA3.5 ST 5P
32 8Z-HK4-203-010 HLDR,PWB
33 8Z-HK4-232-010 BAT-CONTACT,BOX(-) S
A 87-HK5-237-010 S-SCREW,1.4-2 CR NL
B 87-067-732-010 TAPPING SCREW, VT1.4-3
C 87-067-511-010 SCREW,V+1.4-2 BK
D 87-078-206-010 S-SCRW,1.4-0.6 B NL
E 87-078-183-010 SCRW-SR,1.4-1.4 BL
F 85-HK3-241-010 SCRW-SR,1.4-3CR L
G 8Z-HK4-231-010 S-SCREW,SERR+1.4-5.0 SWCH/CR
H 87-067-429-010 SCREW1.4-2.5
I 87-067-480-010 SPECIAL SCREW +1.4-3
J 8Z-HK4-227-010 S-SCREW,SERR+1.4-4.8 SWCH/CR
Basic color Color Basic color Color Basic color Color
symbol symbol symbol
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange
COLOR NAME TABLE

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO. DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
TAPE MECHANISM EXPLODED VIEW TAPE MECHANISM PARTS LIST 1/1
1615
D
F
F
F
C
E
C
G
G
C
34 35
33 36
40
39
38
37 42
43
44
41
46
47 48
42
22
45
43
16
44
17
18
20
21
23
24
26
25
26
27
28
29
30
31
32
B
A
A
11
13
8
4
7
9
10
12
6
5
1
HEAD ASSY
HEAD FLEX. C.B
3
2
15
14
19
1 87-ZM1-230-010 HLDR,HEAD
2 87-ZM1-254-010 ARM ASSY,PINCH R
3 87-ZM1-287-010 SPR-T,PINCH BACK R
4 87-ZM1-285-010 SPR-T,PINCH R
5 87-ZM1-252-010 ARM ASSY,PINCH L
6 87-ZM1-286-010 SPR-T,PINCH BACK L
7 87-ZM1-284-010 SPR-T,PINCH L
8 87-ZM1-225-010 HLDR ASSY,CASSET
9 87-ZM1-275-010 SPR-T,HEAD BACK
1 0 87-ZM1-269-010 SHAFT,PINCH
1 1 87-ZM1-267-010 CAP,CAPSTAN
1 2 87-ZM1-263-010 HLDR,CASSET HLD L
1 3 87-ZM1-221-010 LEVER ASSY,DIR
1 4 87-ZM1-264-010 HLDR,CASSET HLD R
1 5 87-ZM1-201-010 CHAS ASSY,OUT-SERT P
1 6 87-ZM1-271-010 BELT,MOT
1 7 87-ZM1-234-010 GEAR,PULLY
1 8 87-ZM1-244-010 GEAR,IDL D
1 9 87-ZS1-201-010 YOKE,ROTARY 7ZS1A
2 0 87-ZS1-205-010 COIL,FP 7ZS1A
2 1 87-ZS1-209-010 PIN ASSY,7ZS1A
2 2 87-ZM1-243-010 GEAR,IDL C
2 3 87-ZS1-202-010 BRG ASSY,7ZS1A
2 4 87-ZM1-248-010 FLY-WHL ASSY,L
2 5 80-ZM4-230-310 REAL CAP,L
2 6 85-ZM2-269-010 SPR-C GEAR REEL
2 7 80-ZM4-231-210 REAL CAP,R
2 8 87-ZM1-232-010 GEAR,CAM
2 9 87-ZM1-266-010 HLDR,DIR
3 0 87-ZM1-268-010 LEVER,CAM 2
3 1 87-ZM1-265-010 HLDR,CAM
3 2 87-ZM1-261-010 LEVER,SW
3 3 87-ZM1-250-010 FLY-WHL ASSY,R
3 4 87-ZM1-272-010 BELT,FLY-WHL
3 5 87-ZM1-260-010 LEVER,DIR OFF
3 6 87-ZM1-231-010 LEVER,CAM CONNECT
3 7 87-ZM1-207-010 SHAFT,CONTROL
3 8 87-ZM1-262-010 LEVER,FR CONTROL
3 9 87-ZM1-246-010 GEAR,CAM C
4 0 87-ZM1-282-010 SPR-E,CAM
4 1 87-ZM1-237-010 GEAR ASSY,SLIP
4 2 87-ZM1-241-010 GEAR,IDL A
4 3 87-ZM1-290-010 SH,AUTO 7ZM-1
4 4 87-ZM1-236-010 GEAR,REEL
4 5 87-ZM1-217-010 LEVER ASSY,T-UP
4 6 87-ZM1-281-010 SPR-C,FR
4 7 87-ZM1-245-010 GEAR,FF/REW
4 8 87-ZM1-242-010 GEAR,IDL B
A 87-ZM1-273-010 S-SCREW,1.7-5
B 87-ZM1-274-010 S-SCREW,HEAD 7ZM-1
C 87-B10-136-010 W-P,1.09-3.1-0.4
D 87-B10-228-010 W-P,0.95-2-0.2
E 87-ZM1-292-010 W,1.55-2.62-0.2
F 87-ZM1-291-010 W-P,0.86-3-0.25
G 87-ZM1-294-010 W-L,1.03-2.6-0.188

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO. KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
ACCESSORIES / PACKAGE LIST
17
1 8Z-HK4-905-010 IB,H(ECH)<AH>
1 8Z-HK4-907-010 IB,E(EGFSI)997<AE>
1 8Z-HK4-908-010 IB,E(EDPHNCZ)997<AE>
2 87-B30-253-010 HEADPHONE,HP-M041<AE>
2 87-B30-273-010 HEADPHONE,HP-M040B<AH>
3 8Z-HK4-951-010 RC UNIT,RC590<AH>
3 8Z-HK4-952-010 RC UNIT,RC997<AE>
4 87-B30-038-010 BAT,NB-5G
5 87-B30-137-110 CHARGER,RB-107 H<AH>
5 87-B30-083-010 CHARGER,RB-107 E<AE>
6 8Z-HK4-090-010 BOX,BAT ASSY SIL<AE>
6 8Z-HK4-091-010 BOX,BAT ASSY BLU<AH>
7 82-HK3-951-010 CARRYING,CASE<AE>

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
L
Printed in Singapore
A4
2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
931261 9630469
