SERVICE MANUAL
DATA
STEREO RADIO
CASSETTE PLAYER BASIC TAPE MECHANISM : CL-860 D-GRY
HS-RX418
YH,YHT,YJ,
YL,YU,YZ
S/M Code No. 09-016-447-6N1
d u
p a
t o
r

– 2 –
SPECIFICATIONS
• Design and specifications are subject to change without notice.
1 8B-HR7-902-010 IB,YH(ECC)C<YH,YJ,YHT>
1 8B-HR7-903-010 IB,YJ(A)C<YJ>
1 8B-HR7-904-010 IB,YL(3L)C<YL>
1 8B-HR7-901-010 IB,YU(3L)C<YU>
1 8B-HR7-905-010 IB,YZ(EGF)C<YZ>
1 8B-HR7-907-010 IB,YZ(PHNCZ)C<YZ>
1 8B-HR7-906-010 IB,YZ(SID)C<YZ>
2 87-B30-482-010 HEADPHONE,HP-M041(T2)SP<EXCEPT YU>
2 87-B30-335-110 HEADPHONE,HP-M053(S)<YU>
3 8A-HR8-951-010 RC UNIT,RC408
Frequency range:
Reception area USA AM 530 – 1,710 kHz (10 kHz steps)
FM1, FM2 87.5 – 108.1 MHz (200 kHz steps)
Reception area JP<EXCEPT YZ>
AM 531 – 1,629 kHz (9 kHz steps)
FM1, FM2 76 – 108 MHz
(100 kHz step in 76 – 90 MHz, 50 kHz step in 90 – 108 MHz)
Reception area EU AM 531 – 1,602 kHz (9 kHz steps)
FM1, FM2 87.5 – 108 MHz (50 kHz steps)
Load impedance: 16 – 80 ohms <YZ ONLY>
Maximum output: <YZ>
4 mW + 4 mW (EIAJ 16 ohms)
<EXCEPT YZ>
5 mW + 5 mW (EIAJ 32 ohms)
Power sources: DC 3 V using two R6 (size AA) dry cell batteries
AC house current using the optional AC adaptor Aiwa
AC–D302
Maximum outside dimensions:
81.9 (W) x 111 (H) x 28.8 (D) mm (31/4x 43/8x 13/16 in.)
(excluding projecting parts and controls)
Weight: Approx.130 g (4.6 oz.) excluding batteries
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
d u
p a
t o
r

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-002-677-080 IC,TA2002F
87-A21-232-040 C-IC,TA2111FN
87-A20-904-080 C-IC,TK11823MTL
87-A20-532-140 C-IC,LB1977M-TLM
87-A21-996-030 C-IC,TC9318FA-069
87-A21-566-040 C-IC,S-80820ANNP
TRANSISTOR
87-026-262-080 C-TR,RN1407
89-327-143-080 C-TR,2SC2714O
87-026-268-080 C-TR,RN2411
89-327-125-080 C-TR,2SC2712GR
87-A30-085-040 C-TR,CSA1362GR
DIODE
87-A40-822-040 C-DIODE,CRS01
87-A40-360-080 C-DIODE,MA786
MAIN C.B
87-A91-728-110 FLTR,KIT KMFC5184-A
BPF201 87-A90-601-010 FLTR,BPF GFWB7
C101 87-012-273-080 C-CAP,U 820P-50 B
C102 87-012-273-080 C-CAP,U 820P-50 B
C103 87-012-273-080 C-CAP,U 820P-50 B
C104 87-012-273-080 C-CAP,U 820P-50 B
C105 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C106 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C107 87-012-276-080 CAP, CHIP SS 1500 PBK
C108 87-012-276-080 CAP, CHIP SS 1500 PBK
C111 87-A10-262-080 C-CAP,U 1-10 ZF
C112 87-A10-262-080 C-CAP,U 1-10 ZF
C113 87-012-274-080 CHIP CAP,U 1000P-50B
C114 87-012-274-080 CHIP CAP,U 1000P-50B
C115 87-010-831-080 C-CAP,U,0.1-16F
C116 87-010-831-080 C-CAP,U,0.1-16F
C117 87-010-502-010 CAP GAS 100-4
C118 87-010-502-010 CAP GAS 100-4
C119 87-010-831-080 C-CAP,U,0.1-16F
C120 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C121 87-010-746-080 CAP, TANTAL 10-4
C122 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C124 87-010-831-080 C-CAP,U,0.1-16F
C125 87-A10-262-080 C-CAP,U 1-10 ZF
C126 87-010-503-010 CAP,E 220-4 GAS
C127 87-A10-706-080 C-CAP,U 0.33U-16 F Z
C131 87-A10-262-080 C-CAP,U 1-10 ZF
C132 87-A10-262-080 C-CAP,U 1-10 ZF
C151 87-010-831-080 C-CAP,U,0.1-16F
C152 87-010-831-080 C-CAP,U,0.1-16F
C201 87-012-156-080 C-CAP,S 220P-50 CH
C202 87-012-199-080 CAP 220P
C203 87-012-274-080 CHIP CAP,U 1000P-50B
C204 87-012-286-080 CAP, U 0.01-25
C205 87-012-286-080 CAP, U 0.01-25
C206 87-012-140-080 CAP 470P
C208 87-012-286-080 CAP, U 0.01-25
C209 87-012-286-080 CAP, U 0.01-25
C210 87-012-195-080 C-CAP,U 100P-50 CH
C212 87-012-286-080 CAP, U 0.01-25
C213 87-012-161-080 C-CAP,U 0.75P-50 C CH
C214 87-012-167-080 C-CAP,U 5P-50 CH
C215 87-010-787-080 CAP, U 0.022-25
C216 87-010-831-080 C-CAP,U,0.1-16F
C217 87-010-574-080 C-CAP,S 470P-50 UJ
C218 87-012-191-080 CHIP CAP 68 PF
C219 87-012-247-080 C-CAP,U 18P-50JUJ
C220 87-012-172-080 CAPACITOR CHIP U 10P CH
C221 87-012-286-080 CAP, U 0.01-25
C222 87-012-195-080 C-CAP,U 100P-50CH
C223 87-012-199-080 CAP 220P
C224 87-012-274-080 CHIP CAP,U 1000P-50B
C225 87-A10-262-080 C-CAP,U 1-10 ZF
C226 87-A10-262-080 C-CAP,U 1-10 ZF
C227 87-010-831-080 C-CAP,U,0.1-16F
C228 87-010-831-080 C-CAP,U,0.1-16F
C229 87-012-286-080 CAP, U 0.01-25
C230 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C231 87-A10-262-080 C-CAP,U 1-10 ZF
C232 87-016-562-080 C-CAP,TN 4.7-10 SV A
C233 87-010-785-080 C-CAP,U0.015-25BK
C234 87-010-785-080 C-CAP,U0.015-25BK
C235 87-A10-488-010 CAP,E 47-4 7L SR
C237 87-010-959-080 CHIP CAP,U 0.056-16F
C238 87-010-959-080 CHIP CAP,U 0.056-16F
C239 87-010-831-080 C-CAP,U,0.1-16F
C240 87-012-274-080 CHIP CAP,U 1000P-50B
C241 87-012-274-080 CHIP CAP,U 1000P-50B
C242 87-012-274-080 CHIP CAP,U 1000P-50B
C244 87-012-274-080 CHIP CAP,U 1000P-50B
C245 87-012-195-080 C-CAP,U 100P-50CH
C301 87-012-286-080 CAP, U 0.01-25
C302 87-012-286-080 CAP, U 0.01-25
C303 87-A11-282-080 C-CAP,S 1-16 K B
C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-012-167-080 C-CAP,U 5P-50 CH
C306 87-012-170-080 C-CAP,U 8P-50 CH
C307 87-012-191-080 CHIP CAP 68 PF
C309 87-010-831-080 C-CAP,U,0.1-16F
C310 87-010-831-080 C-CAP,U,0.1-16F
C312 87-010-831-080 C-CAP,U,0.1-16F
C351 87-010-831-080 C-CAP,U,0.1-16F
C352 87-010-831-080 C-CAP,U,0.1-16F
C353 87-010-831-080 C-CAP,U,0.1-16F
C357 87-010-503-010 CAP,E 220-4 GAS
C401 87-A10-201-080 C-CAP,S0.33-16 KB
C402 87-010-831-080 C-CAP,U,0.1-16F
C403 87-016-526-080 C-CAP,S 0.47-16 BK
C404 87-A10-504-080 C-CAP,U 0.047-16 K B
C405 87-A10-504-080 C-CAP,U 0.047-16 K B
C406 87-A10-504-080 C-CAP,U 0.047-16 K B
C407 87-A10-504-080 C-CAP,U 0.047-16 K B
C408 87-010-831-080 C-CAP,U,0.1-16F
C409 87-010-831-080 C-CAP,U,0.1-16F
C410 87-A11-062-080 C-CAP,S 2.2-16 Z F
C501 87-010-831-080 C-CAP,U,0.1-16F
C502 87-010-831-080 C-CAP,U,0.1-16F
C503 87-010-831-080 C-CAP,U,0.1-16F
C504 87-010-831-080 C-CAP,U,0.1-16F
C505 87-012-178-080 C-CAP,U 18P-50 CH
C506 87-012-176-080 CAP 15P
C507 87-A10-262-080 C-CAP,U 1-10 ZF
C508 87-010-831-080 C-CAP,U,0.1-16F
C509 87-010-831-080 C-CAP,U,0.1-16F
C510 87-010-831-080 C-CAP,U,0.1-16F
C513 87-010-831-080 C-CAP,U,0.1-16F
C514 87-012-274-080 CHIP CAP,U 1000P-50B
C515 87-A10-262-080 C-CAP,U 1-10 ZF
CF201 87-A91-162-010 FLTR,PFS450A7
D181 87-A91-355-040 C-LED,BR1112H-TR-RED
D201 87-A40-957-040 C-VARI-CAP,HVC200A
D203 87-A40-799-040 C-VARI-CAP,KV1610S
J101 87-A60-437-010 JACK,3.5 BLK ST W/O SW 4P(1637
J351 87-A61-124-110 JACK,DC DIA2.75 BLK TC
L101 87-A50-581-080 C-COIL,S FCM2012H 252705
L102 87-A50-581-080 C-COIL,S FCM2012H 252705
d u
p a
t o
r

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
L103 87-A50-581-080 C-COIL,S FCM2012H 252705
L104 87-A50-582-080 C-COIL,S 0.22UH K FCI2012C
L105 87-A50-581-080 C-COIL,S FCM2012H 252705
L201 8B-HR7-603-010 COIL,FM RF
L202 87-A50-512-080 C-COIL,100NH G LQN21A
L203 8B-HR7-602-010 BAR-ANT,MW
L204 87-A50-697-080 COIL,100UH J(CECS)
L205 87-A90-663-010 IFT,MW 5L H6.4
L206 87-A50-597-080 C-COIL,S 10UH LQG21F100N
L301 87-A50-597-080 C-COIL,S 10UH LQG21F100N
L302 87-A50-443-080 C-COIL,D-D(C5-S)
LCD501 8B-HR7-605-010 LCD,BHR-7
PS551 87-A92-120-010 SNSR,PHOTO EL-ITR8307L24F43
R506 87-022-245-080 C-RES U 18K-1/16WF
R508 87-022-245-080 C-RES U 18K-1/16WF
S501 87-036-379-280 C-SW,SL 1-1-2 SS-350-A12B-C-T
S502 87-A91-365-080 C-SW,PUSH 1-1-1 SPVG21
S503 87-A91-780-180 C-SW,TACT LS15B3T
S504 87-A91-780-180 C-SW,TACT LS15B3T
S505 87-A91-780-180 C-SW,TACT LS15B3T
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
S506 87-A91-780-180 C-SW,TACT LS15B3T
S507 87-A91-780-180 C-SW,TACT LS15B3T
S508 87-A91-780-180 C-SW,TACT LS15B3T
S509 87-A91-780-180 C-SW,TACT LS15B3T
S510 87-A91-780-180 C-SW,TACT LS15B3T
S511 87-A91-780-180 C-SW,TACT LS15B3T
SFR401 87-A91-653-040 C-SFR,K 33K H RH03AEC
TC201 87-A91-762-180 C-TRIMMER,10P TZVY2Z100A
TH401 87-A91-675-080 C-THMS,NTH5G16P39B472K 07TH
VR101 87-A92-047-010 VR,RTRY 20KCX2 H XV010702GPV1N
X501 87-A70-082-110 VIB,XTAL 75KHZ
HEAD FLEX C.B
PH1 8B-HR7-606-010 HEAD ASSY,CL-860
TRANSISTOR ILLUSTRATION
CSA1362
2SC2712
2SC2714
RN1407
RN2411
BE
C
d u
p a
t o
r

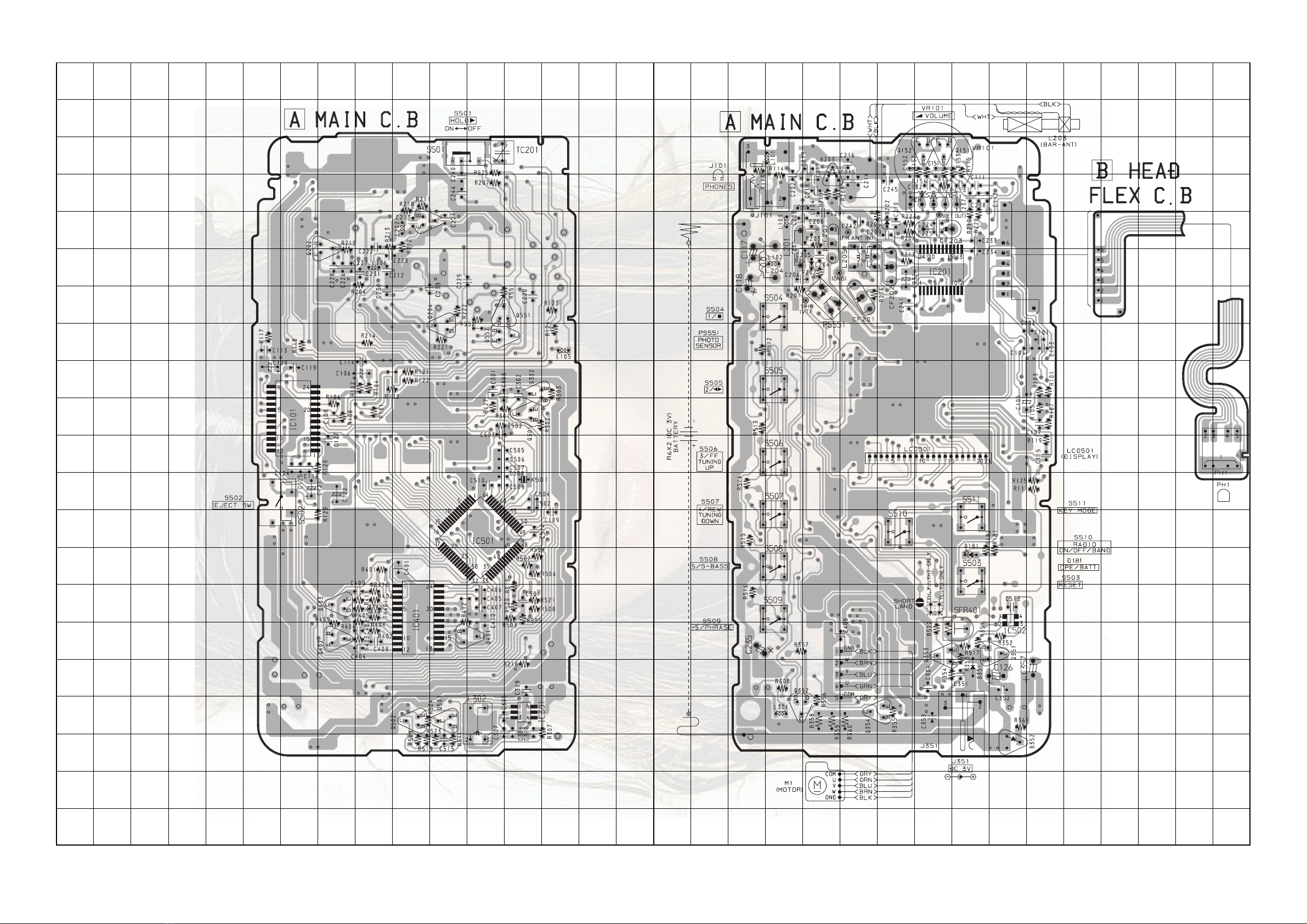

WIRING
1615141312111098765432112345678910111213141516
– 5 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
d u p a t o r

– 6 –

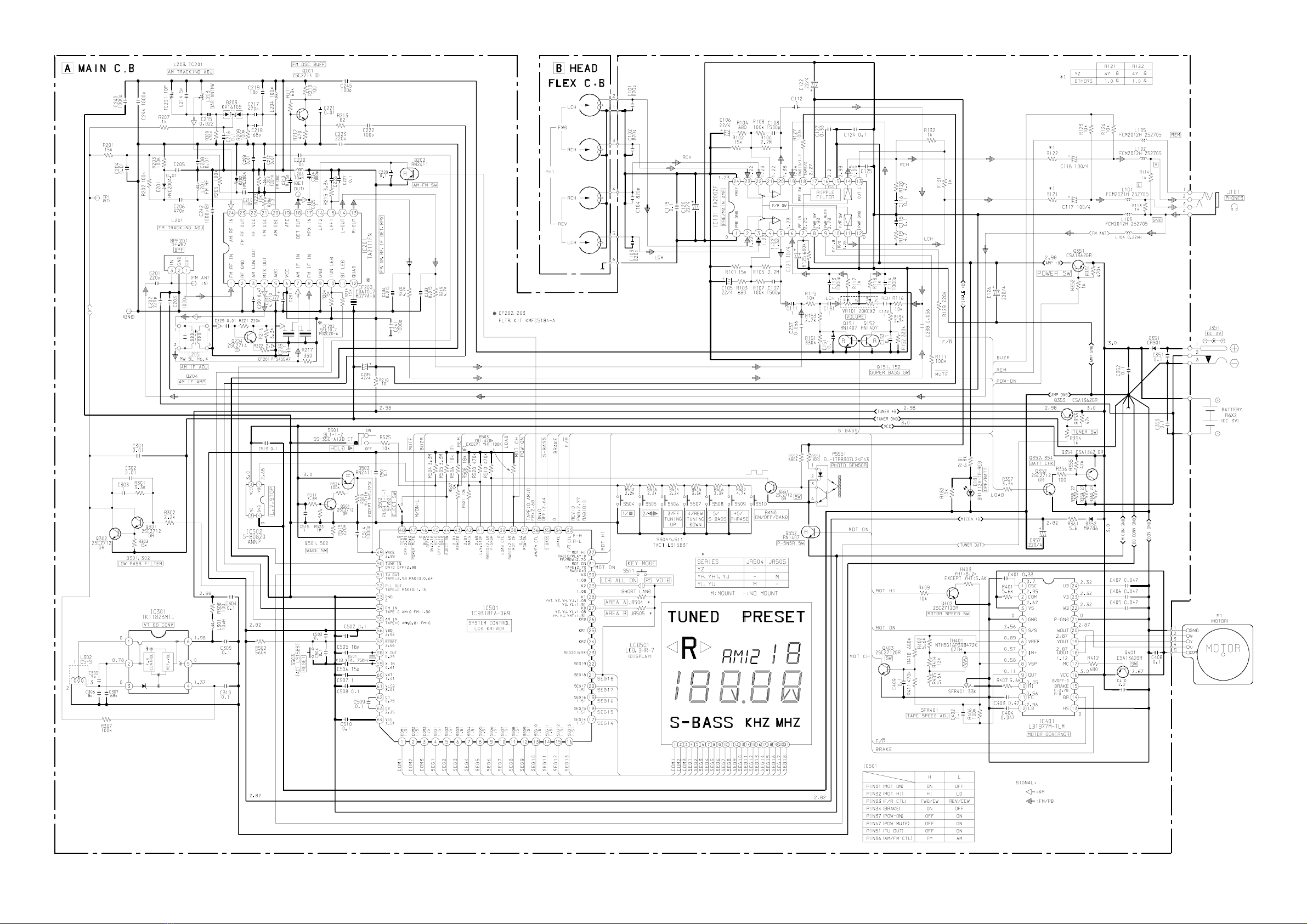

SCHEMATIC DIAGRAM
d u p a t o r

– 7 –

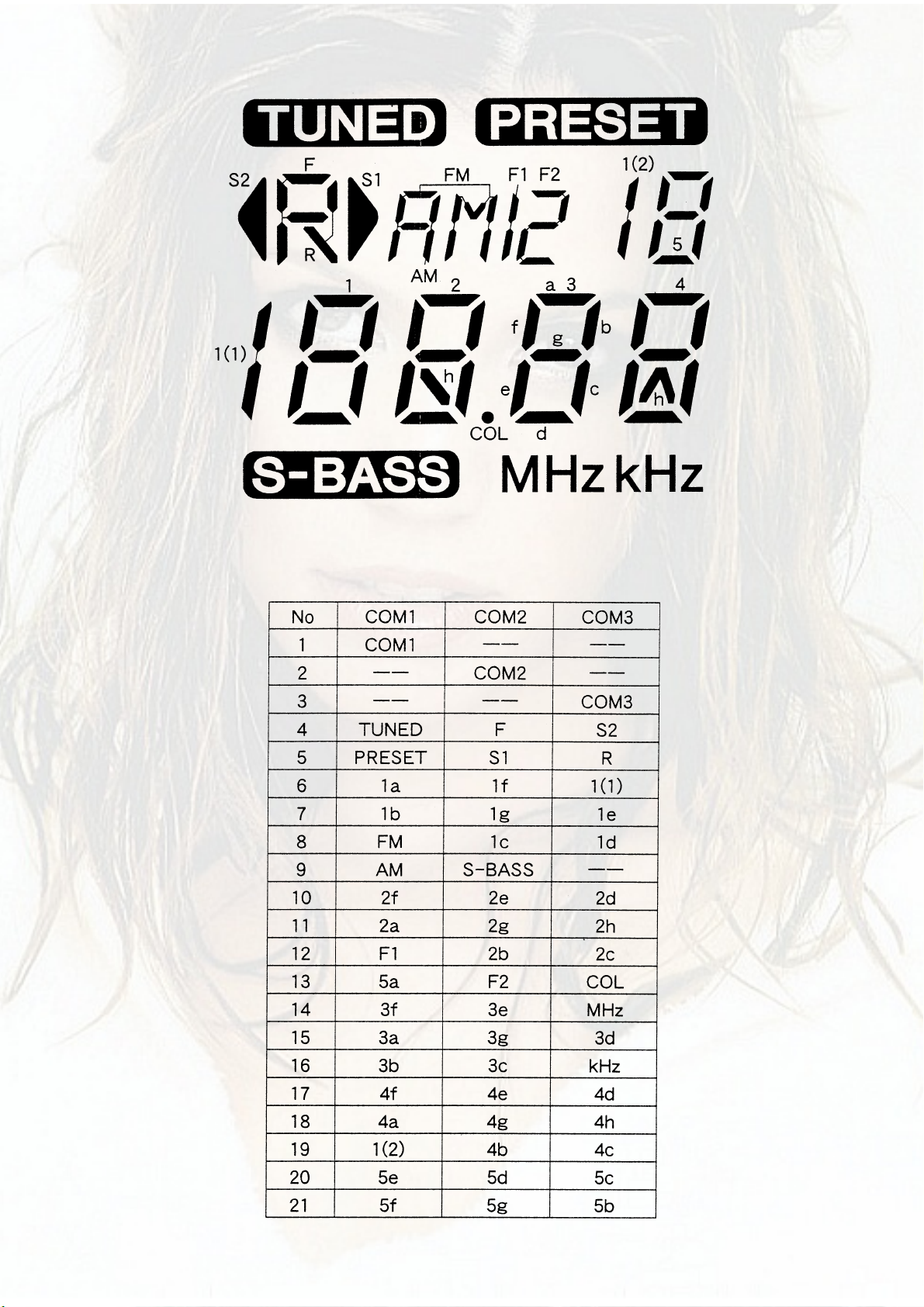

LCD DIAGRAM
d u
p a
t o
r

– 8 –
IC BLOCK DIAGRAM
d u
p a
t o
r

– 9 –
VOLTAGE CHART
IC, TA2111FN
PIN VOLTAGE PIN VOLTAGE
NO. AM FM NO. AM FM
1 0.00 0.83 13 1.17 1.17
2 0.00 0.00 14 1.16 1.16
3 1.17 0.38 15 2.20 2.18
4 2.86 2.72 16 2.89 2.10
5 0.00 0.00 17 0.70 0.71
6 2.90 2.86 18 1.06 1.41
7 2.23 2.35 19 – –
8 2.90 2.84 20 2.90 2.86
9 0.00 0.00 21 2.90 2.86
10 2.90 2.86 22 2.90 2.86
11 – – 23 2.90 2.86
12 2.37 2.08 24 2.90 2.86
d u
p a
t o
r

– 10 –
1 ~ 3 COM1 ~ COM3 O LCD driver common.
4 ~ 20 SEG1 ~ SEG17 O LCD driver out.
21 SEG18 O LCD driver out/key matrix timing output pin.
22 SEG19 O Not used.
23 SEG20(KR3) O Not used.
24 ~ 26 KR2 ~ KR0 O Not used.
27 ~ 30 K0 ~ K3 I Key matrix input pin.
31 MOT ON O Motor activation control pin. H:ON, L:OFF.
32 MOT HI O Motor speed control pin. H:HI, L:LO.
33 F/R CTL O Control motor rotate direction and FWD/REV control pin. H:FWD/CW, L:REV/CCW.
34 BRAKE O Motor brake control pin. H:ON, L:OFF.
35 S-BASS O S-BASS control pin. H:OFF, L:ON.
36 AM/FM CTL O AM/FM control pin. L:AM, H:FM.
37 POW-ON O AMP circuit power control pin. H:OFF, L:ON.
38 MOT CH I Motor rotation detection pin.
39 LOAD CTL O Battery capacity check signal output pin. H:ON.
40 P-SNSR I Photo sensor signal input pin.
41 L.V.STOP I Voltage reduction detection signal input pin. L:Reduce voltage.
42 MAIN I Main unit key input pin.
43 REMOTE I Remote controller key input pin.
44 EJECT SW I Cassette eject SW input pin. L:EJECT.
45 HOLD I Main unit key hold SW input pin. H:ON.
46 BUZR O Buzzer output pin.
47 POWER MUTE O Mute signal output pin. H:OFF, L:ON.
48 TEST I Test mode control input pin. (Connected to GND)
49 WAKE I Backup detection signal input pin.
50 TUNE IN I Tunning detection signal input pin.
51 TU OUT O TU operation control pin. H:TU OFF, L:TU ON.
52 PLL OUT O Phase comparator output pin.
53 GND – Connected to GND.
54 FM IN I FM programmable counter input pin.
55 AM IN I AM programmable counter input pin.
56 VDD – Connected to VDD.
57 RESET I System reset signal input pin.
58 X OUT O Connected to crystal oscillator (75 kHz).
59 X IN I Connected to crystal oscillator (75 kHz).
60 VXT – Crystal oscillator power supply pin.
61 VLCD – LCD drive reference voltage pin.
62 C1 – LCD drive double voltage booster pin.
63 C2 – LCD drive double voltage booster pin.
64 VEE – LCD drive 1.5 V voltage supply.
Pin No. Pin Name I/O Description
IC DESCRIPTION
IC, TC9318FA-069
d u
p a
t o
r

– 11 –
ADJUSTMENT
<RADIO SECTION>
1. AM IF Adjustment
L205 ................................................................. 450kHz
2. AM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to AM 530kHz and check that the voltage at the test
point is within 0.8V ~ 1.5V. Then set to AM 1710kHz
and check that the test point is less than 10.0V.
3. FM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to FM 76.0MHz <YU,YL>, 87.5MHz <Except
YU,YL> and check that the voltage at the test point is
1.1V ± 0.3V <YU,YL>, 2.3V ± 0.5V <Except YU,YL>.
Then set to FM 108.0MHz <YU,YL>, 108.1MHz
<Except YU,YL> and check that the test point is less
than 11.0V.
4. AM Tracking Adjustment
L203 ................................................................. 630kHz
TC201............................................................. 1440kHz
5. FM Tracking Adjustment
L201 .............................................................. 87.5MHz
<TAPE PLAYER SECTION>
6. Tape Speed Adjustment
Settings : • Test tape : TTA–100
• Test point : Phones Jack (J101)
• Volume : MAX
• Adjustment location : SFR401
Method : Play back the test tape and adjust SFR401 for
3010Hz ± 10Hz (FWD).
Then confirm WOW is less than 0.52%.
d u
p a
t o
r

– 12 –

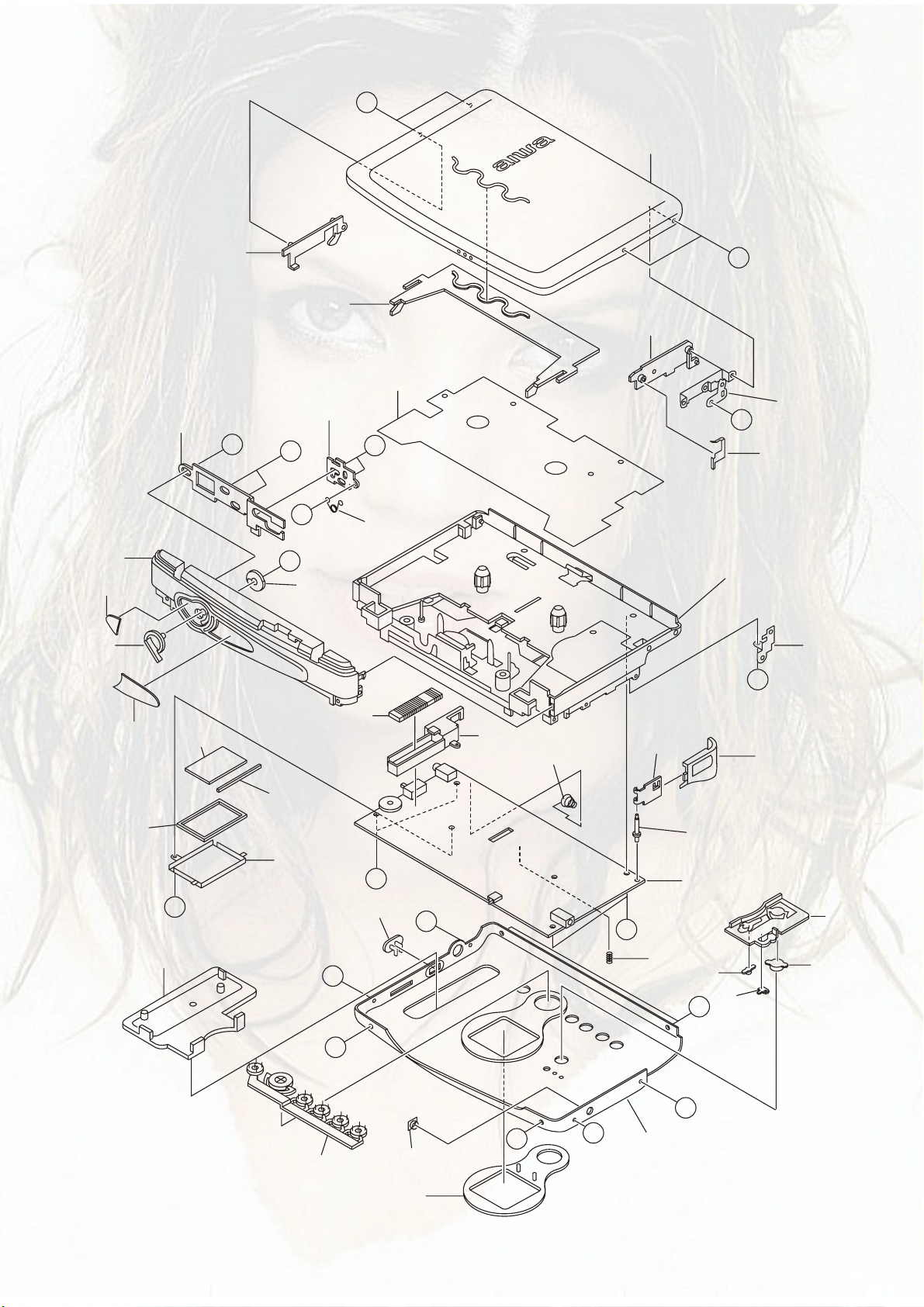

MECHANICAL EXPLODED VIEW 1 / 1
27
28
29
30
32
33
LCD
34
A
1
2
3
A
A
4
5
6
F
LBL,SPEC
MECH,CL-860
7
B
8
9
10
12
PWB
11
A
A
BAR ANT,MW
13
B
B
B
B
23
A
A
G
18
14
16
15
17
19
20
21
22
24
D
DE
C
B
25
26
31
d u
p a
t o
r

– 13 –
MECHANICAL PARTS LIST 1 / 1
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green HT Transparent Gray
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8B-HR7-003-010 LID,ASSY SIL<EXCEPT YZ1BNC,YZ1NC>
1 8B-HR7-035-010 LID,ASSY YZ GLD<YZ1BNC,YZ1NC>
2 8B-HR7-201-010 HLDR,CASS L
3 8B-HR7-005-110 WINDOW,CASS
4 8B-HR7-202-010 HLDR,CASS R
5 8B-HR7-233-010 HINGE,ASSY
6 8B-HR7-221-110 SPR-P,EARTH
7 8B-HR7-220-010 HLDR,HINGE
8 8B-HR7-008-010 LID,BAT SIL<EXCEPT YZ1BNC,YZ1NC>
8 8B-HR7-038-010 LID,BAT GLD<YZ1BNC,YZ1NC>
9 8B-HR7-214-010 BAT-CONTACT,P
10 8B-HR7-237-110 SHAFT,BAT P
11 8B-HR7-231-010 SPR-C,EARTH C
12 8B-HR7-230-010 BAT-CONTACT,M C
13 8B-HR7-212-010 HLDR,ANT
14 8B-HR7-014-010 KEY,BASE
15 8B-HR7-015-010 KEY,TOP MODE
16 8B-HR7-016-010 KEY,TOP BAND
17 8B-HR7-018-010 LENS,LED
18 8B-HR7-006-010 CABI,REAR 418 SIL<EXCEPT YZ1BNC,YZ1NC>
18 8B-HR7-037-010 CABI,REAR 418 GLD<YZ1BNC,YZ1NC>
19 8B-HR7-009-010 WINDOW,LCD
20 8B-HR7-019-010 RING,DC
21 8B-HR7-013-010 KEY,CONT
22 8B-HR7-007-010 PANEL,REAR SIL<EXCEPT YZ1BNC,YZ1NC>
22 8B-HR7-039-010 PANEL,REAR GLD<YZ1BNC,YZ1NC>
23 8B-HR7-017-010 KNOB,SL HOLD
24 8B-HR7-205-010 PLATE,LOCK
25 8B-HR7-229-010 SPR-T,OPEN C
26 8B-HR7-206-010 LEVER,OPEN
27 8B-HR7-002-010 PANEL,LOCK DG
28 8B-HR7-011-010 PANEL,OPEN L
29 8B-HR7-010-010 KNOB,RTRY OPEN
30 8B-HR7-012-010 PANEL,OPEN R
31 8B-HR7-207-010 GEAR,OPEN
32 8B-HR7-210-010 GUIDE,LCD
33 8B-HR7-608-010 JOINT,LCD(K)
34 8B-HR7-232-010 HLDR,LCD C
A 8B-HR7-250-010 S-SCREW,+1.4-4.5-0.3 CR HL
B 8B-HR7-251-010 S-SCREW,+1.4-3.5-0.3 CR HL
C 87-067-388-010 SCREW
D 87-HK5-235-010 S-SCREW,1.4-0.6-2.5
E 8B-HR7-252-010 S-SCREW,HINGE+1.4-2.5 CR HL
F 87-067-288-010 HINGE SCREW +1.4-1
G 8A-HK5-218-010 S-SCREW,+1.4-3-0.4 CR NL
d u
p a
t o
r

– 14 –

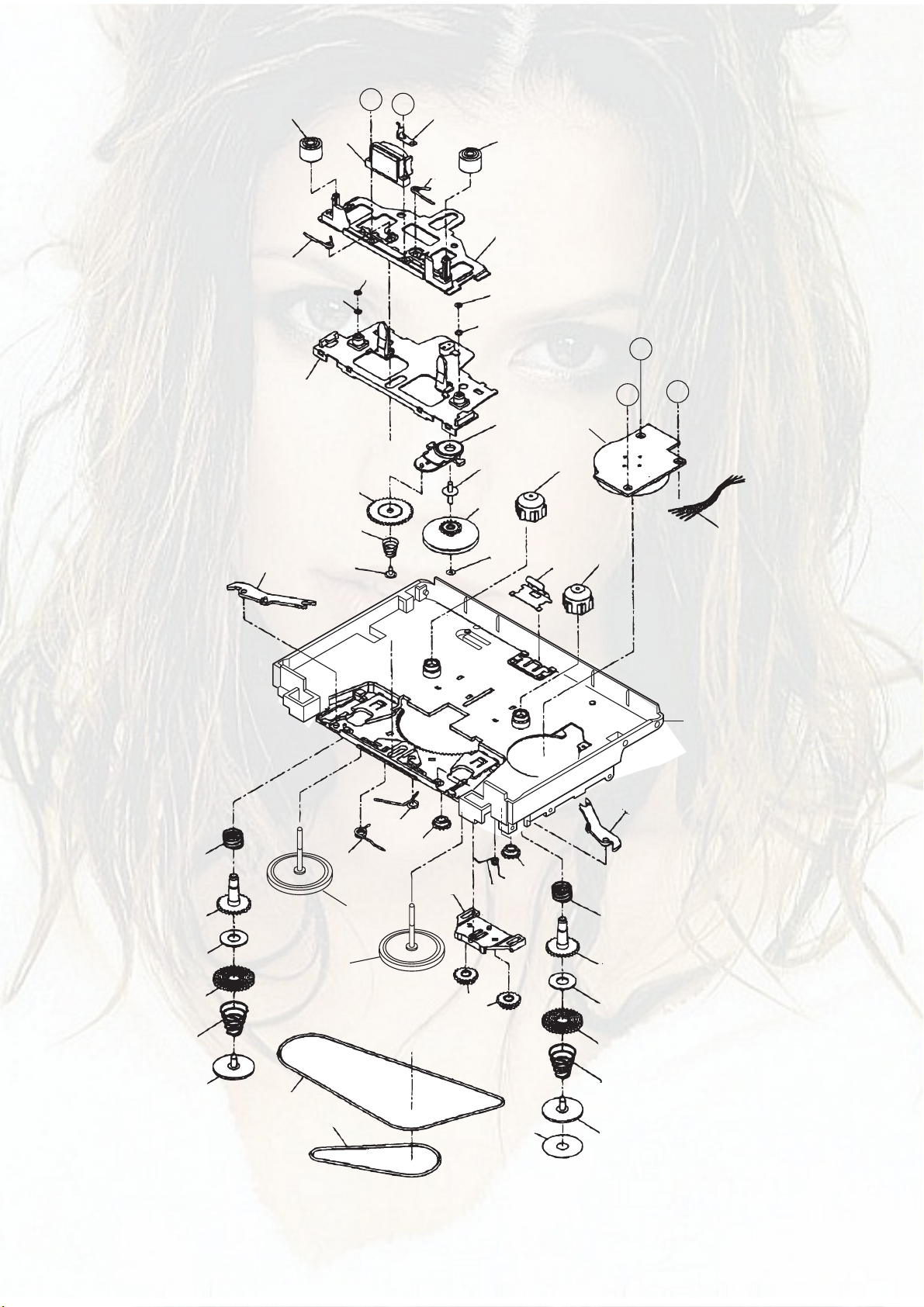

TAPE MECHANISM EXPLODED VIEW 1 / 1
BB
31
31
32
23
35
34
30
27
27
27
25
25
4
5
6
8
7
9
26
18
18
A
A
A
29
28
324
1
2
17
1711
11
13
13
14
14
12
12
15
15
16
33
39
21
22
37
36
10
19
20
38
10
d u
p a
t o
r

– 15 –
TAPE MECHANISM PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8B-HR7-001-010 FRAME CENTER
2 S8-605-100-000 FWD ARM
3 S8-605-110-000 REV ARM
4 S8-605-140-000 SUB CHASSIS ASSY
5 S8-605-070-000 GEAR PLATE
6 S8-605-060-000 FWD GEAR
7 S8-605-210-000 GEAR PLATE PIN
8 S8-505-220-000 FWD GEAR SP
9 S8-605-230-000 GEAR SHAFT
10 S8-605-330-000 FF GEAR 1
11 S8-605-370-000 REEL GEAR T
12 S8-605-080-000 CLUTCH GEAR
13 S8-605-390-000 FELT
14 S8-605-470-000 CLUTCH SP
15 S8-605-510-000 REEL GEAR BUSH
16 S8-505-290-000 REFLECTING PLATE
17 S8-605-260-000 BACK TENSION SP
18 S8-000-10B-000 REEL CAP
19 S8-605-360-000 FF CEAR HOLDER
20 S8-605-340-000 FF GEAR 2
21 S8-605-03K-000 FLY WHEEL R ASSY
22 S8-605-04K-000 FLY WHEEL L ASSY
23 S8-605-490-000 SPR-P,HEAD
24 8B-HR7-239-010 SPR-P,CASS
25 S1-6X2-5X0-2S0 SOMARAIT W
26 S8-605-380-000 CENTER GEAR
27 S1-15X-26X-025 L W CUT
28 M8-AZS-394-040 MOTOR
29 S8-605-450-000 LEAD WIRE 5P
30 S8-605-020-000 HEAD BASE ASSY
31 S8-605-170-000 PINCH ROLLER
32 8B-HR7-606-010 HEAD ASSY CL-860
33 SV-594-000-000 SUB BELT
34 S8-605-290-000 PINCH SP FWD
35 S8-605-300-000 PINCH SP REV
36 S8-605-320-000 STOPPER SP
37 S8-605-280-000 HEAD BASE SP
38 S8-605-350-000 FF SP
39 SV-582-700-000 MAIN BELT
A SB-TF1-7X5-0HO SCREW
B S3-PW1-4X5-000 SCREW
d u
p a
t o
r

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9630472 921338
d u
p a
t o
r
