Aiwa XP-R210 User manual

8A-HC1-905-11
000321BMN-O9

OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNG
MODE D’EMPLOI XP-R210
COMPACT DISC PLAYER
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
c
d

2
English
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
This compact disc player is classified as a CLASS 1
LASER product. The CLASS 1 LASER PRODUCT label
is located on the exterior.
CAUTION! Invisible laser radiation when open and
interlocks defeated. Avoid exposure to
beam.
TABLE OF CONTENTS
PRECAUTIONS ........................................................ 4
USING ON RECHARGEABLE BATTERIES ............. 6
USING ON DRY CELL BATTERIES ......................... 8
USING ON AC HOUSE CURRENT ........................... 8
BEFORE PLAYBACK .............................................. 10
PLAYBACK .............................................................. 14
PROGRAM PLAY .................................................... 20
RADIO RECEPTION ............................................... 22
CONNECTING AN EXTERNAL UNIT ..................... 26
MAINTENANCE ...................................................... 28
SPECIFICATIONS .................................................. 30
ATTENTION
The product that you purchased contains
rechargeable batteries. The rechargeable batteries
are recyclable. At the end of their useful life, it may
be illegal to dispose the batteries into the municipal
waste stream under various state and local laws.
Check with your local solid waste officials in your
area for details about recycling options or proper
disposal.

4
English
PRECAUTIONS
To maintain good performance
• Do not use the unit in places which are extremely hot,
cold, dusty or humid. In particular, do not use or keep
the unit in following places.
• in a high humidity area such as a bathroom
• near a heater
• in an area exposed to direct sunlight (e.g., inside a
parked car, where it can become extremely hot)
• near sources of strong magnetism, such as
televisions, speakers, or magnets
• where there is a lot of movement or vibration, such
as on a car dashboard or an unstable shelf
For safety
• Do not attempt to disassemble the unit. Laser rays from
the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign object do not get
inside the player.
• Take care not to drop the unit or subject it to strong
shocks.
• To keep dust from the pickup lens, keep the disc
compartment lid closed after use. Never touch the lens.
• If you hear no sound when playing a disc, DO NOT
turn the volume up high because music could suddenly
start at high volume. Turn the volume control to the
lowest level before starting playback and slowly turn it
up to the desired level.
Note on listening with the headphones
• Listen at moderate volumes to avoid hearing damage.
• Do not wear the headphones while driving or cycling.It
may create a traffic hazard.
• You should use extreme caution or temporarily
discontinue use in potentially hazardous situations,
such as walking, jogging, etc.
• Wear them properly; L is left, R is right.
• The in-ear type headphones should be worn with the
longer cord behind your neck.
Note on condensation
If the unit is suddenly moved from a cold place to a warm
one, it may result in condensation on the pickup lens
and malfunction or playback difficulties.
Should this occur, leave the unit for a few hours, then try
to playback again.

6
English
1
2
3
PLAY MODE
USING ON RECHARGEABLE
BATTERIES
•When using on the rechargeable batteries for the first
time, charge them until the battery indicators go out.
•Before charging the batteries, close the disc
compartment. You cannot charge the batteries while it
is opened.
1 Insert the supplied rechargeable batteries with the
0and 9marks correctly aligned.
2 Connect the AC adaptor.
1to DC 5~6 V jack
2to wall outlet
3 Keep sSTOP/OFF/CHARGE pressed for about 1
second to start charging.
“C-On”appears, and OPE/BATT indicators blink.
When charging is completed, “C-OFF”flashes a few
times, and the OPE/BATT indicators go out.
Recharging fully used batteries takes about 6 hours.
After charging, disconnect the AC adaptor.
Time to recharge the batteries
Recharge the batteries when E (red) lights. If the unit
remains in use after E (red) lights, “Lo-bAtt”appears and
the current operation stops.
To stop charging
Press sSTOP/OFF/CHARGE during charging.
Force charging
When the recharging stops after only few minutes or the
batteries cannot be fully recharged, press sSTOP/OFF/
CHARGE while pressing PLAY MODE to start force
charging.
Note on rechargeable batteries
•Use only the supplied AC adaptor to recharge the
batteries.
•Do not charge them for more than 24 hours.
•If the operation time is short even if the batteries are
charged until the battery indicators go out, recharge
the batteries after using them up.
•The supplied rechargeable batteries can be recharged
approximately 300 times.

8
English
USING ON DRY CELL BATTERIES
Open the battery compartment and insert two LR6
(size AA) alkaline batteries with the 0and 9marks
correctly aligned.
Battery replacement
The OPE/BATT indicator changes from F (green) to M
(orange) to E (red) according to the remaining power of
the batteries. Replace the batteries when E (red) lights.
If the unit remains in use after E (red) lights, “Lo-bAtt”
appears, and the current operation stops.
Battery life (using alkaline batteries LR6)
The setting of the E•A•S•S switch Battery life
48 Approx. 20 hours
12 Approx. 19 hours
OFF Approx. 15 hours
Battery life may vary depending on conditions of use.
If the cover of the battery compartment comes off
bA
Note on dry cell batteries
•Make sure that the 0and 9marks are correctly
aligned.
•Do not mix the different types of batteries, or an old
battery with a new one.
•To prevent the risk of electrolyte leakage or explosions,
never recharge the batteries, apply heat to them, or
take them apart.
•When not using the batteries, remove them to prevent
needless battery wear.
•If liquid leaks from the batteries, wipe thoroughly to
remove.
USING ON AC HOUSE CURRENT
Connect the supplied AC adaptor in the same way as
recharging the batteries.
During operation onAC house current, all the OPE/BATT
indicators light.
A
LR6 (AA) ×2

10
English
BEFORE PLAYBACK
HOLD switch bA
Release the HOLD switch before playback. ba
When not using the unit, set the HOLD switch to the
HOLD position. bb
Accidentally pressed button will not function.
If buttons are pressed when the HOLD switch is set to
HOLD position, “HOLd”flashes in the display.
Turning on and off bB
Turning the power on
Press ePLAY/PAUSE. Power is turned on and
playback starts.
Note
“Err”appears on the display when you play a disc placed
upside-down or a defective disc.
Turning off the power
If no new operations are done within 30 seconds from
the end of last operation, the power is turned off
automatically. (Auto power off function)
•You can turn off the power by pressing sSTOP/OFF/
CHARGE before it is automatically turned off.
Standby mode bB
When an operation finishes, the unit goes into standby
mode until the auto power off function automatically turns
off the power.
To enter standby mode, press ePLAY/PAUSE to start
playback, then press sSTOP/OFF/CHARGE.
B
A

12
English
BEFORE PLAYBACK
Adjusting the sound bC
Volume
Turn the VOL control to adjust the volume.
DSL
Press DSL repeatedly for more powerful sound and
deeper bass.
: Deep bass is emphasized.
: Deep bass is strongly emphasized.
: Normal sound
Signal sound function bC
You can check the operation by beep sound when you
press an operation button.
The signal sound function is not activated when you
purchase this unit.
To use the signal sound function, press ePLAY/
PAUSE while pressing PLAY MODE while in stop mode.
The beep sound is heard when you press a button.
To cancel the beep sound, repeat this procedure.
Inserting a disc bD
1 Slide the OPEN switch to open the disc
compartment.
2 Place a disc in the center with the label side facing
up.
3 Close the disc compartment.
To remove the disc bE
Pick up the disc, holding its edge, while pressing the
pivot gently.
Note
•The unit may not play a CD-R/RW disc that is recorded
on personal computers or some kinds of CD-R/RW
recorders because of differences in recording platforms.
•Do not attach any seal or label to either side (the
recordable side or the labeled side) of a CD-R/RW disc.
It may cause malfunction.
D
2 3
E
1
C

14
English
PLAYBACK
Connect the supplied headphones to the PHONES/LINE
OUT jack.
1 Release HOLD.
2 Place a disc.
3 Press ePLAY/PAUSE.
Playback starts from the first track.
atrack number
belapsed playing time
Basic operation
Display during playback bA
Press ENTER/DISP during playback to change the
display as follows.
1Track display and elapsed playing time (normal
display)
V
2Track display and remaining playing time of the track
in play
V
3Remaining number of tracks and remaining playing
time
The time is not displayed in following cases.
•When trying to program tracks beyond No.32.
•When the total remaining time of the programmed
tracks is over 100 minutes.
A
3
12
V
V
ENTER/DISP
1
2
3
To stop
To pause
To search for the
beginning of a track
To locate a desired passage
Press sSTOP/OFF/CHARGE.
Press ePLAY/PAUSE.
To resume, press again.
Press ror t.
Keep ror tpressed.
Release the button at the start
of desired passage.

16
English
PLAYBACK
E•A•S•S PLUS (Electronic Anti-Shock System)
bB
The E•A•S•S PLUS function reduces skipping or muting
of the sound when the unit is subjected to shocks.
The player keeps about 48 seconds or 12 seconds of
playback sound in its memory.
To keep 48 seconds in the memory, set the E•A•S•S
switch to 48.
To keep 12 seconds in the memory, set the E•A•S•S
switch to 12.
To cancel the E•A•S•S PLUS function, set the E•A•S•S
switch to OFF.
Note
•Continuous shock or vibration may cause the sound to
be interrupted even if the E•A•S•S PLUS function is
activated. This is normal and not a malfunction. Should
you experience an interruption in sound, stabilize the
unit for a few seconds, then resume your activity.
•When the E•A•S•S switch is slid during playback, the
unit will pause for about 2 seconds.
•When you set the E•A•S•S switch to 12 or OFF, the
quality of the sound will be better than the case that
you set it to 48.
Resume function bC
Set the HOLD switch to RESUME.
appears, and you can start playback from the point
where you stopped playback by pressing sSTOP/OFF/
CHARGE.
When the resume function is on, all-track repeat is
selected automatically.
To cancel resume function, set the HOLD switch to
OFF.
Note
•Resume play may start at a point about 30 seconds
behind or ahead the stopped point. Resume play may
not operate if you stopped at the last 30 seconds of the
final track.
•Resume play will be canceled if you open the disc
compartment. If the unit is turned off, resume play will
not be canceled. In this case, be sure to set the HOLD
switch to OFF before changing discs.
B
V
V
C

18
English
PLAYBACK
Random play bD
Press PLAY MODE in standby mode to display .
Tracks on the disc are played in random order.
To cancel random play, press PLAY MODE in standby
mode. display changes to .
Note
•You cannot back to previous track by pressing r
during random play.
•You cannot select one-track repeat during random play.
Repeat play bD
Press PLAY MODE during playback to select repeat play
as follows.
: one-track repeat B
V
: all-track repeat
V
no repeat play (normal play)
D

20
English
PROGRAM PLAY
Up to 24 tracks can be chosen for program play.
1 Press ENTER/DISP in standby mode to display
.
2 Select the desired track by pressing rand t.
atrack number
bprogram number
3 Press ENTER/DISP within 8 seconds.
If it is not pressed within 8 seconds, the track number
changes to 00. Repeat the procedure from step 2
again.
4 Repeat steps 2 and 3 to program more tracks.
5 Press ePLAY/PAUSE to start program play.
To stop program play
Press sSTOP/OFF/CHARGE.
To add tracks to the program
Repeat steps 2 and 3 before you proceed to step 5. You
can add tracks to the end of the program.
To erase the program
Press sSTOP/OFF/CHARGE while in standby mode.
To check the programmed tracks
Press ENTER/DISP repeatedly before you proceed to
step 5.
The number of each programmed track appears in order
of playback.
Note
•The program is also erased when the disc compartment
is opened or the auto power off function turns power
off.
•When the 24 tracks are programmed, “P-FULL”
appears, and no more tracks may be added.
•You cannot back to previous track by holding r
pressed during program play.
•Repeat play and random play can be performed during
program play.
1
2
3
5
ENTER/DISP
ENTER/DISP

22
English
RADIO RECEPTION
Tuning in to a station
1 Press TUNER ON/BAND repeatedly to select AM
or FM.
2 Press TUNING +(t) or -(r) to tune in to a
station.
After listening, press sSTOP/OFF/CHARGE to turn
off the radio.
For quick tuning
Keep either TUNING +(t) or -(r) pressed for
about 1 second. When a station is tuned in to, the
frequency stops automatically. However, it does not stop
if the broadcast signal is weak.
For better reception bA
FM: The headphone cord functions as the FM antenna.
Keep it extended.
AM: Turn the unit to find the position which gives the
best reception.
To listen to an FM stereo broadcasting
When a tuned in station is in stereo, ST changes to .
When the FM stereo signal is weak and distorted, press
MONO/ST. ST goes out and the sound will be heard in
monaural but distortion will be reduced.
Note
•Do not open the disc compartment during radio
reception. The buttons will be deactivated.
•The power is turned off automatically if no operation is
made after 180 minutes from the last operation during
radio reception.
AM steps bB
Radio broadcasts have different frequency ranges and
changes in different steps in different countries.
This unit is factory-set to 9 kHz steps on AM. When using
the unit where the AM step changes to 10 kHz, set the
AM STEP switch on the inner side of the disc
compartment to 10 kHz.
•When the AM step is changed, stations that you preset
are erased.
A
B
1
2
AMFM
AM STEP
9kHz
10kHz

24
English
RADIO RECEPTION

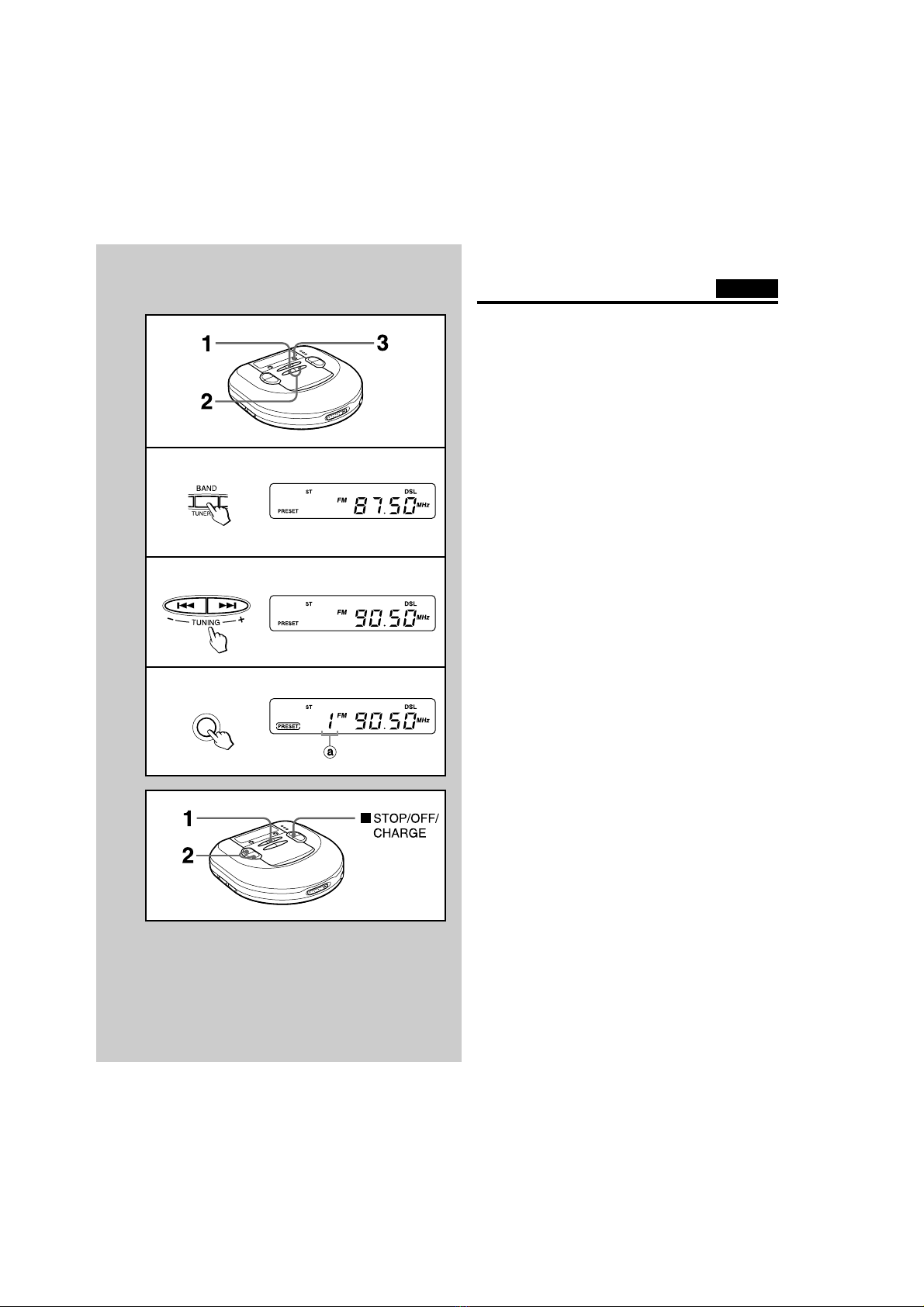

Presetting stations bA
You can preset up to total of 30 stations on AM and FM.
1 Press TUNER ON/BAND repeatedly to select AM
or FM.
2 Press TUNING +(t) or -(r) to tune in to a
station.
3 Press ENTER/DISP to preset the station.
apreset number
To preset more stations, repeat steps 2 and 3.
Listening to preset stations bB
1 Press TUNER ON/BAND repeatedly to select AM
or FM.
2 Press PRESET CALL
i
/
k
repeatedly to select the
preset number.
After listening, press sSTOP/OFF/CHARGE to turn
off the radio.
Changing the presetting
1 Press PRESET CALL
i
/
k
repeatedly to select the
preset number you wish to change.
2 Keep ENTER/DISP pressed for 1 or more seconds
until the preset number and the frequency flash.
3 While the preset number is flashing, press
TUNING +(t) or -(r) to tune in to a station.
4 Press ENTER/DISP to preset the station on the
selected preset number.
If the flashing stops, repeat the procedure from step 2.
Erasing the presettings one by one
Press sSTOP/OFF/CHARGE after step 2 in “Changing
the presetting”above. Each preset station is erased. All
the settings move up by one and the preset numbers
are refreshed.
Erasing all of the presetting
Keep ENTER/DISP pressed, then press TUNER ON/
BAND when the frequency and preset number starts
flashing.
A
1
2
3
B
ENTER/DISP

26
English
CONNECTING AN EXTERNAL UNIT
Use a commercially available connection cord which has
a 3.5 østereo mini-plug at one end and two phono plugs
at the other end.
Connect the stereo mini-plug to the PHONES/LINE OUT
jack of the unit and connect the phono plugs to the analog
input terminals of the external unit.
Note
•Turn off the power of both units before connection.
•DO NOT connect to the PHONO inputs of an amplifier
(with a built-in phonoequalizer-amplifier).
•Adjust the volume and DSL on this unit.

28
English
A
B
MAINTENANCE
To clean the lens bA
If the lens becomes dirty, the player will skip or not play.
If this occurs, clean the lens in the following manner.
To remove dust or dry particles, first use a camera lens
blower/brush ato blow a few times to loosen particles,
then gently brush the lens bclean. Finish by blowing
the lens again.
To remove fingerprints, use a cotton swab dipped in lens
cleaning solution. Wipe gently from the center to the edge.
Lens cleaning solution is commercially available.
Note
Take care not to get too much solution on the swab, which
could flow into the unit and cause damage.
Pressing too strongly with the swab could scratch or
break the lens.
To clean the discs bB
Before playing, wipe the disc from the center outward
with a cleaning cloth. After playing, store the disc in its
case.

30
English
SPECIFICATIONS
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 4-times oversampling digital
filter + 1-bit DAC
Frequency response 20 –20,000 Hz (47 k ohms)
Output PHONES/LINE OUT jack
(stereo mini-jack)
Frequency range AM: 531/530 kHz –1,602/
1,710 kHz (9 kHz/10 kHz
steps)
FM: 87.5 –108 MHz
Maximum output 10 mW + 10 mW
(16 ohms at 1 kHz)
500 mV (47 k ohms at 1 kHz)
Power supply DC 3 V using two LR6 (size
AA) alkaline batteries
DC 2.4 V using two supplied
rechargeable batteries
AC house current using the
supplied AC adaptor
Maximum outside dimensions
128 (W) ×31.2 (H) ×
129.5 (D) mm (excluding
projecting parts and controls)
(5 1/8×1 1/4×5 1/8in.)
Weight Approx. 225 g (7.9 oz.)
excluding batteries
Accessories AC adaptor AC-D603 (1)
Rechargeable batteries (2)
Stereo headphones (1)
«AC Adaptor AC-D603»
Rated input AC 230 V, 50 Hz
Supplied headphones HP-M043
Type: In-ear type
Impedance: 16 ohms
Sensitivity: 107 dB/mW
Recommended commercially available headphones
Type: In-ear type/Vertical type/
Headband type
Impedance: 16 –32 ohms
Sensitivity: 100 –109 dB/mW
The specifications and external appearance of this unit
are subject to change without notice.

Other manuals for XP-R210
2
Table of contents
Other Aiwa CD Player manuals
