Aiwa CA-DW735M User manual

BASIC TAPE MECHANISM : TN-21ZSW-1691
BASIC CD MECHANISM : 5ZG-3 D2NC
CD CARRING
COMPONENT SYSTEM
CA-DW735M
S/M Code No. 09-994-329-2R1
U
SERVICE MANUAL
DATA
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-994-329-2T1).
REVISION

2
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
Solder
CD PICK-UP ASSY P.C.B

3
SPECIFICATIONS
Tuner section
FM: 87.5 - 108.0 MHz (50 kHz steps)
Antenna: FM antenna
AM: 530 - 1,710 kHz (10 kHz steps)
531 - 1,602 kHz (9 kHz steps)
Antenna: Ferrite bar antenna
Amplifier section
Power output: 5 W + 5 W (4 ohms, EIAJ)
FTC rule
4 Watts per channel, Min.
RMS at 4 ohms from 65 Hz to
15,000 Hz, with no more than 1%
distortion
Power requirements: DC 12 V using eight size D
(R20) batteries
AC 120 V, 60 Hz
Power consumption: 25 W
CD player section
Disc: Compact disc
Scanning method: Non-contact optical laser
(semiconductor laser application)
Laser: Semiconductor laser
λ =780 nm
Rotation speed: Approx. 500 - 200 rpm/CLV
Error correction: Cross Interleave, Reed
Solomon code
Number of channels: 2 channels
D/A conversion: 1-bit dual
Cassette deck section
Track format: 4 tracks, 2 channels
Frequency response: Normal tape: 50 - 12,000 Hz (EIAJ)
Recording system: AC bias
Erasure system: Magnet erase
Motor: DC motor (1)
Heads: Deck 1
Recording/playback head (1)
Erasure head (1)
Deck 2
Playback head (1)
Common section
Dimensions (W x H x D): 274 x 301.2 x 281.6 mm
(10 7/8x 11 7/8x 11 1/8in.)
Weight: 4.15 kg (9.13 lbs.)
(not including batteries)
Speaker
Cabinet type: 2-way bass reflex type
Speaker: 120 mm cone type woofer
27 mm ceramic type tweeter
Impedance: 4 ohms
Allowable max. input: 10 W
Dimensions (W x H x D): 211.5 x 292 x 210.8 mm x 2
(8 3/8x 11 1/2x 8 3/8in.)
Weight: 1.55 kg (3.41 lbs.) x 2
• Design and specifications are subject to change without notice.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 86-CT4-915-010 IB,U(ESF)FM
2 86-CT4-951-010 RC UNIT,RC-6AT01
!3 87-A80-027-010 AC CORD SET,U BLK SPT2

4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A20-459-010 C-IC,LC78622ED
86-CT4-638-010 IC,LC867120W-5E13
87-A20-042-010 IC,BA178M05T
87-070-282-010 IC,BU2092
87-070-083-010 IC,GP1U281X
87-A20-186-010 IC,LA9240M
87-070-417-010 IC,NJM4558 DD
87-070-416-010 IC,NJU7201 L55
87-A20-157-010 IC,TA2092N
87-017-680-010 IC,TA8176SN
87-017-916-010 IC,BU4066BC
87-001-176-010 IC,TA8102P
87-002-268-010 IC,LA1851N
87-001-376-010 IC,LC7218
87-017-681-010 IC,TA8126S
87-020-828-010 IC,BA3416BL
87-017-914-010 IC,BU4094 BCP
87-017-804-010 IC,BU4052BC
87-017-947-010 IC,M62412P
87-017-564-010 IC,LC7533
87-002-848-010 IC,TA8229K
87-A20-558-040 C-IC,MM1354AJ
87-001-440-010 IC,BA15218N
TRANSISTOR
89-213-702-010 TR,2SB1370E(1.8W)
87-026-291-080 TR,DTC124XS
89-501-614-080 FET,2SK161Y
87-026-463-080 TR,2SA933SRS(0.3W)
89-319-233-080 TR,2SC1923 (0.1W)
89-112-965-080 TR,2SA1296GR(0.75W)
87-026-464-080 TR,DTC114TS (0.3W)
87-026-572-080 TR,DTA114TS
87-026-462-080 TR,2SC1740 S(RS 0.3W)
87-026-287-080 TR,DTC143ES
87-026-286-080 TR,DTA143ES
89-502-464-080 TR,2SK246Y
89-318-154-080 TR,2SC1815Y(0.4W)
87-026-214-080 TR,DTA114YS (0.3W)
89-320-011-080 TR,2SC2001K(15W)
89-322-405-680 TR,2SC2240GR/BL
89-414-683-080 TR,2SD1468S 150MHZ 0.4
89-113-187-080 TR,2SA1318TU
89-109-521-080 TR,2SA952K(0.6W)
87-026-290-080 TR,DTA124XS
DIODE
87-070-345-080 DIODE,IN4148
87-A40-156-010 DIODE,1N5392
87-017-164-080 ZENER,HZS9A2L
87-017-148-080 ZENER,HZS6A1L
87-017-139-080 ZENER,HZS15-2

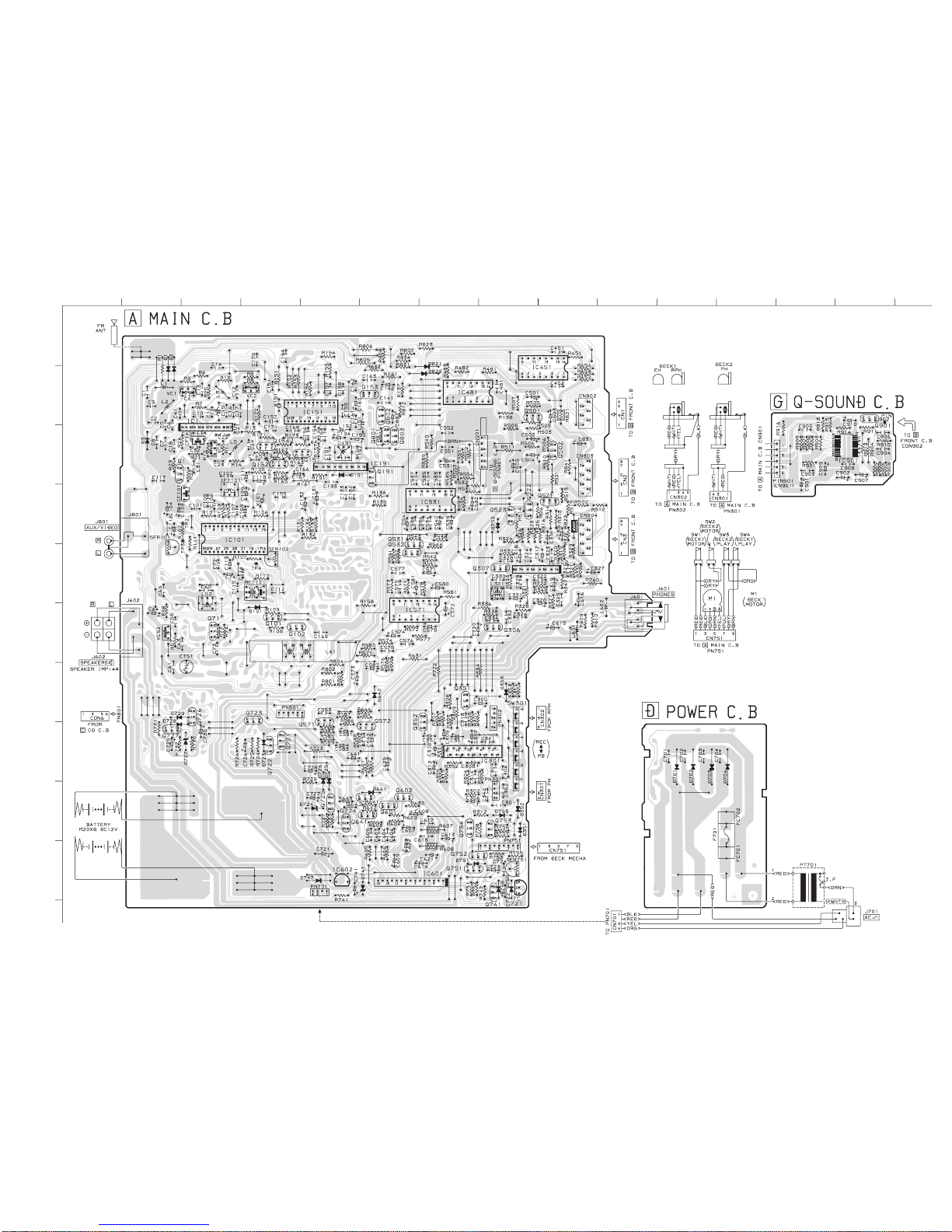

MAIN C.B
C2 87-A10-131-010 CAP,CER 5P-50 K CH
C3 87-A10-136-010 CAP,CER 10P-50K CH
C4 87-A10-172-010 CAP,CER 470P-50 K B
C5 87-A10-132-010 CAP,CER 6P-50 K CH
C6 87-A10-136-010 CAP,CER 10P-50K CH
C7 87-A10-182-010 CAP,CER 0.01-50 Z F
C8 87-A10-182-010 CAP,CER 0.01-50 Z F
C10 87-A10-133-010 CAP,CER 7P-50 K CH
C11 87-A10-138-010 CAP,CER 15P-50 K CH
C12 87-A10-173-010 CAP,CER 560P-50 K B
C13 87-A10-182-010 CAP,CER 0.01-50 Z F
C15 87-A10-138-010 CAP,CER 15P-50 K CH
C16 87-A10-163-010 CAP,CER 82P-50 K SL
C17 87-A10-182-010 CAP,CER 0.01-50 Z F
C18 87-A10-182-010 CAP,CER 0.01-50 Z F
C21 87-A10-176-010 CAP,CER 1000P-50 M D
C22 87-018-108-080 CAP,TC-U 20P-50 SL
C23 87-A10-170-010 CAP,CER 330P-50 K B
C24 87-A10-177-010 CAP,CER 1500P-50 M D
C31 87-A10-182-010 CAP,CER 0.01-50 Z F
C32 87-A10-182-010 CAP,CER 0.01-50 Z F
C41 87-A10-182-010 CAP,CER 0.01-50 Z F
C58 87-A10-171-010 CAP,CER 390P-50 K B
C60 87-018-173-080 CAP,TC-U 15P-50 UJ
C61 87-A10-128-010 CAP,CER 2P-50 K CH
C64 87-010-544-080 CAP, ELECT 0.1-50V
C74 87-A10-175-010 CAP,CER 820P-50 K B
C101 87-A10-182-010 CAP,CER 0.01-50 Z F
C103 87-010-248-080 CAP, ELECT 220-10V
C104 87-010-402-080 CAP, ELECT 2.2-50V
C105 87-A10-182-010 CAP,CER 0.01-50 Z F
C106 87-A10-181-010 CAP,CER 6800P-50 M D
C107 87-A10-168-010 CAP,CER 220P-50 K B
C108 87-010-401-080 CAP, ELECT 1-50V
C109 87-010-401-080 CAP, ELECT 1-50V
C110 87-010-401-080 CAP, ELECT 1-50V
C111 87-010-546-080 CAP, ELECT 0.33-50V
C113 87-010-404-080 CAP, ELECT 4.7-50V
C114 87-A10-172-010 CAP,CER 470P-50 K B
C115 87-A10-182-010 CAP,CER 0.01-50 Z F
C116 87-010-405-080 CAP, ELECT 10-50V
C117 87-A10-182-010 CAP,CER 0.01-50 Z F
C131 87-010-545-080 CAP, ELECT 0.22-50V
C132 87-010-545-080 CAP, ELECT 0.22-50V
C141 87-A10-182-010 CAP,CER 0.01-50 Z F
C142 87-010-221-080 CAP, ELECT 470-10V
C151 87-A10-157-010 CAP,CER 27P-50 K SL
C152 87-A10-157-010 CAP,CER 27P-50 K SL
C157 87-A10-176-010 CAP,CER 1000P-50 M D
C158 87-A10-176-010 CAP,CER 1000P-50 M D
C159 87-A10-182-010 CAP,CER 0.01-50 Z F
C160 87-010-263-080 CAP, ELECT 100-10V
C161 87-A10-182-010 CAP,CER 0.01-50 Z F
C162 87-A10-177-010 CAP,CER 1500P-50 M D
C163 87-A10-182-010 CAP,CER 0.01-50 Z F
C164 87-A10-163-010 CAP,CER 82P-50 K SL
C165 87-A10-182-010 CAP,CER 0.01-50 Z F
C166 87-A10-182-010 CAP,CER 0.01-50 Z F
C167 87-015-243-080 CAP,E 3.3-50 LL
C168 87-A10-182-010 CAP,CER 0.01-50 Z F
C171 87-A10-182-010 CAP,CER 0.01-50 Z F
C191 87-A10-177-010 CAP,CER 1500P-50 M D
C192 87-A10-169-010 CAP,CER 270P-50 K B
C194 87-010-263-080 CAP, ELECT 100-10V
C195 87-010-374-080 CAP, ELECT 47-10V
C301 87-018-130-080 CAP,TC-U 820P-50 B
C302 87-018-130-080 CAP,TC-U 820P-50 B
C303 87-A10-175-010 CAP,CER 820P-50 K B
C304 87-A10-175-010 CAP,CER 820P-50 K B
C305 87-010-374-080 CAP, ELECT 47-10V
C306 87-010-374-080 CAP, ELECT 47-10V
C307 87-010-382-080 CAP, ELECT 22-25V
C308 87-010-405-080 CAP, ELECT 10-50V
C309 87-010-545-080 CAP, ELECT 0.22-50V
C310 87-010-545-080 CAP, ELECT 0.22-50V
C311 87-010-248-080 CAP, ELECT 220-10V
C312 87-010-374-080 CAP, ELECT 47-10V
C315 87-010-401-080 CAP, ELECT 1-50V
C316 87-010-401-080 CAP, ELECT 1-50V
C317 87-010-382-080 CAP, ELECT 22-25V
C318 87-010-382-080 CAP, ELECT 22-25V
C319 87-010-405-080 CAP, ELECT 10-50V

5
C320 87-010-405-080 CAP, ELECT 10-50V
C321 87-A10-171-010 CAP,CER 390P-50 K B
C322 87-A10-171-010 CAP,CER 390P-50 K B
C325 87-A10-177-010 CAP,CER 1500P-50 M D
C326 87-A10-177-010 CAP,CER 1500P-50 M D
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-A10-176-010 CAP,CER 1000P-50 M D
C329 87-A10-178-010 CAP,CER 2200P-50 M D
C331 87-010-374-080 CAP, ELECT 47-10V
C334 87-A10-167-010 CAP,CER 180P-50 K B
C341 87-A10-170-010 CAP,CER 330P-50 K B
C342 87-A10-170-010 CAP,CER 330P-50 K B
C351 87-010-382-080 CAP, ELECT 22-25V
C451 87-A10-182-010 CAP,CER 0.01-50 Z F
C452 87-A10-170-010 CAP,CER 330P-50 K B
C481 87-A10-182-010 CAP,CER 0.01-50 Z F
C501 87-010-401-080 CAP, ELECT 1-50V
C502 87-010-401-080 CAP, ELECT 1-50V
C503 87-010-401-080 CAP, ELECT 1-50V
C504 87-010-401-080 CAP, ELECT 1-50V
C505 87-010-221-080 CAP, ELECT 470-10V
C531 87-010-401-080 CAP, ELECT 1-50V
C532 87-010-401-080 CAP, ELECT 1-50V
C539 87-010-545-080 CAP, ELECT 0.22-50V
C540 87-010-545-080 CAP, ELECT 0.22-50V
C541 87-010-260-080 CAP, ELECT 47-25V
C571 87-010-401-080 CAP, ELECT 1-50V
C572 87-010-401-080 CAP, ELECT 1-50V
C573 87-010-401-080 CAP, ELECT 1-50V
C574 87-010-401-080 CAP, ELECT 1-50V
C579 87-010-374-080 CAP, ELECT 47-10V
C580 87-010-401-080 CAP, ELECT 1-50V
C581 87-010-544-080 CAP, ELECT 0.1-50V
C582 87-010-371-080 CAP, ELECT 470-6.3V
C583 87-010-221-080 CAP, ELECT 470-10V
C591 87-010-401-080 CAP, ELECT 1-50V
C592 87-010-401-080 CAP, ELECT 1-50V
C593 87-A10-182-010 CAP,CER 0.01-50 Z F
C594 87-A10-182-010 CAP,CER 0.01-50 Z F
C605 87-A10-178-010 CAP,CER 2200P-50 M D
C606 87-A10-178-010 CAP,CER 2200P-50 M D
C607 87-010-406-080 CAP, ELECT 22-50
C608 87-010-406-080 CAP, ELECT 22-50
C609 87-010-260-080 CAP, ELECT 47-25V
C613 87-010-263-080 CAP, ELECT 100-10V
C614 87-010-263-080 CAP, ELECT 100-10V
C615 87-010-376-090 CAP 10-2200
C616 87-010-376-090 CAP 10-2200
C621 87-010-260-080 CAP, ELECT 47-25V
C622 87-010-387-080 CAP,E 470-25 SME
C625 87-010-405-080 CAP, ELECT 10-50V
C641 87-010-248-080 CAP, ELECT 220-10V
C720 87-010-405-080 CAP, ELECT 10-50V
C721 87-010-928-090 CAP,E 4700-25 SMG
C722 87-010-385-080 CAP, ELECT 220-25V
C723 87-010-248-080 CAP, ELECT 220-10V
C724 87-A10-182-010 CAP,CER 0.01-50 Z F
C726 87-010-404-080 CAP, ELECT 4.7-50V
C727 87-010-401-080 CAP, ELECT 1-50V
C728 87-010-221-080 CAP, ELECT 470-10V
C729 87-010-263-080 CAP, ELECT 100-10V
C730 87-010-248-080 CAP, ELECT 220-10V
C741 87-010-263-080 CAP, ELECT 100-10V
C831 87-010-265-080 CAP, ELECT 33-16V
C832 87-010-401-080 CAP, ELECT 1-50V
CF1 87-008-261-010 FILTER, SFE10.7MA5-A
CF101 87-008-261-010 FILTER, SFE10.7MA5-A
CN302 86-CT4-620-010 CONN ASSY,5P RPH
CN751 86-CT4-621-010 CONN ASSY,9P DECK
CN803 87-009-882-010 CONN,8P TKC-T H(F)
CN804 87-009-882-010 CONN,8P TKC-T H(F)
CN901 87-A60-383-010 CONN,6P TIX-P V1
CT51 87-011-220-080 TRIMMER CAP 20P VTC
!IC602 87-001-132-010 FUSE, ICP-N38
IFT101 87-008-470-010 IFT FM (QUAD) PS
J601 87-009-216-010 JACK, DIA 3.5
J602 87-A60-217-010 TERMINAL,SPKR 4P
J801 87-099-715-010 JACK,PIN 2P
L1 87-003-133-010 COIL,0.22UH
L2 87-A50-046-010 COIL,RF FM5-1/2 TS
L3 87-006-217-010 COIL,RF FM 4-1/2TS
L4 87-005-847-080 COIL,2.2UH(CECS)
L5 87-006-217-010 COIL,RF FM 4-1/2TS
L52 87-007-301-010 COIL,OSC MW,PS
L61 86-CT4-609-010 BAR ANT,AM
L151 87-A50-073-080 COIL,4.70UH (CECS)
L152 87-A50-083-080 COIL,47UH (CECS)
L191 87-A50-094-010 COIL,OSCDC-DC 796KHZ
L192 87-A50-087-080 COIL,100UH (CECS)
L301 87-007-322-010 COIL OSC BIAS 61 KHZ
L601 87-A50-067-080 COIL,1.00UH (CECS)
L602 87-A50-067-080 COIL,1.00UH (CECS)
MFT101 87-008-460-010 FLTR,CFMT 450PS
PN301 87-A60-110-010 CONN,4P V S2M-4W
PN302 87-A60-111-010 CONN,5P V S2M 5W
PN701 87-A60-110-010 CONN,4P V S2M-4W
PN751 87-A60-037-010 CONN,9P V S2M-9W
PN801 87-099-854-010 CONN,6P S2M-6W
R607 87-022-480-080 RES,NF 2.2-1/4W J
R608 87-022-480-080 RES,NF 2.2-1/4W J
R821 87-022-480-080 RES,NF 2.2-1/4W J
R822 87-022-480-080 RES,NF 2.2-1/4W J
SFR101 87-024-173-080 SEMI-FIXED RESISTOR, 22K
SFR102 87-024-172-080 SEMI-FIXED RESISTOR, 10K
SFR751 87-024-169-080 SEMI-FIXED RESISTOR, 2.2K
SW301 87-A90-089-010 SW,SL 1-6-2
VC1 87-002-730-080 VARI-CAP,SVC203SPA
VC2 87-002-730-080 VARI-CAP,SVC203SPA
VC3 87-002-730-080 VARI-CAP,SVC203SPA
VC52 81-754-634-010 VARI-CAP, KV1260
X101 87-A70-040-010 VIB,CER457
X151 87-030-243-010 VIB X’TAL 7.2MHZ
FRONT C.B
C401 87-A10-165-010 CAP,CER 120P-50 K SL
C402 87-A10-178-010 CAP,CER 2200P-50 M D
C404 87-A10-166-010 CAP,CER 150P-50 K B
C405 87-010-401-080 CAP, ELECT 1-50V
C406 87-010-545-080 CAP, ELECT 0.22-50V
C407 87-A10-176-010 CAP,CER 1000P-50 M D
C408 87-010-401-080 CAP, ELECT 1-50V
C409 87-A10-176-010 CAP,CER 1000P-50 M D
C410 87-010-248-080 CAP, ELECT 220-10V
C411 87-010-374-080 CAP, ELECT 47-10V
C412 87-010-405-080 CAP, ELECT 10-50V
C501 87-010-248-080 CAP, ELECT 220-10V
C503 87-010-401-080 CAP, ELECT 1-50V
C504 87-010-400-080 CAP, ELECT 0.47-50V
C506 87-A10-140-010 CAP,CER 22P-50 K CH
C507 87-A10-140-010 CAP,CER 22P-50 K CH
C508 87-A10-159-010 CAP,CER 39P-50 K SL
C509 87-A10-160-010 CAP,CER 47P-50 K SL
C510 87-A10-158-010 CAP,CER 33P-50 K SL
C512 87-A10-176-010 CAP,CER 1000P-50 M D
C513 87-010-405-080 CAP, ELECT 10-50V
C517 87-010-263-080 CAP, ELECT 100-10V
C518 87-010-545-080 CAP, ELECT 0.22-50V
C519 87-A10-176-010 CAP,CER 1000P-50 M D
C520 87-A10-182-010 CAP,CER 0.01-50 Z F
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.

6
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C521 87-010-374-080 CAP, ELECT 47-10V
C522 87-010-374-080 CAP, ELECT 47-10V
CN501 87-009-878-010 CONN,6P TKC-T H (M)
CN502 87-009-879-010 CONN,8P TKC-TH(M)
CN503 87-009-879-010 CONN,8P TKC-TH(M)
CON902 86-CT4-641-010 CONN,1P PIN
D514 87-A40-162-010 LED,L-1154SRD
D519 87-A40-162-010 LED,L-1154SRD
D520 87-A40-162-010 LED,L-1154SRD
D521 87-A40-162-010 LED,L-1154SRD
D522 87-A40-162-010 LED,L-1154SRD
D523 87-A40-162-010 LED,L-1154SRD
D524 87-A40-162-010 LED,L-1154SRD
D525 87-A40-162-010 LED,L-1154SRD
D526 87-A40-162-010 LED,L-1154SRD
D527 87-A40-162-010 LED,L-1154SRD
D528 87-A40-162-010 LED,L-1154SRD
D529 87-A40-161-010 LED,L-1154SGD
D530 87-A40-161-010 LED,L-1154SGD
D531 87-A40-161-010 LED,L-1154SGD
D532 87-A40-161-010 LED,L-1154SGD
D533 87-A40-161-010 LED,L-1154SGD
D534 87-A40-161-010 LED,L-1154SGD
D535 87-A40-161-010 LED,L-1154SGD
D536 87-A40-161-010 LED,L-1154SGD
D537 87-A40-161-010 LED,L-1154SGD
D550 87-A40-161-010 LED,L-1154SGD
J401 82-NF7-630-010 JACK,3.5 MO
L401 87-A50-067-080 COIL,1.00UH (CECS)
L500 87-003-171-010 COIL,15UH TROIDAL
L501 87-005-849-080 COIL,10UH(CECS)
L502 87-003-171-010 COIL,15UH TROIDAL
LCD501 86-CT4-601-010 LCD,6CT-4
SW570 87-A90-483-080 SW,TACT TS2101
SW571 87-A90-483-080 SW,TACT TS2101
SW572 87-A90-483-080 SW,TACT TS2101
SW573 87-A90-483-080 SW,TACT TS2101
SW574 87-A90-483-080 SW,TACT TS2101
SW575 87-A90-483-080 SW,TACT TS2101
SW576 87-A90-483-080 SW,TACT TS2101
SW577 87-A90-483-080 SW,TACT TS2101
SW581 87-A90-483-080 SW,TACT TS2101
SW582 87-A90-483-080 SW,TACT TS2101
SW583 87-A90-483-080 SW,TACT TS2101
SW584 87-A90-483-080 SW,TACT TS2101
SW585 87-A90-483-080 SW,TACT TS2101
SW586 87-A90-483-080 SW,TACT TS2101
SW587 87-A90-483-080 SW,TACT TS2101
SW588 87-A90-483-080 SW,TACT TS2101
SW589 87-A90-483-080 SW,TACT TS2101
VR401 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN
X501 87-030-273-010 VIB,XTAL 32.768K5PPM
X502 87-A70-018-080 VIB,CER 6.00MHZ MG200
CD C.B
C1 87-010-403-080 CAP, ELECT 3.3-50V
C4 87-010-248-080 CAP, ELECT 220-10V
C6 87-010-374-080 CAP, ELECT 47-10V
C9 87-010-263-080 CAP, ELECT 100-10V
C10 87-010-263-080 CAP, ELECT 100-10V
C12 87-010-401-080 CAP, ELECT 1-50V
C14 87-010-405-080 CAP, ELECT 10-50V
C16 87-010-545-080 CAP, ELECT 0.22-50V
C17 87-A10-170-010 CAP,CER 330P-50 K B
C30 87-A10-168-010 CAP,CER 220P-50 K B
C31 87-010-400-080 CAP, ELECT 0.47-50V
C32 87-010-263-080 CAP, ELECT 100-10V
C33 87-010-402-080 CAP, ELECT 2.2-50V
C36 87-010-374-080 CAP, ELECT 47-10V
C37 87-010-404-080 CAP, ELECT 4.7-50V
C40 87-A10-127-010 CAP,CER 1P-50 K CH
C42 87-A10-140-010 CAP,CER 22P-50 K CH
C48 87-A10-157-010 CAP,CER 27P-50 K SL
C50 87-A10-172-010 CAP,CER 470P-50 K B
C54 87-A10-168-010 CAP,CER 220P-50 K B
C57 87-A10-140-010 CAP,CER 22P-50 K CH
C58 87-A10-140-010 CAP,CER 22P-50 K CH
C59 87-010-263-080 CAP, ELECT 100-10V
C62 87-010-374-080 CAP, ELECT 47-10V
C63 87-010-405-080 CAP, ELECT 10-50V
C64 87-010-405-080 CAP, ELECT 10-50V
C65 87-A10-170-010 CAP,CER 330P-50 K B
C66 87-A10-170-010 CAP,CER 330P-50 K B
C68 87-010-401-080 CAP, ELECT 1-50V
C69 87-A10-166-010 CAP,CER 150P-50 K B
C76 87-A10-102-080 CAP,E 1000-10 REA
C77 87-010-263-080 CAP, ELECT 100-10V
C81 87-010-404-080 CAP, ELECT 4.7-50V
C82 87-010-221-080 CAP, ELECT 470-10V
C84 87-010-263-080 CAP, ELECT 100-10V
C89 87-010-263-080 CAP, ELECT 100-10V
CON1 86-CT4-623-010 CONN ASSY,6P CD 1
CON2 88-802-082-220 CONN ASSY,8P
CON3 88-802-092-230 CONN ASSY,9P
CON6 88-802-062-660 CONN ASSY,6P
FB1 87-008-474-080 F-BEAD,EMI BL02RN1
FB2 87-008-372-080 FILTER, EMI BL OIRNI
FB3 87-008-372-080 FILTER, EMI BL OIRNI
PIN4 87-A60-109-010 CONN,2P V S2M-2W
X1 81-592-641-080 CERALOCK 16.93MHZ
POWER C.B
!F701 87-035-488-010 FUSE,3.15A 125V D UL
!FC701 87-A90-160-080 FUSE CLAMP,FC 51F
!FC702 87-A90-160-080 FUSE CLAMP,FC 51F
DRIVE C.B
M3 87-045-356-010 MOT,RF-310A 30
PIN3 87-009-352-010 CONN,9P PH H
SW1 87-036-110-010 PUSH SWITCH
SW2 87-036-110-010 PUSH SWITCH
DOOR SW C.B
SW3 87-036-292-010 SW,LEAF LSA-1135FAU
Q-SOUND C.B
C901 87-010-382-080 CAP, ELECT 22-25V
C902 87-010-382-080 CAP, ELECT 22-25V
C907 87-010-374-080 CAP, ELECT 47-10V
C909 87-010-263-080 CAP, ELECT 100-10V
C910 87-010-405-080 CAP, ELECT 10-50V

7
TRANSISTOR ILLUSTRATION
2SA952
2SA1296
2SA1318
2SC1815
2SC1923
2SC2001
2SC2240
2SA933S
2SC1740S
2SD1468
DTA114TS
DTA114YS
DTA124XS
DTA143ES
DTC114TS
DTC124XS
DTC143ES
2SB1370
2SK161 2SK246
E C B
E C B B C E
D S G S G D

8
IC BLOCK DIAGRAMS
IC, MM1354AJ
IC, BU2092 IC,BU4052BC
IC, TA8162S
IC, LA1851N

9
IC, M62412P IC, LC7533
IC, LC7218 IC,BA3416BL

10
IC, BU4094BCP
IC, TA8176SN/F
IC, TA8102P IC, TA2092N

1211
<TUNER SECTION>
1. AM VT Adjustment
Settings: • Test point: TP1
• Adjustment location: L52
Method: Set to AM 530 kHz adjust L52 so that the test point
becomes 1.3 V ± 0.05 V.
2. AM Tracking Adjustment
L61............................................................................... 600 kHz
CT51 .......................................................................... 1400 kHz
3. FM VT Adjustment
Settings: • Test point: TP1
• Adjustment location: L5
Method: Set to FM 87.5 MHz adjust L5 so that the test point
becomes 4.0 V ± 0.3 V.
4. FM Tracking Adjustment
L2, L3 ...................................................................... 87.5 kMHz
5. DC balance/ MONO Distortion Adjustment
Settings: • Test point: TP2, TP3
• Adjustment location: IFT101
• Input level: 60 dB
Method: Set to FM 98.0 MHz and adjust IFT101 so that the
voltage between TP2 and TP3 becomes 0 V ± 0.02 V.
6. AM tuning Adjustment
Settings: • Adjustment location: SFR102
Method: Make setup for AM 1400 kHz. Adjust SFR102 so that
the machine performs Auto Stop when 50 ± 2 dB is
input.
* Confirm that TP4 is “L” at this time.
7. FM tuning Adjustment
Settings: • Adjustment location: SFR101
Method: Make setup for FM 98.0 MHz. Adjust SFR101 so that
the machine performs Auto Stop when 33 ± 2 dB is
input.
* Confirm that TP4 is “L” at this time.
<TAPE SECTION>
8. Tape Speed Adjustment (DECK1)
Settings: • Test tape: TTA-100
• Adjustment location: SFR751
Method: Play back the test tape with DECK1 and adjust SFR751
so that the output frequency is 3000 Hz. After the ad-
justment, check that the frequency of DECK2 is 3000
± 45 Hz.
9. Azimuth Adjustment (DECK1, DECK2)
Settings: • Test tape: TTA-320
• Adjustment location:
Head azimuth adjustment screw
Method: Play back the 10 kHz signal of test tape and adjust
screw so that the output becomes maximum.
10. Bias OSC Fequency Adjustment
Settings:• Test tape: TTA-601
• Adjustment location: L301
• Test point: TP301
Method: Set to the REC mode. Adjust L301 so that thr fre-
quency counter of the test point becomes 71.5 kHz ±
0.5 kHz

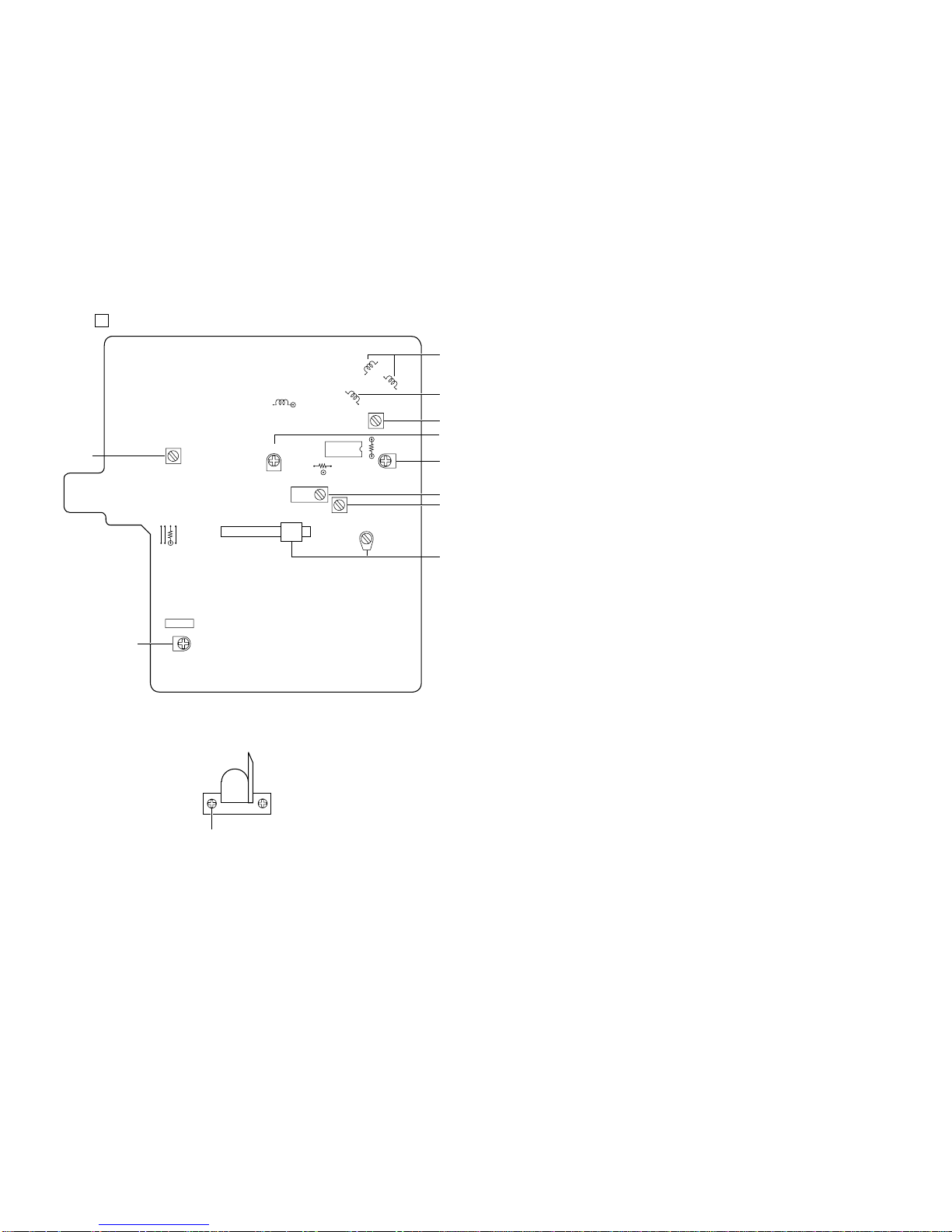

PRACTICAL SERVICE FIGURE
<RADIO SECTION>
<FM>
Frequency range: 87.5 ~ 108.0 MHz
IHF Sensitivity: 18.0 ± 5.0 dB (at 87.5 MHz)
(Distortion 3%): 19.0 ± 5.0 dB (at 98.0, 108.0 MHz)
S/N ratio: 60 ± 5.0 dB (at 98.0 MHz)
Intermediate frequency: 10.7 MHz
Stereo separation: More than 20 dB
<AM>
Frequency range: 530 ~ 1710 kHz
Sensitivity: 50 ± 5 dB (at 600 kHz)
45 ± 5 dB (at 1000 kHz)
43 ± 5 dB (at 1400 kHz)
Intermediate frequency: 450 kHz
+40
–45
<TAPE RECORDER SECTION>
Recording bias frequency: 71.5 ± 0.5 kHz
Erasing ratio (400 Hz, 0 dB): More than 60 dB
Distortion (T. H. D 10%): Less than 3.0% (PB)
S/N ratio: More than 40 dB (AC/DC, PB)
More than 37 dB (AC, REC/PB)
Noise (PB) Less than 1 mV/0.6 mV
(AC/DC, MIN)
Tape speed: 3000 ± 90 Hz
Wow & flutter: Less than 0.4% (JIS UN WTD)
Take-up torque: 45 ± 15 g-cm
F.F & REW torque 100 g-cm
ADJUSTMENT
0
8
4
3
5
6
7
5
1
2
L152
L301
MFT101
IC101
SFR102
L52
L61
SFR101
R102
R107
SFR751
IFT101
PN751
TP1
TP2
TP3
TP4
L5
L3
L2
91
A MAIN C.B
RPH (DECK1)/PH(DECK2)
TP301
R334 CT51
9
BAR ANT.

1413
BLOCK DIAGRAM-1 (TUNER SECTION)

1615
BLOCK DIAGRAM-2 (MAIN SECTION)

1817
SCHEMATIC DIAGRAM-1 (MAIN SECTION)

12345678910 11 12 13 14
A
B
C
D
E
F
G
H
I
J
2019
WIRING-1 (MAIN SECTION)
AC120V
60Hz

2221
SCHEMATIC DIAGRAM-2 (FRONT SECTION)

12345678910 11 12 13 14
A
B
C
D
E
F
G
H
I
J
2423
WIRING-2 (FRONT SECTION)
Q SOUND
GEQ
GEQ OFF
D523
JAZZ D524
POP D525
ROCK D514
Q SOUND
(GEQ)

2625
SCHEMATIC DIAGRAM-3 (CD SECTION)

12345678910 11 12 13 14
A
B
C
D
E
F
G
H
I
J
2827
WIRING-3 (CD SECTION)

3029
SCHEMATIC DIAGRAM-4 (Q-SOUND SETION) IC DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30, 31
32, 33
34
35
FIN2
FIN1
E
F
TB
TE–
TE
TESI
SCI
TH
TA
TD–
TD
JP
TO
FD
FD–
FA
FA–
FE
FE–
A–GND
SP
SPI
SPG
SP–
SPD
SLEQ
SLD
SL–, SL+
JP–, JP+
TGL
TOFF
I
I
I
I
I
I
O
I
I
I
O
I
I
I
O
O
I
I
I
O
I
—
O
O
I
I
O
I
O
I
I
I
I
Pin to which external pickup photo diode is connected. RF signal is created by adding
with the FIN1 pin signal. FE signal is created by subtracting from the FIN1 pin signal.
Pin to which external pickup photo diode is connected.
Pin to which external pickup photo diode is connected. TE signal is created by
subtracting from the F pin signal.
Pin to which external pickup photo diode is connected.
DC component of the TE signal is input.
Pin to which external resistor setting the TE signal gain is connected between the TE pin.
TE signal output pin.
TES “Track Error Sense” comparator input pin. TE signal is passed through a band-
pass filter then input.
Shock detection signal input pin.
Tracking gain time constant setting pin.
TA amplifier output pin.
Pin to which external tracking phase compensation constants are connected between
the TD and VR pins.
Tracking phase compensation setting pin.
Tracking jump signal (kick pulse) amplitude setting pin.
Tracking control signal output pin.
Focusing control signal output pin.
Pin to which external focusing phase compensation constants are connected between
the FD and FA pins.
Pin to which external focusing phase compensation constants are connected between
the FD– and FA– pins.
Pin to which external focusing phase compensation constants are connected between
the FA and FE pins.
FE signal output pin.
Pin to which external FE signal gain setting resistor is connected between the FE pin.
Analog signal GND.
Single ended output of the CV+ and CV– pin input signal.
Single ended output of the CV+ and CV– pin input signal.
Pin to which external spindle gain setting resistor in 12 cm mode is connected.
Pin to which external spindle phase compensation constants are connected together
with SPD pin.
Spindle control signal output pin.
Pin to which external sled phase compensation constants are connected.
Sled control signal output pin.
Sled advance signal input pin from microprocessor.
Tracking jump signal input pin from DSP.
Tracking gain control signal input from DSP. Low gain when TGL = H.
Tracking off control signal input pin from DSP. Off when TOFF = H.
IC, LA9240M
Pin No. Pin Name I/O Description
Table of contents
Other Aiwa Speakers System manuals
