Aiwa SX-STV10 User manual

SPEAKER SYSTEM
SX-STV10
S/M Code No. 09-99A-336-3N1
Y
SERVICE MANUAL
DATA
SPECIFICATIONS
•
Design and specifications are
subject to change without
notice.

2
1 8Z-YS5-005-010 CABI,FR
2 8Z-YS5-001-010 PANEL,FR
3 8Z-YS5-002-010 PANEL,REAR
4 8Z-YS5-003-010 PANEL,DUCT
5 8Z-YS5-601-010 SPKR,W 160 8OHM 75W
6 8Z-NSY-003-010 CORD,BUSH
7 8Z-YS5-602-010 CORD,DIN5PIN
MECHANICAL EXPLODED VIEW 1/1
REF. NO PART NO. KANRI DESCRIPTION
NO.
MECHANICAL PARTS LIST 1/1
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange
COLOR NAME TABLE

3

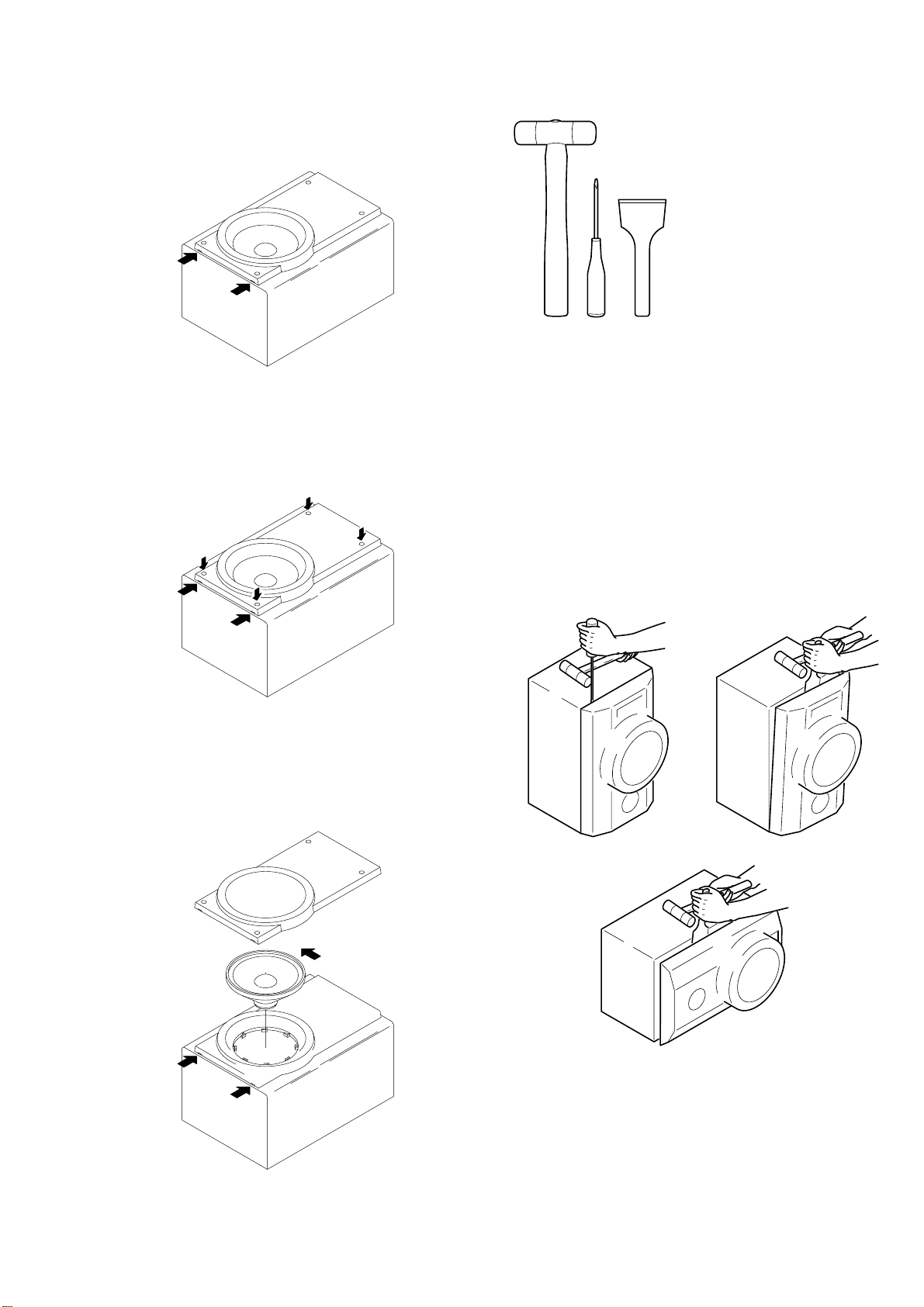

SPEAKER DISASSEMBLY INSTRUCTIONS
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Remove the screws of each speaker
unit andthen remove the speaker units.
Remove the grill frame and four pieces of rubber caps by pulling
out with a flat-bladed screwdriver. Remove the screws from hold
where installed rubber caps. Insert a flat-bladed screwdriver into
the position indicated by the arrows and remove the panel. Re-
move the screws of each speaker unit and then remove the speaker
units.
Insert a flat-bladed screwdriver into the position indicated by the
arrows and remove the panel. Turn the speaker unit to counter-
clockwise direction while inserting a flat-bladed screwdriver into
one of the hollows arround speaker unit, and then remove the speaker
unit. After replacing the speaker unit, install it turnning to clock-
wise direction unitil "click" sound comes out.
Type.1
Type.3
Type.2
TOOLS
1Plastic head hammer
2(-) flat head screwdriver
3Cut chisel
How to Remove the PANEL, FR
1. Insert the (-) flat head screwdriver tip into the gap
between the PANEL, FR and the PANEL, SPKR. Tap
the head of the (-) flat head screwdriver with the plastic
hammer head, and create the clearance as shown in Fig-1.
2. Insert the cut chisel in the clearance, and tap the head of
the cut chisel with plastic hammer as shown in Fig-2, to
remove the PANEL, FR.
3. Place the speaker horizontally. Tap head of the cut
chisel with plastic hammer as shown in Fig-3, and
remove the PANEL, FR completely.
Type.4
Fig-1 Fig-2
Fig-3
How to Attach the PANEL, FR
Attach the PANEL, FR to the PANEL, SPKR. Tap the four
corners of the PANEL, FR with the plastic hammer to fit the
PANEL, FR into the PANEL, SPKR completely.
1 2 3

920074 Printed in Singapore
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]
1 8Z-YS5-901-010 IB,Y (E,S,R,G,A,PE) BASS
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
