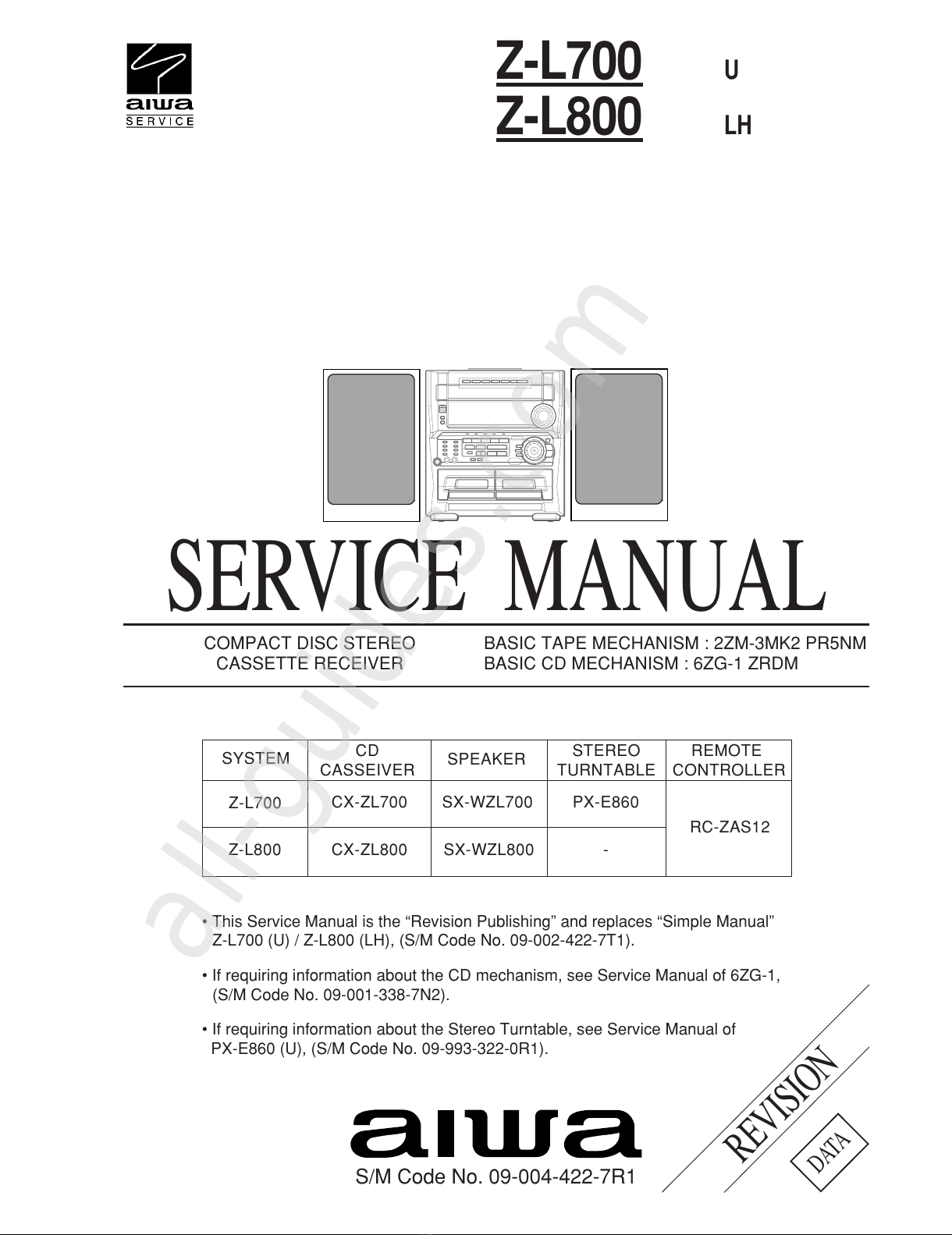

Aiwa CX-ZL800 User manual

SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER
BASIC TAPE MECHANISM : 2ZM-3MK2 PR5NM
BASIC CD MECHANISM : 6ZG-1 ZRDM
Z-L700
Z-L800
U
LH
S/M Code No. 09-004-422-7R1
REVISION
• If requiring information about the CD mechanism, see Service Manual of 6ZG-1,
(S/M Code No. 09-001-338-7N2).
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
Z-L700 (U) / Z-L800 (LH), (S/M Code No. 09-002-422-7T1).
Z-L700
SPEAKER
SYSTEM CD
CASSEIVER
SX-WZL700CX-ZL700
RC-ZAS12
STEREO
TURNTABLE
Z-L800 CX-ZL800 SX-WZL800
REMOTE
CONTROLLER
PX-E860
-
• If requiring information about the Stereo Turntable, see Service Manual of
PX-E860 (U), (S/M Code No. 09-993-322-0R1).
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output U : 40 W + 40 W
(200 Hz to 20 kHz, T.H.D. less than
1 %, 8 ohms)
LH : Rated 37 W + 37 W
(1 kHz, T.H.D. 1 %, 8 ohms)
Reference : 45 W + 45 W (8 ohms,
T.H.D. 10 %, 1 kHz)
Total harmonic distortion U : 0.15 % (15 W, 1 kHz, 8 ohms)
Low frequency amplifier
Power output U : 120 W + 120 W
(50 Hz to 200 Hz, T.H.D. less than
1 %, 6 ohms)
LH : Rated 110 W + 110 W
(75 Hz, T.H.D. 1 %, 6 ohms)
Reference : 135 W + 135 W (6 ohms,
T.H.D. 10 %, 75 Hz)
Total harmonic distortion U : 0.15 % (60 W, 75 Hz, 6 ohms)
LH : 0.15 % (45 W, 75 Hz, 6 ohms)
Inputs VIDEO / AUX: 310 mV (adjustable)
PHONO : 400 mV (47 kohms)
MIC 1,MIC 2 : 1.4 mV (20 kohms)
Outputs CD DIGITAL OUT (OPTICAL)
SPEAKERS HIGH FREQ : accept
speakers of 8 ohms or more
SPEAKERS LOW FREQ : accept
speakers of 6 ohms or more
SURROUND SPEAKERS : accept
speakers of 8 – 16 ohms or more
PHONES (stereo jack): accepts
headphones of 32 ohms or more
<Compact disc player section>
Laser Semiconductor laser (λ = 780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape : 50 Hz – 16000 Hz
Normal tape : 50 Hz – 15000 Hz
Signal-to-noise ratio 50 dB (CrO2tape peak level,
above 400 Hz)
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording / Playback /
erase head x 1
SPECIFICATIONS
<Speaker system SX–WZL700 (U)>
Cabinet type 3 way, built-in subwoofer
Speakers Subwoofer :
200 mm (77/8in.) cone type
Full range :
120 mm (43/4in.) cone type
Super tweeter:
60 mm (23/8in.) ceramic type
Impedance 6 ohms / 8 ohms
Output sound pressure level 88 dB/W/m
Dimensions 260 x 495 x 355 mm
(W xH xD) (101/4x 191/2x 14 in.)
Weight 8.5 kg (18 lbs 12 oz.)
<Speaker system SX–WZL800 (LH)>
Cabinet type 3 way, built-in subwoofer
Speakers Subwoofer :
200 mm (77/8in.) cone type
Full range :
120 mm (43/4in.) cone type
Super tweeter:
60 mm (23/8in.) cone type
Impedance 6 ohms / 8 ohms
Output sound pressure level 88 dB/W/m
Dimensions 260 x 495 x 355 mm
(W xH xD) (101/4x 191/2x 14 in.)
Weight 8.5 kg (18 lbs 12 oz.)
<General>
Power requirements U : 120 V AC, 60 Hz
LH : 120 V / 220 – 230 V / 240 V AC,
(switchable), 50 / 60 Hz
Power consumption U : 210 W
LH : 240 W
Power consumption With power-economizing
in standby mode (LH) mode off : 45 W
With power-economizing
mode on : 0.9 W
Dimensions of main unit 360 x 395.3 x 402.3 mm
(W xH xD) (141/4x 155/8x 157/8in.)
Weight of main unit U : 12.5 kg (27 lbs 9 oz.)
LH : 12.4 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
All manuals and user guides at all-guides.com

– 3 –
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder
All manuals and user guides at all-guides.com

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
All manuals and user guides at all-guides.com

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.

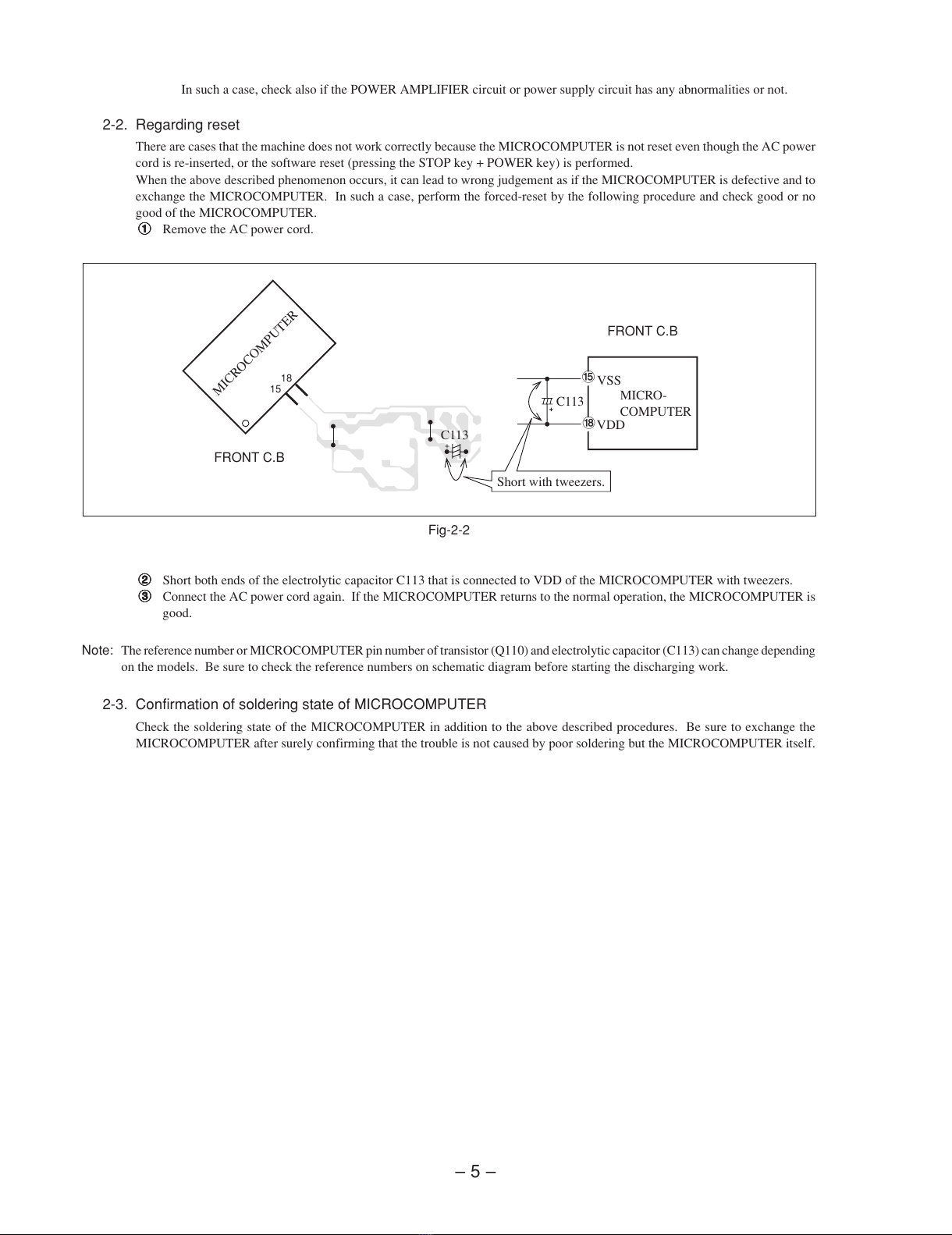

2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113
*
%
C113
18
15
Short with tweezers.
All manuals and user guides at all-guides.com

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-MA3-656-010 C-IC,LC876580W-5P55
87-A21-418-010 IC,STK490-340<8LH>
87-A21-397-010 IC,STK490-070
87-A21-021-040 C-IC,BU2099FV
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-A21-482-010 IC,RPM6938-H4
87-A21-018-040 C-IC,M65849BFP631D<8LH>
87-A21-452-010 C-IC,BD3876KS2
87-070-289-040 IC,BU 2092F
87-A21-415-010 IC,LA1843
87-A21-051-040 C-IC,BU9990-03FS<8LH>
87-070-127-110 IC,LC72131 D
87-020-454-010 IC,DN6851
TRANSISTOR
87-026-609-080 TR,KTA1266GR
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-318-080 TR,CSA952K
89-213-702-010 TR,2SB1370E
87-A30-218-080 TR,2SB1237Q
87-A30-257-080 C-TR,2SD1306E
87-A30-107-070 C-TR,CMBT5401
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-484-080 C-TR,KRA 102S
87-A30-269-040 C-FET,2SJ461-T1
87-A30-190-080 TR,CC5551<7U>
87-A30-087-080 C-FET,2SK2158
87-A30-097-010 TR,FN 1016<7U>
87-A30-468-080 C-TR,KRC 102S-RTK
87-A30-098-010 TR,FP 1016<7U>
87-A30-106-070 C-TR,CMBT5551<8LH>
87-A30-106-040 C-TR,CMBT5551<7U>
87-A30-107-080 C-TR,CMBT5401
87-A30-073-080 C-TR,RT1N 141C
87-A30-329-080 TR,CD1585BC
87-A30-063-080 C-TR,KRA 104S
87-A30-074-080 C-TR,RT1P 141C<7U>
87-A30-186-010 FET,2SK3053<7U>
89-327-143-080 TR,2SC2714O(0.1W)
87-A30-489-080 C-TR,KRA107S
87-A30-234-080 TR,CSC4115BC
87-026-463-080 TR,2SA933SRS
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-673-090 DIODE,D10XB20
87-A40-553-080 DIODE,1N4003 LES
87-A40-780-080 ZENER,UZ33BSD
87-A40-736-080 DIODE,1N4148M(SEM)
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ 16BSA
87-017-447-010 DIODE,GBU4DL
87-017-154-080 ZENER,HZS6C3L
87-020-331-080 CHIP-DIODE,DAN202K
87-017-654-060 DIODE,GBU6J
87-A40-488-080 DIODE,1SS244<7U>
87-A40-751-080 ZENER,UZ6.2BSB
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-646-010 DIODE,FMB-G16L<7U>
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-749-080 ZENER,UZ5.6BSB<8LH>
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-A10-712-080 C-CAP,S 0.22-50 F
C4 87-A10-712-080 C-CAP,S 0.22-50 F
C21 87-016-035-090 CAP, E 6800-35 VR
C22 87-016-035-090 CAP, E 6800-35 VR
C25 87-016-300-080 CAP, ELECT 22-100
C26 87-016-300-080 CAP, ELECT 22-100
C27 87-016-300-080 CAP, ELECT 22-100
C28 87-016-300-080 CAP, ELECT 22-100
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01-25
C33 87-010-263-080 CAP, ELECT 100-10V<7U>
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-380-080 CAP, ELECT 47-16V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-385-080 CAP, ELECT 220-25V
C39 87-010-385-080 CAP, ELECT 220-25V
C40 87-010-197-080 CAP, CHIP 0.01-25
C60 87-010-403-080 CAP, ELECT 3.3-50V
C61 87-010-260-080 CAP, ELECT 47-25V
C80 87-010-401-080 CAP, ELECT 1-50V
C81 87-010-374-080 CAP, ELECT 47-10V
C82 87-010-380-080 CAP, ELECT 47-16V
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C105 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-401-080 CAP, ELECT 1-50 M<8LH>
C112 87-010-401-080 CAP, ELECT 1-50 M<8LH>
C113 87-010-545-080 CAP, ELECT 0.22-50V
C114 87-010-545-080 CAP, ELECT 0.22-50V
C115 87-010-546-080 CAP, ELECT 0.33-50V
C116 87-010-546-080 CAP, ELECT 0.33-50V
C117 87-010-196-080 CHIP CAPACITOR,0.1-25
C121 87-010-404-080 CAP, ELECT 4.7-50V
C122 87-010-404-080 CAP, ELECT 4.7-50V
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C309 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022-25
C312 87-010-198-080 CAP, CHIP 0.022-25
C313 87-010-178-080 CHIP CAP 1000P-50
C314 87-010-178-080 CHIP CAP 1000P-50
C315 87-010-178-080 CHIP CAP 1000P-50
C316 87-010-178-080 CHIP CAP 1000P-50
C321 87-012-142-080 CAP, S 0.33-16
C322 87-012-142-080 CAP, S 0.33-16
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
All manuals and user guides at all-guides.com
all-guides.com

– 7 –

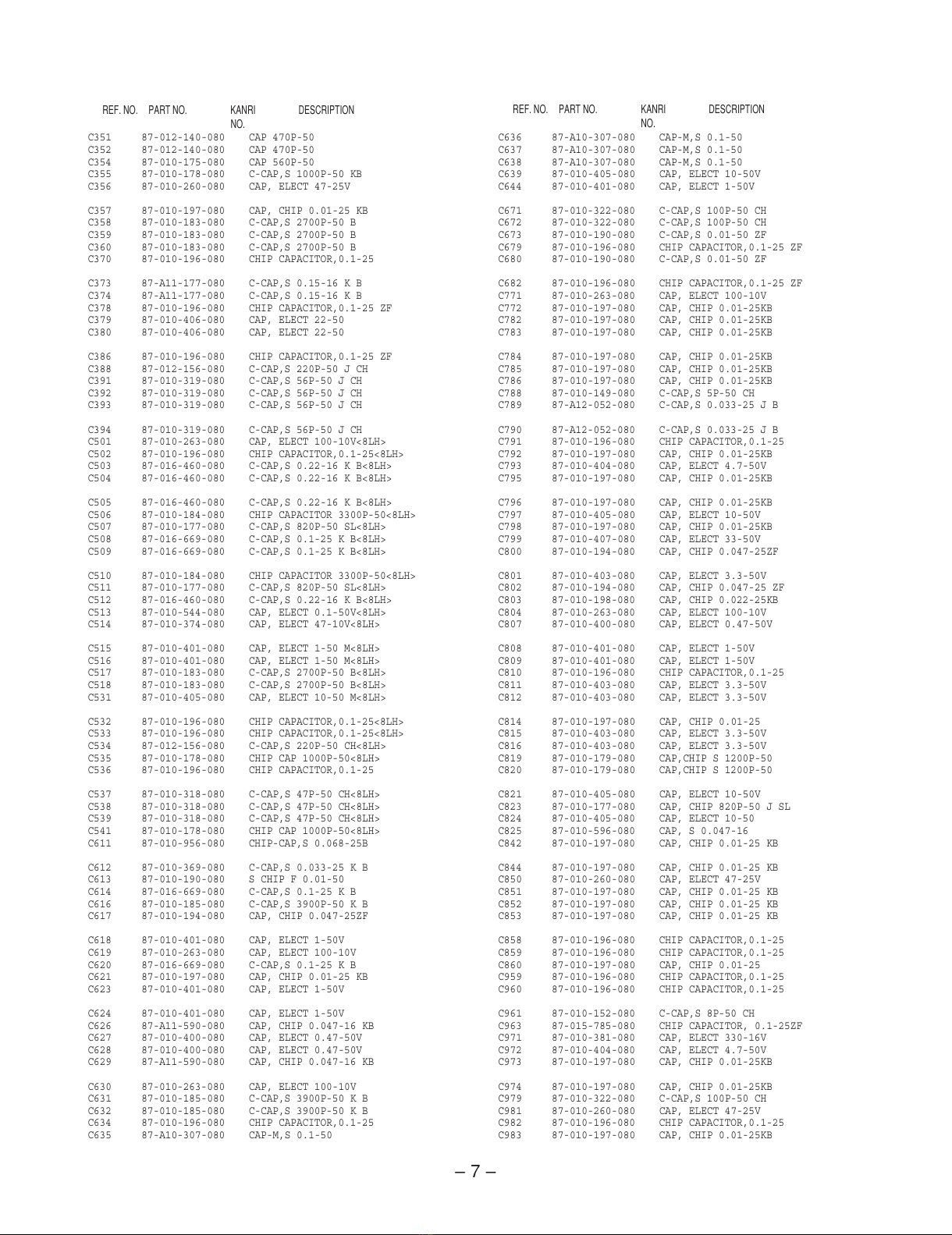

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C351 87-012-140-080 CAP 470P-50
C352 87-012-140-080 CAP 470P-50
C354 87-010-175-080 CAP 560P-50
C355 87-010-178-080 C-CAP,S 1000P-50 KB
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01-25 KB
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C373 87-A11-177-080 C-CAP,S 0.15-16 K B
C374 87-A11-177-080 C-CAP,S 0.15-16 K B
C378 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C379 87-010-406-080 CAP, ELECT 22-50
C380 87-010-406-080 CAP, ELECT 22-50
C386 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C388 87-012-156-080 C-CAP,S 220P-50 J CH
C391 87-010-319-080 C-CAP,S 56P-50 J CH
C392 87-010-319-080 C-CAP,S 56P-50 J CH
C393 87-010-319-080 C-CAP,S 56P-50 J CH
C394 87-010-319-080 C-CAP,S 56P-50 J CH
C501 87-010-263-080 CAP, ELECT 100-10V<8LH>
C502 87-010-196-080 CHIP CAPACITOR,0.1-25<8LH>
C503 87-016-460-080 C-CAP,S 0.22-16 K B<8LH>
C504 87-016-460-080 C-CAP,S 0.22-16 K B<8LH>
C505 87-016-460-080 C-CAP,S 0.22-16 K B<8LH>
C506 87-010-184-080 CHIP CAPACITOR 3300P-50<8LH>
C507 87-010-177-080 C-CAP,S 820P-50 SL<8LH>
C508 87-016-669-080 C-CAP,S 0.1-25 K B<8LH>
C509 87-016-669-080 C-CAP,S 0.1-25 K B<8LH>
C510 87-010-184-080 CHIP CAPACITOR 3300P-50<8LH>
C511 87-010-177-080 C-CAP,S 820P-50 SL<8LH>
C512 87-016-460-080 C-CAP,S 0.22-16 K B<8LH>
C513 87-010-544-080 CAP, ELECT 0.1-50V<8LH>
C514 87-010-374-080 CAP, ELECT 47-10V<8LH>
C515 87-010-401-080 CAP, ELECT 1-50 M<8LH>
C516 87-010-401-080 CAP, ELECT 1-50 M<8LH>
C517 87-010-183-080 C-CAP,S 2700P-50 B<8LH>
C518 87-010-183-080 C-CAP,S 2700P-50 B<8LH>
C531 87-010-405-080 CAP, ELECT 10-50 M<8LH>
C532 87-010-196-080 CHIP CAPACITOR,0.1-25<8LH>
C533 87-010-196-080 CHIP CAPACITOR,0.1-25<8LH>
C534 87-012-156-080 C-CAP,S 220P-50 CH<8LH>
C535 87-010-178-080 CHIP CAP 1000P-50<8LH>
C536 87-010-196-080 CHIP CAPACITOR,0.1-25
C537 87-010-318-080 C-CAP,S 47P-50 CH<8LH>
C538 87-010-318-080 C-CAP,S 47P-50 CH<8LH>
C539 87-010-318-080 C-CAP,S 47P-50 CH<8LH>
C541 87-010-178-080 CHIP CAP 1000P-50<8LH>
C611 87-010-956-080 CHIP-CAP,S 0.068-25B
C612 87-010-369-080 C-CAP,S 0.033-25 K B
C613 87-010-190-080 S CHIP F 0.01-50
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-185-080 C-CAP,S 3900P-50 K B
C617 87-010-194-080 CAP, CHIP 0.047-25ZF
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-010-197-080 CAP, CHIP 0.01-25 KB
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C626 87-A11-590-080 CAP, CHIP 0.047-16 KB
C627 87-010-400-080 CAP, ELECT 0.47-50V
C628 87-010-400-080 CAP, ELECT 0.47-50V
C629 87-A11-590-080 CAP, CHIP 0.047-16 KB
C630 87-010-263-080 CAP, ELECT 100-10V
C631 87-010-185-080 C-CAP,S 3900P-50 K B
C632 87-010-185-080 C-CAP,S 3900P-50 K B
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A10-307-080 CAP-M,S 0.1-50
C636 87-A10-307-080 CAP-M,S 0.1-50
C637 87-A10-307-080 CAP-M,S 0.1-50
C638 87-A10-307-080 CAP-M,S 0.1-50
C639 87-010-405-080 CAP, ELECT 10-50V
C644 87-010-401-080 CAP, ELECT 1-50V
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C673 87-010-190-080 C-CAP,S 0.01-50 ZF
C679 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C680 87-010-190-080 C-CAP,S 0.01-50 ZF
C682 87-010-196-080 CHIP CAPACITOR,0.1-25 ZF
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01-25KB
C782 87-010-197-080 CAP, CHIP 0.01-25KB
C783 87-010-197-080 CAP, CHIP 0.01-25KB
C784 87-010-197-080 CAP, CHIP 0.01-25KB
C785 87-010-197-080 CAP, CHIP 0.01-25KB
C786 87-010-197-080 CAP, CHIP 0.01-25KB
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A12-052-080 C-CAP,S 0.033-25 J B
C790 87-A12-052-080 C-CAP,S 0.033-25 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01-25KB
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01-25KB
C796 87-010-197-080 CAP, CHIP 0.01-25KB
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01-25KB
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-010-194-080 CAP, CHIP 0.047-25ZF
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-010-194-080 CAP, CHIP 0.047-25 ZF
C803 87-010-198-080 CAP, CHIP 0.022-25KB
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP, ELECT 3.3-50V
C812 87-010-403-080 CAP, ELECT 3.3-50V
C814 87-010-197-080 CAP, CHIP 0.01-25
C815 87-010-403-080 CAP, ELECT 3.3-50V
C816 87-010-403-080 CAP, ELECT 3.3-50V
C819 87-010-179-080 CAP,CHIP S 1200P-50
C820 87-010-179-080 CAP,CHIP S 1200P-50
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 CAP, CHIP 820P-50 J SL
C824 87-010-405-080 CAP, ELECT 10-50
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01-25 KB
C844 87-010-197-080 CAP, CHIP 0.01-25 KB
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01-25 KB
C852 87-010-197-080 CAP, CHIP 0.01-25 KB
C853 87-010-197-080 CAP, CHIP 0.01-25 KB
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01-25
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 CH
C963 87-015-785-080 CHIP CAPACITOR, 0.1-25ZF
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01-25KB
C974 87-010-197-080 CAP, CHIP 0.01-25KB
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01-25KB
All manuals and user guides at all-guides.com

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C984 87-010-197-080 CAP, CHIP 0.01-25KB
C987 87-010-197-080 CAP, CHIP 0.01-25KB
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P-50
C995 87-010-178-080 CHIP CAP 1000P-50
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, CFSFE10.7MA5
CF832 87-008-261-010 FILTER, CFSFE10.7MA5
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN91 87-A60-109-010 CONN,2P V S2M-2W
CN92 87-A60-109-010 CONN,2P V S2M-2W<7U>
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CNA2 8A-NF6-640-010 CONN ASSY,3P (VM) ANF-6
FB501 87-008-372-080 FILTER, EMI BL OIRNI<8LH>
FC602 88-906-321-110 FF-CABLE,6P 1.25 320MM
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J101 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J102 87-A60-238-010 TERMINAL,SP 4P
J603 87-A60-926-010 JACK,PIN 4P R/W/TC58-118
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L101 87-A50-610-010 COIL,1UH K (MDEC)
L102 87-A50-610-010 COIL,1UH K (MDEC)
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-540-010 COIL,FM DET(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R117 87-010-805-080 C-CAP,S 1-16 ZF
R118 87-010-805-080 C-CAP,S 1-16 ZF
R161 87-A00-441-050 RES,270-1/2W J RP
R162 87-A00-441-050 RES,270-1/2W J RP
R163 87-A00-441-050 RES,270-1/2W J RP
R164 87-A00-441-050 RES,270-1/2W J RP
R790 87-010-197-080 C-CAP,S 0.01-25 KB
R991 87-010-322-080 C-CAP,S 100P-50 J CH
R993 87-010-322-080 C-CAP,S 100P-50 J CH
R995 87-010-322-080 C-CAP,S 100P-50 J CH
SFR351 87-A90-433-080 SFR,50K H NVZ6TLTA
SFR352 87-A90-433-080 SFR,50K H NVZ6TLTA
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
MICON C.B
C101 87-010-498-040 CAP,E 10-16 GAS
C102 87-010-194-080 CAP, CHIP 0.047-25
C103 87-010-194-080 CAP, CHIP 0.047-25
C105 87-A11-242-040 CAP,E 220-10 M 5L SRM
C106 87-A11-242-040 CAP,E 220-10 M 5L SRM
C107 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-016-460-080 C-CAP,S 0.22-16 K B
C112 87-010-493-040 CAP,E 0.47-50 GAS
C113 87-010-178-080 CHIP CAP 1000P-50
C114 87-018-209-080 CAP, TC U 0.01-50
C116 87-010-196-080 CHIP CAPACITOR,0.1-25
C122 87-012-369-080 C-CAP,S 0.047-50F
C123 87-010-408-040 CAP,E 47-50 SME
C124 87-010-421-040 CAP,E 4.7-50 5L
C125 87-010-421-040 CAP,E 4.7-50 5L
C132 87-012-156-080 C-CAP,S 220P-50 CH
C133 87-010-316-080 C-CAP,S 33P-50 CH
C135 87-018-209-080 CAP, TC U 0.01-50
C137 87-010-313-080 CAP, CHIP 18P-50
C138 87-010-196-080 CHIP CAPACITOR,0.1-25
C171 87-010-213-080 C-CAP,S 0.015-50 B
C172 87-010-183-080 C-CAP,S 2700P-50 B
C188 87-010-194-080 CAP, CHIP 0.047-25
C193 87-010-197-080 CAP, CHIP 0.01 DM
C251 87-010-196-080 CHIP CAPACITOR,0.1-25
C252 87-012-156-080 C-CAP,S 220P-50 CH
C253 87-010-322-080 C-CAP,S 100P-50 CH
C301 87-012-358-080 C-CAP,S 0.47-10 F Z
C302 87-010-171-080 C-CAP,S 270P-50 SL
C303 87-012-358-080 C-CAP,S 0.47-10 F Z
C304 87-012-358-080 C-CAP,S 0.47-10 F Z
C305 87-010-196-080 CHIP CAPACITOR,0.1-25
C306 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-405-040 CAP,E 10-50
C411 87-012-157-080 C-CAP,S 330P-50 CH
C412 87-010-405-040 CAP,E 10-50
C421 87-010-197-080 CAP, CHIP 0.01-25
C422 87-010-182-080 C-CAP,S 2200P-50 B
C940 87-012-145-080 CAP, CHIP S 270P-50 J CH
C941 87-012-145-080 CAP, CHIP S 270P CH
C942 87-012-145-080 CAP, CHIP S 270P CH
C943 87-012-145-080 CAP, CHIP S 270P CH
C944 87-012-145-080 CAP, CHIP S 270P CH
C945 87-012-145-080 CAP, CHIP S 270P CH
C946 87-012-145-080 CAP, CHIP S 270P CH
C947 87-012-145-080 CAP, CHIP S 270P CH
C948 87-012-145-080 CAP, CHIP S 270P CH
C949 87-012-145-080 CAP, CHIP S 270P CH
C950 87-012-145-080 CAP, CHIP S 270P CH
C951 87-012-145-080 CAP, CHIP S 270P CH
C952 87-012-145-080 CAP, CHIP S 270P CH
C962 87-012-155-080 C-CAP 180P-50CH<8LH>
C963 87-010-297-080 C-CAP,S 100P-50 CH<8LH>
C967 87-010-197-080 CAP, CHIP 0.01 DM<8LH>
C968 87-016-044-040 CAP,E 100-16 GAS<8LH>
C969 87-010-196-080 CHIP CAPACITOR,0.1-25<8LH>
C972 87-015-629-080 CAP CHIP 2200P-50<8LH>
C973 87-012-156-080 C-CAP,S 220P-50 CH<8LH>
C974 87-015-682-040 CAP,E 22-16 7L<8LH>
C975 87-010-071-040 CAP,E 1-50 M 5L SRE<8LH>
C976 87-010-060-040 CAP,E 100-16<8LH>
C977 87-010-197-080 CAP, CHIP 0.01-25<8LH>
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-A60-162-010 CONN,14P H FE
CN103 87-A60-166-010 CONN,18P H FE
CN104 87-A60-163-010 CONN,15P H FE
CN301 87-A60-156-010 CONN,8P H FE
CNA105 8A-MA3-654-010 CONN ASSY,2P V 200MM
FB001 87-A90-896-080 F-BEAD,035600STY7
FC102 88-914-231-110 FF-CABLE,14P 1.25
FC103 88-918-231-110 FF-CABLE,18P 1.25
FC104 88-915-151-110 FF-CABLE,15P 1.25 150MM
FL101 8A-MA3-651-010 FL,BJ751GNK
L101 87-A50-333-010 COIL,OSC 9.43MHZ
L961 87-A50-093-010 COIL,CLOCK 5.76MHZ<8LH>
LED131 87-A40-317-080 LED,SLR-342VCT31 RED
LED201 87-A40-496-040 LED,SLR-342PCT31 GRN
LED202 87-A40-317-080 LED,SLR-342VCT31 RED
LED203 87-A40-496-040 LED,SLR-342PCT31 GRN
LED205 87-A40-317-080 LED,SLR-342VCT31 RED
LED206 87-A40-496-040 LED,SLR-342PCT31 GRN
LED207 87-A40-317-080 LED,SLR-342VCT31 RED
LED209 87-A40-496-040 LED,SLR-342PCT31 GRN
LED210 87-A40-317-080 LED,SLR-342VCT31 RED
All manuals and user guides at all-guides.com

– 9 –

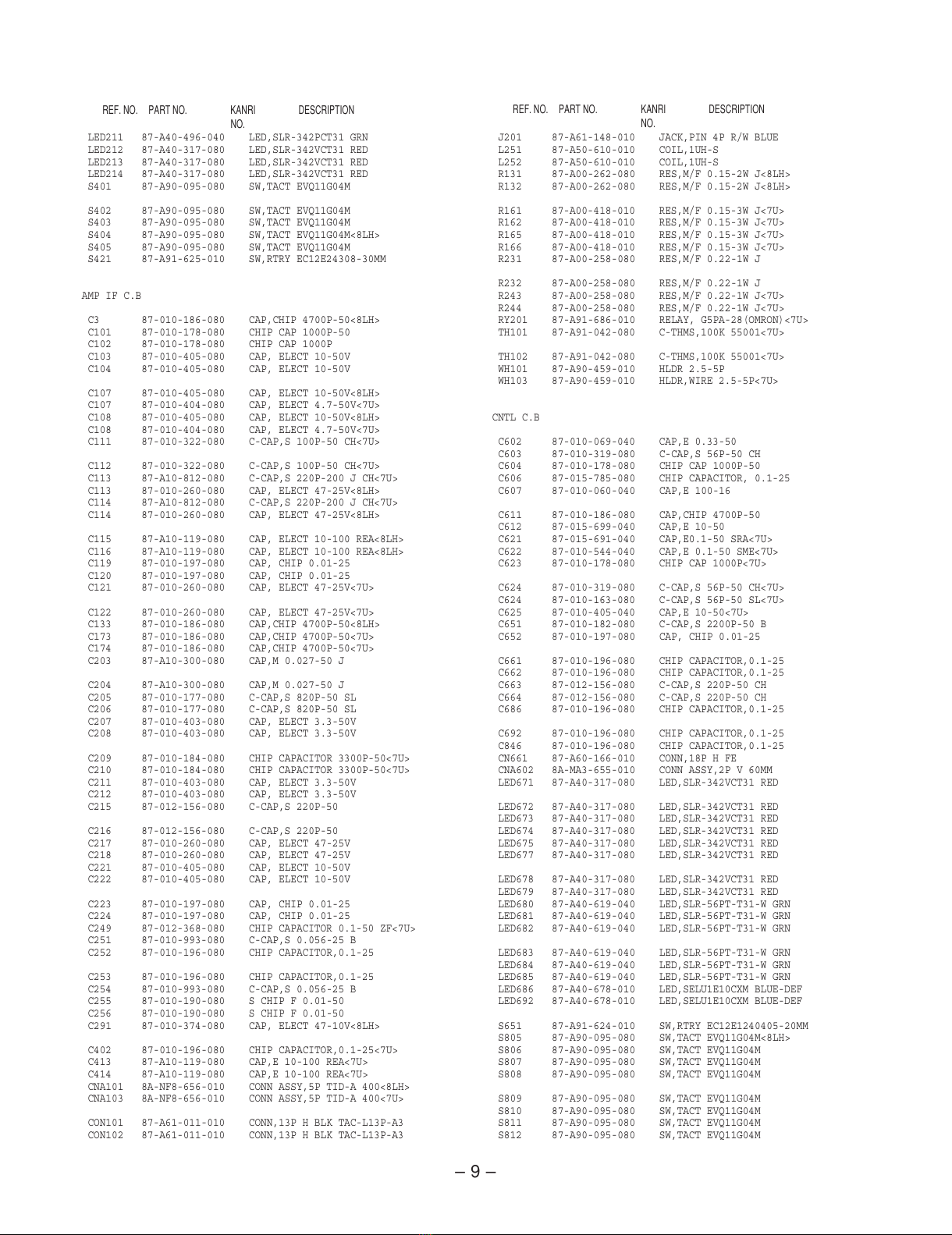

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
LED211 87-A40-496-040 LED,SLR-342PCT31 GRN
LED212 87-A40-317-080 LED,SLR-342VCT31 RED
LED213 87-A40-317-080 LED,SLR-342VCT31 RED
LED214 87-A40-317-080 LED,SLR-342VCT31 RED
S401 87-A90-095-080 SW,TACT EVQ11G04M
S402 87-A90-095-080 SW,TACT EVQ11G04M
S403 87-A90-095-080 SW,TACT EVQ11G04M
S404 87-A90-095-080 SW,TACT EVQ11G04M<8LH>
S405 87-A90-095-080 SW,TACT EVQ11G04M
S421 87-A91-625-010 SW,RTRY EC12E24308-30MM
AMP IF C.B
C3 87-010-186-080 CAP,CHIP 4700P-50<8LH>
C101 87-010-178-080 CHIP CAP 1000P-50
C102 87-010-178-080 CHIP CAP 1000P
C103 87-010-405-080 CAP, ELECT 10-50V
C104 87-010-405-080 CAP, ELECT 10-50V
C107 87-010-405-080 CAP, ELECT 10-50V<8LH>
C107 87-010-404-080 CAP, ELECT 4.7-50V<7U>
C108 87-010-405-080 CAP, ELECT 10-50V<8LH>
C108 87-010-404-080 CAP, ELECT 4.7-50V<7U>
C111 87-010-322-080 C-CAP,S 100P-50 CH<7U>
C112 87-010-322-080 C-CAP,S 100P-50 CH<7U>
C113 87-A10-812-080 C-CAP,S 220P-200 J CH<7U>
C113 87-010-260-080 CAP, ELECT 47-25V<8LH>
C114 87-A10-812-080 C-CAP,S 220P-200 J CH<7U>
C114 87-010-260-080 CAP, ELECT 47-25V<8LH>
C115 87-A10-119-080 CAP, ELECT 10-100 REA<8LH>
C116 87-A10-119-080 CAP, ELECT 10-100 REA<8LH>
C119 87-010-197-080 CAP, CHIP 0.01-25
C120 87-010-197-080 CAP, CHIP 0.01-25
C121 87-010-260-080 CAP, ELECT 47-25V<7U>
C122 87-010-260-080 CAP, ELECT 47-25V<7U>
C133 87-010-186-080 CAP,CHIP 4700P-50<8LH>
C173 87-010-186-080 CAP,CHIP 4700P-50<7U>
C174 87-010-186-080 CAP,CHIP 4700P-50<7U>
C203 87-A10-300-080 CAP,M 0.027-50 J
C204 87-A10-300-080 CAP,M 0.027-50 J
C205 87-010-177-080 C-CAP,S 820P-50 SL
C206 87-010-177-080 C-CAP,S 820P-50 SL
C207 87-010-403-080 CAP, ELECT 3.3-50V
C208 87-010-403-080 CAP, ELECT 3.3-50V
C209 87-010-184-080 CHIP CAPACITOR 3300P-50<7U>
C210 87-010-184-080 CHIP CAPACITOR 3300P-50<7U>
C211 87-010-403-080 CAP, ELECT 3.3-50V
C212 87-010-403-080 CAP, ELECT 3.3-50V
C215 87-012-156-080 C-CAP,S 220P-50
C216 87-012-156-080 C-CAP,S 220P-50
C217 87-010-260-080 CAP, ELECT 47-25V
C218 87-010-260-080 CAP, ELECT 47-25V
C221 87-010-405-080 CAP, ELECT 10-50V
C222 87-010-405-080 CAP, ELECT 10-50V
C223 87-010-197-080 CAP, CHIP 0.01-25
C224 87-010-197-080 CAP, CHIP 0.01-25
C249 87-012-368-080 CHIP CAPACITOR 0.1-50 ZF<7U>
C251 87-010-993-080 C-CAP,S 0.056-25 B
C252 87-010-196-080 CHIP CAPACITOR,0.1-25
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-010-993-080 C-CAP,S 0.056-25 B
C255 87-010-190-080 S CHIP F 0.01-50
C256 87-010-190-080 S CHIP F 0.01-50
C291 87-010-374-080 CAP, ELECT 47-10V<8LH>
C402 87-010-196-080 CHIP CAPACITOR,0.1-25<7U>
C413 87-A10-119-080 CAP,E 10-100 REA<7U>
C414 87-A10-119-080 CAP,E 10-100 REA<7U>
CNA101 8A-NF8-656-010 CONN ASSY,5P TID-A 400<8LH>
CNA103 8A-NF8-656-010 CONN ASSY,5P TID-A 400<7U>
CON101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CON102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
J201 87-A61-148-010 JACK,PIN 4P R/W BLUE
L251 87-A50-610-010 COIL,1UH-S
L252 87-A50-610-010 COIL,1UH-S
R131 87-A00-262-080 RES,M/F 0.15-2W J<8LH>
R132 87-A00-262-080 RES,M/F 0.15-2W J<8LH>
R161 87-A00-418-010 RES,M/F 0.15-3W J<7U>
R162 87-A00-418-010 RES,M/F 0.15-3W J<7U>
R165 87-A00-418-010 RES,M/F 0.15-3W J<7U>
R166 87-A00-418-010 RES,M/F 0.15-3W J<7U>
R231 87-A00-258-080 RES,M/F 0.22-1W J
R232 87-A00-258-080 RES,M/F 0.22-1W J
R243 87-A00-258-080 RES,M/F 0.22-1W J<7U>
R244 87-A00-258-080 RES,M/F 0.22-1W J<7U>
RY201 87-A91-686-010 RELAY, G5PA-28(OMRON)<7U>
TH101 87-A91-042-080 C-THMS,100K 55001<7U>
TH102 87-A91-042-080 C-THMS,100K 55001<7U>
WH101 87-A90-459-010 HLDR 2.5-5P
WH103 87-A90-459-010 HLDR,WIRE 2.5-5P<7U>
CNTL C.B
C602 87-010-069-040 CAP,E 0.33-50
C603 87-010-319-080 C-CAP,S 56P-50 CH
C604 87-010-178-080 CHIP CAP 1000P-50
C606 87-015-785-080 CHIP CAPACITOR, 0.1-25
C607 87-010-060-040 CAP,E 100-16
C611 87-010-186-080 CAP,CHIP 4700P-50
C612 87-015-699-040 CAP,E 10-50
C621 87-015-691-040 CAP,E0.1-50 SRA<7U>
C622 87-010-544-040 CAP,E 0.1-50 SME<7U>
C623 87-010-178-080 CHIP CAP 1000P<7U>
C624 87-010-319-080 C-CAP,S 56P-50 CH<7U>
C624 87-010-163-080 C-CAP,S 56P-50 SL<7U>
C625 87-010-405-040 CAP,E 10-50<7U>
C651 87-010-182-080 C-CAP,S 2200P-50 B
C652 87-010-197-080 CAP, CHIP 0.01-25
C661 87-010-196-080 CHIP CAPACITOR,0.1-25
C662 87-010-196-080 CHIP CAPACITOR,0.1-25
C663 87-012-156-080 C-CAP,S 220P-50 CH
C664 87-012-156-080 C-CAP,S 220P-50 CH
C686 87-010-196-080 CHIP CAPACITOR,0.1-25
C692 87-010-196-080 CHIP CAPACITOR,0.1-25
C846 87-010-196-080 CHIP CAPACITOR,0.1-25
CN661 87-A60-166-010 CONN,18P H FE
CNA602 8A-MA3-655-010 CONN ASSY,2P V 60MM
LED671 87-A40-317-080 LED,SLR-342VCT31 RED
LED672 87-A40-317-080 LED,SLR-342VCT31 RED
LED673 87-A40-317-080 LED,SLR-342VCT31 RED
LED674 87-A40-317-080 LED,SLR-342VCT31 RED
LED675 87-A40-317-080 LED,SLR-342VCT31 RED
LED677 87-A40-317-080 LED,SLR-342VCT31 RED
LED678 87-A40-317-080 LED,SLR-342VCT31 RED
LED679 87-A40-317-080 LED,SLR-342VCT31 RED
LED680 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED681 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED682 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED683 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED684 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED685 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED686 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED692 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
S651 87-A91-624-010 SW,RTRY EC12E1240405-20MM
S805 87-A90-095-080 SW,TACT EVQ11G04M<8LH>
S806 87-A90-095-080 SW,TACT EVQ11G04M
S807 87-A90-095-080 SW,TACT EVQ11G04M
S808 87-A90-095-080 SW,TACT EVQ11G04M
S809 87-A90-095-080 SW,TACT EVQ11G04M
S810 87-A90-095-080 SW,TACT EVQ11G04M
S811 87-A90-095-080 SW,TACT EVQ11G04M
S812 87-A90-095-080 SW,TACT EVQ11G04M
All manuals and user guides at all-guides.com

– 10 –
!
!
!
!
!
!
!
!
!

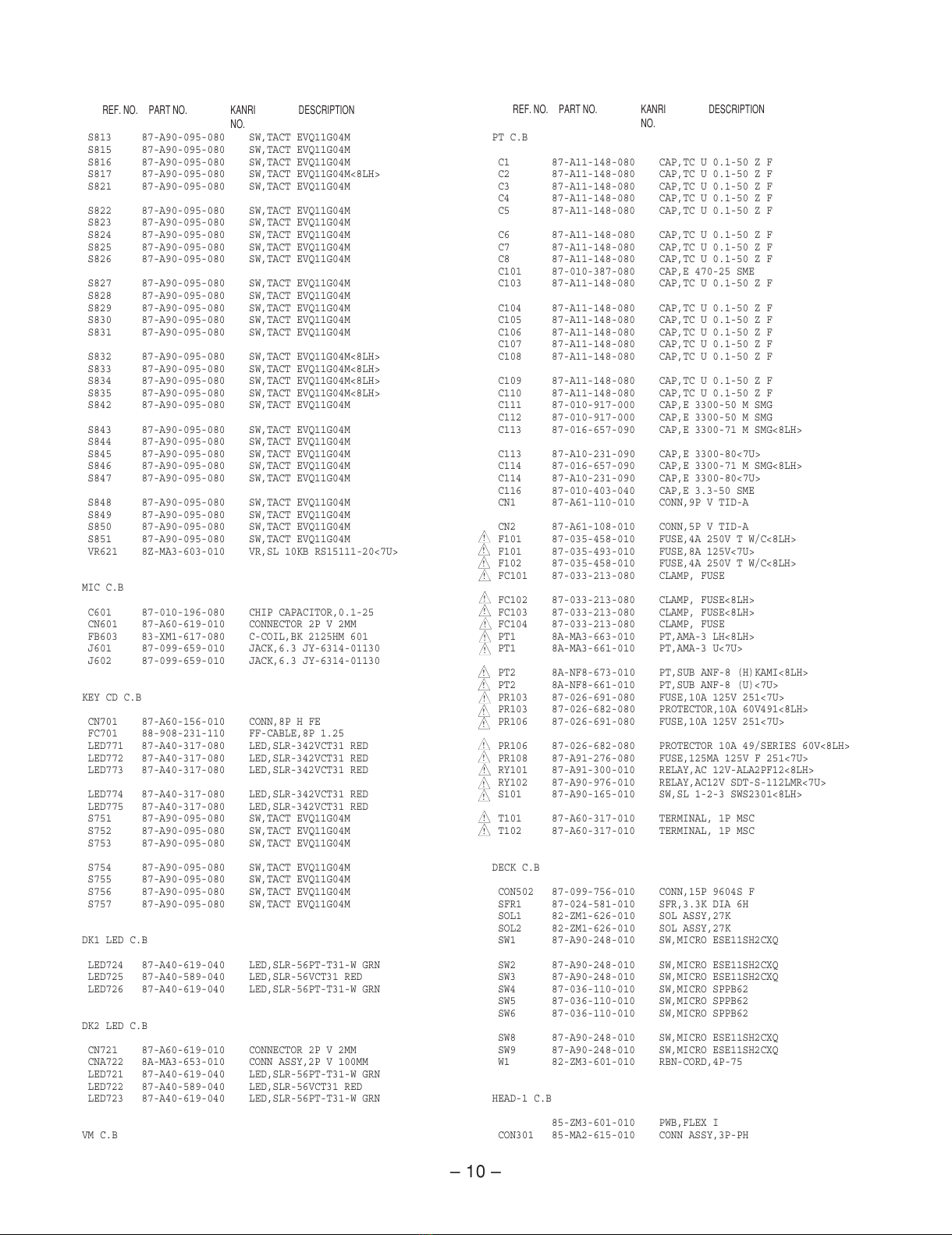

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
S813 87-A90-095-080 SW,TACT EVQ11G04M
S815 87-A90-095-080 SW,TACT EVQ11G04M
S816 87-A90-095-080 SW,TACT EVQ11G04M
S817 87-A90-095-080 SW,TACT EVQ11G04M<8LH>
S821 87-A90-095-080 SW,TACT EVQ11G04M
S822 87-A90-095-080 SW,TACT EVQ11G04M
S823 87-A90-095-080 SW,TACT EVQ11G04M
S824 87-A90-095-080 SW,TACT EVQ11G04M
S825 87-A90-095-080 SW,TACT EVQ11G04M
S826 87-A90-095-080 SW,TACT EVQ11G04M
S827 87-A90-095-080 SW,TACT EVQ11G04M
S828 87-A90-095-080 SW,TACT EVQ11G04M
S829 87-A90-095-080 SW,TACT EVQ11G04M
S830 87-A90-095-080 SW,TACT EVQ11G04M
S831 87-A90-095-080 SW,TACT EVQ11G04M
S832 87-A90-095-080 SW,TACT EVQ11G04M<8LH>
S833 87-A90-095-080 SW,TACT EVQ11G04M<8LH>
S834 87-A90-095-080 SW,TACT EVQ11G04M<8LH>
S835 87-A90-095-080 SW,TACT EVQ11G04M<8LH>
S842 87-A90-095-080 SW,TACT EVQ11G04M
S843 87-A90-095-080 SW,TACT EVQ11G04M
S844 87-A90-095-080 SW,TACT EVQ11G04M
S845 87-A90-095-080 SW,TACT EVQ11G04M
S846 87-A90-095-080 SW,TACT EVQ11G04M
S847 87-A90-095-080 SW,TACT EVQ11G04M
S848 87-A90-095-080 SW,TACT EVQ11G04M
S849 87-A90-095-080 SW,TACT EVQ11G04M
S850 87-A90-095-080 SW,TACT EVQ11G04M
S851 87-A90-095-080 SW,TACT EVQ11G04M
VR621 8Z-MA3-603-010 VR,SL 10KB RS15111-20<7U>
MIC C.B
C601 87-010-196-080 CHIP CAPACITOR,0.1-25
CN601 87-A60-619-010 CONNECTOR 2P V 2MM
FB603 83-XM1-617-080 C-COIL,BK 2125HM 601
J601 87-099-659-010 JACK,6.3 JY-6314-01130
J602 87-099-659-010 JACK,6.3 JY-6314-01130
KEY CD C.B
CN701 87-A60-156-010 CONN,8P H FE
FC701 88-908-231-110 FF-CABLE,8P 1.25
LED771 87-A40-317-080 LED,SLR-342VCT31 RED
LED772 87-A40-317-080 LED,SLR-342VCT31 RED
LED773 87-A40-317-080 LED,SLR-342VCT31 RED
LED774 87-A40-317-080 LED,SLR-342VCT31 RED
LED775 87-A40-317-080 LED,SLR-342VCT31 RED
S751 87-A90-095-080 SW,TACT EVQ11G04M
S752 87-A90-095-080 SW,TACT EVQ11G04M
S753 87-A90-095-080 SW,TACT EVQ11G04M
S754 87-A90-095-080 SW,TACT EVQ11G04M
S755 87-A90-095-080 SW,TACT EVQ11G04M
S756 87-A90-095-080 SW,TACT EVQ11G04M
S757 87-A90-095-080 SW,TACT EVQ11G04M
DK1 LED C.B
LED724 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED725 87-A40-589-040 LED,SLR-56VCT31 RED
LED726 87-A40-619-040 LED,SLR-56PT-T31-W GRN
DK2 LED C.B
CN721 87-A60-619-010 CONNECTOR 2P V 2MM
CNA722 8A-MA3-653-010 CONN ASSY,2P V 100MM
LED721 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED722 87-A40-589-040 LED,SLR-56VCT31 RED
LED723 87-A40-619-040 LED,SLR-56PT-T31-W GRN
VM C.B
PT C.B
C1 87-A11-148-080 CAP,TC U 0.1-50 Z F
C2 87-A11-148-080 CAP,TC U 0.1-50 Z F
C3 87-A11-148-080 CAP,TC U 0.1-50 Z F
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-A11-148-080 CAP,TC U 0.1-50 Z F
C7 87-A11-148-080 CAP,TC U 0.1-50 Z F
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C101 87-010-387-080 CAP,E 470-25 SME
C103 87-A11-148-080 CAP,TC U 0.1-50 Z F
C104 87-A11-148-080 CAP,TC U 0.1-50 Z F
C105 87-A11-148-080 CAP,TC U 0.1-50 Z F
C106 87-A11-148-080 CAP,TC U 0.1-50 Z F
C107 87-A11-148-080 CAP,TC U 0.1-50 Z F
C108 87-A11-148-080 CAP,TC U 0.1-50 Z F
C109 87-A11-148-080 CAP,TC U 0.1-50 Z F
C110 87-A11-148-080 CAP,TC U 0.1-50 Z F
C111 87-010-917-000 CAP,E 3300-50 M SMG
C112 87-010-917-000 CAP,E 3300-50 M SMG
C113 87-016-657-090 CAP,E 3300-71 M SMG<8LH>
C113 87-A10-231-090 CAP,E 3300-80<7U>
C114 87-016-657-090 CAP,E 3300-71 M SMG<8LH>
C114 87-A10-231-090 CAP,E 3300-80<7U>
C116 87-010-403-040 CAP,E 3.3-50 SME
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-108-010 CONN,5P V TID-A
F101 87-035-458-010 FUSE,4A 250V T W/C<8LH>
F101 87-035-493-010 FUSE,8A 125V<7U>
F102 87-035-458-010 FUSE,4A 250V T W/C<8LH>
FC101 87-033-213-080 CLAMP, FUSE
FC102 87-033-213-080 CLAMP, FUSE<8LH>
FC103 87-033-213-080 CLAMP, FUSE<8LH>
FC104 87-033-213-080 CLAMP, FUSE
PT1 8A-MA3-663-010 PT,AMA-3 LH<8LH>
PT1 8A-MA3-661-010 PT,AMA-3 U<7U>
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI<8LH>
PT2 8A-NF8-661-010 PT,SUB ANF-8 (U)<7U>
PR103 87-026-691-080 FUSE,10A 125V 251<7U>
PR103 87-026-682-080 PROTECTOR,10A 60V491<8LH>
PR106 87-026-691-080 FUSE,10A 125V 251<7U>
PR106 87-026-682-080 PROTECTOR 10A 49/SERIES 60V<8LH>
PR108 87-A91-276-080 FUSE,125MA 125V F 251<7U>
RY101 87-A91-300-010 RELAY,AC 12V-ALA2PF12<8LH>
RY102 87-A90-976-010 RELAY,AC12V SDT-S-112LMR<7U>
S101 87-A90-165-010 SW,SL 1-2-3 SWS2301<8LH>
T101 87-A60-317-010 TERMINAL, 1P MSC
T102 87-A60-317-010 TERMINAL, 1P MSC
DECK C.B
CON502 87-099-756-010 CONN,15P 9604S F
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-626-010 SOL ASSY,27K
SOL2 82-ZM1-626-010 SOL ASSY,27K
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-036-110-010 SW,MICRO SPPB62
SW5 87-036-110-010 SW,MICRO SPPB62
SW6 87-036-110-010 SW,MICRO SPPB62
SW8 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN-CORD,4P-75
HEAD-1 C.B
85-ZM3-601-010 PWB,FLEX I
CON301 85-MA2-615-010 CONN ASSY,3P-PH
!
!
!
!
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com

– 11 –
88
A
Resistor Code

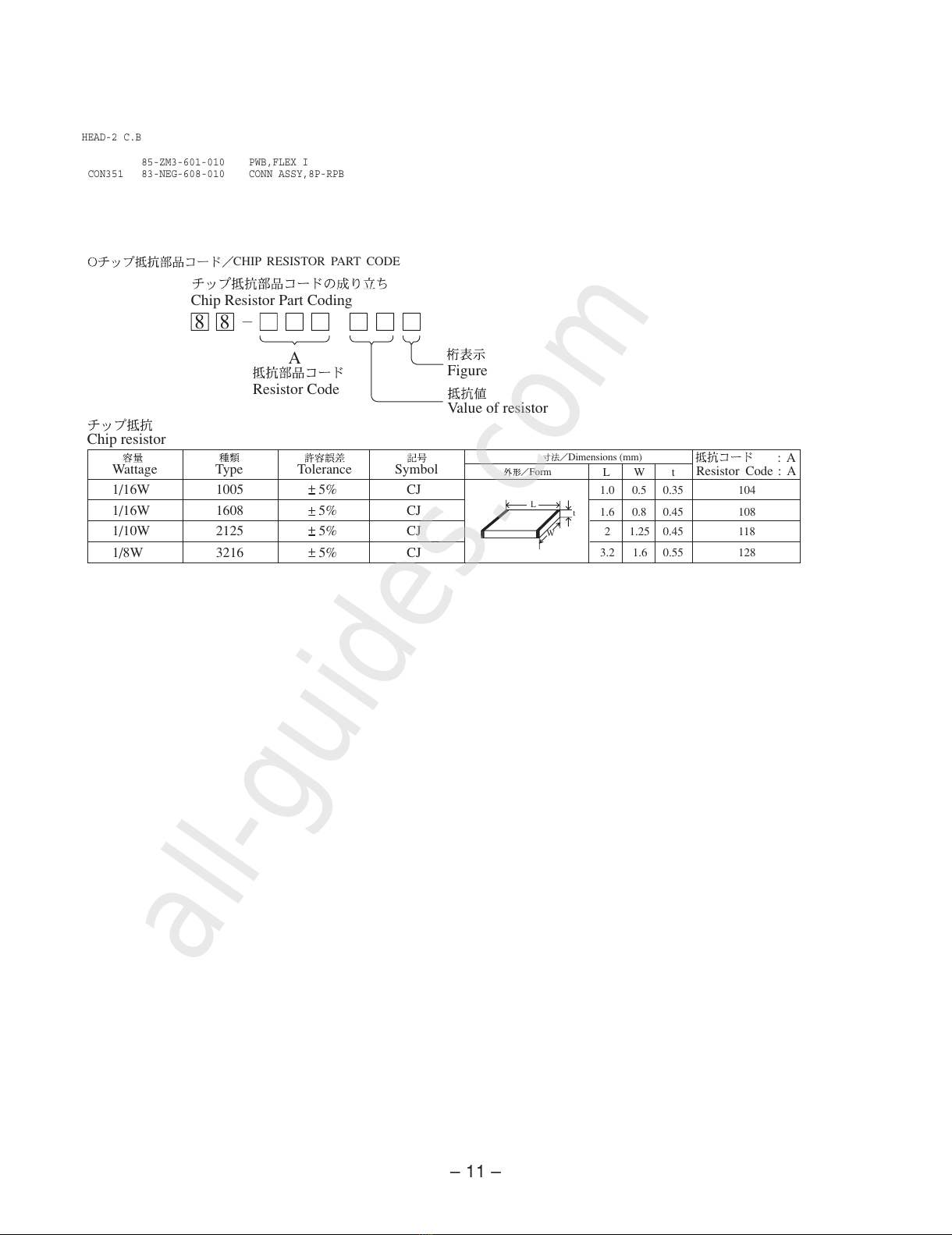

Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
HEAD-2 C.B
85-ZM3-601-010 PWB,FLEX I
CON351 83-NEG-608-010 CONN ASSY,8P-RPB
All manuals and user guides at all-guides.com
all-guides.com

– 12 –
TRANSISTOR ILLUSTRATION
E C B
CD1585
CSA952
CSC4115
KTA1266
KTC3198
KTC3199
E C B
CC5551 2SB1370
FN1016
FP1016
2SA933
DTC114ES
2SB1237
E C B B C E
2SK3053
G D S
E
B
C
2SA1235
2SC2714
2SC3052
2SD1306
CMBT5401
CMBT5551
E C B
KRA102
KRA104
KRA107
KRC102
RT1N141C
RT1P141C
S
G
D
2SJ461-T1
2SK2158
All manuals and user guides at all-guides.com

WIRING - 1 (MAIN / VM)
– 13 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com

– 14 –

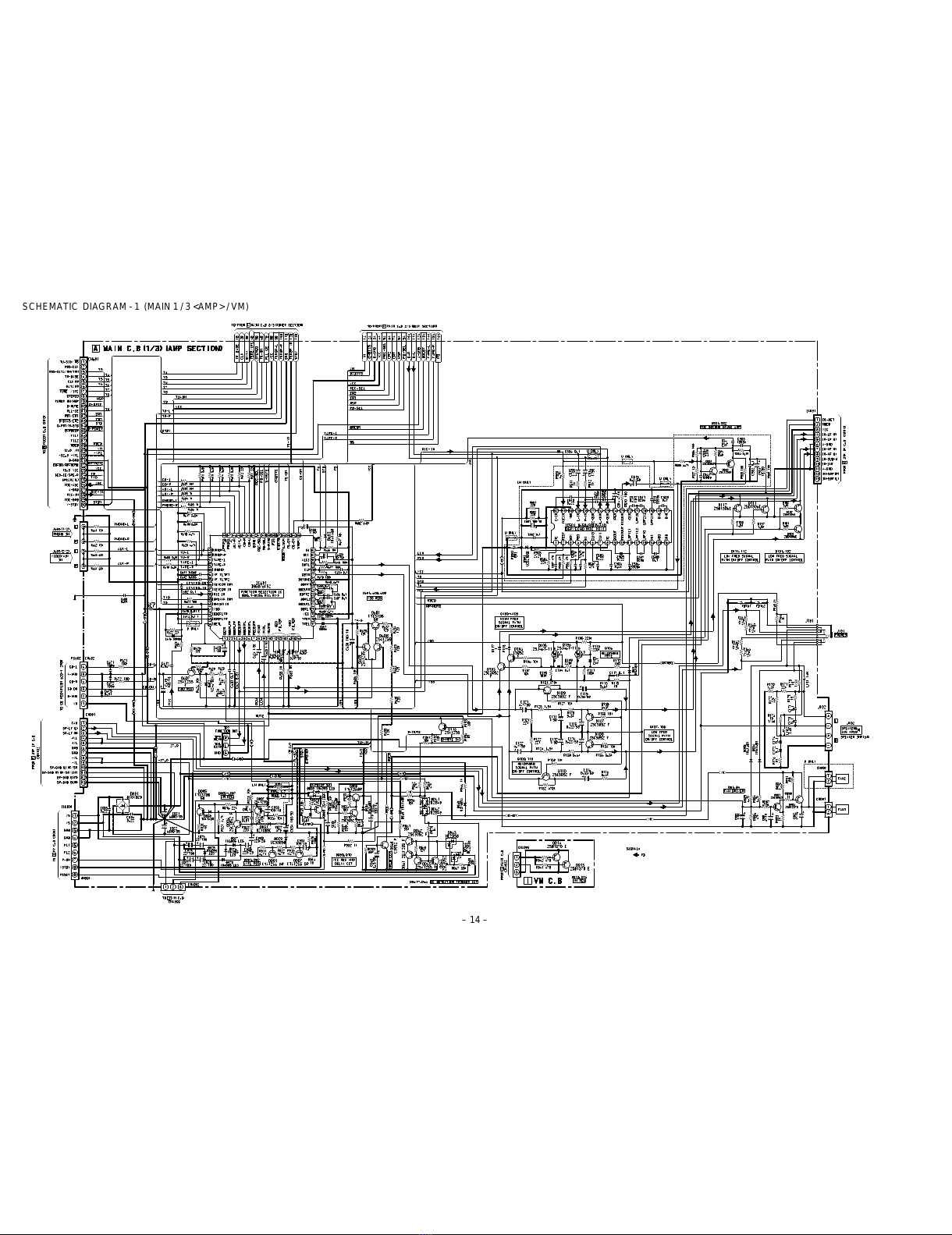

SCHEMATIC DIAGRAM - 1 (MAIN 1 / 3 <AMP> / VM)
All manuals and user guides at all-guides.com

– 15 –

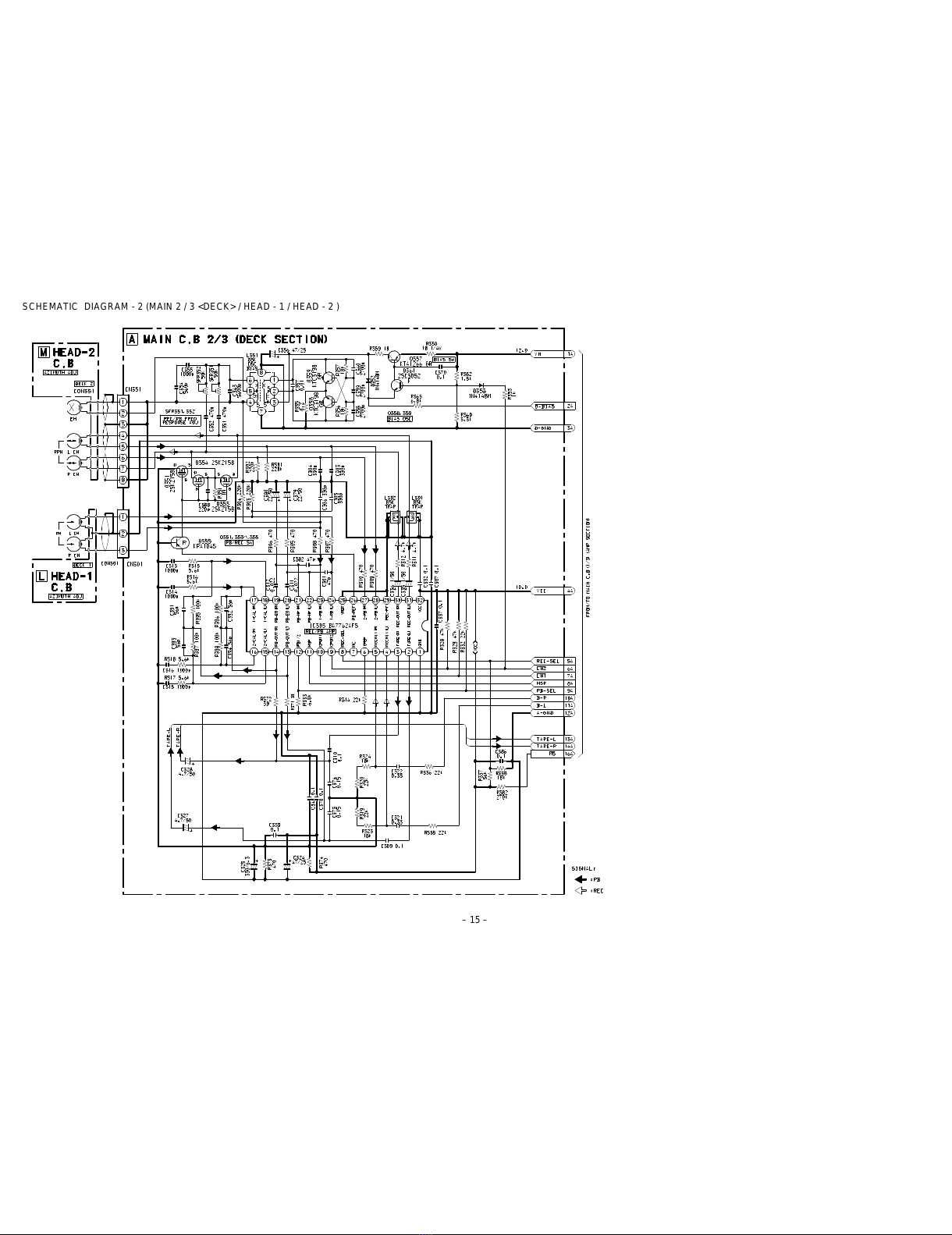

SCHEMATIC DIAGRAM - 2 (MAIN 2 / 3 <DECK> / HEAD - 1 / HEAD - 2 )
All manuals and user guides at all-guides.com

– 16 –
SCHEMATIC DIAGRAM - 3 (MAIN 3 / 3 <TUNER>)
All manuals and user guides at all-guides.com
all-guides.com

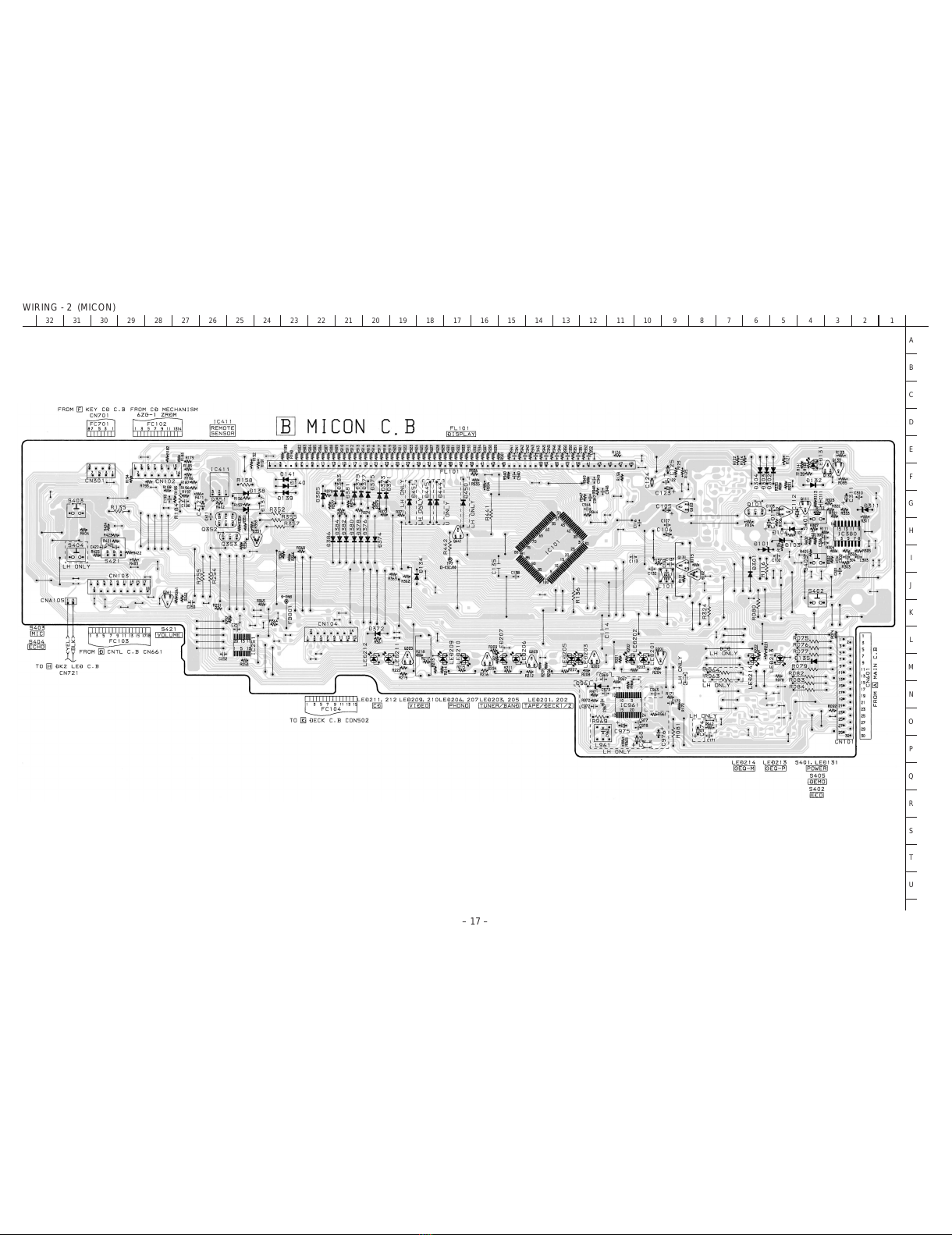

WIRING - 2 (MICON)
– 17 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com

– 18 –
SCHEMATIC DIAGRAM - 4 (MICON / DECK)
All manuals and user guides at all-guides.com

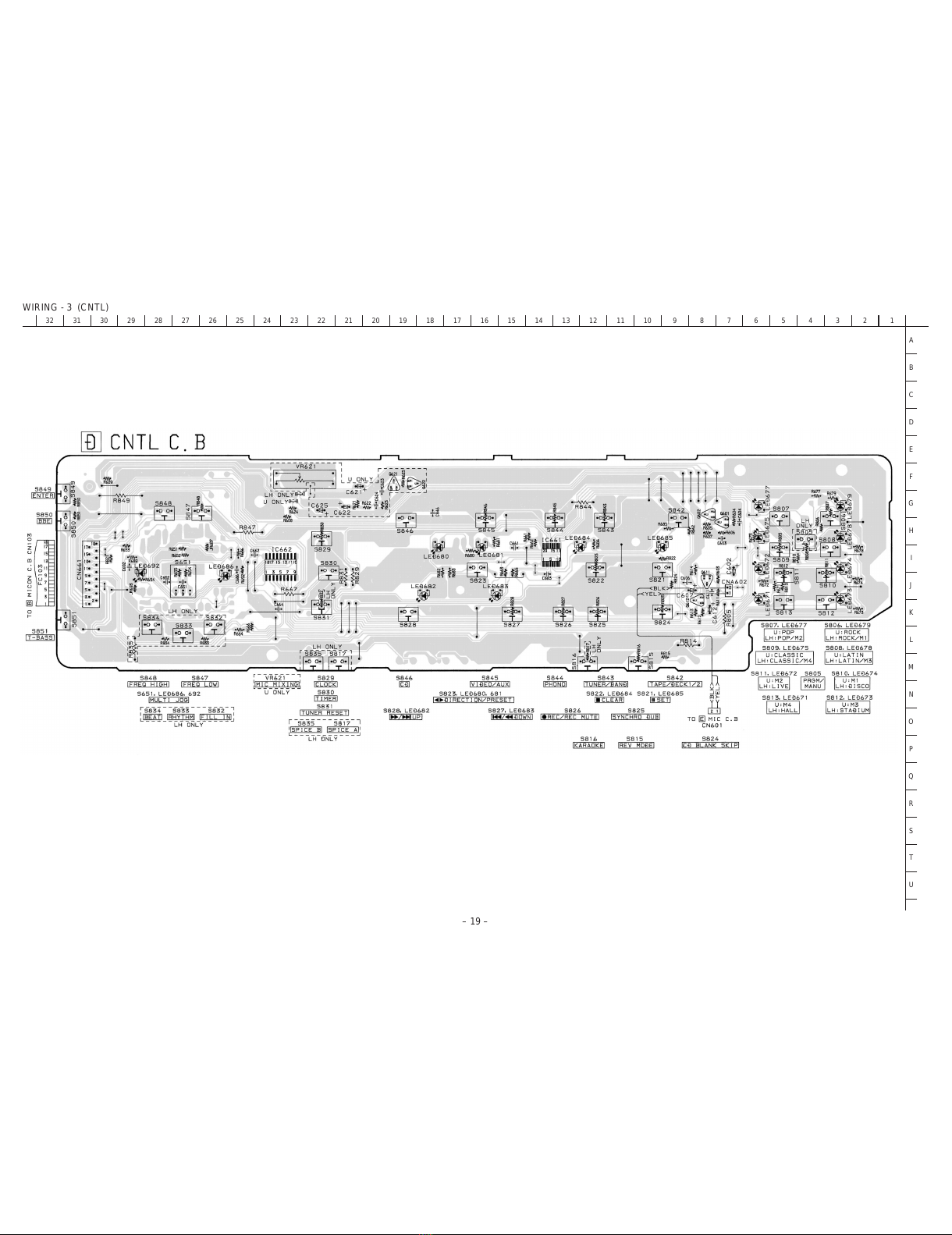

WIRING - 3 (CNTL)
– 19 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com

– 20 –
SCHEMATIC DIAGRAM - 5 (CNTL / MIC / KEY CD / DK1 LED / DK2 LED)
All manuals and user guides at all-guides.com
